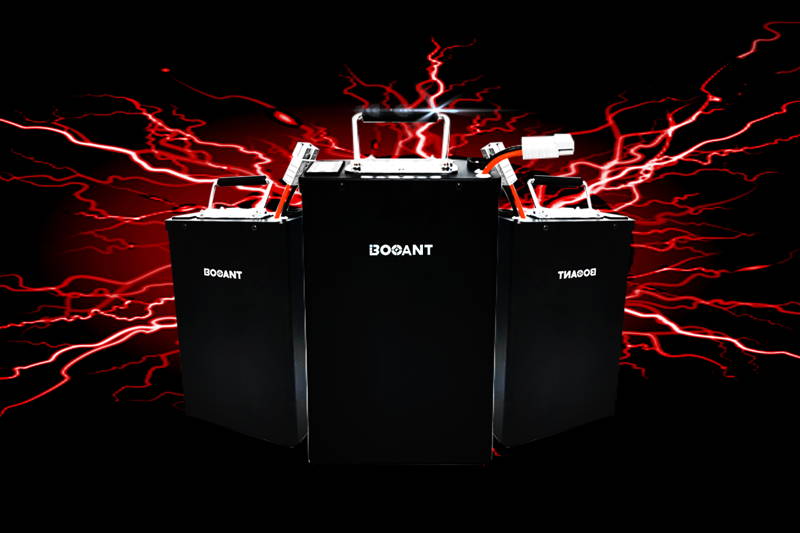

This Bluetooth 60V 80Ah Lithium Battery 100A BMS provides 5500W of powerful motor energy.

With fast charging capabilities, enjoy up to 1200 cycles for extended use and up to 100A maximum

continuous discharge. Rely on this BMS for reliable power you can trust.

Battery Model: 60V 80Ah

Nominal Voltage: 59.2V

Nominal Capacity: 80Ah

Cell Specification : Lithium 21700 5000mAh 3.7V Cell

Cell Brand: SAMSUNG

Cell OverCharge Protection Voltage: 4.2V/Cell

Cell Overdischarge Protection Voltage: 2.8V/cell

Cell Combination: 16 Series 16 Paralles

Cell Quantity (parallel x series): 256 pcs

BMS Brand: JIKONG ( JK )

BMS Discharge Current: 100A(Can be customized)

80A BMS Suitable Motor: Less than 60V 4500W(MAX) Motor
60A BMS Suitable Motor: Less than 60V 3500W(MAX) Motor
50A BMS Suitable Motor: Less than 60V 3000W(MAX) Motor
100A BMS Suitable Motor: Less than 60V 5500W(MAX) Motor

Discharge Cutoff Voltage (V): 44.8V+/-0.5V

Charge Cutoff Voltage (V): 67.2V+/-0.5V

Rated Discharge Current (A): 80A

Maximum peak discharge current (A): 200A

Maximum Continuous Discharge Current (A): 100A

Charger mode: CC/CV

Standard Charge Current (A): 2A

Max Fast Charge Current (A): 20A

Charge Time under 20A Fast Charge Current: approx 4--6 hours

Battery Weight: about 20 kg (With Iron Case)

Cycle life: ≥80% capacity after 1200 cycles.

Discharge Temperature: -20 to 65°C

Charge Temperature: 0 to 45°C

1. Battery Pack *1

2. 67.2V 20A Charger *1

3. AC Power Cable *1

4. Discharge Extension Cable *1

5. Battery Fireproof Bag * 1

MEET DIFFERENT DISCHARGE PLUG OPTIONS : (Contact US)

APPROPRIATE AC POWER CABLES FOR DIFFERENT COUNTRIES :

BATTERY USAGE PRECAUTIONS : (IMPORTANT)

Don't hit, pierce, strike, trample or throw the battery.

Don't put the battery in the water, keep the battery cool and dry condition .

Don't put the battery near a heat source such as fire or heater.

Use the specified charger that come with the battery.

Don't reverse the position and negative pole.

Don't connect the positive and negative terminals with metal objects which would cause short circuit

Don't transport or store the battery with metal objects together , such as hairpins, necklaces, etc.

Everything you need to know about batteries are chargers from other manufacturers safe to use?

Booant chargers are adapted specifically to the Booant batteries Using a different charger may reduce the service life of the batteries or cause other damage or malfunctions in the eBike system.

Can Booant batteries be opened to replace individual cells?

Booant eBike batteries must never be opened – not even if they are being repaired by third parties. Opening the battery always means interfering with the condition approved by Booant and entails safety-related risks. once opened, may catch fire during assembly due to crushed or incorrectly routed cables, detached components or poor quality electrical connections.

After opening, the seal of the housing can no longer be guaranteed, so that the ingress of water or dust can lead to damage to the monitoring electronics (Battery Management System) or to the cells.

For battery packs, we offer up to 12 months free warranty.

For Chargers, we provide up to 12 months free warranty.

If there is any problem with the battery under normal use, please contact us and we will have professionals to solve your problem.

If you need one kind of battery which can’t find in our store, we also accept customization service for you, and supports OEM service.
