BOOANT Battery Pack Mainly Use Original SAMSUNG, Panasonic, LG, Etc Cells.
Stay on the go longer with the BOOANT Scooter Battery, featuring a 36V 12Ah power capacity and a 5A charger to power your 700W motor.
Its high-quality construction and durability ensure a long-lasting and reliable ride.

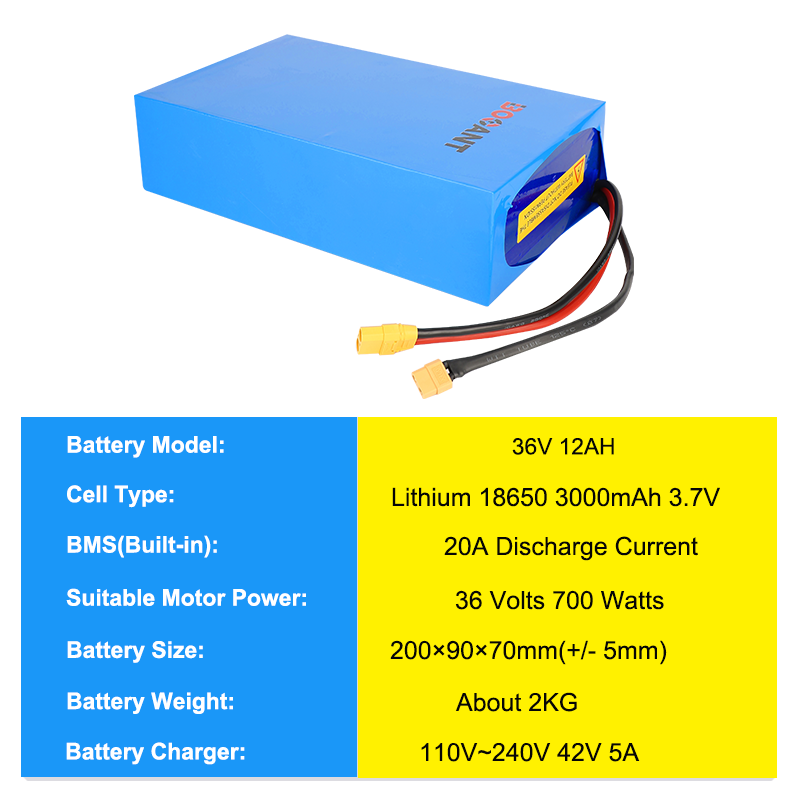

Battery Model: 36V 12Ah
Nominal Voltage: 36V
Nominal Capacity: 12Ah
Cell Specification : Lithium 18650 3000mAh 3.7V Cell
Cell Brand: SAMSUNG 30Q
Cell OverCharge Protection Voltage: 4.2V/Cell
Cell Overdischarge Protection Voltage: 2.8V/cell
Cell Combination: 10 Series 4 Paralles
Cell Quantity (parallel x series): 40 pcs
BMS: 20A(Can be customized)
20A BMS Suitable Motor: Less than 36V 700W(MAX) Motor
Discharge Cutoff Voltage (V): 28V+/-0.5V
Charge Cutoff Voltage (V): 42V+/-0.5V
Rated Discharge Current (A): 12A
Maximum peak discharge current (A): 60A
Maximum Continuous Discharge Current (A): 20A
Charger mode: CC/CV
Standard Charge Current (A): 5A
Max Fast Charge Current (A): 20A
Charge Time under 5A Fast Charge Current: approx 3--4 hours
Battery Weight: about 2 kg

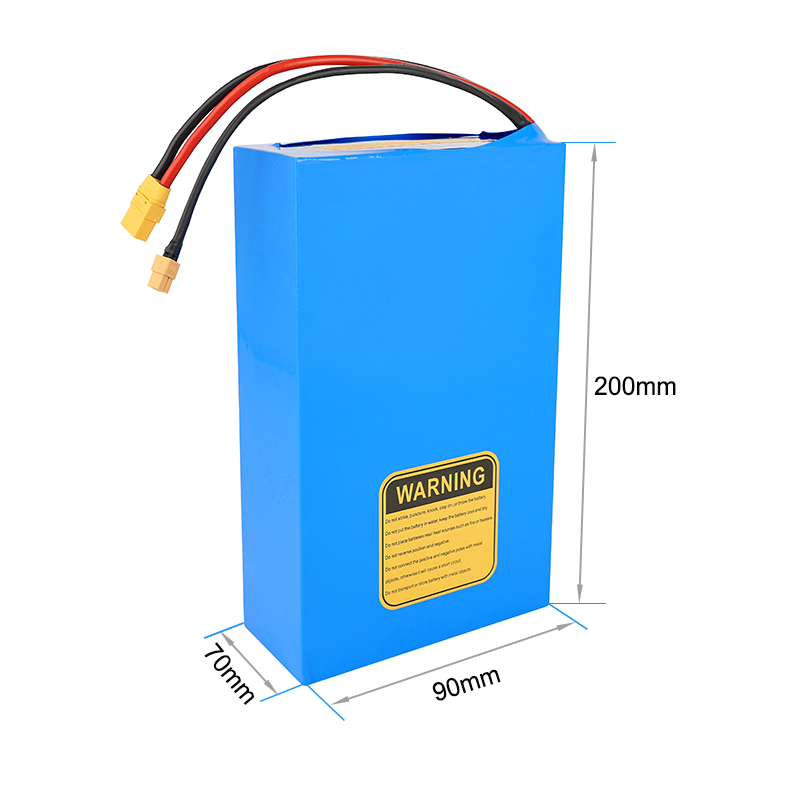

Battery Size: 200*90*70mm(+/-5mm)
Cycle life: ≥80% capacity after 1000 cycles.
Discharge Temperature: -20 to 65°C
Charge Temperature: 0 to 45°C
1. Battery Pack *1
2. 42V 5A Charger *1
3. AC Power Cable *1
MEET DIFFERENT DISCHARGE PLUG OPTIONS : (Contact us)
APPROPRIATE AC POWER CABLES FOR DIFFERENT COUNTRIES :
BATTERY USAGE PRECAUTIONS : (IMPORTANT)
Don't hit, pierce, strike, trample or throw the battery.
Don't put the battery in the water, keep the battery cool and dry condition .
Don't put the battery near a heat source such as fire or heater.
Use the specified charger that come with the battery.
Don't reverse the position and negative pole.
Don't connect the positive and negative terminals with metal objects which would cause short circuit
Don't transport or store the battery with metal objects together , such as hairpins, necklaces, etc.
Everything you need to know about batteries are chargers from other manufacturers safe to use?
Booant chargers are adapted specifically to the Booant batteries Using a different charger may reduce the service life of the batteries or cause other damage or malfunctions in the eBike system.
Can Booant batteries be opened to replace individual cells?
Booant eBike batteries must never be opened – not even if they are being repaired by third parties. Opening the battery always means interfering with the condition approved by Booant and entails safety-related risks. once opened, may catch fire during assembly due to crushed or incorrectly routed cables, detached components or poor quality electrical connections.
After opening, the seal of the housing can no longer be guaranteed, so that the ingress of water or dust can lead to damage to the monitoring electronics (Battery Management System) or to the cells.
