BOOANT COMPANY PROVIDES 12V 24V 36V 48V 52V 60V 72V 84V LITHIUM BATTERY PACK PRODUCTION.
Booant batteries are an efficient, long-life energy source. Super long range, super long service life and intelligent battery management system.
Booant rechargeable batteries Management System of the high-quality lithium-ion batteries detects potential sources of error and protects cells from overloading. There is a suitable rechargeable battery for every requirement and every type of eBike, from the rack variant, via the frame battery to the integrated solution.

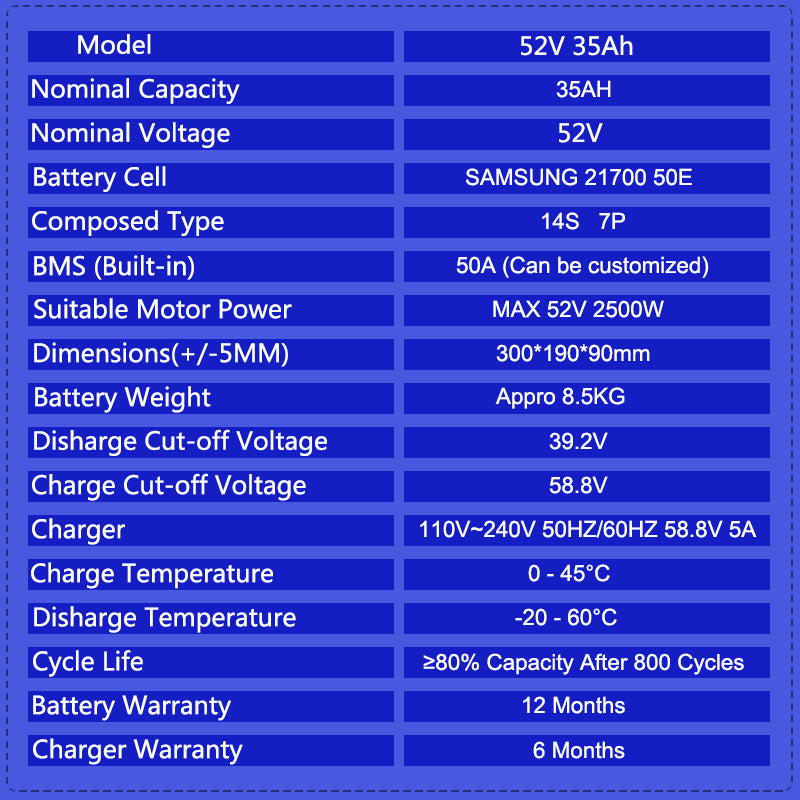

Battery Model: 52V 35Ah
Nominal Voltage: 51.8V
Nominal Capacity: 35Ah
Cell Specification : Lithium 21700 5000mAh 3.7V Cell
Cell Brand: SAMSUNG
Cell OverCharge Protection Voltage: 4.2V/Cell
Cell Overdischarge Protection Voltage: 2.8V/cell
Cell Combination: 14 Series 7 Paralles
Cell Quantity (parallel x series): 98 pcs
BMS: 50A(Can be customized)
50A BMS Suitable Motor: Less than 52V 2500W(MAX) Motor
Discharge Cutoff Voltage (V): 39.2V+/-0.5V
Charge Cutoff Voltage (V): 58.8V+/-0.5V
Rated Discharge Current (A): 35A
Maximum peak discharge current (A): 90A
Maximum Continuous Discharge Current (A): 50A
Charger mode: CC/CV
Standard Charge Current (A): 5A
Max Fast Charge Current (A): 20A
Charge Time under 5A Fast Charge Current: approx 7--9 hours
Battery Weight: about 8.5 kg
Cycle life: ≥80% capacity after 1200 cycles.
Discharge Temperature: -20 to 65°C
Charge Temperature: 0 to 45°C
Regular BMS does not have communication functions
1. Battery Pack *1
2. 58.8V 5A Charger *1
3. AC Power Cable *1
4. Battery explosion-proof bag *1
MEET DIFFERENT DISCHARGE PLUG OPTIONS : (contact us)
APPROPRIATE AC POWER CABLES FOR DIFFERENT COUNTRIES :
BATTERY USAGE PRECAUTIONS : (IMPORTANT)
Don't hit, pierce, strike, trample or throw the battery.
Don't put the battery in the water, keep the battery cool and dry condition .
Don't put the battery near a heat source such as fire or heater.
Use the specified charger that come with the battery
Don't reverse the position and negative pole.
Don't connect the positive and negative terminals with metal objects which would cause short circuit
Don't transport or store the battery with metal objects together , such as hairpins, necklaces, etc.
Everything you need to know about batteries
Are chargers from other manufacturers safe to use?
Booant chargers are adapted specifically to the Booant batteries Using a different charger may reduce the service life of the batteries
or cause other damage or malfunctions in the eBike system.
Can Booant batteries be opened to replace individual cells?
Booant eBike batteries must never be opened – not even if they are being repaired by third parties. Opening the battery always means interfering with the condition approved by Booant and entails safety-related risks. once
opened, may catch fire during assembly due to crushed or incorrectly routed cables, detached components or poor quality electrical connections.
After opening, the seal of the housing can no longer be guaranteed, so that the ingress of water or dust can lead to damage to the monitoring electronics (Battery Management System) or to the cells.
