Booant For SAMSUNG 21700 50E 52V 15Ah 1000W HaiLong Electric Bicycle Battery 14S 15Ah Lithium Ion Battery Pack with 2A Charger

$476.00 $680.00
Unit price  per

ś†áťĘė11

1. Longer battery life, the life expectancy is two times that of lead-acid batteries.
2. Rechargeable and no memory effect.
3. The weight is more lighter.
4. Smaller dimensions and can be customized.
5. Safer and more environmentally friendly, No heavy metals and hazardous substances.
6. BMS built-in IC chip will prevent battery pack over charge, over discharge, over-current, over-heat, short circuit .

ś†áťĘė

Battery Model: 52V 15Ah
Nominal Voltage: 52V
Nominal Capacity: 15Ah
Cell Specification : Lithium SAMSUNG 50E 21700  3.7V Cell
Cell OverCharge Protection Voltage: 4.2V/Cell
Cell Overdischarge Protection Voltage: 3.0V/cell
Cell Source Resistance (mő©): about 40mő©
Cell Combination: 14 Series 3 Paralles
Cell Quantity (parallel x series): 42 pcs
BMS: 30A (can be customized)
30A BMS suitable motor: Less than 48V 1200W(MAX) Motor
Discharge Cutoff Voltage (V): 42V+/-1V
Charge Cutoff Voltage (V): 58.8V+/-1V
Rated Discharge Current (A): 30A
Maximum Continuous Discharge Current (A): 30A
Maximum peak discharge current (A): 90A
Charger mode: CC/CV
Standard Charge Current (A): 2A
Max Fast Charge Current (A): 5A
Charge Time under Standard Charge Current: about 8--9 hours
Discharge Temperature: -20 to 65¬įC
Charge Temperature: 0 to 45¬įC

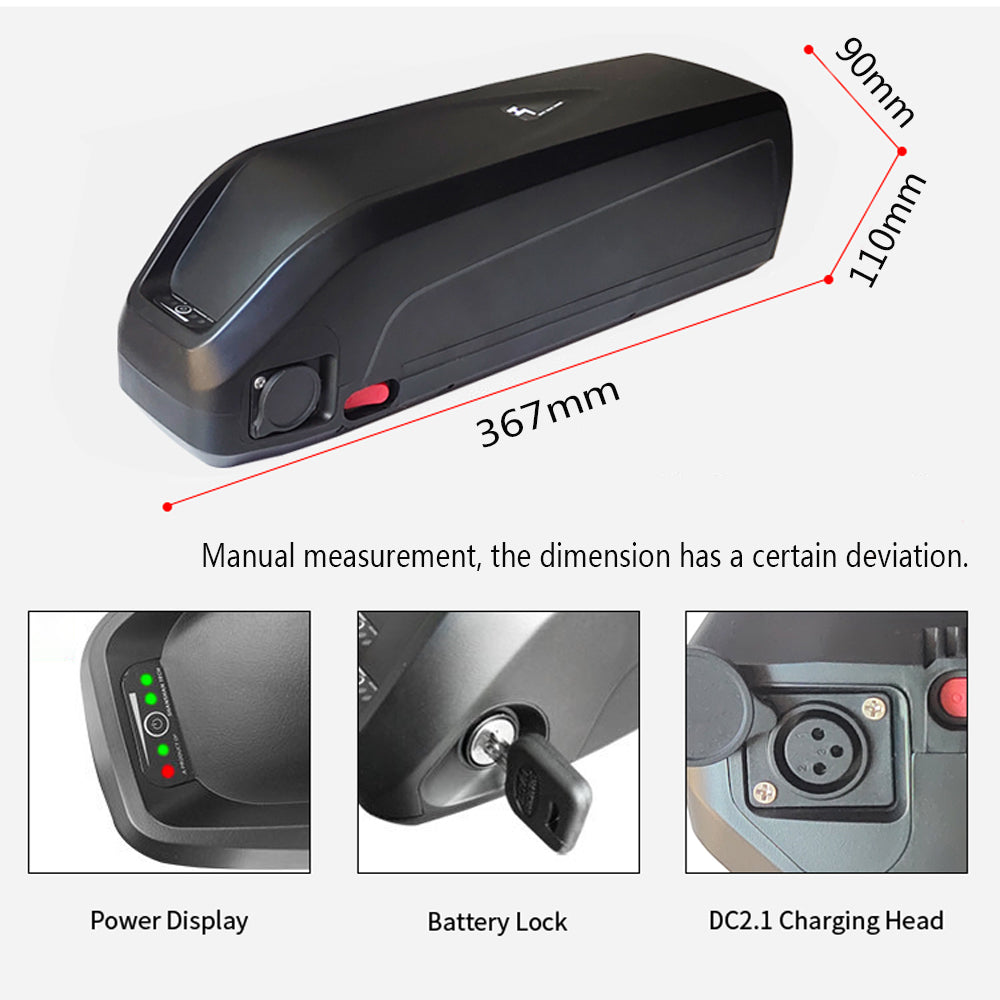

Dimensions:  367*110*90mm(+/-2mm)  (can be customized)
Battery Weight: about 4 kg
Cycle life: ‚Č•80% capacity after 800--1000 cycles.

2

1. Lithium battery pack with HaiLong Case
2. Built-in 30A BMS (protection board)
3. 58.8V 2A Charger
4. Power Cable (Supply EU/ UL /AUS/ BS Plug)
ŚĆÖŤ£Ö-PS-XT60ÔľĆP-śĀĘŚ§ćÁöĄ

3

15

śú™ś†áťĘė-1





śú™ś†áťĘė-2



śú™ś†áťĘė-3




14

12

ŚÖÖÁĒĶŚô®

13

ś†áťĘė

6

 1. Do not immerse the battery in water or seawater, keep the battery stands by in a cool dry surrounding.
2. Does not use or leave the battery near a heat source as fire or heater.
3. Use the battery charger specifically for that purpose when recharging.
4. Do not reverse the position and negative terminals.
5. Do not connect the battery electrodes to an electrical outlet.
6. Do not discard the battery in fire or a heater.
7. Do not short-circuit the battery by directly connecting the positive and negative terminals with metal objects.
8. Do not transport or store the battery together with metal objects such as hairpins, necklaces, etc.
9. Do not strike, trample or throw the battery.
10. Do not directly solder the battery and pierce the battery with a nail or other sharp objects.

7

Our batteries can be shipped to EU countries, The United States, Canada,
Switzerland, Norway, Russian, New Zealand, Australia, Japan, Korea, Singapore, Taiwan, Thailand,
Malaysia, Vietnam, etc., if your country is not in our shipment within the country, please contact us,
we will further consult the logistics company, thank you!

8

For EU countries: 8--12 Working days (usually shipped by UPS / DPD);
For The United States, Canada: 8--12 Working days (usually shipped by UPS / Fedex / DPD);
For Switzerland, Norway: 8--12 Working days (usually shipped by UPS / DPD);
For Russian: 20--28 working days (usually shipped by CDEK)
For New Zealand, Australia:¬†10-18¬†working days¬†(shipped by¬†Special LineÔľČ
For Japan, Korea, Singapore, Taiwan, Thailand, Malaysia, Vietnam, : 5-7 working days (shipped by Special Line)
In special circumstances, the logistics method sometimes will change, thank you!

9

For EU countries, The United States, Japan, Thailand, Malaysia, Vietnam, Russian: Free Taxes,
You do not need to pay any customs dutiesÔľõ‚Äč

For Australia: Free Taxes (The product must below 1000 A$);
For Canada: Free Taxes (The product must below 20KG);

For New Zealand, Switzerland, Norway,Taiwan, Singapore, Korea: You need to pay a certain taxes,
But we will declare a reasonable low value to help buyer reduce it;

10

We will do our best to serve customers.
If you don't satisfied with ourproducts,
please contact us before you leave negative feedback or dothe detailed rating.
We will service you until satisfied.
The product have one year quality warranty ( warranty is invalid nature wearing or
any damage due to wrong operation ).
Do not disassemble any product by yourself, once you disassembled we do not provide warranty,
any question, please contect us.
11
We also support PAYPAL, Credit card, Bank transfer and other payment methods.
