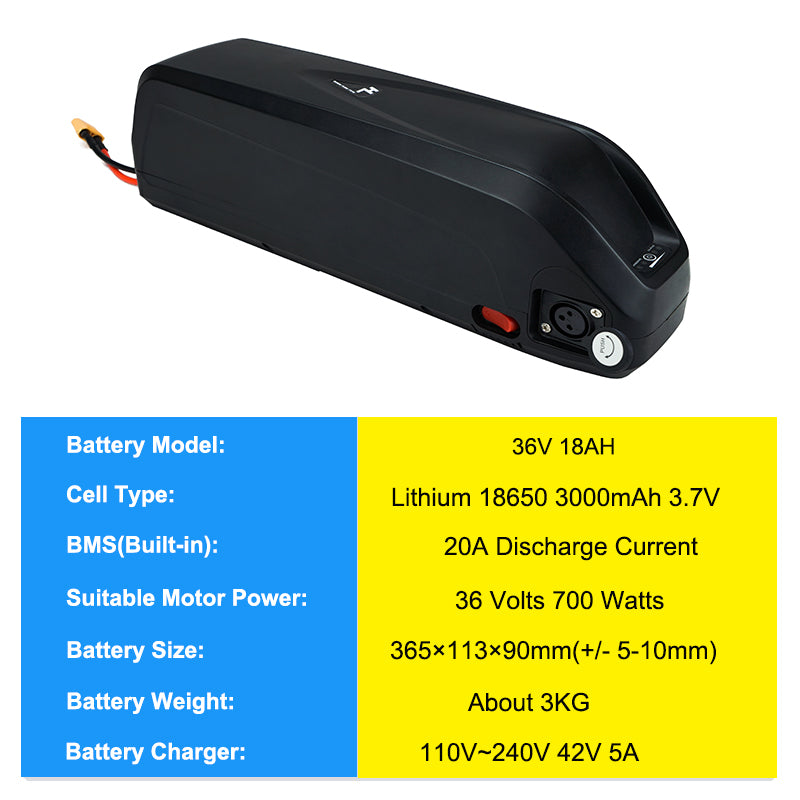

Booant HaiLong 36V 18Ah eBike Battery

BOOANT eBike Battery Pack Mainly Use Original SAMSUNG, Panasonic, LG, Etc Cells.

This 36v 18Ah eBike Battery is an efficient and reliable power source for your eBike.

Featuring SAMSUNG 30Q cells,

It offers 700W of motor power, enough to power your bike across any terrain.

Enjoy the freedom and convenience of your eBike with this powerful battery.

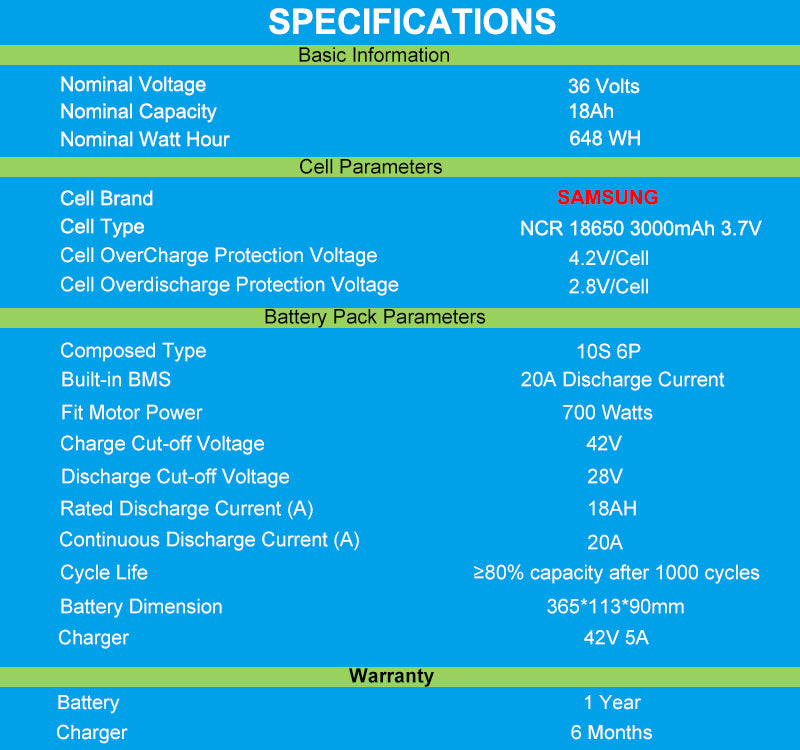

Battery Model: 36V 18Ah

Nominal Voltage: 36V

Nominal Capacity: 18Ah

Cell Specification : Lithium 18650 3000mAh  3.7V Cell

Cell Brand:  SAMSUNG

Cell OverCharge Protection Voltage: 4.2V/Cell

Cell Overdischarge Protection Voltage: 2.8V/cell

Cell Combination: 10 Series 6 Paralles

Cell Quantity (parallel x series): 60 pcs

BMS: 20A(Can be customized)

20A BMS Suitable Motor: Less than 36V 700W(MAX) Motor

Discharge Cutoff Voltage (V): 28V+/-0.5V

Charge Cutoff Voltage (V): 42V+/-0.5V

Rated Discharge Current (A): 18A

Maximum peak discharge current (A): 60A

Maximum Continuous Discharge Current (A): 20A

Charger mode: CC/CV

Standard Charge Current (A): 2A

Max Fast Charge Current (A): 5A

Charge Time under 5A Fast Charge Current: approx 4--5 hours

Battery Weight: about 3 kg

Cycle life: ≥80% capacity after 1000 cycles.

Discharge Temperature: -20 to 65°C

Charge Temperature: 0 to 45°C

1. HaiLong Style Battery Pack *1

2.42V 5A Charger *1

3.Power Cable *1

4.Battery Key *1

5.Manual *1

6.Discharge Extension Cable *1

MEET DIFFERENT DISCHARGE PLUG OPTIONS : (Contact US)

APPROPRIATE AC POWER CABLES FOR DIFFERENT COUNTRIES :

Don't hit, pierce, strike, trample or throw the battery.

Don't put the battery in the water, keep the battery cool and dry condition .

Don't put the battery near a heat source such as fire or heater.

Use the specified charger that come with the battery.

Don't reverse the position and negative pole.

Don't connect the positive and negative terminals with metal objects which would cause short circuit

Don't transport or store the battery with metal objects together , such as hairpins, necklaces, etc.

Everything you need to know about batteries are chargers from other manufacturers safe to use?

Booant chargers are adapted specifically to the Booant batteries Using a different charger may reduce the service life of the batteries or cause other damage or malfunctions in the eBike system.

Can Booant batteries be opened to replace individual cells?

Booant eBike batteries must never be opened – not even if they are being repaired by third parties. Opening the battery always means interfering with the condition approved by Booant and entails safety-related risks. once opened, may catch fire during assembly due to crushed or incorrectly routed cables, detached components or poor quality electrical connections.

After opening, the seal of the housing can no longer be guaranteed, so that the ingress of water or dust can lead to damage to the monitoring electronics (Battery Management System) or to the cells.

For battery packs, we offer up to 12 months free warranty.

For Chargers, we provide up to 6 months free warranty.

If there is any problem with the battery under normal use, please contact us and we will have professionals to solve your problem.

If you need one kind of battery which can’t find in our store, we also accept customization service for you, and supports OEM service.
