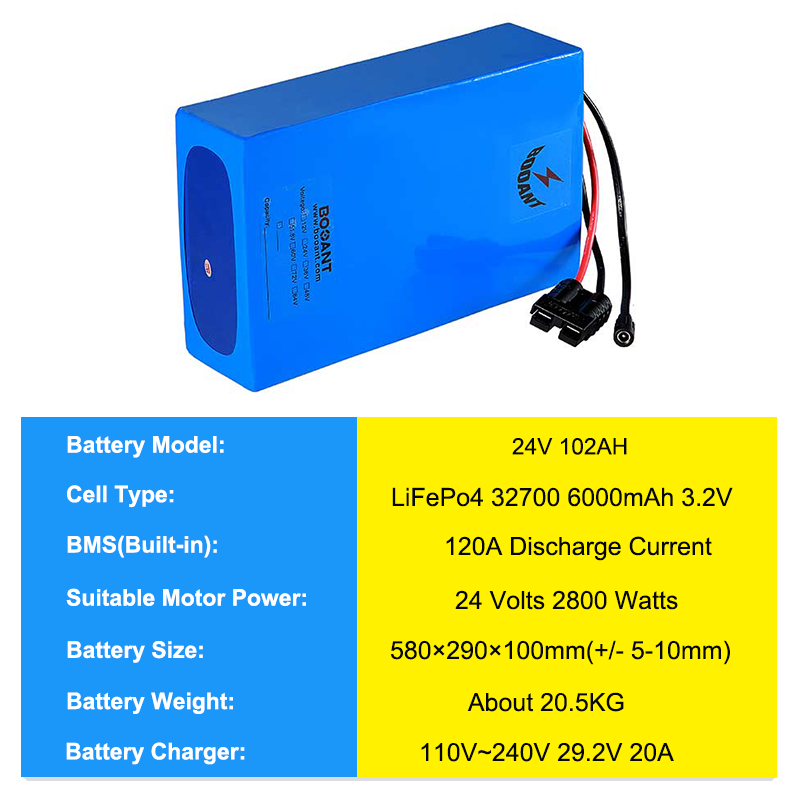

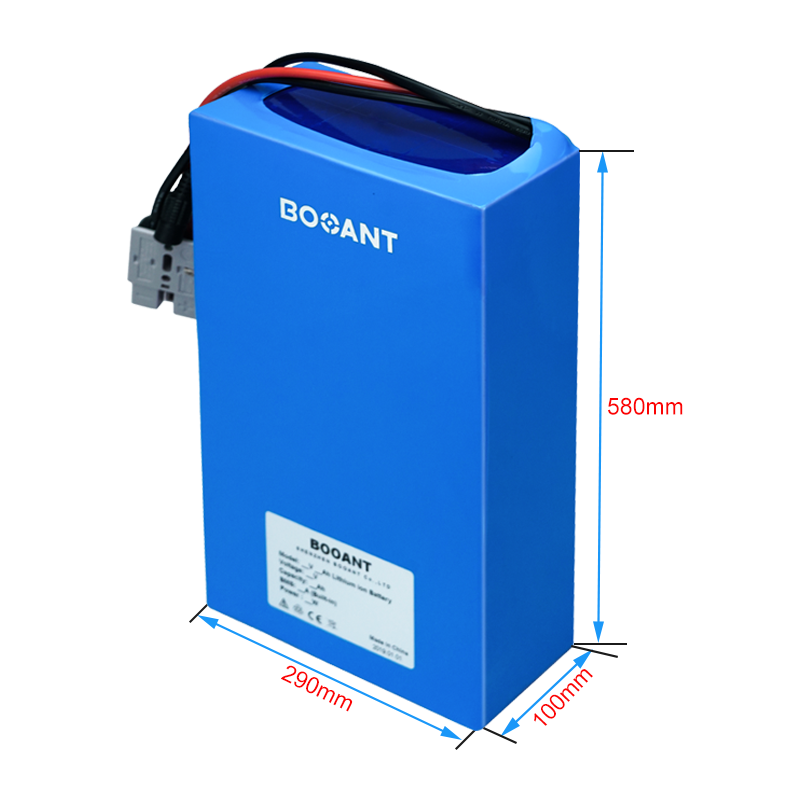

Boonat 24v 100Ah LiFePo4 Battery Pack 120A BMS

The Boonat LiFePo4 Battery Pack delivers an impressive 24V, 100Ah power output with a 120A BMS capable of handling up to 2800W of motor power.

This durable and reliable battery pack is suitable for a variety of uses, including personal transportation and robotics.

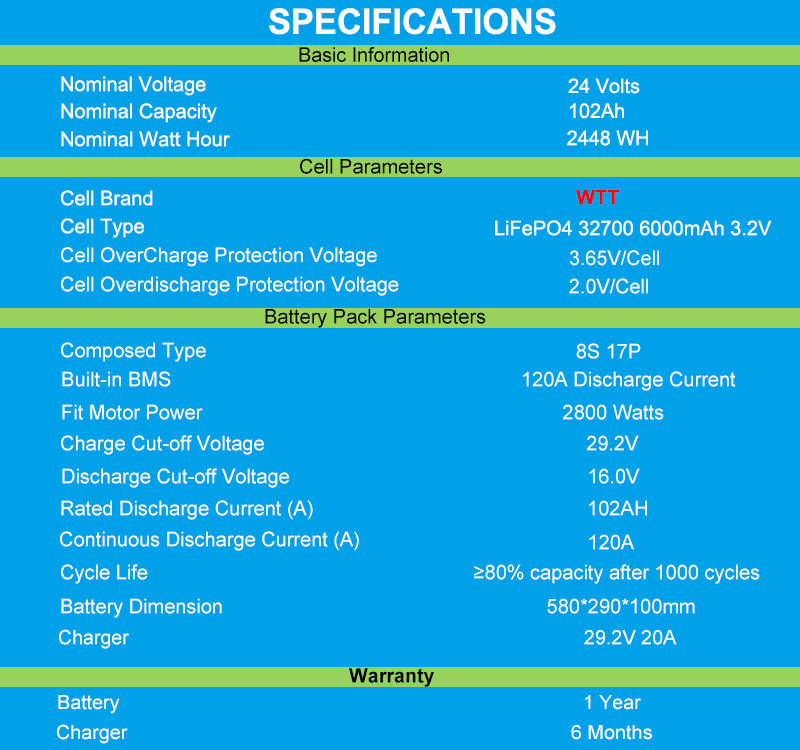

Battery Model: 24V 100Ah

Nominal Voltage: 24V

Nominal Capacity: 102Ah

Cell Specification : LiFePo4 32700 6000mAh  3.2V Cell

Cell Brand:  WTT

Cell OverCharge Protection Voltage: 3.65V/Cell

Cell Overdischarge Protection Voltage: 2.0V/cell

Cell Combination: 8 Series 17 Paralles

Cell Quantity (parallel x series): 136 pcs

BMS: 120A(Can be customized)

120A BMS Suitable Motor: Less than 24V 2800W(MAX) Motor

Discharge Cutoff Voltage (V): 16V+/-0.5V

Charge Cutoff Voltage (V): 29.2V+/-0.5V

Rated Discharge Current (A): 102A

Maximum peak discharge current (A): 360A

Maximum Continuous Discharge Current (A): 120A

Charger mode: CC/CV

Standard Charge Current (A): 5A

Max Fast Charge Current (A): 20A

Charge Time under 20A Fast Charge Current: approx 5--7 hours

Battery Weight: about 20.5 kg

Cycle life: ≥80% capacity after 1000 cycles.

Discharge Temperature: -20 to 65°C

Charge Temperature: 0 to 45°C

1. Battery Pack *1

2. 29.2V 20A Charger *1

3. AC Power Cable *1

4. Discharge Extension Cable *1

MEET DIFFERENT DISCHARGE PLUG OPTIONS : (Contact US)

APPROPRIATE AC POWER CABLES FOR DIFFERENT COUNTRIES :

Don't hit, pierce, strike, trample or throw the battery.

Don't put the battery in the water, keep the battery cool and dry condition .

Don't put the battery near a heat source such as fire or heater.

Use the specified charger that come with the battery.

Don't reverse the position and negative pole.

Don't connect the positive and negative terminals with metal objects which would cause short circuit

Don't transport or store the battery with metal objects together , such as hairpins, necklaces, etc.

Everything you need to know about batteries are chargers from other manufacturers safe to use?

Booant chargers are adapted specifically to the Booant batteries Using a different charger may reduce the service life of the batteries or cause other damage or malfunctions in the eBike system.

Can Booant batteries be opened to replace individual cells?

Booant eBike batteries must never be opened – not even if they are being repaired by third parties. Opening the battery always means interfering with the condition approved by Booant and entails safety-related risks. once opened, may catch fire during assembly due to crushed or incorrectly routed cables, detached components or poor quality electrical connections.

After opening, the seal of the housing can no longer be guaranteed, so that the ingress of water or dust can lead to damage to the monitoring electronics (Battery Management System) or to the cells.

For battery packs, we offer up to 12 months free warranty.

For Chargers, we provide up to 6 months free warranty.

If there is any problem with the battery under normal use, please contact us and we will have professionals to solve your problem.

If you need one kind of battery which can’t find in our store, we also accept customization service for you, and supports OEM service.
