BOOANT 36V 20Ah Lithium Battery

$374.99

Free Duty Shipping

Battery Energy : 36v lithium battery 20Ah, available capacity 720Wh, output power 700W (max), using advanced Samsung 21700 battery cells, reliable performance.
Battery BMS : The battery comes with a 20A BMS to prevent risks such as overcharging, over-discharging and overheating, and also has a Bluetooth module, so you can check the battery status through your phone.
Fast Charger : Comes with a free 42V 5A smart battery charger, which fully charges in about 4 hours. The smart charger can also protect the battery from overcharging and overheating, and will automatically cut off the power when it is fully charged.
Battery Weight : The battery shell is made of iron, sprayed with rust-proof, explosion-proof, and IP65 waterproof. Size 11.8in*7.5in*3.5in, weight 9.92 pounds (4.5 kg).
Warranty : 80% capacity remaining after 1,000 cycles. BOOANT ebike battery warranty is one year and the charger is 6 months. We provide professional after-sales service and purchase is guaranteed.

BMS

20A for 36V 600W Motor

30A for 36V 900W Motor

40A for 36V 1200W Motor

Discharge Plug

QS8 plug

Anderson 30A

Anderson 50A

XT60F/M

XT90F/M

Wire only

BMS

20A for 36V 600W Motor 30A for 36V 900W Motor 40A for 36V 1200W Motor

Discharge Plug

QS8 plug Anderson 30A Anderson 50A XT60F/M XT90F/M Wire only

Quantity

Free Shipping

30 Day Return

100% Secure Payment

Fast Delivery

24-Hour Prompt Response

1 Years Warranty

Secure Payment

720WH energy

SAMSUNG 21700 Cell

20A BMS (support 700W motor)

4hrs charges to 100% with 5A charger

LED display screen

1000+ cycles 2 years lifespan

Bluetooth monitoring with APP

Waterproof & Impact-resistant

QUALITY BATTERY UNITS

Cell Brand:
SAMSUNG

Model:
21700

Voltage: 3.7V

Capacity:
5000mAh

Max Charging
Voltage: 4.2V

Min Discharging
Voltage: 2.8V

These cells typically offer superiorenergy density, higher capacity, and better discharge rates compared to other battery types.

HIGH-TECH BATTERY SUPERVISORY SYSTEM

Bletooth Connectivity:

Facilitates real-time monitoring of individual cell states through a dedicated mobile app.

Voltage Management:

The BMS incorporates a unique voltage management feature,ensuring cell health and extending overall longevity.

Safety Protection:

Includes safeguards like short-circuit prevebtion,ove-discharge prevention,overcarge prevention,tempereture regulation.

Expadable CAN BUS Protocol:

Compatible with the CAN bus communication protocol,offering versatility and interoperability with different systems.

PROTECTIVE MEASURES

IP65-rated Waterproofing:

Features a metal shell with internal sealing compounds to block rainwater, ensuring waterproofness.

Impact Mitigation:

Utilizes a 1.5mm thick metal casing to protect the battery from collisions.

LED DISPLAY

LED screen to monitor battery voltage,remaining capacity,and charging status in real-time.

SMARTPHONE MONITORING

Utilizing Bluetooth technology,users can download an app on their smartphones to monitor the health condition and performance of individual batteries through a wireless connection.

SMART CHARGER

Charger Operating Voltage:

110V--240V 50/60HZ

Charging Output:

42V 5A,capable of fully charging the battery in 4 hours. Customizable charging current,max 20A, to meet customer needs

Charger Features:

Maintains steady temperature and voltage,stops charging automatically upon full battery,protectsagainst short circuits,includes temperature protection with integrated fan,sturdy metal casing ensures durability.

BOOANT Lithium Battery for Various Applications

BOOANT Li-ion batteries, prized for their lightweight and compact design, serve a multitude of electrical applications. Widely employed in electric bicycles, boat motors, golf carts, and more, these batteries exhibit adaptability by delivering variable power levels tailored to distinct motors. The Battery Management System (BMS) enhances flexibility, adjusting the output to meet specific requirements of diverse electrical equipment.

Range:

Up to 45km

Speed

20km/h

Load Capacity

75kg

Motor Power

300W

Note:

The above data is based on test results and is for reference only. Actual range may vary due to different usage scenarios, as well as variations in load and speed. Please refer to actual conditions for accurate information.

TECH SPECS

Battery Model	36V 20Ah
Cell OverCharge Protection Voltage	4.2V/Cell
Cell Overdischarge Protection Voltage	2.8V/cell
Nominal Voltage	36V
Rated Capacity	20Ah
Energy	720WH
Parallel & Series	10 Series 4 Paralles 40pcs Cell
BMS ( Built-in )	20A/30A ( Bluetooth )
Suitable Motor	30A BMS Suitable Motor- Less than 36V 1000W(MAX) Motor 20A BMS Suitable Motor-Less than 36V 700W(MAX) Motor
Discharge Cutoff Voltage (V)	28V+/-0.5V
Charge Cutoff Voltage (V)	42V+/-0.5V
Rated Discharge Current (A)	20A
Maximum peak discharge current (A)	60A (3s)
Maximum Continuous Discharge Current (A)	20A (20A BMS)
Charger Mode	110V~240V 50/60HZ 42V 5A
Charger Time	4-5 Hours

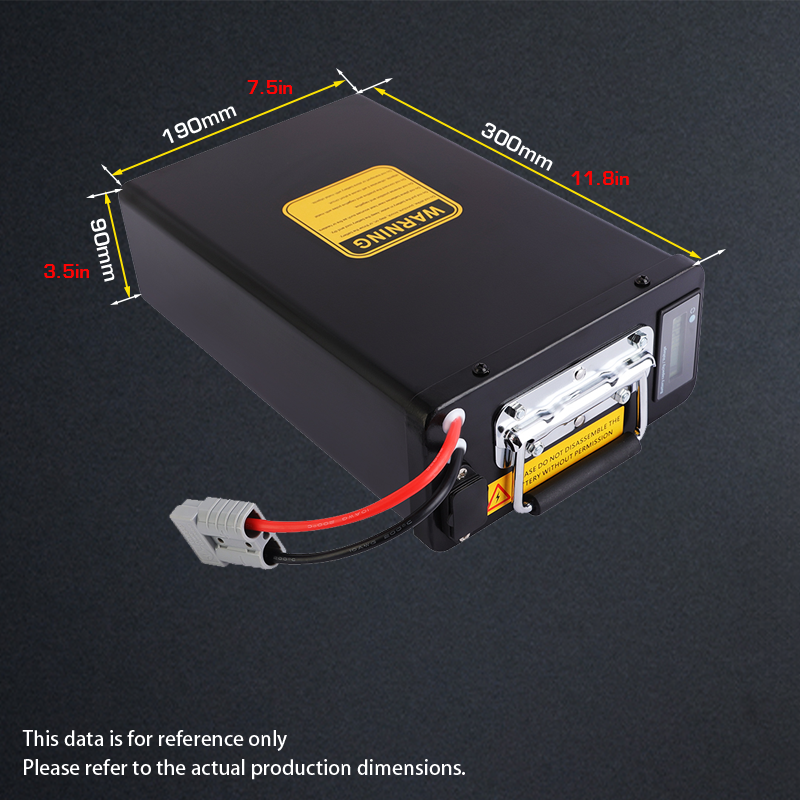

Size (inch/mm)	L11.81×W7.48×H3.54 inch L300×W190×H90 mm

Package List

Booant Battery

Free Battery Protection Bag

User Manual

Charger Power Cord

Smart Charger

Anderson Extension Cord

Free Battery Protection Bag

Eco-friendly materials, acid and corrosion resistant; Multi-layer protective materials, fireproof, explosion-proof, and waterproof; High-temperature resistance up to 1200℃; Fireproof and explosion-proof both inside and outside.
