BOOANT 48V 20Ah eBike Battery with Samsung Cells

$395.99

Free Duty Shipping

Original Samsung Cells : The BOOANT 48V 20Ah lithium battery features original Samsung 21700 cells. Each cell's 5000mAh capacity contributes to a total of 960Wh energy. With a long cycle life of over 1000 times, it ensures stable and lasting power for various applications like e - bikes.
Customizable and Durable : Booant 48v 20ah ebike battery encased in PVC, battery size12.2in*4.3in*2.9in,it's customizable in size to fit different e - bike models. Weighing 3.5 kg (7.7 lb), it's durable and impact - resistant. Its multi - layered wrapping provides extra protection.
BMS Protection : Booant 48v 20ah rechargeable batteries with Bluetooth BMS. This BMS can monitor battery status in real - time via an app, balance cell voltages, and protect against over - charge, over - discharge, and short - circuits. It's suitable for 48V motors.
Fast Charging : Booant 48v lithium battery 20ah with a 54.6V 5A smart charger that works with 110 - 240V 50/60HZ power. It can fully charge the battery in about 4 hours. The charger has overcharge protection and a cooling fan for safe and efficient charging.
After - Sales : Booant battery offers 1 - year warranty, and their technical support and online customer service respond quickly. They also provide different discharge plug options and can customize the charger AC power cables for various regions.

BMS

20A for 48V 750W Motor

30A for 48V 1000W Motor

40A for 48V 1500W Motor

Discharge Plug

Anderson 50A

XT90F/M

XT60F/M

QS8 plug

Wire only

BMS

20A for 48V 750W Motor 30A for 48V 1000W Motor 40A for 48V 1500W Motor

Discharge Plug

Anderson 50A XT90F/M XT60F/M QS8 plug Wire only

Quantity

Free Shipping

30 Day Return

100% Secure Payment

Fast Delivery

24-Hour Prompt Response

1 Years Warranty

Secure Payment

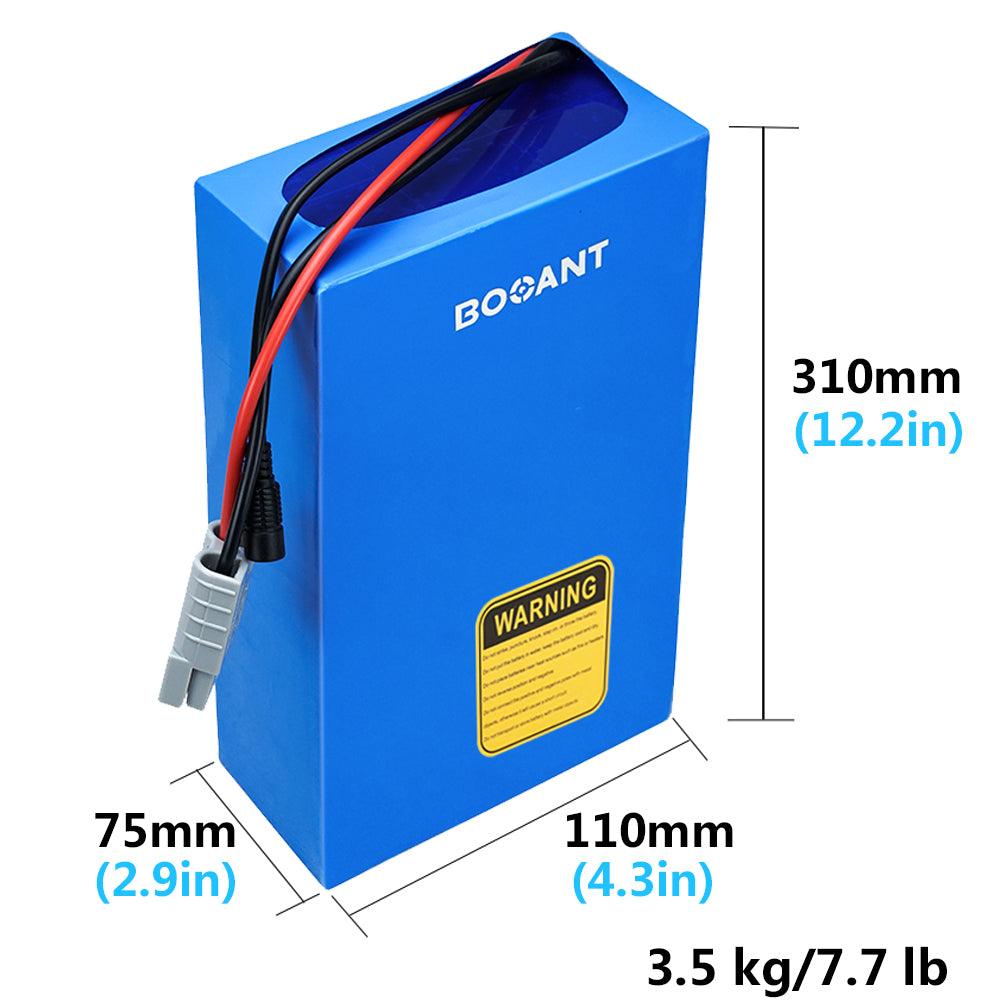

48V 20AH13S 4P

Size:

H310mm(12.2in)*L110mm(4.31in)*W75mm(2.9in)

PVC Packing

Multi-layered wrapping, customizable shape

Original Brand Cells

Samsung 21700 5000mAh cells

Safety Protection

Intelligent BMS, battery protection

Bluetooth Connectivity

Equipped with Bluetooth module, APP monitors battery status

Supports Fast Charging

Comes with fast charger (5A), charges fully in as fast as 4 hours

40A Powerful BMS

Suitable for 48V 1500W(max) motors

Diverse Shapes, Customizable Support

Our products come in diverse shapes and are customizable.The outer casing is wrapped in PVC material, and the internal battery arrangementcan be adjusted. We can customize different dimensions to suit your specificusage scenario. Please contact us in advance if you require customization.

Top-Grade Original Samsung Cells

Cell Specification : lithium 21700 5000mAh 3.7V cell

Cell Brand : SAMSUNG

Cell Overcharge Protection Voltage : 4.2V

Cell Overdischarge Protection Voltage : 2.8V

Cell Combination : 13 series 4 paralles

Cell Quantity (parallel x series) : 52 pcs

Smart BMS :

The BMS has Bluetooth communication, automatic battery voltage balancing and powerful protection (overcharge, over discharge, short circuit and overload) functions to protect the safe operation of the battery and increase the battery life.

BMS : 40A(Can be customized)

40A BMS Suitable Motor : 48V 1500W(MAX) Motor

Discharge Cutoff Voltage (V) : 36.4V+/-0.5V

Charge Cutoff Voltage (V) : 54.6V+/-0.5V

Rated Discharge Current (A) : 30A

Maximum peak discharge current (A) : 120A

Maximum Continuous Discharge Current (A) : 40A

SMART CHARGER

Charger Operating Voltage : 110V--240V 50/60HZ.

Charging Output : 54.6V 5A

Standard Charge Current (A) : 2A

Max Fast Charge Current (A) : 10A

5A Fast Charge : approx 4 hours

Cycle life : 80% capacity after 1000 cycles.

Charge Temperature : 0°C to 45°C

Battery Energy: 960Wh

Riding time of e-bike
(48V 500W motor) For E-bike
(48V 500W)

60KM

Riding mileage of e-bike
(Riding speed 30km/h) Riding mileage
(Speed 30km/h)

Charging time of battery
(Using 5A fast charger) Charging time
(Using 5A fast charger)

Meeting different discharge plug options(Leave a message/Contact us)

QS8

Anderson

Wire Only

XT90F/M

XT60F/M

Small Anderson

Appropriate charger AC power cables for different countries/regions

US (Default)

Product Basic Parameters

Battery Model: 48V 20Ah

Cell Specification: 21700 5000mAh 3.7V

Cell Brand: SAMSUNG

Discharge Cutoff Voltage (V): 36.4V+/-0.5V

Charge Cutoff Voltage (V): 54.6V+/-0.5V

Cell Combination: 13 Series, 4 Paralles

Cell Quantity (parallel x series): 52 pcs

BMS: Built-in 40A(Can be customized)

40A BMS Suitable Motor: 48V 1500W(MAX)

Rated Discharge Current (A): 30A

Maximum Peak Discharge Current (A): 120A

Maximum Continuous Discharge Current (A): 40A

Charger mode: CC/CV

Standard Charge Current (A): 2A

Max Fast Charge Current (A): 10A

Charger: 110V-240V 50/60HZ 54.6V 5A

5A Fast Charge Current: approx 4 hours

Battery Weight: about 3.5kg(7.72lb)

Cycle life: ≥80% capacity after 1000 cycles

Discharge Temperature: -20°C to 60°C

Charge Temperature: 0°C to 45°C

Package List

Booant Battery

User Manual

Smart Charger

Charger Power Cord (Default)

Anderson Extension Cord
