Home / Products / 72V 30AH Samsung 21700-50G Smart Battery with Bluetooth Monitoring & Waterproof Metal Case

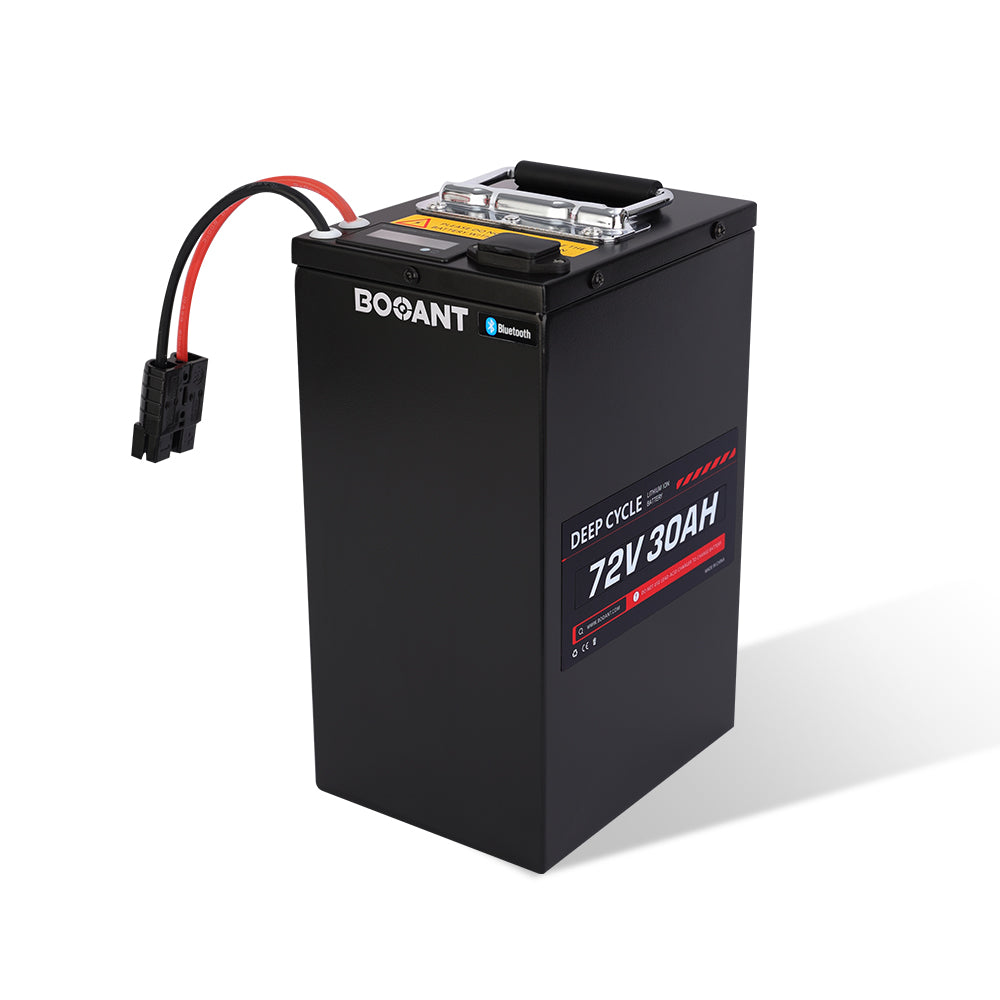

72V 30AH Samsung 21700-50G Smart Battery with Bluetooth Monitoring & Waterproof Metal Case

$829.99

Free Duty Shipping

High Power & Long Range : 72V 30AH battery with 2160Wh capacity delivers extended runtime and consistent high-voltage performance for electric vehicles and equipment.
Compact & Lightweight : Only 275×180×140mm (10.8×7.1×5.5in) and 12kg (26.5lbs) - maximum power in minimum space with durable aluminum construction.
Smart Bluetooth BMS & Samsung Cells : Smart Bluetooth BMS with real-time monitoring via mobile app, plus premium Samsung 21700 50G cells for reliable performance and diagnostics.
Fast Charge & All-Weather : 5-hour fast charging to 80% capacity, operates from -20°C to 60°C with universal 100-240V charger.
Industrial-Grade Protection : IP67 waterproof aluminum housing withstands impacts, improves heat dissipation by 20%, and provides EMI shielding for complete safety.

BMS Discharge Current (Select Motor Power)

40A | For 800W-1500W Motors

50A | For 1500W-2500W Motors

60A | For 2000W-3500W Motors

Discharge Plug

Anderson 50A

QS8 plug

XT60F/M

XT90F/M

Wire only

BMS Discharge Current (Select Motor Power)

40A | For 800W-1500W Motors 50A | For 1500W-2500W Motors 60A | For 2000W-3500W Motors

Discharge Plug

Anderson 50A QS8 plug XT60F/M XT90F/M Wire only

Quantity

Free Shipping

30 Day Return

100% Secure Payment

Fast Delivery

24-Hour Prompt Response

1 Years Warranty

Secure Payment

72V 30AH Smart Lithium Battery | Premium Power Solution

Power Your Ride with Intelligence

Introducing the 72V 30AH Smart Lithium Battery - Engineered with Genuine Samsung Cells & Controlled by Your Smartphone

Premium Power Solution for E-Bikes & Scooters

⚡ Core Highlights At a Glance

Genuine Samsung 21700 50G Cells

Built with 120 authentic Samsung 21700 50G cells in 20S6P configuration. Ensures high energy density, long lifespan, and extended riding range.

Metal Shell & Waterproof Design

Rugged metal casing provides physical protection and excellent heat dissipation. IP-rated waterproofing for all-weather reliability.

Smart Bluetooth BMS + APP

Monitor real-time voltage, temperature, and cell balance. Remote on/off control, charge tracking, and anti-theft features via smartphone.

Fast Charging Included

Comes with 54.6V 10A smart fast charger. Significantly reduces charging time with intelligent protection systems.

Plug & Play Compatibility

Works seamlessly with most 72V e-bikes, scooters, and custom electric vehicles. Easy installation with standard connectors.

Advanced Safety Features

Multi-protection BMS prevents overcharge, over-discharge, short circuit, and overheating. Built for maximum safety and reliability.

72V 30AH Smart Lithium Battery | Technical Specifications

📊 Technical Specifications

Battery Voltage	72V Nominal (84V Max)
Battery Capacity	30AH (2160Wh)
Cell Configuration	20S6P (120 cells total)
Cell Type	Genuine Samsung 21700 50G
BMS Protection	Smart Bluetooth BMS with APP control
Charger Included	54.6V 5A Fast Smart Charger
Case Material	Durable Metal Shell
Waterproof Rating	IP65 (Splash and Dust Resistant)
Communication	Bluetooth 5.0 for smartphone connectivity
Weight	Approx 12 kg

Samsung 21700 50G Cell Specifications

Samsung 21700 50G

Premium Lithium-Ion Power Cell

4,850mAh

Nominal Capacity

710Wh/L

Energy Density

≥500 Cycles

Cycle Life (80% retention)

9.8A Continuous

Discharge Current

Our choice of Samsung 21700 50G cells ensures you receive not just high capacity, but reliable long-term stable performance.

Smart Battery Protection & Monitoring

Protection & Monitoring

Smart Monitoring

📱

Bluetooth 5.0 APP Control: Real-time monitoring via smartphone

📊

Individual Cell Monitoring: 120 cells independently monitored

🌡️

Multi-point Temperature Sensing: 3-5 temperature sensors

📈

Data Logging: 1000+ charge cycles history

🔄

Remote Control: Turn battery ON/OFF via APP

🔔

Real-time Alerts: Instant notifications for any issues

Smart Battery Management System

Safety Protection

⚡

Overcharge Protection: Cuts off at >4.25V/cell

🔋

Over-discharge Protection: Cuts off at <2.5V/cell

🔥

Over-temperature Protection: >65°C or <-10°C

⚡

Over-current Protection: >100A instant cut-off

🔌

Short Circuit Protection: <0.1 second response

⚖️

Cell Balancing: Active balancing >0.05V difference

Smart Battery Display

Real-time Monitoring at Your Fingertips

Information Display

🔋

Precise Battery Percentage 0-100% accurate display

⚡

Real-time Voltage Monitoring Live voltage reading accurate

🌡️

Temperature Display Battery temperature monitoring

📊

Status Indicators Clear charging/discharging/full status display

84V 5A Smart Fast Charger

Intelligent Charging Solution

Technical Specifications

Output Voltage 84V ±0.5%

Output Current 5A

Charging Power 420W

Input Voltage AC 100-240V 50/60Hz

Efficiency ≥90%

Working Temperature -10°C to 40°C

Charging Time: ~6 Hours

for 30AH battery (0% to 100%)

Premium Metal Casing

4 Key Benefits for Your Battery

Core Advantages

Protected To Last

Metal casing absorbs shock, resists elements, and prolongs battery life.

Waterproof Design

Multi-layer sealing for all-weather reliability and moisture protection.

Industrial Aesthetic Design

Durable rust-proof paint finish that protects and projects quality.

Passive Cooling System

Superior metal conductivity provides optimal thermal control.

72V30AH Battery Range Reference

40A BMS

800-1500W Motor

90-110 km

(Ideal: up to 130 km)

City riding, 75kg rider, 25-30km/h

Best For: Range Priority

Battery Life: 600+ cycles

Heat Level: Low

50A BMS

1500-2500W Motor

70-90 km

(Ideal: up to 110 km)

Mixed terrain, 30-35km/h average

Best For: Balance

Battery Life: 500+ cycles

Heat Level: Medium

60A BMS

2000-3500W Motor

50-70 km

(Ideal: up to 85 km)

Performance riding, requires cooling

Best For: Power Priority

Battery Life: 400+ cycles

Heat Level: High

Important Note: All range estimates are based on 75kg rider, 25°C temperature, and typical city riding conditions. Actual range can vary ±30% depending on speed, weight, terrain, temperature, and riding style. Ideal range shown in parentheses represents optimal conditions with light load and conservative riding.

72V 30AH Lithium-Ion Battery Specifications

72V 30AH Lithium-Ion Battery Pack

Professional Specification Sheet

Battery Pack Specifications

Model	72V 30AH 2160Wh Lithium-ion
Configuration	20S6P (20 series × 6 parallel)
Nominal Voltage	72V DC
Capacity	30Ah (2160Wh)
Voltage Range	Charge: 84V (cut-off) Discharge: 50V (cut-off) Operating range: 50V - 84V
Dimensions (L×W×H)	Approx. 275 × 180 × 140 mm 10.83 × 7.09 × 5.51 inches
Weight	Approx. 12 kg 26.46 lbs

Cell Specifications

Cell Brand & Model	Samsung INR21700-50G
Cell Type	Lithium-ion (Li-ion)
Nominal Voltage	3.6V - 3.7V
Nominal Capacity	5000mAh (5.0Ah)
Discharge Performance	Continuous: 5A (~1C) Peak: 9.8A (~2C) Surface temperature monitored
Voltage Limits	Charge cut-off: 4.20V (CCCV, 100mA termination) Discharge cut-off: 2.50V

BMS & Management System

BMS Brands	JBD / ANT / JK (selection based on requirements)
Installation	Integrated within battery pack
Communication	Bluetooth & WiFi enabled
Compatibility	iOS & Android applications
Monitoring Functions	Real-time status monitoring, remote control
Optional Interfaces	CAN BUS, RS485, GPS (customizable)
Discharge Management	Rated current: Based on motor power Continuous current: Determined by BMS rating Peak current: Based on motor & BMS capability

Charger & Temperature Specifications

Charger Input	100V - 240V AC (universal)
Charger Output	84V DC, 5A (standard)
Charging Method	Constant Current & Constant Voltage (CC/CV)
Charging Time	80% SOC: ~5 hours 100% SOC: 6-7 hours
Plug Options	US / EU / UK / AU standards (selectable)
Operating Temperatures	Battery charging: 0°C to 60°C (recommended <45°C) Battery discharging: -20°C to 60°C (must maintain <60°C) Charger operation: 0°C to 60°C (recommended <45°C)

IMPORTANT NOTES & RECOMMENDATIONS

State of Charge (SOC) Management: Optimal storage at 40-60% SOC (3.7-3.8V per cell). Avoid long-term storage at <10% or 100% SOC to prevent accelerated aging.
Temperature Control: Ideal operating environment is 15-25°C (<2% annual degradation). Permissible range is -20°C to 45°C (with SOC control). Operation at ≥50°C or ≤-30°C is strictly prohibited due to hazard risk.
Physical Protection: Avoid compression and impact (even with ABS casing). Keep away from metal objects to prevent short circuits.
Long-term Storage (>1 month): Perform periodic brief charge/discharge cycles to maintain lithium-ion activity. Recommended: shallow cycle (30%→80%) every 3 months.
