Riding time of e-bike
(36V 500W motor) For E-bike
(36V 500W)
Fast Delivery
BOOANT Lithium Ion Battery 36V 20Ah | Samsung 21700 Cells
$342.99
$342.99
$342.99
$342.99
$342.99
$342.99
$342.99
$342.99
$342.99
$342.99
$342.99
$342.99
$342.99
- High Performance : Our 36V 20Ah (720Wh) lithium battery Ebike provides excellent power and cruising range. Using the original Samsung 21700 cells and smart BMS, it supports 36V 1200W (maximum) output to ensure a smooth and efficient ride.
- High-Quality Materials : Our batteries are encapsulated with PVC material, which is not only durable and lightweight, but also can be customized in size to meet your specific needs.
- Easy Connection : This battery is equipped with Bluetooth, and you can conveniently monitor its status through a smartphone app.
- Fast Charging Capability : Our Ebike battery supports up to 5A charging input, which can be quickly charged, reduce waiting time, and extend riding time with our efficient charging solution.
- Customer Satisfaction Guarantee : We are committed to providing first-class customer service and product quality. Rest assured, our lithium battery Ebike has reliable after-sales support to ensure that you are satisfied with every purchase.
BMS
30A for 36V 900W Motor
40A for 36V 1200W Motor
Discharge Plug
QS8 plug
Anderson 30A
Anderson 50A
XT60F/M
XT90F/M
Wire only
BMS
Discharge Plug
Free Shipping
30 Day Return
100% Secure Payment
Ordered
Nov 29
Order Shipped
Dec 02
-
Dec 06
Delivered
Dec 09
-
Dec 19
24-Hour Prompt Response
1 Years Warranty
Secure Payment

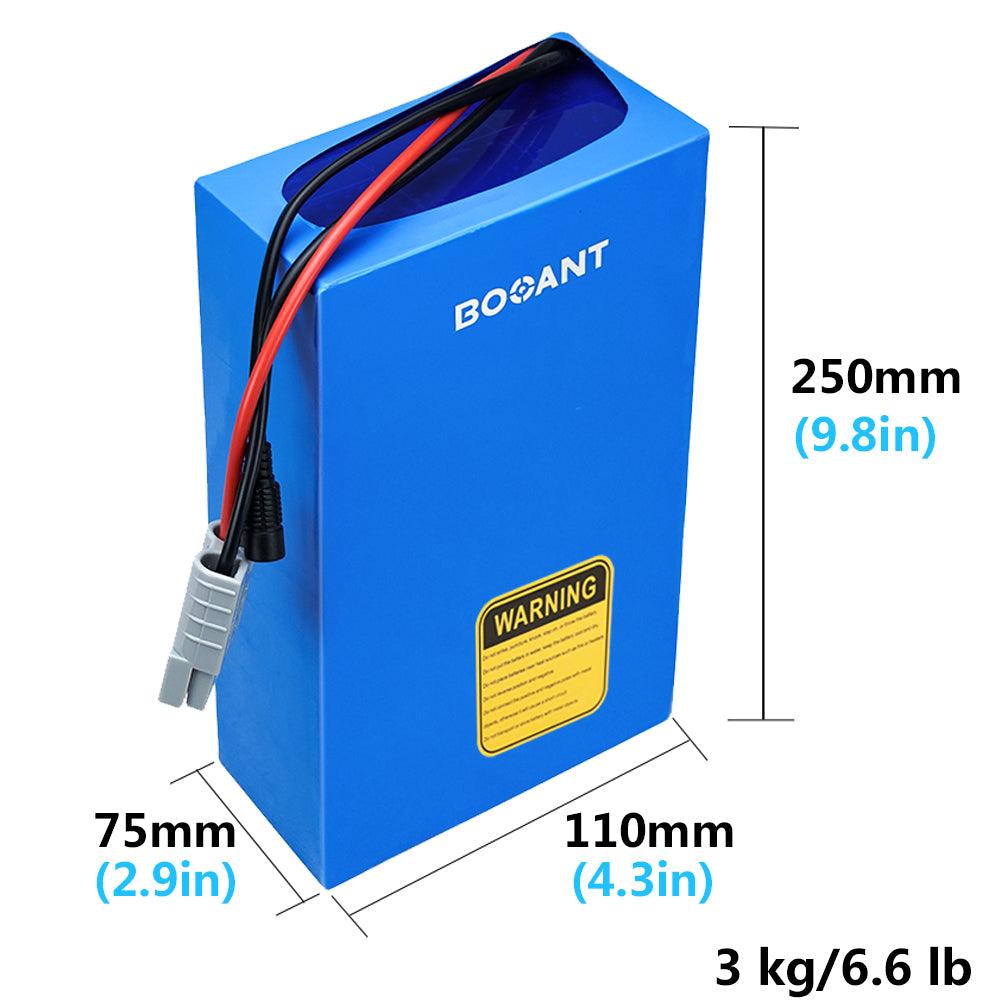

36V 20AH10S 4P
H250mm (9.8in) * L110mm (4.31in) * W75mm (2.95in)
Cycle Life
After 600 cycles, it can still maintain more than 80% of its original capacity.
Quality Assurance
Original Samsung
21700 5000mAh 3.7V
21700 5000mAh 3.7V
Safety Protection
Built-in smart BMS
short circuit, overcurrent, overcharge protection
short circuit, overcurrent, overcharge protection
Live View
Bluetooth
Mobile device to the APP via Bluetooth to view battery information in real time.
Mobile device to the APP via Bluetooth to view battery information in real time.
Fast Charging
5A fast charger
fully charged in as fast as 4 hours.
fully charged in as fast as 4 hours.
Application Range
Suitable for 36V 900W/1200W motors
Multiple Size Customization
Our batteries are customizable, wrapped in PVC film, including battery size, cells, BMS, discharge plug, charging plug.
Original Cells
Cell Specification : lithium 21700 5000mAh 3.7V cell
Cell Brand : SAMSUNG
Cell Overcharge Protection Voltage : 4.2V
Cell Overdischarge Protection Voltage : 2.8V
Cell Combination : 10 series 4 paralles
Cell Quantity (parallel x series) : 40 pcs
Smart BMS :
The advanced BMS has Bluetooth, automatic battery voltage balancing and powerful protection (overcharge, overdischarge, short circuit and overload) functions, which significantly improves the battery life.
BMS : 40A(Can be customized)
40A BMS Suitable Motor : 36V 1200W(MAX) Motor
Discharge Cutoff Voltage (V) : 28V+/-0.5V
Charge Cutoff Voltage (V) : 42V+/-0.5V
Rated Discharge Current (A) : 30A
Maximum peak discharge current (A) : 120A
Maximum Continuous Discharge Current (A) : 40A
SMART CHARGER
Charger Operating Voltage : 110V--240V 50/60HZ.
Charging Output : 42V 5A
Standard Charge Current (A) : 2A
Max Fast Charge Current (A) : 10A
5A Fast Charge : approx 4 hours
Cycle life : 80% capacity after 1000 cycles.
Charge Temperature : 0°C to 45°C
Battery Energy: 720Wh
1.4H
42KM
Riding mileage of e-bike
(Riding speed 30km/h) Riding mileage
(Speed 30km/h)
(Riding speed 30km/h) Riding mileage
(Speed 30km/h)
4H
Charging time of battery
(Using 5A fast charger) Charging time
(Using 5A fast charger)
(Using 5A fast charger) Charging time
(Using 5A fast charger)
Meeting different discharge plug options(Leave a message/Contact us)
QS8
Anderson
Wire Only
XT90F/M
XT60F/M
Small Anderson
Appropriate charger AC power cables for different countries/regions
US (Default)
EU
AU
UK
Product Basic Parameters
Battery Model: 36V 20Ah
Cell Specification: 21700 5000mAh 3.7V
Cell Brand: SAMSUNG
Discharge Cutoff Voltage (V): 28V+/-0.5V
Charge Cutoff Voltage (V): 42V+/-0.5V
Cell Combination: 10 Series 4 Paralles
Cell Quantity (parallel x series): 40 pcs
BMS: Built-in 40A(Can be customized)
40A BMS Suitable Motor: 36V 900W 1200W(MAX)
Rated Discharge Current (A): 30A
Maximum Peak Discharge Current (A): 120A
Maximum Continuous Discharge Current (A): 40A
Charger mode: CC/CV
Standard Charge Current (A): 2A
Max Fast Charge Current (A): 10A
Charger: 110V-240V 50/60HZ 42V 5A
5A Fast Charge Current: approx 4 hours
Battery Weight: about 3 kg/6.6 lb
Cycle life: ≥80% capacity after 1000 cycles
Discharge Temperature: -20°C to 60°C
Charge Temperature: 0°C to 45°C
Package List
Booant Battery
Booant Battery
User Manual
Smart Charger
Charger Power Cord (Default)
Anderson Extension Cord
