High-Performance Power

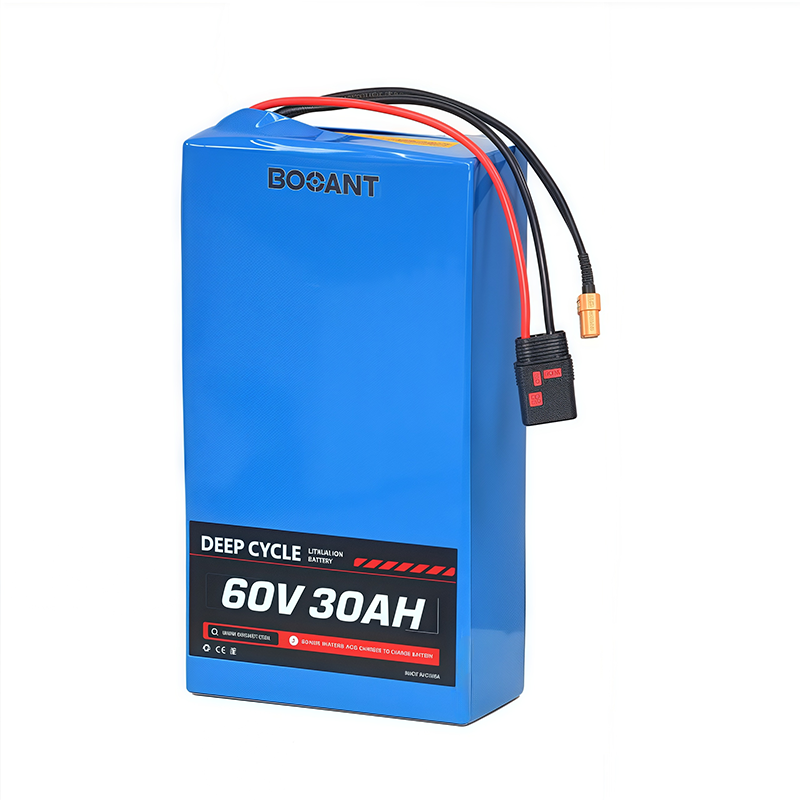

Premium 60V 30Ah Lithium Battery for Tuttio Soleil 01 E-Bike

⚡ Upgrade your ride with high-performance 60V 30Ah lithium battery! Features authentic Samsung 50S cells, extended range, smart app monitoring, and 1000+ charge cycles. Includes fast charger & advanced BMS protection.

🔋 Authentic Samsung 50S cells for reliable performance
📱 Smart connectivity: Real-time battery monitoring via mobile app
⚙️ Remote charge/discharge control for convenience
🔄 1000+ charge cycles with advanced BMS protection
🔌 Includes intelligent fast charger

Technical Specifications

Parameter	Details
Voltage	60V
Capacity	30Ah
Cell Type	Samsung 50S
Charge Cycles	1000+
Protection	Advanced BMS technology

The exact dimensions and weight are subject to the actual production.

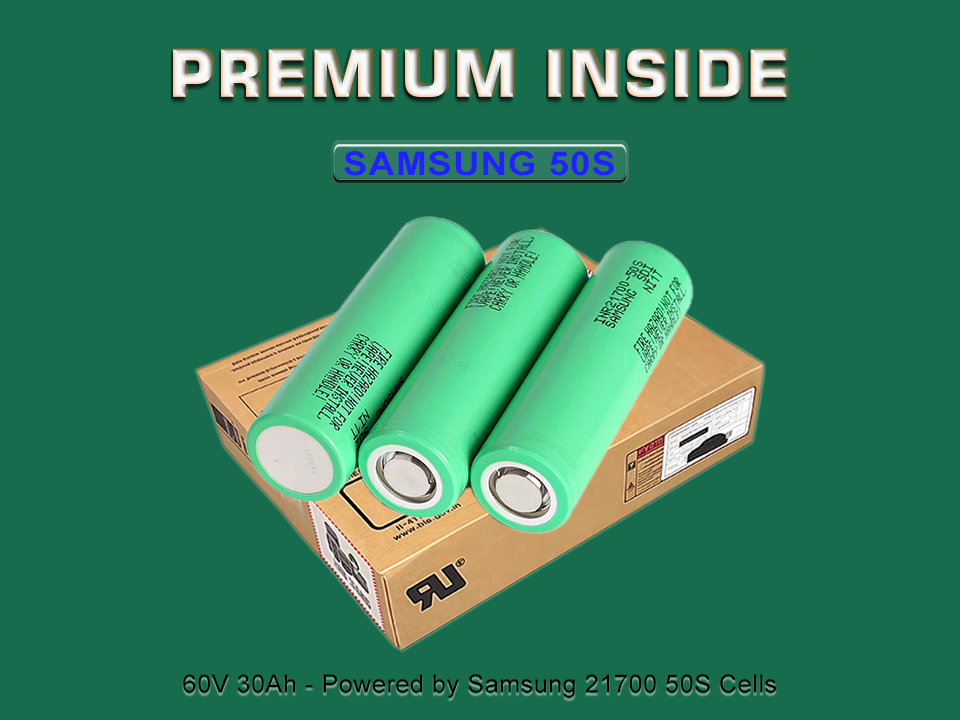

60V 30Ah E-Bike Battery with Samsung 21700 50S Cells

⚡ Power your ride with our 60V 30Ah battery featuring genuine Samsung 21700 50S cells—the benchmark for American e-bike performance and safety.

✅ UL-certified and UN38.3 compliant for maximum safety
🔋 Korean-made cells with 5,000mAh capacity
⚡ 25A continuous discharge (45A peak) performance
📈 20% more range compared to standard batteries
⛰️ Zero voltage drop on hills for consistent power
🌡️ Reliable operation from -4°F to 140°F (-20°C to 60°C)
🔄 1,000+ charge cycles for long-lasting performance
🛡️ Military-grade thermal protection for added safety

Pro-grade power built to last

Technical Specifications

Voltage 60V

Capacity 30Ah

Cell Type Samsung 21700 50S

Cell Origin Korea

Continuous Discharge 25A

Peak Discharge 45A

Operating Temp Range -4°F to 140°F

Charge Cycles 1,000+

Protection + Connectivity

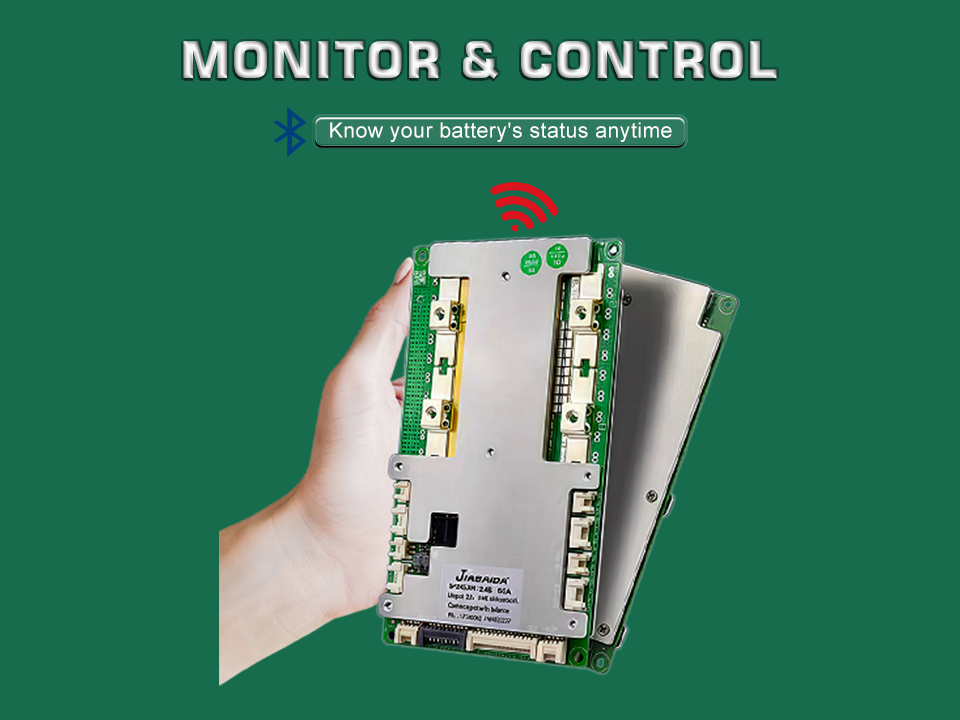

60V 30Ah Lithium Battery with Advanced BMS

🛡️ Engineered for Peak Performance & Safety: Our 60V 30Ah lithium battery features an advanced BMS (Battery Management System) that actively monitors each cell 100 times per second.

🔒 Multi-protection defense against overcharging, overheating and short circuits
⚖️ Active cell balancing to maintain perfect voltage harmony
📱 Professional-grade power with real-time Bluetooth diagnostics via smartphone
🚀 Ride harder, go longer with smart protection and unstoppable power

Smart Protection. Unstoppable Power.

BMS System Specifications

Monitoring Frequency 100x per second

Protection Modes Overcharge, Overheat, Short Circuit

Connectivity Bluetooth Diagnostics

Cell Management Active Balancing

Fast & Intelligent

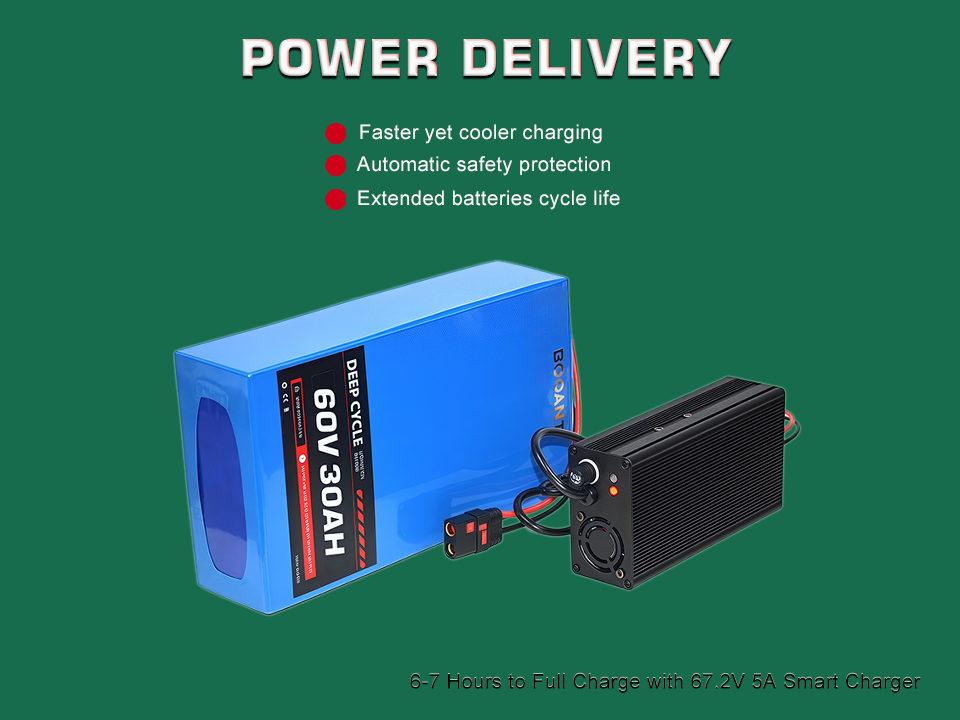

67.2V 5A Fast Charger for 60V 30Ah Lithium Battery

⚡ Charge smarter and safer with our 67.2V 5A fast charger - the intelligent way to power up your 60V 30Ah lithium battery.

🔧 Pro-grade charger with automatic current adjustment and real-time temperature monitoring
🛡️ Triple protection against overcharging, overheating and short circuits
⏸️ Automatic shut-off when fully charged to prevent overcharging
🔋 Extends battery life through precision voltage control
💪 Military-tough aluminum case with LED diagnostics
🌍 Works with 110V/240V outlets worldwide
📊 Charge-cycle memory for peak performance
🔌 Optimized specifically for Samsung 50S cells

The smart, worry-free choice for your e-bike

Technical Specifications

Output Voltage 67.2V

Output Current 5A

Input Voltage 110V-240V AC

Protection Overcharge, Overheat, Short Circuit

Case Material Military-grade Aluminum

Compatibility 16S 60V Lithium Battery

Features LED Diagnostics, Auto Shut-off

Special Feature Charge-cycle Memory

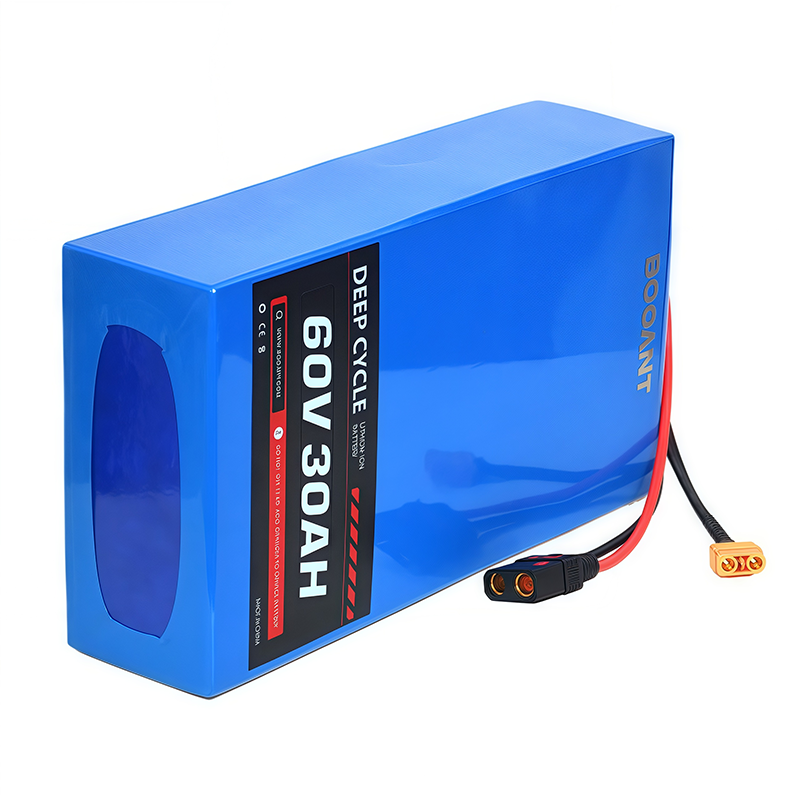

60V 30AH Lithium-Ion Battery Pack

Complete Technical Specifications

Basic Parameters

Battery Model

60V 30AH

Battery Type

Lithium-ion Rechargeable

Configuration

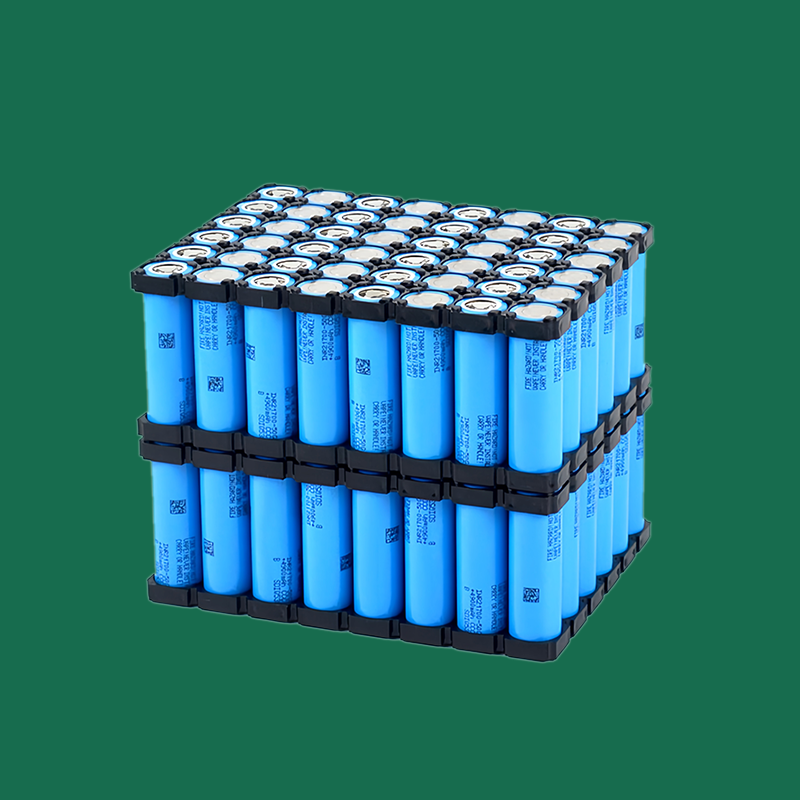

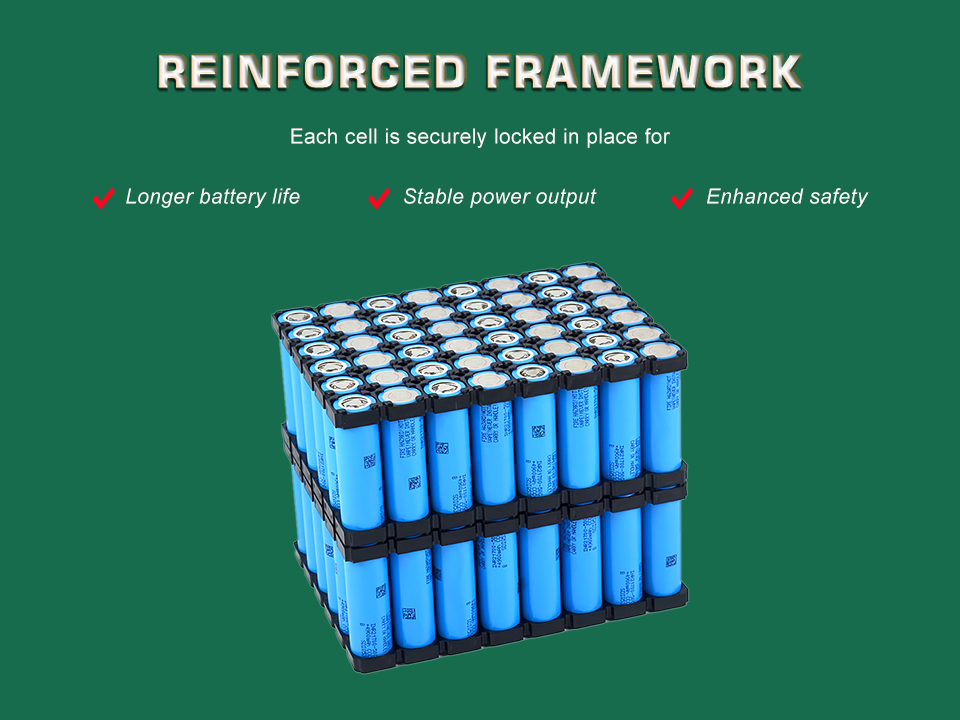

16S 6P

Nominal Voltage

60V

Capacity

30AH

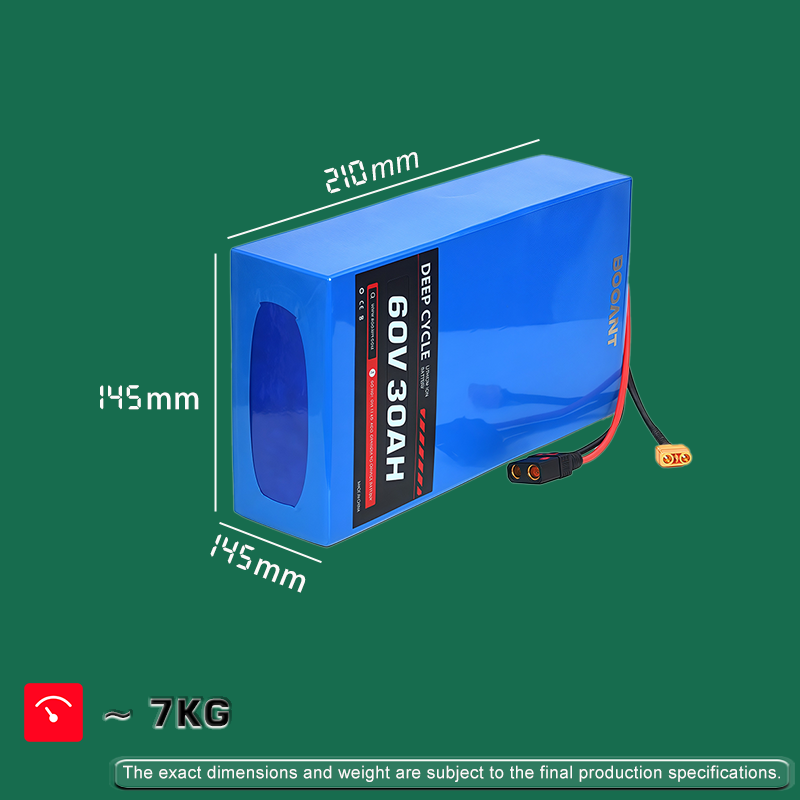

Dimensions

210×145×145mm

Weight

Approx. 7KG

Cell Specifications

Cell Brand/Model

Samsung INR21700-50S

Cell Type

Lithium-ion Rechargeable

Nominal Voltage

3.6V

Nominal Capacity

5000mAh

Discharge Current

25A (continuous without temp cut)
45A (with 80°C cutoff)

Charge Voltage

4.2V (CCCV 6A charge, 100mA cutoff)

Discharge Cutoff

2.5V at 25A

BMS Specifications

Brand Options

JBD/ANT/JK (selected based on requirements)

Installation

Built into battery pack

Communication

Bluetooth, WiFi (iOS/Android apps)

Functions

Real-time monitoring, remote control

Extensions

CAN BUS/RS485/GPS (customizable)

Performance

Charge Voltage

67.2V cut-off (full charge)

Discharge Voltage

40V cut-off (auto-protection)

Rated Discharge

Based on motor power calculation

Peak Discharge

Determined by motor power and BMS

Charger

Input Voltage

110-240V AC (worldwide compatible)

Output

67.2V 5A (standard)

Charging Method

CC/CV (Constant Current/Constant Voltage)

Charging Time

80% in ~5 hours, full in 6-7 hours

Plug Options

US/EU/UK/AU standards available

Temperature & Safety

Operating Range

Charging: 0-60°C (recommended <45°C)
Discharging: -20-60°C (must <60°C)

Storage Conditions

Ideal: 15-25°C (<2% annual loss)

Permissible: -20~45°C (SOC must be controlled)

Prohibited: >50°C or <-30°C (may cause hazards)

State of Charge

Optimal: 40-60% (3.7-3.8V per cell)
Avoid: Long-term storage at <10% or 100%

Physical Protection

Avoid compression/impact (even with ABS casing)
Keep away from metal objects to prevent short circuits

Maintenance Recommendations

Long-term Storage

For storage over 1 month:
• Perform brief charge/discharge cycles
• Maintain 40-60% SOC (3.7-3.8V per cell)

Regular Maintenance

Recommended every 3 months:
• Perform shallow charge-discharge cycle (30% → 80%)
• Enhances lithium-ion activity
• Maintains normal energy output

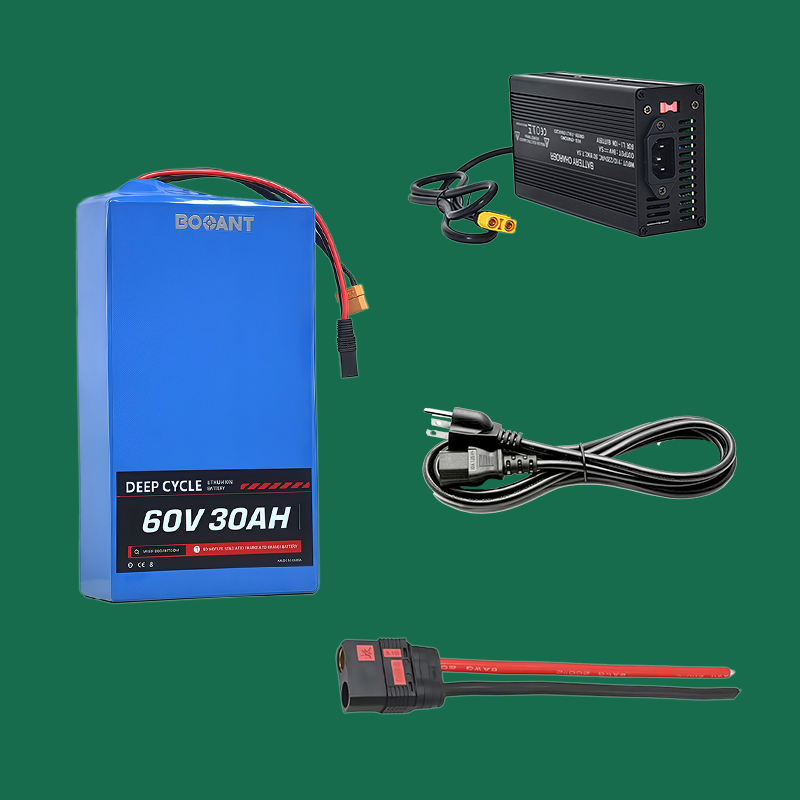

Lithium ion Battery

60V 30AH

BOOANT

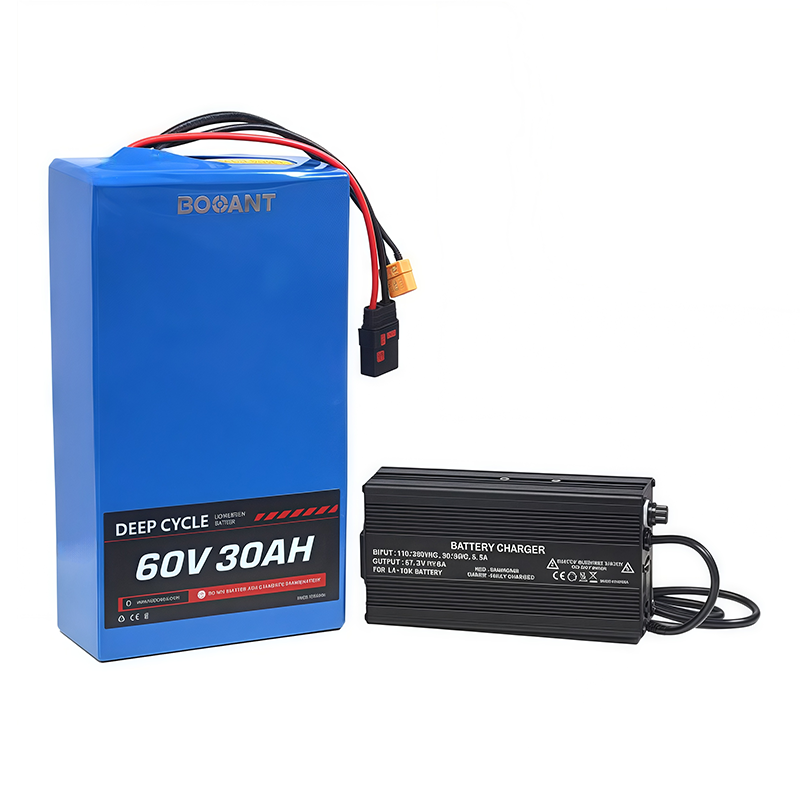

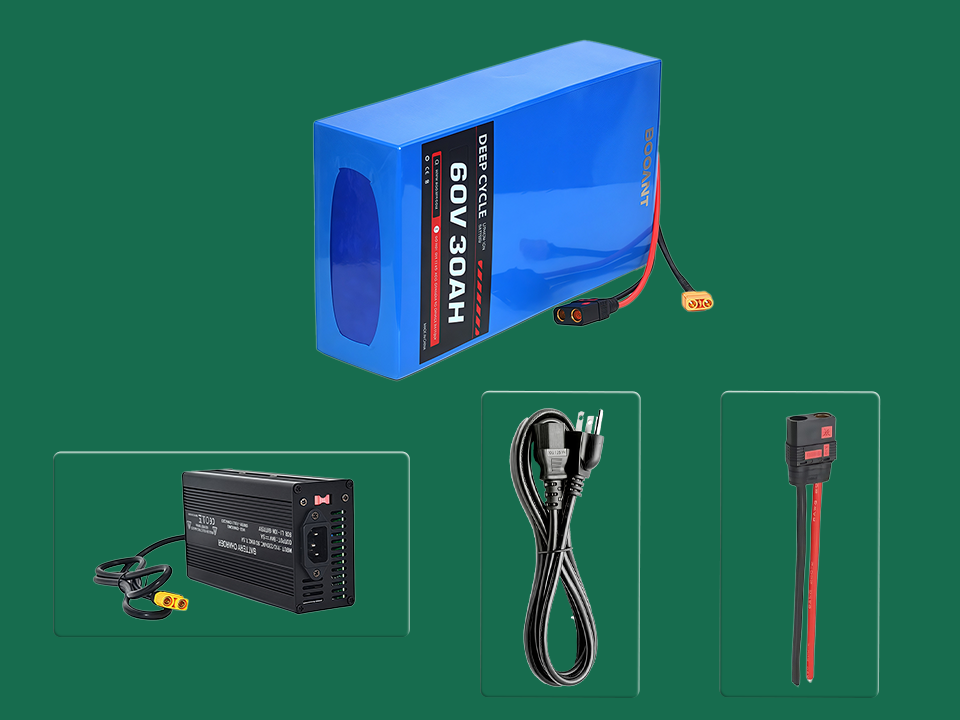

• Battery Pack ×1

• 67.2V 5A Fast Charger ×1

• AC Power Cord ×1

• Discharge Extension Cord ×1
