Batterie pour vélo électrique 52 V 30 Ah avec boîtier métallique
$864.99
Free Shipping
$864.99
Free Shipping
$864.99
Free Shipping
$864.99
Free Shipping
$864.99
Free Shipping
$869.99
Free Shipping
$869.99
Free Shipping
$869.99
Free Shipping
$869.99
Free Shipping
$869.99
Free Shipping
$876.99
Free Shipping
$876.99
Free Shipping
$876.99
Free Shipping
$876.99
Free Shipping
$876.99
Free Shipping
$883.99
Free Shipping
$883.99
Free Shipping
$883.99
Free Shipping
$883.99
Free Shipping
$883.99
Free Shipping
$864.99
Free Shipping
- Performances alimentées par Samsung : batterie au lithium Booant 52 V 30 Ah équipée de cellules Samsung 21700 50G d'origine, offrant une capacité de 1 560 Wh et plus de 800 à 1 000 cycles de charge pour une alimentation longue durée.
- Robuste et résistant aux intempéries : la coque métallique de la batterie eBike Booant 52v 30ah classée IP65 offre une protection étanche et résistante aux chocs, idéale pour les vélos électriques et les applications industrielles.
- Gestion intelligente de la batterie : la batterie Booant 52v 30ah Le BMS Bluetooth intégré permet une surveillance en temps réel de la tension, de la température et de la capacité via l'application mobile.
- Charge rapide et sûre : la batterie au lithium Booant 52 V 30 Ah est associée au chargeur intelligent 58,8 V 5 A pour une charge plus rapide, avec protection contre les surtensions, les surintensités et les courts-circuits.
- Polyvalent pour toutes les configurations : avec un écran de capacité haute définition, surveillez facilement l'état de la batterie, vous assurant d'être toujours informé et prêt pour tout voyage ou opération.
BMS Discharge Current (Select Motor Power)
30 A pour moteur 48-52 V 1200 W
40 A pour moteur 48-52 V 1600 W
50 A pour moteur 48-52 V 2100 W
60A | For 2500W Motors ( MAX)
Bouchon de décharge
prise QS8
Anderson 50A
XT90F/M
XT60F/M
Fil uniquement
BMS Discharge Current (Select Motor Power)
Bouchon de décharge
Livraison gratuite
Retour sous 30 jours
Paiement 100% sécurisé
Réponse rapide 24 heures sur 24
Garantie 1 an
Paiement sécurisé

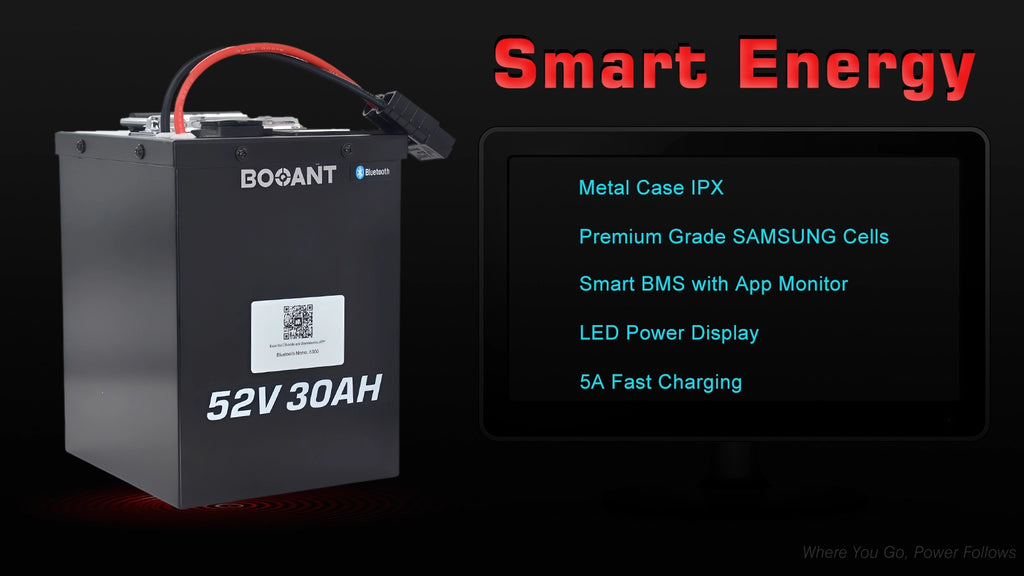

⚡ High-Capacity Li-Ion Pack

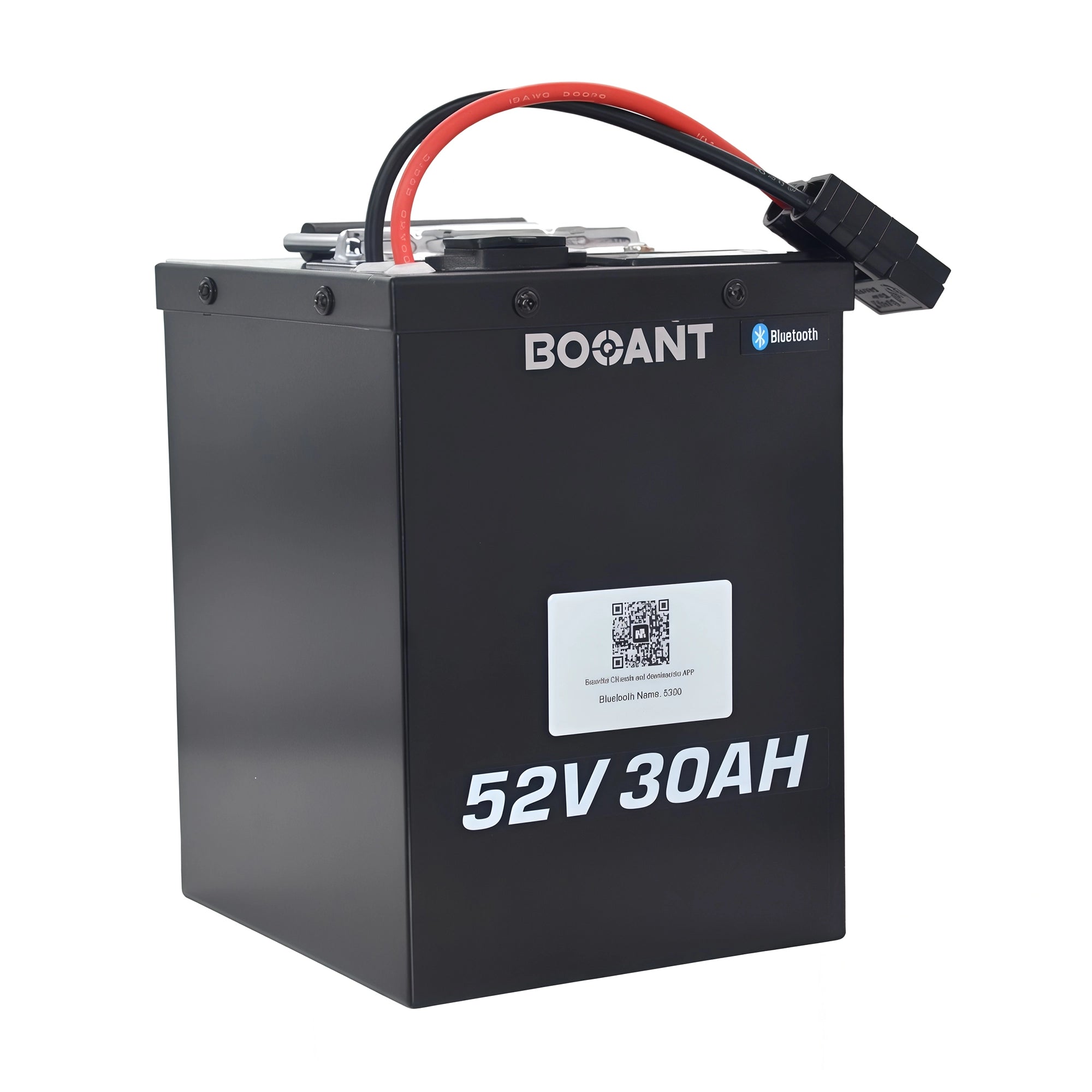

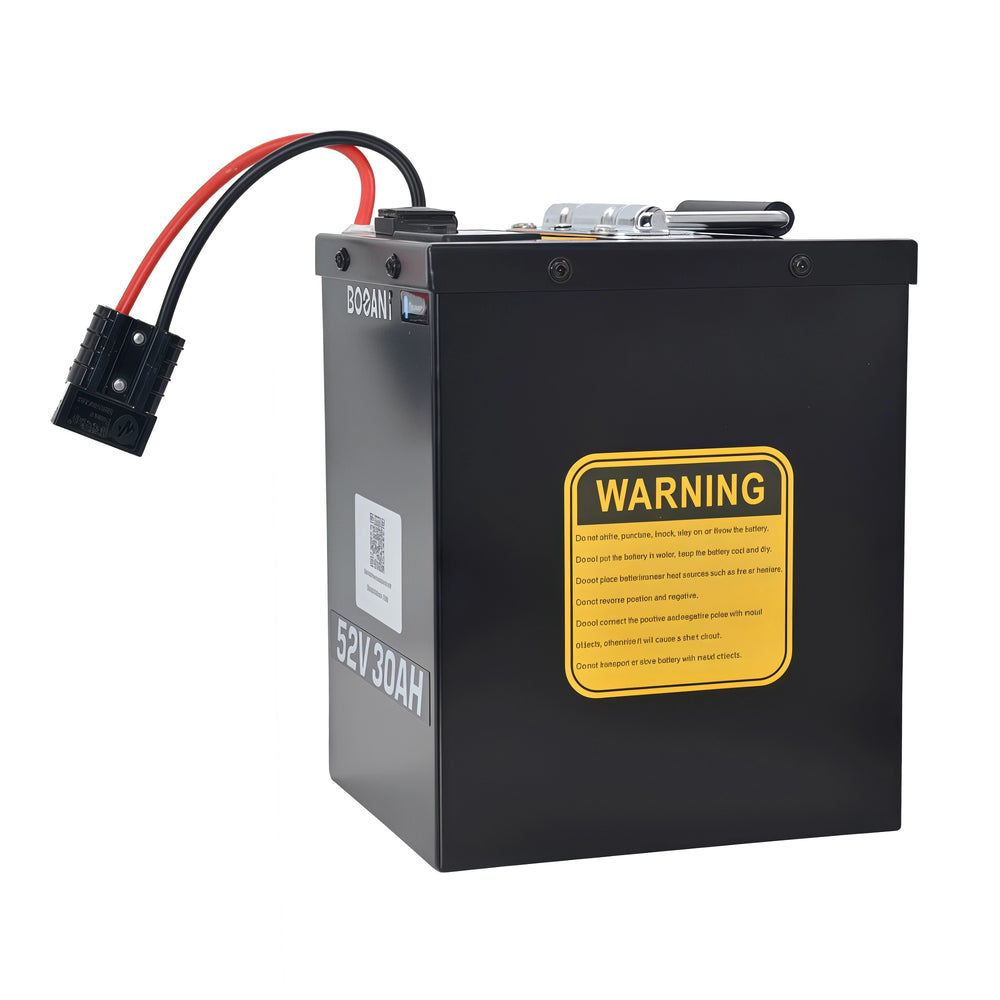

52V 30AH Lithium Battery with Metal Enclosure
14S6P Configuration · 84 Genuine Samsung 21700 50G Cells
Designed for high-performance eBikes, long-range riding, and 1000W–3000W power systems.
Nominal Voltage
52V
Capacity
30AH
Energy
1560Wh
Weight
8.5kg
18.7 lbs Dimensions
200×165×145mm
7.87×6.50×5.71 in Charger
58.8V / 5A
Built for serious riders. This 52V 30AH pack combines 84 genuine Samsung 21700 50G cells in a 14S6P layout, delivering 1560Wh for long-range eBike riding and high-power setups up to 3000W.
Smarter protection, tougher build. The JBD BMS with Bluetooth® gives you real-time monitoring and remote control. Compared to standard plastic packs, the metal enclosure provides superior durability and heat management — backed by full overcharge, over-discharge, overcurrent, and temperature protection.
Real-Time Control
Monitor voltage, current, temperature, and state of charge from your phone. Stay in full control of your battery performance in real time.
Ride-Ready Safety
Active cell balancing and multi-layered protection designed for demanding riding conditions. The metal enclosure adds impact resistance you can trust.

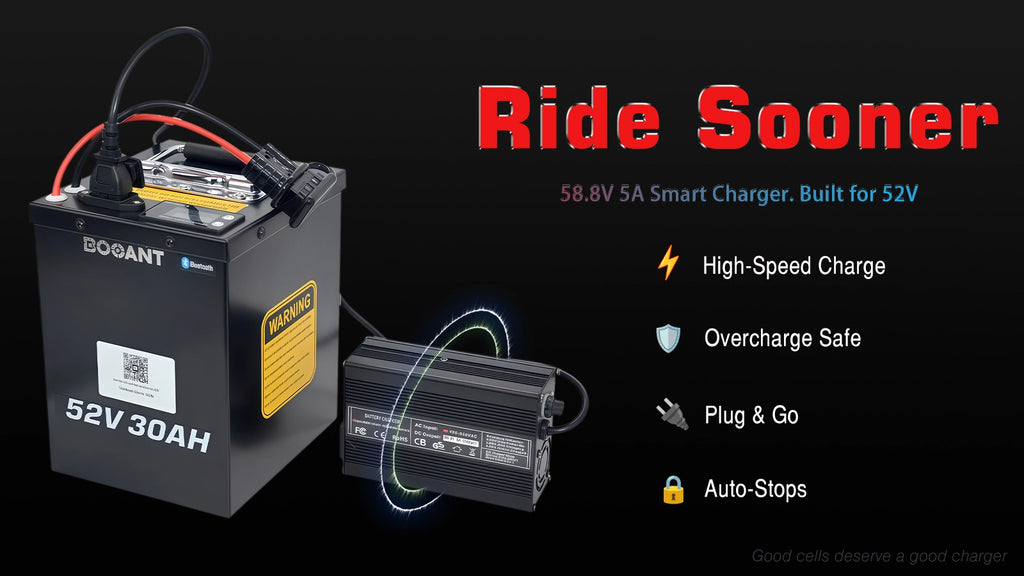

Fast Charging, Less Waiting
The 58.8V 5A smart charger reduces downtime between rides while maximizing cycle life through precise BMS communication.
🔋 Samsung 21700 50G Cells
📐 14S6P Configuration
📦 84 Cells Total
🧠 JBD BMS with Bluetooth®
🛡️ Metal Enclosure
🔌 58.8V 5A Smart Charger

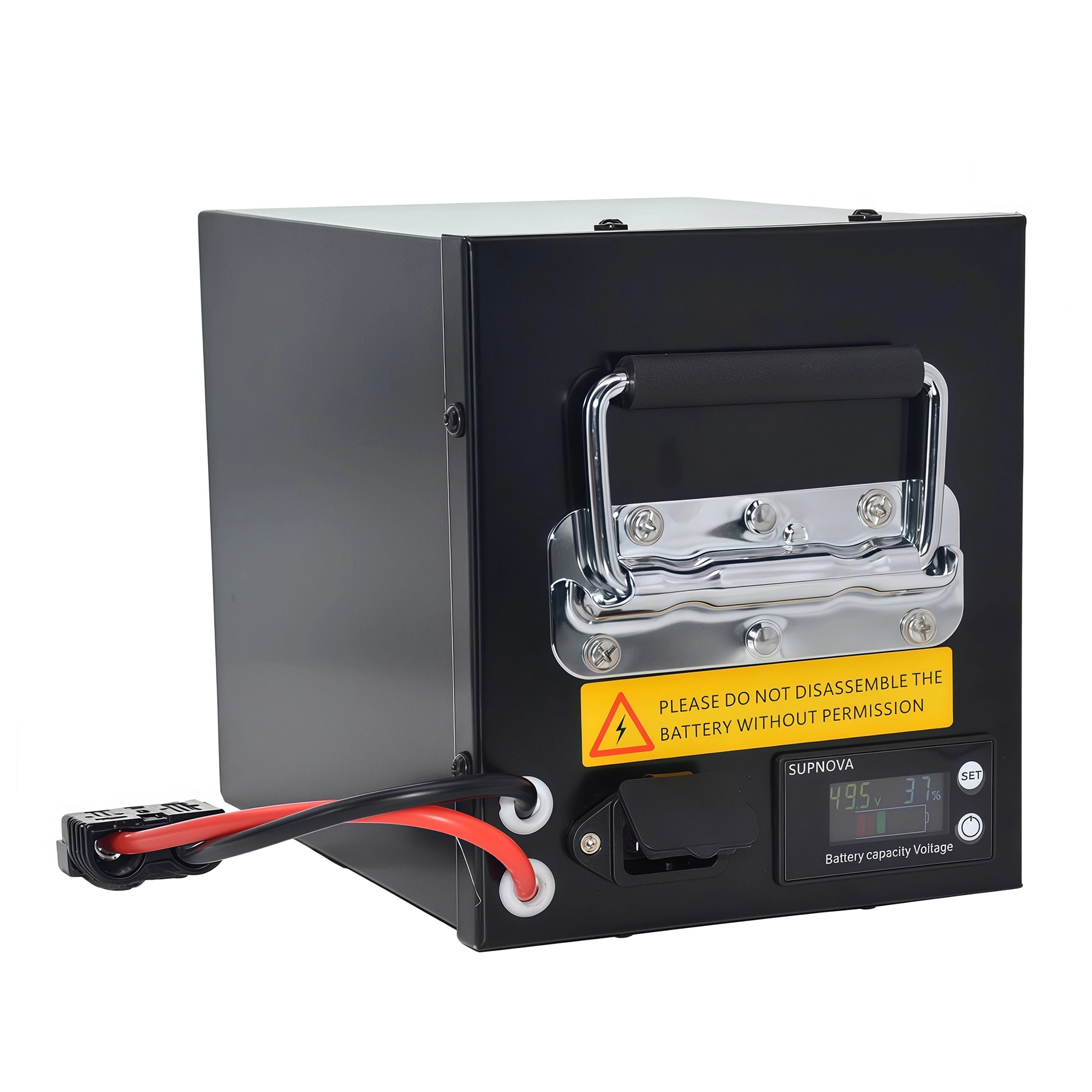

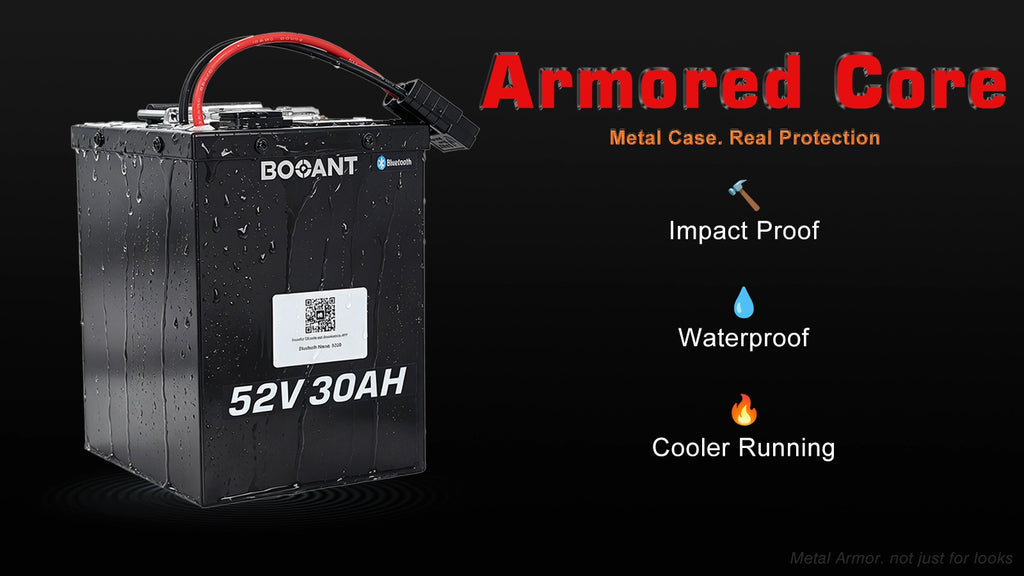

Metal Casing · Built for Harsh Conditions
The rigid enclosure of the 52V 30AH lithium battery delivers impact resistance, drop security, moisture defense, and a clean modern finish — without adding unnecessary bulk.
Impact Shield
Rigid metal enclosure absorbs shocks and shields internal cells from direct hits during off-road riding or accidental impacts. Maintains structural integrity when you need it most.
Guards against collisions
Drop Defense
Reinforced corners and frame protect the 52V 30AH pack when mounting or transporting the battery. Prevents case rupture and terminal damage from everyday handling.
Withstands everyday drops
Moisture Resistant
Sealed metal casing resists rain and splashes during everyday riding, keeping internal electronics dry. Compared to standard plastic housings, the metal casing offers superior durability and heat dissipation.
Reliable wet-weather use
Clean Aesthetics
Brushed metal finish with hidden fasteners gives a sleek, modern look. Complements visible installations with professional style.
Professional appearance
Structural Rigidity
Stiff metal body resists twisting and bending under load. Keeps cell connections stable even when riding over rough terrain.
Solid structural base
Passive Cooling
Metal surface dissipates heat naturally during long rides or high-power discharge. Helps the 52V 30AH battery maintain optimal temperature when pushed hard.
Thermal regulation
A protective structure designed not just for safety, but for real-world reliability.

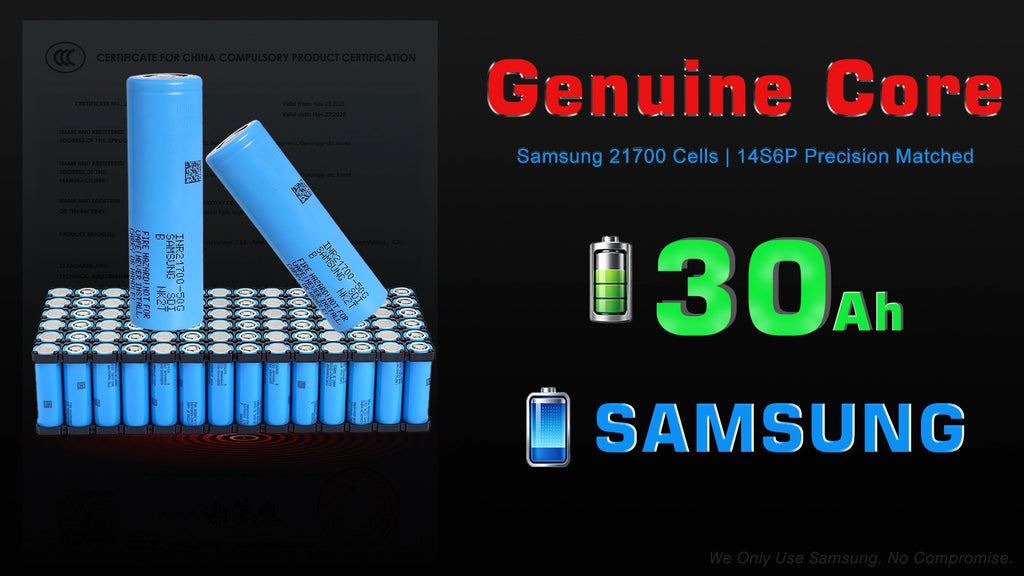

⚡ SAMSUNG 21700-50G ORIGINAL CELL
🔋 Assembled in 52V 30Ah Metal‑Cased Battery
Built for long-range eBike riding, high-power systems, and stable performance under load.
Nominal Capacity
5,000mAh
Delivers longer riding range per charge
Nominal Voltage
3.6V
Ensures stable power delivery under load
Cycle Life
500+cycles
Designed for long-term reliability and repeated charge cycles
Cell Format
21700
Larger format for higher capacity and improved efficiency vs 18650 cells
🔬 Electrical Characteristics
- Typical Capacity 5,000 mAh
- Nominal Voltage 3.60 V
- Discharge Cut-off 2.50 V
- Max Continuous Discharge 14.4 A
- Internal Resistance ≤ 18 mΩ (AC 1kHz)
Compared to standard 18650 cells, 21700 format offers higher capacity, lower internal resistance, and better thermal performance.
📦 Mechanical & Pack Integration
- Cell Dimensions ø21.0 x 70.0 mm
- Weight (approx.) 68 g
- Pack Configuration 14S6P (84 cells total)
- Pack Nominal Voltage 50.4 V · rated 52V
- Pack Capacity 30 Ah (6P × 5Ah)
Samsung 21700-50G cell — integrated into a 52V 30Ah metal-enclosed lithium battery.
Providing consistent power output, reduced voltage sag, and improved thermal stability during demanding use. 14S6P arrangement delivers 50.4V nominal (52V rated) with 30Ah total capacity. Metal housing ensures structural protection and efficient heat dissipation. Ideal for e-mobility, energy storage, and high-drain industrial applications.
52V 30AH Power System
Metal-Enclosed Lithium Pack · JBD Smart BMS with Bluetooth Control
1560Wh Energy Sealed Metal Enclosure App-Controlled BMS
JBD Intelligent Core This 52V 30AH lithium power system is built around a JBD smart BMS — not just a protection board, but a fully configurable management platform. Access real-time diagnostics, adjust charge/discharge parameters, and set custom thresholds via Bluetooth app. The sealed metal enclosure provides structural integrity and splash resistance for demanding mobile and stationary applications.
⚡ Beyond standard BMS: Unlike basic protection boards that only passively shut down, JBD smart systems enable real-time diagnostics and user-defined parameter control — giving you full visibility and command over your power system.
Nominal Voltage
52V
14S Li-ion configuration
Rated Capacity
30AH
1560 Watt-hours total energy
BMS Platform
JBD Smart
Bluetooth · UART · Configurable
Enclosure
Sealed Metal
Splash-resistant · Shock-resistant
Operating Range
-20°C ~ 60°C
Discharge / Charge optimized
Multi-Layer Protection
MOS-level cutoff control with sub-10ms response to overcurrent and short circuit events. Monitors individual cell voltages, pack temperature, and current in real time.
⚡ Response < 10ms · MOS-controlledBluetooth Diagnostics
Track battery health before long rides. Diagnose cell imbalance issues without opening the pack. Limit discharge current to protect your motor or controller.
📡 BLE 5.0 · Dedicated appConfigurable Parameters
Adjust charge voltage, current limits, and cutoff thresholds directly via app. Supports custom profiles for e-bike, electric scooter, or energy storage systems.
🔧 App-adjustable · Multi-profile

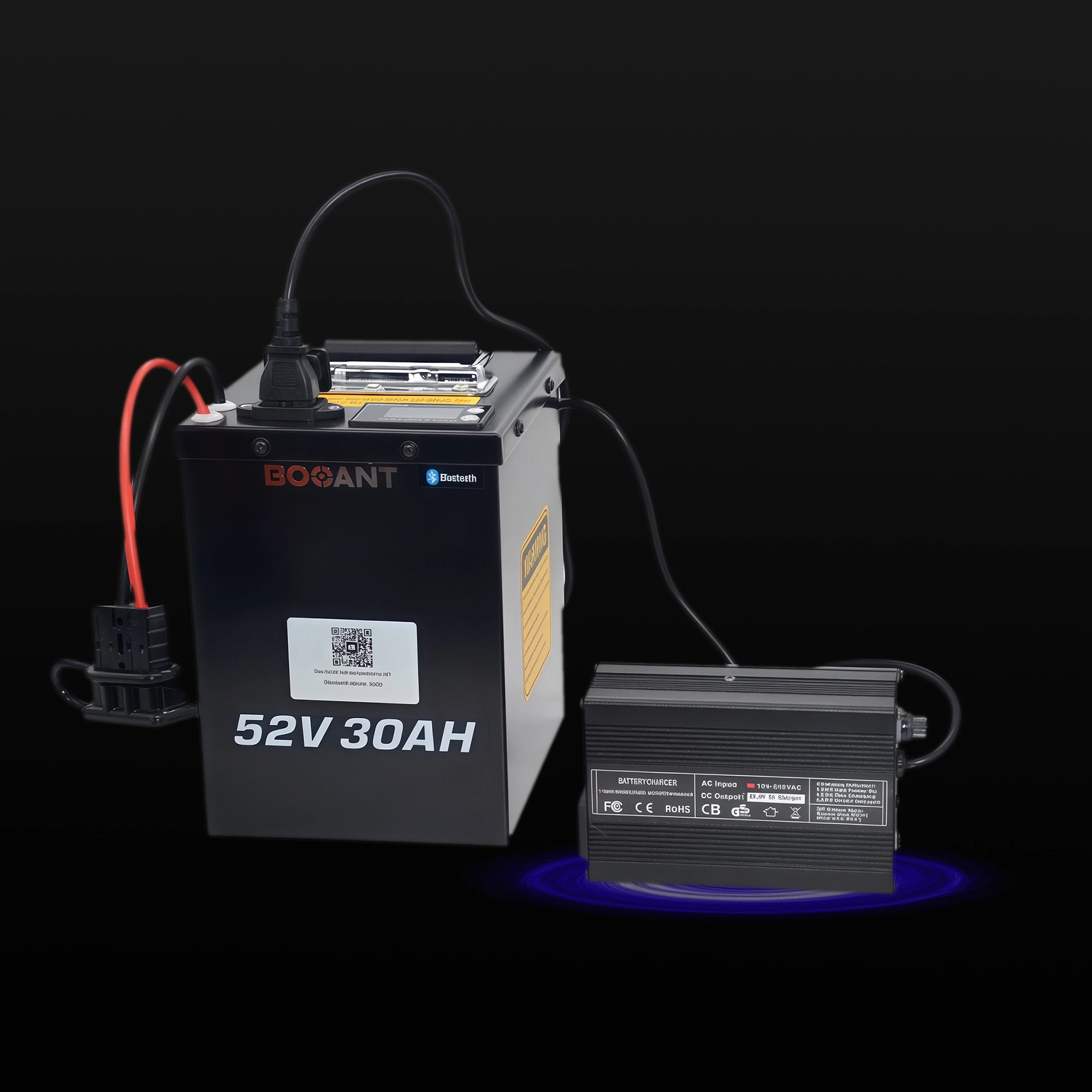

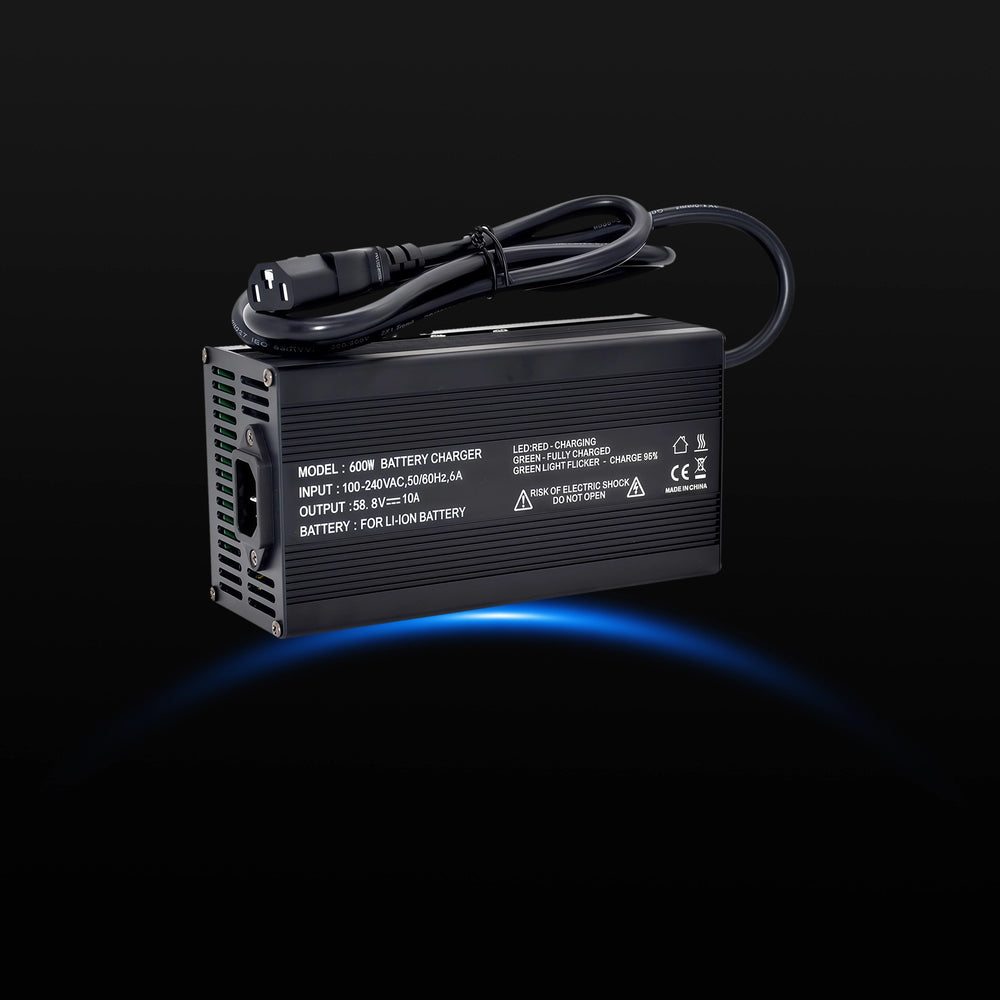

WATE 58.8V 5A Smart Charger
Ideal for eBike Upgrades, DIY Conversion Kits & High-Capacity 52V Battery Systems
⏱️ Full charge in 6–7 hours for 52V 30Ah battery
⚡ Intelligent CC/CV Algorithm 🔋 Li-Ion Optimized Profile 🛡️ Full Safety Protections
Designed for 52V lithium batteries used in eBikes, scooters, and conversion systems — robust metal housing, precise 58.8V cutoff
Output Rating
58.8V 5A
Compatible Battery
52V 30Ah
Charging Logic
CC/CV
Auto Cut-Off
Enclosure Material
Metal
Alloy Shell
🔌 Compatible With
- 52V (14S) Li-Ion battery packs
- eBike systems & DIY conversion kits
- Electric scooters & cargo bikes
- Standard 3-pin / barrel charging ports
⚠️ Always confirm connector type and polarity before use. Contact us for compatibility verification if unsure.
This 58.8V charger is designed for 52V lithium batteries used in eBikes, scooters, and conversion systems. It delivers 5A output using a precision CC/CV algorithm, bringing 14-series cells to a full saturation charge with automatic cutoff to prevent overcharging.
Housed in a metal alloy enclosure for efficient heat dissipation. Built-in protections guard against over-voltage, over-current, short circuits, and reverse polarity. A dual-color LED provides at-a-glance charging status — red during active charging, green when fully charged or in standby.
- 58.8V 5A output — CC/CV with auto cutoff
- Full charge: 6–7 hours for 52V 30Ah
- Metal alloy shell — passive heatsink design
- Universal AC input: 100–240V, 50/60Hz
- Red/Green LED: charging vs. full/standby
- Pre-charge self-check before every cycle
Thermal Management
Metal housing acts as a passive heatsink during 5A output.
- Over-temperature auto-pause
- Fanless, silent cooling
Safety Protections
Multi-layer electronic safeguards protect charger and battery.
- Over-voltage & over-current
- Short-circuit & reverse polarity
Charging Status
Dual-color LED for instant visual feedback — no tools needed.
- Red: Charging in progress
- Green: Full charge / standby
Wide Compatibility
Fits 52V 30Ah Li-Ion packs and similar configurations.
- Standard 3-pin / barrel connector
- Verify connector type before use

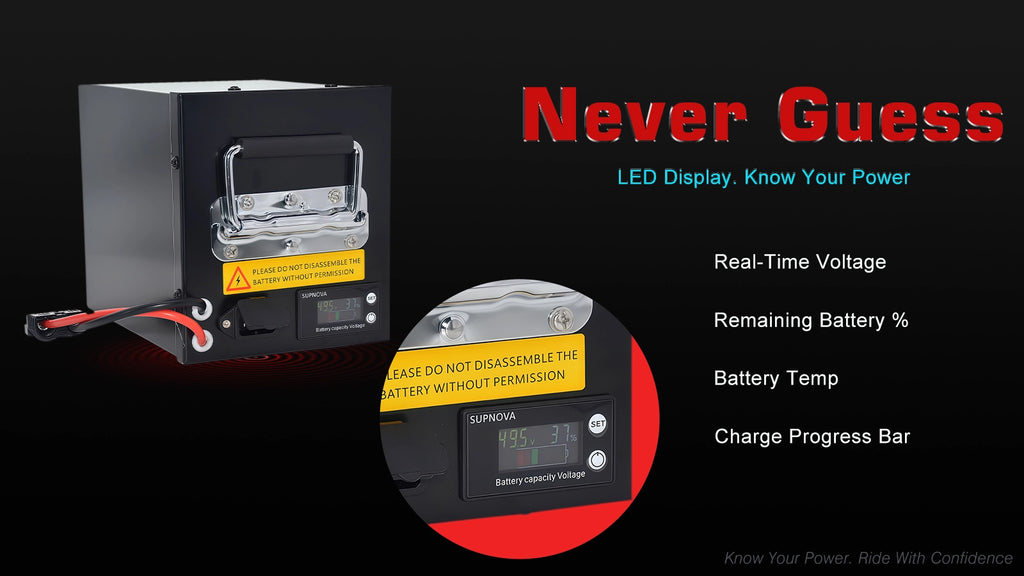

What does a 52V battery display show?
Real-time voltage, temperature, and state-of-charge data — helping riders monitor performance and prevent deep discharge.
⚡ How it works: Reads pack voltage and calculates SOC. Includes temperature sensing and charging visualization — essential for 52V 30AH systems.
Designed for Real-World Applications
eBike Upgrades
Monitor your 52V eBike battery health in real time during rides.
Electric Scooters
Keep track of voltage and SOC for consistent urban commuting.
DIY Battery Systems
Essential for custom lithium packs — know exactly what your build is doing.
Solar Storage
Visualize charge status for off-grid and backup power setups.
❌ Without Display
✅ With Display
Guess battery level
Real-time SOC
Risk over-discharge
Safe monitoring
No temperature awareness
Live thermal data
Charging uncertainty
Progress visualization

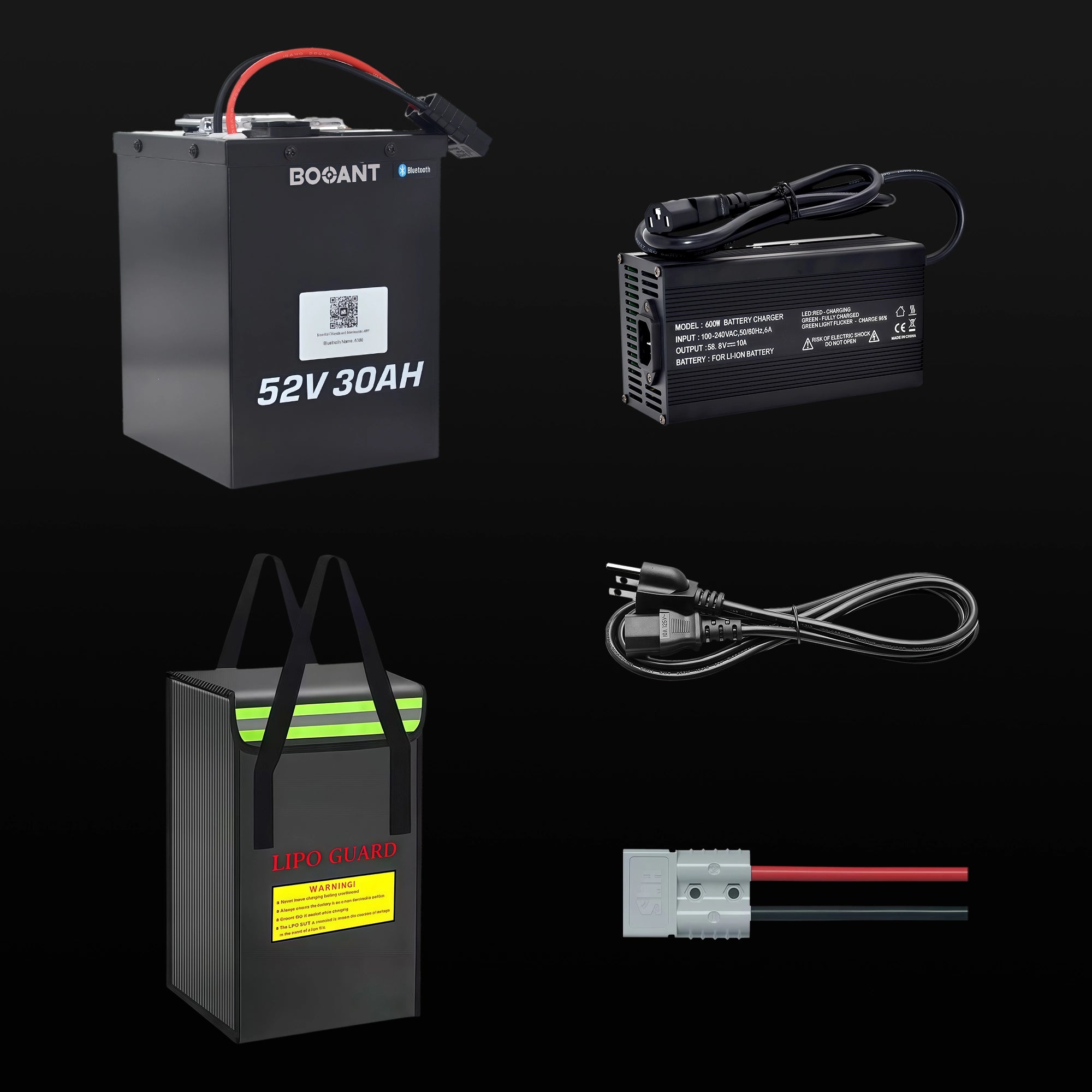

The Complete Power System
Battery
Energy Storage
⚡
Charger
Energy Refill
📊
Display
Visibility & Control
Battery stores energy.
Charger refills it.
Display gives you complete visibility.
Together — a full 52V 30AH lithium power ecosystem.
Charger refills it.
Display gives you complete visibility.
Together — a full 52V 30AH lithium power ecosystem.
52V 30AH Display Module
Smart battery interface for lithium metal-case packs
Voltage Reading Temperature Sensor SOC Percentage Charging Progress
Nominal Voltage 52V
Capacity 30AH
Display Refresh 0.5s
Real-time monitoring
- Displays battery voltage & internal temperature continuously
- Tracks remaining capacity percentage with precision
- Features a dynamic charging progress bar for at-a-glance status
- Built for 52V 30AH lithium packs with metal enclosure
Voltage & SOC
Clear numeric readout of pack voltage and state-of-charge percentage with high precision.
Thermal Monitor
Integrated temperature sensing ensures operation within safe thermal range.
Charge Progress
Visual progress bar indicates charging stage completion and estimated remaining time.
Display Parameters
⏚ Voltage
52.0V
🌡️ Temperature
26°C
🔋 State of Charge
84%
⚡ Status
Charging
Charging Progress 78%
Estimated remaining ~22 minutes
52V 30AH Lithium Battery
Selectable BMS Discharge Currents · Metal Enclosure
⚡ High-Performance Li-ion Pack
What BMS current do you need for a 52V battery?
The required BMS current depends on your motor power. For example, a 1000W motor typically needs a 30A BMS, while high-power setups above 1500W require 50A or higher to avoid current limiting and ensure stable performance.
Cycle Life
800+
Charge cycles (80% capacity) Fast Charge
5A–10A
Recommended charging current Shell Material
AluminumAlloy
Impact-resistant & heat dissipation Compatible With
E-Bike/Scooter
Universal mounting support Tailored Power Delivery — This 52V 30AH battery is engineered with a robust metal shell and an intelligent Battery Management System (BMS) available in four continuous discharge ratings. Each BMS option is optimized to match specific motor power requirements, ensuring safe operation, extended cycle life, and consistent range. Choose the current that aligns with your controller and motor setup.
📋 How to choose the right BMS option:
- • Choose 30A → for motors up to 1200W, daily commuting, longer range, lower heat
- • Choose 40A → for motors up to 1500W, balanced performance and efficiency
- • Choose 50A → for motors up to 2000W, high-load or off-road riding
- • Choose 60A → for motors up to 2500W, maximum acceleration and power systems
🔋 Lower Current BMS (30A–40A)
Longer range
Lower heat generation
Limited peak power
⚡ Higher Current BMS (50A–60A)
Strong acceleration
Supports high-power motors
Reduced range
📏 Understanding range estimates: Range varies based on speed, terrain, rider weight, and throttle usage. Lower current setups typically achieve higher efficiency (Wh/km), resulting in longer range under similar riding conditions.
52V 30Ah Lithium Battery
1440Wh · 14S6P Samsung INR21700-50G · Metal Enclosure
⚡ Choose Your BMS Current Rating
Metal EnclosureSafer than plastic under high load · impact-resistant
Samsung 50G CellsStable output · longer cycle life than standard cells
Smart BMS ProtectionReal-time monitoring · prevents overcharge & overheating
Bluetooth & WiFiCheck battery health anytime on your phone
📋 Key Specifications
| Model | 52V 30AH (1440Wh) |
|---|---|
| Configuration | 14S 6P · Samsung INR21700-50G |
| Nominal Voltage | 52V |
| Rated Capacity | 30AH |

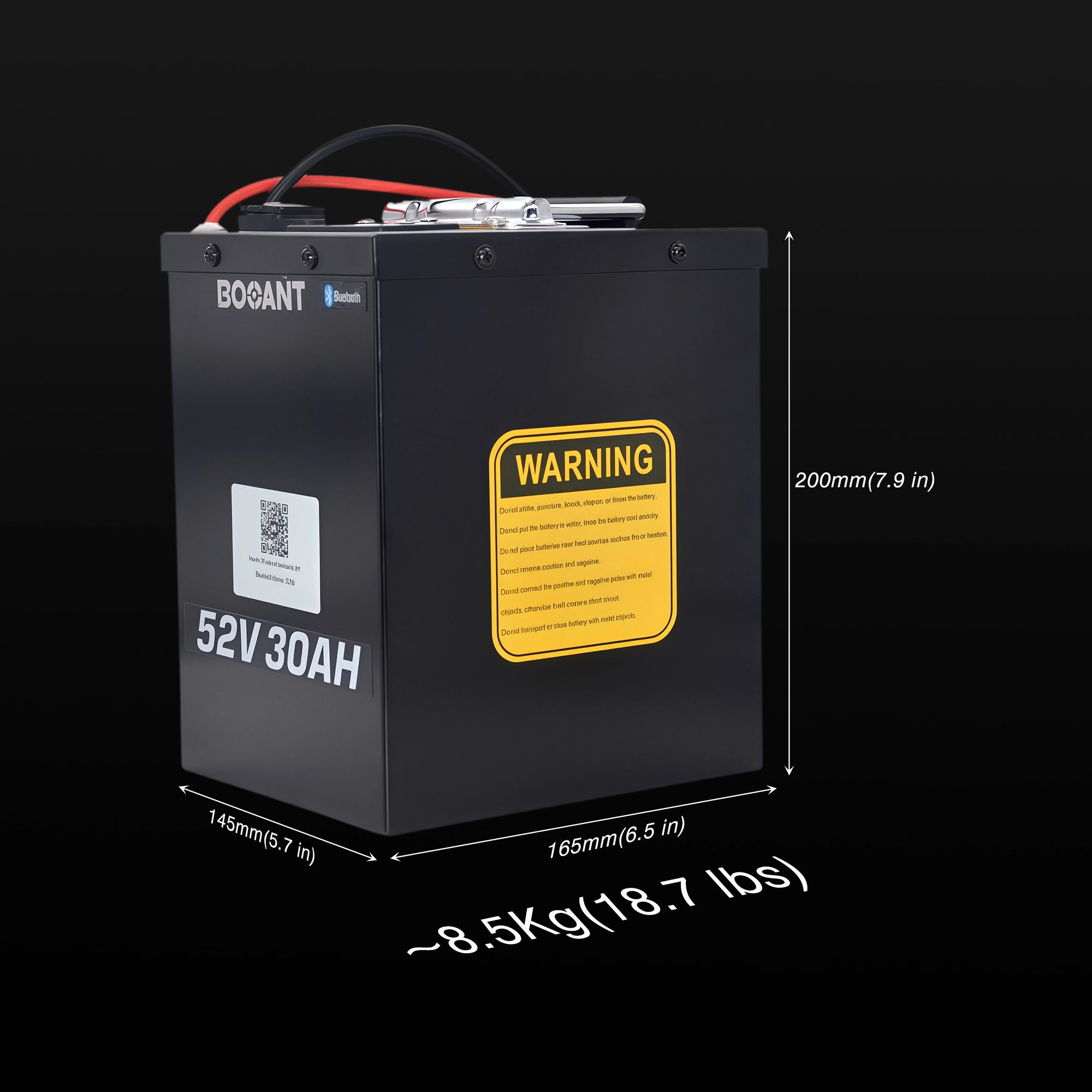

| Dimensions | 200 × 165 × 145 mm (7.87 × 6.50 × 5.71 in) |
| Weight | Approx. 8.5 kg (18.74 lbs) |
| Casing | Metal enclosure — impact-resistant, better heat dissipation than ABS |
| Charge Cut-off | 58.8V (automatic stop at full charge) |
| Discharge Cut-off | 35V (protection activates, prevents deep discharge damage) |
⚙️ Performance & Compatibility
Smart BMS Integration
Built-in JBD/ANT/JK BMS with Bluetooth & WiFi. Monitor voltage, current, temperature, and remaining capacity in real time via iOS or Android.
✅ Prevents overcharge, over-discharge, short circuit, and overheating — extends battery lifespan significantly.
Discharge Performance
Continuous and peak discharge current determined by selected BMS rating (30A–60A) and your motor power. Samsung 50G cells deliver stable voltage under high load.
✅ Consistent power delivery for ebikes, scooters, and high-drain applications — no sudden voltage sag.
Fast Charging
Includes 58.8V 5A charger with universal 100V–240V input. Reaches 80% capacity in approximately 5 hours; full charge in 6–7 hours. CC/CV charging protects cell health.
✅ Charge overnight and ride all day — optimized for daily commuting and long-range trips.
📐 Full Technical Details (Cell · BMS · Charger · Temperature)
🔬 Cell Parameters (Samsung INR21700-50G)
| Cell Model | SAMSUNG INR21700-50G |
|---|---|
| Nominal Voltage | 3.6V ~ 3.7V |
| Nominal Capacity | 5000mAh |
| Max Continuous Discharge | 5A (~1C continuous) |
| Peak Discharge | 9.8A (~2C peak) |
| Charge Cut-off (per cell) | 4.20V · CCCV 100mA cut-off |
| Discharge Cut-off (per cell) | 2.5V cut-off |
🧠 BMS & Communication
| BMS Brand | JBD / ANT / JK |
|---|---|
| Installation | Built into the battery pack |
| Communication | Bluetooth & WiFi |
| Compatibility | iOS & Android |
| Functions | Real-time monitoring, remote control |
| Optional Extensions | CAN BUS / RS485 / GPS (customizable) |
🔌 Charger Specifications
| Input | Universal 100V ~ 240V (worldwide) |
|---|---|
| Output | 58.8V 5A |
| Charging Method | CC & CV (Constant Current / Constant Voltage) |
| Charge Time | ~5h to 80% · 6–7h full charge |
| Plug Options | US / EU / UK / AU (country-specific cords) |
🌡️ Temperature Specifications
| Charging | 0 ~ 60℃ (recommended <45℃) |
|---|---|
| Discharging | -20 ~ 60℃ (must stay <60℃) |
| Charger Operation | 0 ~ 60℃ (recommended <45℃) |
| Ideal Storage | 15 ~ 25°C (<2% annual degradation) |
| Permissible Range | -20 ~ 45°C (requires SOC control) |
| Prohibited | ≥50°C or ≤-30°C (hazard risk) |
🛡️ Metal Case Advantage: The rigid metal housing provides superior protection against physical stress, compression, and impact — far exceeding standard ABS or shrink-wrap casings. It also aids thermal dissipation during sustained high-current discharge, keeping cells cooler and safer.
State of Charge (SOC) Guidance
For daily use: charge to 80–90% to maximize cycle life. For storage: maintain 40–60% (3.7–3.8V per cell). Never store long-term at <10% or 100% — this accelerates internal degradation.
Long-Term Storage Maintenance
If storing longer than 1 month, perform a shallow charge/discharge cycle (30% → 80%) every 3 months. This maintains lithium-ion activity and ensures the pack is ready when you need it.
