BOOANT COMPANY PROVIDES 12V 24V 36V 48V 52V 60V 72V 84V LITHIUM BATTERY PACK PRODUCTION.
Booant batteries are an efficient, long-life energy source. Super long range, super long service life and intelligent battery management system.
Booant rechargeable batteries Management System of the high-quality lithium-ion batteries detects potential sources of error and protects cells from overloading. There is a suitable rechargeable battery for every requirement and every type of eBike, from the rack variant, via the frame battery to the integrated solution.
Battery Model: 24V 20Ah
Nominal Voltage: 25.9V
Nominal Capacity: 20Ah
Cell Specification : 16850 2500mAh 3.7V Cell
Cell Brand: CH
Cell OverCharge Protection Voltage: 4.2V/Cell
Cell Overdischarge Protection Voltage: 2.8V/cell
Cell Combination: 7 Series 8 Paralles
Cell Quantity (parallel x series): 56 pcs
BMS: 30A(Can be customized)
30A BMS Suitable Motor: Less than 24V 700W(MAX) Motor
Discharge Cutoff Voltage (V): 19.6V+/-0.5V
Charge Cutoff Voltage (V): 29.4V+/-0.5V
Rated Discharge Current (A): 20A
Maximum peak discharge current (A): 90A
Maximum Continuous Discharge Current (A): 30A
Charger mode: CC/CV
Standard Charge Current (A): 2A
Max Fast Charge Current (A): 5A
Charge Time under 2A Fast Charge Current: approx 10--12 hours
Battery Weight: about 3 kg
Cycle life: ≥80% capacity after 2000 cycles.
Discharge Temperature: -20 to 65°C
Charge Temperature: 0 to 45°C
The advantages of Booant batteries
Long service life - Booant batteries are designed for lots of trips, miles and years of service. The intelligent, electronic Battery Management System (BMS) protects lithium-ion batteries from extreme temperatures, overcharging, and excessive discharge.
No memory effect - Booant batteries with lithium-ion cells can be charged quickly irrespective of your charge level at any time. Interruptions of the charging process do not harm the battery. Complete discharge is not required.
ITEM PACKAGE :

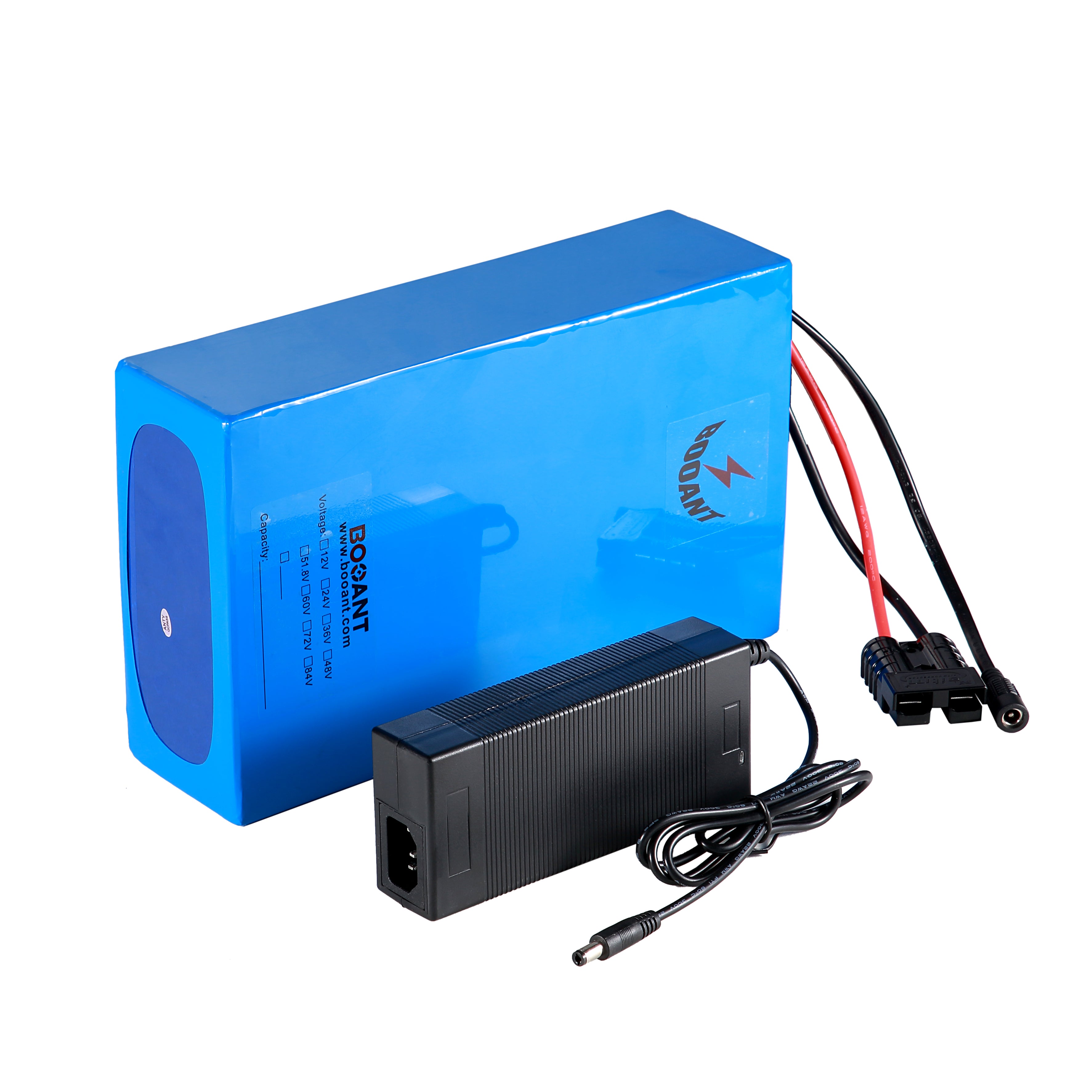

1. Battery Pack *1 2. 29.2V 5A Charger *1 3. AC Power Cable *1
MEET DIFFERENT DISCHARGE PLUG OPTIONS : (contact us)
APPROPRIATE AC POWER CABLES FOR DIFFERENT COUNTRIES :
BATTERY USAGE PRECAUTIONS : (IMPORTANT)
Don't hit, pierce, strike, trample or throw the battery.
Don't put the battery in the water, keep the battery cool and dry condition .
Don't put the battery near a heat source such as fire or heater.
Use the specified charger that come with the battery
Don't reverse the position and negative pole.
Don't connect the positive and negative terminals with metal objects which would cause short circuit
Don't transport or store the battery with metal objects together , such as hairpins, necklaces, etc.
Everything you need to know about batteries
Are chargers from other manufacturers safe to use?
Booant chargers are adapted specifically to the Booant batteries Using a different charger may reduce the service life of the batteries
or cause other damage or malfunctions in the eBike system.
Can Booant batteries be opened to replace individual cells?
Booant eBike batteries must never be opened – not even if they are being repaired by third parties. Opening the battery always means interfering with the condition approved by Booant and entails safety-related risks. once
opened, may catch fire during assembly due to crushed or incorrectly routed cables, detached components or poor quality electrical connections.
After opening, the seal of the housing can no longer be guaranteed, so that the ingress of water or dust can lead to damage to the monitoring electronics (Battery Management System) or to the cells.
For battery packs, we offer up to12months free warranty.
For Chargers, we provide up to6months free warranty.
If there is any problem with the battery under normal use, please contact us and we will have professionals to solve your problem.
If you need one kind of battery which can’t find in our store, we also accept customization service for you, and supports OEM service.
