BOOANT 36V 20Ah eBike Battery for 1000W Motor
Quick view
Fast Delivery
24-Hour Prompt Response
2 Years Warranty
Secure Payment
Product Feature 720WH energy
Product Feature SAMSUNG 21700 Cell
Product Feature 20A BMS (support 700W motor)
Product Feature 3hrs charges to 100% with 5A charger
Product Feature LED display screen
Product Feature 2000+ cycles 3 years lifespan
Product Feature Bluetooth monitoring with APP
Product Feature Waterproof & Impact-resistant

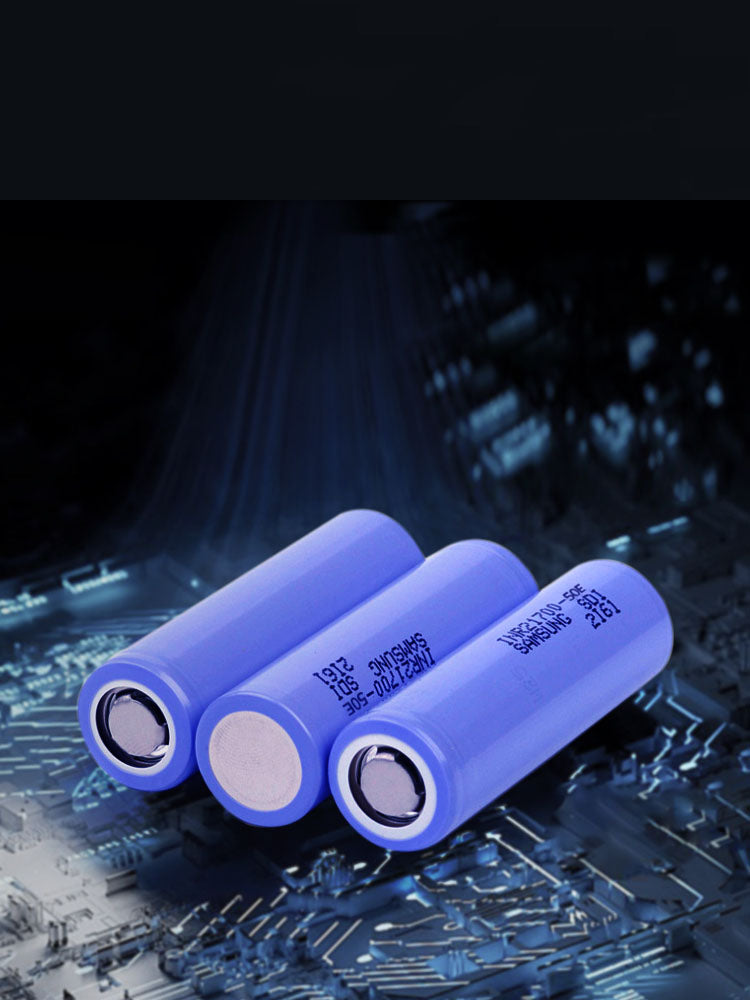

QUALITY BATTERY UNITS

Cell Brand:
SAMSUNG
Model:
21700
Voltage: 3.7V
Capacity:
5000mAh
Max Charging
Voltage: 4.2V
Min Discharging
Voltage: 2.8V

These cells typically offer superiorenergy density, higher capacity, and better discharge rates compared to other battery types.

HIGH-TECH BATTERY SUPERVISORY SYSTEM

Bletooth Connectivity:
Facilitates real-time monitoring of individual cell states through a dedicated mobile app.

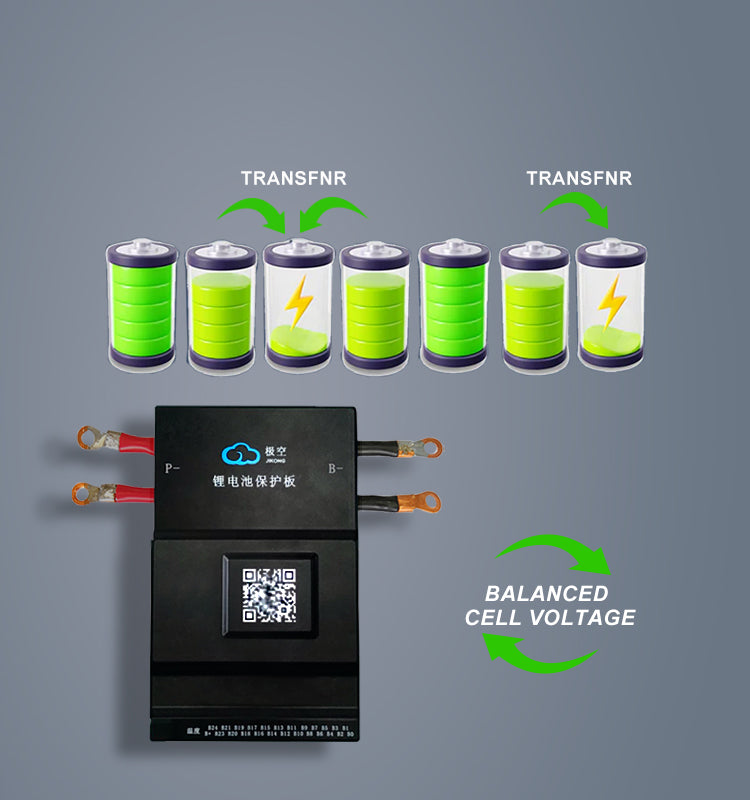

Voltage Management:
The BMS incorporates a unique voltage management feature,ensuring cell health and extending overall longevity.
Safety Protection:
Includes safeguards like short-circuit prevebtion,ove-discharge prevention,overcarge prevention,tempereture regulation.
Expadable CAN BUS Protocol:
Compatible with the CAN bus communication protocol,offering versatility and interoperability with different systems.

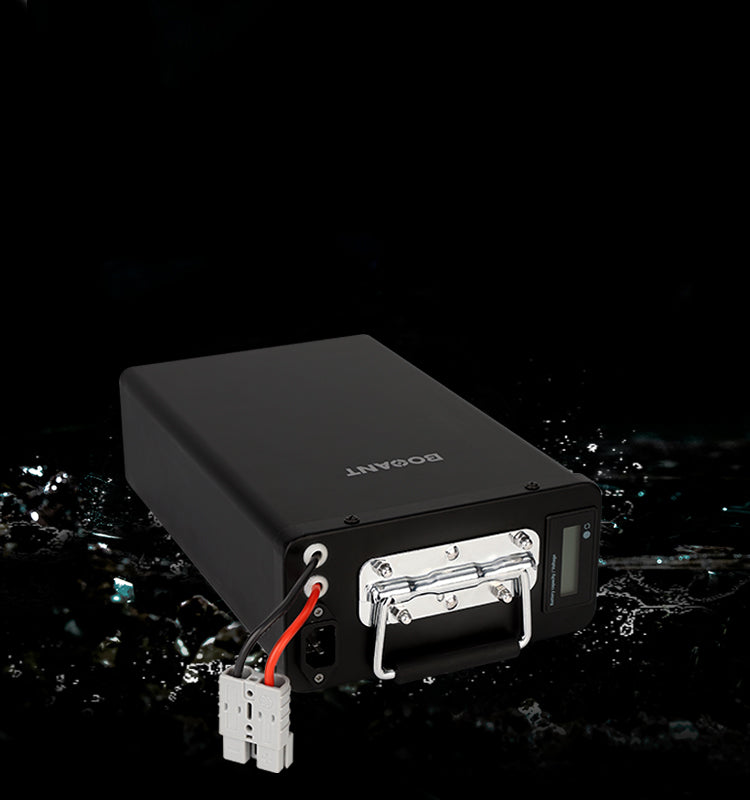

PROTECTIVE MEASURES

IP65-rated Waterproofing:
Features a metal shell with internal sealing compounds to block rainwater, ensuring waterproofness.
Impact Mitigation:
Utilizes a 1.5mm thick metal casing to protect the battery from collisions.

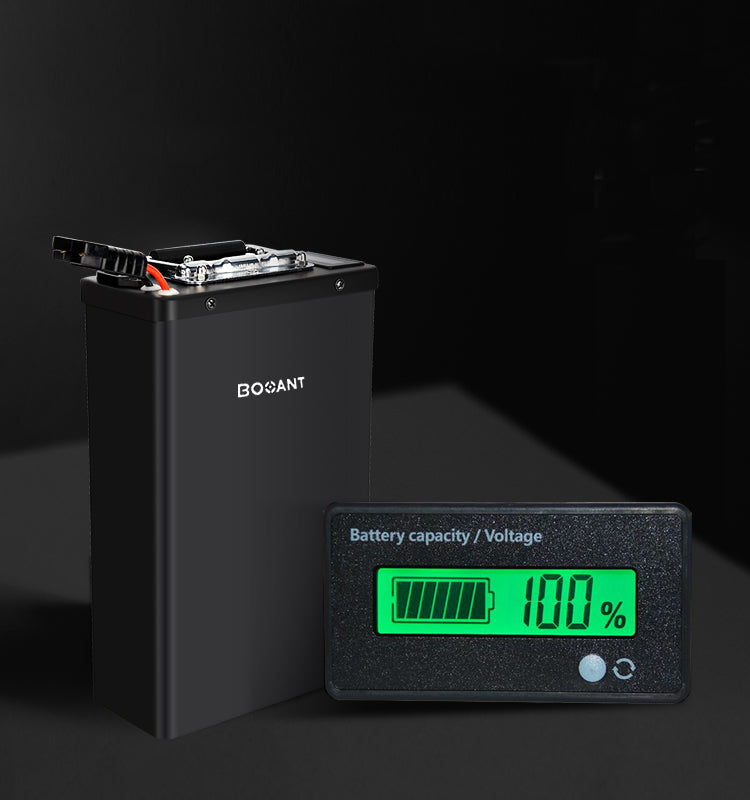

LED DISPLAY

LED screen to monitor battery voltage,remaining capacity,and charging status in real-time.

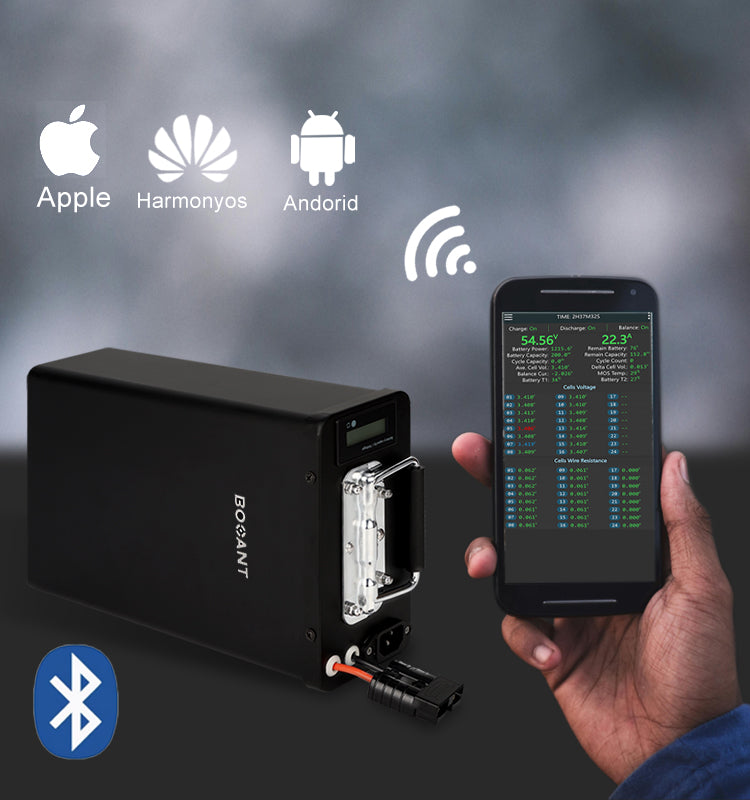

SMARTPHONE MONITORING

Utilizing Bluetooth technology,users can download an app on their smartphones to monitor the health condition and performance of individual batteries through a wireless connection.

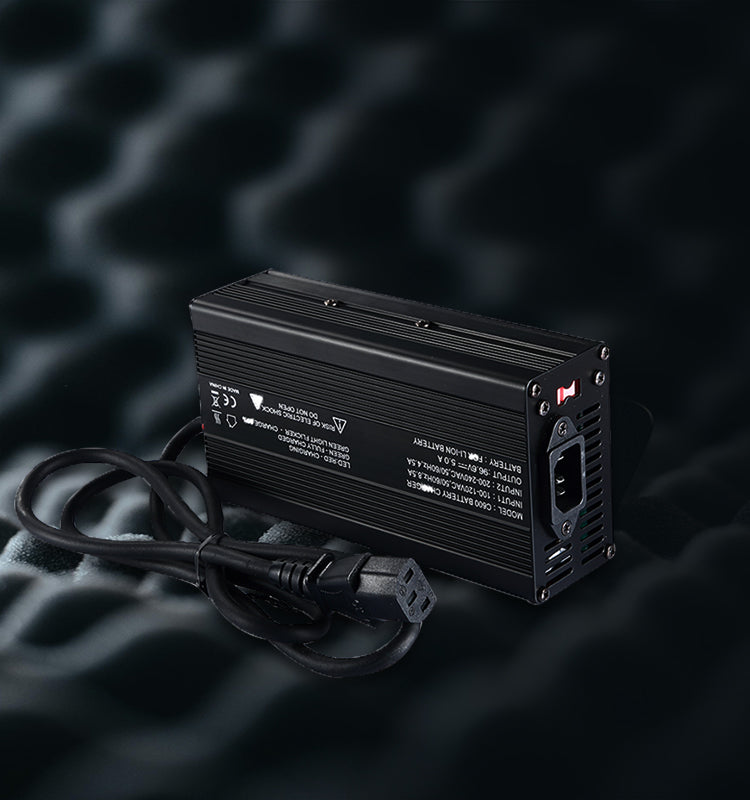

SMART CHARGER

Charger Operating Voltage:
110V--240V 50/60HZ
Charging Output:
42V 5A,capable of fully charging the battery in 4 hours. Customizable charging current,max 20A, to meet customer needs
Charger Features:
Maintains steady temperature and voltage,stops charging automatically upon full battery,protectsagainst short circuits,includes temperature protection with integrated fan,sturdy metal casing ensures durability.

BOOANT Lithium Battery for Various Applications

BOOANT Li-ion batteries, prized for their lightweight and compact design, serve a multitude of electrical applications. Widely employed in electric bicycles, boat motors, golf carts, and more, these batteries exhibit adaptability by delivering variable power levels tailored to distinct motors. The Battery Management System (BMS) enhances flexibility, adjusting the output to meet specific requirements of diverse electrical equipment.
BOOANT Lithium Battery for Various Applications
BOOANT Lithium Battery for Various Applications
E-bike range
E-bike range
Range:
Up to 45km
Speed
20km/h
Load Capacity
75kg
Motor Power
300W

Note:

The above data is based on test results and is for reference only. Actual range may vary due to different usage scenarios, as well as variations in load and speed. Please refer to actual conditions for accurate information.

TECH SPECS

Battery Model36V 20Ah
Cell OverCharge Protection Voltage4.2V/Cell
Cell Overdischarge Protection Voltage2.8V/cell
Nominal Voltage36V
Rated Capacity20Ah
Energy720WH
Parallel & Series10 Series 4 Paralles 40pcs Cell
BMS ( Built-in )JK-20A ( Bluetooth )
Suitable Motor30A BMS Suitable Motor- Less than 36V 1000W(MAX) Motor
20A BMS Suitable Motor-Less than 36V 700W(MAX) Motor
Discharge Cutoff Voltage (V)28V+/-0.5V
Charge Cutoff Voltage (V)42V+/-0.5V
Rated Discharge Current (A)20A
Maximum peak discharge current (A)60A (3s)
Maximum Continuous Discharge Current (A)20A (20A BMS)
Charger Mode110V~240V 50/60HZ 42V 5A
Charger Time4-5 Hours
Size (inch/mm)L11.81×W7.48×H3.54 inch
L300×W190×H90 mm

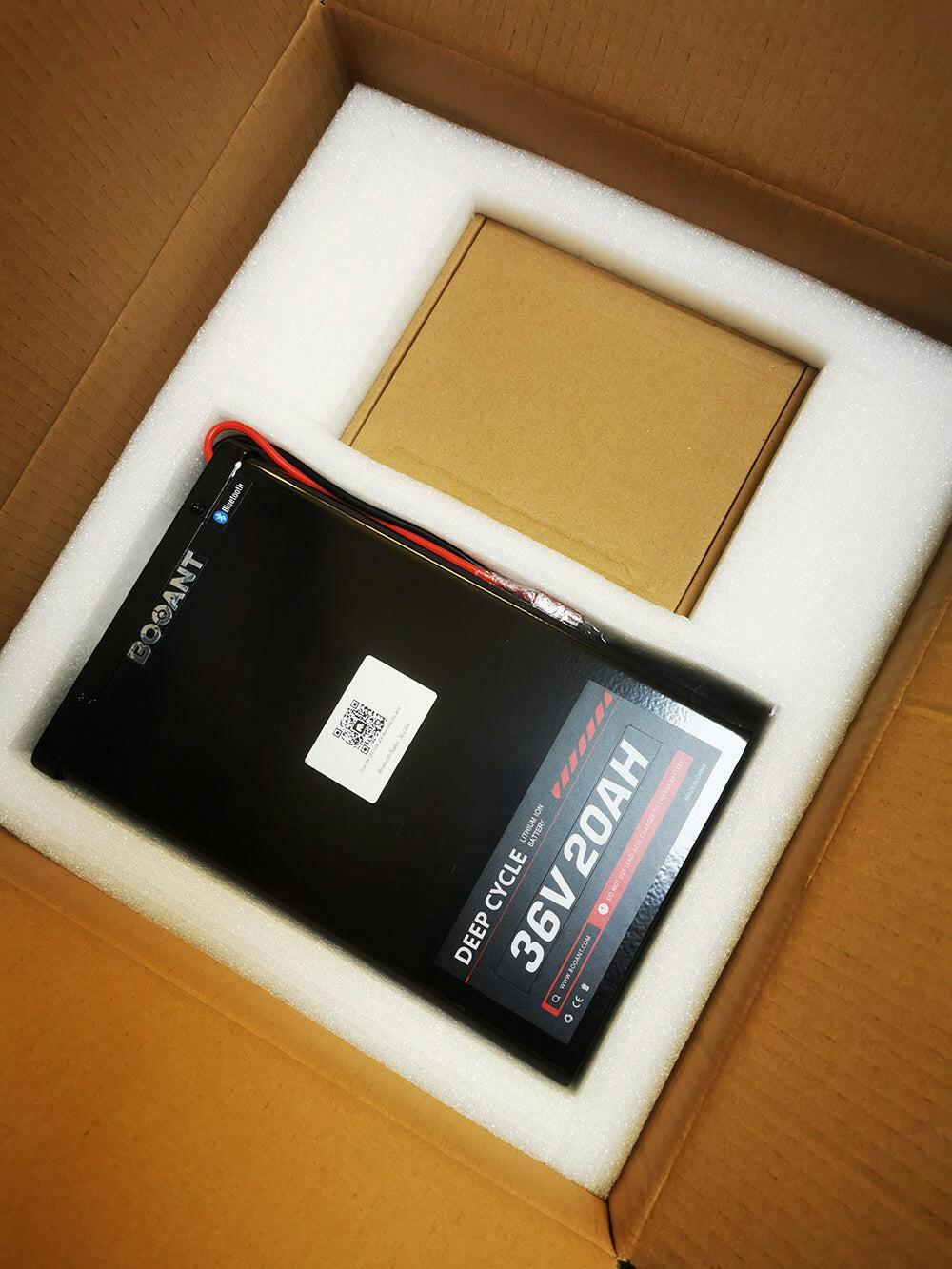

Package List

Booant Battery

Booant Battery

Free Battery Protection Bag

Free Battery Protection Bag

User Manual

User Manual

Charger Power Cord

Charger Power Cord

Smart Charger

Smart Charger

Anderson Extension Cord

Anderson Extension Cord
