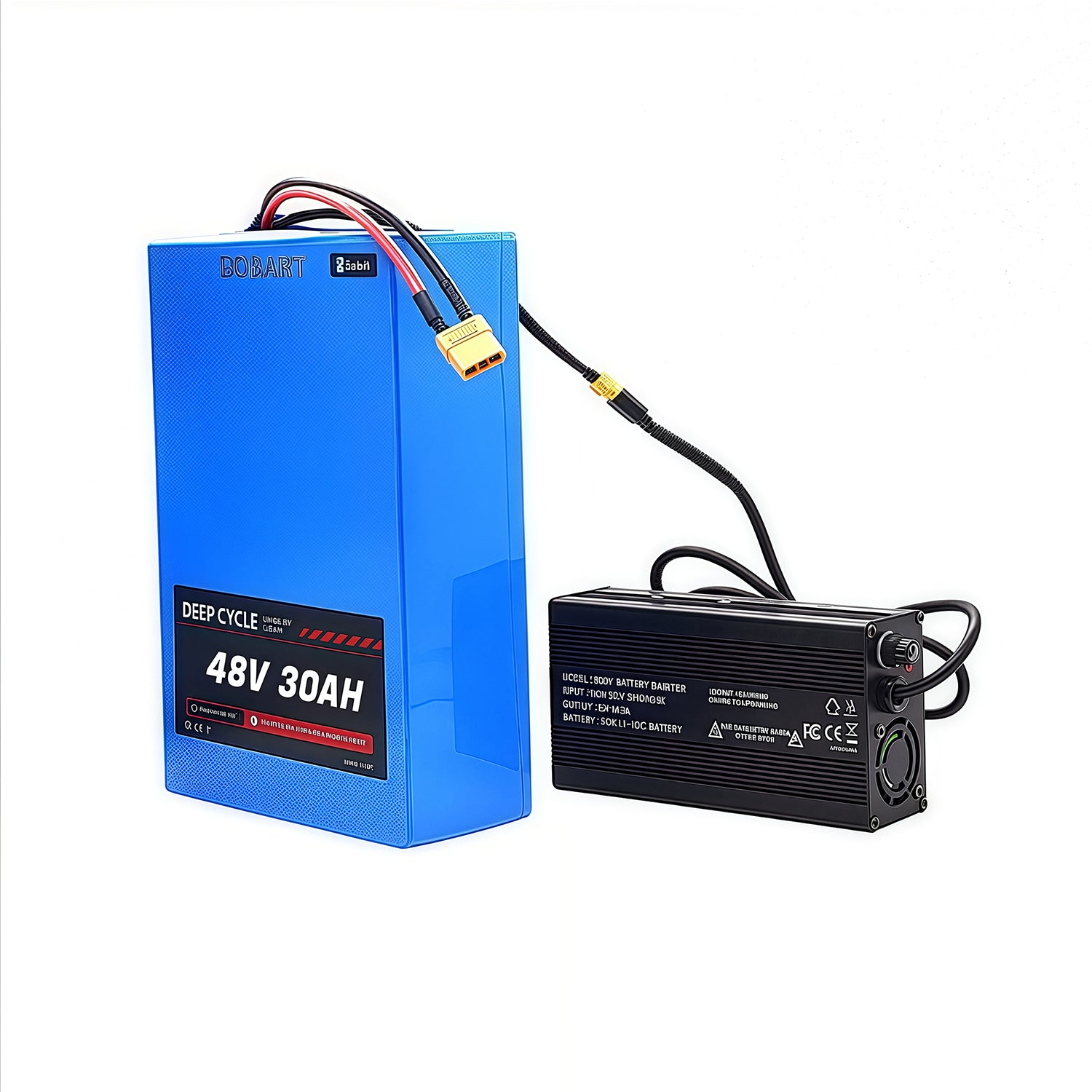

48V 30Ah E-Bike Battery with Samsung 50G Cells & Bluetooth BMS - 1440Wh Long-Range Power
$549.99
Free Duty Shipping
$549.99
Free Duty Shipping
$549.99
Free Duty Shipping
$549.99
Free Duty Shipping
$549.99
Free Duty Shipping
$559.99
Free Duty Shipping
$559.99
Free Duty Shipping
$559.99
Free Duty Shipping
$559.99
Free Duty Shipping
$559.99
Free Duty Shipping
$579.99
Free Duty Shipping
$579.99
Free Duty Shipping
$579.99
Free Duty Shipping
$579.99
Free Duty Shipping
$579.99
Free Duty Shipping
$549.99
Free Duty Shipping
- High Energy Density : Our 48V 30Ah lithium battery utilizes genuine Samsung 21700 50G cells, delivering an impressive 1.44kWh energy storage in a compact 320*140*75mm form factor. Weighing only approximately 5.5kg, it offers 30% smaller size and 40% lighter weight compared to conventional batteries, making your electric devices more portable and efficient.
- Long Cycle Life : Featuring premium cells and intelligent BMS management, this 48V 30Ah battery maintains over 80% capacity after 800+ complete charge-discharge cycles, significantly reducing long-term ownership costs.
- High Discharge Performance : The 48V 30Ah ebike battery configuration supports 30A continuous discharge and 60A peak output, providing powerful performance for e-bikes and scooters to effortlessly handle steep inclines and acceleration demands.
- Smart Protection System : Equipped with 6-layer safety protection including overcharge, over-discharge, overcurrent, short circuit, temperature protection, and cell balancing, ensuring complete safety and reliability for the 48V 30Ah electric bicycle battery in various operating conditions.
- Fast Charging Support : Specifically designed for 48V 30Ah batteries, our 54.6V 5A smart quick charger enables 6-7 hour rapid charging cycles - 50% faster than conventional lithium battery chargers. Features built-in safety protection including overcharge prevention, short circuit protection, and automatic shutoff when fully charged, significantly improving charging efficiency and user experience.
BMS
40A for 48V-52V 500W-1500W ( MAX ) Motor
60A for 48V-52V 2300W Motor ( MAX ) Motor
80A for 48V-52V 3000W Motor ( MAX ) Motor
Discharge Plug
Anderson 50A
XT90F/M
XT60F/M
QS8 plug
Wire only
BMS
Discharge Plug
Free Shipping
30 Day Return
100% Secure Payment
24-Hour Prompt Response
1 Years Warranty
Secure Payment

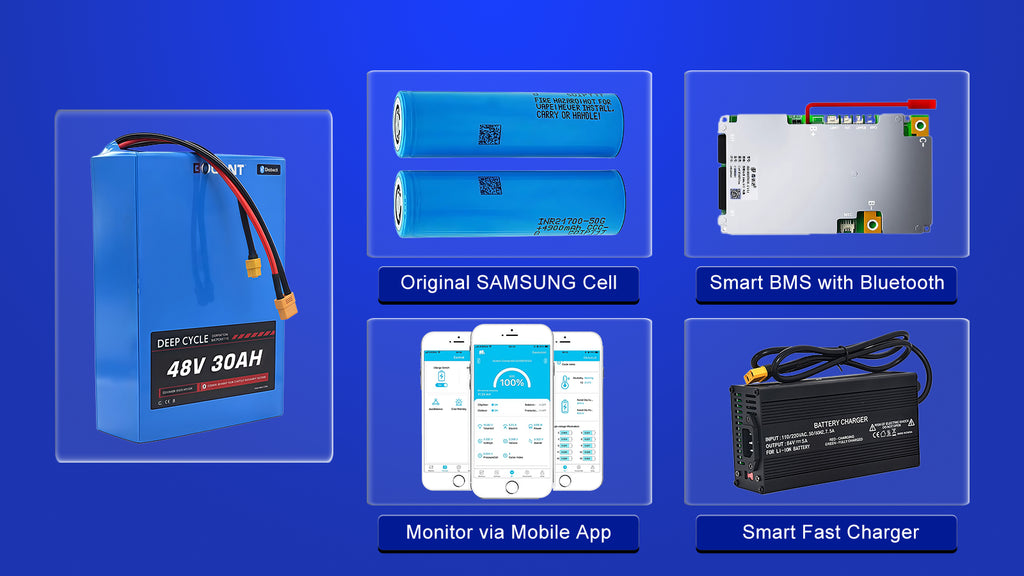

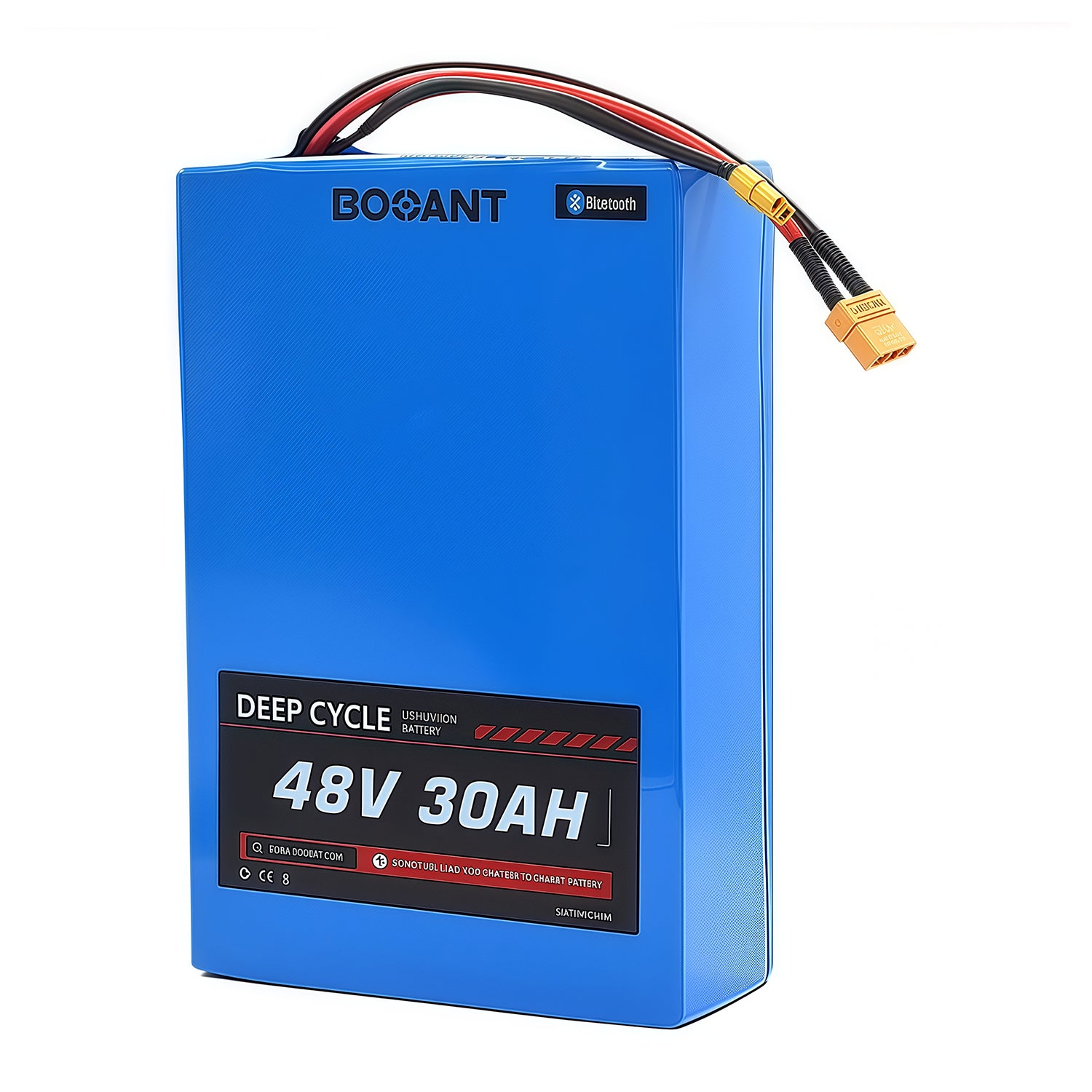

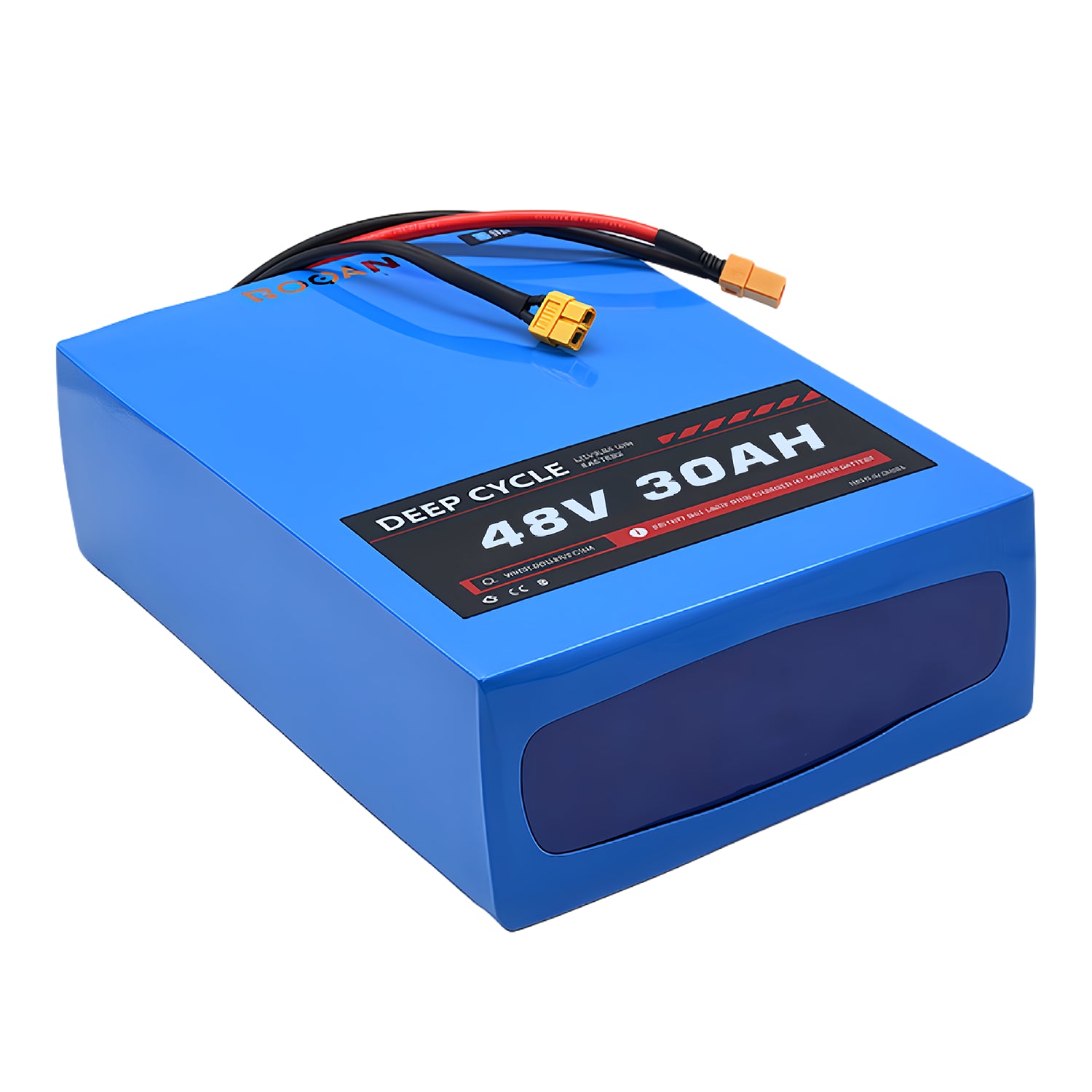

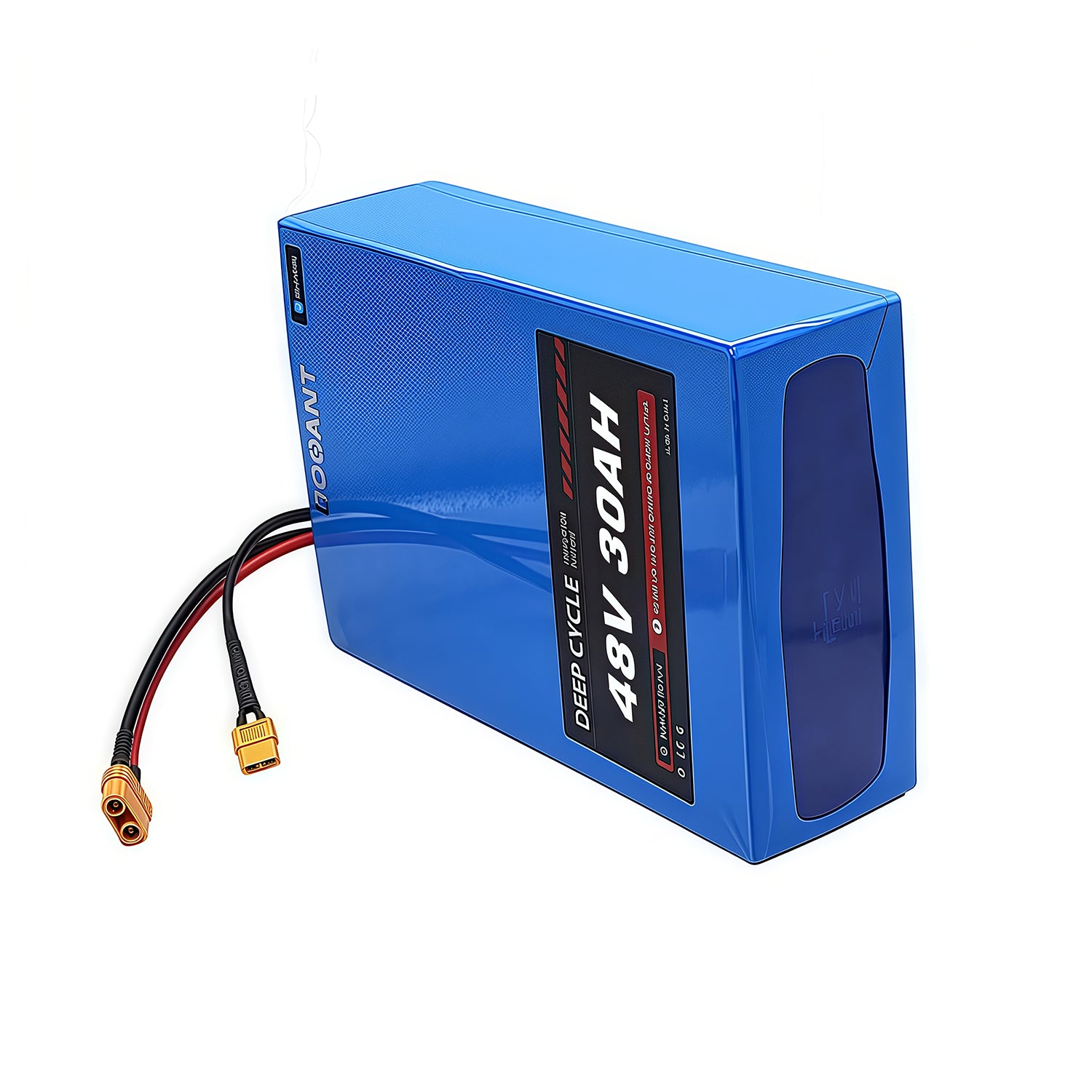

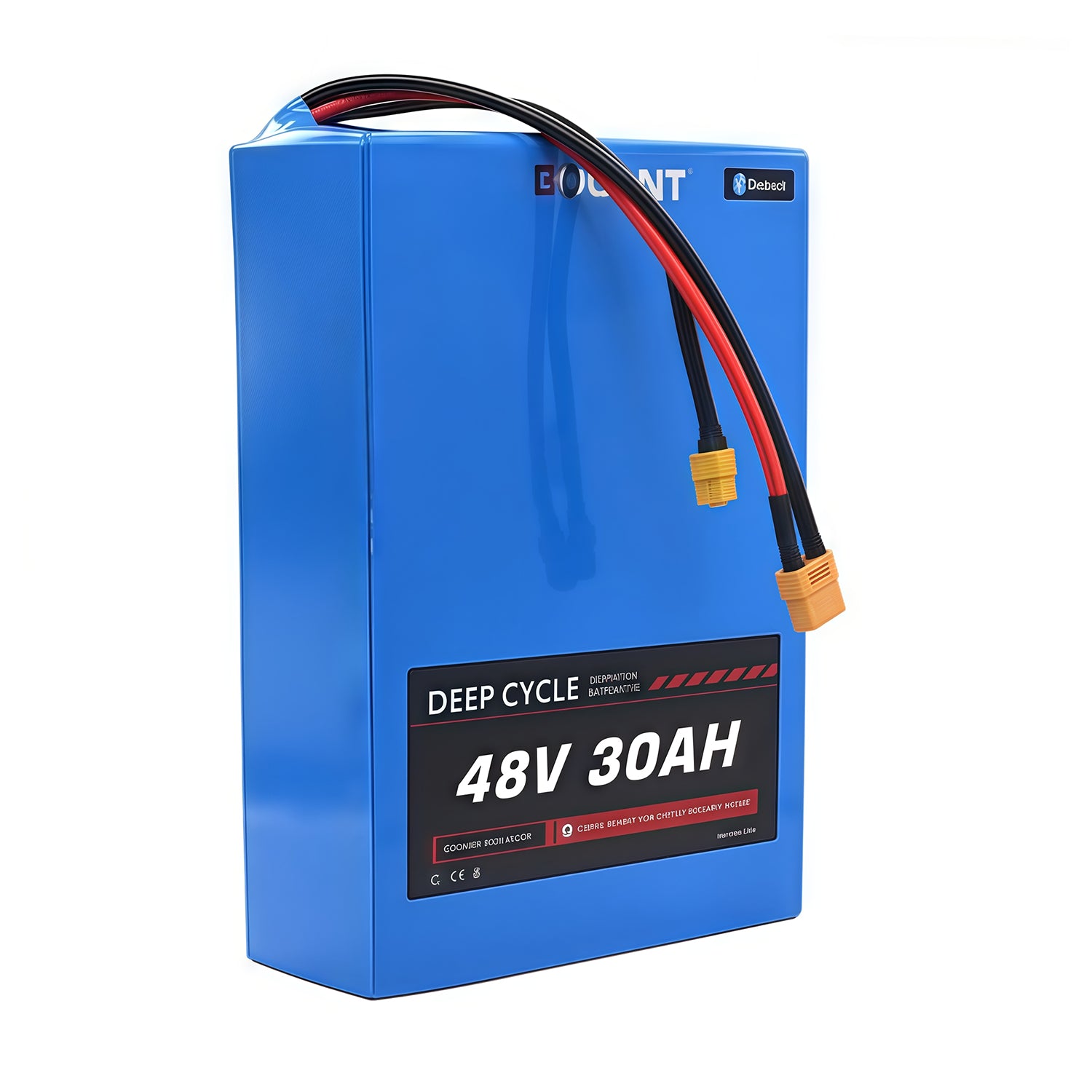

48V 30Ah Lithium-Ion Battery Pack
Powerful Energy Solution for E-Bikes, E-Scooters, and Mobility Vehicles
Product Overview
Tired of frequent charging and range anxiety? Our 48V 30Ah lithium-ion battery pack is designed to deliver exceptional power, unmatched reliability, and extended riding freedom. Whether you're upgrading your e-bike, e-scooter, or other mobility device, this battery provides the continuous energy you need for your daily commute or weekend adventures.
Key Features
- Extended Range: Up to 50% longer range on a single charge compared to standard batteries
- Ultra-Safe Design: Built-in intelligent BMS provides over 6 layers of protection
- Premium Cells: Genuine Samsung 50G Li-ion cells with a cycle life of over 800 cycles
- Perfect Compatibility: Designed to drop-in replace most 48V electric systems

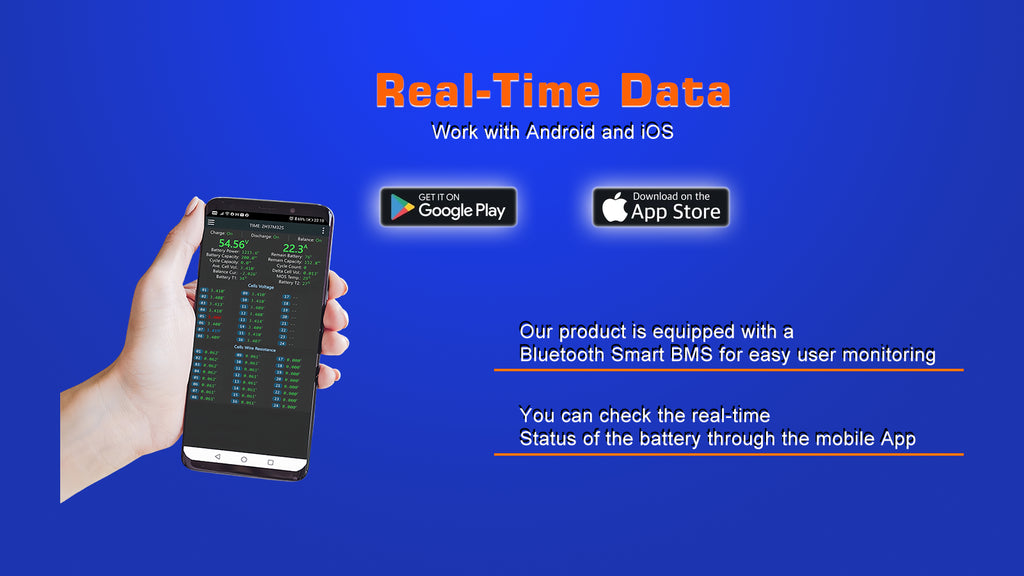

- Mobile App Monitoring: Monitor battery status anytime, anywhere via dedicated mobile app
Technical Specifications
48V
Rated Voltage
30Ah
Battery Capacity
≈1.44kWh
Total Energy
800+
Charge Cycles
30A
Continuous Discharge
60A
Peak Current
BMS Protection Features
- Overcharge and over-discharge protection
- Overcurrent and short circuit protection
- High and low temperature protection
- Cell balancing (extending the overall life of the battery pack)
Compatible Devices
E-Bikes
E-Scooters
Mopeds
Mobility Vehicles
Additional Benefits
High Power Output
Supports demanding motoring and hill-climbing conditions with 30A continuous and 60A peak current
Enhanced Safety
Rugged and durable design with mechanical strength and structural stability
Easy Installation
Plug and play design for most 48V electric systems
Start your journey with confidence and enjoy the journey beyond.

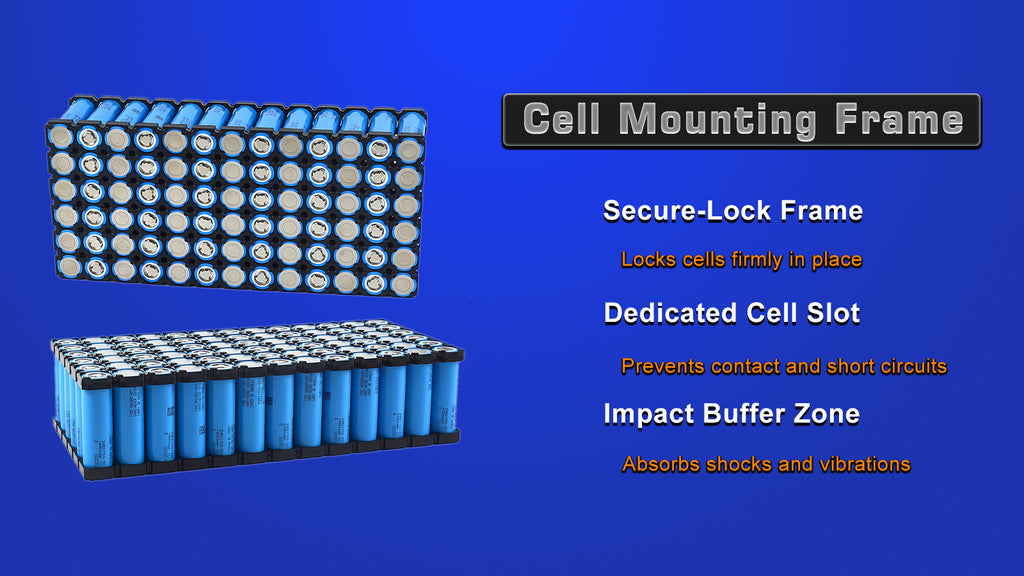

ABS Cell Holders for Lithium Battery Packs
Discover the significant advantages of using ABS cell holders over traditional adhesive bonding or cable tie methods in lithium battery pack assembly.
🛡️ Safety and Reliability
This represents the most critical advantage of cell holders.
- Superior Insulation: The holder itself is an insulating material, effectively isolating each cell's metal casing.
- Mechanical Strength and Stability: The frame provides robust mechanical support, securely anchoring cells in their designated positions.
- Thermal Management Support: Precision bracket design creates uniform gaps between cells, forming effective heat dissipation channels.
- Preventing Thermal Runaway Propagation: Optimized spacing design slows the spread of thermal runaway from a single cell to adjacent cells.
- Consistent Pressure Distribution: Through structural design, the frame applies uniform constraint force to cells.
⚙️ Production Efficiency and Manufacturability
ABS cell holders streamline the battery assembly process.
- Modular and Standardized Design: The frame enables battery assembly like "building blocks," achieving modularity.
- Streamlined Assembly Process: Cells can be quickly and accurately inserted into the bracket's slots.
- Automation-Friendly: The bracket's regular structure is highly suitable for robotic gripping, positioning, and assembly.
- Reduced Precision Requirements: Simplifies production processes and reduces dimensional precision requirements for cell suppliers.
🔧 Maintenance and Recyclability
ABS cell holders offer significant advantages throughout the battery lifecycle.
- Easy Disassembly and Repair: Units assembled with brackets can be relatively easily disassembled and replaced.
- Environmental Sustainability and Recyclability: At end-of-life, cells can be readily separated from plastic frames for individual recycling.
- Cost-Effective Maintenance: Reduces the need for complete battery pack replacement when only a few cells fail.
- Compliance with Environmental Standards: Meets increasing regulatory requirements for battery recyclability.
🏗️ Structural Performance and Lightweighting
ABS cell holders enhance the overall performance of battery packs.
- Enhanced Structural Integrity: The assembled cell modules function as robust structural components.
- Achieving Lightweight Design: High-performance engineering plastic brackets significantly reduce battery pack weight.
- Improved Energy Density: Lighter weight contributes to higher energy density and extended range.
- Vibration and Impact Resistance: Meets rigorous testing standards for automotive applications.
📊 Consistency Assurance
ABS cell holders ensure uniform performance across the battery pack.
- Maintaining Consistent Cell Spacing: Ensures uniform thermal conditions around each cell.
- Extended Battery Lifespan: Consistent operating temperatures help maintain overall battery pack health.
- Precise Component Alignment: Provides accurate positioning for busbars and connection points.
- Uniform Electrical Performance: Consistent physical arrangement contributes to stable electrical characteristics.
Enhanced Safety
ABS cell holders provide superior electrical insulation and mechanical stability, significantly reducing the risk of short circuits and thermal runaway events.
Streamlined Production
The modular design allows for faster, more automated assembly processes, reducing production time and costs while improving consistency.
Easy Maintenance
Individual cells can be replaced without discarding the entire battery pack, extending product lifespan and reducing waste.
Environmental Benefits
ABS holders facilitate recycling by allowing easy separation of battery components, supporting circular economy principles.

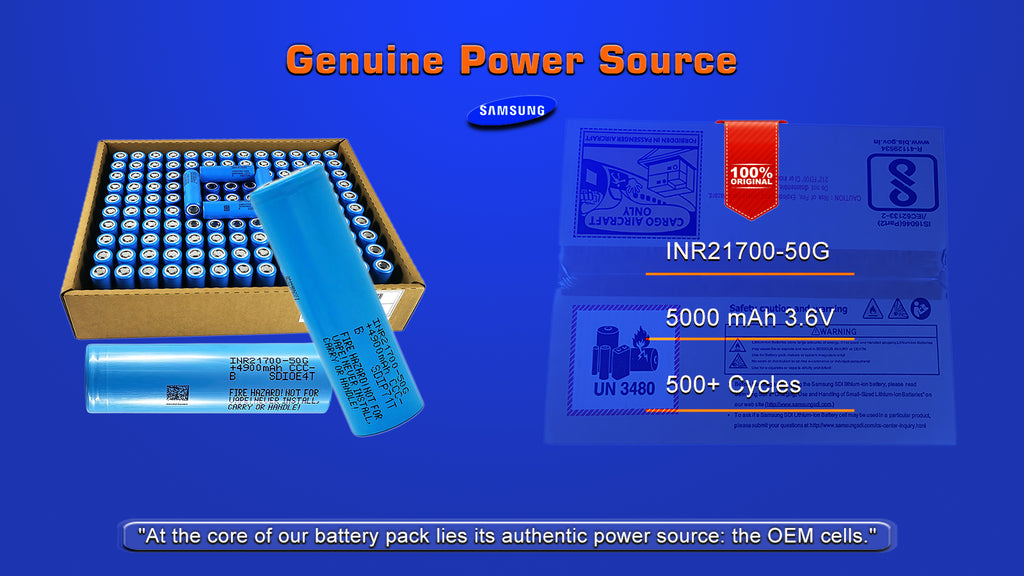

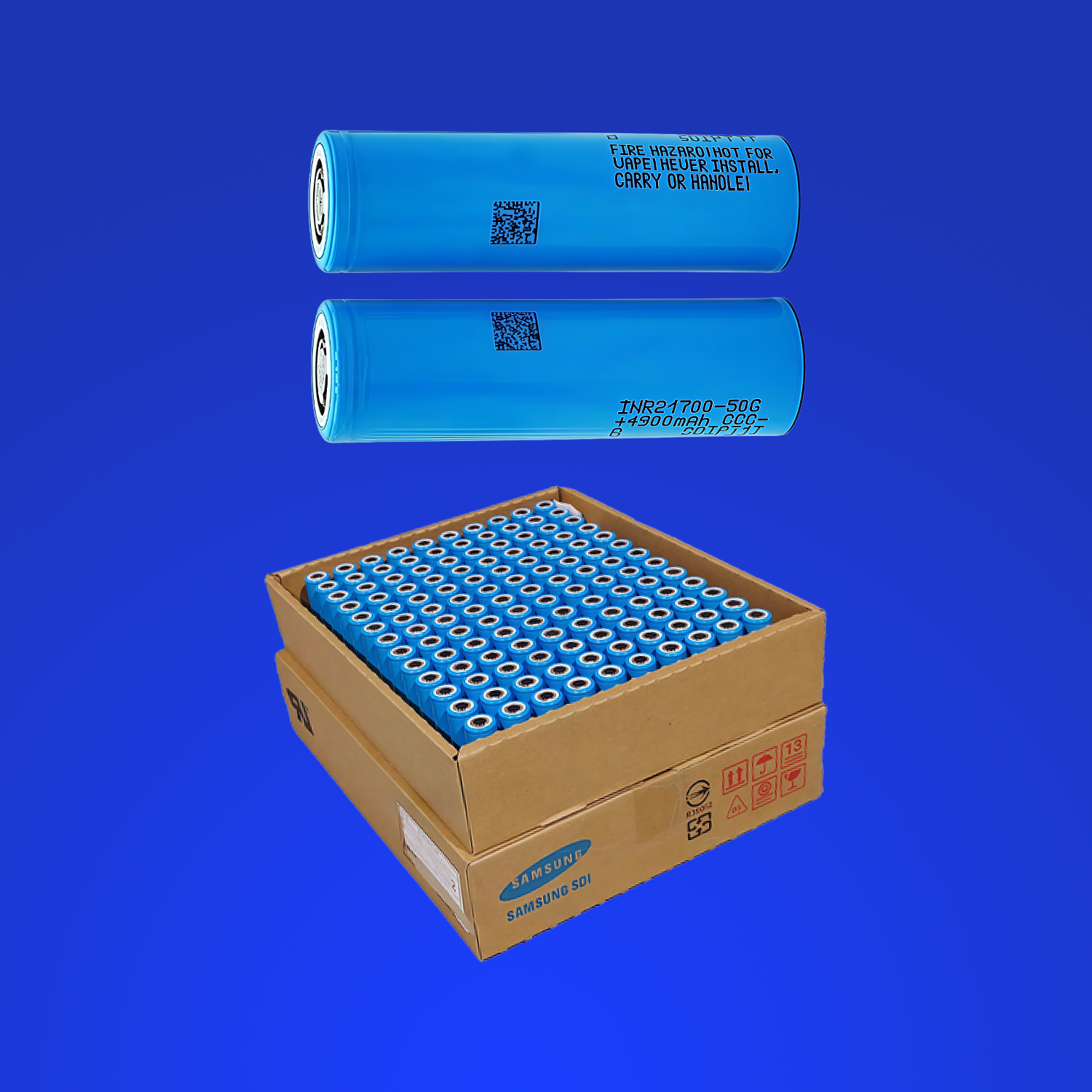

Samsung 21700-50G Battery Cell
A high-performance, high-capacity lithium-ion battery cell widely used in various devices requiring high energy density and sustained discharge capability.
Battery Overview
Capacity: 5000mAh
Voltage: 3.6V
Max Discharge: 9.8A
Weight: 69g
Dimensions: 21.3×70.1mm
Key Parameters
| Parameter Item | Specification Value | Remarks |
|---|---|---|
| Model | INR21700-50G | INR denotes Lithium Nickel Cobalt Oxide |
| Nominal Capacity | 5000mAh | Measured at 0.2C (approx. 1000mA) discharge rate, cut-off at 2.5V |
| Minimum Capacity | 4900mAh | - |
| Nominal Voltage | 3.6V | - |
| Charge Voltage | 4.2V | Standard charge cut-off voltage |
| Cut-off Voltage | 2.5V | Discharge termination voltage; voltage below this level may damage the cell |
| Standard Charge Current | 0.5C (approx. 2500mA) | - |
| Fast Charge Current | 1.0C (approx. 5000mA) | Requires corresponding charge management solution |
| Standard Discharge Current | 1.0C (approx. 5000mA) | - |
| Maximum Continuous Discharge Current | 9.8A | Approx. 2C rate capability, one of its key features |
| Internal Resistance | ≤ 18.5 mΩ | AC Internal Resistance (AC IR), low internal resistance is fundamental for high-current discharge |
| Weight | Approx. 69g | - |
| Dimensions (Diameter x Height) | Max. 21.3mm x 70.1mm | Includes label thickness |
| Cycle Life | Approx. 500 cycles (Capacity retention ≥ 60%) | Under standard charge/discharge conditions |
Key Features and Advantages
Ultra-High Energy Density
The 50G cell achieves a capacity of 5000mAh, ranking among the highest in the 21700 format. Its energy density is exceptionally high (typically exceeding 700Wh/L), meaning it stores more electrical energy within the same volume. This makes it ideal for applications demanding stringent endurance requirements.
Superior Discharge Performance
Maximum continuous discharge current reaches 9.8A, far exceeding typical high-capacity cells (usually around 5A). This enables the 50G to serve not only low-rate devices but also effectively balance capacity and power demands, making it suitable for equipment requiring instantaneous or sustained high-power output.
Low Internal Resistance
An internal resistance of ≤18.5mΩ ensures minimal voltage drop and heat generation during high-current discharge, enhancing discharge efficiency and safety.
Additional Information
Applications
Electric vehicles, power tools, energy storage systems, high-end flashlights, and portable electronic devices requiring high capacity and power.
Safety Features
Includes overcharge protection, over-discharge protection, short circuit protection, and thermal protection mechanisms.
Operating Temperature
Charge: 0°C to 45°C; Discharge: -20°C to 60°C (optimal performance between 15°C and 35°C).

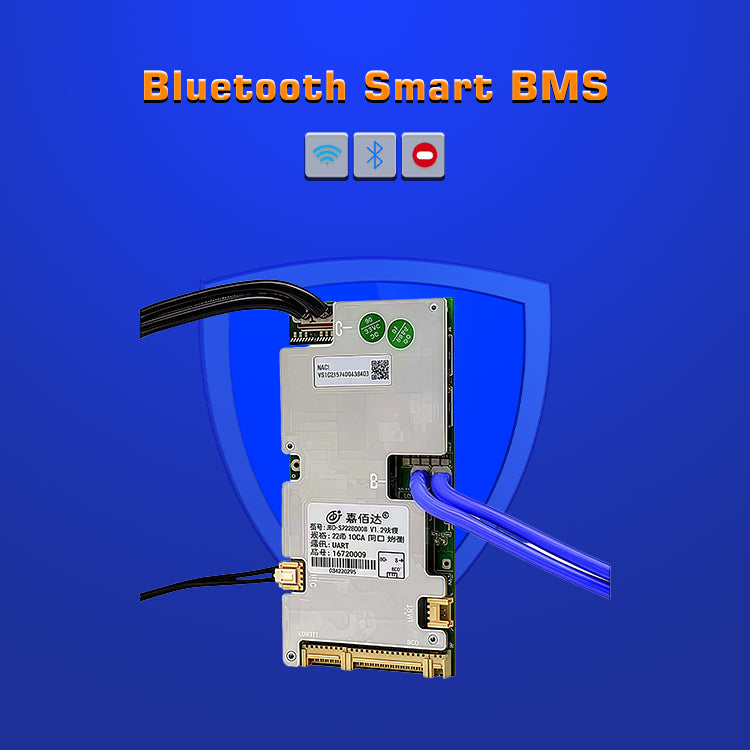

Battery Management System Protection Features
Comprehensive safety mechanisms for 48V 30Ah Lithium Battery
Over-Charge Protection
Automatically cuts off charging when voltage reaches maximum safe limit, preventing cell damage and swelling. Monitors each cell individually for precise protection.
Over-Discharge Protection
Disconnects output when voltage is too low, preventing irreversible damage to cell chemistry. Features hysteresis to prevent rapid on/off cycling.
Over-Current Protection
Interrupts circuit when current exceeds safe values, protecting cells and connected devices. Multi-stage protection with warning and cutoff thresholds.
Short-Circuit Protection
Reacts within microseconds to short circuits, often with auto-reset functionality. Hardware-based protection ensures reliability even if software fails.
Over-Temperature Protection
Monitors cell temperature and reduces power or shuts down if safe thresholds are exceeded. Uses multiple sensors for accurate thermal management.
Cell Balancing
Minimizes voltage differences between cell groups, maximizing capacity and lifespan. Both passive and active balancing methods available.
Charge Control
Manages charging parameters including CC/CV transitions, temperature compensation, and charge termination for optimal battery health.
State of Charge Estimation
Accurately calculates remaining capacity using advanced algorithms combining voltage, current, and temperature data.
Communication Interface
Provides real-time data access via CAN, UART, or I2C interfaces for system monitoring and diagnostics.
Fault Diagnostics
Comprehensive self-testing and fault logging capabilities for proactive maintenance and troubleshooting.

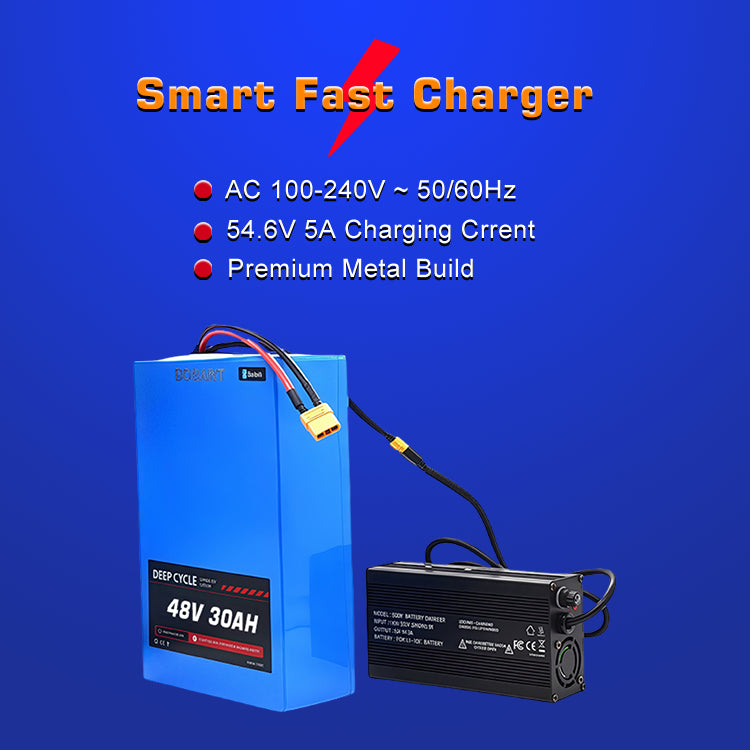

54.6V 5A Lithium Battery Smart Charger
Designed for 48V 30Ah Battery Packs
Basic Parameters
Compatible Battery Type
Lithium-ion (Li-ion) / LiFePO4 Selectable
Rated Input Voltage
AC 100-240V ~ 50/60Hz
Rated Output Voltage
54.6V (Default Li-ion mode), 58.8V (Optional, for LiFePO4)
Output Charging Current
5A (Maximum, adjustable)
Recommended Battery Capacity
20Ah - 50Ah (30Ah battery: ~6 hours charging time)
Operating Temperature
0°C ~ +40°C
Dimensions & Weight
Approx. 135*90*50 mm, ~0.7 kg
Main Features
Three-Stage Smart Charging Algorithm
CC-CV-Trickle charging for efficient and safe charging
Multiple Safety Protections
OCP, OVP, SCP, Reverse Polarity, Over-Temperature Protection
Smart Fan Cooling
Temperature-controlled fan for efficient cooling
LED Multi-Stage Indicator
Visual charging status with red/green LEDs
High-Precision Control
MCU controlled with ±0.1V voltage accuracy
Wide Voltage Input & Mode Switching
Supports multiple battery types and global voltages
Fast Charging
5A current for rapid charging of 48V 30Ah batteries
1440Wh Battery System
High-performance power solution for electric vehicles and portable applications
2.5H
Riding time of e-bike
(48V 500W motor)
70KM
Riding mileage of e-bike
(Riding speed 30km/h)
6H
Charging time of battery
(Using 5A fast charger)
Discharge Plug Options
Need a custom plug option? Please reach out to our customer service team.
QS8
Anderson
Wire Only
XT90F/M
XT60F/M
Small Anderson
Charger Power Cables
Appropriate charger AC power cables for different countries/regions
US (Default)
EU
AU
UK
Battery Specifications & Parameters
Basic Parameters
| Parameter | Value |
|---|---|
| Battery Model | 48V 30AH |
| Battery Type | Lithium-ion rechargeable battery |

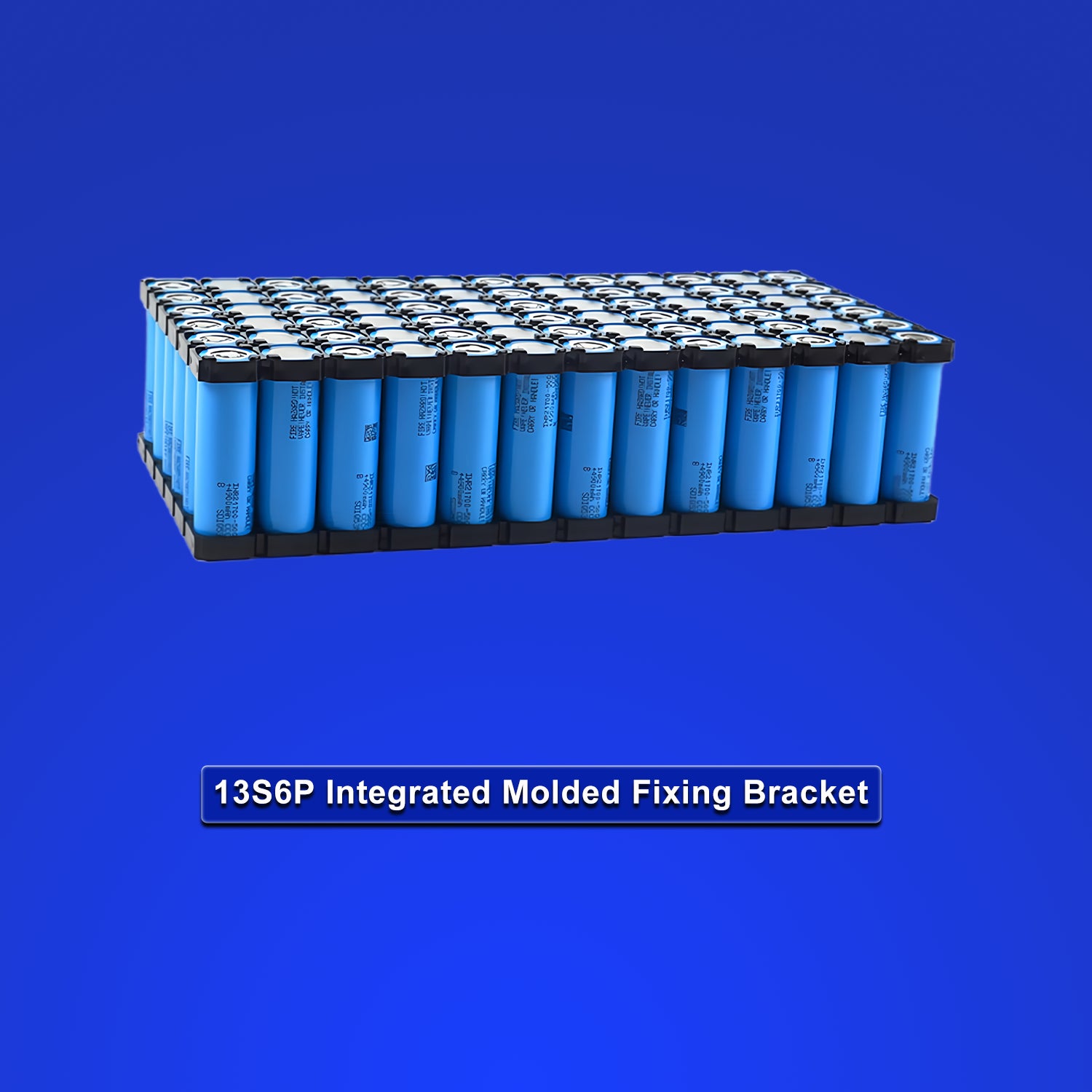

| Production Process | 13S 6P |
| Standard Voltage | 48V |
| Battery Capacity | 30AH |

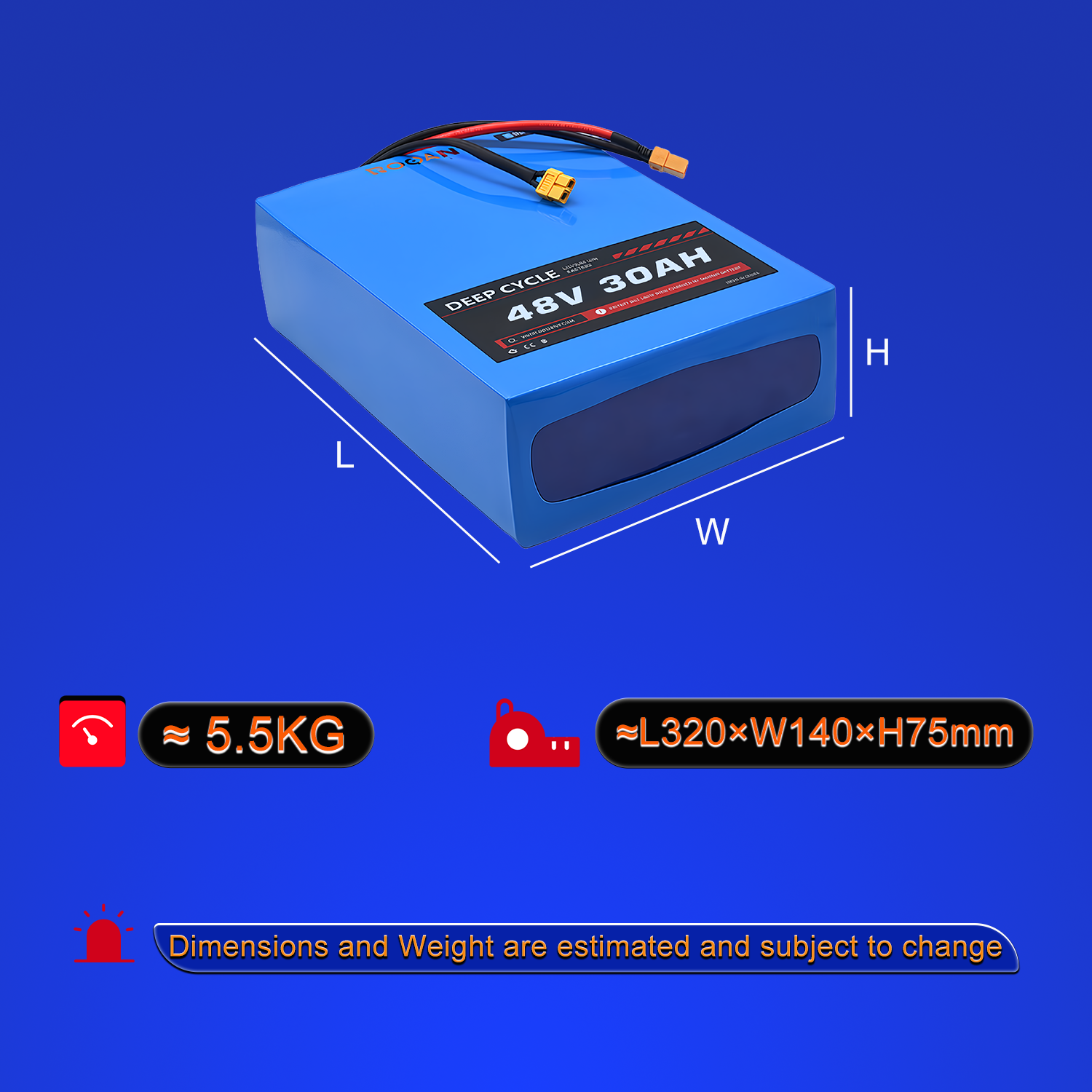

| Dimensions | 320×140×75mm (Preliminary Dimensions) |
| Weight | Approx. 5.5KG |
Cell Parameters
| Parameter | Value |
|---|---|
| Cell Brand | SAMSUNG |
| Cell Model | INR21700-50G |
| Cell Type | Lithium-ion rechargeable battery |
| Nominal Voltage | 3.6V |
| Nominal Capacity | 5000mAh |
| Max Continuous Discharge (Surface Temperature) | 9.8A (Continuous Discharge ~2C) 15A (Peak Discharge) |
| Charge Cut-off Voltage | 5A, 4.20V, CCCV 100mA cut-off |
| Discharge Cut-off Voltage | 15A, 2.5V cut-off |
BMS Specifications
| Parameter | Value |
|---|---|
| BMS Brand | JBD/ANT/JK |
| BMS Selection Criteria | Determined by discharge current, battery dimensions, or customer requirements |
| Installation | Built into the battery pack |
| Communication | Bluetooth and WiFi |
| Compatibility | Supports iOS and Android systems |
| Functions | Real-time monitoring, remote control |
| Optional Extensions | CAN BUS/RS485/GPS (Customizable) |
Battery Pack Performance
| Parameter | Value |
|---|---|
| Charge Cut-off Voltage | 54.6V (Full charge state, charging stops) |
| Discharge Cut-off Voltage | 32.5V (Automatic protection activates, discharge stops) |
| Rated Discharge Current | Calculated based on motor power |
| Continuous Discharge Current | Determined by BMS current rating |
| Peak Discharge Current | Determined by motor power and BMS peak current capacity |
Charger Specifications
| Parameter | Value |
|---|---|
| Input Voltage | Universal 110V~240V (Worldwide compatibility) |
| Output Current | Standard 54.6V 5A |
| Charging Method | Constant Current & Voltage (CC & CV) |
| Charging Time | 80% capacity in 5 hours, Full charge in 6-7 hours |
| Plug Options | Country-specific cords available (US/EU/UK/AU standards) |
Temperature Specifications
| Parameter | Value |
|---|---|
| Battery Operating Temperature - Charging | 0 to 60℃ (Recommended < 45℃ during charging) |
| Battery Operating Temperature - Discharging | -20 to 60℃ (Must maintain < 60℃ during discharge) |
| Charger Operating Temperature | 0 to 60℃ (Recommended < 45℃ during charging) |
Important Notes
State of Charge (SOC):
- Optimal: Maintain 40-60% (3.7-3.8V per cell)
- Prohibited: Long-term storage at <10% or 100% SOC (accelerates aging)
Temperature Control:
- 15-25°C: Ideal environment (<2% annual degradation)
- -20~45°C: Permissible range (requires SOC control)
- 50°C or <-30°C: Strictly prohibited (hazard risk)
Physical Protection:
- Avoid compression/impact (even with ABS casing)
- Keep away from metal objects to prevent short circuits
Recommendations:
For long-term storage (>1 month), perform periodic brief charge/discharge cycles to maintain lithium-ion activity and ensure normal energy output. We recommend performing a shallow cycle (30%→80%) every 3 months.
