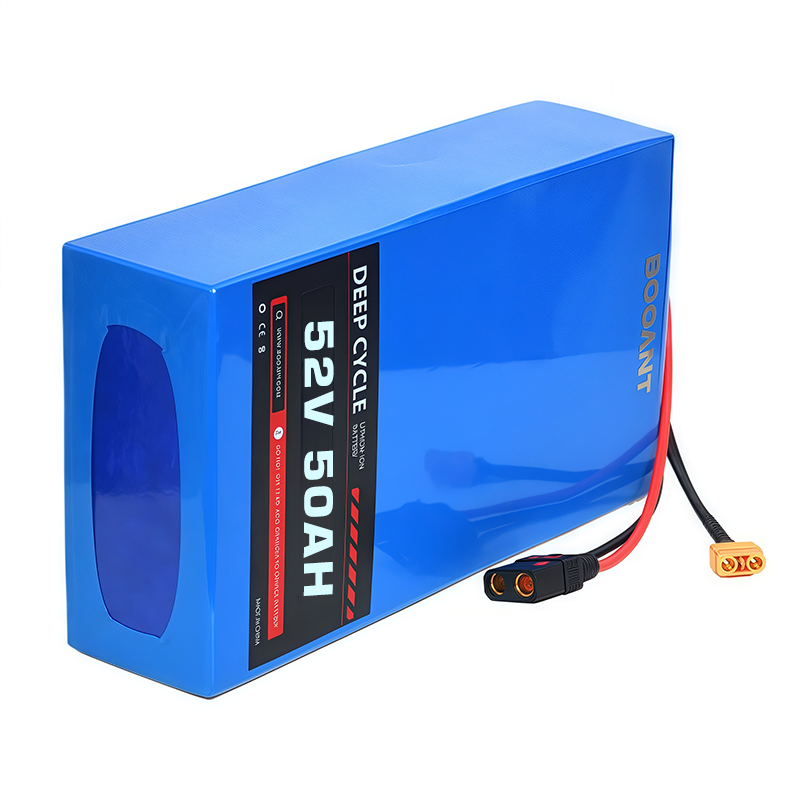

52V 50Ah Lithium Battery Pack with Samsung 50G Cells | Bluetooth Smart BMS | 2560Wh High Capacity | Compatible with EBOX 2.0 Electric Motorcycles
$899.99
Free Duty Shipping
$899.99
Free Duty Shipping
$899.99
Free Duty Shipping
$899.99
Free Duty Shipping
$899.99
Free Duty Shipping
$909.99
Free Duty Shipping
$909.99
Free Duty Shipping
$909.99
Free Duty Shipping
$909.99
Free Duty Shipping
$909.99
Free Duty Shipping
$929.99
Free Duty Shipping
$929.99
Free Duty Shipping
$929.99
Free Duty Shipping
$929.99
Free Duty Shipping
$929.99
Free Duty Shipping
$899.99
Free Duty Shipping
- Premium Samsung 50G High-Density Cells : Experience exceptional performance and extended battery life with genuine Samsung 50G cells. Our 52V 50Ah lithium-ion battery delivers superior energy density and reliable high-power output, providing longer rides for your e-bike with consistent power delivery and enhanced cycle life.
- Massive 2560Wh Capacity in Compact Design : Eliminate range anxiety with our ultra-high capacity 52V 50Ah battery featuring a space-efficient design (345mm×230mm×75mm) and lightweight construction at only 10.5kg. Perfect for electric motorcycles and high-performance e-bikes, this powerful yet compact battery supports 100+ mile journeys on a single charge, making it ideal for long-distance commuting and adventure riding.
- Advanced Smart BMS with Real-Time Monitoring : Ride with complete confidence using our intelligent Battery Management System. Featuring Bluetooth app connectivity, this BMS provides comprehensive protection against overcharge, over-discharge, short-circuit, and overheating while offering real-time performance monitoring for optimal battery health and safety.
- Customizable Design for Perfect Fitment : We offer flexible battery configurations with customizable single or double-layer designs to seamlessly integrate into your specific e-bike frame or electric motorcycle. Our tailored solutions ensure perfect fitment for various applications including e-bike conversions and custom builds.
- High-Performance Power for Demanding Applications : Engineered for high-power electric vehicles, our 52V 50Ah battery delivers exceptional discharge rates capable of supporting powerful motors up to 3000W. Ideal for e-motorcycles, off-road e-bikes, and high-speed electric vehicles requiring reliable, sustained power output.
BMS
40A for 48V-52V 1600W Motor (MAX)
60A for 48V-52V 2500W Motor (MAX)
80A for 48V-52V 3300W Motor (MAX)
Discharge Plug
QS8 plug
Anderson 50A
XT60F/M
XT90F/M
Wire only
BMS
Discharge Plug
Free Shipping
30 Day Return
100% Secure Payment
24-Hour Prompt Response
1 Years Warranty
Secure Payment

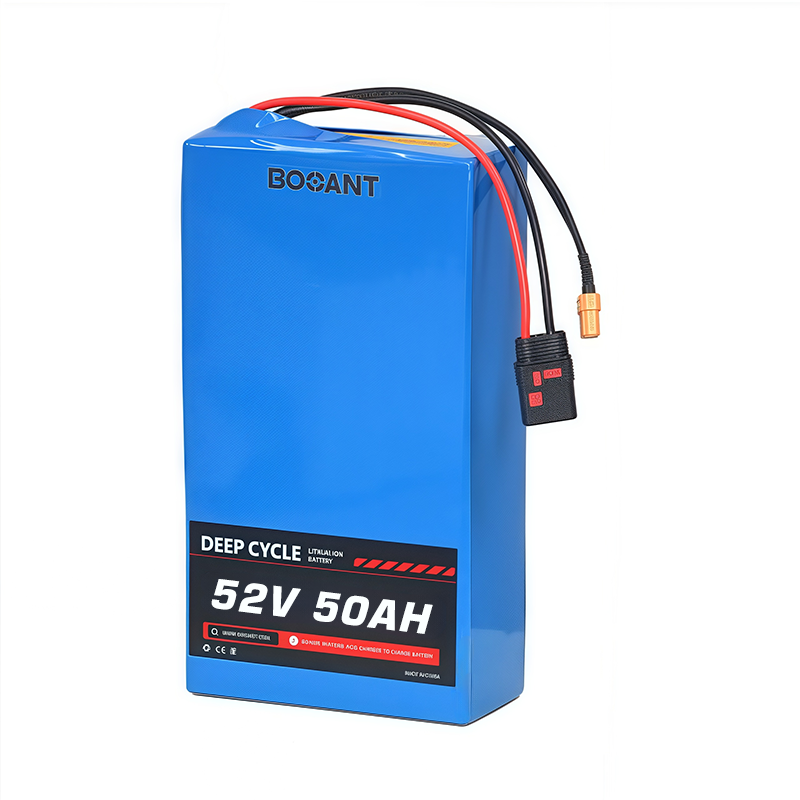

52V 50AH Lithium Battery with Samsung 50G Cells
High-performance 2560Wh battery pack for e-bikes, e-scooters, and custom EV applications
2560Wh Massive Capacity
Smart BMS Protection
100+ Miles Range
1500+ Cycle Life
Ultimate Energy Solution
Power your e-bike, e-scooter, or custom vehicle with our premium 52V 50AH lithium battery. Featuring authentic Samsung 50G cells, this high-density battery delivers unprecedented performance and reliability for your most demanding rides. With a massive 2560Wh capacity, this battery provides extended range and power for long-distance commuting and adventurous journeys.
Key Features
Premium Cell Technology
- Genuine Samsung 50G cells for superior energy density
- Enhanced cycle life and consistent performance
- Maximum safety and reliability standards
- Optimized for high discharge applications
Massive 2560Wh Capacity
- Unbeatable energy storage: 52V × 50AH = 2560Wh
- 100+ miles range on single charge
- Perfect for long-distance commuting and adventures
- Reduces charging frequency significantly

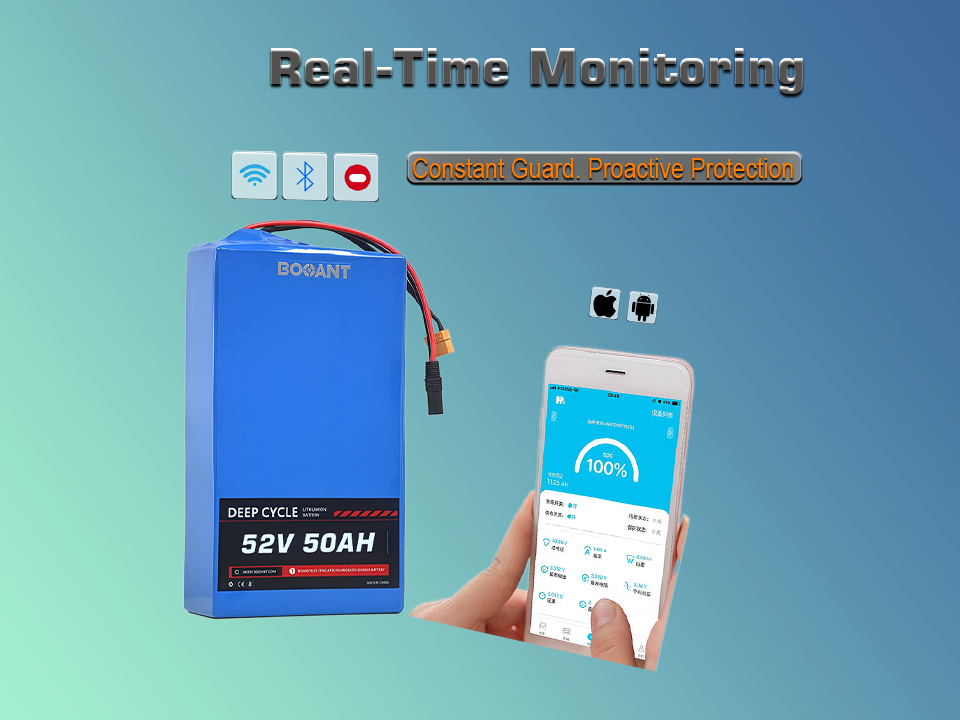

Advanced Smart BMS Protection
- Real-time voltage and temperature monitoring
- Overcharge and over-discharge protection
- Short circuit and overload prevention
- Cell balancing for optimal performance
Customizable Design Options

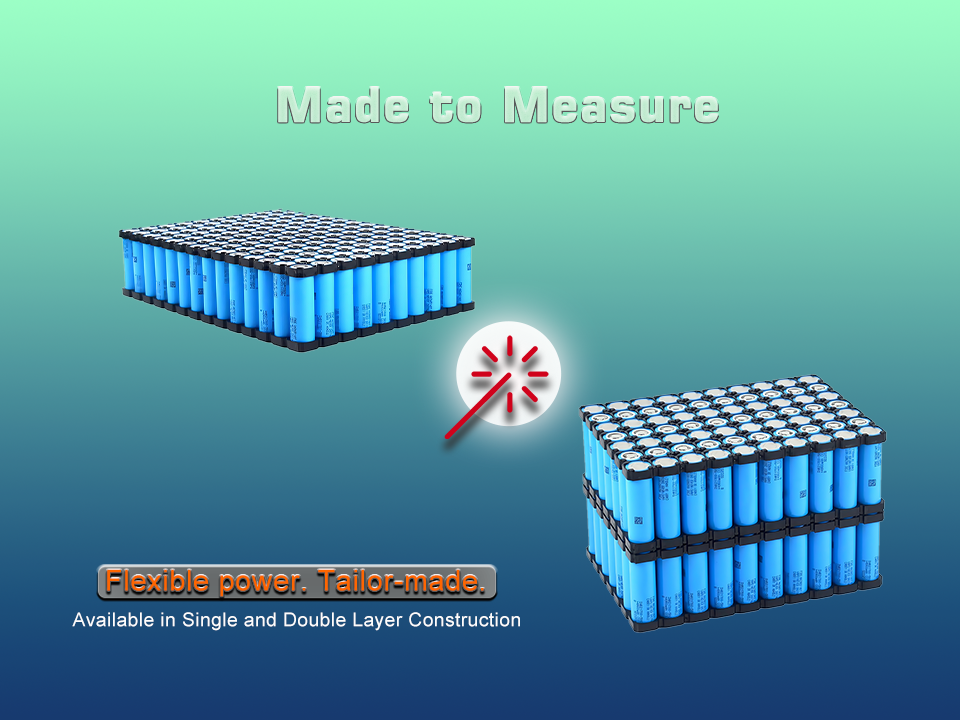

- Single or double-layer configuration
- Flexible form factor adaptation
- Perfect fit for any vehicle setup
- DIY-friendly installation with clear documentation
Technical Specifications
| Battery Type | Lithium-ion (Li-ion) |
| Nominal Voltage | 52V |
| Capacity | 50AH |
| Energy | 2560Wh |
| Cell Type | Samsung 50G (5000mAh) |
| Configuration | 14S10P (14 series, 10 parallel) |
| Cycle Life | 800+ cycles (to 80% capacity) |
| Max Continuous Discharge | Depending on BMS configuration |
| BMS Protection | Smart multi-protection system |
| Charging Voltage | 58.8V |
| Dimensions | Customizable based on configuration |
| Weight | Approx. 10.5kg (depending on configuration) |
| Warranty | 1 year limited warranty |
Performance Benefits
Eliminate Range Anxiety
Never worry about running out of power mid-ride. Our battery's massive capacity ensures you can complete your longest journeys with confidence, whether commuting or exploring.
Conquer Challenging Terrain
The high discharge rate delivers instant power for steep climbs and rapid acceleration, making off-road trails and urban commuting equally effortless.
Built to Last
With premium Samsung cells and robust construction, this battery withstands the test of time and maintains performance through countless charge cycles.
Enhanced Safety
Our advanced BMS provides comprehensive protection against overcharging, overheating, and short circuits, ensuring safe operation in all conditions.
Perfect For
High-performance E-bikes
E-motorcycles & E-scooters
Golf Cart Upgrades
Custom EV Projects
Solar Storage Systems
Off-road Adventures

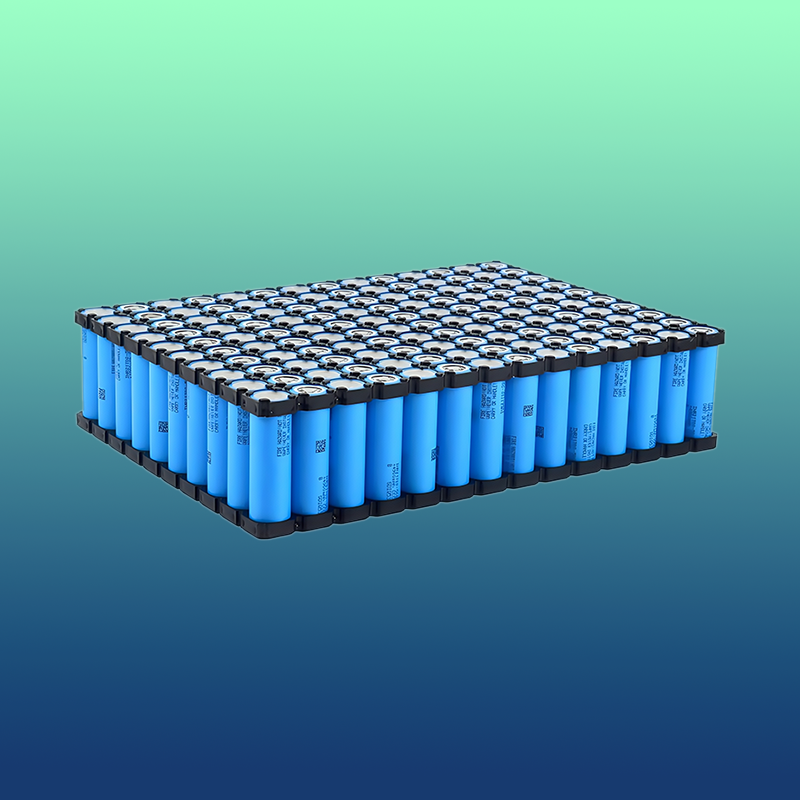

ABS Cell Holders for Lithium Battery Packs
Discover the significant advantages of using ABS cell holders over traditional adhesive bonding or cable tie methods in lithium battery pack assembly.
Safety and Reliability
This represents the most critical advantage of cell holders.
- Superior Insulation: The holder itself is an insulating material, effectively isolating each cell's metal casing.
- Mechanical Strength and Stability: The frame provides robust mechanical support, securely anchoring cells in their designated positions.
- Thermal Management Support: Precision bracket design creates uniform gaps between cells, forming effective heat dissipation channels.
- Preventing Thermal Runaway Propagation: Optimized spacing design slows the spread of thermal runaway from a single cell to adjacent cells.
- Consistent Pressure Distribution: Through structural design, the frame applies uniform constraint force to cells.
Production Efficiency and Manufacturability
ABS cell holders streamline the battery assembly process.
- Modular and Standardized Design: The frame enables battery assembly like "building blocks," achieving modularity.
- Streamlined Assembly Process: Cells can be quickly and accurately inserted into the bracket's slots.
- Automation-Friendly: The bracket's regular structure is highly suitable for robotic gripping, positioning, and assembly.
- Reduced Precision Requirements: Simplifies production processes and reduces dimensional precision requirements for cell suppliers.
Maintenance and Recyclability
ABS cell holders offer significant advantages throughout the battery lifecycle.
- Easy Disassembly and Repair: Units assembled with brackets can be relatively easily disassembled and replaced.
- Environmental Sustainability and Recyclability: At end-of-life, cells can be readily separated from plastic frames for individual recycling.
- Cost-Effective Maintenance: Reduces the need for complete battery pack replacement when only a few cells fail.
- Compliance with Environmental Standards: Meets increasing regulatory requirements for battery recyclability.
Structural Performance and Lightweighting
ABS cell holders enhance the overall performance of battery packs.
- Enhanced Structural Integrity: The assembled cell modules function as robust structural components.
- Achieving Lightweight Design: High-performance engineering plastic brackets significantly reduce battery pack weight.
- Improved Energy Density: Lighter weight contributes to higher energy density and extended range.
- Vibration and Impact Resistance: Meets rigorous testing standards for automotive applications.
Consistency Assurance
ABS cell holders ensure uniform performance across the battery pack.
- Maintaining Consistent Cell Spacing: Ensures uniform thermal conditions around each cell.
- Extended Battery Lifespan: Consistent operating temperatures help maintain overall battery pack health.
- Precise Component Alignment: Provides accurate positioning for busbars and connection points.
- Uniform Electrical Performance: Consistent physical arrangement contributes to stable electrical characteristics.
Enhanced Safety
ABS cell holders provide superior electrical insulation and mechanical stability, significantly reducing the risk of short circuits and thermal runaway events.
Streamlined Production
The modular design allows for faster, more automated assembly processes, reducing production time and costs while improving consistency.
Easy Maintenance
Individual cells can be replaced without discarding the entire battery pack, extending product lifespan and reducing waste.
Environmental Benefits
ABS holders facilitate recycling by allowing easy separation of battery components, supporting circular economy principles.

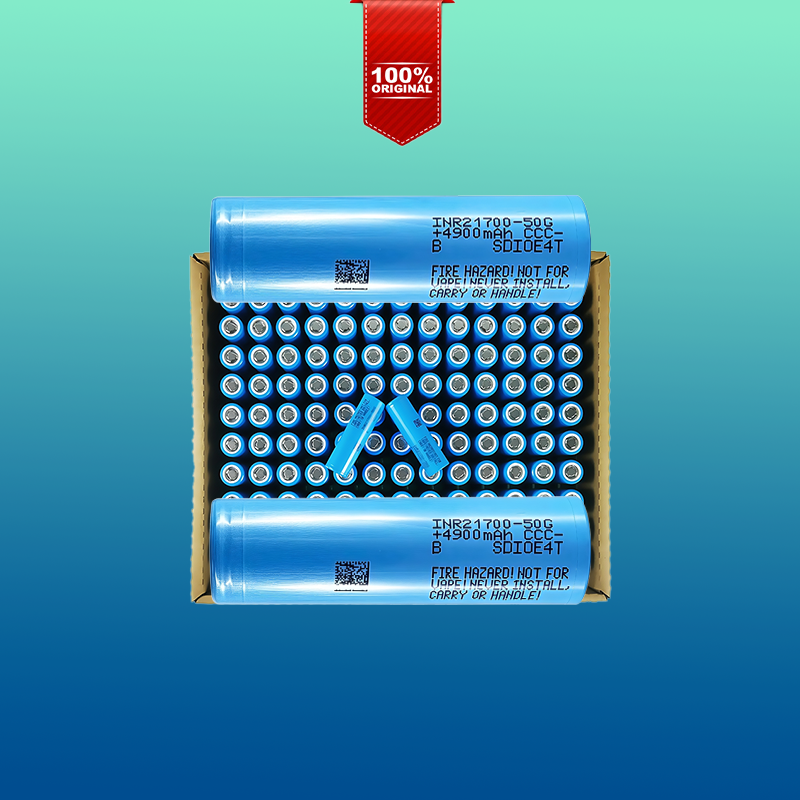

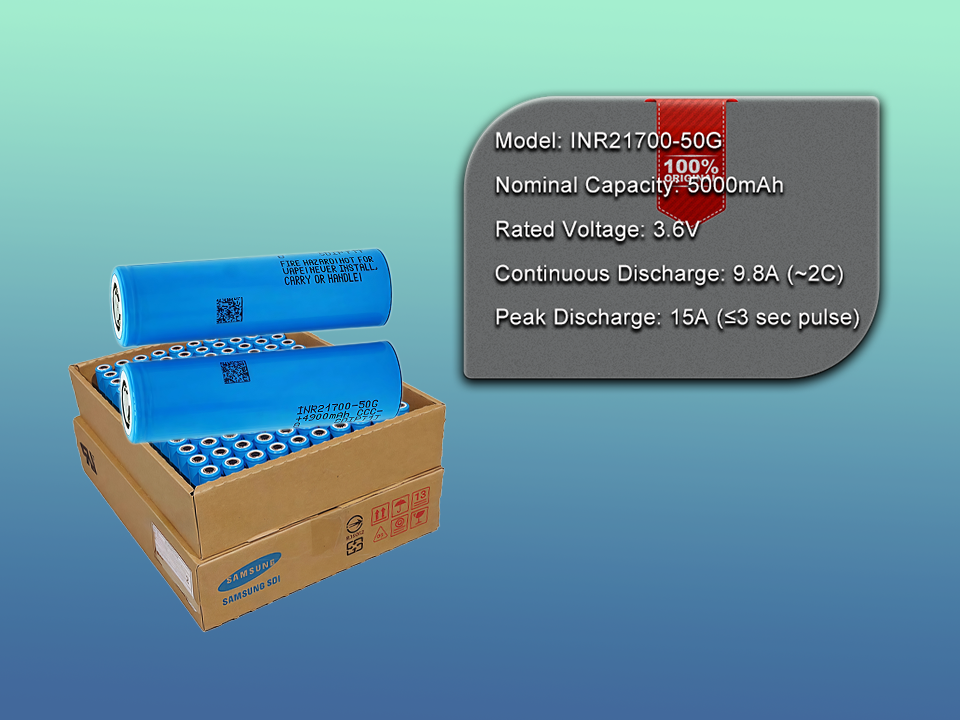

Samsung 21700-50G Battery Cell
A high-performance, high-capacity lithium-ion battery cell widely used in various devices requiring high energy density and sustained discharge capability.
Battery Overview
Capacity: 5000mAh
Voltage: 3.6V
Max Discharge: 9.8A
Weight: 69g
Dimensions: 21.3×70.1mm
Key Parameters
| Parameter Item | Specification Value | Remarks |
|---|---|---|
| Model | INR21700-50G | INR denotes Lithium Nickel Cobalt Oxide |
| Nominal Capacity | 5000mAh | Measured at 0.2C (approx. 1000mA) discharge rate, cut-off at 2.5V |
| Minimum Capacity | 4900mAh | - |
| Nominal Voltage | 3.6V | - |
| Charge Voltage | 4.2V | Standard charge cut-off voltage |
| Cut-off Voltage | 2.5V | Discharge termination voltage; voltage below this level may damage the cell |
| Standard Charge Current | 0.5C (approx. 2500mA) | - |
| Fast Charge Current | 1.0C (approx. 5000mA) | Requires corresponding charge management solution |
| Standard Discharge Current | 1.0C (approx. 5000mA) | - |
| Maximum Continuous Discharge Current | 9.8A | Approx. 2C rate capability, one of its key features |
| Internal Resistance | ≤ 18.5 mΩ | AC Internal Resistance (AC IR), low internal resistance is fundamental for high-current discharge |
| Weight | Approx. 69g | - |
| Dimensions (Diameter x Height) | Max. 21.3mm x 70.1mm | Includes label thickness |
| Cycle Life | Approx. 500 cycles (Capacity retention ≥ 60%) | Under standard charge/discharge conditions |
Key Features and Advantages
Ultra-High Energy Density
The 50G cell achieves a capacity of 5000mAh, ranking among the highest in the 21700 format. Its energy density is exceptionally high (typically exceeding 700Wh/L), meaning it stores more electrical energy within the same volume. This makes it ideal for applications demanding stringent endurance requirements.
Superior Discharge Performance
Maximum continuous discharge current reaches 9.8A, far exceeding typical high-capacity cells (usually around 5A). This enables the 50G to serve not only low-rate devices but also effectively balance capacity and power demands, making it suitable for equipment requiring instantaneous or sustained high-power output.
Low Internal Resistance
An internal resistance of ≤18.5mΩ ensures minimal voltage drop and heat generation during high-current discharge, enhancing discharge efficiency and safety.
Additional Information
Applications
Electric vehicles, power tools, energy storage systems, high-end flashlights, and portable electronic devices requiring high capacity and power.
Safety Features
Includes overcharge protection, over-discharge protection, short circuit protection, and thermal protection mechanisms.
Operating Temperature
Charge: 0°C to 45°C; Discharge: -20°C to 60°C (optimal performance between 15°C and 35°C).

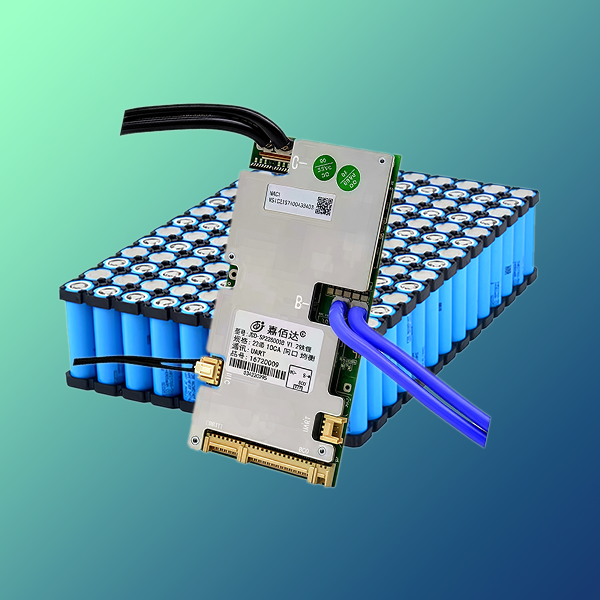

Battery Management System
Core Protection Functions
Overcharge Protection
If any cell voltage exceeds safe maximum threshold, the charger is permanently disconnected.
Example: 4.25V ± 25mV
Overdischarge Protection
If any cell voltage falls below safe minimum threshold, the load is disconnected.
Example: 2.8V ± 50mV
Overcurrent Protection
Discharge is interrupted when current continuously exceeds predefined limit.
Short-circuit Protection
Operates within microseconds to disconnect the circuit in event of a dead short.
Overtemperature Protection
Operation is halted if battery or BMS temperature exceeds safe upper limit.
Under-Temperature Protection
Charging at low temperatures is prohibited to prevent lithium plating.
Li-ion Battery
Normal Operation
Warning Level
Protection Active
Status: Normal
3.7V | 27°C
Charger Protection Features
Advanced safety mechanisms for reliable charging
Overvoltage Protection (OVP)
Normal
Function: If the charger's internal voltage control system fails and the output voltage abnormally rises above a safe threshold (e.g., over 60V), the charger immediately shuts off the output.
Overcurrent Protection (OCP)
Normal
Function: If the output current exceeds the set maximum limit (e.g., 11A-12A) due to some reason (e.g., an internal battery short), the charger automatically reduces the current or shuts off the output.
Short Circuit Protection (SCP)
Normal
Function: If the positive and negative output terminals are accidentally short-circuited, the charger instantly shuts off the output within milliseconds without causing damage. After the short circuit is eliminated, a restart is usually required to resume operation.
Overtemperature Protection (OTP)
Normal
Function: The charger has an internal temperature sensor. If the internal temperature exceeds a safe limit (e.g., 85°C) due to excessive ambient temperature or fan failure, the charger automatically reduces the charging power or stops charging until the temperature returns to normal.
Reverse Polarity Protection
Normal
Function: If the user accidentally inserts the charger with the positive and negative terminals reversed, the charger will not operate without causing damage.
Auto Power Off / Charging Indicator
Charging
Function: This isn't a simple physical power-off. Instead, when the charging current drops to a certain value (e.g., 0.5A, called the "cut-off current"), the battery is deemed fully charged and the output is automatically switched to a slight trickle or completely shut down, with the indicator light turning from red to green.
52V 50Ah Lithium-Ion Battery Specifications
High-performance lithium battery with multiple configuration options
Battery Performance
Energy Capacity
2600Wh
Total Battery Energy
2.5H
Riding time of e-bike (48-52V 1000W motor)
120KM
Riding mileage of e-bike (Riding speed 50km/h)
5H
Charging time of battery (Using 10A fast charger)
Discharge Plug Options
Multiple Connector Choices
Meeting different discharge plug options (Leave a message/Contact us)
QS8
Anderson
Wire Only
XT90F/M
XT60F/M

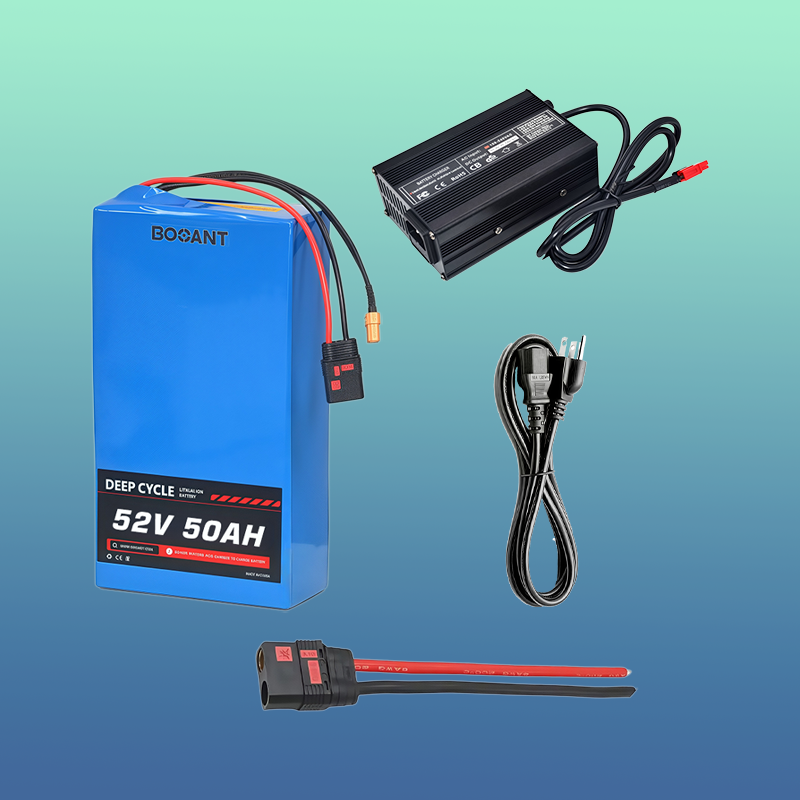

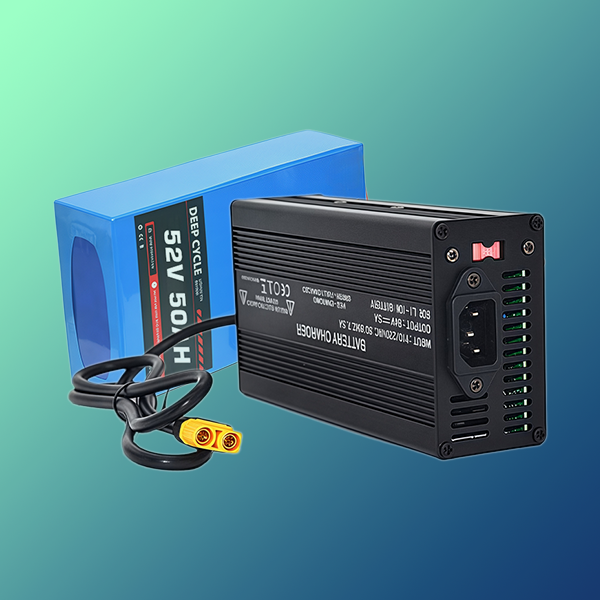

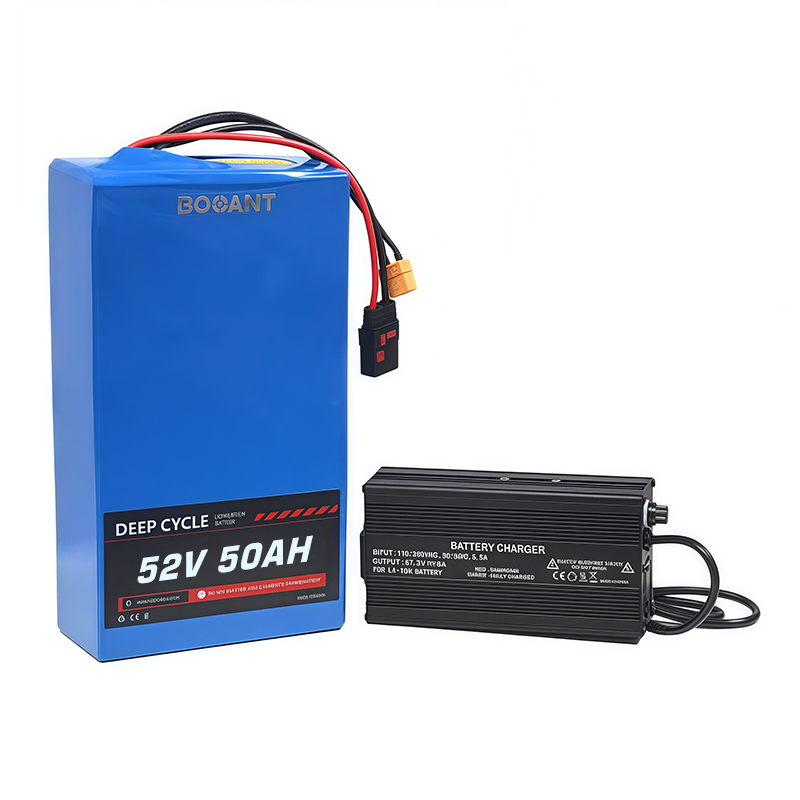

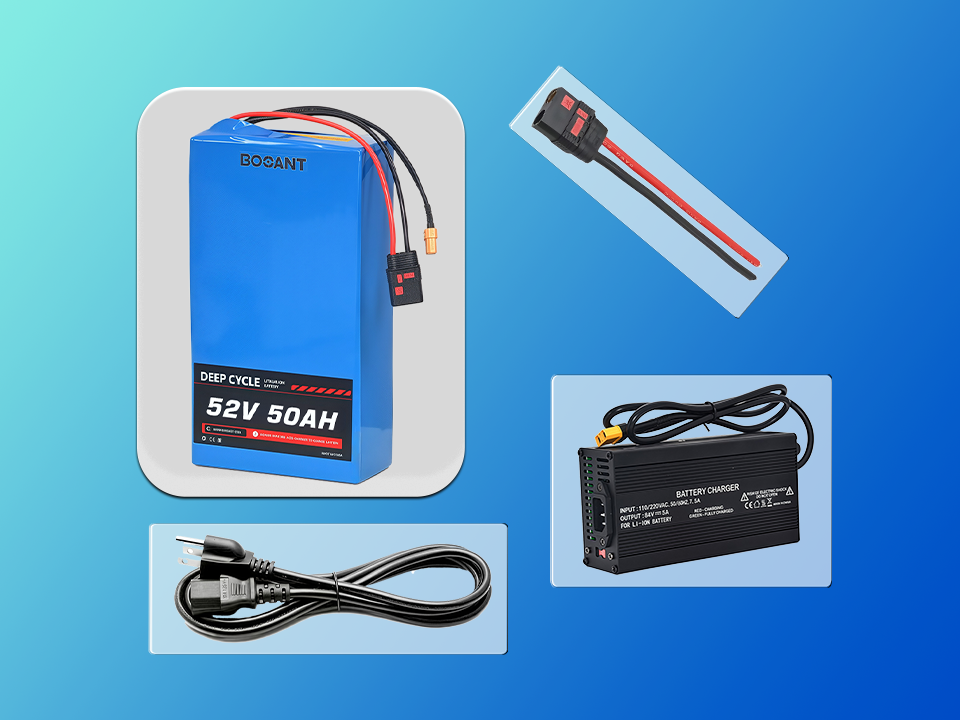

Small Anderson Charger Power Cables
Regional Compatibility
Appropriate charger AC power cables for different countries/regions
US (Default)
EU
AU
UK Specify your region when ordering
Performance Details
120KM Range Details
The 120KM range is achieved under optimal conditions:
- Riding at a constant speed of 50km/h on flat terrain
- Moderate temperature conditions (20-25°C)
- Properly inflated tires
- Rider weight of approximately 70kg
- No strong headwinds
Actual range may vary based on riding conditions, terrain, rider weight, and weather conditions.
2.5 Hours Runtime Details
The 2.5 hours of continuous runtime is based on:
- Using a 48-52V 1000W motor
- Riding at average speed with moderate acceleration
- Mixed terrain with some inclines
- Moderate pedal assistance
- Battery capacity of 2600Wh
Runtime may vary based on riding style, terrain steepness, and assistance level used.
52V 50Ah Lithium-Ion Battery Specifications
Samsung INR21700-50G Cells | Smart BMS Included
Basic Parameters
- Model: 52V 50AH
- Type: Li-ion (14S10P)

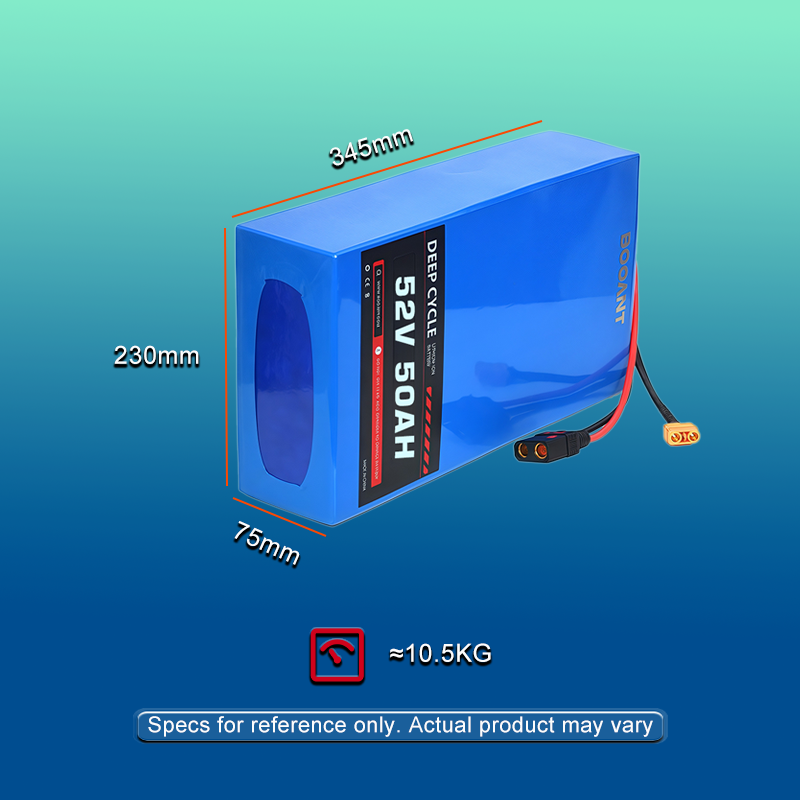

- Dimensions: L345×W230×H75mm
- Weight: ≈10.5KG
- Standard Voltage: 51.8V
Cell Parameters
- Brand/Model: Samsung INR21700-50G
- Capacity: 5000mAh @3.6V
- Discharge: 9.8A cont. / 15A peak
- Charge Voltage: 4.2V (CCCV)
BMS Specifications
- Brand: JBD/ANT/JK
- Communication: Bluetooth/WiFi
- Monitoring: iOS/Android apps
- Optional: CAN/RS485/GPS
Performance
- Charge Voltage: 58.8V cut-off
- Discharge Voltage: 35V cut-off
- Current: BMS/motor dependent
Charger
- Input: 110V-240V AC
- Output: 58.8V 10A
- Time: 4h (80%), 5-6h (100%)
Temperature
- Charge: 0-45°C recommended
- Discharge: -20-60°C
- Storage: 15-25°C ideal
Important Notes
- Storage SOC: Maintain 40-60% (3.7-3.8V/cell)
- Avoid: Long-term storage at <10% or 100% SOC
- Temperature: Avoid >50°C or <-30°C
- Maintenance: Perform shallow cycles every 3 months if unused
