- 🔴 72V 30Ah Battery Core : Heavy-duty 2160Wh storage bank built with 120 genuine Samsung INR21700-50G grade-A cells (20S6P). Eliminates power drops and voltage sag under full throttle.
- 📐 Compact Case Geometry : 275 × 180 × 140 mm (10.8 × 7.1 × 5.5 in). Purpose-built to drop directly into standard e-moto battery bays or custom frame mid-sections with zero wasted spacing.
- ⚖️ Hardware Net Weight : Approx. 11.5 kg (25.4 lbs). Encased in a rugged, puncture-resistant protective metal case that absorbs heavy trail chatter while keeping the chassis center of gravity low.
- 📱 JBD Bluetooth Telemetry : Integrated JBD smart BMS links instantly to the free Xiaoxiang App. Live polarized LCD on the case displays total voltage, exact 0%–100% capacity, and core temps.
- 🔌 5A Fast Charge & 2Y Warranty : Includes a matched 420W aluminum 84V 5A fast charger (6-hour full recharge with auto-cutoff) and a heavy 10AWG silicone discharge lead with plugs of your choice.
Access detailed battery specifications, dimensions, cell configuration, BMS features, charging parameters, and performance data.

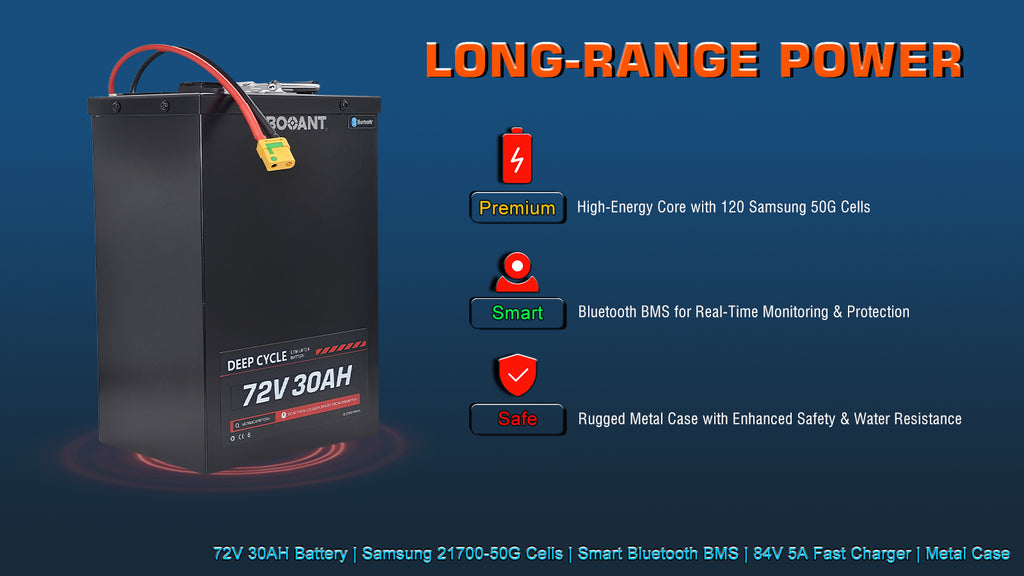

72V 30Ah Heavy-Duty Metal Case Edition
GENUINE SAMSUNG CELLS. SMART JBD BMS. PROTECTIVE METAL CASE.
Technical Specifications
| System Architecture Specs | |
|---|---|
| Battery Model | BOOANT 72V 30Ah Heavy-Duty Metal Case Edition |
| Cell Matrix & Layout | Samsung INR21700-50G | 20S6P Configuration (120 Authentic Grade-A Cells) |
| Energy Capacity | 30Ah / 2160Wh (High-Density Storage Bank) |
| Voltage Parameters | 72V (Nominal) | 84V (Full Charge) | 56V (Discharge Cut-off Protection) |
| BMS Control Architecture | Intelligent JBD Smart Bluetooth BMS Board (Full Xiaoxiang Smartphone App Telemetry) |
| Enclosure & Dashboard | Heavy-Duty Protective Metal Case + Integrated Flush-Mounted Smart LCD Status Panel |
| Physical Dimensions & Weight | 275 × 180 × 140 mm (10.8 × 7.1 × 5.5 in) | Approx. 11.5 kg (25.4 lbs) |
| Fast Charger & Warranty | BOOANT 84V 5A Smart Fast Charger (Aluminum Active-Fan Chassis) | 2-Year Factory Warranty |
Discharge Options & Motor Compatibility
| Continuous | Peak Discharge | Recommended Motor Power |
|---|---|---|
| 30A Version | 90A | Recommended for Motors up to 1500W |
| 50A Version | 150A | Recommended for Motors up to 2500W (High-Power Rail) |
| 60A Version | 180A | Recommended for Motors up to 3000W (Extreme Custom Builds) |
Metal Case Engineering Advantages
Running a high-power 2160Wh setup requires serious structural protection. While standard PVC wraps are ideal for sealed, enclosed battery bays, our heavy-duty metal case is built for pure abuse. Engineered explicitly for racing electric motorcycles and custom DIY builds, it provides maximum crush resistance and acts as a massive passive heat sink during continuous high-amp runs.
| Metal Case Edition | Standard PVC Wrap |
|---|---|
| ✓ Impact Protection: The rugged metal case stops sharp punctures cold and safeguards individual cells during bike drops or hard slides. | • Ultra-Lightweight Profile: Cuts out all outer shell weight to maximize your bike's power-to-weight ratio for snappy handling. |
| ✓ Passive Heat Sink: The aluminum alloy enclosure pulls damaging heat away from the core, dropping operational temps under heavy throttle loads. | • Budget-Friendly Choice: Keeps upfront cost low—ideal for budget-conscious riders with fully protected battery compartments. |
| ✓ Rigid Backbone: Reinforced frame alignment entirely eliminates pack flex, locking the cell groups safe against brutal trail chatter and vibrations. | • Standard Insulation: Dependable, basic protection designed specifically for tight, clean, and fully enclosed vehicle battery bays. |
Smart JBD Bluetooth BMS Orchestration
Pushing a high-voltage 72V system to its limits requires a smart brain. Our premium 72V 30Ah pack features an integrated high-current JBD Smart Bluetooth BMS, serving as a live digital command center that actively balances all 120 individual Samsung cells while shielding your heavy-duty powertrain from overloads.
App Store Sync Notice: All live tracking diagnostics, smart protection cutoffs, and cell management stats are accessible 24/7 on your smartphone via the official Xiaoxiang App (available for free on iOS & Android).

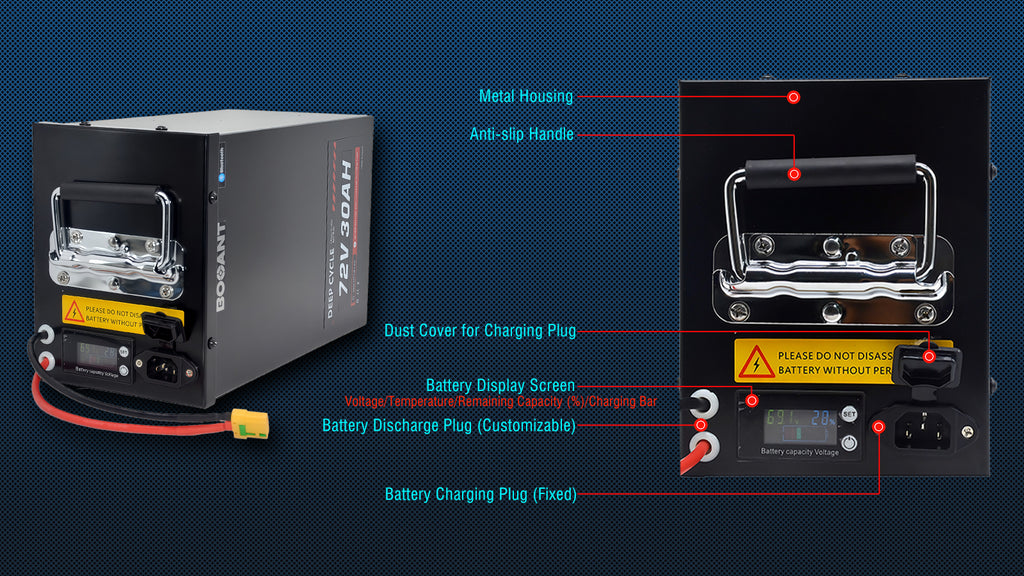

Flush-Mounted LCD Status Screen
No need to pull out your phone mid-ride. The rugged metal case features a premium, flush-embedded LCD display screen. Polarized and anti-glare for perfect readability under direct sunlight, it gives you a rugged, app-free window to check your pack's vitals at a single glance.
Displays total pack operating voltage down to decimals to track exact sag levels under full-throttle loads.
Swaps vague "multi-bar" approximations for a precise 0%–100% digital metric to kill mileage anxiety on the trail.
Monitors internal operational cell temperatures to safeguard your high-power setup during aggressive rips.
Included 84V 5A Smart Fast Charger
Every battery kit includes our heavy-duty BOOANT 84V 5A Smart Fast Charger. Pumping out a true 420W output, this high-current charger is perfectly matched to your 2160Wh vault, replenishing it from empty to 100% in approximately 6 hours. This cuts generic standard charging downtime by over 50%, keeping you off the garage wall and out on the trail.
LED Status Indicator Guide
Solid Red: Power loop active — your pack is actively fast charging. (Note: Stays red if a connector cutoff or high-temp protective threshold is triggered by the BMS).
Solid Green: 100% full capacity reached. The charger completely isolates power delivery to eliminate overcharging risks, safely idling on standby.
Plug & Play: Free Custom Plugs Done Right for Your 72V Rig
Messing around with a hot soldering iron on a high-voltage 72V system is an absolute nightmare. One slip and you'll get a massive, scary spark. Don’t risk it—we’ll handle the dirty work so you don't have to hack up your wires.
🛠️ Factory Soldered & Ready to Rip
Just let us know what plug your controller uses. Our shop team will solder the exact connector you need straight onto the thick 10AWG fat wires for free. When it hits your doorstep, it’s 100% ready to drop in and ride.
🔌 Pick Your 72V Flavor
We stock all the heavy-duty plugs that guys actually use on high-power builds:
- • QS8: The big dog for high-current 72V monsters. Zero melting, zero restrictions, just pure raw power.
- • XT90-S: The universal favorite. We use the anti-spark version so you don't get that nasty, loud "pop" sound when plugging in 72V of live power.
- • Anderson Plugs: Old school and rock solid. They lock in tight and won't rattle loose when you're tearing up rough trails.
💡 How to get yours custom made:
Just drop a quick note at checkout telling us which plug you want, or send us a fast email right after you buy. We’ll build it perfectly before it leaves our workbench.
High-Voltage Powertrain Applications
Unleash the full potential of your high-power electric setup. Housed inside our protective metal case, this BOOANT 72V 30Ah (2160Wh) energy platform is calibrated to handle heavy continuous amp draws during brutal hill climbs, track racing, and aggressive custom EV builds.
The premier drop-in capacity upgrade built to completely smash stock mileage limits on custom Sur-Ron, Talaria, and E Ride Pro frameworks.
Supplies relentless, sag-free power to high-torque 72V mid-drives or custom hub motor configurations ranging aggressively from 1500W to 5000W+.
Provides a solid high-voltage path to easily fuel hungry, high-current aftermarket controllers including Sabvoton, Fardriver, or VESC tuning.
The definitive deep-capacity universal power base tailored for custom electric track go-karts, high-speed trikes, and heavy DIY robotics.
*Application Compatibility Notice: Fitment on standard e-moto or e-bike chassis cavities depends entirely on verifying your vehicle's internal cabin spacing, physical frame geometry, and controller plug wiring alignment before purchase.
Before You Order: Rider Specs & FAQ
Which JBD BMS discharge current limit should I choose?
Your choice must match your controller limitations. This 72V metal case pack can be configured with a 30A, 50A, or heavy-duty 60A continuous JBD smart BMS. It perfectly handles high-voltage setups running up to 5000W+ (including custom Sur-Ron controller setups and QS mid-drives) with zero power drop.
Can I customize the discharge plug connector?
Yes, 100% plug-and-play ready. We pre-wire each battery with ultra-flexible, heavy-gauge 10AWG silicone cables. Select your choice of gold-plated plugs (XT60, XT90-S Anti-Spark, QS8, or solid copper Anderson SB50) in the dropdown to ensure a direct match with your controller interface right out of the box.
How do I monitor live diagnostics and remaining capacity?
You can check your vitals mid-ride via the phone app or look straight down at the case. The battery features an integrated JBD Bluetooth module that links to the free Xiaoxiang App for full cellular data logs. For instant, app-free tracking, the rugged metal case features a built-in anti-glare LCD screen showing precise real-time voltage and exact 0%–100% capacity metrics under direct sunlight.
Are genuine Samsung cells used? What is the expected cycle life?
Yes, exclusively. Built in a robust 20S6P configuration using authentic, premium Samsung INR21700-50G power cells. Combined with active JBD smart balancing algorithms, you can easily expect over 800 full charge cycles before noticing any real drop in your daily trail cruising range.
Is the fast charger bundled? What does the warranty cover?
Yes, our 420W aluminum-cased BOOANT 84V 5A Smart Fast Charger is fully included, topping off the 30Ah vault in roughly 6 hours with safe, automatic full-charge shut-off. The entire setup is backed by our comprehensive 2-Year Factory Warranty against manufacturing defaults, along with lifetime engineering support for your DIY garage project.
