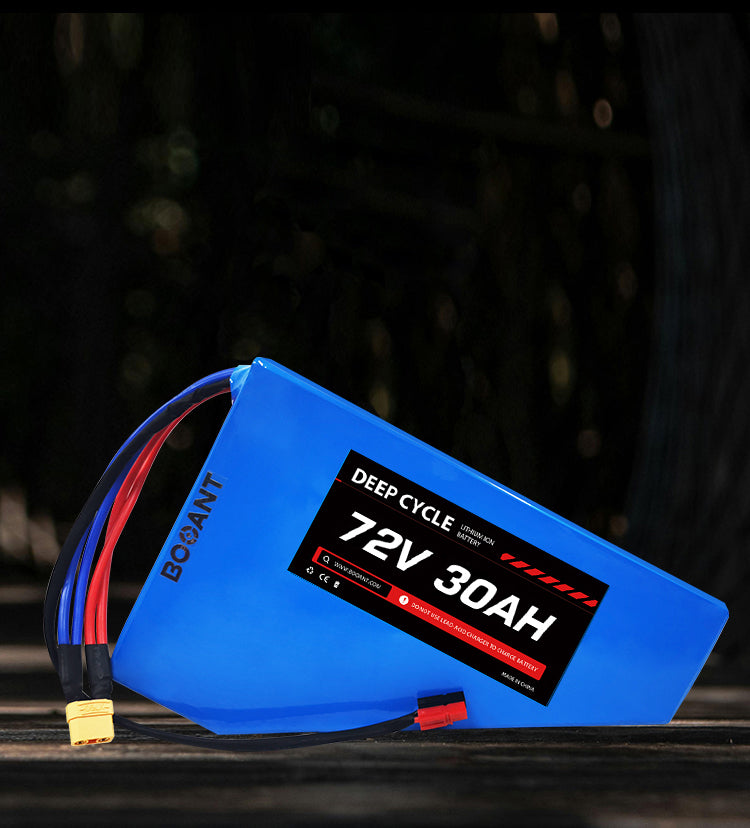

BOOANT 72V 30Ah eBike Triangle Lithium Battery

$779.99

Free Duty Shipping

Battery Cell : BOOANT 72V 30AH lithium battery, using original Samsung 21700(5000mAh) 3.7V battery cell, up to 2160Wh energy output.
Battery Weight : BOOANT 72V 30AH eBike battery, A single Samsung 21700 cell weighs about 0.07 kg. The battery uses 20S 6P series and parallel connection. With 120 cells, the total battery weight is about 9KG (20 pounds).
Battery BMS : BOOANT 72V 30AH battery pack, built-in high-quality BMS, supports Bluetooth communication. BMS can be changed according to the power of the electric bicycle motor. Provides comprehensive battery protection (short circuit, overcurrent, overcharge protection).
Battery Charger : BOOANT 72V 30AH electric motorcycle battery, with 84V 5A fast charger, fully charged in 6 hours at the fastest. Smart chip charging protection, automatically stops charging when fully charged to prevent overcharging.
Battery Warranty : BOOANT lithium battery provides a 1-year warranty! Technical support and online customer service are also provided, and quick response within 24 hours.

Customize Battery

BMS

40A for 72V 2500W Motor

50A for 72V 3000W Motor

60A for 72V 3500W Motor

80A for 72V 4800W Motor

Discharge Plug

QS8 plug

Anderson 50A

XT60F/M

XT90F/M

Wire only

BMS

40A for 72V 2500W Motor 50A for 72V 3000W Motor 60A for 72V 3500W Motor 80A for 72V 4800W Motor

Discharge Plug

QS8 plug Anderson 50A XT60F/M XT90F/M Wire only

Quantity

Free Shipping

30 Day Return

100% Secure Payment

100% Secure Payment

Fast Delivery

24-Hour Prompt Response

1 Years Warranty

Secure Payment

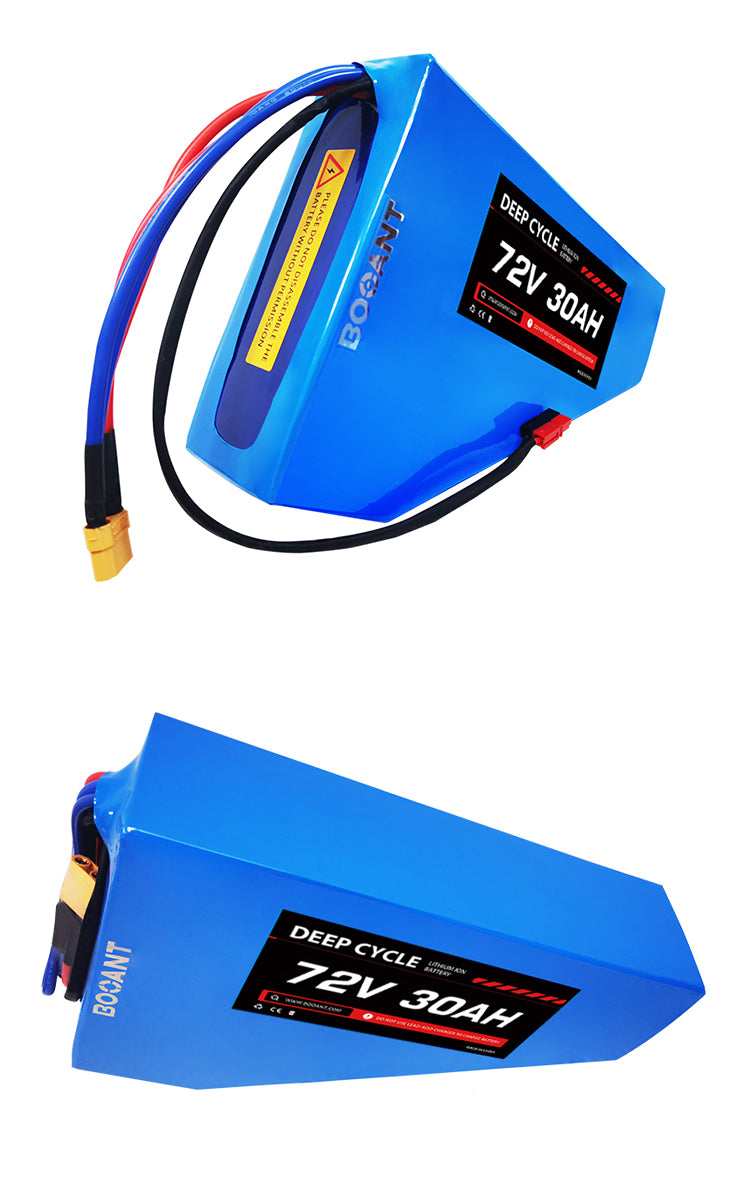

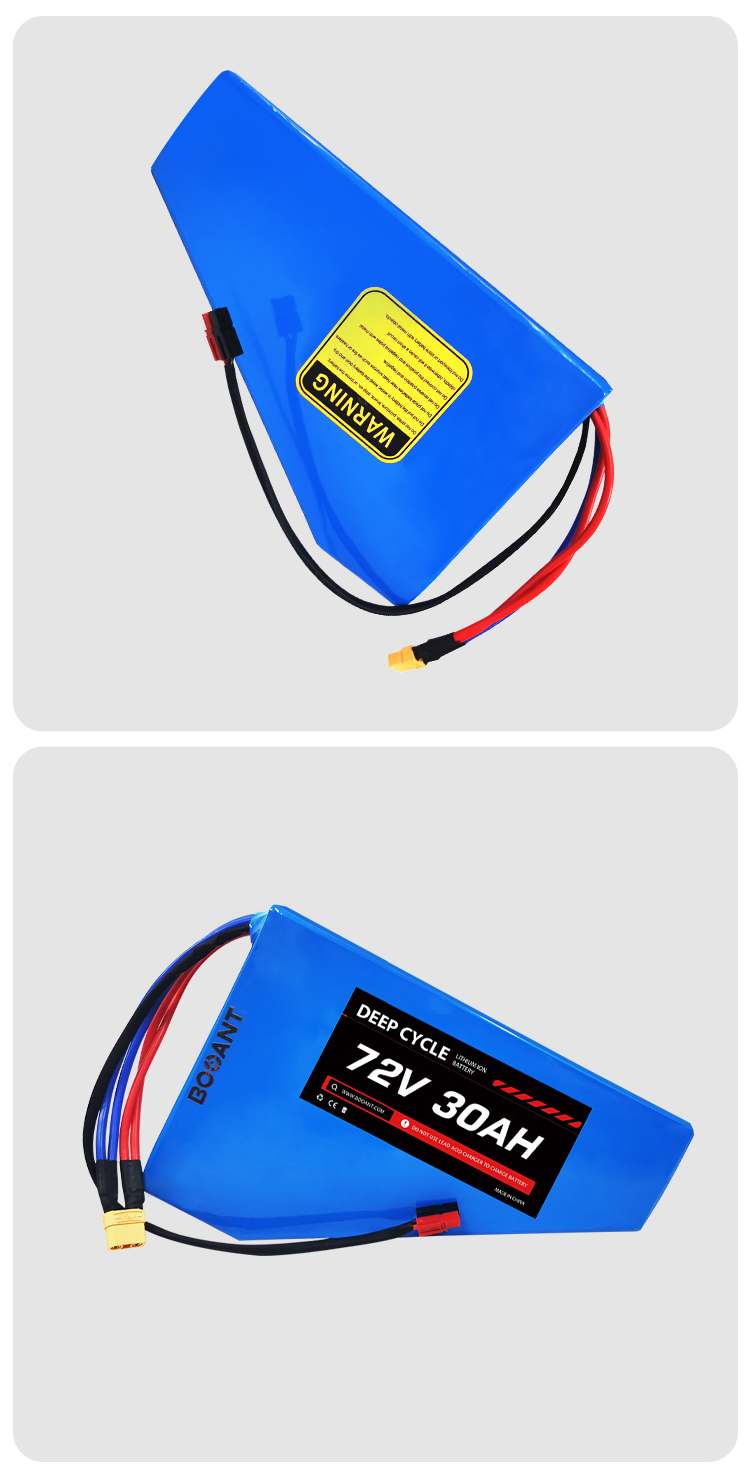

72V 30AH20S 6P

PVC polygonal design, perfect for ebike.

PVC Packing

Lightweight, customizable size

Original Brand Cells

Samsung 50GB 3.7V

Safety Protection

Built-in smart BMS

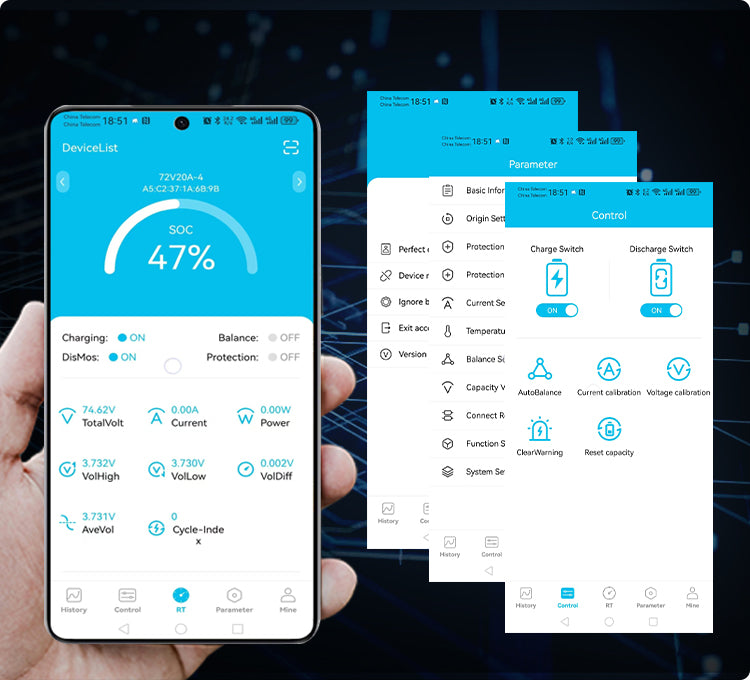

Communication

Bluetooth module, APP monitors battery status

Fast Charging

84V 5A fast charger, fully charged in as fast as 6 hours

Applicable Scope

Suitable for 72V Motors

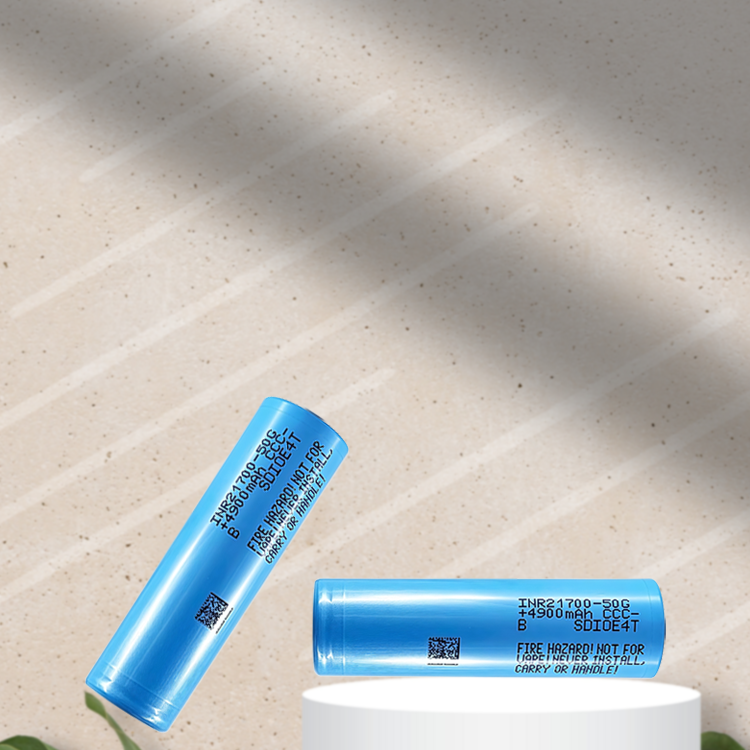

Original Cells

Cell Specification : Lithium 21700 5000mAh 3.7V

Cell Brand : SAMSUNG 50GB

Cell Overcharge Protection Voltage : 4.2V

Cell Overdischarge Protection Voltage : 2.8V

Cell Combination : 20 series 6 paralles

Smart BMS :

Bluetooth communication, active voltage balancing. Overcharge, over discharge, short circuit and overload protection.

BMS : 40A(Can be customized)

40A BMS Suitable Motor : 72V 2500W(MAX) Motor

Discharge Cutoff Voltage (V) : 56V+/-0.5V

Charge Cutoff Voltage (V) : 84V+/-0.5V

Rated Discharge Current (A) : 30A

Maximum peak discharge current (A) : 80A

Maximum Continuous Discharge Current (A) : 40A

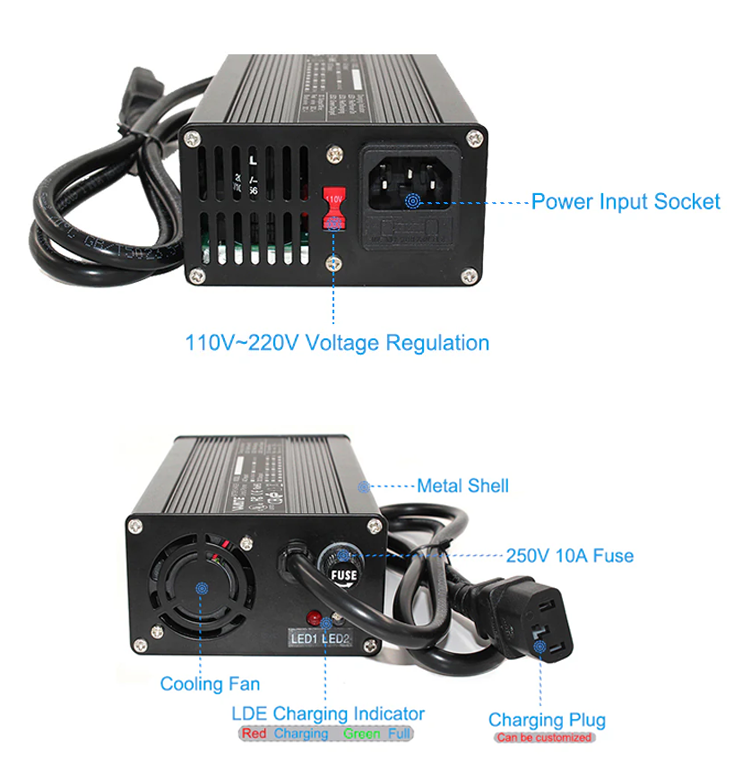

Smart Charger

Charger Operating Voltage : 110V--240V 50/60HZ.

Charging Output : 84V 5A

Standard Charge Current (A) : 2A

Max Fast Charge Current (A) : 10A

5A Fast Charge : approx 6 hours

Cycle life : 80% capacity after 1000 cycles.

Charge Temperature : 0°C to 45°C

Battery Energy: 2160Wh

1.2H

Riding time of e-bike
(72V 1800W motor) For E-bike
(72V 1800W)

84KM

Riding mileage of e-bike
(Riding speed 70km/h) Riding mileage
(Speed 70km/h)

6H

Charging time of battery
(Using 5A fast charger) Charging time
(Using 5A fast charger)

Meeting different discharge plug options(Leave a message/Contact us)

QS8

Anderson

Wire Only

XT90F/M

XT60F/M

Small Anderson

Appropriate charger AC power cables for different countries/regions

US (Default)

EU

AU

UK
