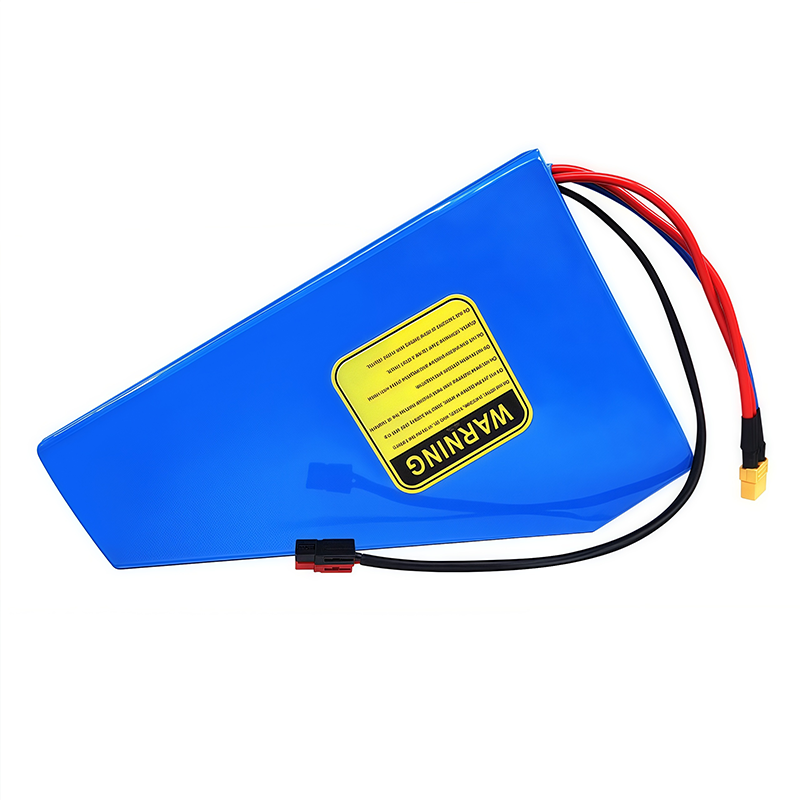

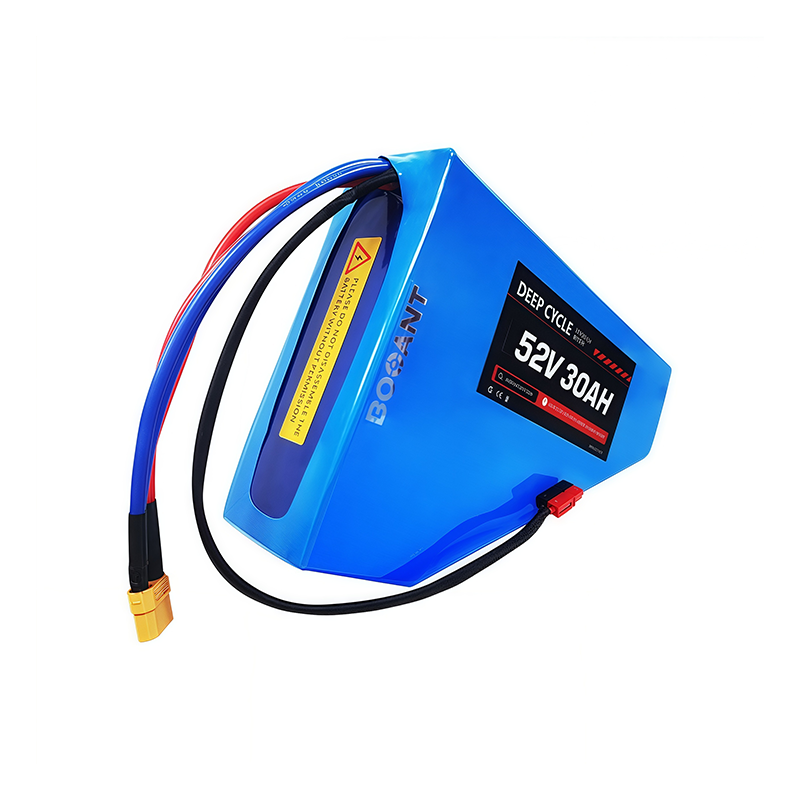

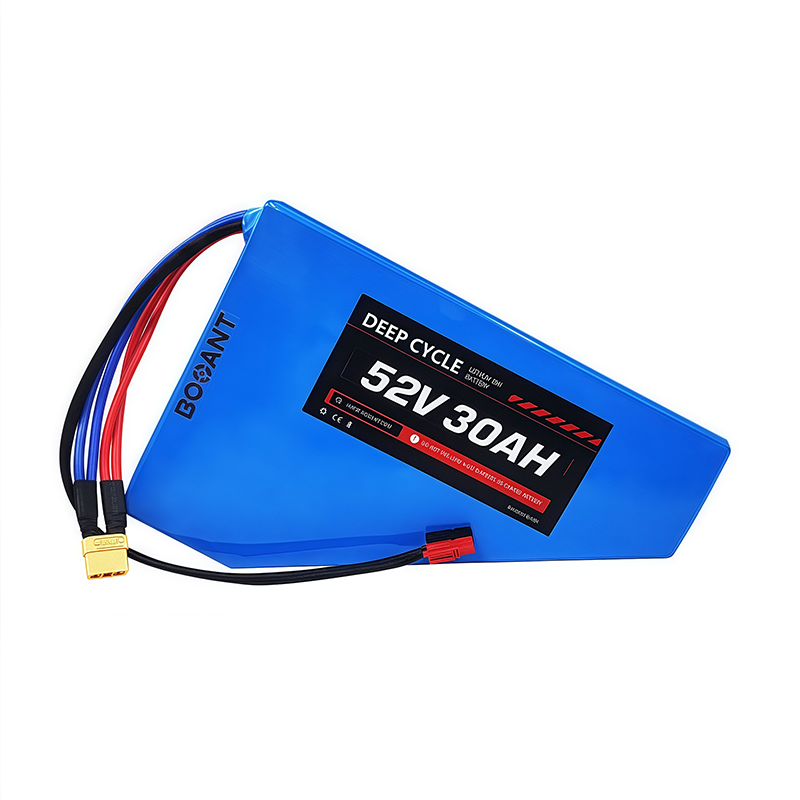

BOOANT 52V 30Ah eBike Battery Triangle

$527.99

Free Duty Shipping

High-Energy-Density Triangular Structure : Adopting a customized triangular design, it perfectly fits within the vehicle frame's triangular area. Its lightweight design, at 6.5kg, saves 30% installation space compared to traditional prismatic batteries while optimizing the center of gravity distribution of the 52V battery pack.

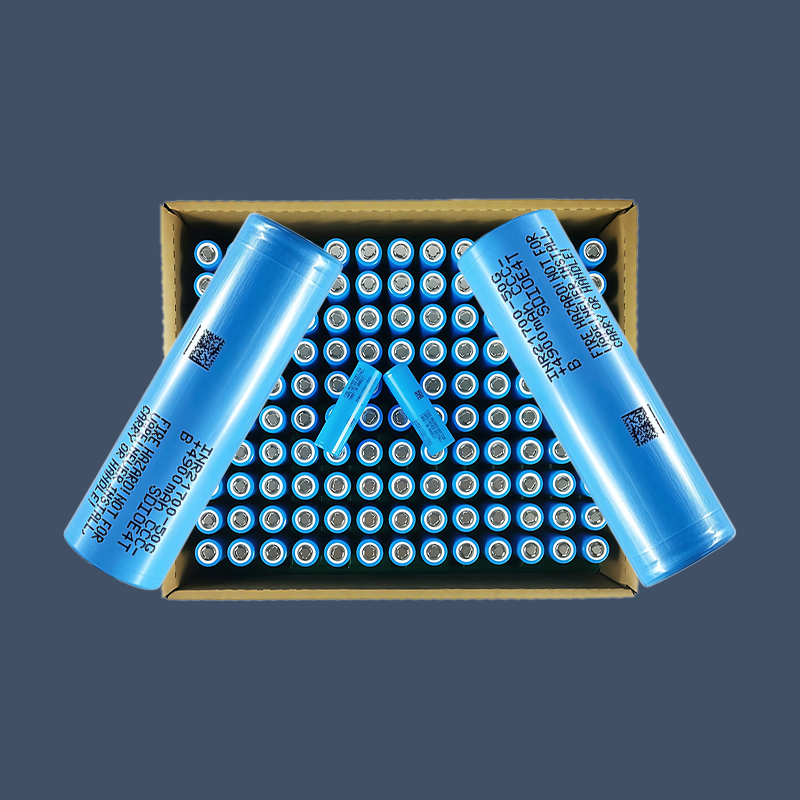

Samsung 21700-50G battery cells : This 52V 30AH Triangle battery pack features a 14-series, 6-parallel structure, equipped with 5000mAh power cells. It supports 60A continuous discharge (meeting the needs of a 2500W motor), 180A peak current, and an 800-cycle lifespan (capacity retention >80%), specifically designed for high-capacity 30Ah batteries.
Intelligent BMS Protection System : This system features triple protection for 52V 30Ah lithium batteries.overcharge (≤58.8V cutoff), over-discharge (≥35V protection), and temperature monitoring (-20°C to 60°C). A Bluetooth app allows real-time viewing of cell voltage and cycle data for the 30Ah battery.
Ultra-Long Battery Life : The 1560Wh ultra-large capacity (52V x 30Ah) supports an e-bike range of 50-80 km (at 25 km/h). It can be quickly charged to 80% in 5 hours and is compatible with 52V 5A chargers (with internationally compatible plugs).
Customizable Discharge Interface : The 52V 30Ah battery supports optional QS8, Anderson, and XT90 interfaces (with 100A continuous discharge capability), allowing for flexible customization based on customer equipment and perfectly matching high-power 52V system requirements.

30A for 52V 1200W Motor

40A for 52V 1500W Motor

50A for 52V 2000W Motor

60A for 52V 2500W Motor

Discharge Plug

QS8 plug

Anderson 50A

XT60F/M

XT90F/M

Wire only

30A for 52V 1200W Motor 40A for 52V 1500W Motor 50A for 52V 2000W Motor 60A for 52V 2500W Motor

Discharge Plug

QS8 plug Anderson 50A XT60F/M XT90F/M Wire only

Quantity

Free Shipping

30 Day Return

100% Secure Payment

Fast Delivery

24-Hour Prompt Response

1 Years Warranty

Secure Payment

52V 30Ah Triangle Lithium Battery

High-Performance Energy Solution

High-Capacity Energy Storage

30Ah capacity (1,560Wh) provides 50-80 miles per charge
52V voltage ensures high power output for climbing/acceleration

Triangular Design

Perfect fit for e-bike/scooter frames
Optimizes space utilization and weight distribution

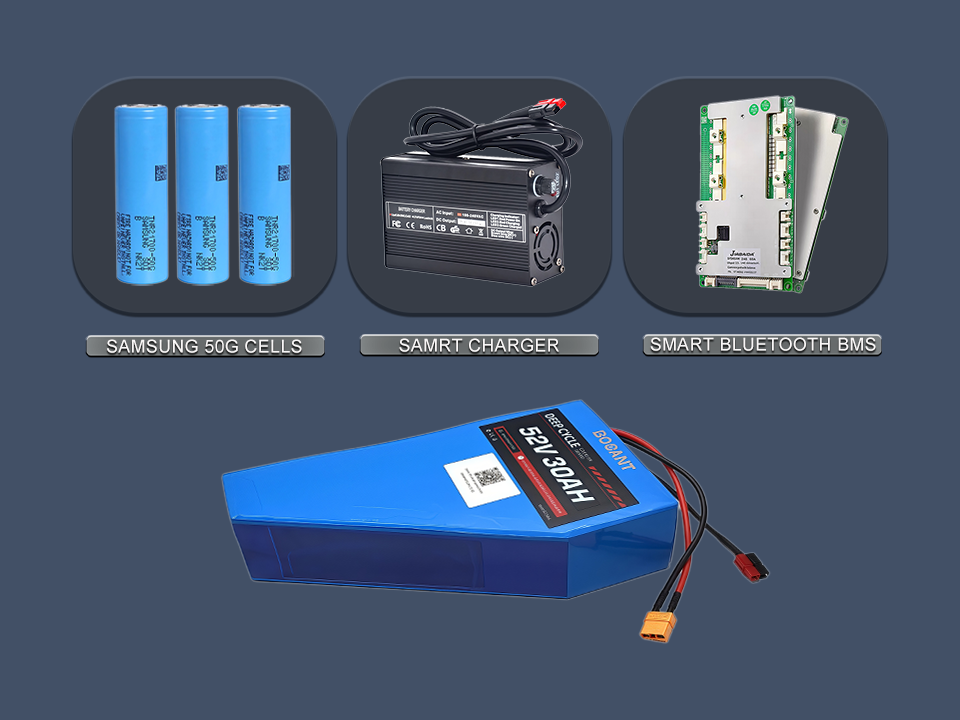

Premium Samsung Cells21700 50G cells for maximum stability
800+ cycles with 80% capacity retention

Smart BMS Protection

Prevents overcharge/discharge and short circuits

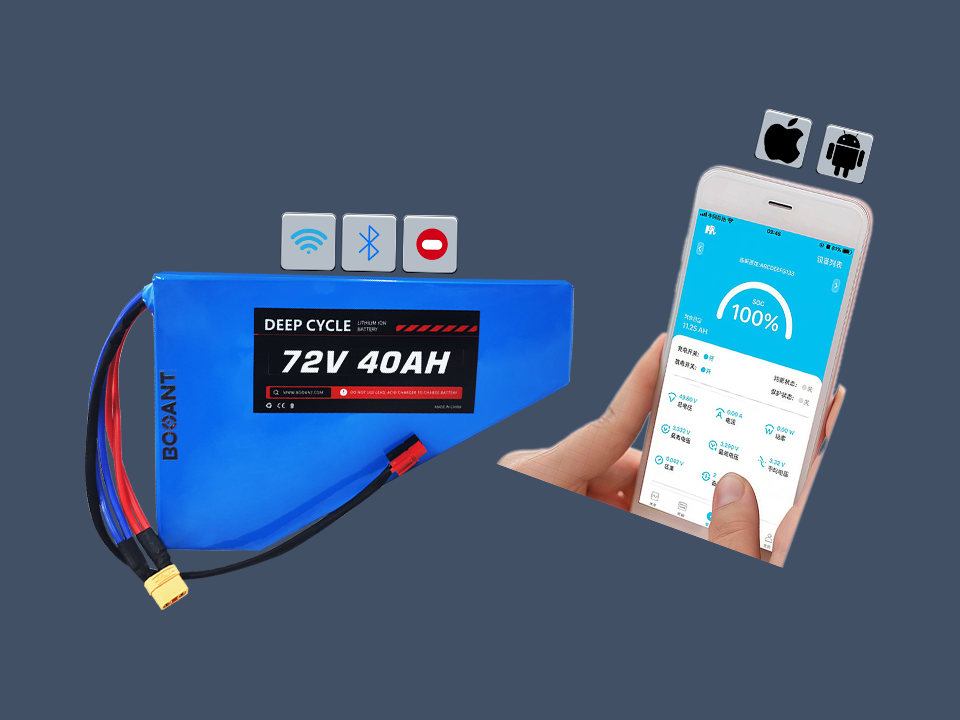

Bluetooth monitoring via mobile app

High Discharge Performance

30A-60A continuous (supports 750W-2500W motors)
80A-180A peak current bursts

Technical Specifications

Voltage

52V Nominal

Capacity

30Ah (1,560Wh)

Cell Type

Samsung 21700 50G (NMC)

Dimensions

Custom triangle fit

Weight

Approx.6.5kg

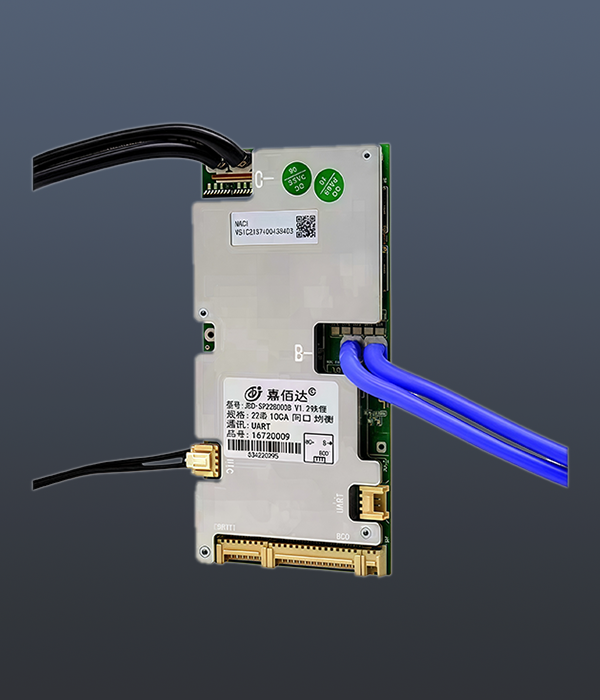

52V 30Ah Intelligent BMS Protection

Core Protections

• Overcharge: ≥4.25V cutoff

• Over-discharge: ≤2.8V shutdown

• Overcurrent: 50A continuous/100A peak

• Short circuit: <500μS response

• Temperature: -20℃~60℃ range

Smart Features

• Passive balancing: >30mV trigger

• SOC monitoring: ±3% accuracy

• Dynamic power adjustment

Durability

• IP65 waterproof rating

• Vibration resistant design

All protections feature dual-layer hardware/software verification for maximum reliability.

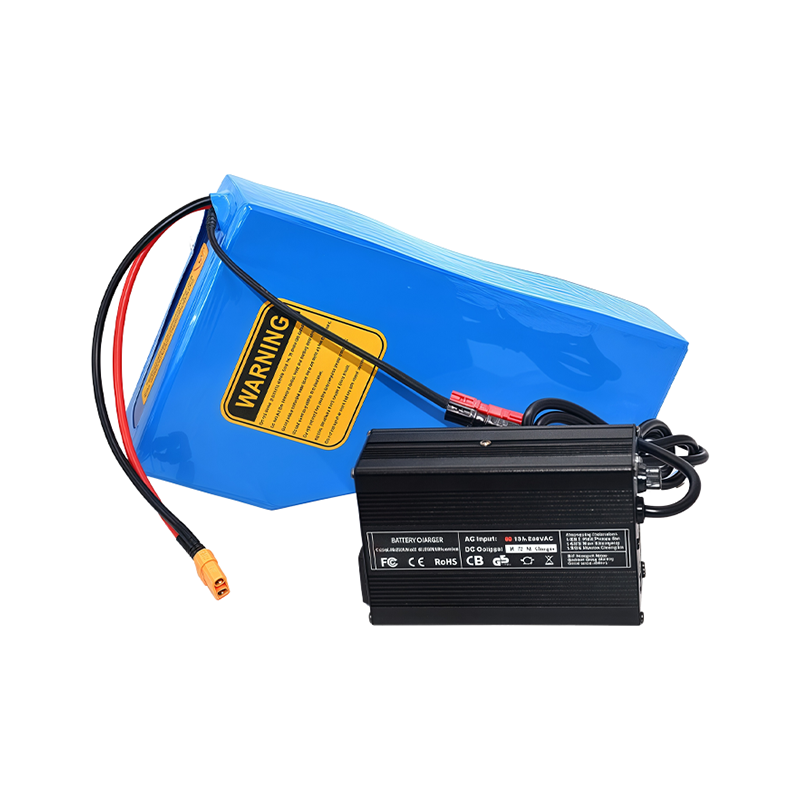

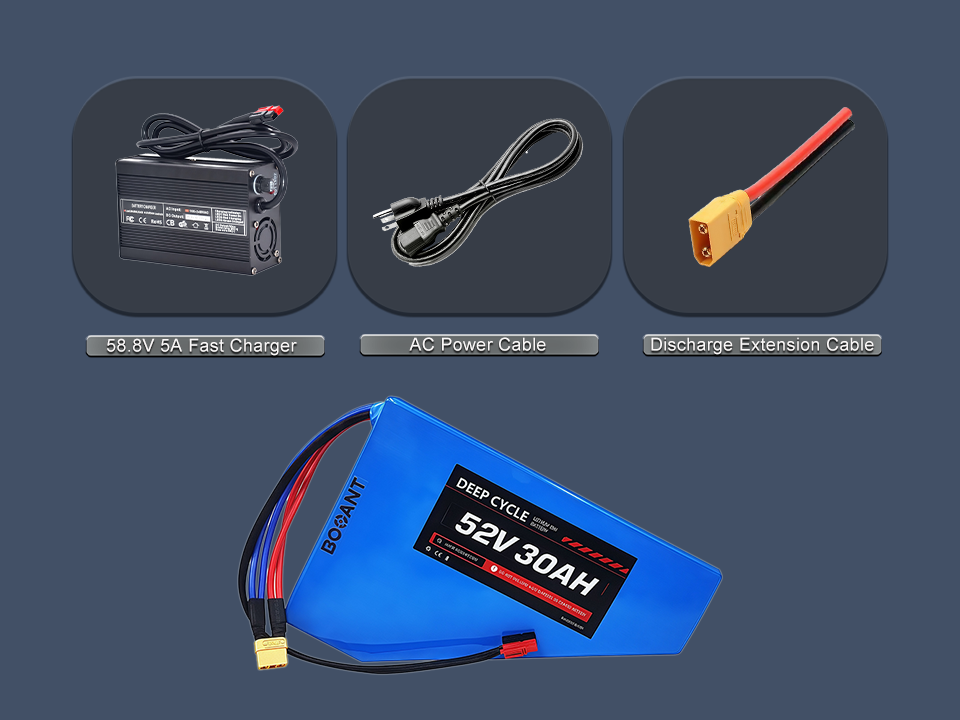

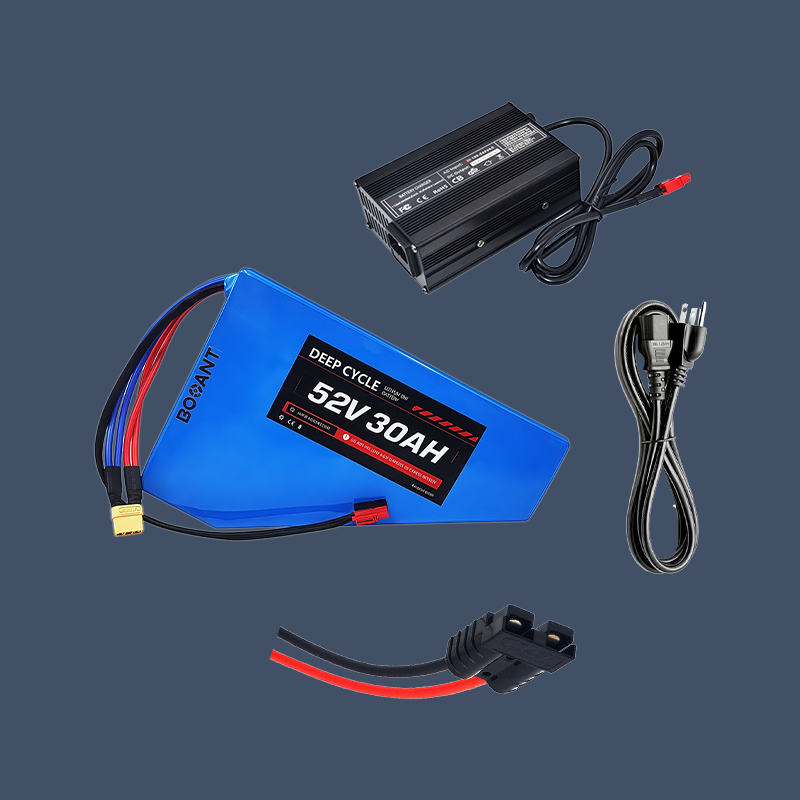

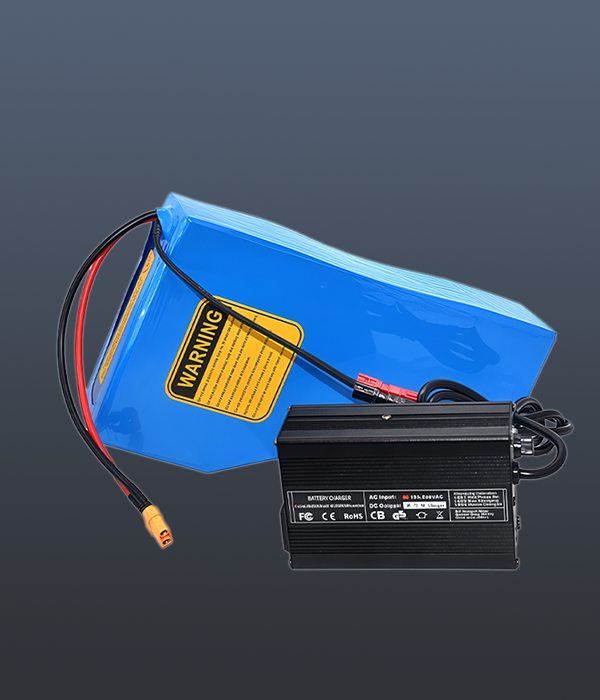

58.8V 5A Fast Smart Charger

Designed for 52V 30Ah lithium batteries with three-stage charging:
1. Constant Current: 5A → 2. Constant Voltage: 58.8V → 3. Float Charge: 54.6V

Safety Features

Overvoltage/Undervoltage cutoff (±0.5V)
Overcurrent/Short-circuit protection (<100ms)
Temperature control (0-45°C)
IP54 waterproof & dustproof

Certifications: CE/UL
Indicators: LED status

Technical Specs

Parameter	Specification
Input	AC 100-240V 50/60Hz
Output	DC 58.8V±0.2V 5A
Protection	Reverse polarity/overload
Dimensions	130×90×50mm

Battery Energy: 1560Wh

1.5H

Riding time of e-bike (48-52V 1000W motor)

60KM

Riding mileage of e-bike (Riding speed 40km/h)

6H

Charging time of battery (Using 5A fast charger)

Meeting different discharge plug options (Leave a message/Contact us)

QS8

Anderson

Wire Only

XT90F/M

XT60F/M

Small Anderson

Appropriate charger AC power cables for different countries/regions

US (Default)

52V 30Ah Lithium-Ion Battery Specifications

Samsung INR21700-50G Cells | Smart BMS Included

Basic Parameters

Model: 52V 30AH
Type: Li-ion (14S6P)

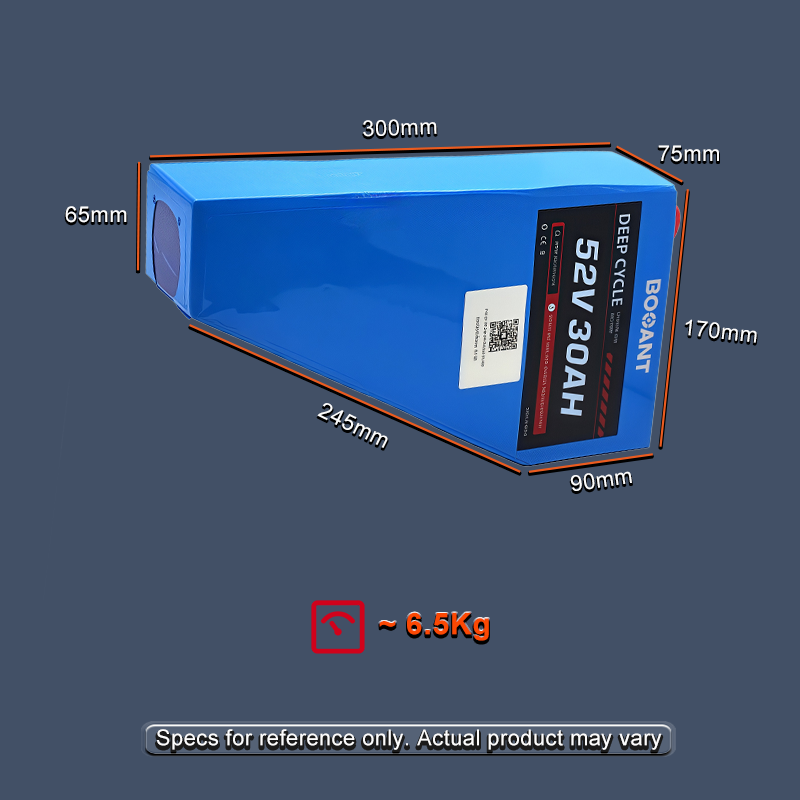

Dimensions: 300×170×90×245×65×75mm
Weight: ≈6.5KG
Standard Voltage: 52V

Cell Parameters

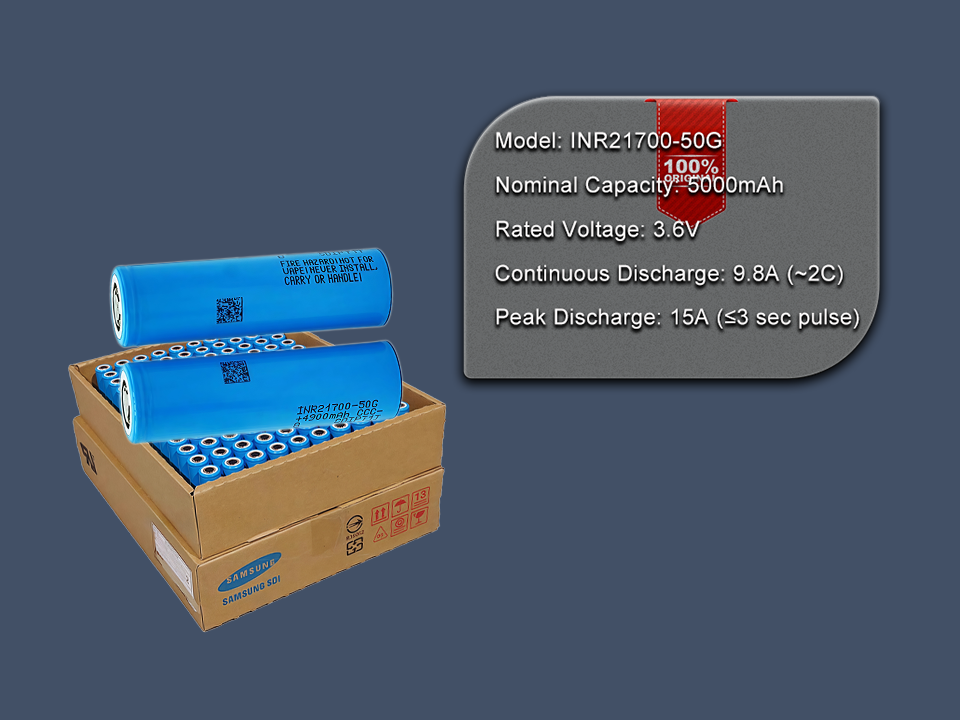

Brand/Model: Samsung INR21700-50G
Capacity: 5000mAh @3.6V
Discharge: 9.8A cont. / 15A peak
Charge Voltage: 4.2V (CCCV)

BMS Specifications

Brand: JBD/ANT/JK
Communication: Bluetooth/WiFi
Monitoring: iOS/Android apps
Optional: CAN/RS485/GPS

Performance

Charge Voltage: 58.8V cut-off
Discharge Voltage: 35V cut-off
Current: BMS/motor dependent

Charger

Input: 110V-240V AC
Output: 58.8V 5A
Time: 5h (80%), 6-7h (100%)

Temperature

Charge: 0-45°C recommended
Discharge: -20-60°C
Storage: 15-25°C ideal

Important Notes

Storage SOC: Maintain 40-60% (3.7-3.8V/cell)
Avoid: Long-term storage at <10% or 100% SOC
Temperature: Avoid >50°C or <-30°C
Maintenance: Perform shallow cycles every 3 months if unused
