Riding time of e-bike
(52V 500W motor) For E-bike
(52V 500W)
Fast Delivery

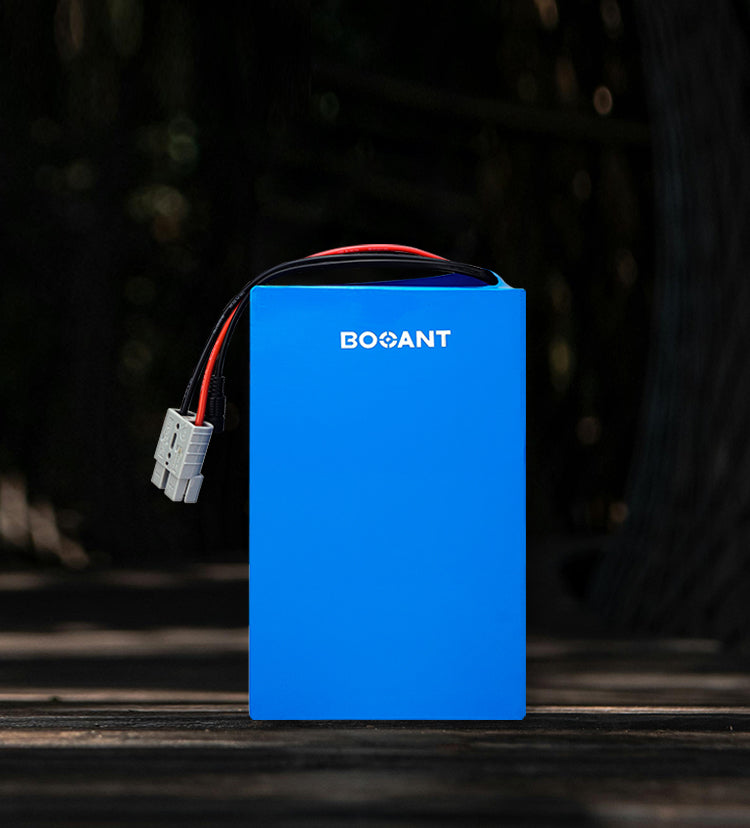

BOOANT 52V 20Ah eBike Battery 1040Wh
$413.99
Free Duty Shipping
$413.99
Free Duty Shipping
$413.99
Free Duty Shipping
$413.99
Free Duty Shipping
$413.99
Free Duty Shipping
$413.99
Free Duty Shipping
$413.99
Free Duty Shipping
$413.99
Free Duty Shipping
$413.99
Free Duty Shipping
$413.99
Free Duty Shipping
$413.99
Free Duty Shipping
$413.99
Free Duty Shipping
$413.99
Free Duty Shipping
$413.99
Free Duty Shipping
$413.99
Free Duty Shipping
$413.99
Free Duty Shipping
$413.99
Free Duty Shipping
$413.99
Free Duty Shipping
$413.99
Free Duty Shipping
- Powerful Cells : The BOOANT 52V 20Ah eBike battery uses original Samsung 21700 cells with a 5000mAh capacity per cell. With a 14S 4P configuration of 56 cells, it provides 1040Wh of energy. It has a long service life, lasting over 1000 cycles.
- Compact and Customizable Design : Booant 52v 20ah lithium battery measuring about L340mm(13.4in)×W110mm(4.3in)×H75mm(2.9in) and weighing 4KG (8.8 pounds), this battery is lightweight and easy to install. Its PVC - wrapped design allows for customizable shapes to fit various e - bike models.
- Smart BMS for Safety and Monitoring : Booant 52v 20ah rechargeable battery it comes with a smart BMS. The BMS has Bluetooth connectivity, enabling you to monitor battery parameters like voltage and capacity in real - time via an app. It also offers protection against overcharge, overdischarge, short - circuit, and overload.
- Fast Charging Capability : Booant lithium battery 52v 20ah is paired with a 58.8V 5A fast charger that works with 110V - 240V 50/60HZ power supply. It can fully charge the battery in about 4 hours. The charger has a standard charge current of 2A and a max fast charge current of 10A, ensuring efficient charging.
- After - Sales Support : BOOANT offers a 1 - year warranty for this battery. Their technical support and online customer service respond within 24 hours. They also provide different discharge plug options and can customize the charger AC power cables for different countries or regions.
BMS
20A for 52V 800W Motor
30A for 52V 1200W Motor
40A for 52V 1500W Motor
Discharge Plug
Anderson 30A
Anderson 50A
XT90F/M
XT60F/M
QS8 plug
Wire only
BMS
Discharge Plug
Free Shipping
30 Day Return
100% Secure Payment
24-Hour Prompt Response
1 Years Warranty
Secure Payment
52V 20AH14S 4P
H340mm(13.4in)*L110mm(4.3in)*W75mm(2.9in)
PVC Packing
Multi-layered wrapping, customizable shape
Original Brand Cells
Samsung 21700 original cells
Safety Protection
Intelligent BMS, battery protection
Bluetooth Connectivity
Equipped with Bluetooth module, APP monitors battery status
Supports Fast Charging
Comes with fast charger (5A), charges fully in as fast as 4 hours
30A High-Power BMS
Suitable for 52V 1200W motor
Customizable Batteries in Various Shapes

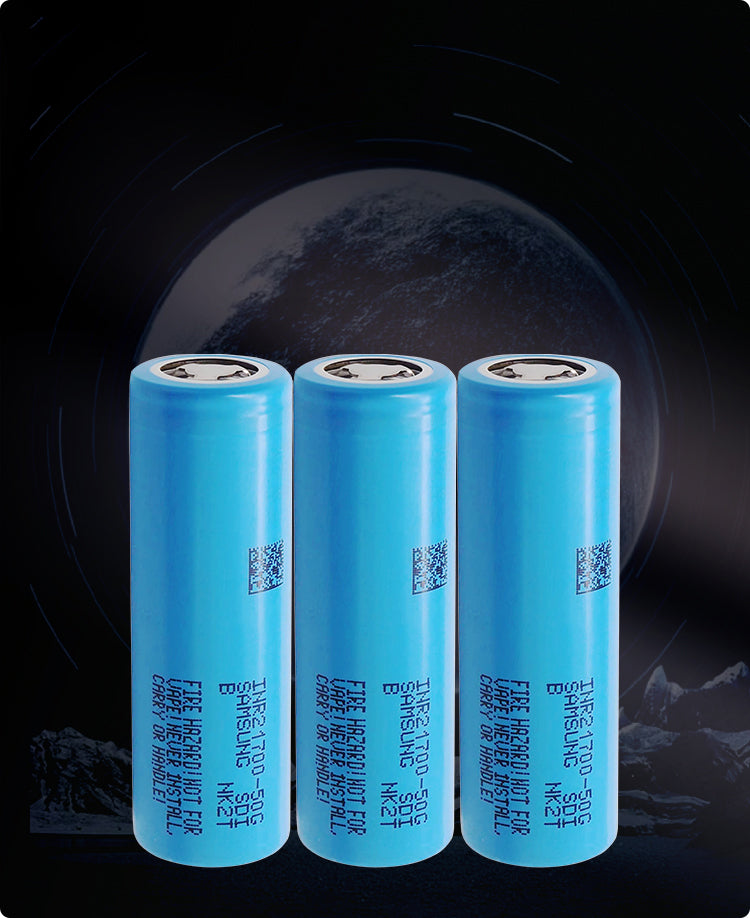

Original Samsung 21700 Cells
Cell Specification : Lithium 21700 5000mAh 3.7V cell
Cell Brand: SAMSUNG
Cell Overcharge Protection Voltage : 4.2V
Cell Overdischarge Protection Voltage : 2.8V

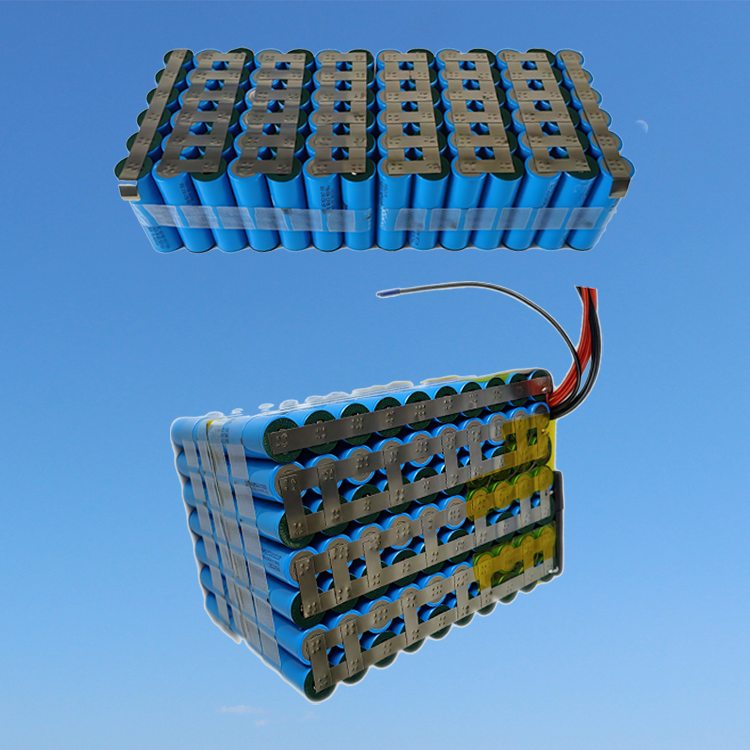

Cell Combination : 14 series 4 paralles
Cell Quantity (parallel x series) : 56 pcs

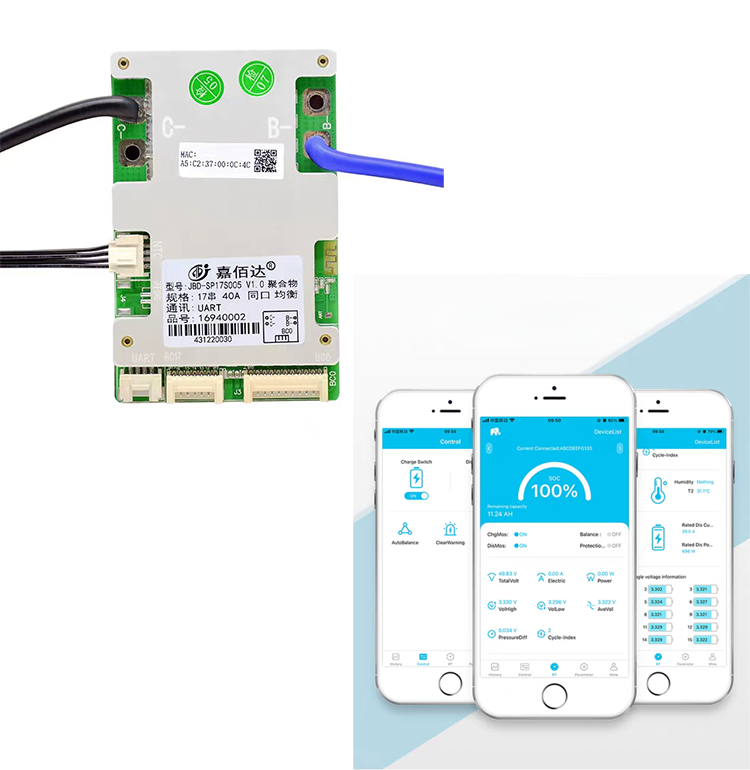

Smart BMS:
The advanced BMS has Bluetooth, automatic battery voltage balancing and powerful protection (overcharge, overdischarge, short circuit and overload) functions, which significantly improves the battery life.
BMS: 30A(Can be customized)
30A BMS Suitable Motor : 52V 1200W(MAX) Motor
Discharge Cutoff Voltage (V) : 39.2V+/-0.5V
Charge Cutoff Voltage (V) : 58.8V+/-0.5V
Rated Discharge Current (A) : 40A
Maximum peak discharge current (A) : 60A
Maximum Continuous Discharge Current (A) : 30A
SMART CHARGER
Charger Operating Voltage : 110V--240V 50/60HZ.
Charging Output : 58.8V 5A
Standard Charge Current (A) : 2A
Max Fast Charge Current (A) : 10A
5A Fast Charge : approx 4 hours
Cycle life : 80% capacity after 1000 cycles.
Charge Temperature : 0°C to 45°C
Battery Energy: 1040Wh
2H
40KM
Riding mileage of e-bike
(Riding speed 20km/h) Riding mileage
(Speed 20km/h)
(Riding speed 20km/h) Riding mileage
(Speed 20km/h)
4H
Charging time of battery
(Using 5A fast charger) Charging time
(Using 5A fast charger)
(Using 5A fast charger) Charging time
(Using 5A fast charger)
Meeting different discharge plug options(Leave a message/Contact us)
QS8
Anderson
Wire Only
XT90F/M
XT60F/M
Small Anderson
Appropriate charger AC power cables for different countries/regions
US (Default)
EU
AU
UK
Product Basic Parameters
Battery Model: 52V 20Ah
Cell Specification: 21700 5000mAh 3.7V
Cell Brand: SAMSUNG
Discharge Cutoff Voltage (V): 39.2V+/-0.5V
Charge Cutoff Voltage (V): 58.8V+/-0.5V
Cell Combination: 14 Series 4 Paralles
Cell Quantity (parallel x series): 56 pcs
BMS: Built-in 30A(Can be customized)
30A BMS Suitable Motor: 52V 1200W(MAX)
Rated Discharge Current (A): 40A
Maximum Peak Discharge Current (A): 60A
Maximum Continuous Discharge Current (A): 30A
Charger mode: CC/CV
Standard Charge Current (A): 2A
Max Fast Charge Current (A): 10A
Charger: 110V-240V 50/60HZ 58.8V 5A
5A Fast Charge Current: approx 4-5 hours
Battery Weight: about 4 kg/8.8 lb
Cycle life: ≥80% capacity after 1000 cycles
Discharge Temperature: -20°C to 60°C
Charge Temperature: 0°C to 45°C
