BOOANT 52V 30Ah Ebike Battery
- Battery Energy : 52V 30Ah lithium battery, 1560Wh energy, 2500W (max) power output.
- Battery Cell : This battery is equipped with Samsung 21700 cells, known for its higher energy density, stable performance and lifespan, supporting more than 2,000 deep cycles.
- BMS : The control circuit uses 50A BMS to prevent overcharge, overdischarge, and overheating and ensure the safety of the battery circuit.
- Smart Charger : Equipped with 58.8V 5A fast charger, it can be fully charged in as fast as 6 hours.
- LED Display : You can know the voltage, capacity and charging status through the display.
- Weight : It weighs 16.53 lbs (7.5kg) and is suitable for a variety of applications.
- Shell : Iron shell, hard and explosion-proof, IP65 waterproof to ensure battery safety.
Bluetooth Connectivity Module:
Enables real-time monitoring of battery status by connecting to the BMS Bluetooth via a mobile app.
Voltage Active Balancing:
Smart BMS with unique voltage balancing maintains cell health and extends battery lifespan.
Safety Features:
Includes safeguards like short circuit prevention, over-discharge prevention, overcharge prevention, and temperature regulation.
Expandable CAN Protocol Support:
Supports the CAN bus communication protocol, providing flexibility and compatibility with various systems.
Charger Operating Voltage:
110V--240V 50/60HZ.
Charging Output:
58.8V 5A, capable of fully charging the battery in 6 hours. Charging current customizable up to 20A based on customer demands.
Charger Features:
Ensures temperature and voltage stability, automatically halts charging to prevent overcharging, provides short circuit protection, equipped with temperature protection and rapid cooling fan, constructed with durable metal body.
Shockproof design: Reinforced with a 1.5mm thick metal shell, minimizing the risk of battery damage from impacts.
BOOANT Lithium Battery for Various Applications
BOOANT Li-ion batteries, prized for their lightweight and compact design, serve a multitude of electrical applications. Widely employed in electric bicycles, boat motors, golf carts, and more, these batteries exhibit adaptability by delivering variable power levels tailored to distinct motors. The Battery Management System (BMS) enhances flexibility, adjusting the output to meet specific requirements of diverse electrical equipment.
Note:
The above data is based on test results and is for reference only. Actual range may vary due to different usage scenarios, as well as variations in load and speed. Please refer to actual conditions for accurate information.
TECH SPECS
Battery Model | 52V 30Ah |
Cell Type | SAMSUNG 21700 5000mAh 3.7V Cell |
Cell OverCharge Protection Voltage | 4.2V/Cell |
Cell Overdischarge Protection Voltage | 2.8V/cell |
Nominal Voltage | 51.8V |
Rated Capacity | 30Ah |
Energy | 1560WH |
Parallel & Series | 14 Series 6 Paralles 84pcs Cell |
BMS ( Built-in ) | JK-50A ( Bluetooth ) |
Suitable Motor | 50A BMS Suitable Motor- Less than 48V-52V 2500W(MAX) Motor 60A BMS Suitable Motor- Less than 48V-52V 3000W(MAX) Motor 40A BMS Suitable Motor- Less than 48V-52V 2000W(MAX) Motor 30A BMS Suitable Motor- Less than 48V-52V 1500W(MAX) Motor |
Discharge Cutoff Voltage (V) | 39.2V+/-0.5V |
Charge Cutoff Voltage (V) | 58.8V+/-0.5V |
Rated Discharge Current (A) | 30A |
Maximum peak discharge current (A) | 150A (3s) |
Maximum Continuous Discharge Current (A) | 60A (60A BMS) |
Charger Mode | 110V~240V 50/60HZ 58.8V 5A |
Charger Time | 6-7 Hours |

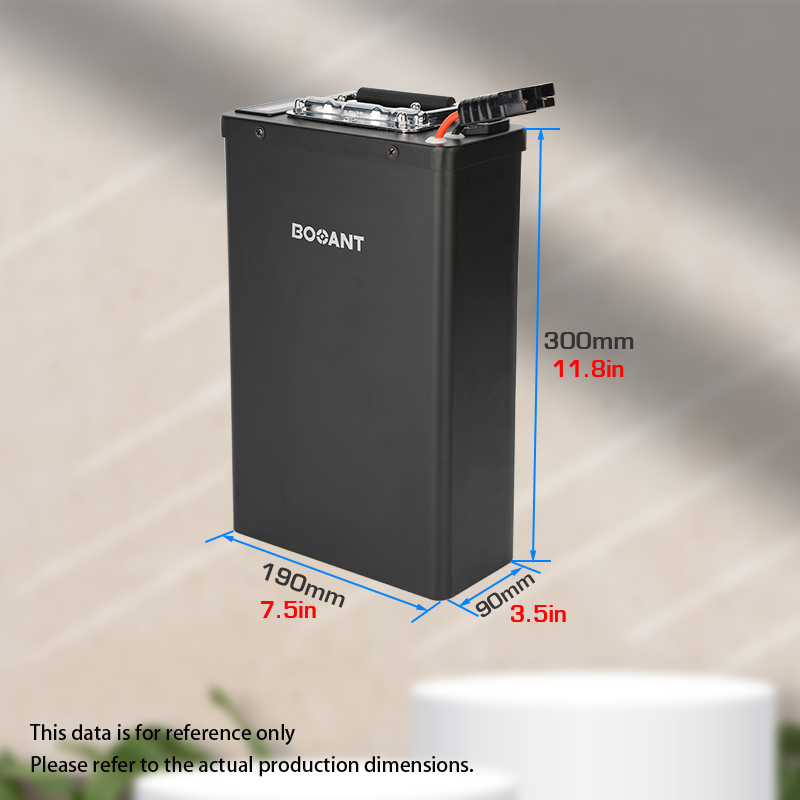

Size (inch/mm) | L11.81×W7.48×H3.54 inch L300×W190×H90 mm |
Booant Battery
Free Battery Protection Bag
User Manual
Charger Power Cord
Smart Charger
Anderson Extension Cord
