BOOANT 60V 50Ah Lithium Battery
- Battery Energy : 60V 50Ah lithium battery, with an energy of 3000Wh and an output power of 4200W.
- Battery Pack : Assembled from original Samsung 21700 battery cells, with high energy density and more stable performance, supporting 2000+cycles.
- BMS : Equipped with high-quality 50A BMS, it can prevent overcharging, over discharging, overcurrent, short circuit, and overheating.
- Fast Charger : 67.2V 10A fast charger, can be fully charged within 5 hours at the fastest.
- LED Display Screen : Includes an LED display screen for easy tracking of voltage and capacity at any time.
- Weight : Its weight is 17.63 pounds (8 kilograms), meeting the needs of various scenarios.
- Iron shell : The iron shell is sprayed with anti rust paint, which is explosion-proof and IP65 waterproof, ensuring battery safety.
Bluetooth Monitoring Module:
Links to the BMS Bluetooth, enabling the mobile app to display battery status in real-time.
Voltage Active Balancing:
The BMS integrates a proprietary voltage-based active balancing feature to maintain cell health and extend the battery's lifespan.
Integrated Protection:
Features built-in mechanisms to safeguard against short circuits, over-discharging, overcharging, and temperature fluctuations.
Scalable CAN bus protocol:
Embraces the CAN bus communication standard, providing adaptability and interoperability across diverse systems.
Charger Operating Voltage:
110V--240V 50/60HZ.
Charging Output:
67.2V 10A, capable of fully charging the battery in 5 hours. Charging current adjustable up to 20A to meet customer specifications.
Charger Features:
Ensures stable temperature and voltage levels, automatically ceases charging upon battery fullness, provides protection against short circuits, includes temperature management with built-in fan, durable metal housing for long-lasting performance.
Impact resistance: Reinforced with a 1.5mm metal shell, significantly reducing the likelihood of battery damage from impacts.
BOOANT Lithium Battery for Various Applications
BOOANT Li-ion batteries, prized for their lightweight and compact design, serve a multitude of electrical applications. Widely employed in electric bicycles, boat motors, golf carts, and more, these batteries exhibit adaptability by delivering variable power levels tailored to distinct motors. The Battery Management System (BMS) enhances flexibility, adjusting the output to meet specific requirements of diverse electrical equipment.
Note:
The above data is based on test results and is for reference only. Actual range may vary due to different usage scenarios, as well as variations in load and speed. Please refer to actual conditions for accurate information.
TECH SPECS
Battery Model | 60V 50Ah |
Cell Type | SAMSUNG 21700 5000mAh 3.7V Cell |
Cell OverCharge Protection Voltage | 4.2V/Cell |
Cell Overdischarge Protection Voltage | 2.8V/cell |
Nominal Voltage | 59.2V |
Rated Capacity | 50Ah |
Energy | 3000Wh |
Parallel & Series | 16 Series 10 Paralles 160pcs Cell |
BMS ( Built-in ) | JK-50A ( Bluetooth ) |
Suitable Motor | 50A BMS Suitable Motor- Less than 60V 3000W(MAX) Motor 30A BMS Suitable Motor- Less than 60V 1800W(MAX) Motor 40A BMS Suitable Motor- Less than 60V 2400W(MAX) Motor 70A BMS Suitable Motor- Less than 60V 4200W(MAX) Motor |
Discharge Cutoff Voltage (V) | 44.8V+/-0.5V |
Charge Cutoff Voltage (V) | 67.2V+/-0.5V |
Rated Discharge Current (A) | 50A |
Maximum peak discharge current (A) | 150A (3s) |
Maximum Continuous Discharge Current (A) | 70A (70A BMS) |
Charger Mode | 110V~240V 50/60HZ 67.2V 10A |
Charger Time | 5-6 Hours |

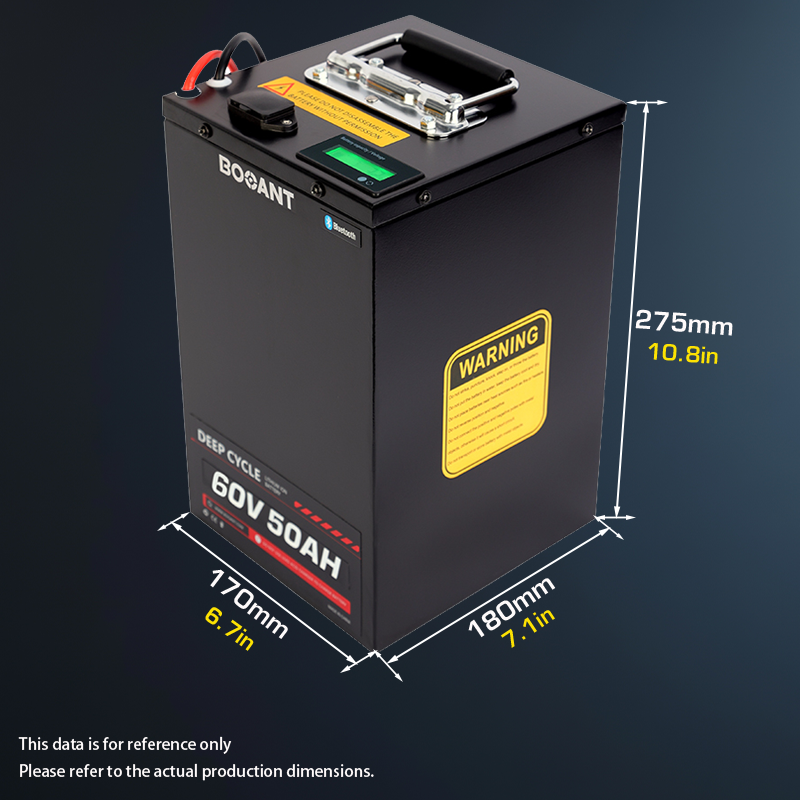

Size (inch/mm) | L10.82×W7.08×H6.69 inch L275×W180×H170 mm |
Booant Battery
Free Battery Protection Bag
User Manual
Charger Power Cord
Smart Charger
Anderson Extension Cord
