Riding time of e-bike
(52V 1000W motor) For E-bike
(52V 1000W)
Fast Delivery
BOOANT 52V 30Ah 1560Wh Lithium Battery
$516.99
$516.99
$516.99
$516.99
$516.99
$516.99
$516.99
$516.99
$516.99
$516.99
$516.99
$516.99
$516.99
$516.99
$516.99
$516.99
$516.99
$516.99
$516.99
- Reliable After - Sales Support : BOOANT provides a 1 - year warranty for this battery. Their technical support team and online customer service offer a quick 24 - hour response. They also offer different discharge plug options and can customize the charger AC power cables for various countries/regions.
- High - Quality Cells for Stable Power : The BOOANT 52V 30Ah lithium battery uses original Samsung 21700 cells with 5000mAh capacity each. With 14S 6P configuration of 84 cells, it delivers 1560Wh of energy, ensuring stable and long - lasting power for your electric bike, e-scooter. It has a service life of over 1000 cycles.
- Compact and Lightweight Design : Bonant lithium batteries 52V 30Ah measuring about L340mm(13.4in)×W150mm(5.9in)×H75mm(2.9in) and weighing only 6KG (13.2 pounds), this battery is easy to install and carry. Its PVC - wrapped outer casing is customizable in shape, fitting various usage scenarios.
- Advanced BMS for Safety and Monitoring : Booant 52v lithium battery 30ah equipped with smart Bluetooth BMS, it offers multiple protection functions like overcharge, overdischarge, short - circuit, and overload protection. The BMS also features Bluetooth connectivity, allowing you to monitor battery parameters in real - time via an app.
- Fast Charging Capability : Booant 52v 30ah ebike battery comes with a 58.8V 5A fast charger. Operating at 110V - 240V 50/60HZ, it can fully charge the battery in about 6 hours. The charger has a standard charge current of 2A and a max fast charge current of 10A, and it has a cycle life of 80% capacity after 1000 cycles.
BMS
30A for 52V 1200W Motor
40A for 52V 1500W Motor
50A for 52V 2000W Motor
Discharge Plug
Anderson 30A
Anderson 50A
XT90F/M
XT60F/M
QS8 plug
Wire only
BMS
Discharge Plug
Free Shipping
30 Day Return
100% Secure Payment
24-Hour Prompt Response
1 Years Warranty
Secure Payment
52V 30AH14S 6P
H340mm(13.4in)*L150mm(5.9in)*W75mm(2.9in)
PVC Packing
Multi-layered wrapping, customizable shape
Original Brand Cells
Samsung 21700 original cells
Safety Protection
Intelligent BMS, battery protection
Bluetooth Connectivity
Equipped with Bluetooth module, APP monitors battery status
Supports Fast Charging
Comes with fast charger (5A), charges fully in as fast as 6 hours
30A High-Power BMS
Suitable for 52V 1200W motor
Diverse Shapes, Customizable Support
Our products come in diverse shapes and are customizable.The outer casing is wrapped in PVC material, and the internal battery arrangementcan be adjusted. We can customize different dimensions to suit your specificusage scenario. Please contact us in advance if you require customization.
Car-Grade Original Samsung Cells
Cell Specification : lithium 21700 5000mAh 3.7V cell
Cell Brand: SAMSUNG
Cell Overcharge Protection Voltage : 4.2V
Cell Overdischarge Protection Voltage : 2.8V
Cell Combination : 14 series 6 paralles
Cell Quantity (parallel x series) : 84 pcs
Smart BMS:
The advanced BMS has Bluetooth, automatic battery voltage balancing and powerful protection (overcharge, overdischarge, short circuit and overload) functions, which significantly improves the battery life.
BMS: 30A(Can be customized)
30A BMS Suitable Motor : 52V 1200W(MAX) Motor
Discharge Cutoff Voltage (V) : 39.2V+/-0.5V
Charge Cutoff Voltage (V) : 58.8V+/-0.5V
Rated Discharge Current (A) : 20A
Maximum peak discharge current (A) : 90A
Maximum Continuous Discharge Current (A) : 30A
SMART CHARGER
Charger Operating Voltage : 110V--240V 50/60HZ.
Charging Output : 58.8V 5A
Standard Charge Current (A) : 2A
Max Fast Charge Current (A) : 10A
5A Fast Charge : approx 6 hours
Cycle life : 80% capacity after 1000 cycles.
Charge Temperature : 0°C to 45°C
Battery Energy: 1560Wh
1.5H
60KM
Riding mileage of e-bike
(Riding speed 40km/h) Riding mileage
(Speed 40km/h)
(Riding speed 40km/h) Riding mileage
(Speed 40km/h)
6H
Charging time of battery
(Using 5A fast charger) Charging time
(Using 5A fast charger)
(Using 5A fast charger) Charging time
(Using 5A fast charger)
Meeting different discharge plug options(Leave a message/Contact us)
QS8
Anderson
Wire Only
XT90F/M
XT60F/M

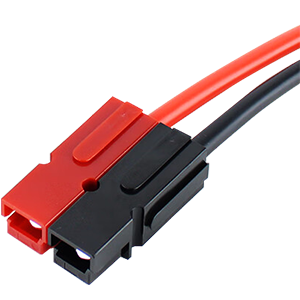

Small Anderson
Appropriate charger AC power cables for different countries/regions
US (Default)
EU
AU
UK
Product Basic Parameters
Battery Model: 52V 30Ah
Cell Specification: 21700 5000mAh 3.7V
Cell Brand: SAMSUNG
Discharge Cutoff Voltage (V): 39.2V+/-0.5V
Charge Cutoff Voltage (V): 58.8V+/-0.5V
Cell Combination: 14 Series 6 Paralles
Cell Quantity (parallel x series): 84 pcs
BMS: Built-in 30A(Can be customized)
30A BMS Suitable Motor: 52V 1200W(MAX)
Rated Discharge Current (A): 20A
Maximum Peak Discharge Current (A): 90A
Maximum Continuous Discharge Current (A): 30A
Charger mode: CC/CV
Standard Charge Current (A): 2A
Max Fast Charge Current (A): 10A
Charger: 110V-240V 50/60HZ 58.8V 5A
5A Fast Charge Current: approx 6 hours
Battery Weight: about 4 kg(8.8 lb)
Cycle life: ≥80% capacity after 1000 cycles
Discharge Temperature: -20°C to 60°C
Charge Temperature: 0°C to 45°C
Package List
Booant Battery
Booant Battery
User Manual
Smart Charger
Charger Power Cord (Default)
Anderson Extension Cord
