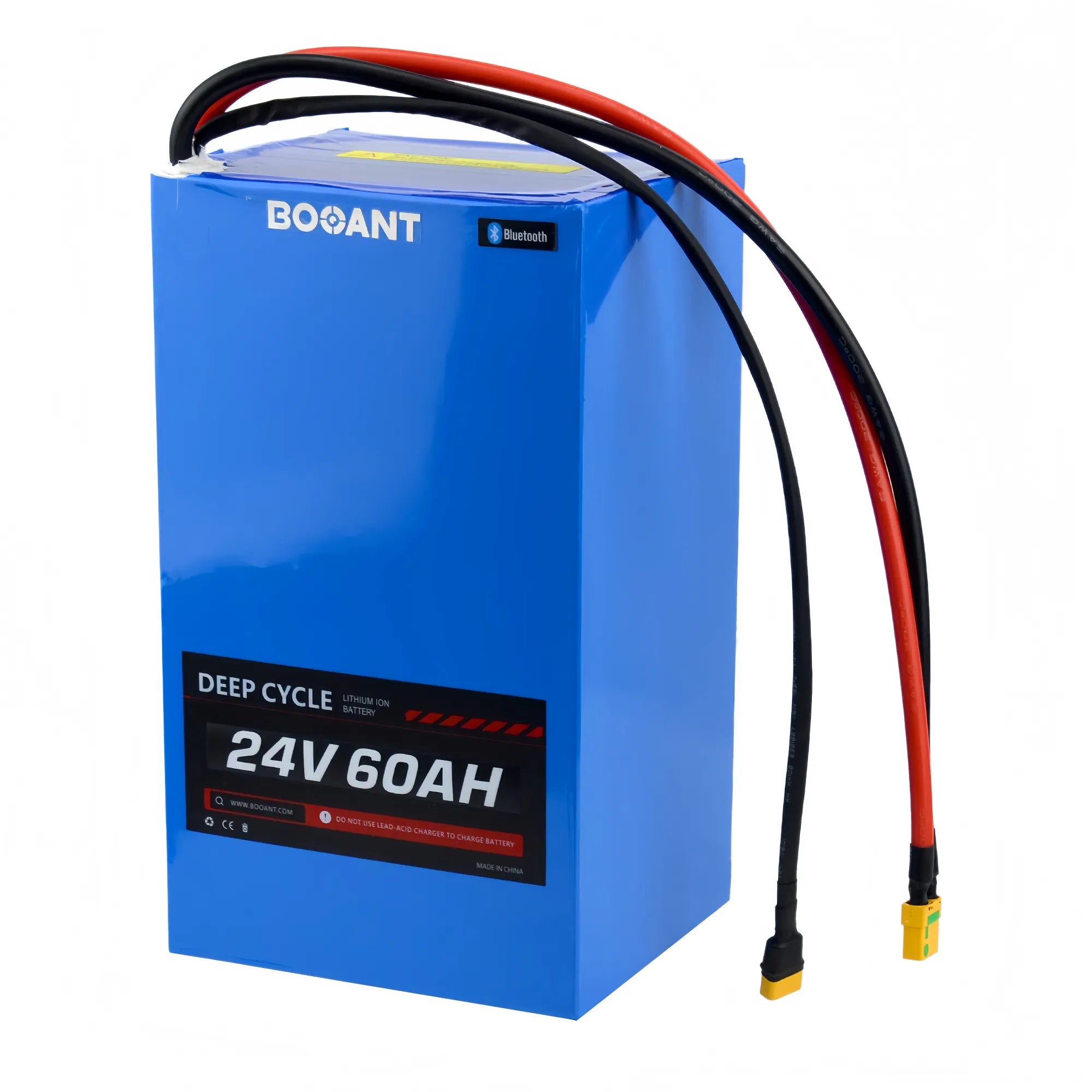

BOOANT 24V 60Ah deep-cycle marine LiFePO4 battery pack with blue PVC casing, Smart Bluetooth label, and heavy-duty trolling motor leads

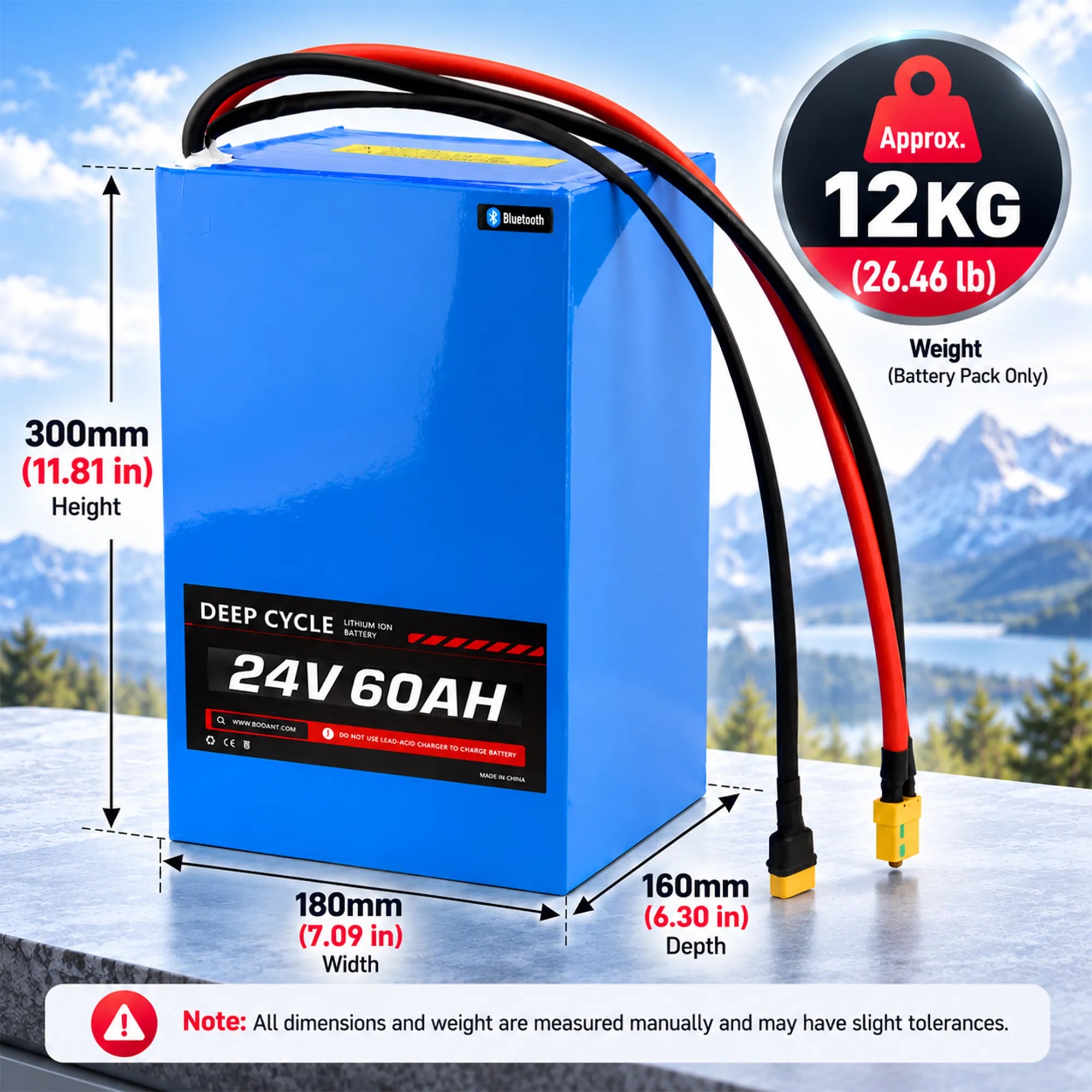

Dimensions and weight diagram of BOOANT 24V 60Ah marine LiFePO4 battery: 300x180x160mm (11.8x7.1x6.3 in) and approx 12kg (26.46 lb).

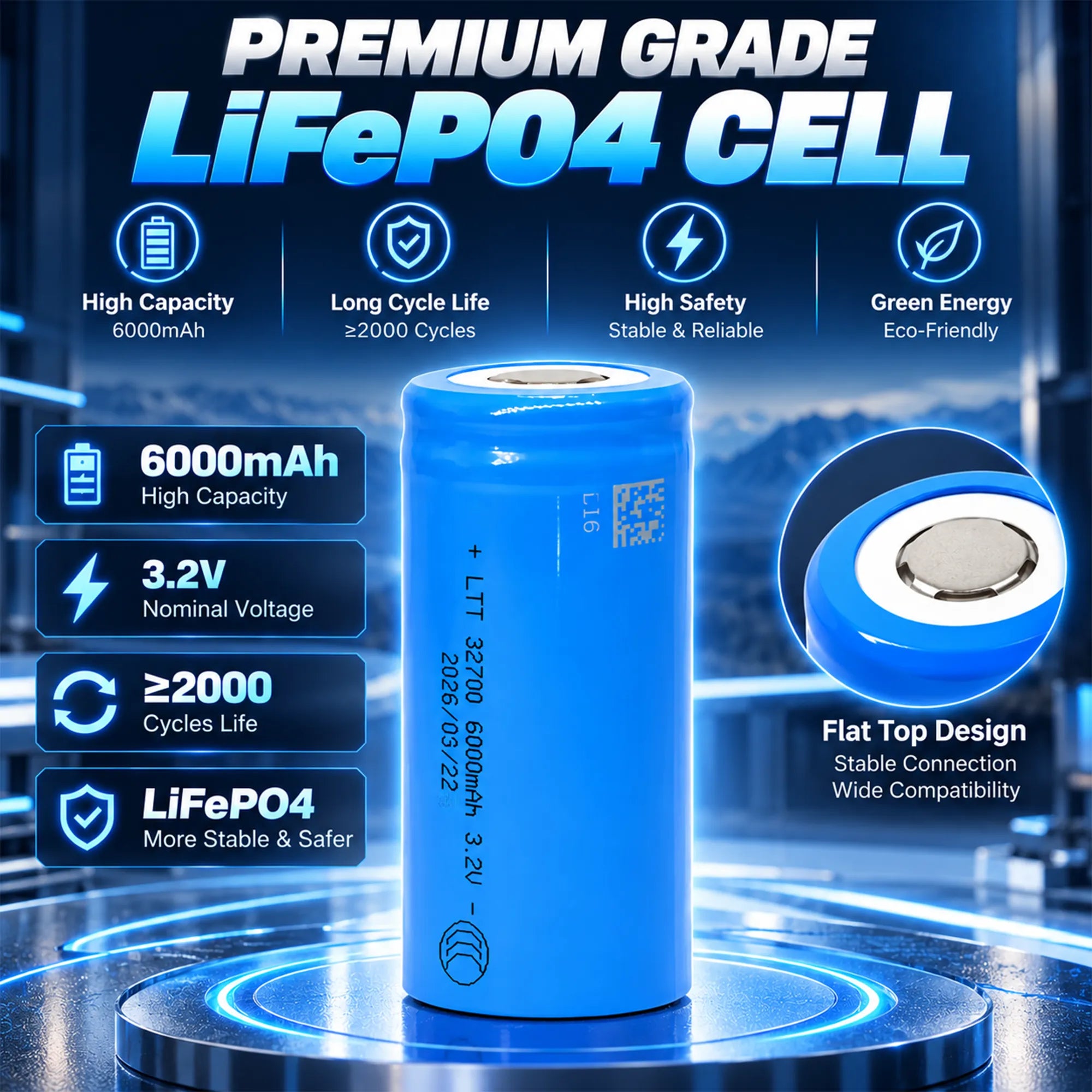

Authentic Grade-A 32700 6000mAh 3.2V LiFePO4 battery cell used in BOOANT packs featuring flat top design and over 2000 cycle life ratings.

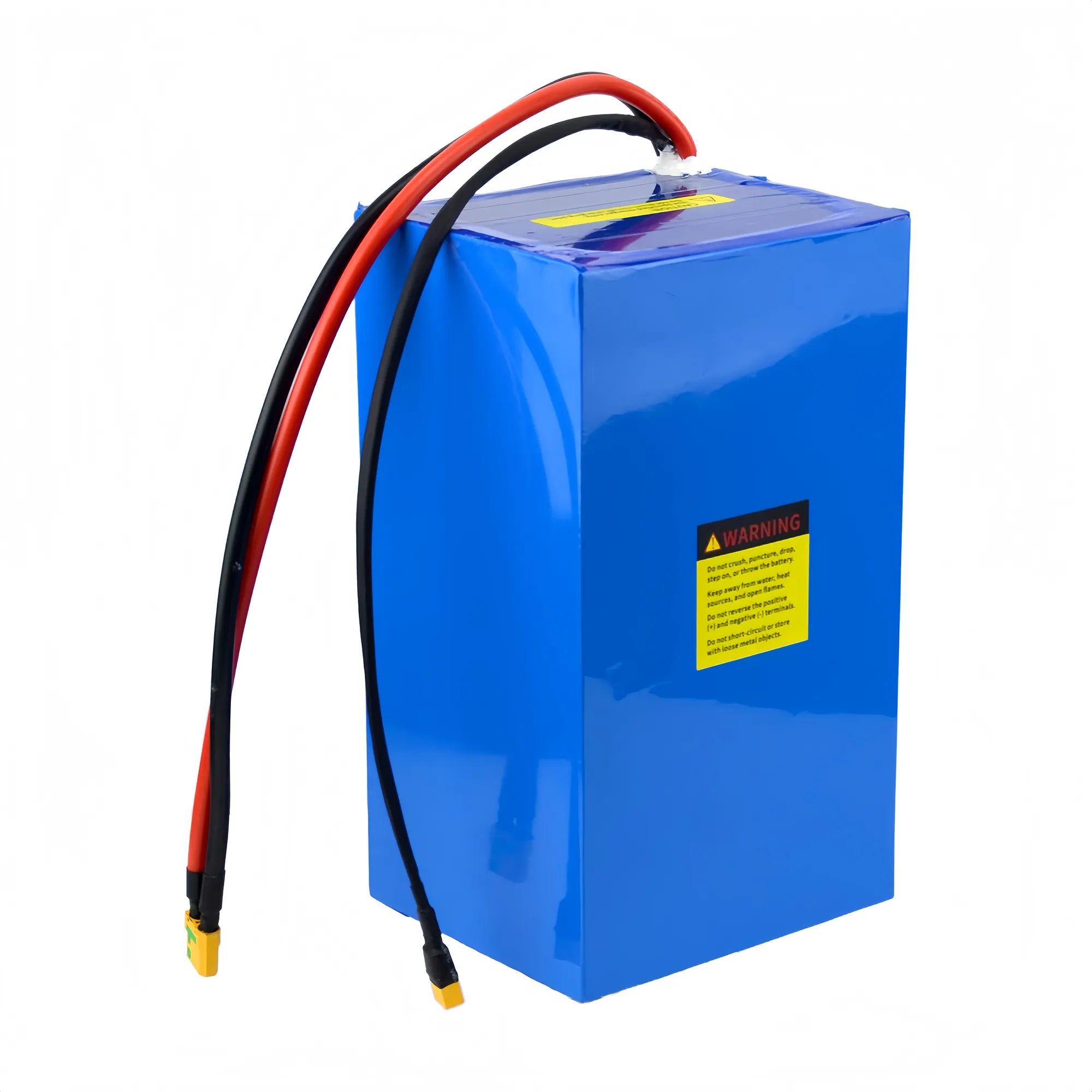

Rear view of BOOANT 24V 60Ah marine LiFePO4 battery in blue casing, showing yellow warning label, safety guidelines, and heavy-duty leads.

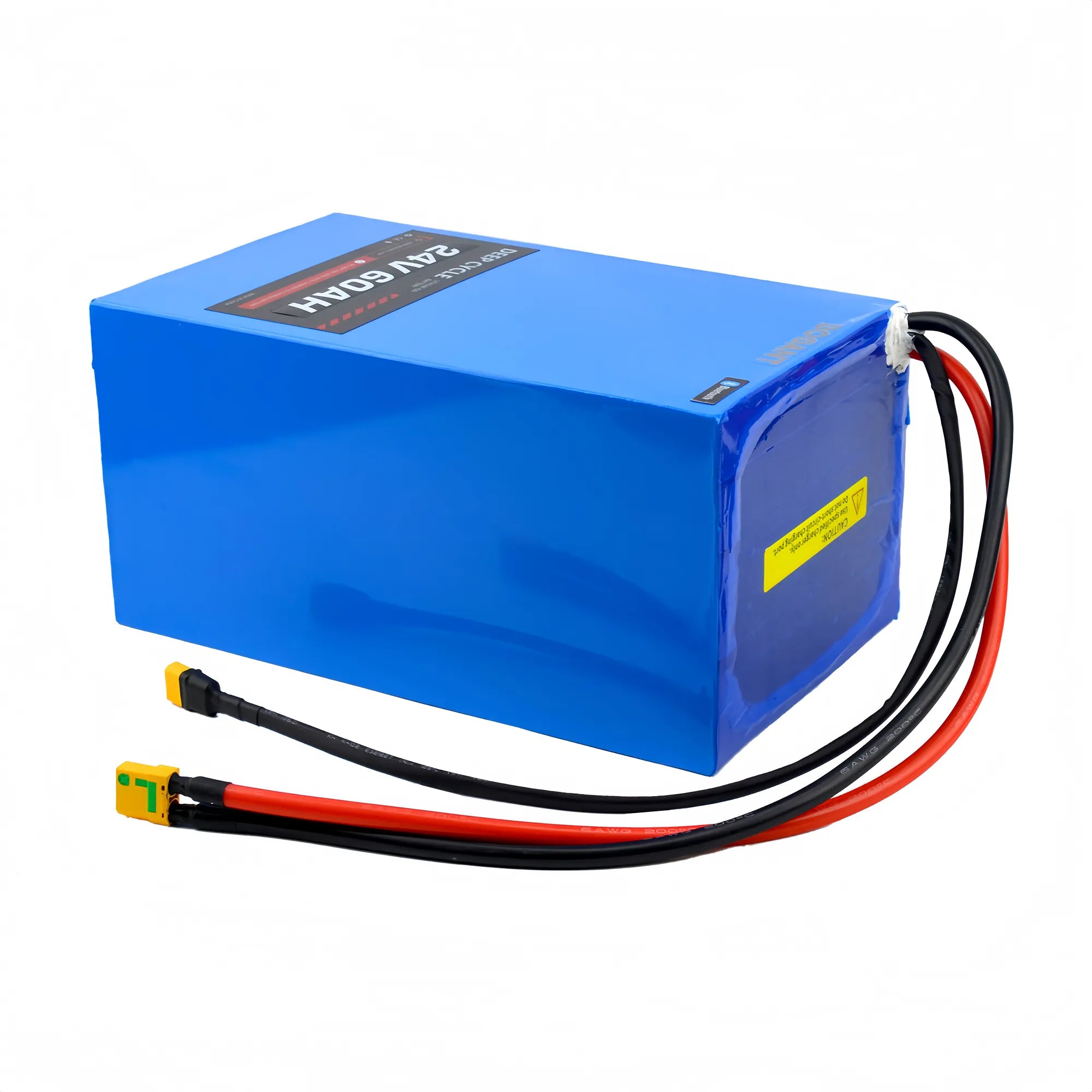

Horizontal view of BOOANT 24V 60Ah marine LiFePO4 battery pack showing waterproof sealed top, charging caution label, and dual output leads.
Free heavy-duty fireproof battery safety storage and charging bag included with BOOANT packs featuring heat-resistant inner fiberglass lining.
BOOANT 29.2V 10A smart fast charger for 24V LiFePO4 batteries featuring aluminum casing, cooling fan, fuse protection, and XT60 output plug.

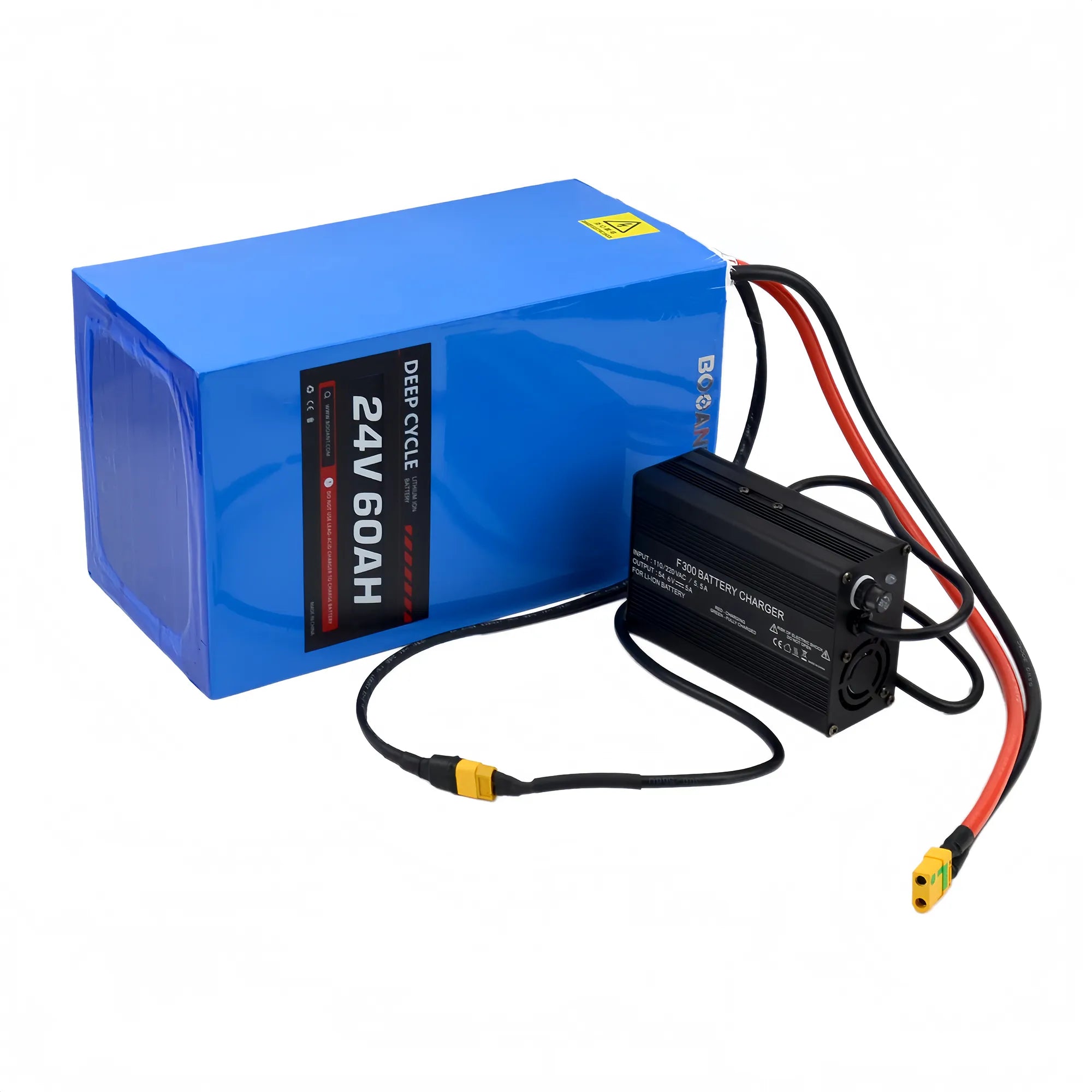

BOOANT 24V 60Ah marine LiFePO4 deep-cycle battery shown alongside the included 29.2V 10A aluminum fast smart charger with active cooling.

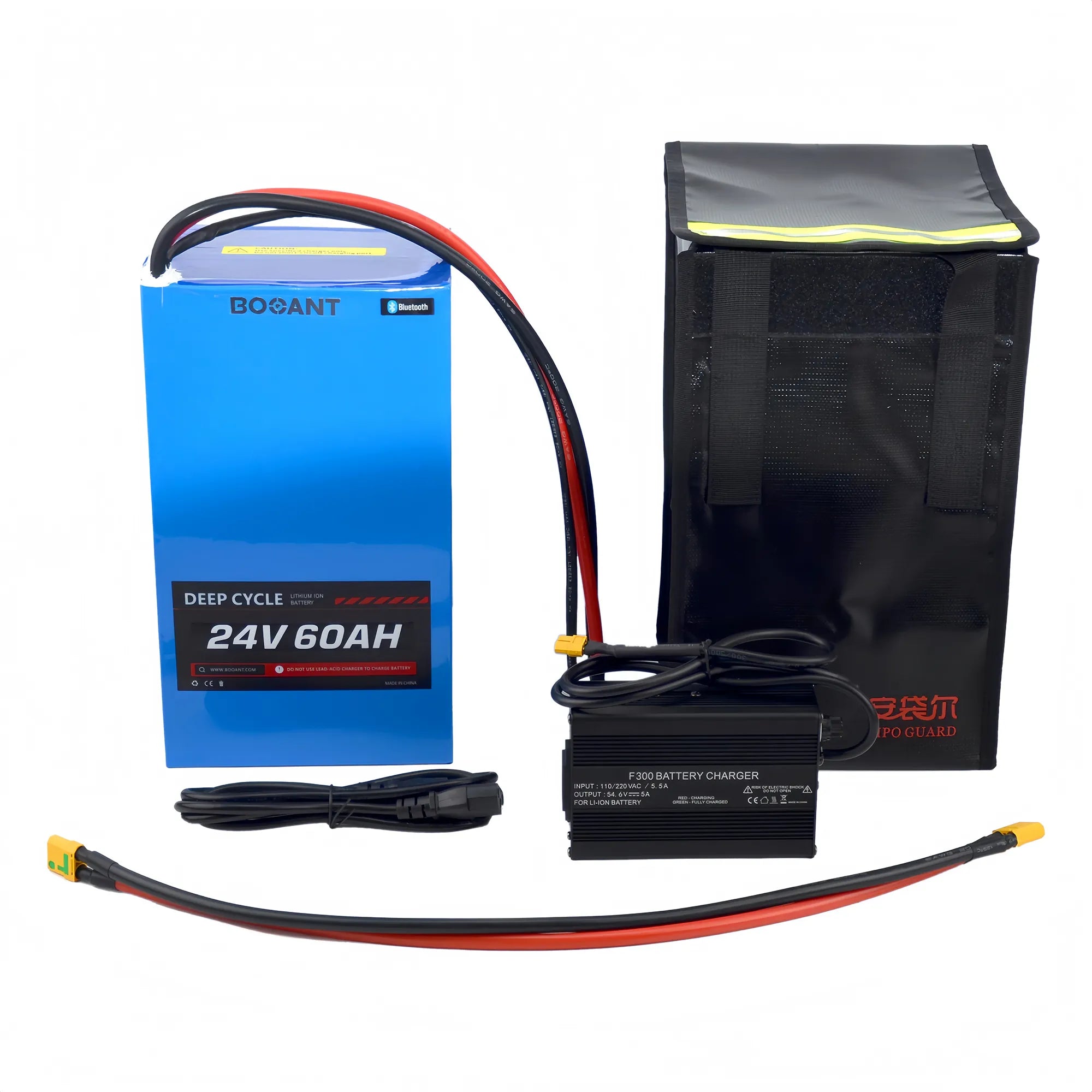

Complete package of BOOANT 24V 60Ah marine LiFePO4 battery, 10A smart charger, AC cord, discharge cable, and fireproof safety storage bag.
BOOANT 24V 60Ah deep-cycle marine LiFePO4 battery pack with blue PVC casing, Smart Bluetooth label, and heavy-duty trolling motor leads
Dimensions and weight diagram of BOOANT 24V 60Ah marine LiFePO4 battery: 300x180x160mm (11.8x7.1x6.3 in) and approx 12kg (26.46 lb).
Authentic Grade-A 32700 6000mAh 3.2V LiFePO4 battery cell used in BOOANT packs featuring flat top design and over 2000 cycle life ratings.
Rear view of BOOANT 24V 60Ah marine LiFePO4 battery in blue casing, showing yellow warning label, safety guidelines, and heavy-duty leads.
Horizontal view of BOOANT 24V 60Ah marine LiFePO4 battery pack showing waterproof sealed top, charging caution label, and dual output leads.
Free heavy-duty fireproof battery safety storage and charging bag included with BOOANT packs featuring heat-resistant inner fiberglass lining.
BOOANT 29.2V 10A smart fast charger for 24V LiFePO4 batteries featuring aluminum casing, cooling fan, fuse protection, and XT60 output plug.
BOOANT 24V 60Ah marine LiFePO4 deep-cycle battery shown alongside the included 29.2V 10A aluminum fast smart charger with active cooling.
Complete package of BOOANT 24V 60Ah marine LiFePO4 battery, 10A smart charger, AC cord, discharge cable, and fireproof safety storage bag.
BOOANT 24V 60Ah deep-cycle marine LiFePO4 battery pack with blue PVC casing, Smart Bluetooth label, and heavy-duty trolling motor leads
Dimensions and weight diagram of BOOANT 24V 60Ah marine LiFePO4 battery: 300x180x160mm (11.8x7.1x6.3 in) and approx 12kg (26.46 lb).
Authentic Grade-A 32700 6000mAh 3.2V LiFePO4 battery cell used in BOOANT packs featuring flat top design and over 2000 cycle life ratings.
Rear view of BOOANT 24V 60Ah marine LiFePO4 battery in blue casing, showing yellow warning label, safety guidelines, and heavy-duty leads.
Horizontal view of BOOANT 24V 60Ah marine LiFePO4 battery pack showing waterproof sealed top, charging caution label, and dual output leads.
Free heavy-duty fireproof battery safety storage and charging bag included with BOOANT packs featuring heat-resistant inner fiberglass lining.
BOOANT 29.2V 10A smart fast charger for 24V LiFePO4 batteries featuring aluminum casing, cooling fan, fuse protection, and XT60 output plug.
BOOANT 24V 60Ah marine LiFePO4 deep-cycle battery shown alongside the included 29.2V 10A aluminum fast smart charger with active cooling.
Complete package of BOOANT 24V 60Ah marine LiFePO4 battery, 10A smart charger, AC cord, discharge cable, and fireproof safety storage bag.
BOOANT 24V 60Ah deep-cycle marine LiFePO4 battery pack with blue PVC casing, Smart Bluetooth label, and heavy-duty trolling motor leads
Dimensions and weight diagram of BOOANT 24V 60Ah marine LiFePO4 battery: 300x180x160mm (11.8x7.1x6.3 in) and approx 12kg (26.46 lb).
Authentic Grade-A 32700 6000mAh 3.2V LiFePO4 battery cell used in BOOANT packs featuring flat top design and over 2000 cycle life ratings.
Rear view of BOOANT 24V 60Ah marine LiFePO4 battery in blue casing, showing yellow warning label, safety guidelines, and heavy-duty leads.
Horizontal view of BOOANT 24V 60Ah marine LiFePO4 battery pack showing waterproof sealed top, charging caution label, and dual output leads.
Free heavy-duty fireproof battery safety storage and charging bag included with BOOANT packs featuring heat-resistant inner fiberglass lining.
BOOANT 29.2V 10A smart fast charger for 24V LiFePO4 batteries featuring aluminum casing, cooling fan, fuse protection, and XT60 output plug.
BOOANT 24V 60Ah marine LiFePO4 deep-cycle battery shown alongside the included 29.2V 10A aluminum fast smart charger with active cooling.
Complete package of BOOANT 24V 60Ah marine LiFePO4 battery, 10A smart charger, AC cord, discharge cable, and fireproof safety storage bag.

24V 60Ah Marine LiFePO4 Battery | 32700 Cells · JBD Smart BMS

$769.99

Free Shipping + Duties Included
Built Fresh To Order
2-Year Full Warranty
  • DROP 50+ LBS VS LEAD-ACID : Weighs just 26.5 lbs (1536Wh LiFePO4). Delivers full, steady trolling thrust with zero voltage sag.
  • LIVE SMART BLUETOOTH BMS : Check real-time run hours, cell balance, and power switches on your phone—no hatch lifting needed.
  • PLUG-AND-PLAY RIGGING (NO SOLDERING) : Free factory custom plugs (Anderson SB50, XT90, XT60, QS8) matched straight to your motor.

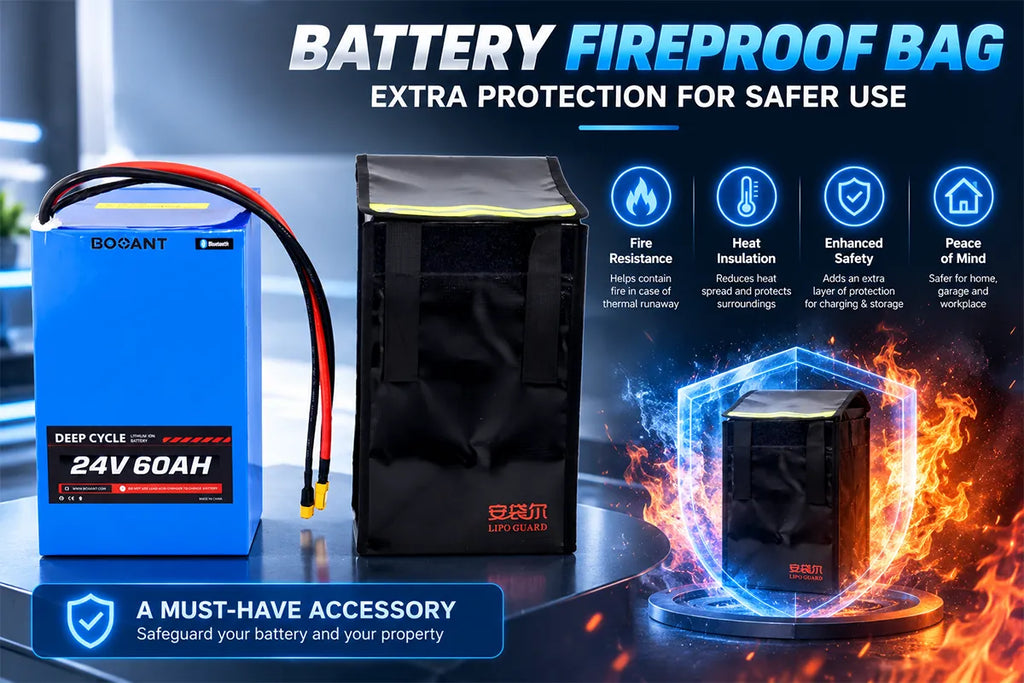

  • FREE 10A CHARGER + FIREPROOF BAG : Free 10A fast charger (full charge in 6–7 hours) plus a fireproof safety bag for extra protection.
  • WAVE-PROOF BUILD & 2-YEAR WARRANTY : Internal epoxy boards absorb heavy chop and vibration. Shipped DDP with all duties prepaid.
Application & BMS
60A | Single Trolling Motor
100A | Dual Motor / Heavy Loads
Discharge Connector
Anderson
QS8
XT90F/M
XT60F/M
Wire only
Application & BMS
Discharge Connector
🎬
BOOANT Power In Action Watch real tests, setups & riding videos
Deep-Cycle Marine Grade

24V 60Ah Marine LiFePO4 Battery

Built for 24V trolling motors and harsh marine environments. Engineered with 80 grade-A 32700 cells (8S10P) for steady, fade-free thrust and smart Bluetooth telemetry.

8S10P 32700 Array

80 matched 6000mAh cells. Delivers massive, steady current with zero voltage sag.

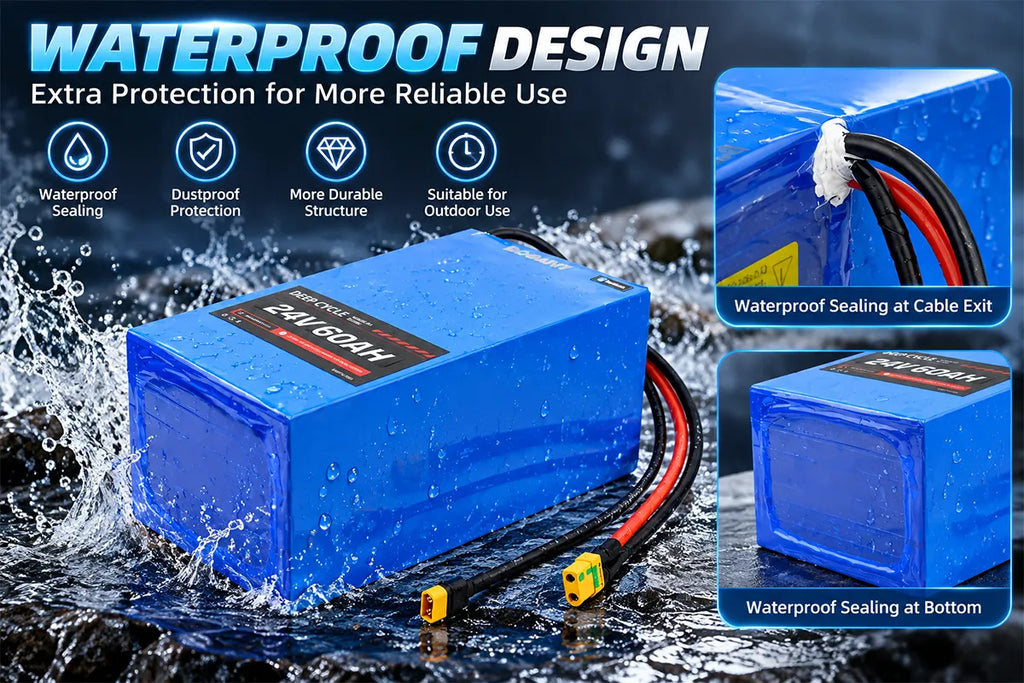

Epoxy & Splash Seal

Epoxy boards block vibe wear. Tight PVC wrap with top moisture sealant.

Verified Marine Specs

Tested and rated for demanding trolling motor loads.

25.6V
Nominal Out
60Ah
Rated Cap
1536Wh
Total Energy
6-7h
Fast Charge

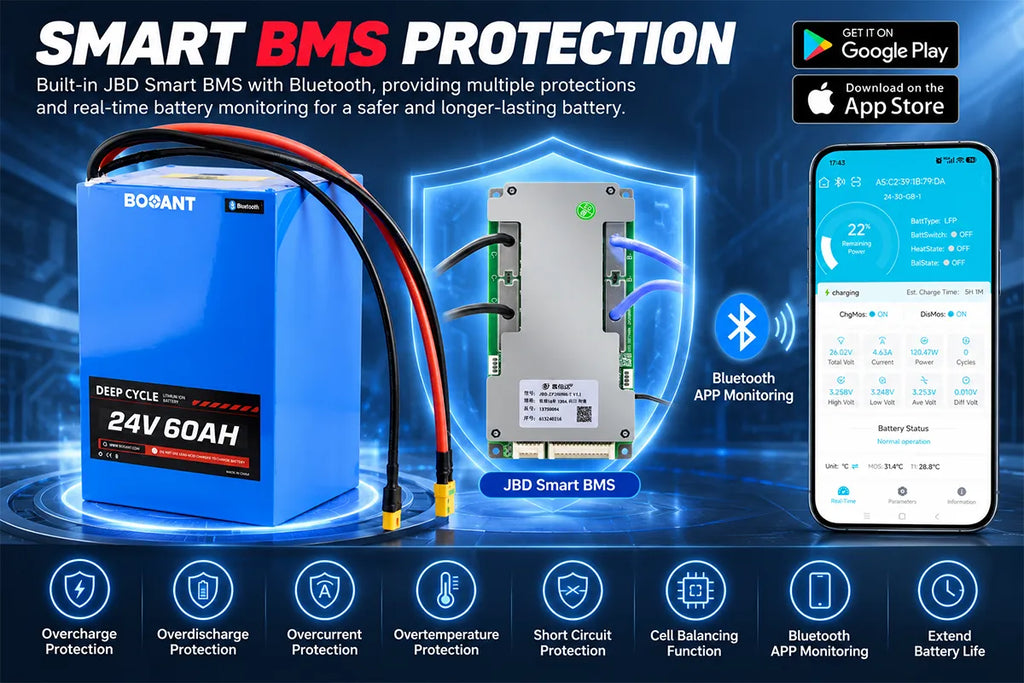

Smart Bluetooth JBD

App track of cell stats, temp, and charge. Remote cutoff at your fingertips.

29.2V 10A Smart Charger

Safely refills in 6-7 hours. Precise 10A current protects cell cycle life.

Engineering Datasheet

Verified electrical ratings & dimensional specs for marine builders

1. Electrical & Performance
Nominal Voltage & Energy 25.6V | 1536Wh
Rated Usable Capacity 60Ah (0.2C)
Charge Cut-off Voltage 29.2V (±0.05V)
Discharge Cut-off Voltage 20.0V
Cycle Life Rating ≥2,000+ Cycles (80% DoD)
Standard Charging Rig 29.2V 10A (~6-7 hrs)
2. Cell Array & Build
Cell Configuration 8S10P (80× 32700 LiFePO4)

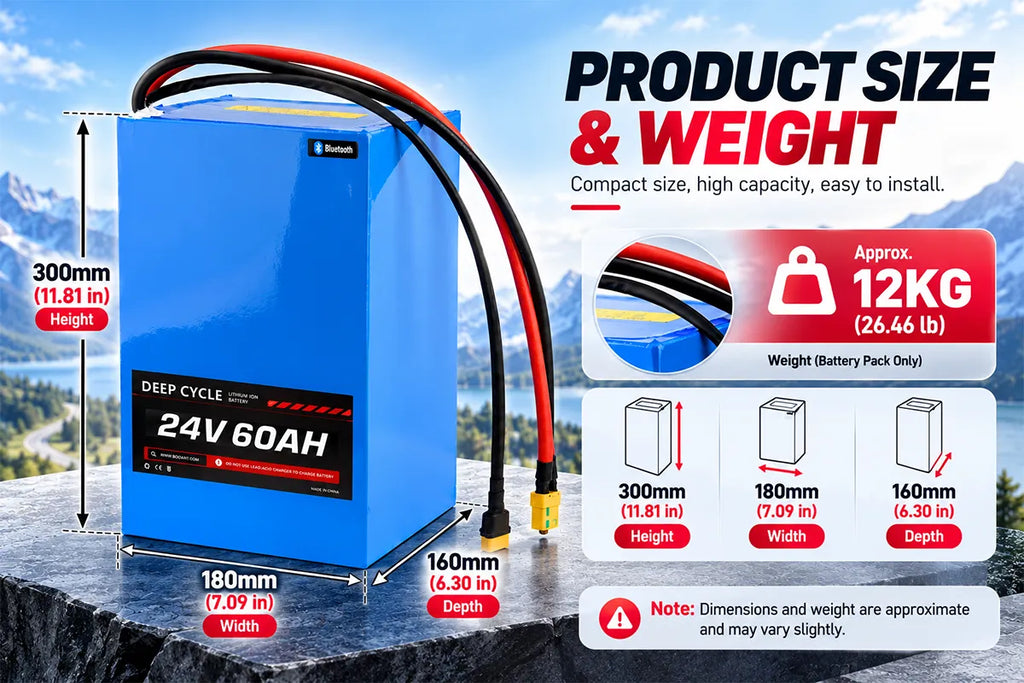

Pack Dimensions 300×180×160 mm (11.8×7.1×6.3 in)
Pack Weight ~12 kg (26.5 lbs)
Internal Enclosure Epoxy Isolation + Splash PVC
3. Management, Temps & Warranty
BMS Architecture Smart JBD with Bluetooth App
Discharge Temp -20°C to 60°C (-4°F to 140°F)
Charge Temp 0°C to 45°C (32°F to 113°F)
Factory Coverage 2-Year Limited Warranty

Fitment Note: Due to heavy-duty epoxy isolation boards and manual marine sealant wraps, allow a 5-10 mm perimeter margin for tight battery boxes, trays, or boat lockers.

BMS & Motor Selection Guide

Check your motor thrust rating to pick the right option above

Top Choice | 90% of Anglers
60A | Single Trolling Motor
Recommended Thrust 45 - 80 lbs
Motor Safe Limit Up to 1200W
Trolling Cruise* 5 - 7 Hours
Full Throttle* 45 - 60 Mins

Ideal Rig: Single motor on kayaks, jon boats, 55-80 lb Minn Kota/MotorGuide.

Heavy Duty | Extreme Current
100A | Dual Motor / Heavy
Recommended Thrust 80 - 112+ lbs
Motor Safe Limit Up to 2000W
Trolling Cruise* 3 - 5 Hours
Full Throttle* 30 - 45 Mins

Ideal Rig: Twin motors, large tournament bass boats, heavy river flow & spot-lock.

Overload Limit | Do Not Use
> 100A Constant Load
Continuous Load Exceeds Spec
Peak Continuous > 2200W
BMS Action Safety Lockout
Recommendation Upgrade to 48V

Warning: Continuous loads >100A trip BMS cutoff. *Run times vary by hull & chop.

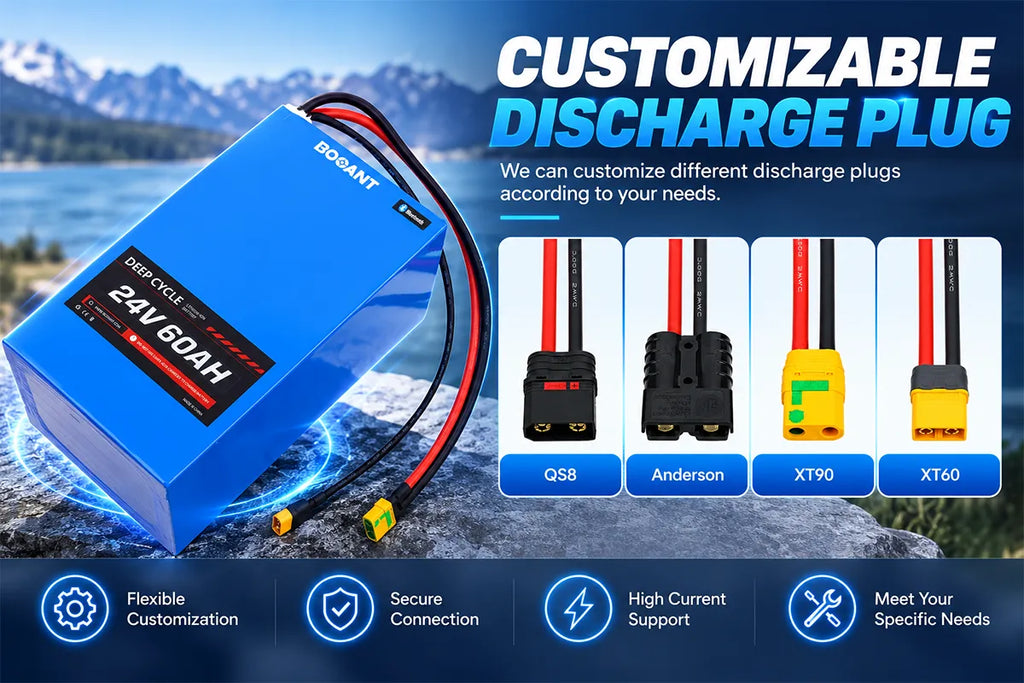

Plug-and-Play Rigging

Customizable Discharge Plugs

Factory-crimped and heat-shrink sealed to match your marine wiring. No soldering or rewiring needed.

QS8 Anti-Spark
Up to 150A Cont.

High-power anti-spark protection. Best for high-thrust rigs.

Anderson SB50
Standard 50A/120A

Industry standard marine quick-disconnect for boat consoles.

XT90-S Anti-Spark
Up to 90A Cont.

Compact, vibration-proof, high-temp nylon for trolling motors.

XT60 Plug
Up to 60A Cont.

Lightweight and secure. Ideal for portable kayaks and fishfinders.

How to Order Your Custom Plug: Need a specific connector or custom wire gauge? Simply leave your preferred plug type in the Order Note at checkout, or message support right after ordering.

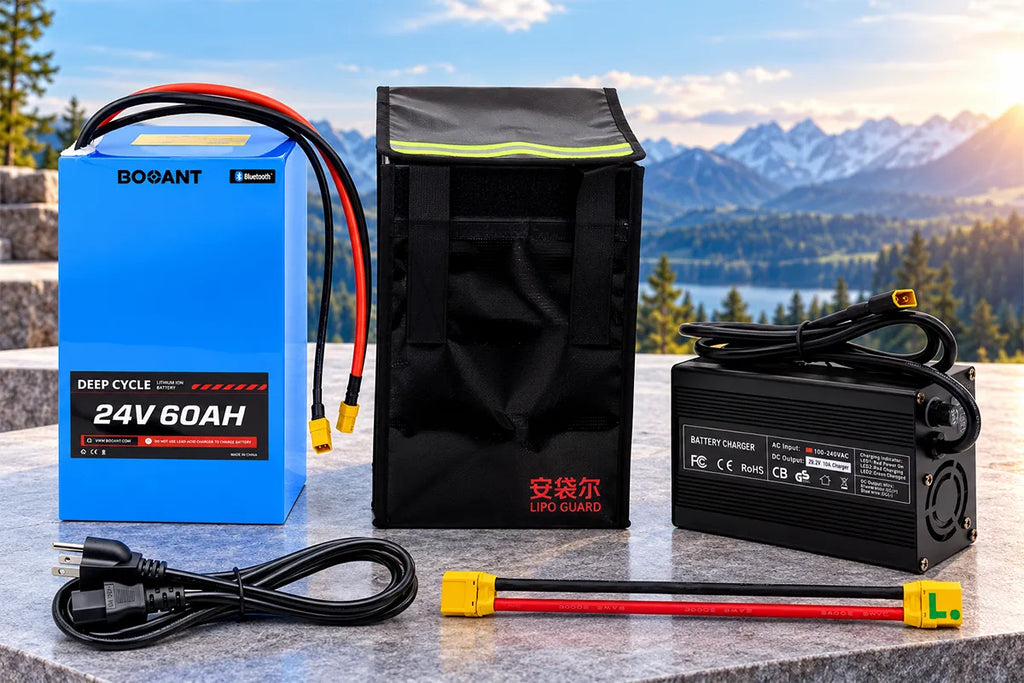

Included in Every Order

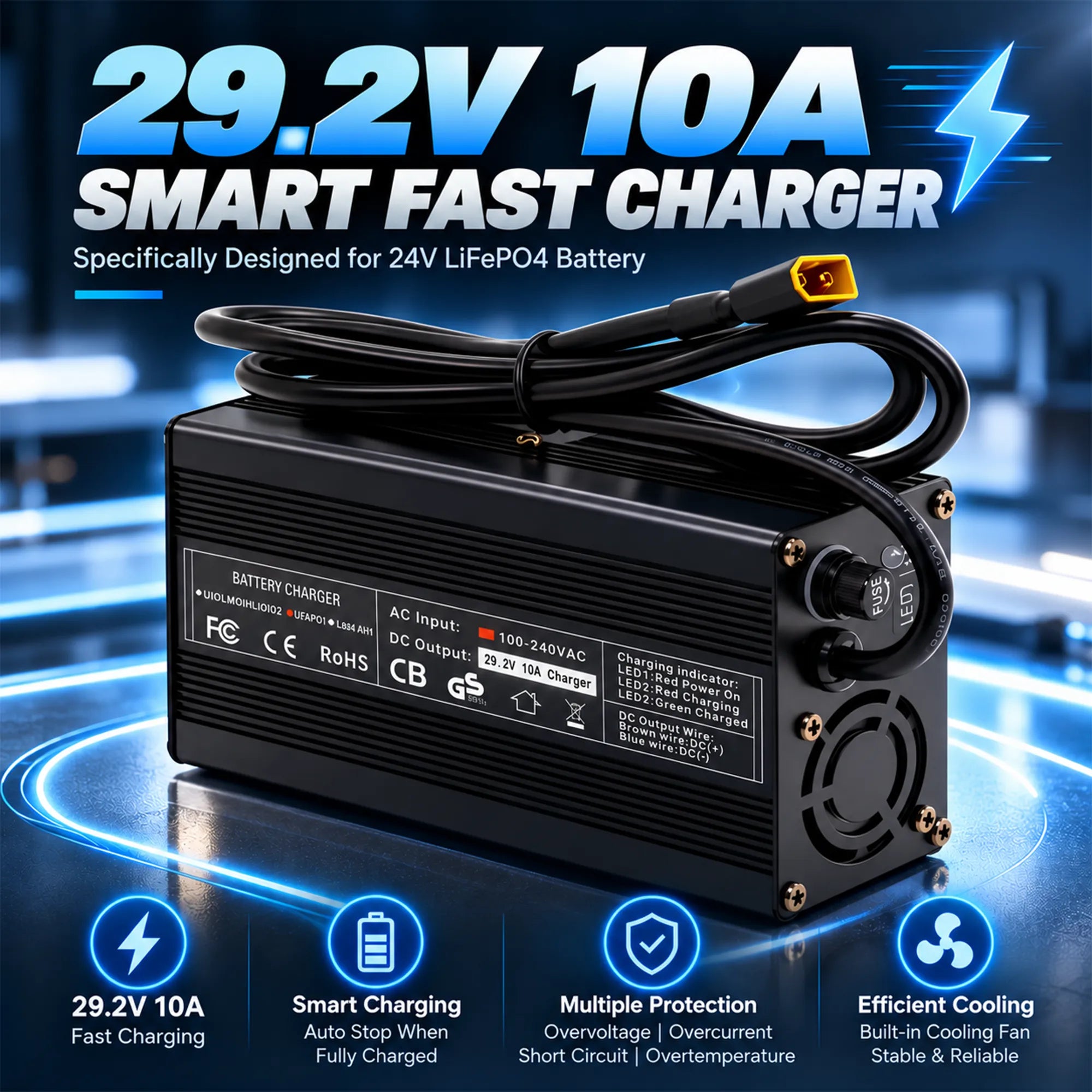

29.2V 10A Heavy-Duty Smart Charger

Industrial-grade aluminum charging unit tuned specifically to charge the 24V 60Ah pack safely in 6-7 hours.

Hardware Specifications

Output Rating 29.2V 10A (~292W)
Enclosure Rugged Aluminum Metal Body
Thermal Control Active High-CFM Cooling Fan
Input AC Socket Standard 100V-240V Auto-Switch
AC Input Fuse 250V Replaceable Cartridge
DC Charging Fuse 250V / 10A Inline Fuse

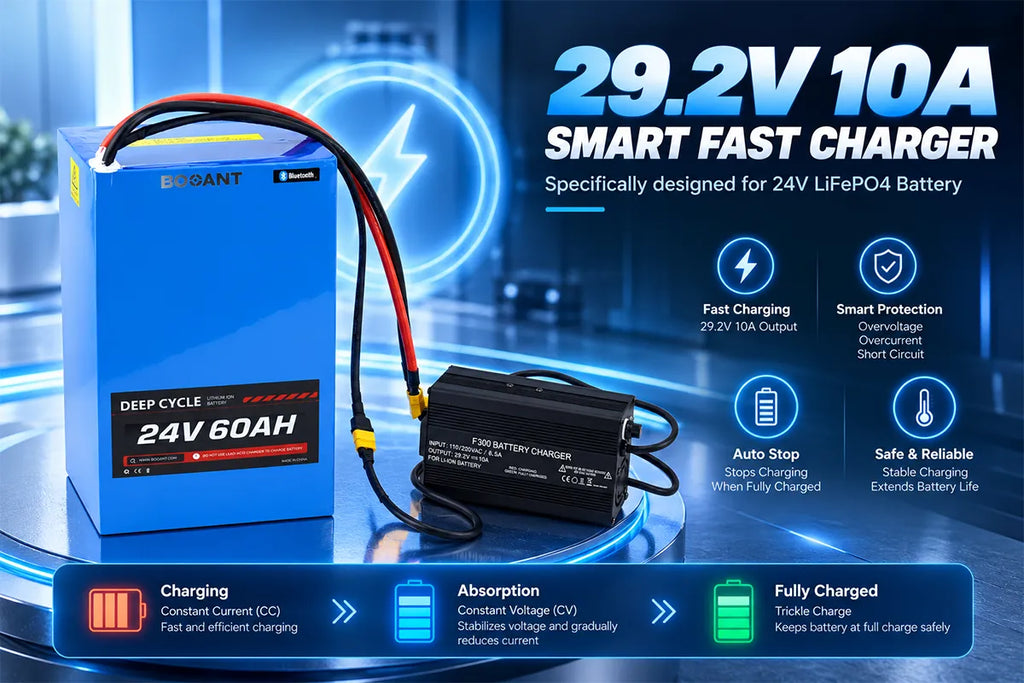

Status Lights & Dual Fuse Safety

Solid Red: Normal CC/CV active charging in progress (or self-diagnostic check on connection).

Solid Green: Battery pack fully replenished and balanced. Ready for launch.

Dual-Fuse Circuit Protection: Features independent AC & DC fused paths to protect your home grid and battery against high-voltage surges or reversed polarity.
Buyer Help Center

Frequently Asked Questions

Common technical questions on rigging, charging, and marine setup

Which BMS rating should I choose: 60A or 100A?
Choose the 60A option if you run a single 24V freshwater trolling motor rated between 45 lbs and 80 lbs thrust (up to 1200W). Select the 100A option if you have twin motors, high-thrust 80-112+ lbs tournament motors, or heavy gear requiring spot-lock in swift river currents.
How does the Smart JBD Bluetooth monitoring work on the water?
Download the companion JBD BMS app on iOS or Android and connect instantly via Bluetooth. You can monitor overall state-of-charge, real-time amp draw, estimated runtime, and individual cell voltages in real time. You can also turn charge or discharge ports on and off straight from your phone without opening your boat deck hatch.
Can I use my existing lead-acid or AGM marine charger?
No. Lead-acid chargers use desulfation stages with variable voltages that can trip the BMS. Every pack includes a dedicated 29.2V 10A LiFePO4 aluminum charger with dual-fuse protection. It delivers the precise CC/CV charge curve required to fully balance all 8S cell banks safely in approximately 6 to 7 hours.
Is this battery protected against wave pounding and splash?
Yes. The internal 80-cell array is structurally reinforced with rigid epoxy spacer boards between every parallel bank to prevent friction wear and internal shorts during choppy boat navigation. The outer layer is sealed in heavy-duty PVC shrink film with a specialized top water-repellent sealant to resist wet bilge splash and marine spray.
How does the battery perform in freezing temperatures?
You can discharge the battery normally in cold conditions down to -20°C (-4°F). However, like all LiFePO4 chemistries, charging below 0°C (32°F) must be avoided. The smart JBD BMS features built-in low-temperature sensor cutoffs to automatically protect the cells against lithium plating during cold snaps.
How do I request a custom discharge plug (Anderson, XT90, QS8)?
Specify your needed plug type (Anderson SB50, XT90-S Anti-Spark, XT60, or QS8) in the Order Note box on the checkout page. You can also message our live support team right after completing your purchase, and our workshop will solder, crimp, and heat-shrink your cable free of charge before shipment.
Fulfillment Pipeline

Build-To-Order & Delivery Timeline

We build fresh packs to order to prevent warehouse chemical aging, followed by bench validation and fully cleared door-to-door freight.

01
Production
Fresh Pack Assembly

Built with fresh grade-A 32700 LiFePO4 cells upon order. Avoids sitting on warehouse shelves to ensure full chemical lifecycle retention.

02
Validation
Bench Load & BMS Test

Undergoes a full charge/discharge cycle. Cell voltage matching, Bluetooth telemetry, and thermal cutoff triggers are certified before pack sealing.

03
Logistics
DDP Tracked Freight

Shipped via DG special freight to your door via FedEx / UPS / DPD in 15–20 business days. All import tariffs and duties are fully prepaid.
