Home / Products / 52V 20Ah Triangle eBike Battery – Samsung 50G Cells
Real Packs From Our Bench

Unedited photos of an actual production unit. Tap any photo to enlarge.

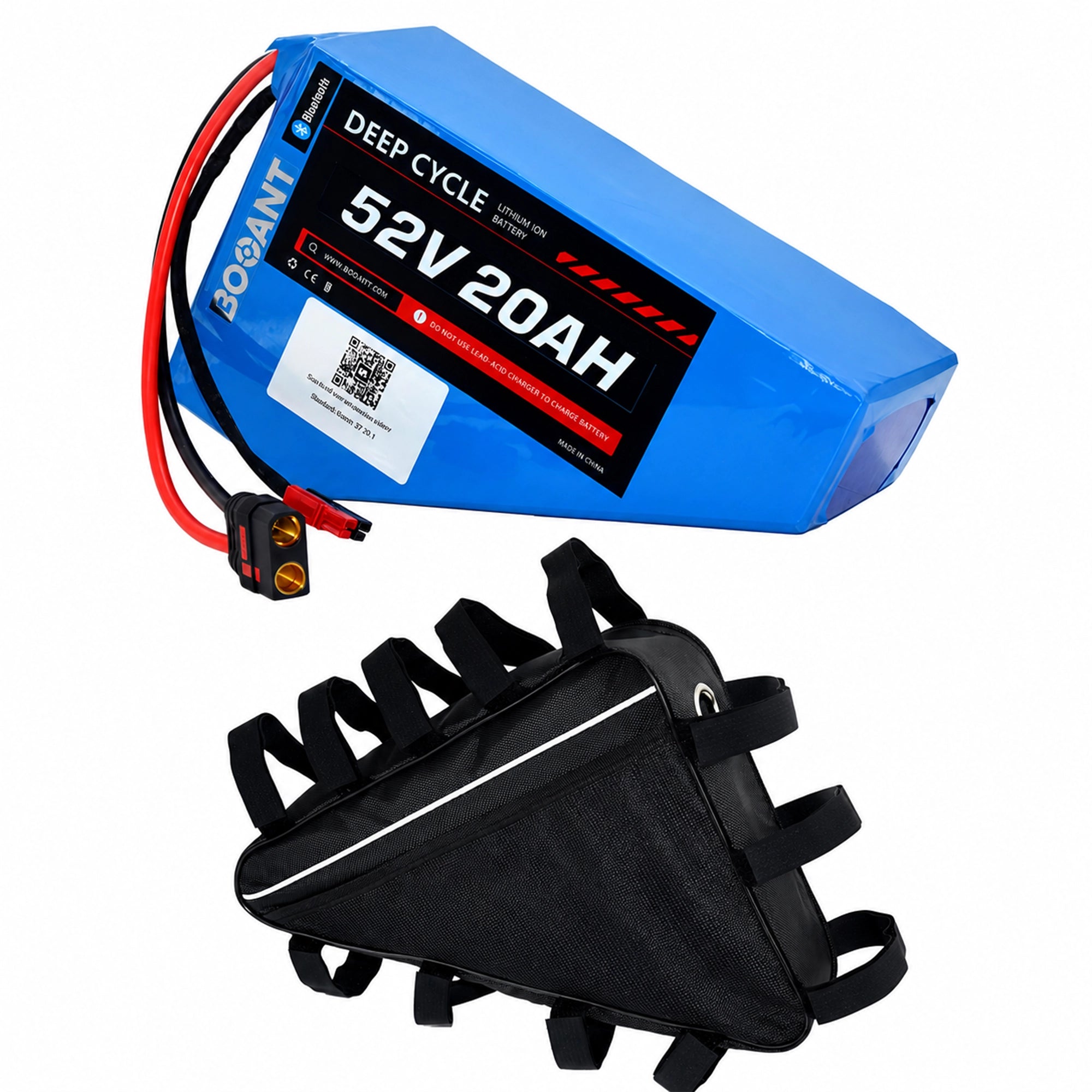

BOOANT 52V 20Ah triangle battery real photo: pack, triangle bag, charger, AC cord, XT60 cable.
BOOANT 52V 20Ah triangle battery real photo, front view.

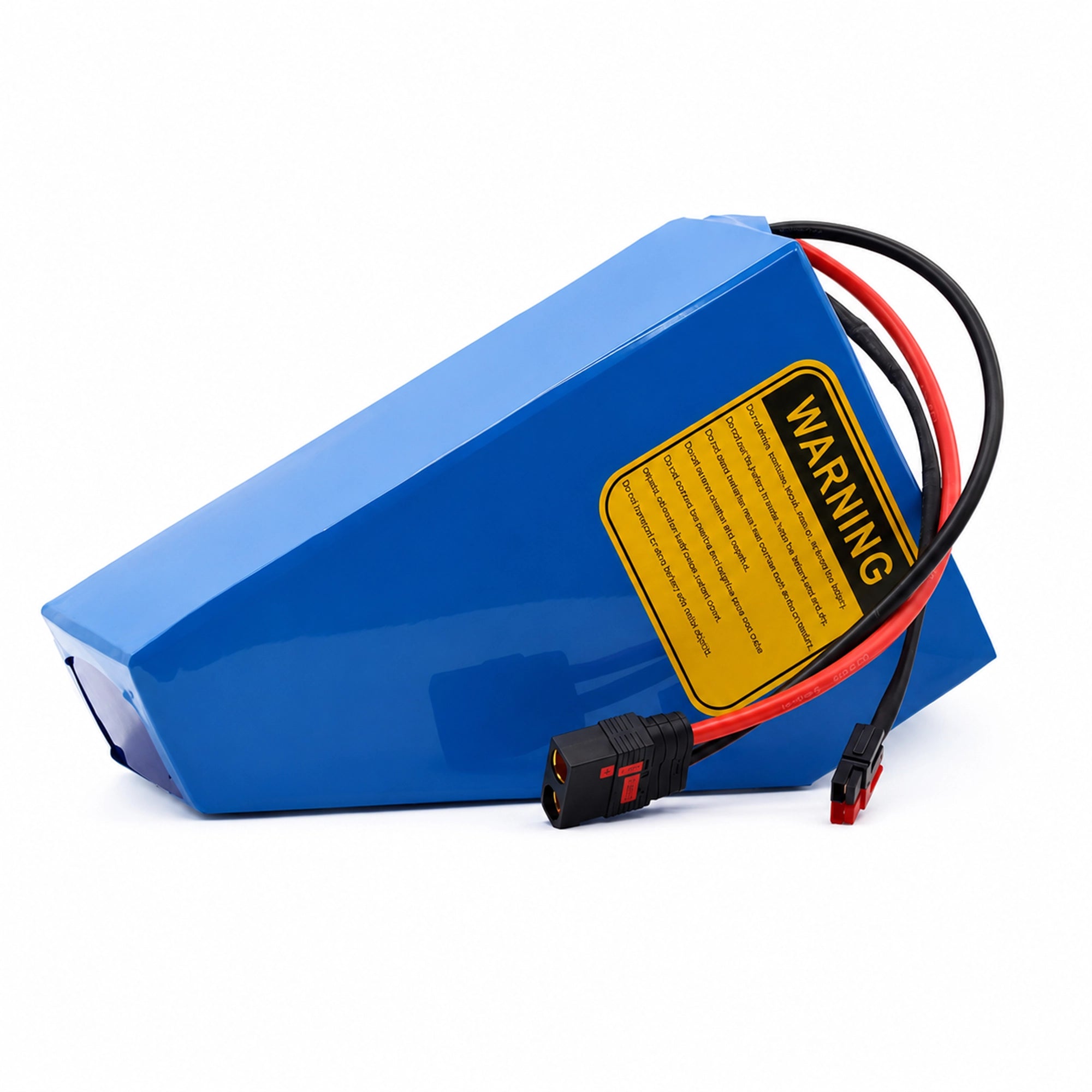

BOOANT 52V 20Ah triangle battery real photo, back view with warning label.
BOOANT 52V 20Ah triangle battery voltage test showing 56.5V on a multimeter.
BOOANT 52V 20Ah triangle battery packed in foam with charger box.
BOOANT 52V 20Ah triangle battery JBD app showing 71% remaining power and 56.55V.
BOOANT 52V 20Ah triangle battery JBD app showing 14 cell voltages.
BOOANT 52V 20Ah triangle battery thickness measurement showing about 75 mm.
BOOANT 52V 20Ah triangle battery length measurement showing about 245 mm.
BOOANT 52V 20Ah triangle battery bottom width measurement showing about 55 mm.
BOOANT 52V 20Ah triangle battery diagonal measurement showing about 220 mm.
BOOANT 52V 20Ah triangle battery top width measurement showing about 245 mm.
BOOANT 52V 20Ah triangle battery width measurement showing about 155 mm.
BOOANT 52V 20Ah triangle battery real photo: pack, triangle bag, charger, AC cord, XT60 cable.TAP PHOTO TO ZOOM · TAP OUTSIDE PHOTO TO CLOSE · USE ARROWS TO BROWSE
BOOANT 52V 20Ah triangle battery real photo, front view.TAP PHOTO TO ZOOM · TAP OUTSIDE PHOTO TO CLOSE · USE ARROWS TO BROWSE
BOOANT 52V 20Ah triangle battery real photo, back view with warning label.TAP PHOTO TO ZOOM · TAP OUTSIDE PHOTO TO CLOSE · USE ARROWS TO BROWSE
BOOANT 52V 20Ah triangle battery voltage test showing 56.5V on a multimeter.TAP PHOTO TO ZOOM · TAP OUTSIDE PHOTO TO CLOSE · USE ARROWS TO BROWSE
BOOANT 52V 20Ah triangle battery packed in foam with charger box.TAP PHOTO TO ZOOM · TAP OUTSIDE PHOTO TO CLOSE · USE ARROWS TO BROWSE
BOOANT 52V 20Ah triangle battery JBD app showing 71% remaining power and 56.55V.TAP PHOTO TO ZOOM · TAP OUTSIDE PHOTO TO CLOSE · USE ARROWS TO BROWSE
BOOANT 52V 20Ah triangle battery JBD app showing 14 cell voltages.TAP PHOTO TO ZOOM · TAP OUTSIDE PHOTO TO CLOSE · USE ARROWS TO BROWSE
BOOANT 52V 20Ah triangle battery thickness measurement showing about 75 mm.TAP PHOTO TO ZOOM · TAP OUTSIDE PHOTO TO CLOSE · USE ARROWS TO BROWSE
BOOANT 52V 20Ah triangle battery length measurement showing about 245 mm.TAP PHOTO TO ZOOM · TAP OUTSIDE PHOTO TO CLOSE · USE ARROWS TO BROWSE
BOOANT 52V 20Ah triangle battery bottom width measurement showing about 55 mm.TAP PHOTO TO ZOOM · TAP OUTSIDE PHOTO TO CLOSE · USE ARROWS TO BROWSE
BOOANT 52V 20Ah triangle battery diagonal measurement showing about 220 mm.TAP PHOTO TO ZOOM · TAP OUTSIDE PHOTO TO CLOSE · USE ARROWS TO BROWSE
BOOANT 52V 20Ah triangle battery top width measurement showing about 245 mm.TAP PHOTO TO ZOOM · TAP OUTSIDE PHOTO TO CLOSE · USE ARROWS TO BROWSE
BOOANT 52V 20Ah triangle battery width measurement showing about 155 mm.TAP PHOTO TO ZOOM · TAP OUTSIDE PHOTO TO CLOSE · USE ARROWS TO BROWSE

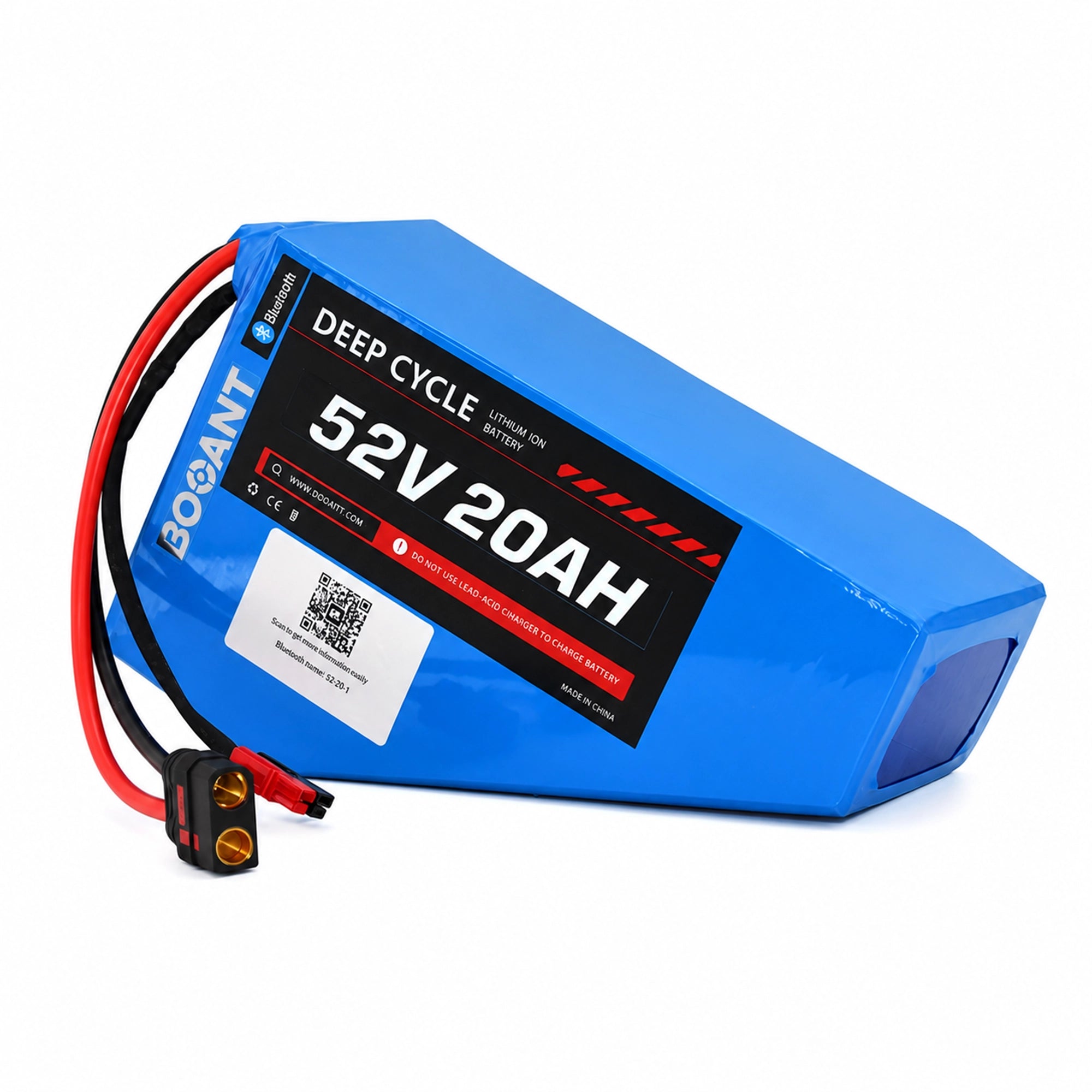

52V 20Ah Triangle eBike Battery
A compact triangle battery for DIY hub and mid-drive builds.
A compact triangle battery for your frame.
1,040Wh
Energy
~4.5 kg
L 245 x W 155 x T 75 mm
9.6 x 6.1 x 3.0 in
56
Samsung 50G cells
14S4P
Built to order. Bench tested.
Bench-Tested
Before
Shipping
Technical Specifications

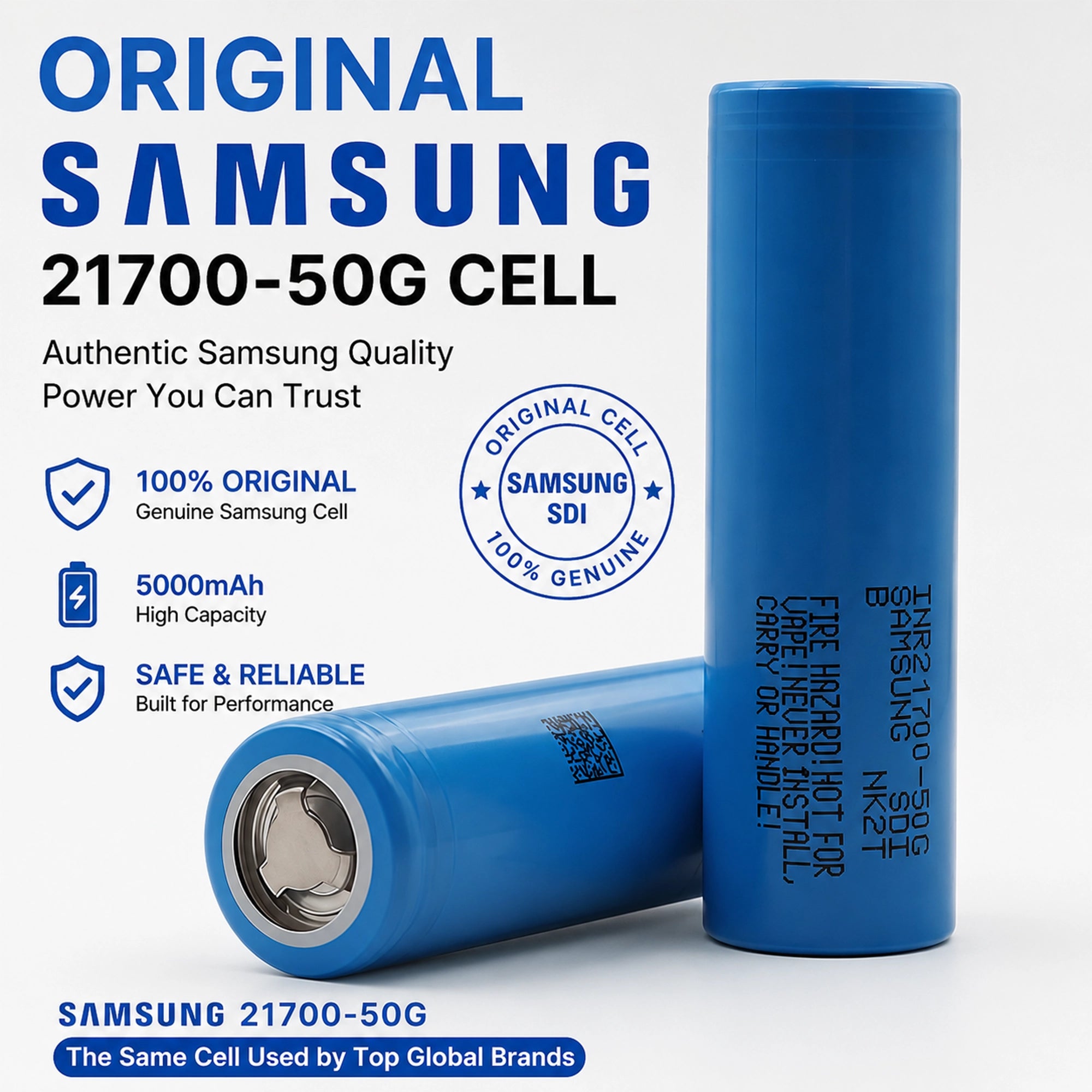

Cells56 genuine Samsung 50G cells · 14S4P
Capacity20Ah · 1,040Wh
VoltageNominal 52V · Full charge 58.8V
Cut-offProtection 39.2V · Recovery 42.0V
BMSJBD Smart BMS with Bluetooth · 30A / 40A
Charger58.8V 5A Fast Charger · About 5 hours
TemperatureCharge 0–45°C · Discharge −20–60°C · Storage 0–35°C
EnclosureBlue PVC wrap · epoxy boards
DimensionsLength 245 × Width 155 × Thickness 75 mm
Diagonal 220 × Front end height 50 × Bottom width 55 mm
WeightApprox. 4.5 kg (9.9 lb)
Warranty2 years · 600 cycles to 70%
Check the 245 × 155 × 75 mm footprint against your frame triangle before ordering.
Measure your frame triangle first. About 245 × 155 × 75 mm.
Pick the Right BMS
Uses a JBD Bluetooth BMS. Motor watts help you find a tier, but your controller's battery current decides it.
Battery current decides the tier.
0A25A35A40A
30A
Controller ≤25A
Peak 90A
Up to 1200W
40A
Controller ≤35A
Peak 120A
Up to 1500W
Tier30A40A
Controller≤25A≤35A
Peak90A120A
Max powerUp to 1200WUp to 1500W

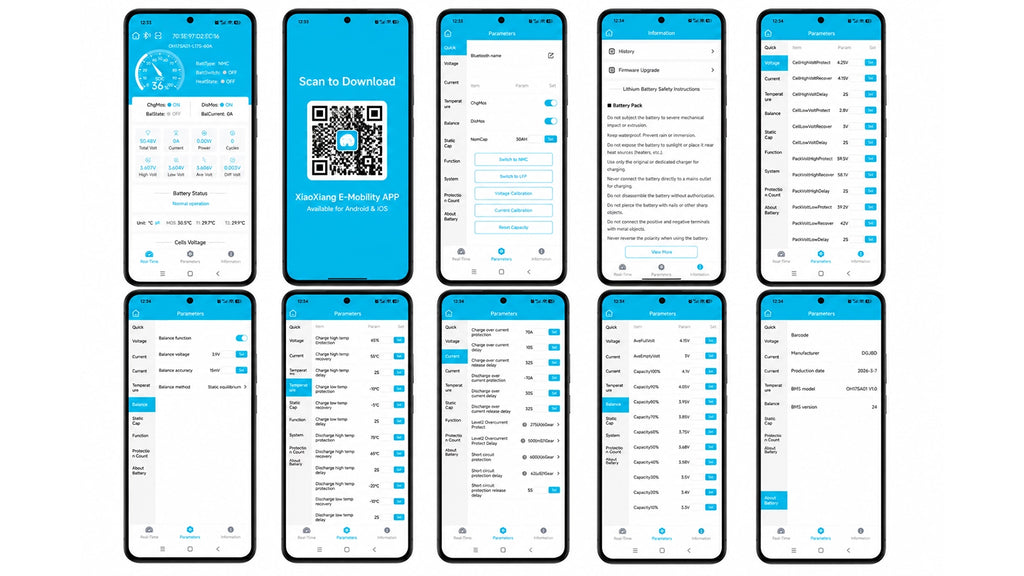

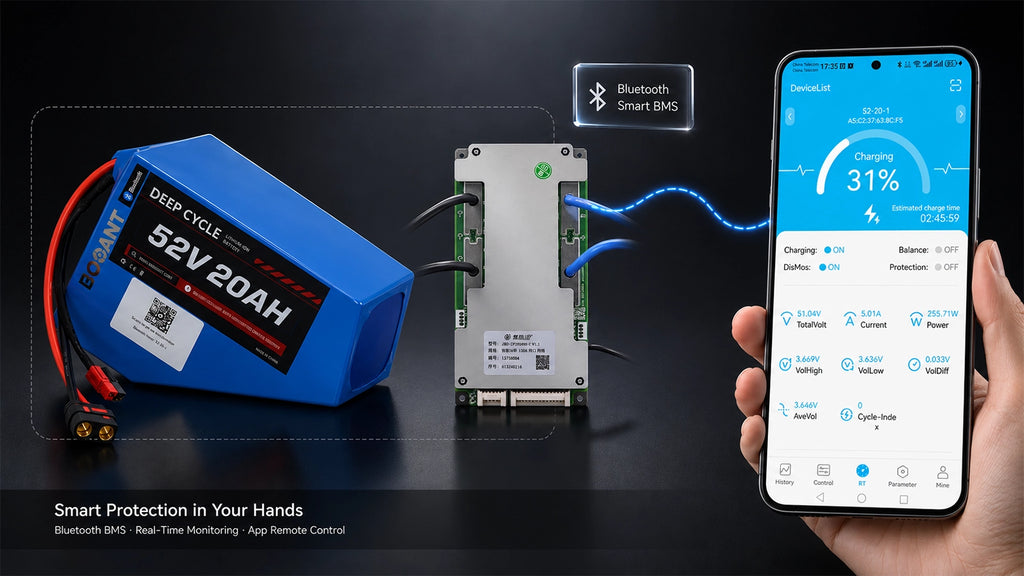

JBD app.
Monitor cells and temperature from your phone. Overcharge, over-discharge, overcurrent, and short-circuit protection.
Example.
25A controller → 30A tier.
35A controller → 40A tier.
Use battery current, not phase current.
Don't overbuy.
Both tiers share 1,040Wh. The 40A tier adds headroom, not range.
Pick the tier your controller needs.

Controller limits are suggested values, not protection settings.

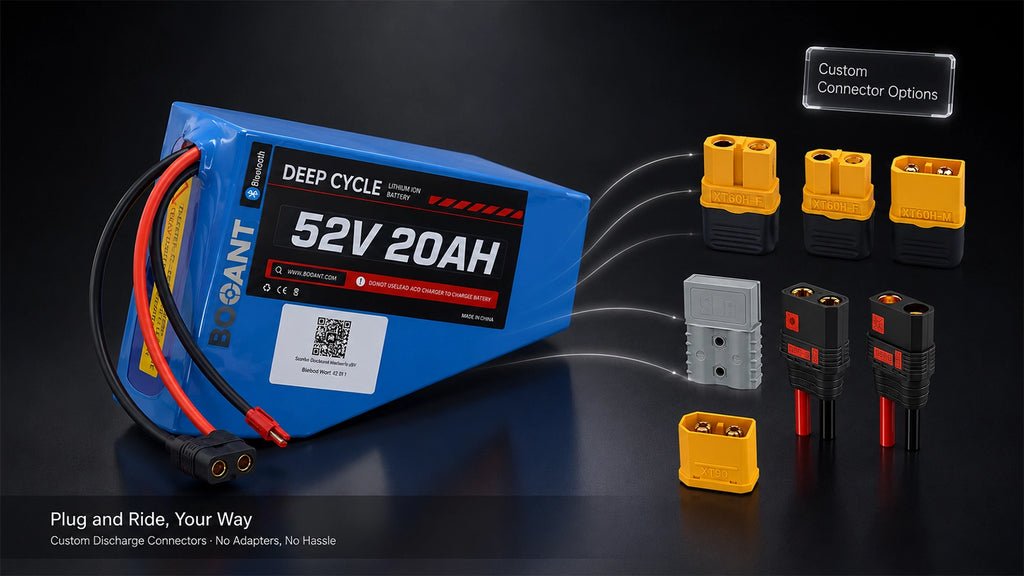

Pick a Connector That Fits Your BMS
Match your controller's plug, then check the current rating.
ConnectorMax current
QS8
180A
XT90F/M
90A
XT60F/M
60A
Anderson SB50
50A

If none fits your controller, contact us and we will help you pick the right one.

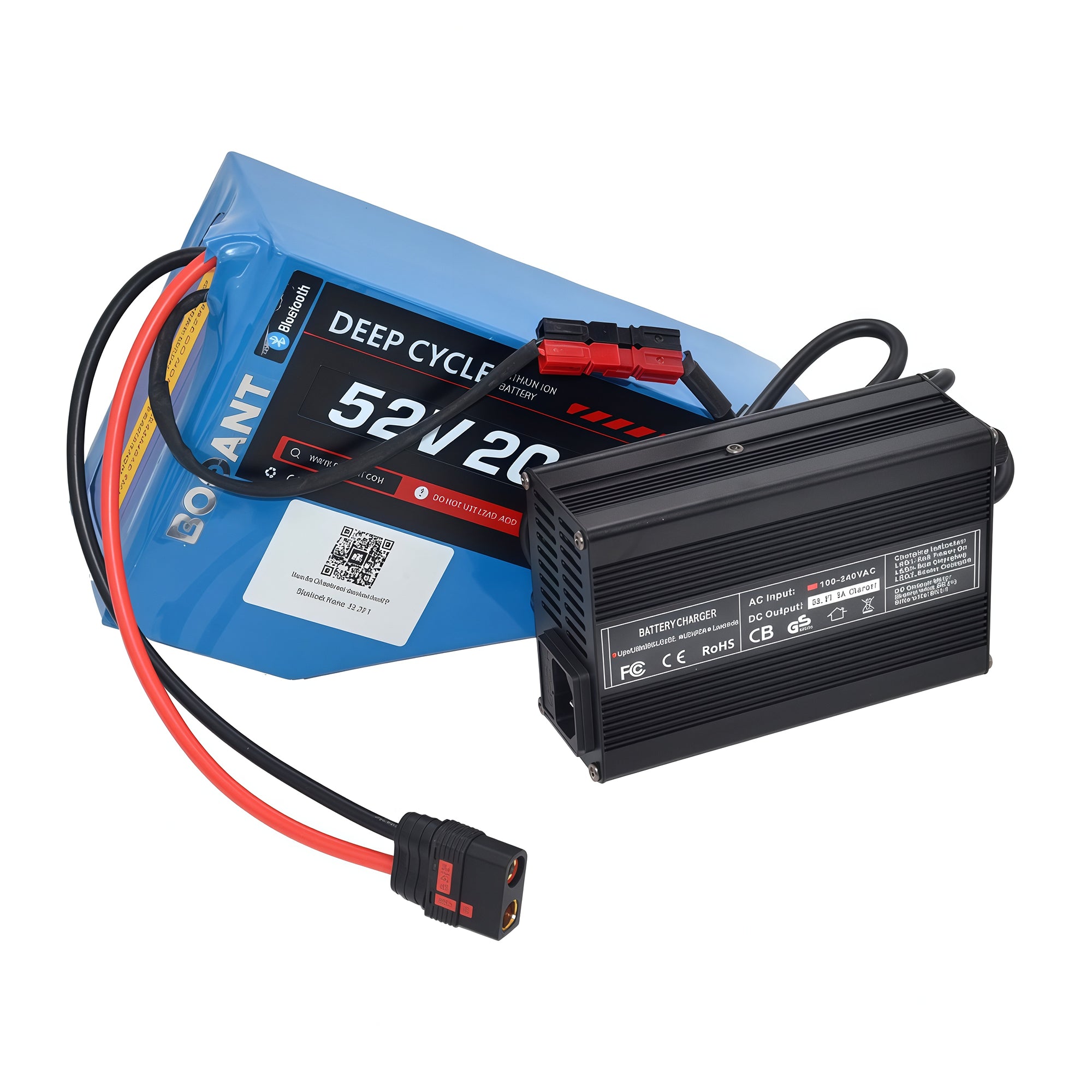

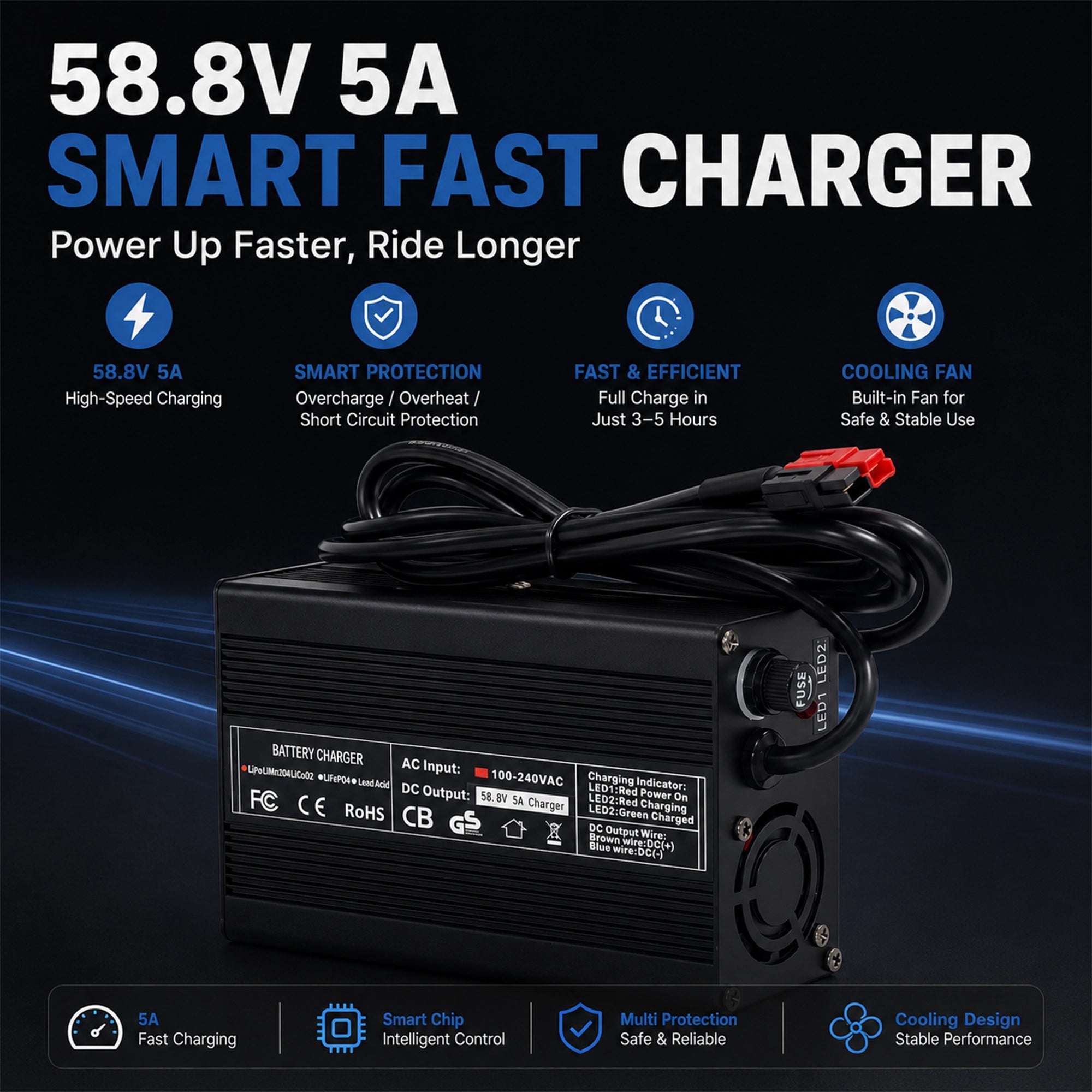

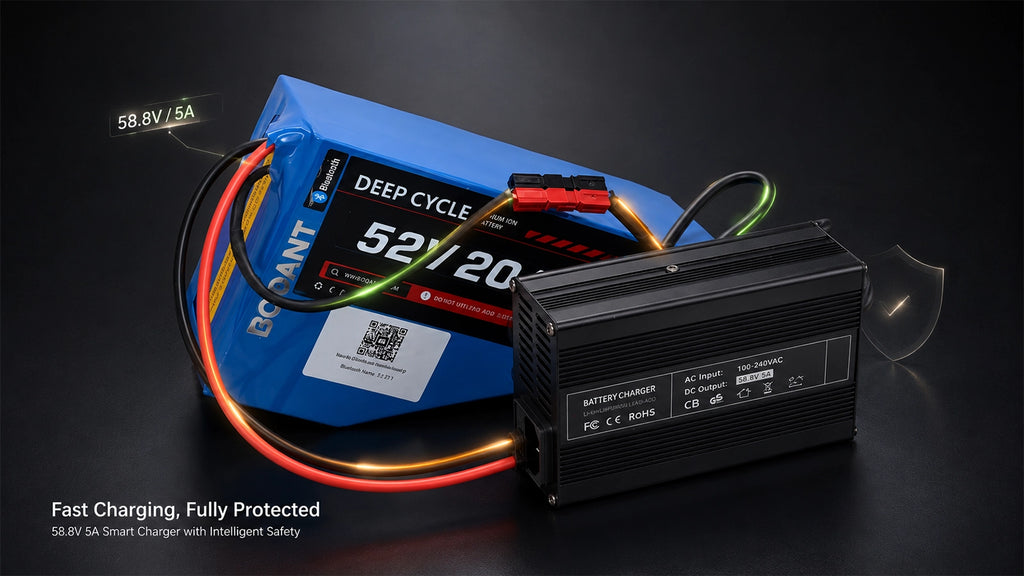

Fast Charger
58.8V 5A
Red: charging or fault
Green: full or standby
Full in about 5 hours
Fan-cooled · CC/CV
Fuse250V/10A, outside, replaceable
Power leadAC lead matches your country
Plug inMains first, then battery
UnplugBattery first, then mains
Charge rate0.25C (5A)
VentilationKeep it ventilated, don't cover

Warranty covers the pack only, not the charger.

FAQ
How far will it go on one charge?

About 52 miles, as a rough estimate. Divide 1,040Wh by 20Wh per mile. Your motor, speed, hills, and assist level change the result.

Will it fit my bike?

Measure your frame first. The pack is about 245 x 155 x 75 mm. Check the triangle space against Length, Width, and Thickness before you order.

Which BMS tier do I need?

Match your controller's battery current. 25A or less, pick 30A. 26A to 35A, pick 40A. Motor watts help you find a tier, but controller battery current decides it.

How long does it take to charge?

About 5 hours from empty with the included 58.8V 5A Fast Charger.

What connector do I need?

Match your controller's plug, then check the current rating. QS8 handles up to 180A, XT90F/M 90A, XT60F/M 60A, Anderson SB50 50A. If none fits, contact us and we will help.

Is it built to order?

Yes. We build each pack after you order, then bench test it before shipping. Assembly takes about 7-10 working days.

What is the warranty?

2 years, 600 cycles to 70% capacity, whichever comes first. The warranty covers the pack only, not the charger. Claims need a full BMS report.

Delivery & In the Box
Delivery
1
Confirmed. Your order is confirmed. We start building your pack.
2
Shipped. Built and bench tested, then handed to the carrier. You get a tracking number.
3
In transit. Your pack clears customs and travels to your country.
4
Delivered. Your pack arrives at your door.

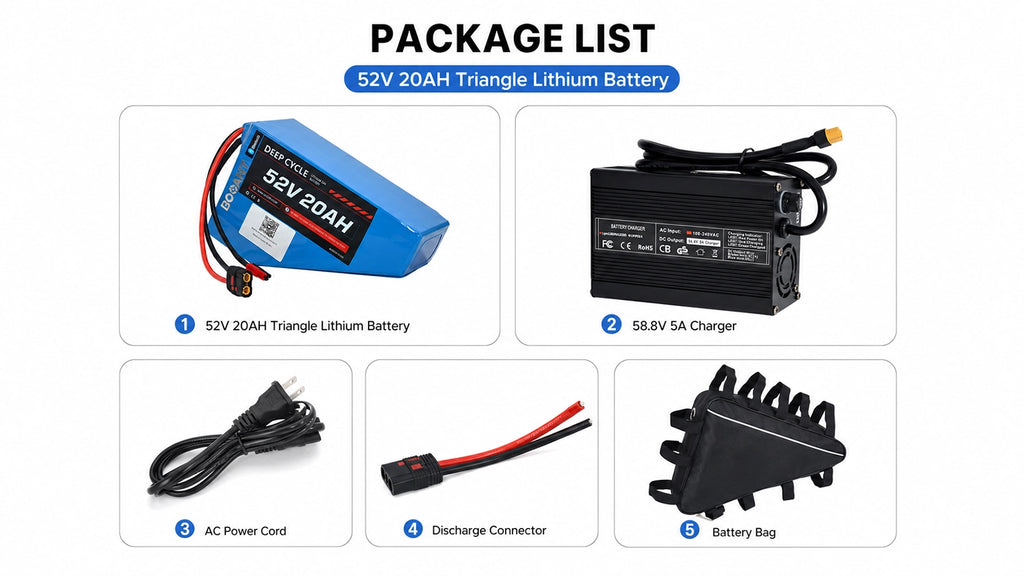

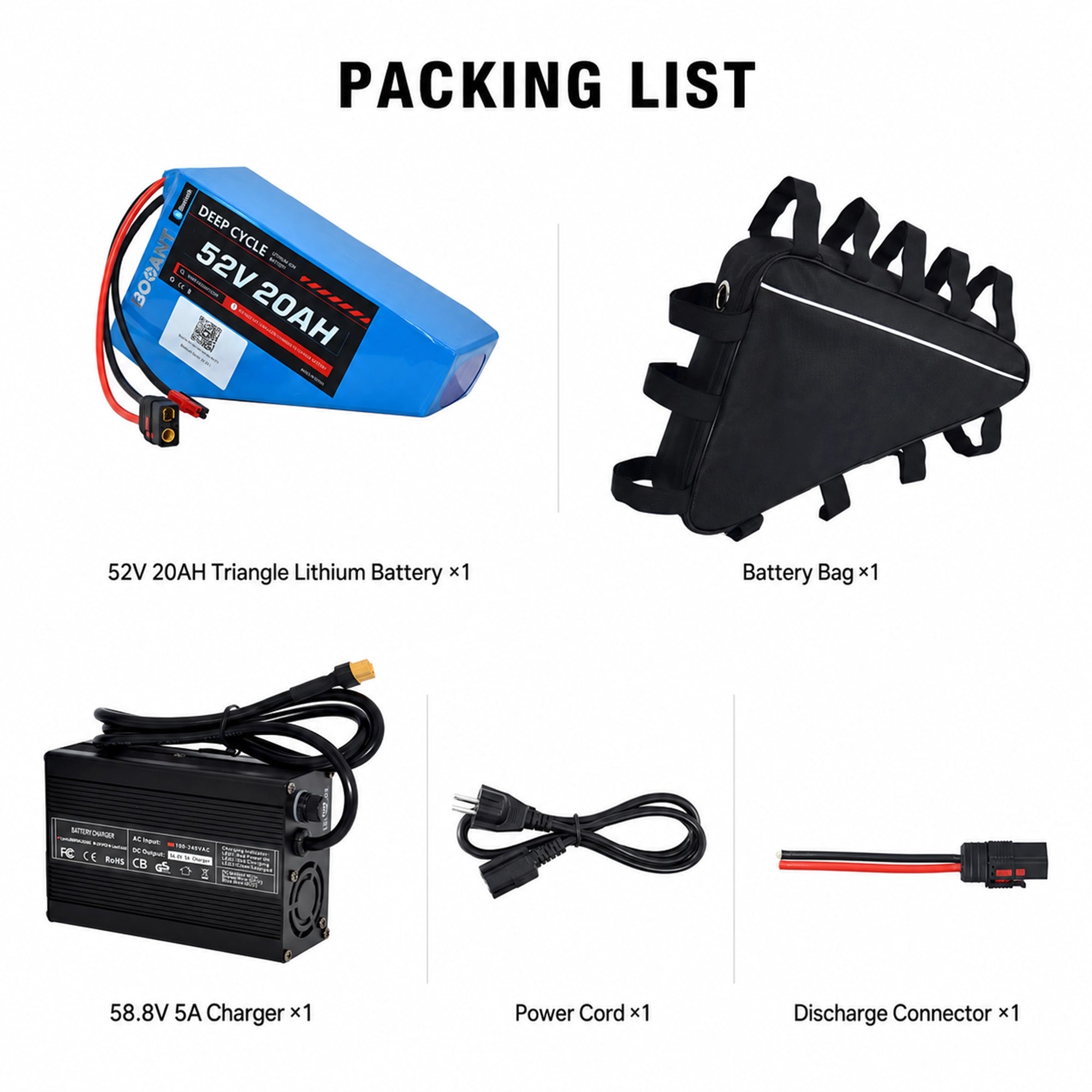

In the Box
✓52V 20Ah triangle battery pack
✓58.8V 5A Fast Charger
✓AC power lead (matches your country)
✓Discharge extension lead (matches your connector)

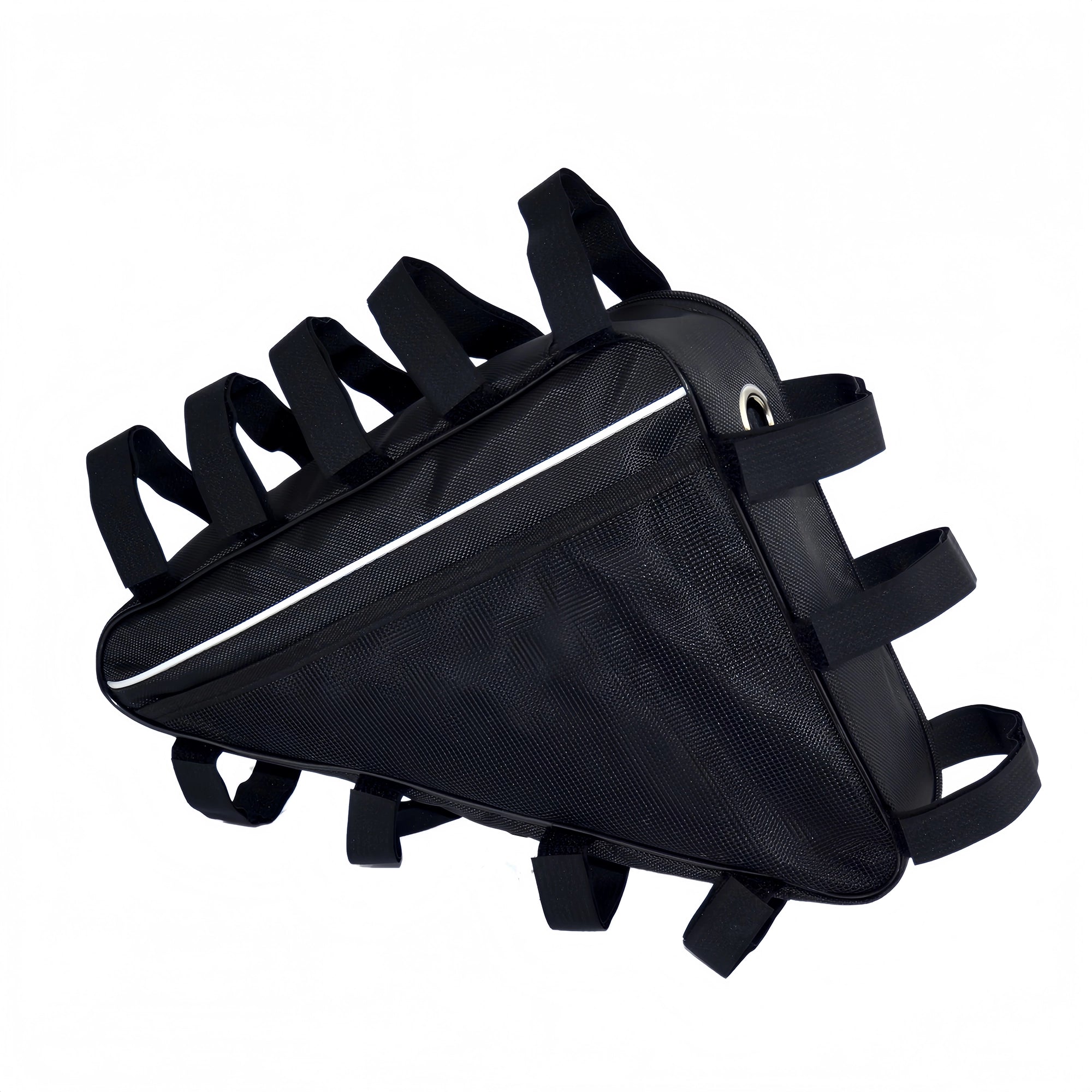

✓Triangle bag with straps

Build takes about 7-10 working days. Delivery takes about 15-20 working days after tracking. Times are estimates and can run longer with customs, carrier delays, or peak season.
