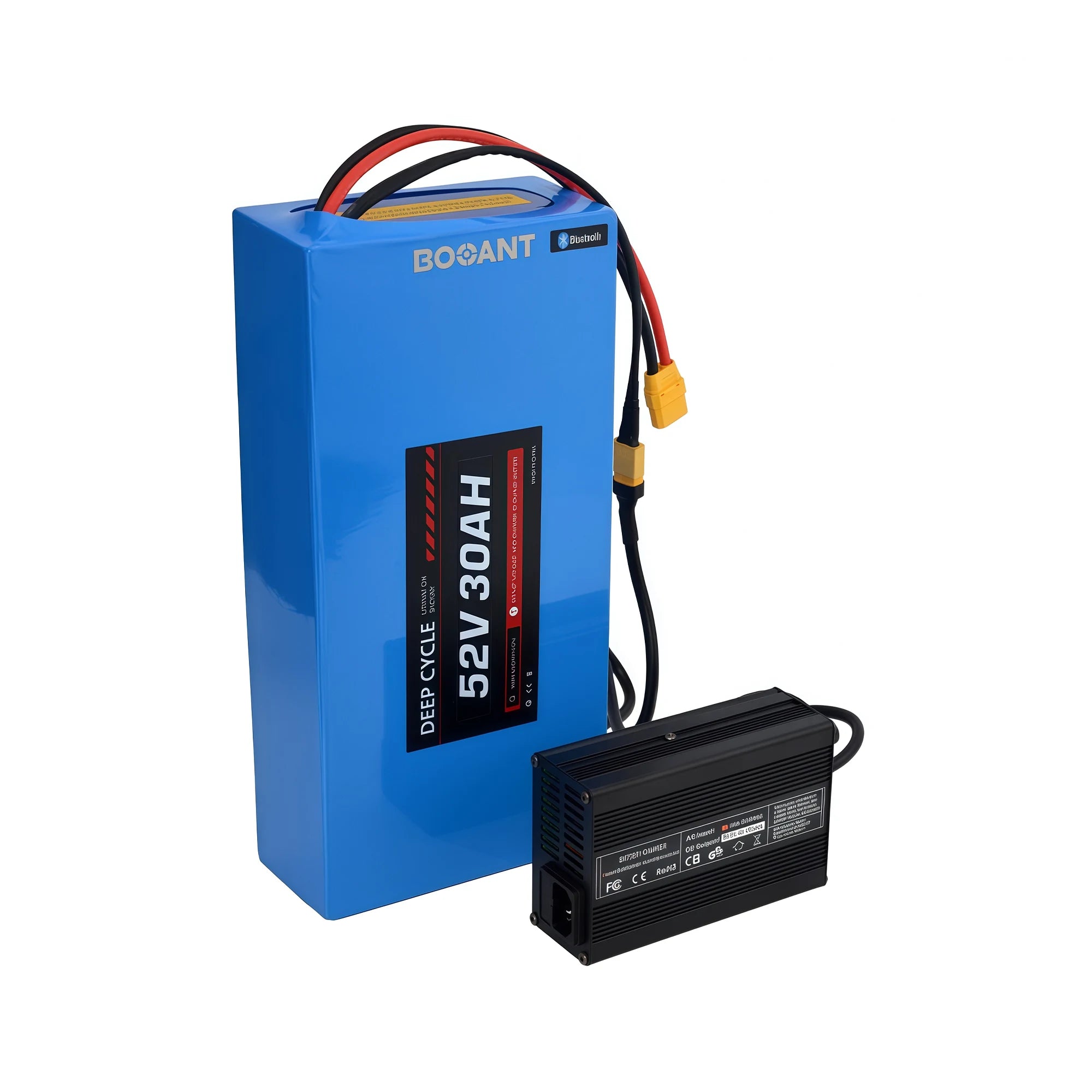

BOOANT 52V 30Ah Lightweight PVC Ebike Battery with Samsung 21700 Cells & JBD Smart BMS
Free Shipping
Free Shipping
Free Shipping
Free Shipping
Free Shipping
Free Shipping
Free Shipping
Free Shipping
Free Shipping
Free Shipping
Free Shipping
Free Shipping
Free Shipping
Free Shipping
Free Shipping
Free Shipping
Free Shipping
Free Shipping
Free Shipping
Free Shipping
Free Shipping
- 🔴 Samsung 21700 Cells : Built with 84 genuine Samsung INR21700-50G cells in a 14S6P vault. Delivers 1560Wh massive capacity for premium long-range riding.
- 📱 JBD Smart Bluetooth BMS : Real-time smartphone APP tracking (Xiaoxiang App) for precision cell group balancing, thermal diagnostics, and 50A/60A current options.
- 📦 Lightweight PVC Profile : High-density protective insulation wrap film. Minimizes block weight to approx 6.5kg (14.3 lbs) for flexible bag/rack placement.
- ⚡ 1200W-2500W DIY Systems : Optimized to unlock raw peak current loops for Bafang BBSHD, Ultra M620, and CYC high-performance electric bike motor platforms.
- 🔌 10AWG Cables & Pro Charger : Heavy-gauge custom discharge terminations backed by our matched 58.8V 5A smart fast charger and a rock-solid 2-year warranty.
Access detailed battery specifications, dimensions, cell configuration, BMS features, charging parameters, and performance data.

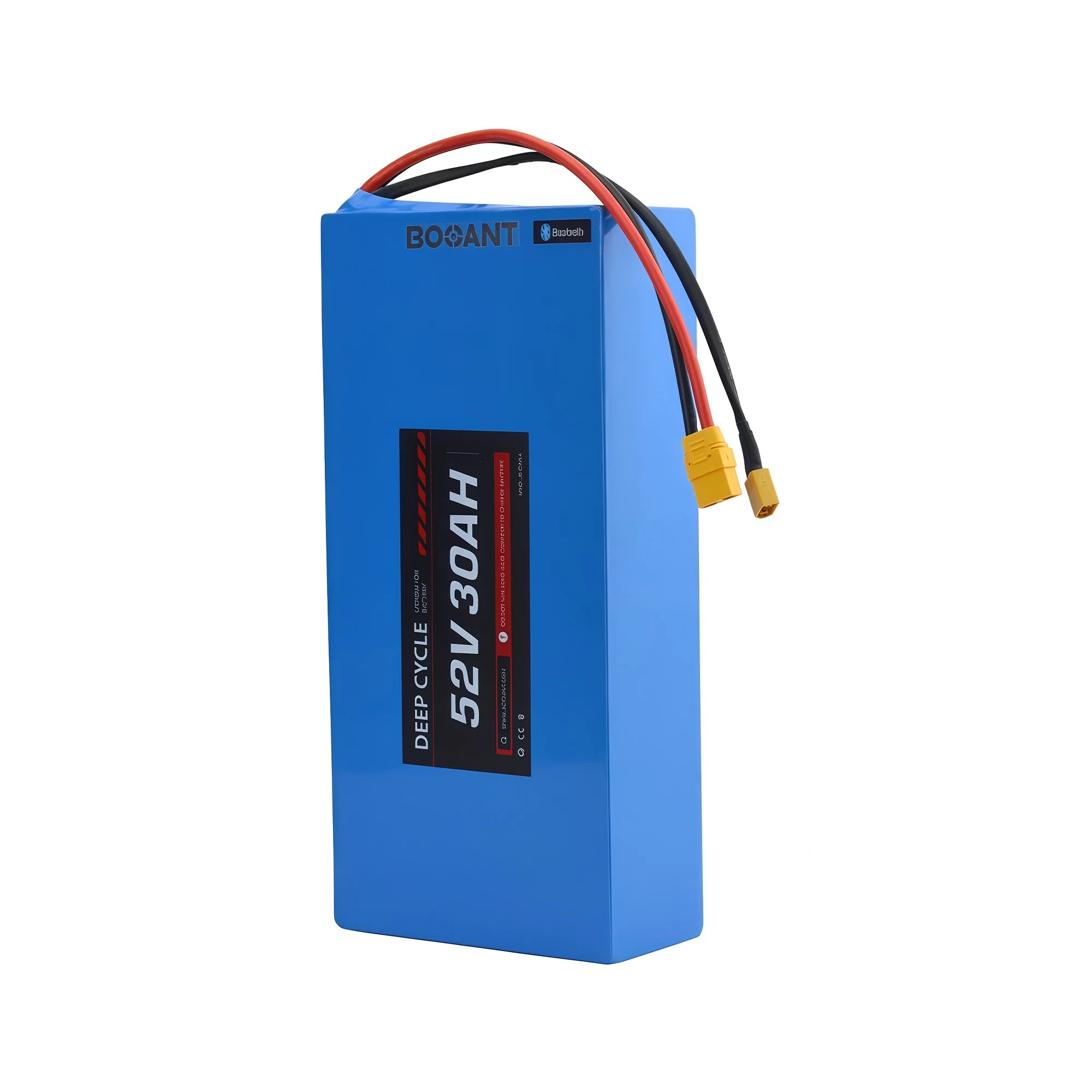

Lightweight 52V 30Ah Ebike Battery Pack | Samsung Cells & PVC Wrap
If you want a massive 30Ah capacity but cannot afford the extra weight or fixed bulk of a heavy metal case, this is your solution. Stripping away the heavy armor to save you nearly 2 kg of dead weight, this streamlined powerhouse delivers an honest 1560Wh of power inside a highly compact 6.5 kg (14.3 lbs) footprint.
- Genuine Samsung 50G Cells: Packed with 84 authentic 21700-50G premium cells in a rock-solid 14S6P matrix. Zero inflated metrics—just stable, sag-free voltage for extended long-range runs.
- Ultra-Lightweight PVC Wrap: Sealed in a heavy-duty, high-density blue PVC insulation film. Saves huge chassis weight and makes it incredibly easy to tuck inside tight frame triangles or custom build bags.
- Heavy-Duty JBD Bluetooth BMS: Integrated with a genuine JBD smart board configured for continuous 50A or 60A output options. Track individual cell voltages and live telemetry on the fly via the official Xiaoxiang App.
- High-Current 10AWG Copper Wiring: Pre-wired with thick, heavy-gauge low-resistance 10AWG silicone discharge lines and custom plug-and-play terminals (XT90-S Anti-Spark, Anderson, etc.) to handle brutal motor abuse.
- 5A Smart Fast Charger Included: Arrives as a complete bundle featuring our professional ~294W fast charger with active fan cooling. Safely fully charges this massive 30Ah vault from empty to 100% in roughly 6–7 hours.

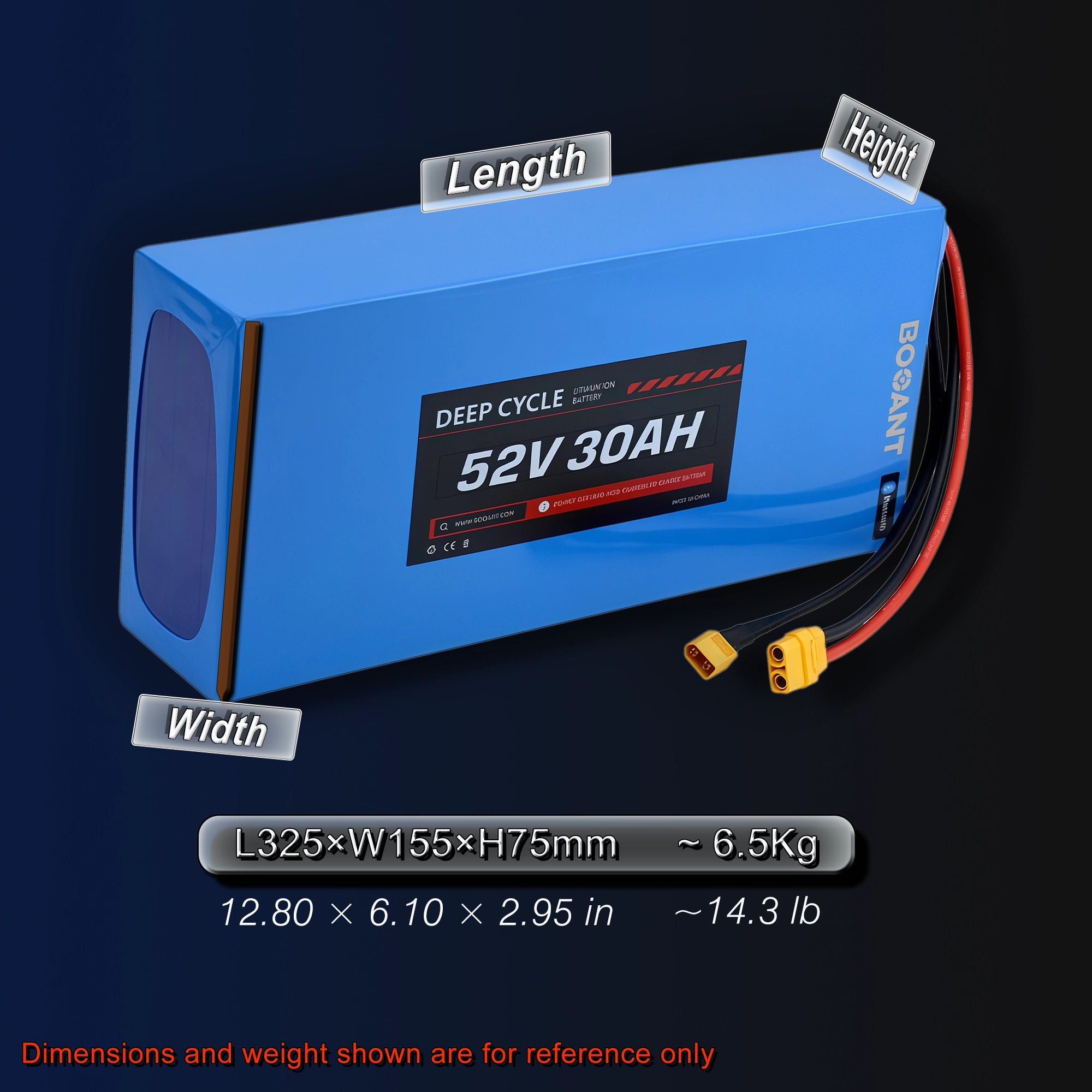

Battery Dimensions
Technical Specifications
| Core Battery Metrics | |
|---|---|
| Battery Model | BOOANT 52V 30Ah Lightweight PVC Lithium Pack |
| Battery Cell Type | Samsung INR21700-50G (Authentic) |
| Cell Configuration | 14S6P Layout (84 Premium Cells Total) |
| Nominal Voltage | 52V (14 Series) |
| Capacity / Energy | 30Ah / 1560Wh (True Rated) |
| Charging Voltage | 58.8V DC |
| Low-Voltage Cut-off | 39.2V (2.8V per Cell Hard Shut-off Protection) |
| BMS Hardware Type | Integrated JBD Smart Bluetooth BMS (Xiaoxiang App Support) |
| Discharge Cables | Heavy-Gauge 10AWG Low-Resistance Silicone Wire |
| Output Terminal | Plug-and-Play Customization (XT90-S, Anderson, XT60, etc.) |

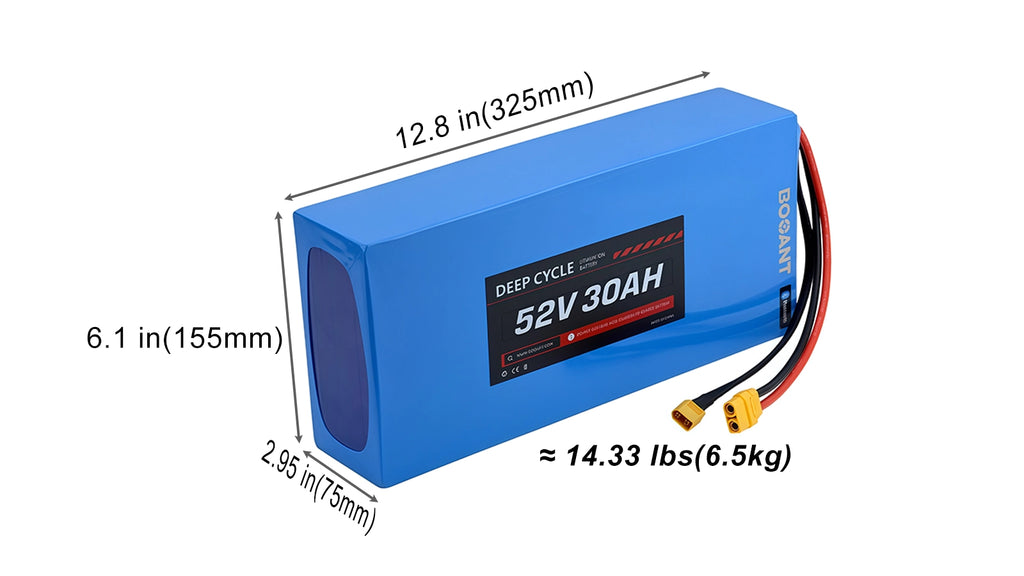

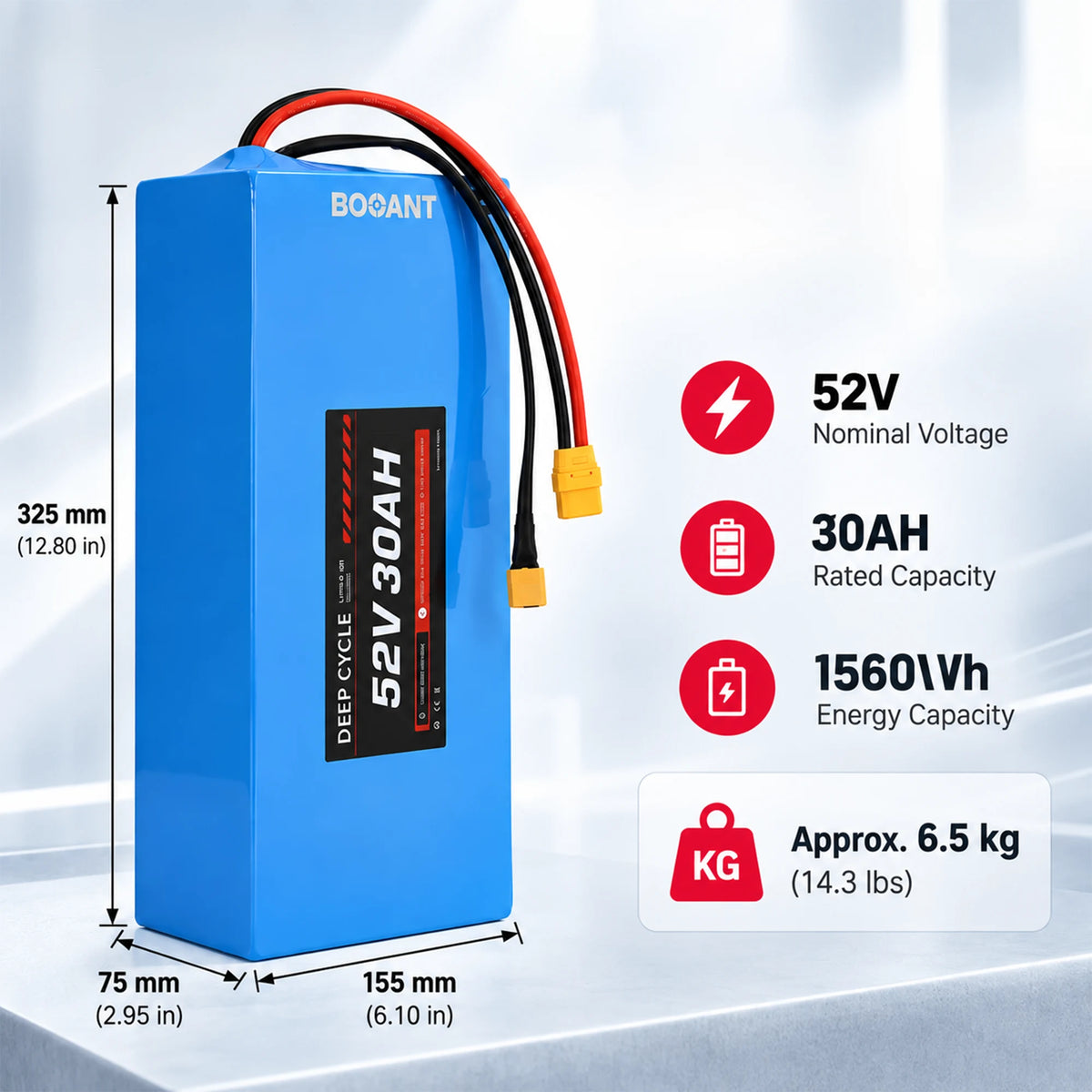

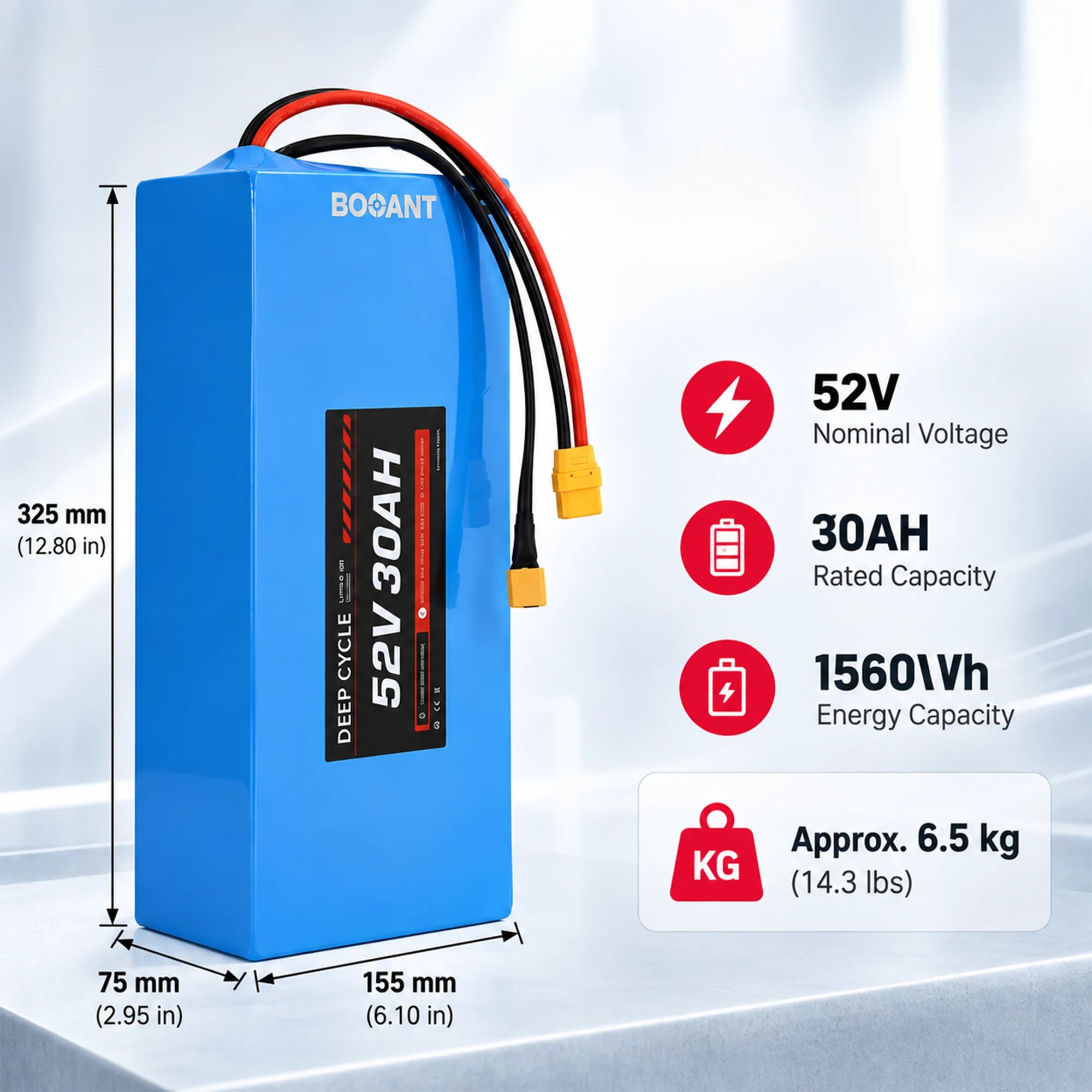

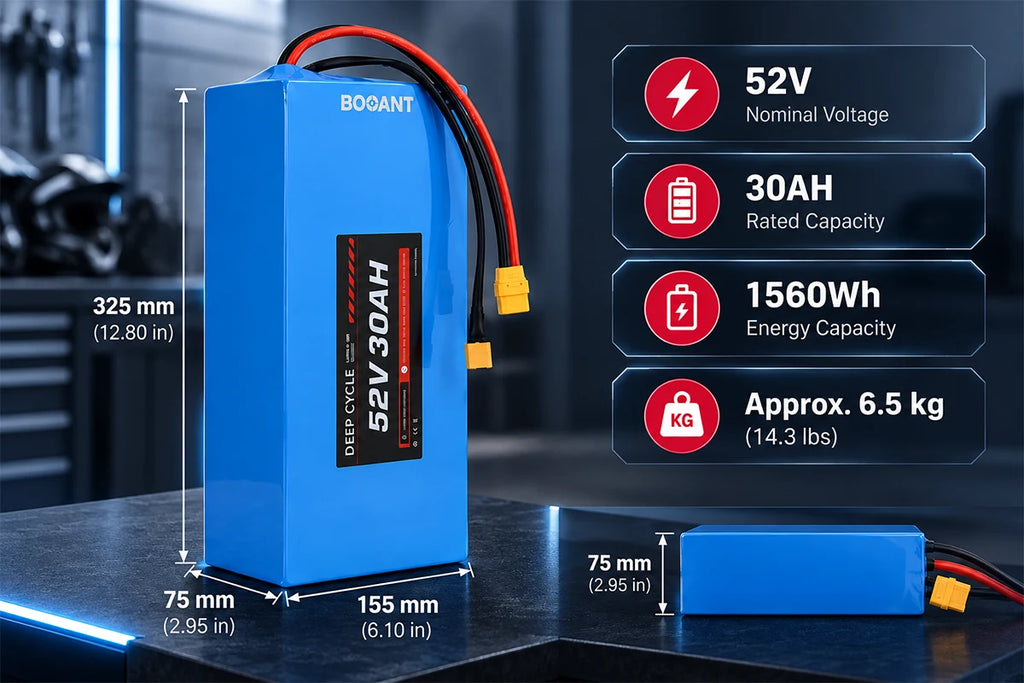

| Dimensions (L×W×H) | 325 × 155 × 75 mm (12.8 × 6.1 × 3.0 in) |
| Weight | Approx. 6.5 kg (14.3 lbs) — Ultra-Lightweight Blueprint |
| Enclosure Material | High-Density Protective PVC Insulation Film Wrap |
| Included Charger | BOOANT 58.8V 5A Smart Fast Charger (CC/CV Profile) |
| Estimated Lifespan | Up to 1000 Full Charge/Discharge Cycles |
| Factory Warranty | 2 Years (Comprehensive Coverage) |
Discharge Options & Motor Compatibility
| Continuous Discharge | Peak Discharge | Recommended Motor Power |
|---|---|---|
| 30A Version | 90A | Recommended for Motors up to 1200W (e.g., BBS02 / Hub Motors) |
| 50A Version | 150A | Recommended for Motors up to 2000W (Ideal for High-Amp Setups) |
| 60A Version | 180A | Recommended for Motors up to 2500W (Engineered for BBSHD Extreme) |
Impact-Resistant Internal Cell Holders
The Rigid Protective Skeleton
Locks all 84 premium Samsung 21700 cells firmly into a rigid internal structural matrix. This completely eliminates cell shifting, rubbing, or physical friction inside the lightweight PVC wrap, even during aggressive off-road thrashes.
Cheap batteries just glue cells together, causing pure nickel strips to rip apart under stress. Our impact-absorbing internal alignment frames absorb harsh road vibrations, guaranteeing your heavy-duty spot-welded joints never tear or pop loose.
Maintains a strict, physical air gap between every single cell group. This structural spacing lets heat escape naturally rather than cooking neighboring cells, keeping the entire 30Ah pack operating at lower, safer temperatures during long continuous amp draws.
Acts as an unyielding, non-conductive safety barrier between rows. By completely surrounding each individual cell, it stops any accidental point-contact wear from turning into a dangerous short-circuit, giving you a pack built to last for years.

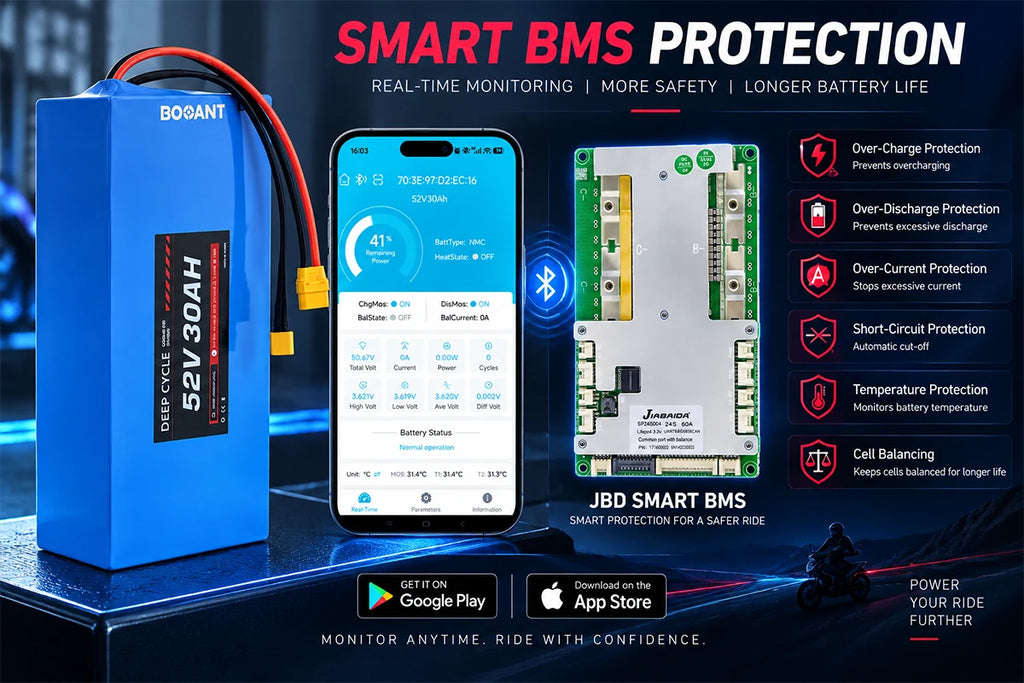

Integrated JBD Smart BMS | Your Live Pack Dashboard
Stop running your battery blind. The BOOANT 52V 30Ah pack comes standard with an authentic JBD smart board and integrated Bluetooth. It pairs your hardware defenses with a live smartphone dashboard, letting you track and customize exactly what is happening inside your cell strings on the fly.
Connect straight to the official Xiaoxiang App via Bluetooth. Keep an eye on your live amp draw, total remaining capacity down to the exact percentage, and active cell temperatures mid-ride.
Features an electronic ON/OFF power toggle inside the mobile application. Tap it to shut down the pack's discharge gateway completely, giving you a quick anti-theft lock when parked outside.
Built with high-end MOSFETs and pre-wired with thick 10AWG silicone lines. Whether you choose the 30A, 50A, or 60A setup, it dumps steady power to your controller without breaking a sweat.
The chip clamps down on discharge the exact millisecond the pack drops to its minimum safe floor of 39.2V (2.8V per Cell), strictly protecting your premium Samsung core from severe over-discharge.
With 84 cells inside, parallel blocks naturally drift apart over time. Our smart board fixes this automatically during the final CV charging phase, bleeding off high cells to unlock your full 30Ah range.
Dual hardware probes cut current if summer riding pushes cell temperatures to 65°C (149°F), and completely block incoming charger current below freezing (0°C/32°F) to protect your lithium chemistry dead.

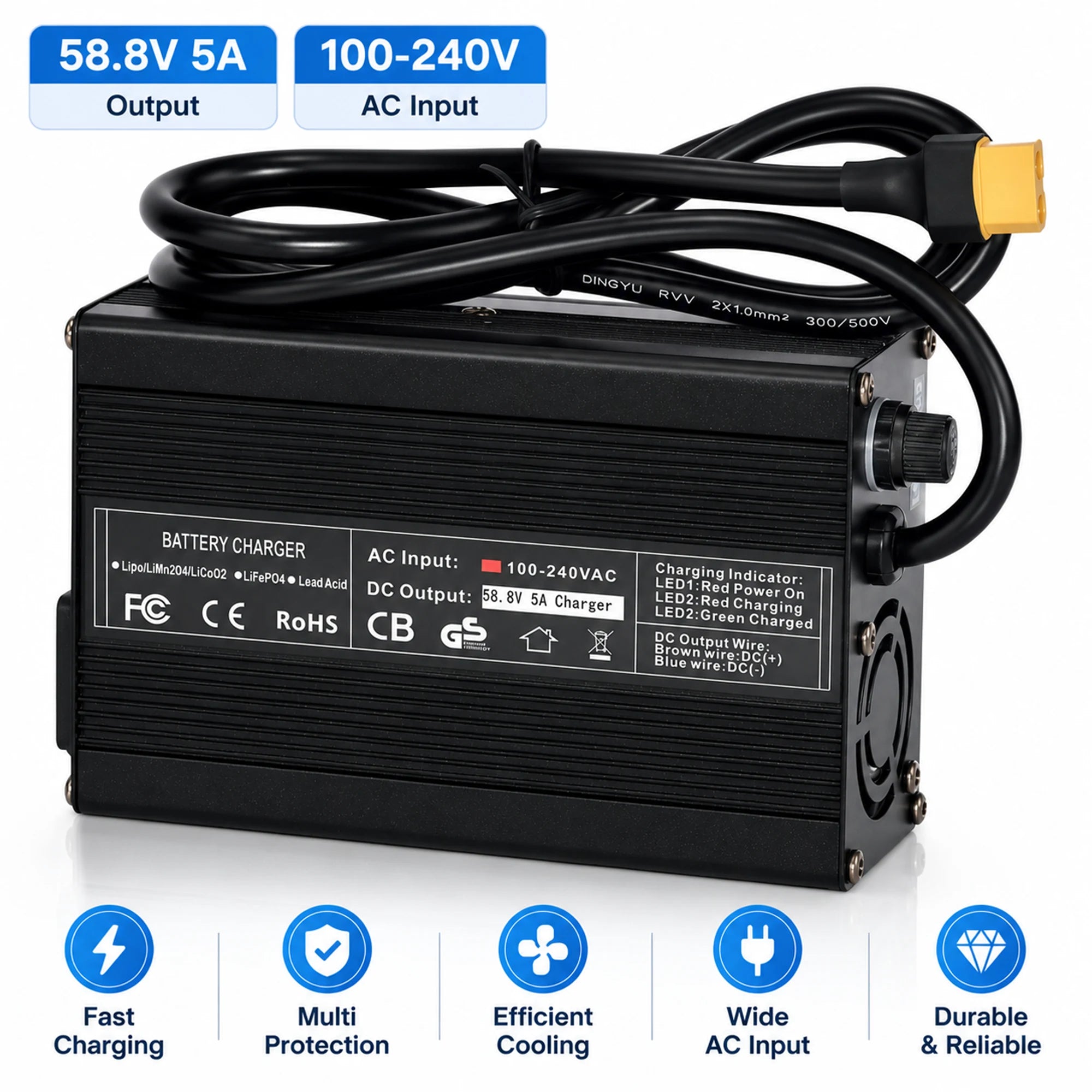

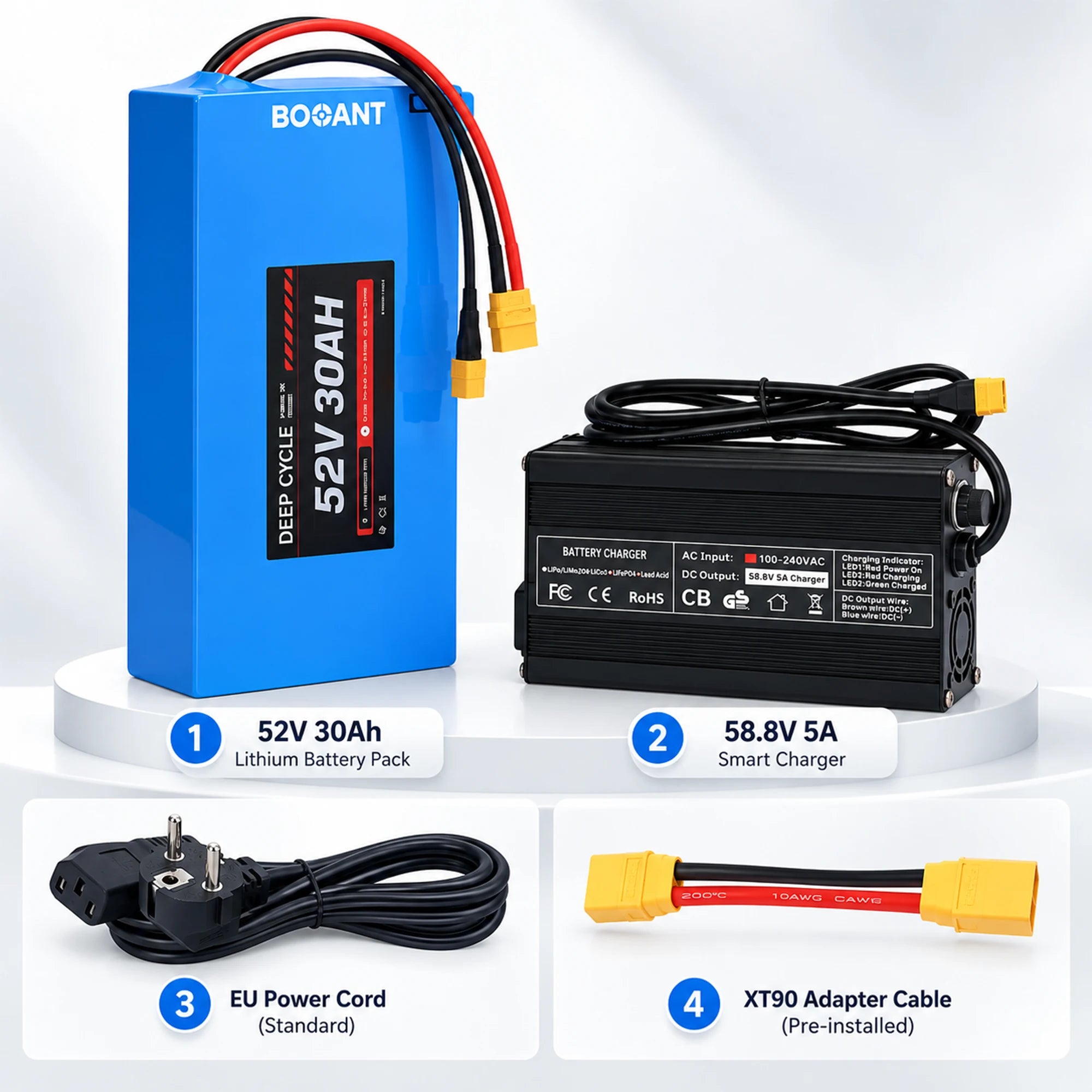

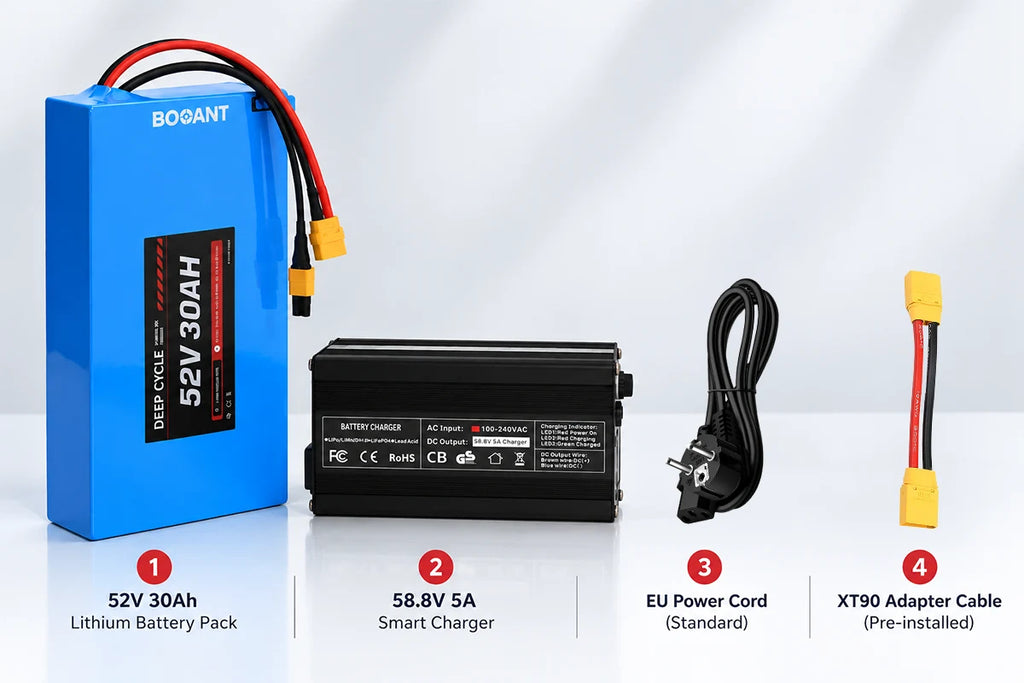

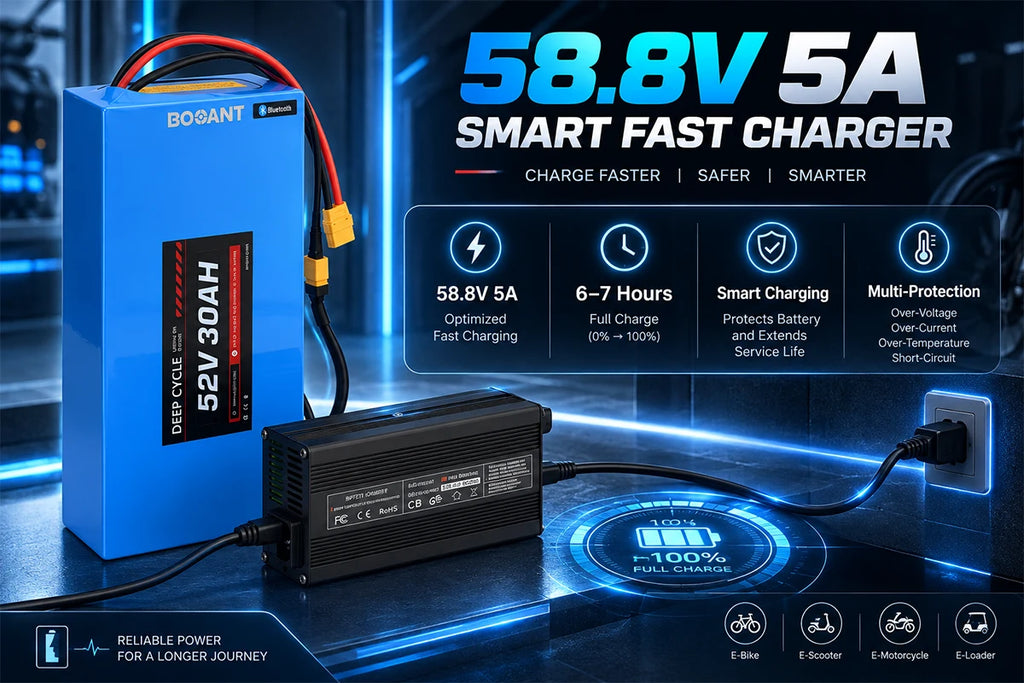

Included 58.8V 5A Smart Fast Charger
Stop waiting all day and night for your battery to juice up. Included with every 52V 30Ah lightweight package, our 58.8V 5A Smart Fast Charger is calibrated specifically for 14S lithium setups. Driven by an automatic CC/CV profile and active fan cooling, it safely tops off this massive 1560Wh cell core from dead empty to 100% in roughly 6-7 hours—cutting your standard overnight wait times in half while fully protecting long-term cell health.
Charger Technical Specifications
| Hardware Specifications | |
|---|---|
| Input Voltage | 100–240V AC, 50/60Hz (Universal Worldwide Grid Compatibility) |
| Output Voltage | 58.8V DC (Precision Stabilized for 14S Lithium) |
| Charge Current | 5A Smart Fast Charge |
| Power Rating | True ~294W Output Capacity |
| Charging Profile | Automatic 2-Stage CC/CV (Constant Current / Constant Voltage) |
| Thermal Control | Active Forced Air Cooling (Built-In Internal Fan) |
| Output Terminal | Heavy-Gauge Termination (Pre-wired to Match Your Choice) |
| Full Charge Duration | Approximately 6–7 Hours (Calibrated for our 30Ah Blue Vault) |
LED Status Indicator Guide
Solid Red Light: Power loop is active and pushing steady current. Charging is successfully in progress.
Solid Green Light: Your 30Ah pack is fully topped off, and the BMS has completed its CV cell-balancing cycle.
*Note: The LED indicator will also remain Green if the charger is plugged into the AC wall power but disconnected from your battery. This is normal standby mode, not a glitch.

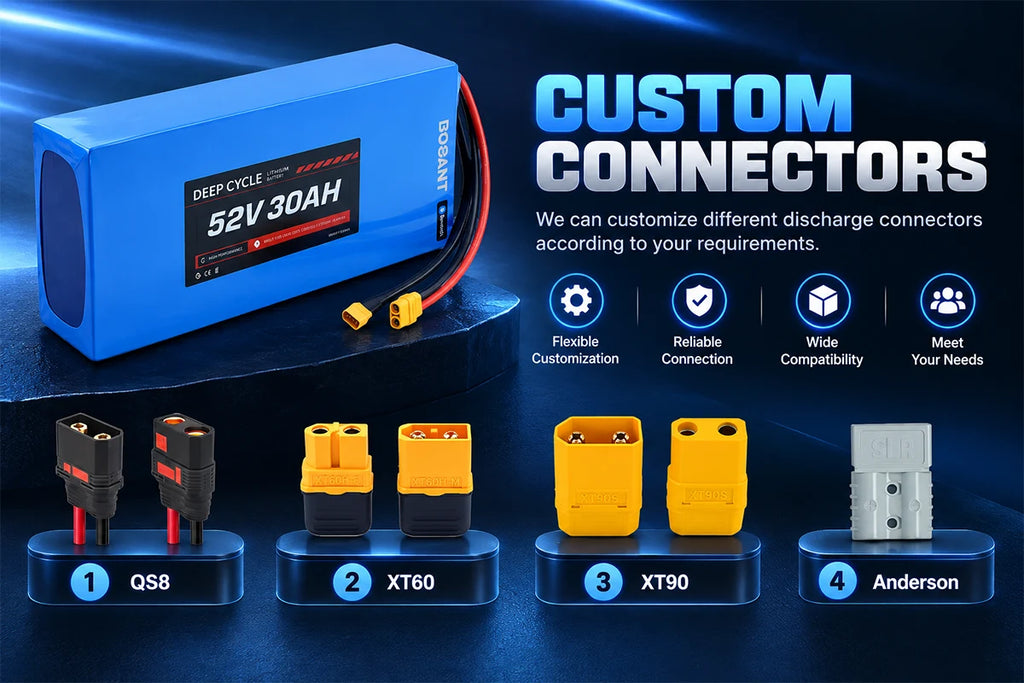

100% Plug-and-Play Custom Connector Tailoring
Ditch the messy adapter dongles and dangerous DIY soldering. We provide 100% free, factory-installed discharge plug customization for your 52V 30Ah lightweight battery. Built with heavy-gauge, low-resistance 10AWG ultra-flexible silicone wire, your pack arrives ready to plug directly into your speed controller, locking in peak current efficiency and a super clean installation.
Pick your perfect match from gold-plated XT60, XT90, XT90-S Anti-Spark, high-current QS8, or heavy copper Anderson SB50 connectors right from our menu.
Perfectly optimized lead lengths ensure a clutter-free setup, making it incredibly easy to tuck wires inside tight triangle frame bags or rear racks.
Eliminating shaky, loose secondary adapter plugs drops loop resistance dead, completely stopping high-amp bottleneck heat build-ups before they start.
Not sure which plug configuration or polarity layout your current vehicle is running? Don't stress. Simply snap a quick, clear smartphone photo of your existing speed controller connector and shoot it over to our support desk. Our tech team will manually review it to ensure your battery ships from our factory with the exact plug matching your build.
Built For High-Torque Builders
We stripped away the heavy outer casing to build the ultimate sleeper pack for your next high-power build. Packing an honest 1560Wh capacity inside a tight, space-saving blue PVC blueprint that weighs just 6.5 kg (14.3 lbs), this lightweight beast is fully optimized to dump raw, unhindered current into the industry's most power-hungry mid-drive and hub motor builds running between 1500W and 2500W.
Effortlessly handles the relentless current demands of a hot-rod BBSHD setup, letting you pin the throttle up steep hills without inducing premature voltage sag.
Delivers a heavy-duty, unhindered continuous amp loop to feed the massive torque pulls and intense trail abuse of custom-framed M620 off-road builds.
Feeds the high-RPM, aggressive appetites of CYC X1 Pro and Stealth setups with excellent thermal stability, keeping your power core running cool.
The go-to cell reserve for fast-spinning direct drive hubs. Keeps your standing starts incredibly crisp and sustains heavy top-end pulls without breaking a sweat.
Perfect for riders tired of cutting trips short. Saves nearly 2 kg of casing dead weight to give your e-bike an agile, nimble feel on cross-town loops.
The slim, adaptable 325x155x75 mm profile drops perfectly into tight frame triangles, custom electric go-karts, mini-bikes, and custom DIY powertrains.
Before You Order | Pre-Purchase FAQ
What motor setups can this battery handle?
This lightweight pack is highly configurable with authentic 30A, 50A, or 60A JBD Smart BMS options. Depending on the version you select to match your speed controller, it is fully engineered to handle continuous high-torque demands running anywhere from 1200W up to 2500W setups.
Is this pack compatible with Bafang BBSHD or CYC motors?
Yes, 100%. This 52V pack is one of the most popular form factors for high-performance DIY custom projects. It connects flawlessly to unlock the true torque potential of Bafang BBSHD, Bafang Ultra (M620), and CYC motor kits without dropping voltage or choking under heavy load.
How far can this 52V 30Ah pack take me on a single charge?
Real-world range depends on how hard you twist the throttle and your terrain, but this battery holds a massive 1560Wh energy vault. Because the streamlined PVC wrap strips away nearly 2 kg of dead weight compared to metal boxes, it keeps your overall chassis incredibly agile, squeezing out significantly more miles per charge.
How long does a full charge take?
Every single order comes bundled with our professional 58.8V 5A Smart Fast Charger. You can completely skip the annoying 12+ hour wait times of cheap generic 2A wall bricks—our high-current fast charger fully replenishes this 30Ah bank from dead empty to 100% in roughly 6–7 hours while keeping your cells safe.
What safeties does the JBD Smart Bluetooth BMS protect against?
Our integrated JBD smart board provides rock-solid, hardware-level protection that monitors your cells 24/7, including:
- Instant cut-offs for overcharging and deep over-discharging.
- Overcurrent protection and immediate short-circuit isolation.
- Dual thermal probes to block charging/discharging during extreme heat or freezing weather.
- Automated cell group balancing, trackable in real time via the mobile Xiaoxiang App.
Can I customize the discharge plug or wire length?
Yes, absolutely. We make it completely plug-and-play so you can skip the hassle of dangerous DIY soldering. Pre-wired with heavy-gauge, low-resistance 10AWG silicone lines, you can pick your exact plug (XT90-S Anti-Spark, XT60, Anderson, or QS8) straight from our menu. If you need a specific cable length to clear your frame bag or rear rack, just drop us a note on the cart page!
