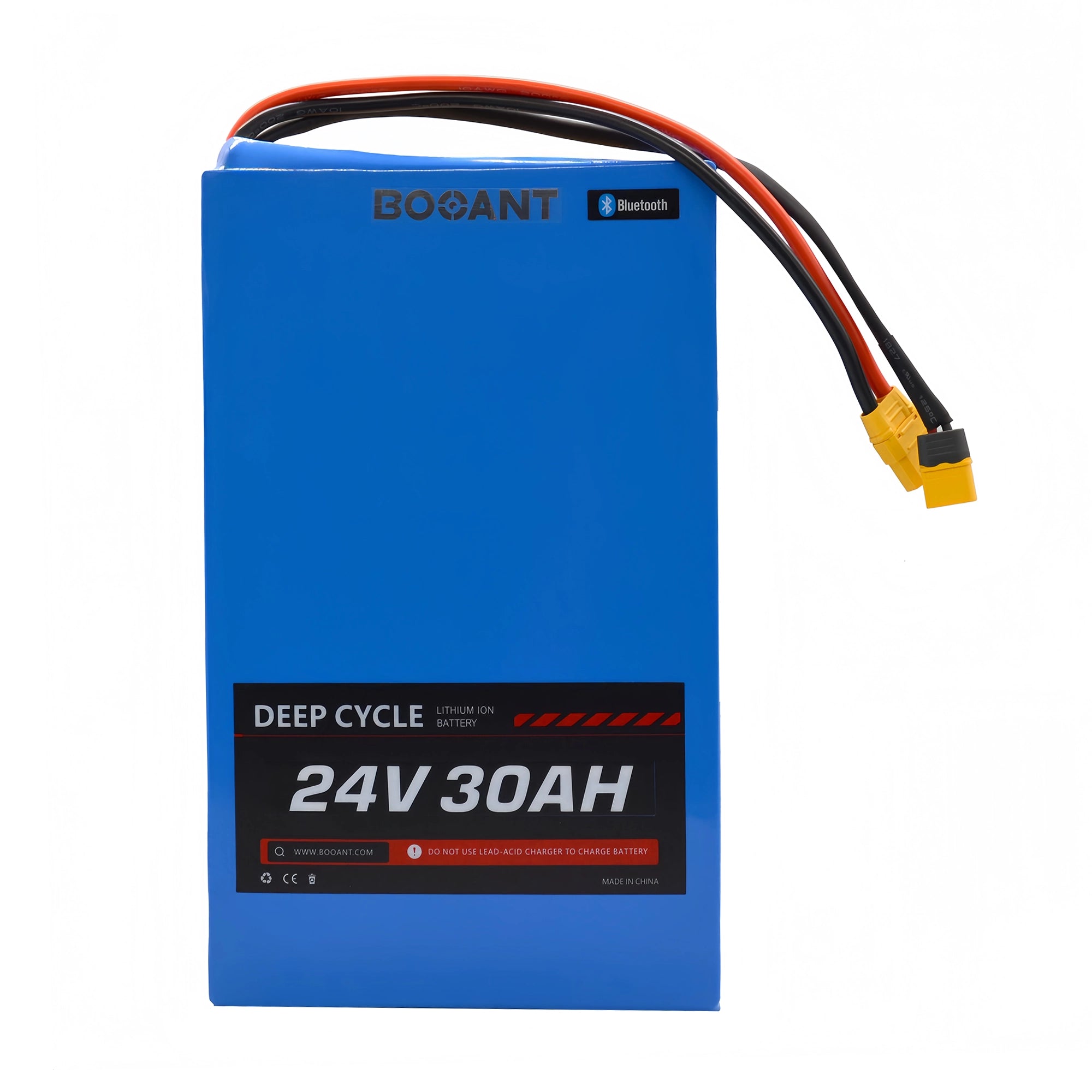

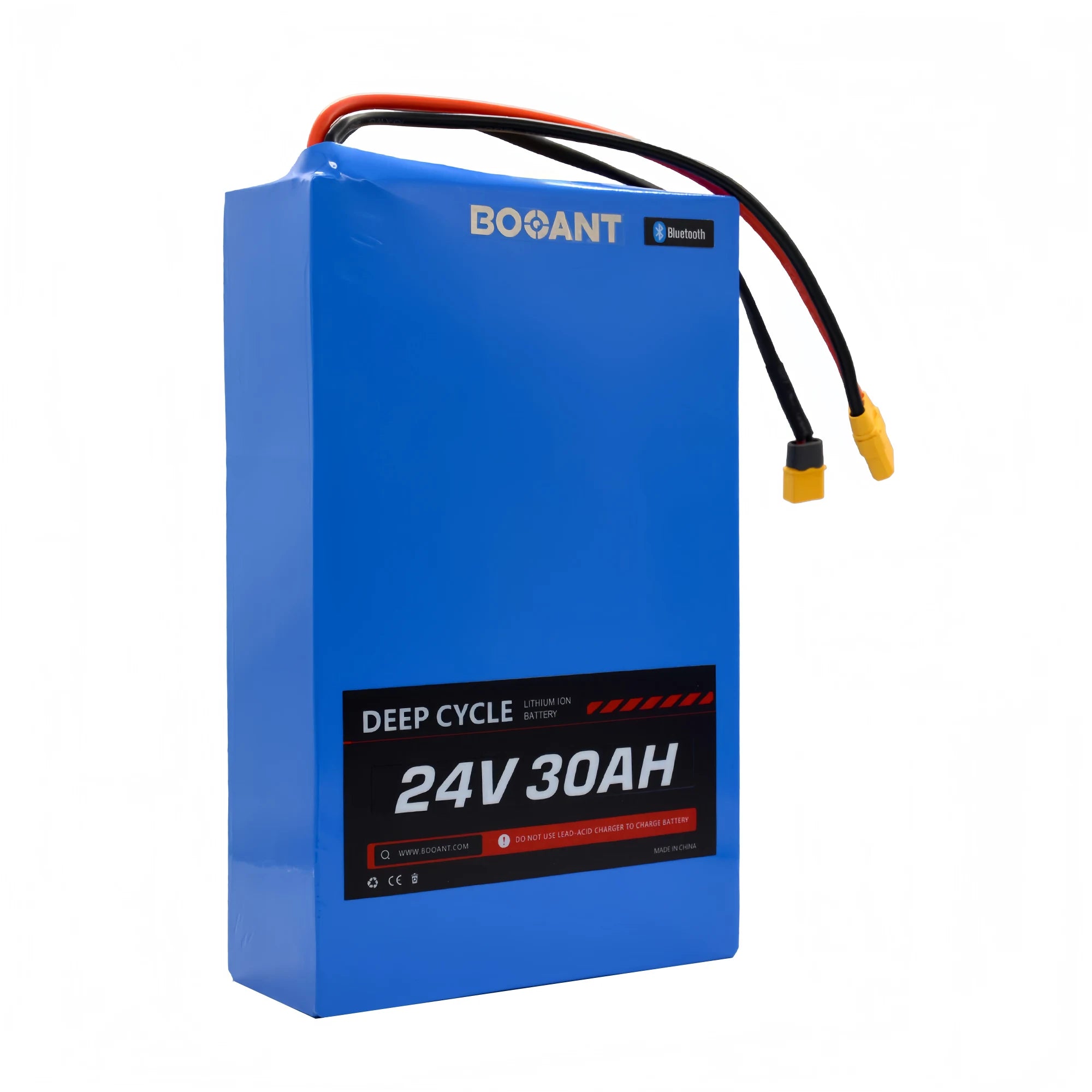

BOOANT 24V 30Ah LiFePO4 deep cycle marine battery pack with integrated smart Bluetooth BMS and XT90 connectors for trolling motors
BOOANT 24V 30Ah LiFePO4 marine battery size and weight diagram showing 280x170x75 mm dimensions and 6.0 kg 13.2 lbs total weight

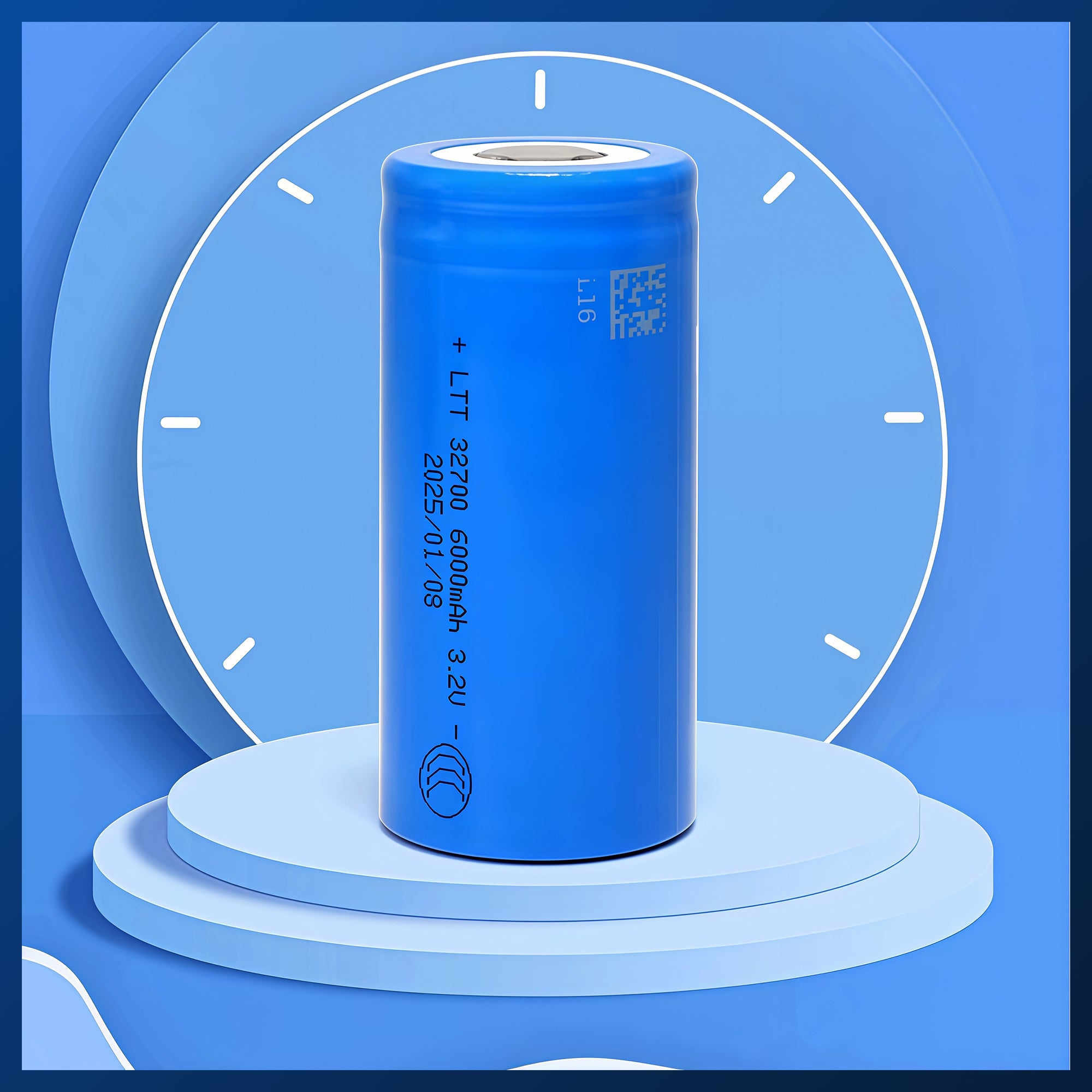

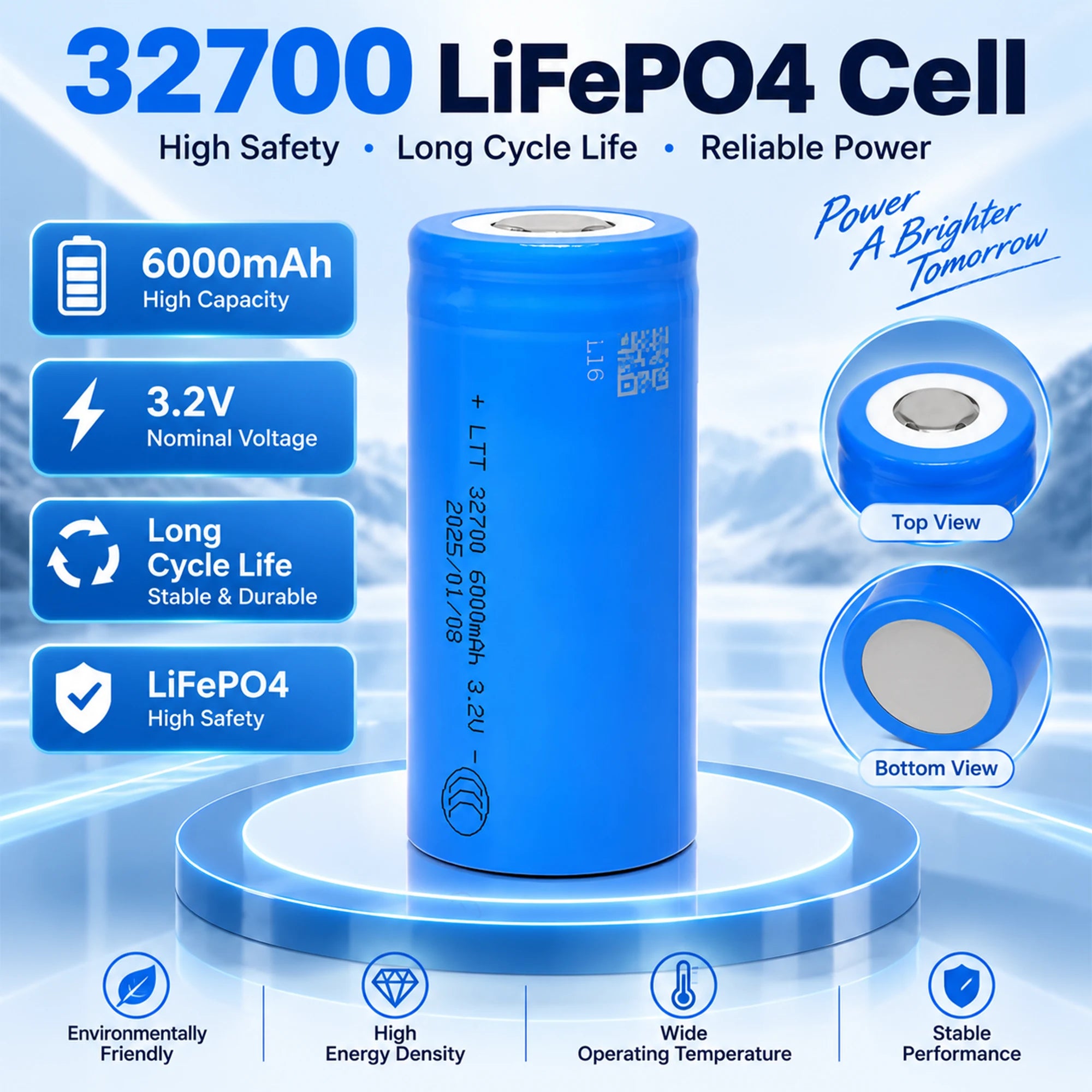

BOOANT authentic LTT 32700 3.2V 6000mAh Grade-A LiFePO4 cylindrical cell showing high capacity, top and bottom terminal views, and long cycle life specifications

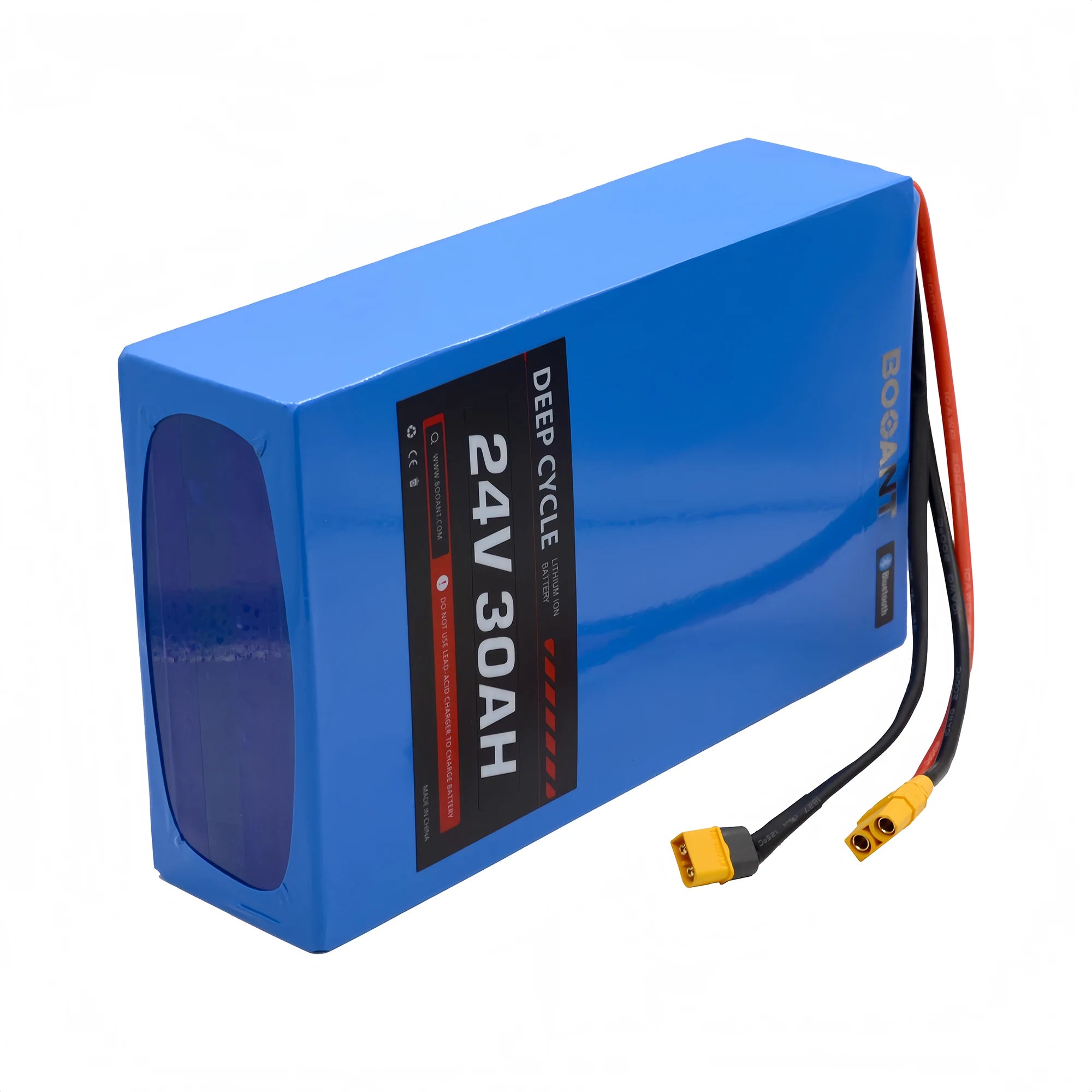

BOOANT 24V 30Ah LiFePO4 marine battery pack side view showing waterproof end cap sealant, blue PVC shrink wrap, dedicated XT60 charge plug, and XT90 discharge connector

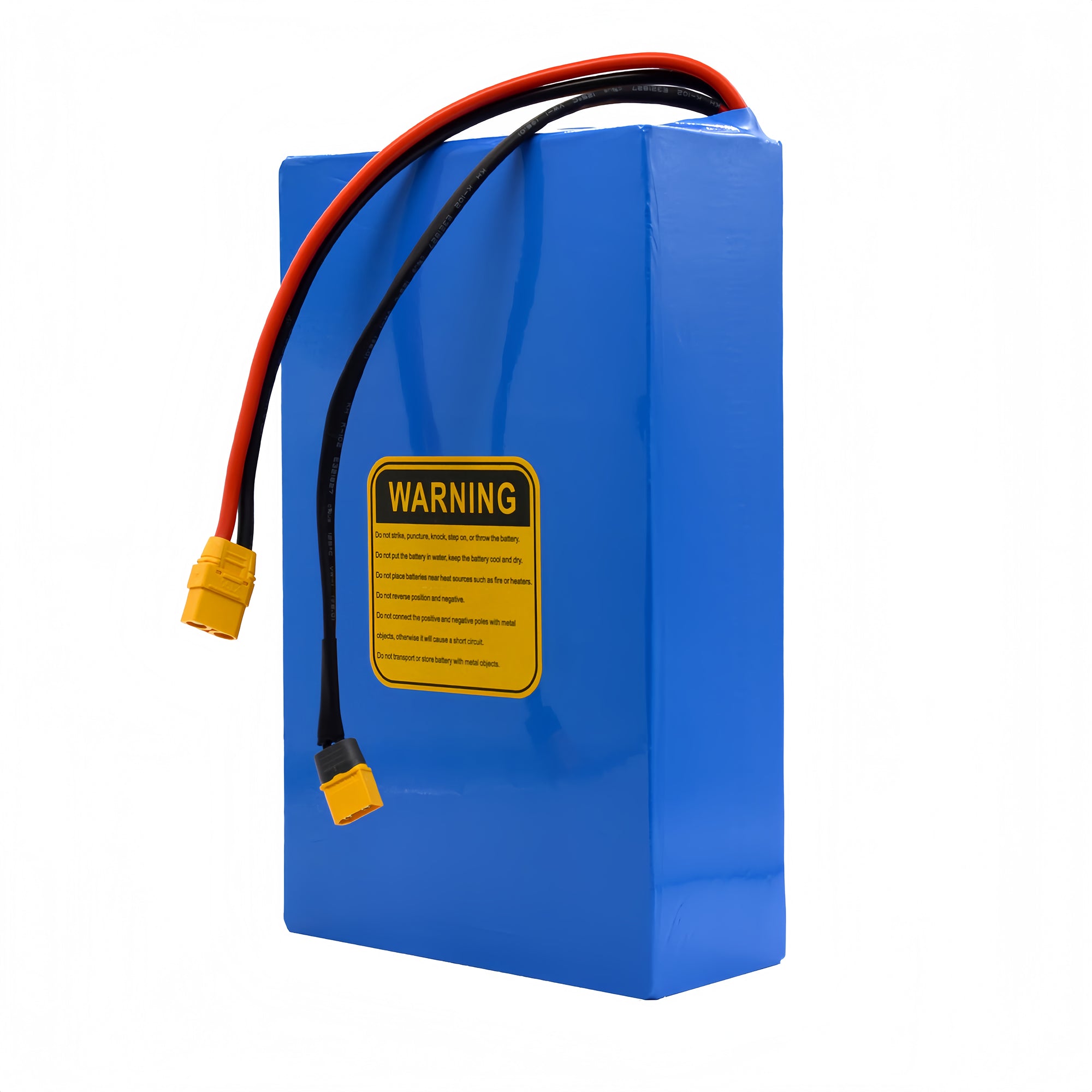

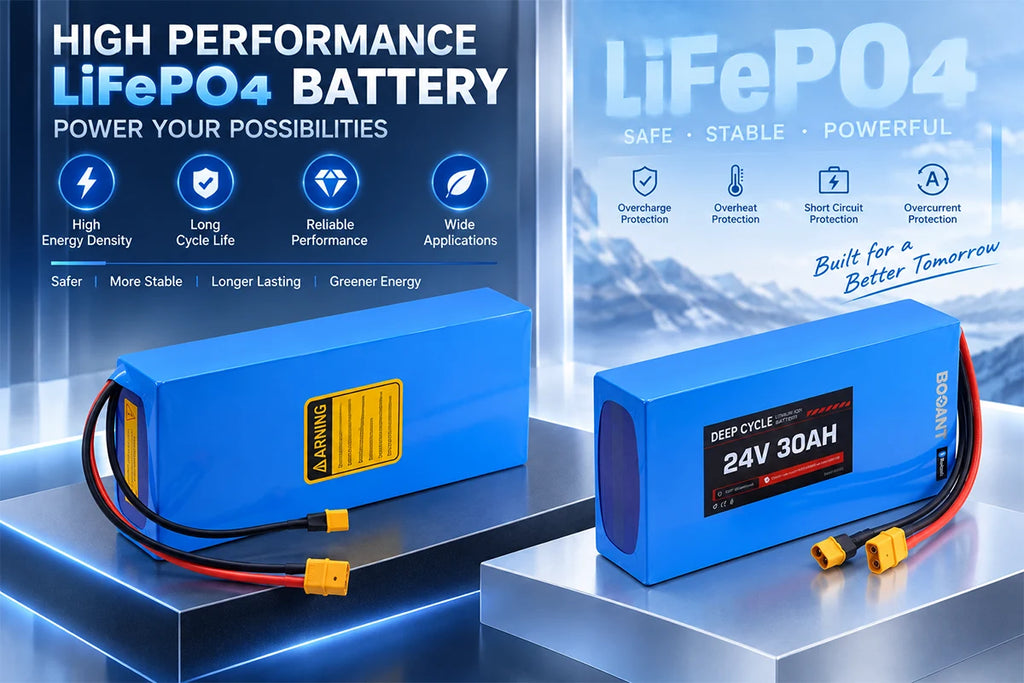

BOOANT 24V 30Ah LiFePO4 battery back view showing safety warning label, durable blue PVC heat shrink, XT60 charging lead, and XT90 discharge cable
BOOANT 29.2V 5A smart fast charger for LiFePO4 battery featuring aluminum alloy housing, cooling fan, dual fuse protection, and XT60 output connector
BOOANT 24V 30Ah LiFePO4 marine battery pack bundled with 29.2V 5A aluminum fast charger, smart Bluetooth BMS, and pre-soldered XT60/XT90 connectors
BOOANT 24V 30Ah LiFePO4 marine battery packing list including 29.2V 5A charger, AC power cable, and heavy-duty discharge extension cable
BOOANT 24V 30Ah LiFePO4 deep cycle marine battery pack with integrated smart Bluetooth BMS and XT90 connectors for trolling motors
BOOANT 24V 30Ah LiFePO4 marine battery size and weight diagram showing 280x170x75 mm dimensions and 6.0 kg 13.2 lbs total weight
BOOANT authentic LTT 32700 3.2V 6000mAh Grade-A LiFePO4 cylindrical cell showing high capacity, top and bottom terminal views, and long cycle life specifications
BOOANT 24V 30Ah LiFePO4 marine battery pack side view showing waterproof end cap sealant, blue PVC shrink wrap, dedicated XT60 charge plug, and XT90 discharge connector
BOOANT 24V 30Ah LiFePO4 battery back view showing safety warning label, durable blue PVC heat shrink, XT60 charging lead, and XT90 discharge cable
BOOANT 29.2V 5A smart fast charger for LiFePO4 battery featuring aluminum alloy housing, cooling fan, dual fuse protection, and XT60 output connector
BOOANT 24V 30Ah LiFePO4 marine battery pack bundled with 29.2V 5A aluminum fast charger, smart Bluetooth BMS, and pre-soldered XT60/XT90 connectors
BOOANT 24V 30Ah LiFePO4 marine battery packing list including 29.2V 5A charger, AC power cable, and heavy-duty discharge extension cable
BOOANT 24V 30Ah LiFePO4 deep cycle marine battery pack with integrated smart Bluetooth BMS and XT90 connectors for trolling motors
BOOANT 24V 30Ah LiFePO4 marine battery size and weight diagram showing 280x170x75 mm dimensions and 6.0 kg 13.2 lbs total weight
BOOANT authentic LTT 32700 3.2V 6000mAh Grade-A LiFePO4 cylindrical cell showing high capacity, top and bottom terminal views, and long cycle life specifications
BOOANT 24V 30Ah LiFePO4 marine battery pack side view showing waterproof end cap sealant, blue PVC shrink wrap, dedicated XT60 charge plug, and XT90 discharge connector
BOOANT 24V 30Ah LiFePO4 battery back view showing safety warning label, durable blue PVC heat shrink, XT60 charging lead, and XT90 discharge cable
BOOANT 29.2V 5A smart fast charger for LiFePO4 battery featuring aluminum alloy housing, cooling fan, dual fuse protection, and XT60 output connector
BOOANT 24V 30Ah LiFePO4 marine battery pack bundled with 29.2V 5A aluminum fast charger, smart Bluetooth BMS, and pre-soldered XT60/XT90 connectors
BOOANT 24V 30Ah LiFePO4 marine battery packing list including 29.2V 5A charger, AC power cable, and heavy-duty discharge extension cable
BOOANT 24V 30Ah LiFePO4 deep cycle marine battery pack with integrated smart Bluetooth BMS and XT90 connectors for trolling motors
BOOANT 24V 30Ah LiFePO4 marine battery size and weight diagram showing 280x170x75 mm dimensions and 6.0 kg 13.2 lbs total weight
BOOANT authentic LTT 32700 3.2V 6000mAh Grade-A LiFePO4 cylindrical cell showing high capacity, top and bottom terminal views, and long cycle life specifications
BOOANT 24V 30Ah LiFePO4 marine battery pack side view showing waterproof end cap sealant, blue PVC shrink wrap, dedicated XT60 charge plug, and XT90 discharge connector
BOOANT 24V 30Ah LiFePO4 battery back view showing safety warning label, durable blue PVC heat shrink, XT60 charging lead, and XT90 discharge cable
BOOANT 29.2V 5A smart fast charger for LiFePO4 battery featuring aluminum alloy housing, cooling fan, dual fuse protection, and XT60 output connector
BOOANT 24V 30Ah LiFePO4 marine battery pack bundled with 29.2V 5A aluminum fast charger, smart Bluetooth BMS, and pre-soldered XT60/XT90 connectors
BOOANT 24V 30Ah LiFePO4 marine battery packing list including 29.2V 5A charger, AC power cable, and heavy-duty discharge extension cable

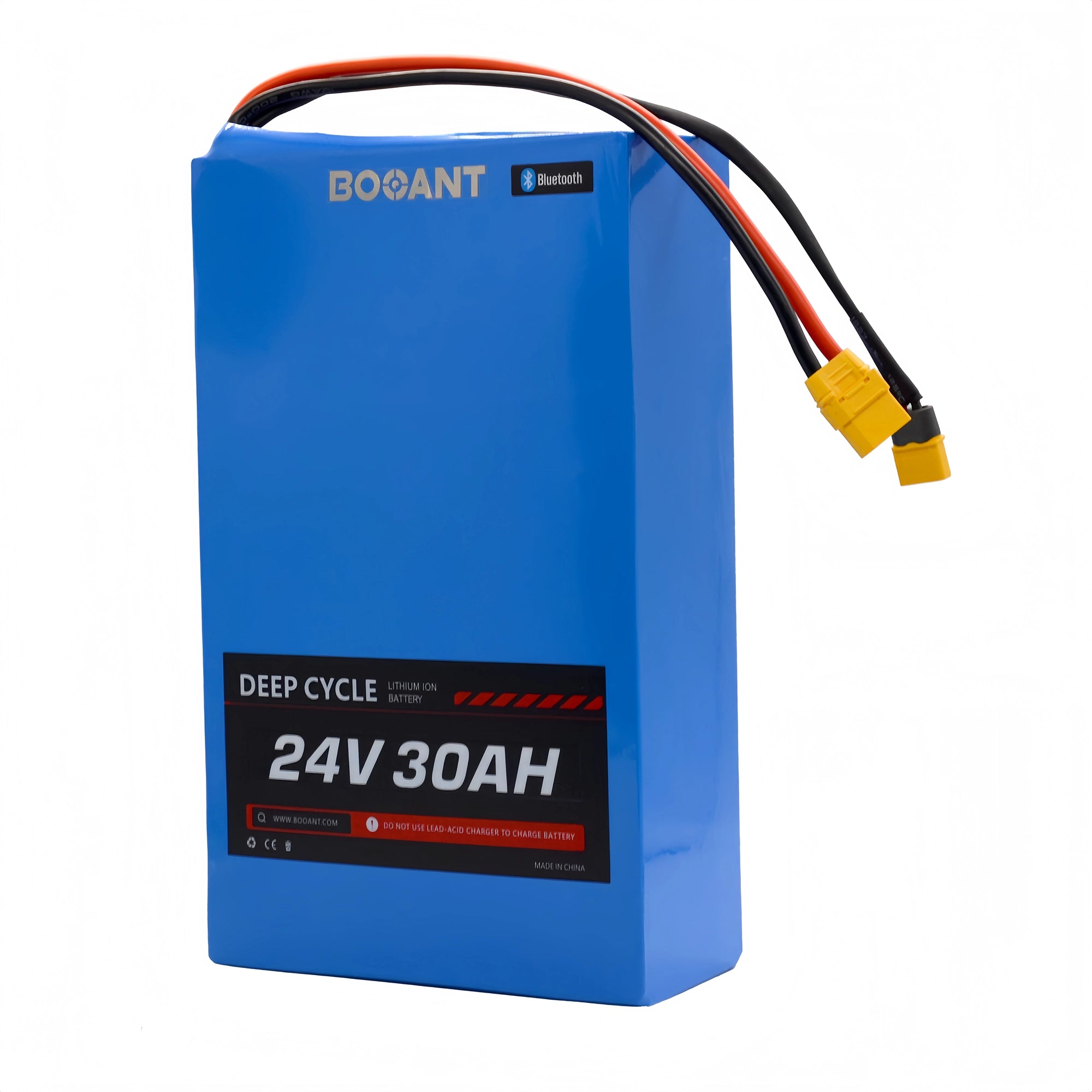

24V 30Ah LiFePO4 Battery – JBD Smart BMS

$409.99

Free Shipping + Duties Included
Built Fresh To Order
2-Year Full Warranty
  • 768Wh Grade-A LiFePO4 : 40 authentic LTT 32700 cells (8S5P) providing a stable 25.6V power curve for 24V marine systems.
  • Compact & Lightweight Build : 280 × 170 × 75 mm (11.0 × 6.7 × 3.0 in) and approx. 6.0 kg (13.2 lbs) for easy drop-in marine box fitment.
  • Smart JBD Bluetooth BMS : Phone app monitoring for live cell voltage and temperature, with 30A, 50A, or 60A continuous output options.
  • Dual Waterproof & Epoxy Seal : End caps sealed against hull spray, reinforced with internal epoxy boards to isolate cells and prevent vibration shorts.
  • Fast Charger & Custom Plugs : Bundled 29.2V 5A charger for a 6–7h recharge, with free soldered XT60, XT90, or Anderson connectors.
Motor Power & BMS
30A Standard | 250W–750W Motors
50A High Power | 750W–1200W Motors
60A Performance | 1000W–1500W Motors
Discharge Connector
QS8 plug
Anderson
XT90F/M
XT60F/M
Wire only
Motor Power & BMS
Discharge Connector

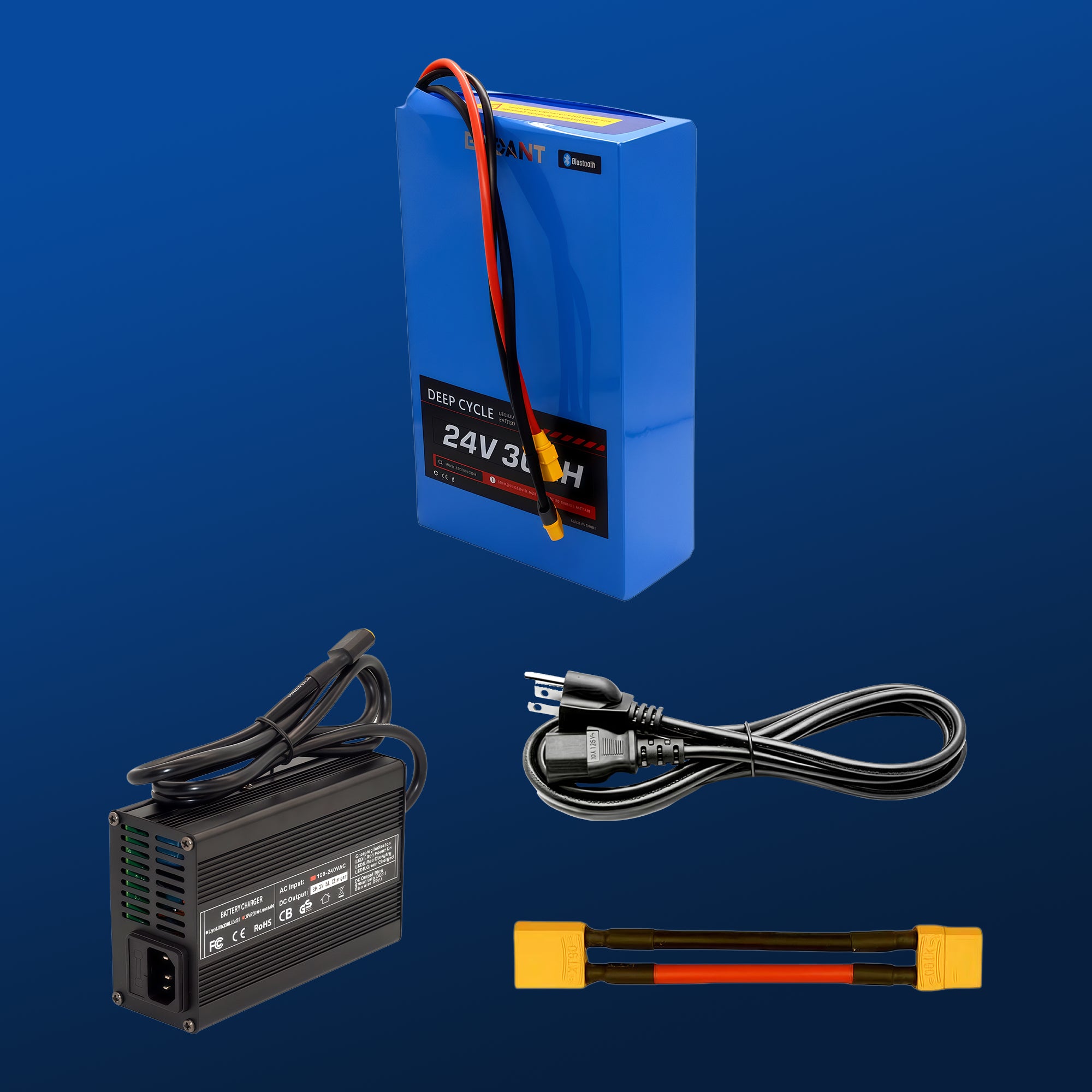

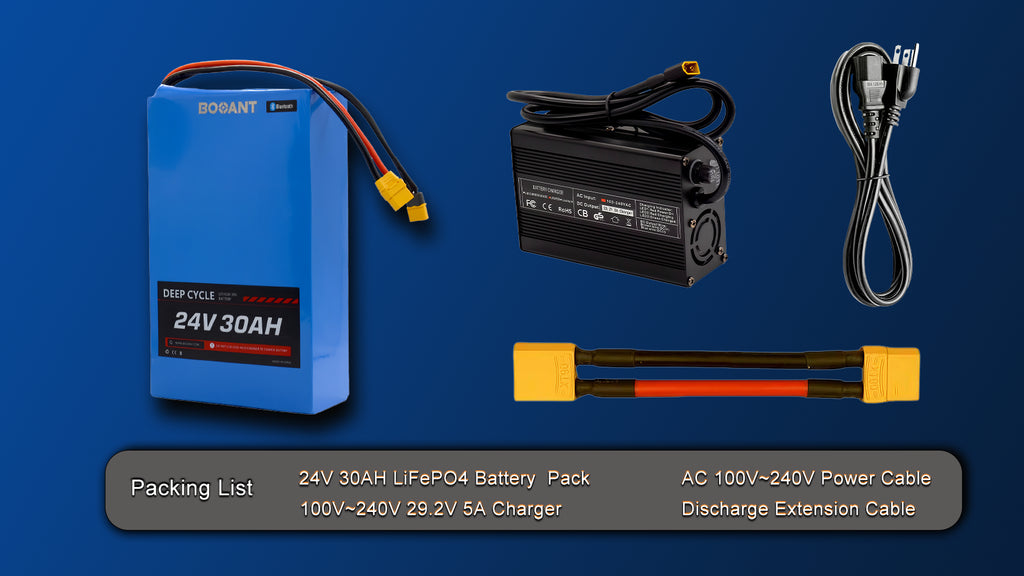

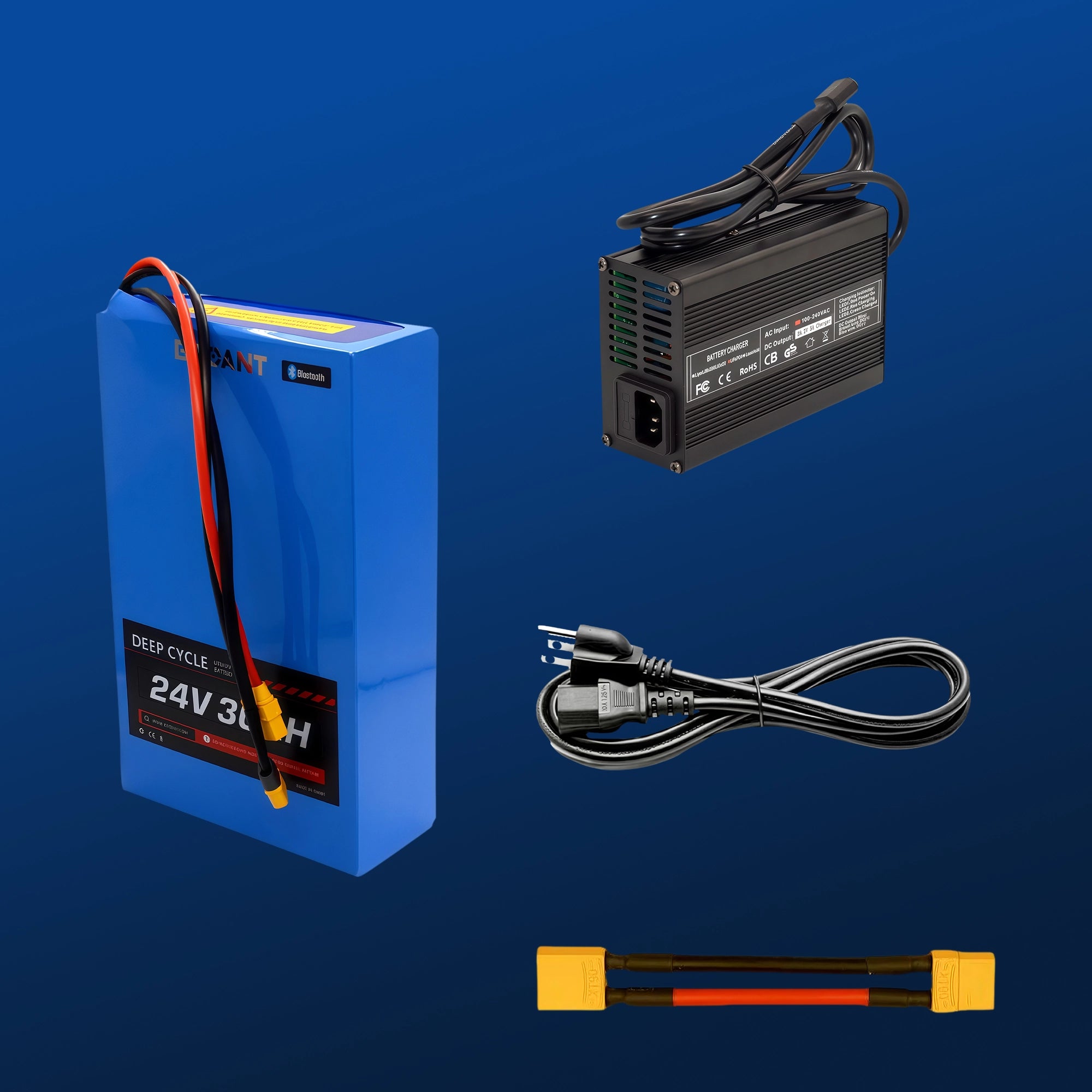

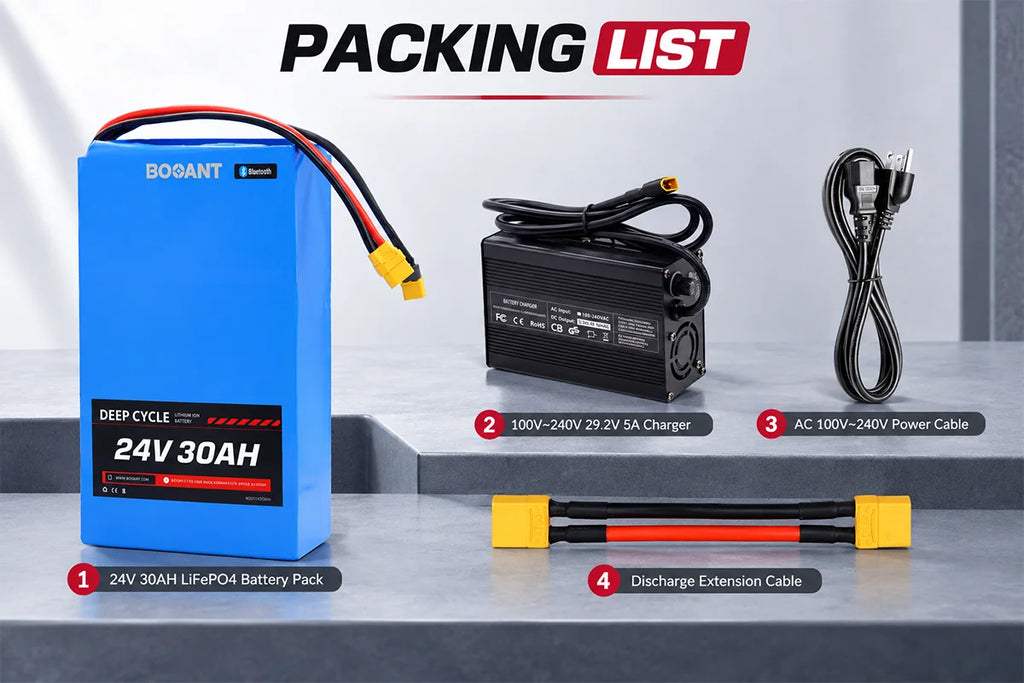

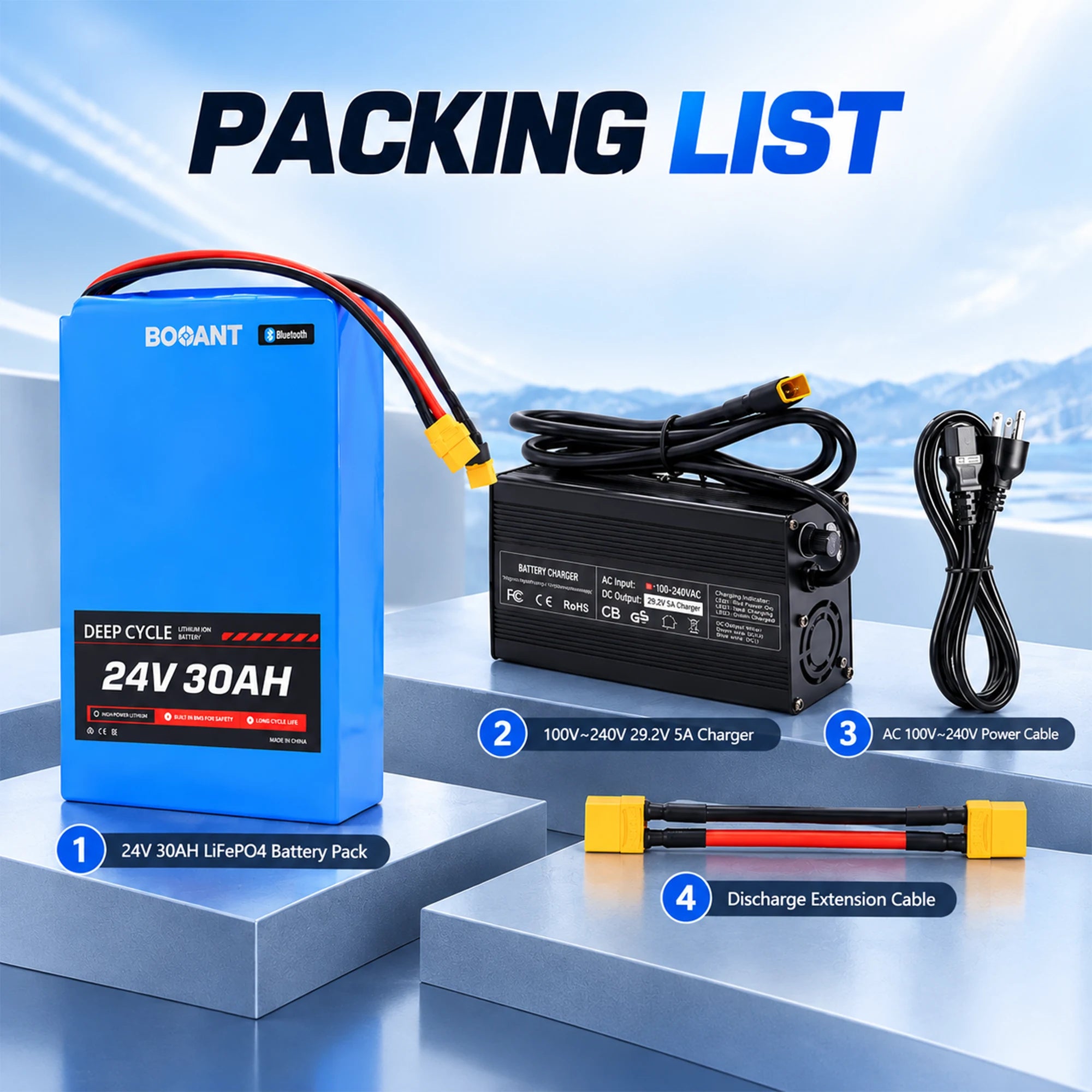

❖ WHAT YOU WILL GET
⚡ 1 × Lithium Battery Pack
🔌 1 × Smart Fast Charger
🎒 1 × E-bike Battery Bag
🔗 1 × Discharge Extension Cable (Matched to Your Selected Connector)
🔌 1 × AC Power Cord (Matched to Your Country's Standard)
🎬
BOOANT Power In Action Watch real tests, setups & riding videos
📄 Download Product Datasheet

Access detailed battery specifications, dimensions, cell configuration, BMS features, charging parameters, and performance data.

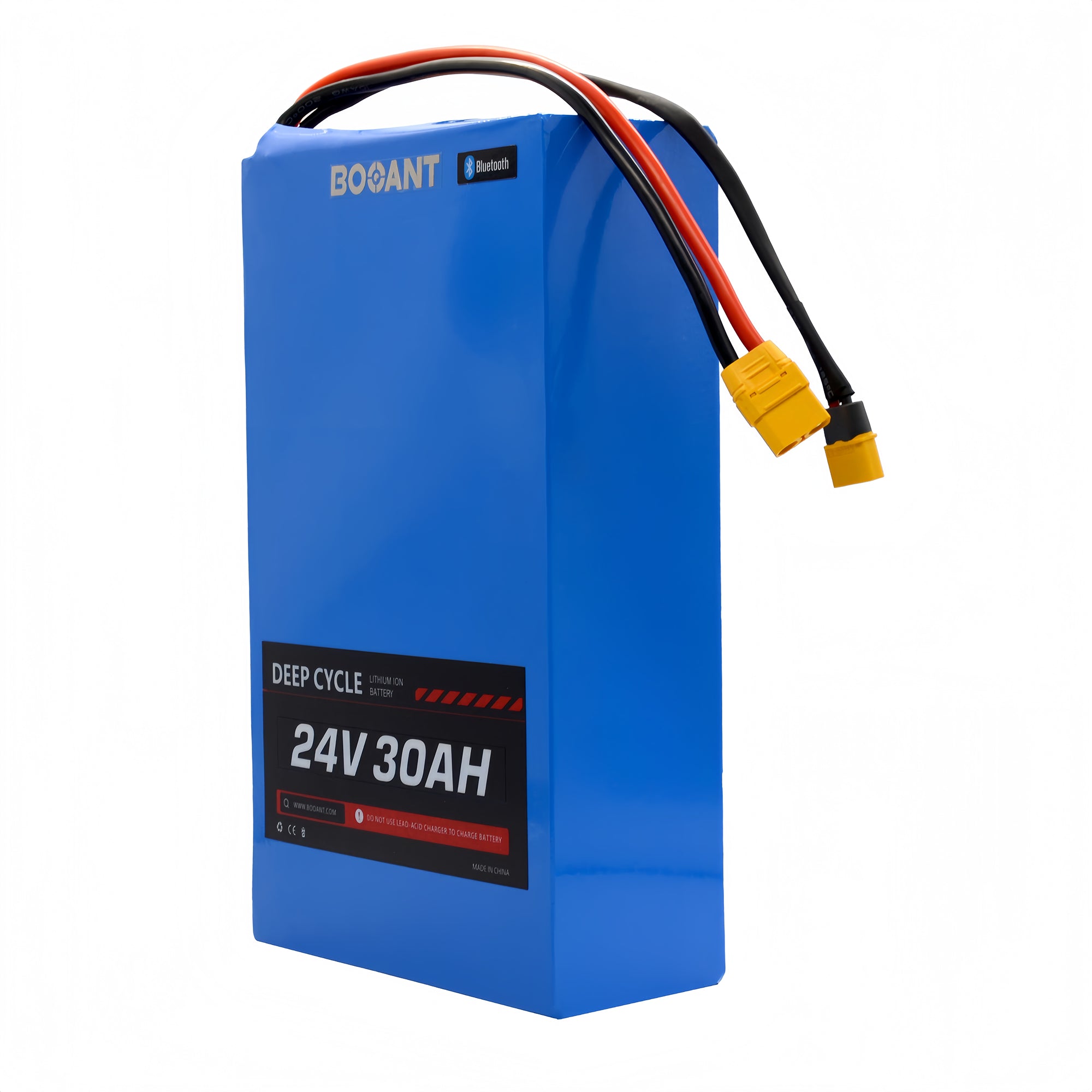

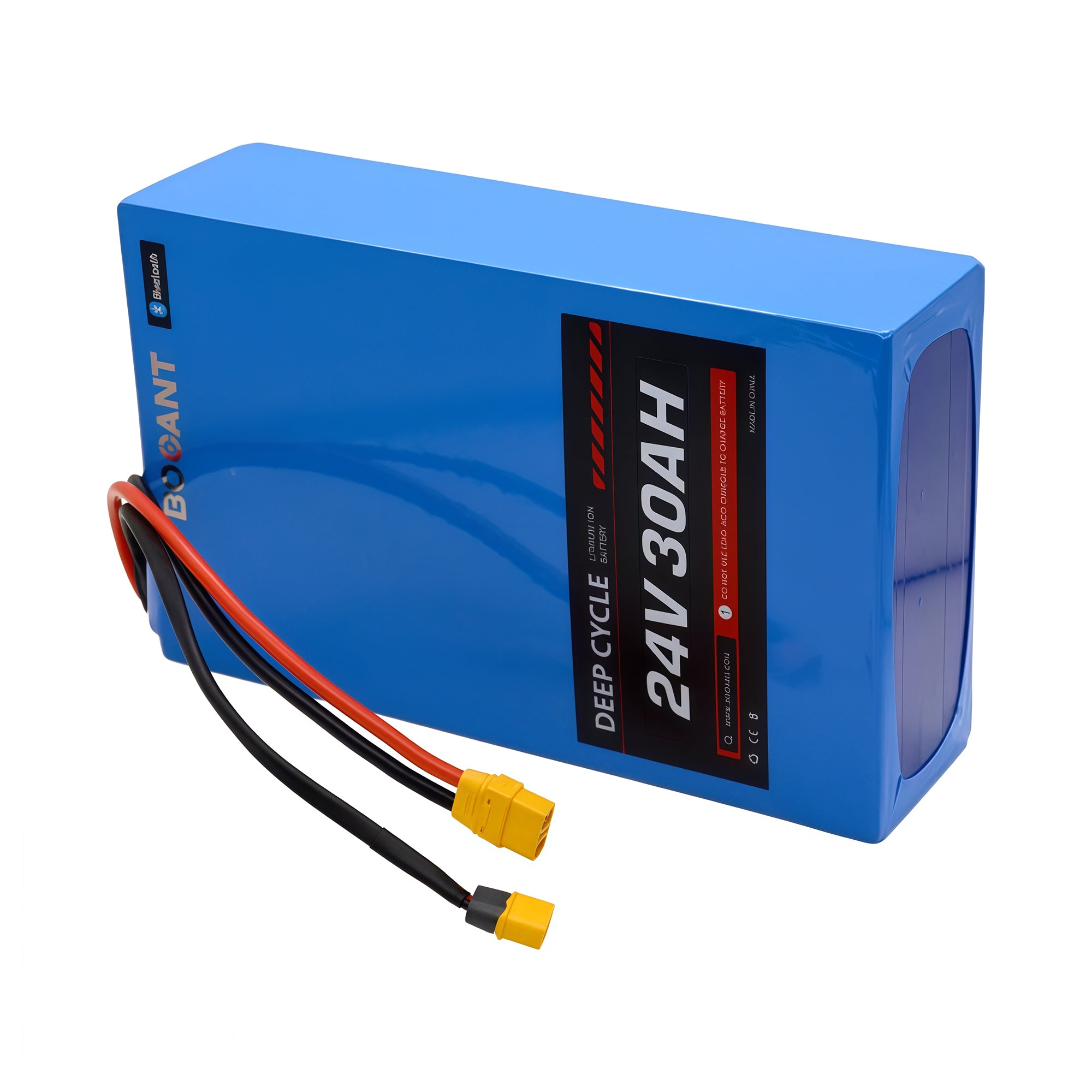

24V 30Ah LiFePO4 Deep Cycle Battery

Powered by 40 genuine LTT 32700 cells (8S5P) and guarded by an intelligent JBD Bluetooth BMS. Built with internal epoxy cell isolation and dual waterproof sealing for rugged, all-weather reliability.

24V
Nominal Voltage
Flat, stable output
30Ah
Capacity
768Wh true energy
8S5P
Configuration
40x LTT 32700 cells
6-7h
Fast Charge
29.2V 5A charger incl.

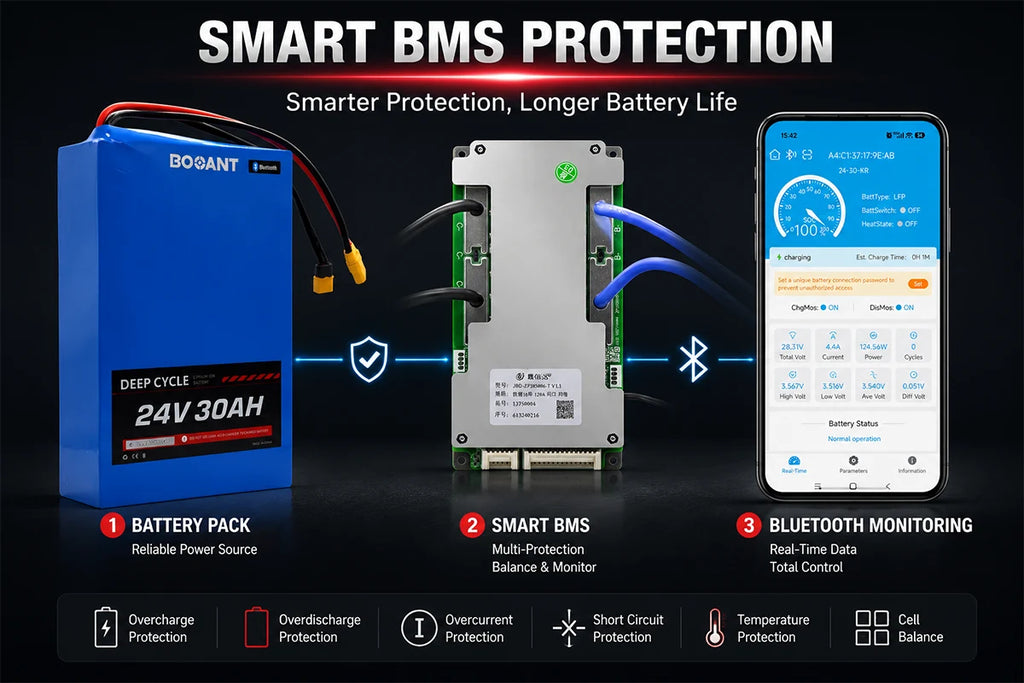

JBD Bluetooth Smart BMS
Live phone stats & remote power cutoff.
Epoxy Board Isolation
Prevents internal friction shorts & vibration wear.
Dual Waterproof Seals
Top and bottom sealed against puddles & mist.
Smart 5A Fast Charge
Full recharge in 6-7 hrs without cell overheating.

Technical Specifications

Electrical & Battery Management
Voltage & Energy
25.6V Nominal (24V) / 768Wh (30Ah)
Cell Matrix
8S5P (40x Authentic LTT 32700 Grade-A)
Smart BMS
Integrated JBD Bluetooth App Control
Matched Charger
29.2V 5A Smart Charger (~6–7h Full Charge)
Dimensions & Build

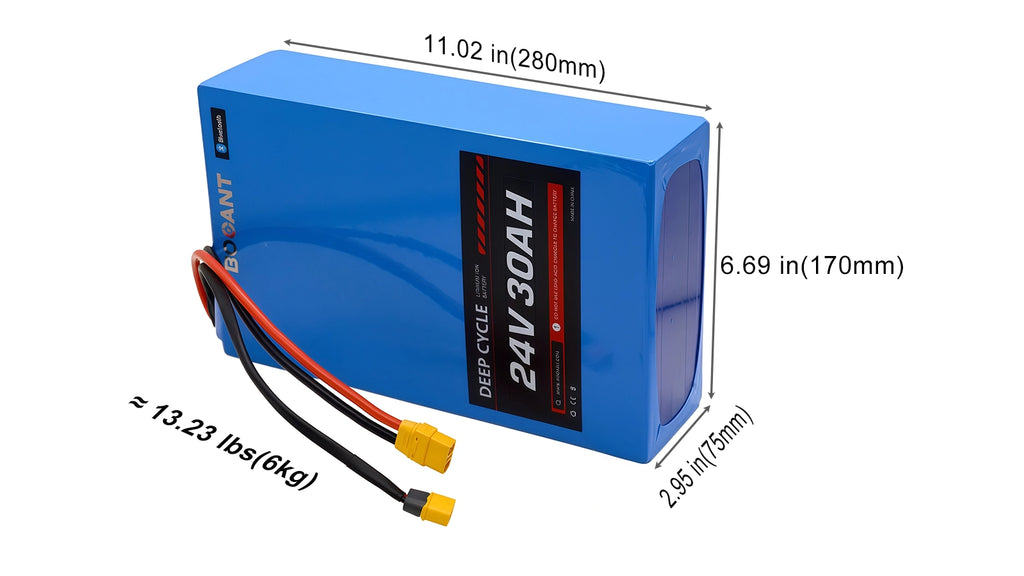

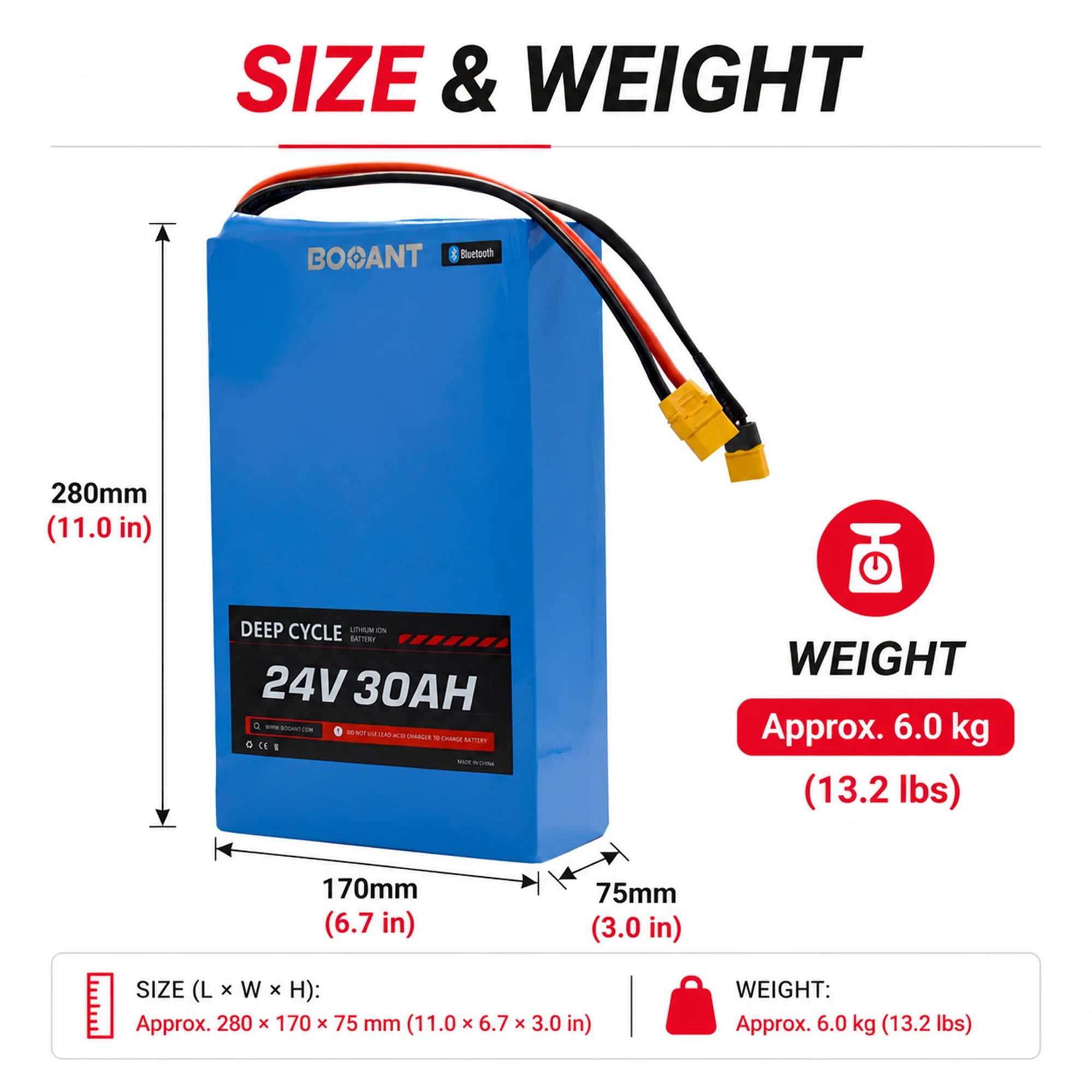

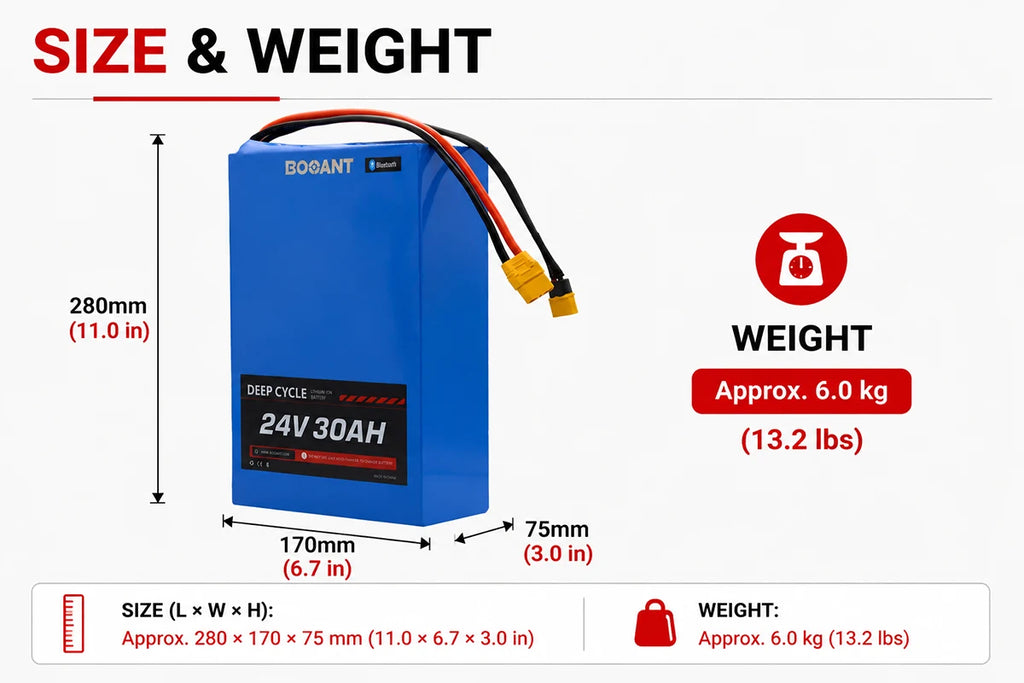

Dimensions (L × W × H)
280 × 170 × 75 mm (11.0 × 6.7 × 3.0 in)
Total Weight
Approx. 6.0 kg (13.2 lbs)
Internal Insulation
Flame-Resistant Epoxy Board Plates
Outer Casing
Heavy-Duty PVC + Dual-End Waterproof Seal
Environment & Guarantee
Discharge Range
-20°C to 60°C (-4°F to 140°F)
Charge Range
0°C to 45°C (32°F to 113°F)
Recommended Storage
0°C to 35°C (32°F to 95°F) @ 50% SOC
Warranty
2-Year Manufacturer Warranty
DIY Fitment & Tolerance: Measured with an industrial tolerance of ±3–5 mm (0.1–0.2 in). For custom e-bike triangles or battery enclosures, allow 10 mm (0.4 in) extra space for cable bends and terminals.

Marine JBD BMS & Trolling Motor Matching Guide

Select the continuous discharge current that fits your outboard draw or bow-mount trolling motor thrust. Built-in burst tolerance handles sudden throttle punches without tripping safety cuts.

Kayak & Small Jon Boats
30A BMS
For 55 lb–70 lb Motors (250W–750W)
Peak Surge: 90A Instant Cutoff
Trolling Run Time: ~6–8 hrs (Low/Med Speed)
Wide-Open Throttle: ~1.5–2.0 hrs Continuous
Optimized for calm lake fishing, inflatable pontoons, and kayak spot-lock systems.
Bass Boats & Deep V Hulls
50A BMS
For 70 lb–85 lb Motors (750W–1200W)
Peak Surge: 150A Instant Cutoff
Trolling Run Time: ~4–6 hrs (Low/Med Speed)
Wide-Open Throttle: ~1.2–1.8 hrs Continuous
Reliable constant thrust against river currents and moderate surface chop.
Heavy Skiffs & High-Thrust Rigs
60A BMS
For 85 lb–112 lb+ Motors (1000W–1500W)
Peak Surge: 180A Instant Cutoff
Trolling Run Time: ~3–5 hrs (Low/Med Speed)
Wide-Open Throttle: ~1.0–1.3 hrs Continuous
Maximum burst output for rough tidal waters, heavy gear payloads, and fast maneuvers.
Real-World On-Water Variables: Estimated battery run times reflect typical trolling duty cycles (768Wh total capacity). Actual operational hours depend heavily on hull weight, crew and livewell load, wind drag, tidal river currents, and prop drag through thick weed beds.

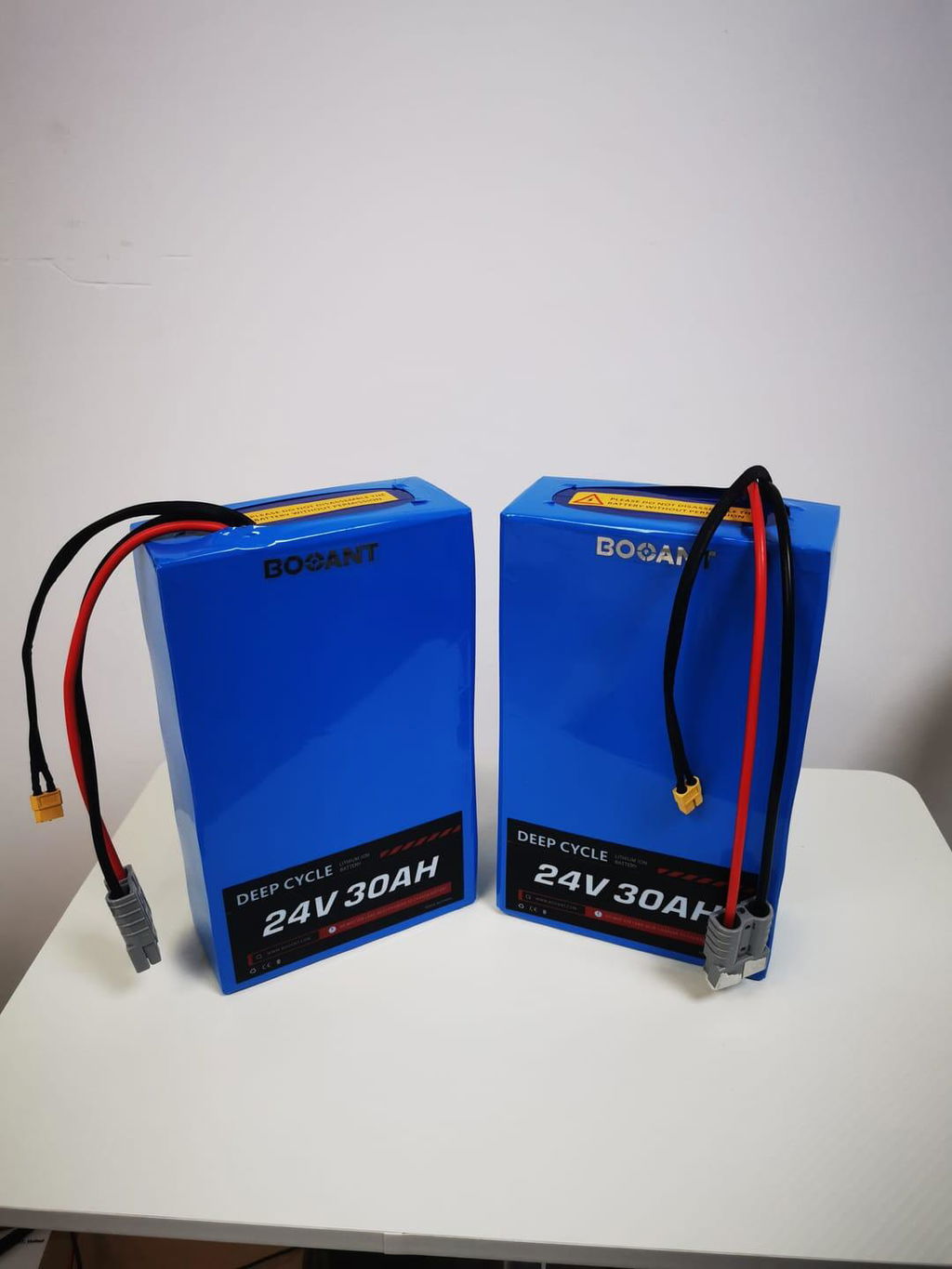

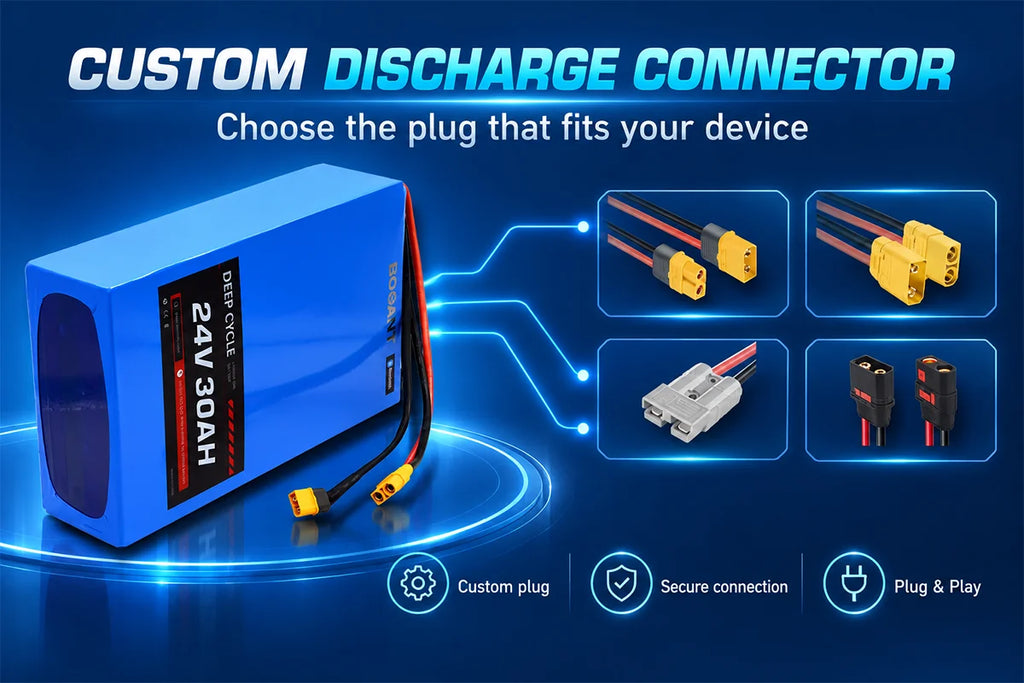

Discharge Connector Options (Pre-Soldered & Plug-and-Play)
Clean, factory-soldered leads with heat-shrink insulation for secure marine contact.
Supported Terminals
XT60, XT90, Anderson SB50, or T-Plug (Deans) based on your motor power draw.
Default Configuration
Ships standard with an XT60 / XT90 female lead unless otherwise requested at checkout.
Free Customization
Need a specific plug? Leave an order note at checkout with your plug type and wire length needs.

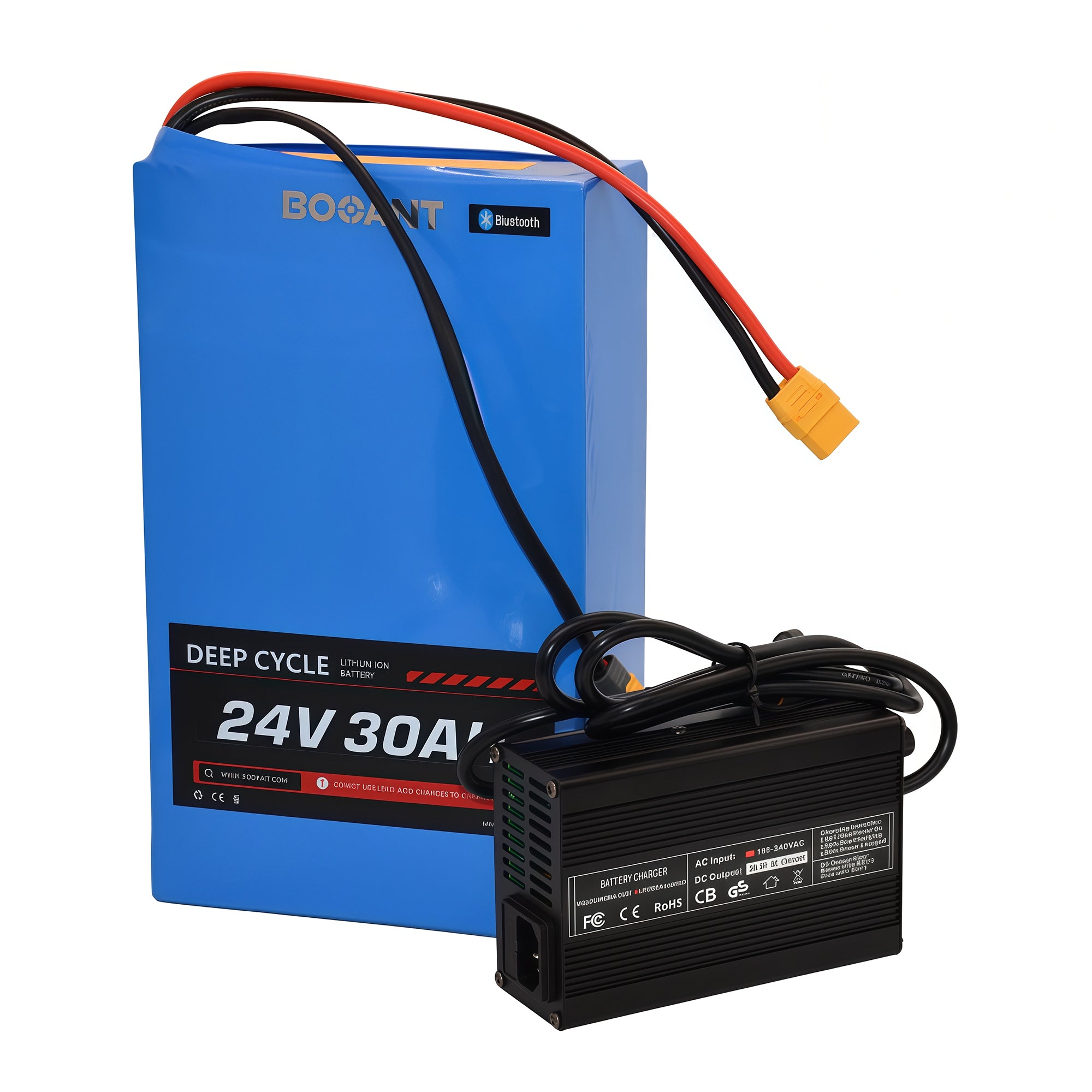

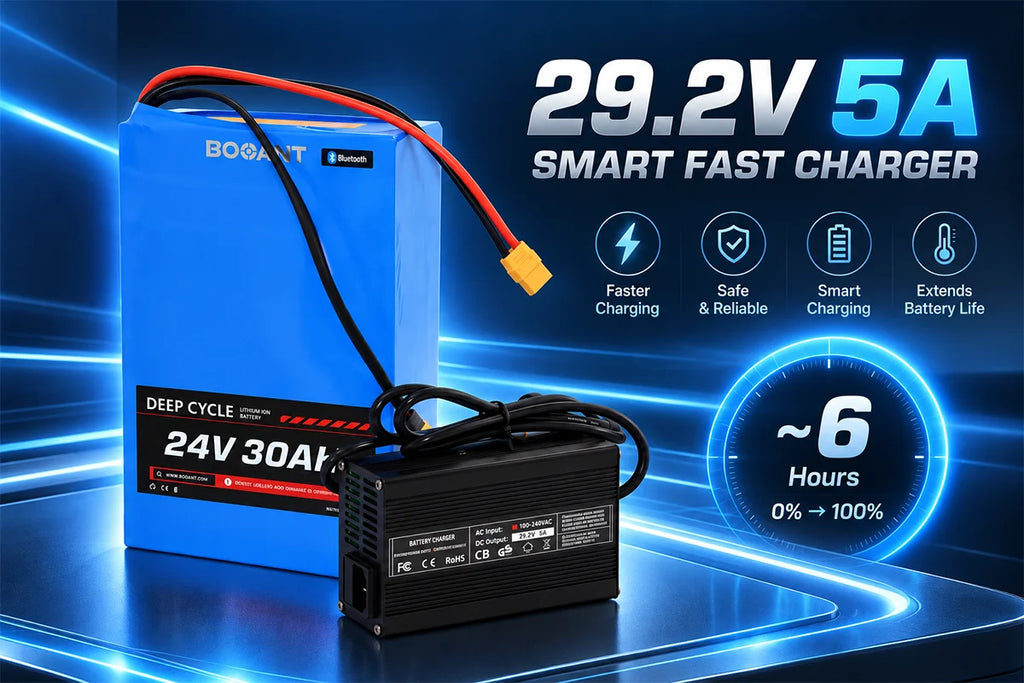

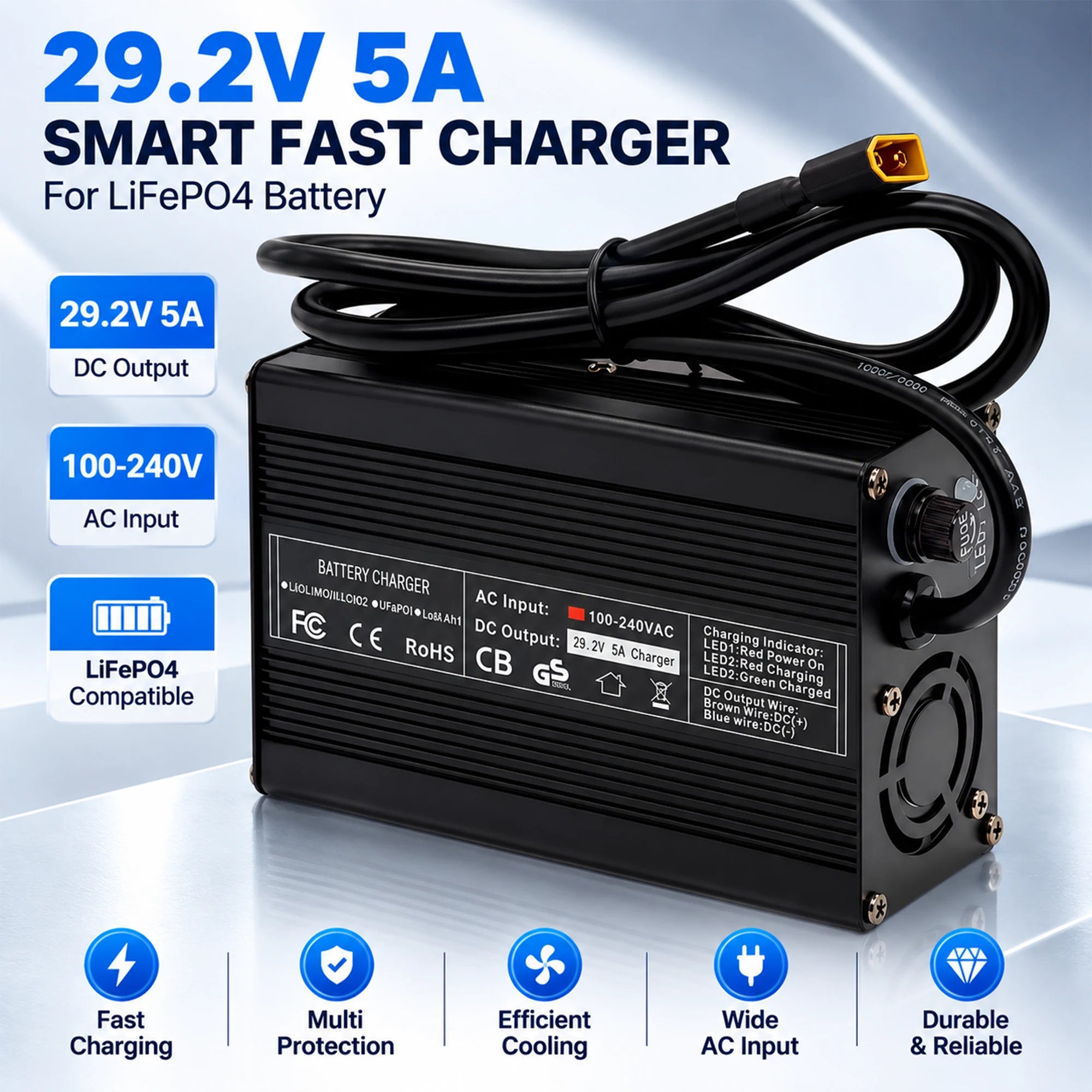

29.2V 5A Smart Fast Charger Included

Tailored CC/CV charging profile. Fully recharges the 30Ah pack in 6–7 hours with zero thermal stress on LiFePO4 cells.

Metal Housing
Rugged alloy casing
Cooling Fan
High-RPM airflow
Dual Fuses
250V AC + 10A DC
Grounded AC
Tight cable lock
LED Indicator Status:
Red: Fast Charging / Fault Green: Fully Charged / Standby

FAQ

Direct answers to common questions about trolling motor compatibility, Bluetooth monitoring, charging, and custom marine setups.

Will this 24V 30Ah pack power my 24V bow-mount trolling motor?
Yes. It delivers a sustained 25.6V nominal voltage suitable for popular 24V trolling motors (such as Minn Kota, MotorGuide, and Newport Vessels). Be sure to choose the 30A BMS for 55–70 lb motors, or step up to 50A/60A BMS if your setup pulls higher continuous amperage in strong currents.
How does the JBD Bluetooth monitoring work on the water?
Download the standard JBD/Xiaoxiang BMS app on iOS or Android. Open the app near your boat to check live individual cell voltages, remaining capacity percentage, real-time current draw, and pack temperature. You can also toggle the discharge port off remotely when leaving the boat docked.
Is the battery waterproof against boat washdown and hull spray?
The battery features dual waterproof sealant applied to top and bottom end caps, combined with heavy-duty heat-shrink PVC. It resists deck splashes, rain, and light morning condensation. However, it is not meant to be submerged under standing bilge water, so housing it inside a ventilated marine battery box or elevated hatch is recommended.
Can I use an existing lead-acid or AGM boat charger?
No. Traditional lead-acid chargers use desulfation and equalization stages with unsuitable voltage cutoffs that can trigger BMS safety lockouts. Always use the included dedicated 29.2V 5A LiFePO4 smart charger, which applies a precise CC/CV charging profile to top up the battery in roughly 6–7 hours.
What plug comes soldered on the battery, and how do I request a custom one?
The default build ships with an XT60 or XT90 female connector with heavy silicone leads. If your rig requires an Anderson SB50, T-Plug (Deans), or ring terminals for a marine breaker, simply note your required connector at checkout. Our workshop solders and insulates it prior to dispatch at no additional fee.
Can I connect multiple packs in series or parallel for larger battery banks?
Parallel connections (up to 2 packs for 24V 60Ah) are supported as long as both packs are brought to within 0.1V of each other before pairing. Series connections (to create 48V) are not supported due to the internal BMS MOSFET voltage tolerance. If you need a native 48V battery, contact us directly for an engineered 16S configuration.

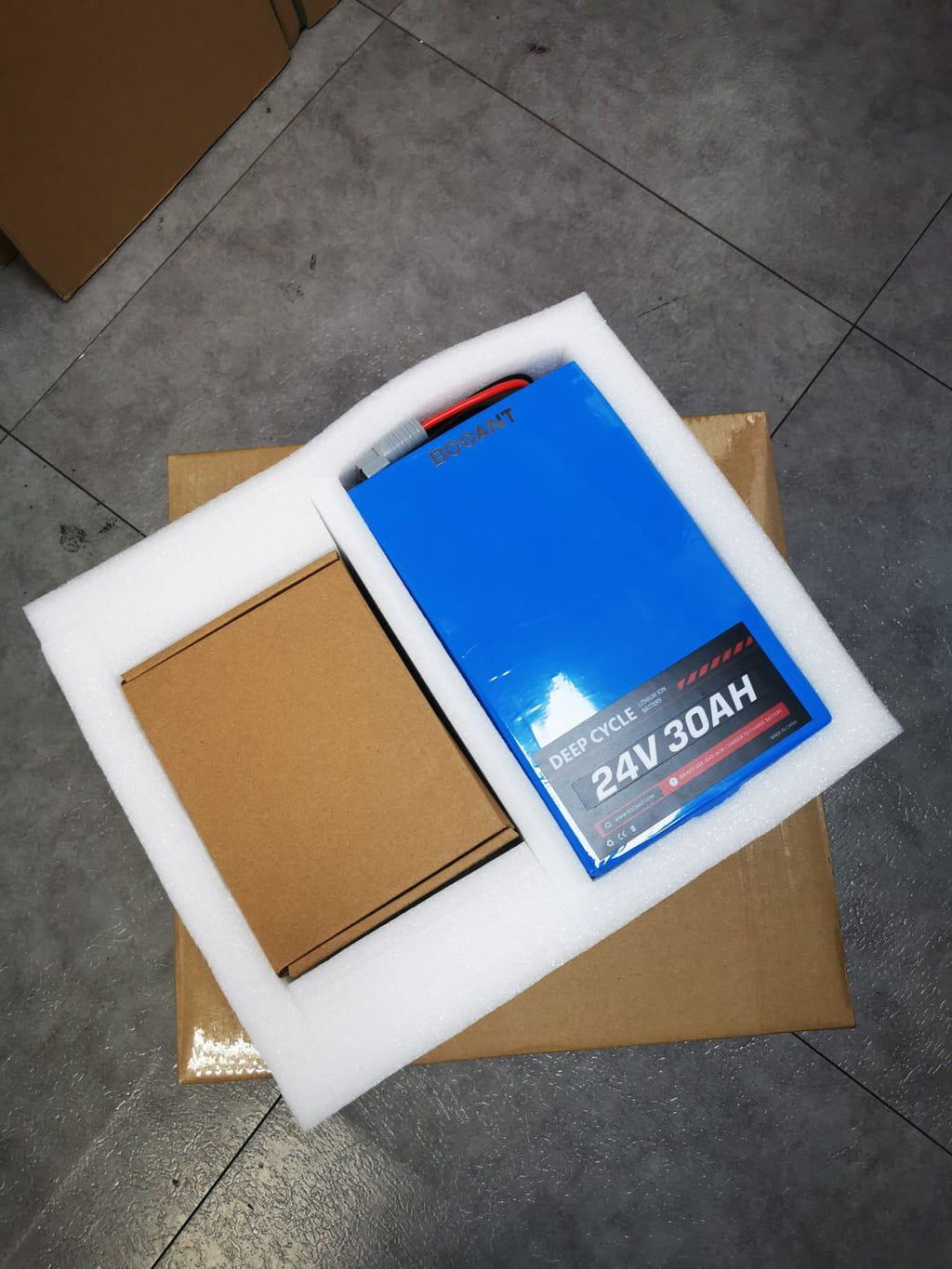

Fulfillment & Logistics

Built-To-Order & Shipping Quality

Every pack is assembled fresh to order to ensure full chemical cycle life and zero shelf degradation.

01
Fresh Built-To-Order

Hand-assembled upon receipt of your order, never pulled from aged warehouse stock. Delivers maximum capacity, uncompromised cycle longevity, and factory-fresh cell chemistry.

02
LTT Cells & Bench QC

Built strictly with authentic Grade-A LTT 32700 cells. Each finished pack undergoes full-cycle charge/discharge stress tests to verify cell balance and BMS cutoffs before packing.

03
DDP Doorstep Freight

Ships tracked via FedEx/UPS (US/CA) or DPD/DHL (EU) in 15–20 business days. Customs clearance and import duties are fully covered right to your doorstep.
