48V 20Ah E-Bike Triangle Battery Pack | Samsung 50G Cells
Free Shipping + Duties Included
Free Shipping + Duties Included
Free Shipping + Duties Included
Free Shipping + Duties Included
Free Shipping + Duties Included
Free Shipping + Duties Included
Free Shipping + Duties Included
Free Shipping + Duties Included
Free Shipping + Duties Included
Free Shipping + Duties Included
Free Shipping + Duties Included
|
Built Fresh To Order
|
2-Year Full Warranty
|
- Genuine Samsung 21700 50G Cells (13S4P) : Built with 52 original Grade-A Samsung cells delivering true 48V 20Ah (960Wh) capacity with zero voltage sag on steep climbs.

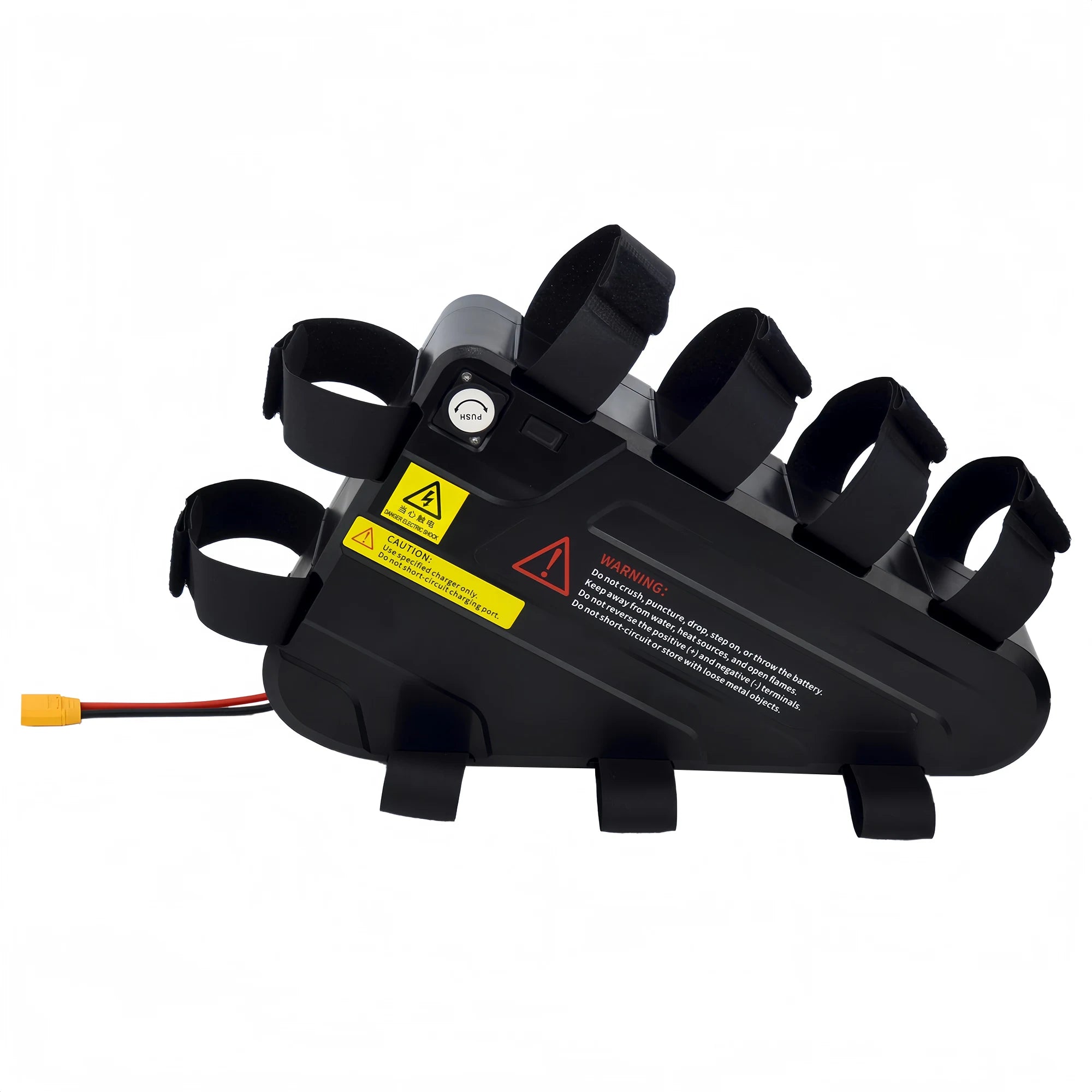

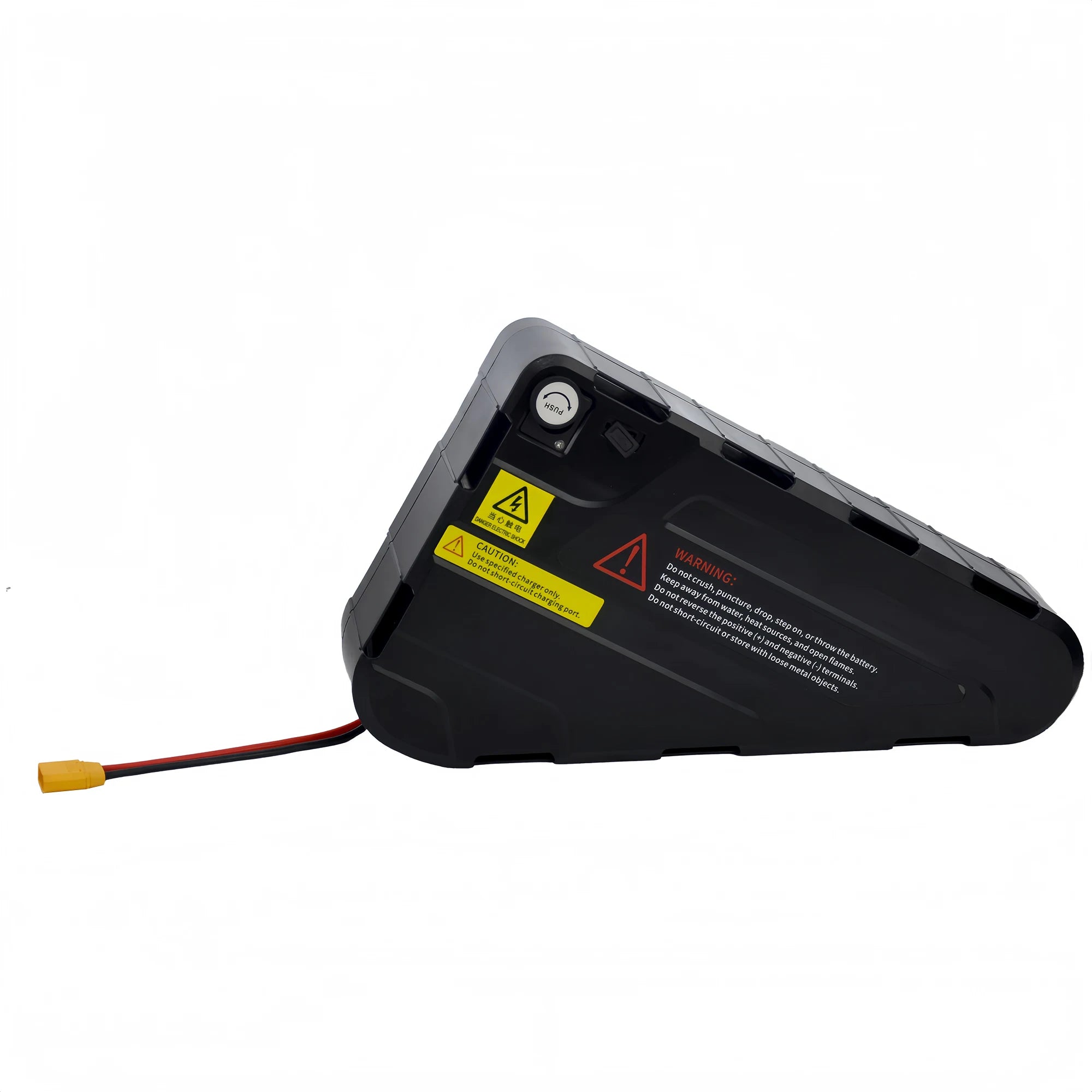

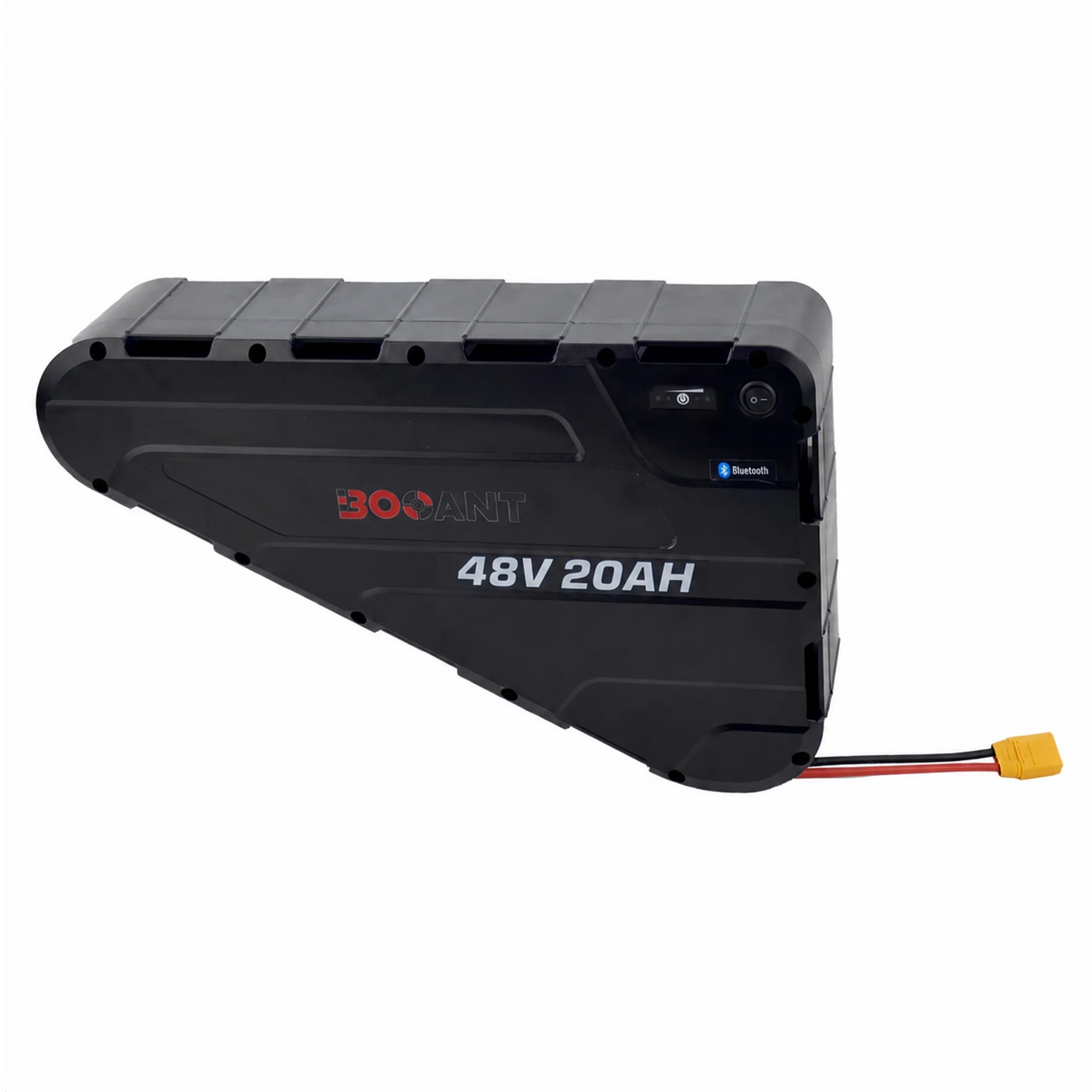

- Rugged ABS Triangle Hard Case : Protects cells from road debris and weather; features a push-button LED battery fuel gauge, master on/off power switch, and a 5V 2A USB phone charging port.
- Smart JBD Bluetooth BMS (30A / 40A) : Real-time smartphone app monitoring for individual cell voltages and temperatures, matched for 1000W to 1500W hub and mid-drive e-bike motor kits.

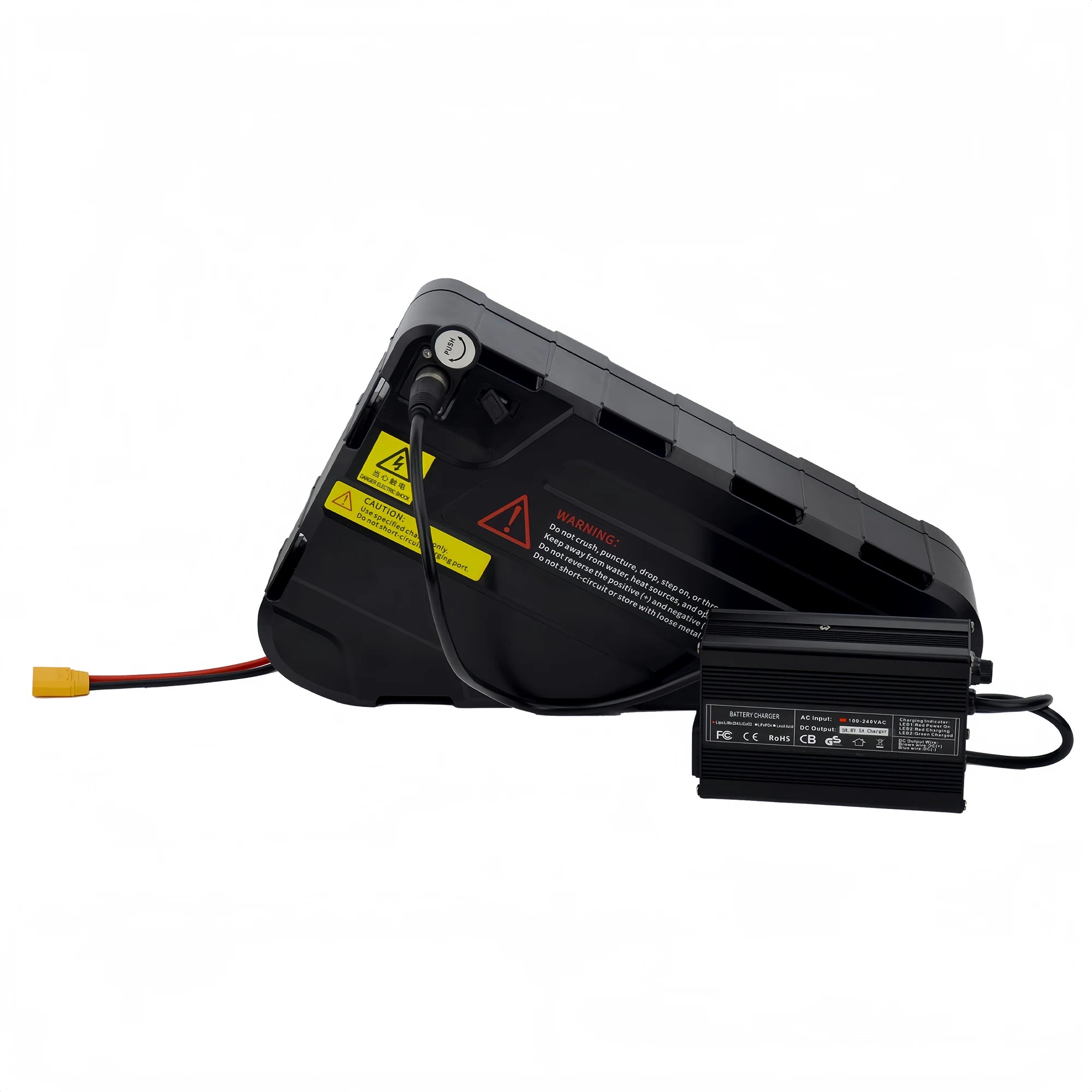

- 54.6V 5A Smart Fast Charger Included : Heavy-duty aluminum fan-cooled CC/CV fast charger cuts recharge time down to approximately 4 hours with automatic full-charge shutoff.
- Tested Frame Fit & 2-Year Warranty : Direct triangle frame mounting (375 × 235 × 410 × 90 mm) backed by full 2-year warranty coverage and dedicated DIY e-bike technical support.
48V 20Ah Triangle E-Bike Battery Pack
Engineered for long-range e-bike conversions and direct frame mounting. Powered by 52 genuine Samsung 21700 50G cells in a rigid ABS case, this pack delivers sustained high-power output with zero voltage sag on steep climbs.
Nominal (13S Configuration)
960Wh True Capacity
Samsung 21700 Cells
Smart Charger Included
Built with 52 original Samsung 50G cells (13S4P). Delivers sustained high-drain power with extended cycle life.
High-impact triangle casing protects internal cells. Features an LED fuel gauge, power switch, and USB phone charging.
Integrated JBD protection board with app telemetry. Monitor real-time cell voltages and switch charge/discharge remotely.
Aluminum fan-cooled fast charger recharges from empty in ~4 hours with automatic CC/CV cut-off protection.
Technical Specifications
| Electrical Performance | |
| Nominal Voltage & Capacity | 48V 20Ah (960Wh) |
| Battery Cell Model | Samsung INR21700-50G (5000mAh Grade-A) |
| Cell Configuration | 13 Series 4 Parallel (13S4P / 52 Cells Total) |
| Operating Voltage Range | 39.0V (Cut-off) – 54.6V (Full Charge) |
| Matched Charger | 54.6V 5A Smart Fast Charger (CC/CV, Fan-Cooled) |
| Charge Time | Approx. 4.0 – 4.5 Hours |
| Battery Management System (BMS) | |
| BMS Hardware | Smart JBD BMS with Bluetooth Module |
| App Telemetry & Control | iOS & Android App (Real-time Cell Voltage, Temp, Remote On/Off) |
| Hardware Protections | Over-charge, Over-discharge, Over-current, Short-circuit, Thermal protection |
| Physical & Hardware | |

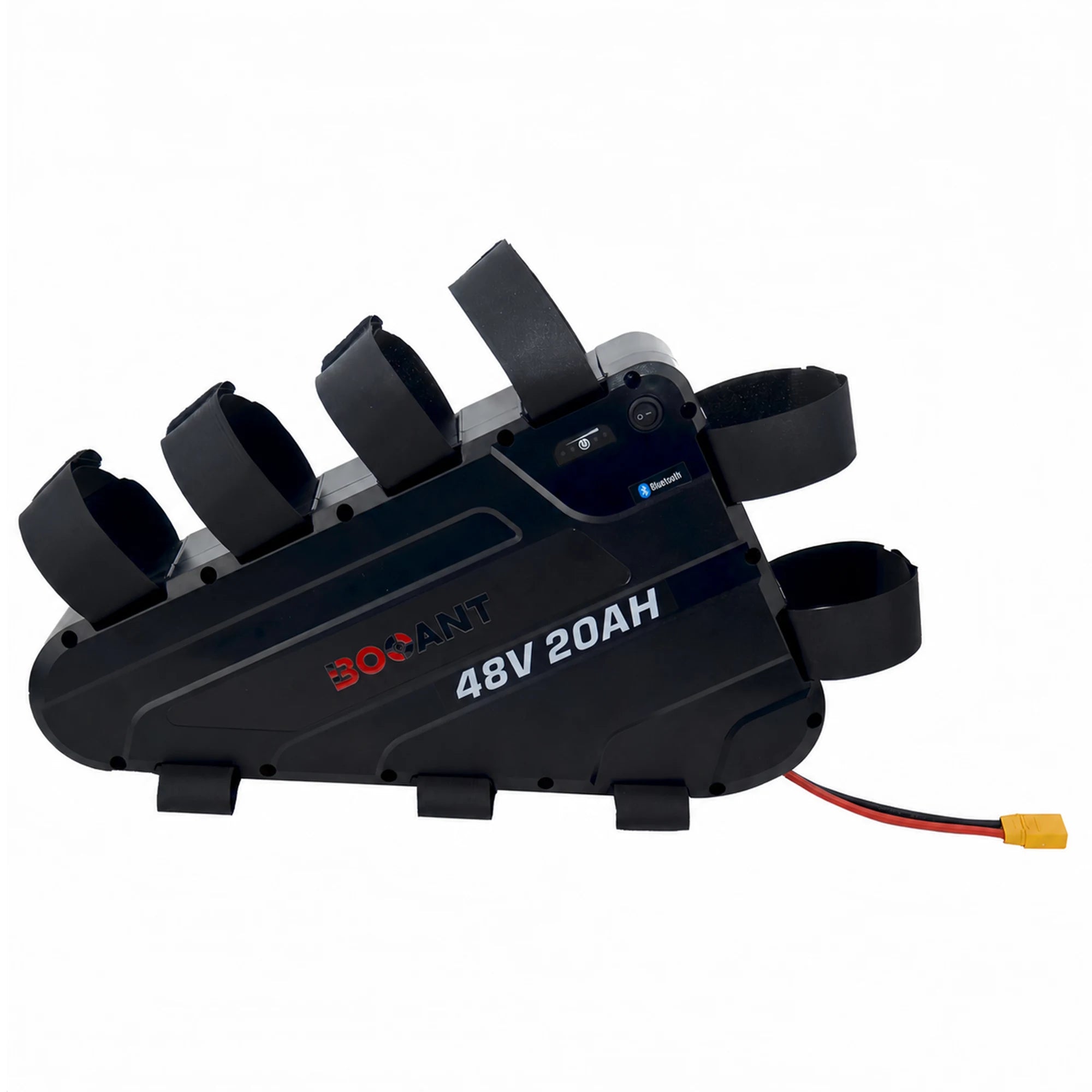

| Enclosure Type | Rigid ABS Triangle Plastic Hard Shell |

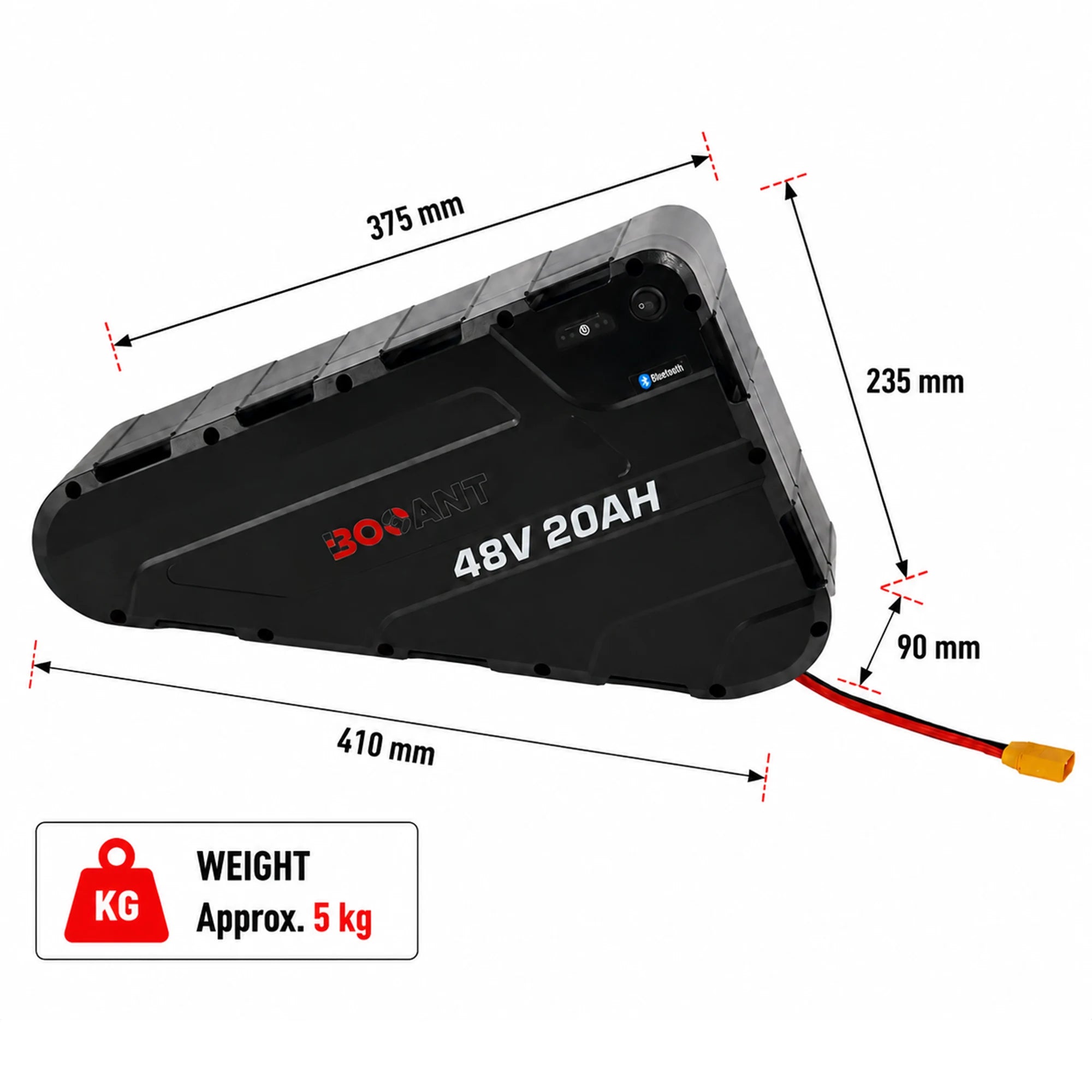

| Dimensions (L × H × Hypotenuse × W) | 375 × 235 × 410 × 90 mm 14.76 × 9.25 × 16.14 × 3.54 in |
| Weight | Approx. 5.0 kg (11.02 lbs) |

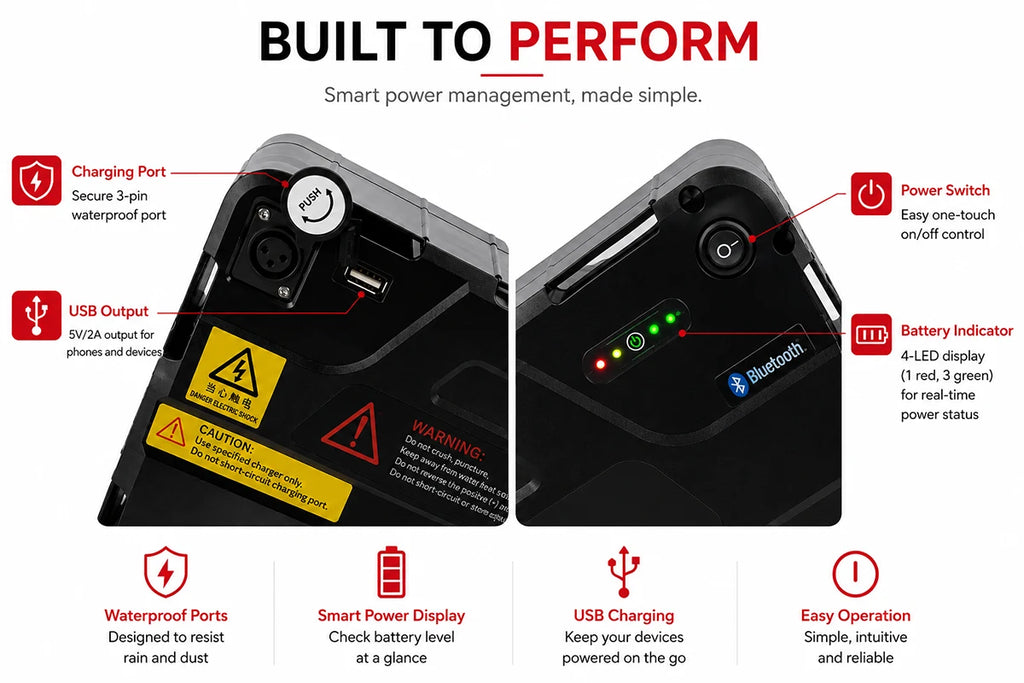

| On-Board Interfaces | LED Fuel Gauge, Master Power Switch, 5V 2A USB Output Port |
| Operating Environment & Warranty | |
| Charge Temperature | 0°C to 45°C (32°F to 113°F) |
| Discharge Temperature | -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature | 0°C to 35°C (32°F to 95°F) |
| Warranty Coverage | 2-Year Warranty (Technical Support & Service) |
Smart BMS & Motor Power Matching
Select the continuous BMS rating tailored to your e-bike motor and controller limits.

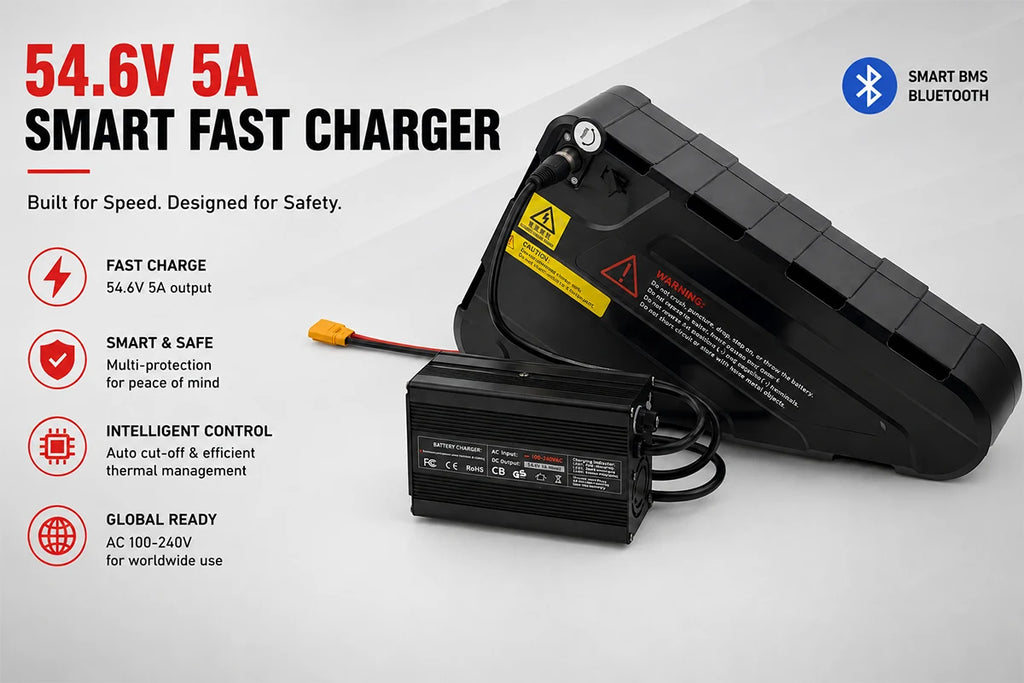

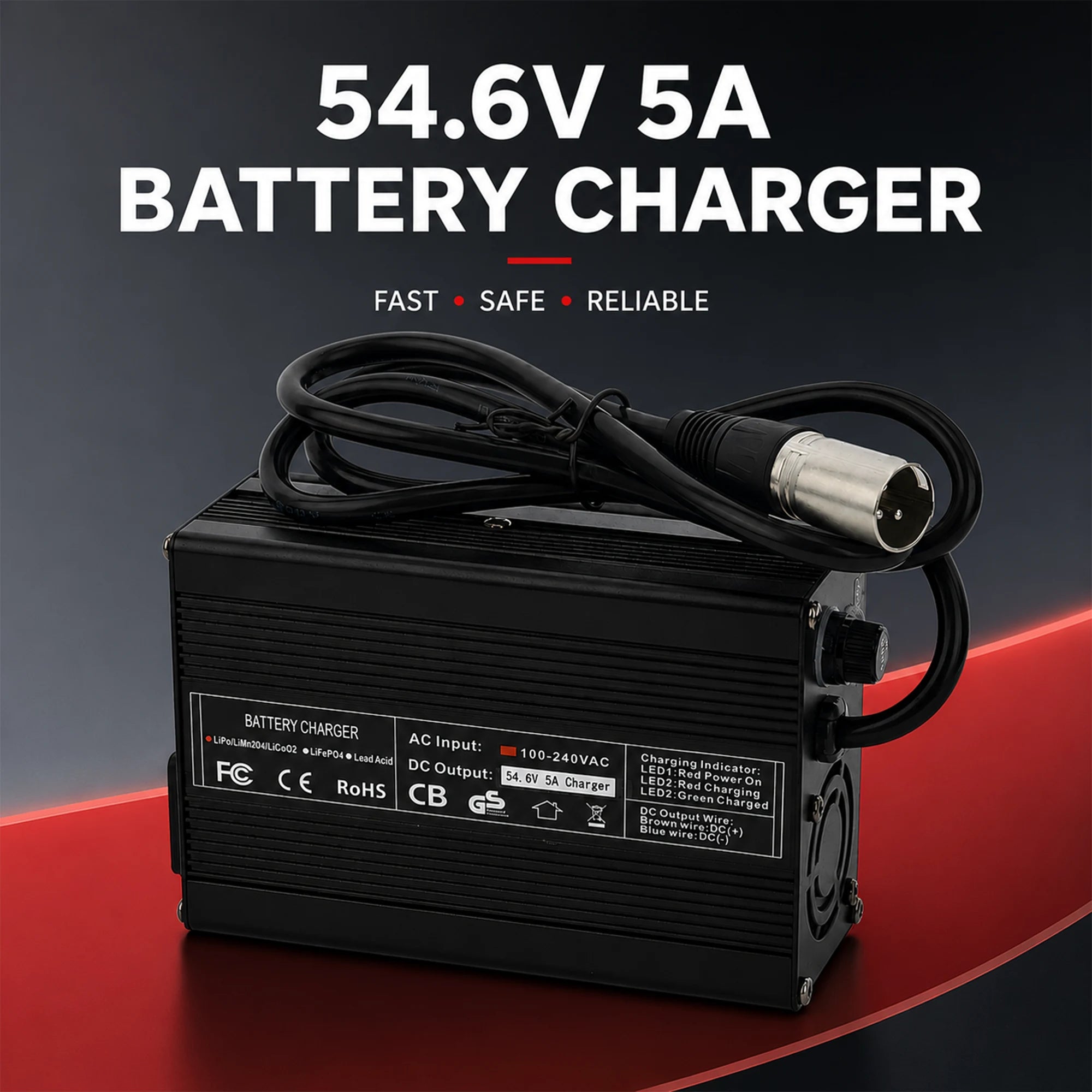

54.6V 5A Smart Fast Charger
Included with every battery pack to cut downtime and extend overall cell life.
5A constant current charges a 20Ah pack from empty in ~4 hours, automatically switching to CV trickle mode as cells top off.
Heavy-duty aluminum alloy housing with an active high-flow cooling fan prevents heat buildup during continuous charging sessions.
Built-in protections against over-voltage, short circuits, reverse polarity, and over-temperature with zero risk of overcharging.
| Input Voltage | AC 100V – 240V (50/60Hz, Global Compatibility) |
| Output Voltage & Current | DC 54.6V (±0.2V) | 5.0A Max Output |
| Charging Mode | Two-Stage CC/CV (Constant Current / Constant Voltage) |
| LED Status Indicator | Red Light (Charging) / Green Light (Fully Charged / Standby) |
| Cooling Method | Active Built-in Fan with Aluminum Heat Sink |
FAQ
Real answers to common questions about frame fitment, BMS ratings, charging, and warranty.
Will this triangle battery fit inside my bike frame?

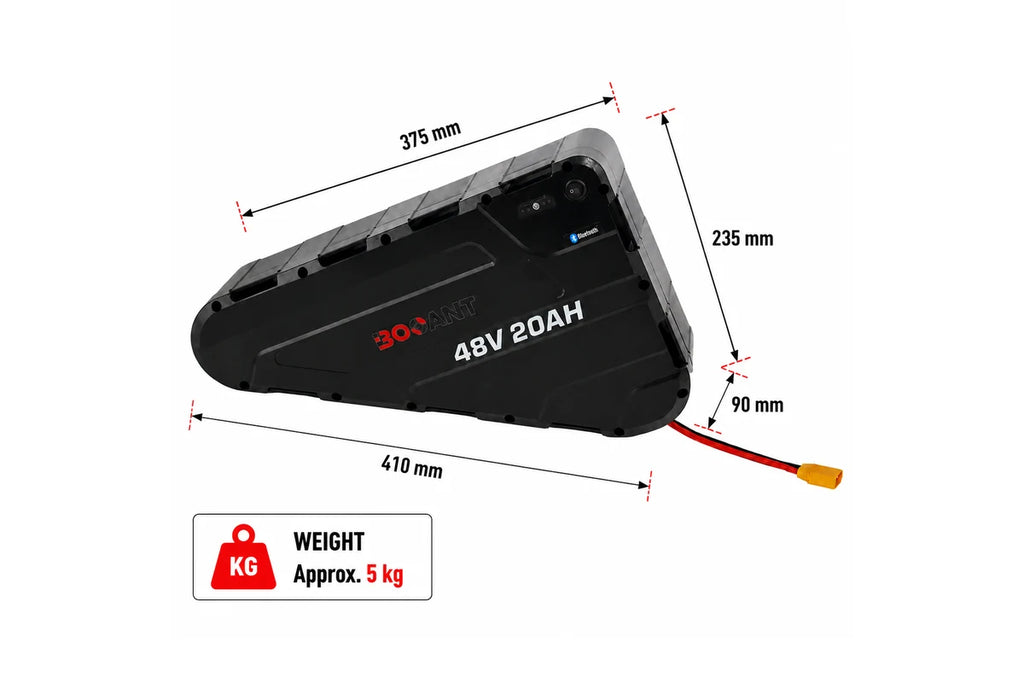

The battery dimensions are 375 mm (length) × 235 mm (height) × 410 mm (hypotenuse) with a 90 mm width (14.76 × 9.25 × 16.14 × 3.54 inches). We strongly recommend making a simple cardboard cutout using these measurements to test-fit your bike's inner triangle before ordering.
Should I choose the 30A or 40A BMS version?
Base your choice on your motor kit and controller's current draw: select the 30A BMS (90A peak) for hub or mid-drive motors up to 1000W, or the 40A BMS (120A peak) for 1000W–1500W setups (like Bafang BBSHD or high-torque direct-drive kits) to prevent tripping over-current protection on hard throttle.
Are the Samsung 21700 50G cells genuine?
Yes. Every pack is built using 52 brand-new, original Grade-A Samsung INR21700-50G cells (13S4P configuration). We never use recycled, rewrapped, or generic B-grade cells. You get full rated capacity (20Ah / 960Wh) with minimal voltage drop under heavy acceleration.
How does the Bluetooth app work with the JBD Smart BMS?
Download the free companion app (available for iOS and Android) to connect wirelessly to the battery. You can check individual cell voltages, pack temperature, real-time current draw, and total cycle count, as well as toggle charge and discharge switches directly from your phone.
Can I charge my phone or GPS from the built-in USB port?
Yes. The integrated 5V 2A USB port powers smartphones, bike lights, and GPS units while you ride. Note that the master power switch on the ABS casing controls the entire pack—make sure it is switched ON to activate the battery output and USB port.
How long does a full charge take with the included 5A charger?
Using the included 54.6V 5A aluminum fan-cooled fast charger, a completely depleted pack (0% to 100%) charges in approximately 4 to 4.5 hours. The smart CC/CV charging profile automatically shuts off once cells reach full capacity.
What does the 2-Year Warranty cover?
Your pack comes with a 2-year manufacturer warranty covering manufacturing defects, BMS board failure, and premature cell capacity degradation under normal use. We also provide direct technical support and replacement parts if needed.
Built-To-Order & Shipping Process
Fresh Built-To-Order
Every battery pack is custom built directly upon your order rather than pulled from sitting warehouse shelf stock. This guarantees maximum fresh chemical cycle life, zero capacity degradation, and optimal cell health from day one.
Authentic Cells & Full Test
We source original grade-A Samsung cells straight from official distributors per order. Once assembled, every pack undergoes a full charge and discharge test cycle to verify capacity, BMS balance, and thermal safety before final packing.
Door-To-Door Freight
Packs pass Hong Kong customs battery safety inspection and ship direct to your door via FedEx/UPS (US/CA) or DPD/DHL (EU). Delivery typically takes 15–20 business days. All import duties, taxes, and door-step delivery are fully covered.
