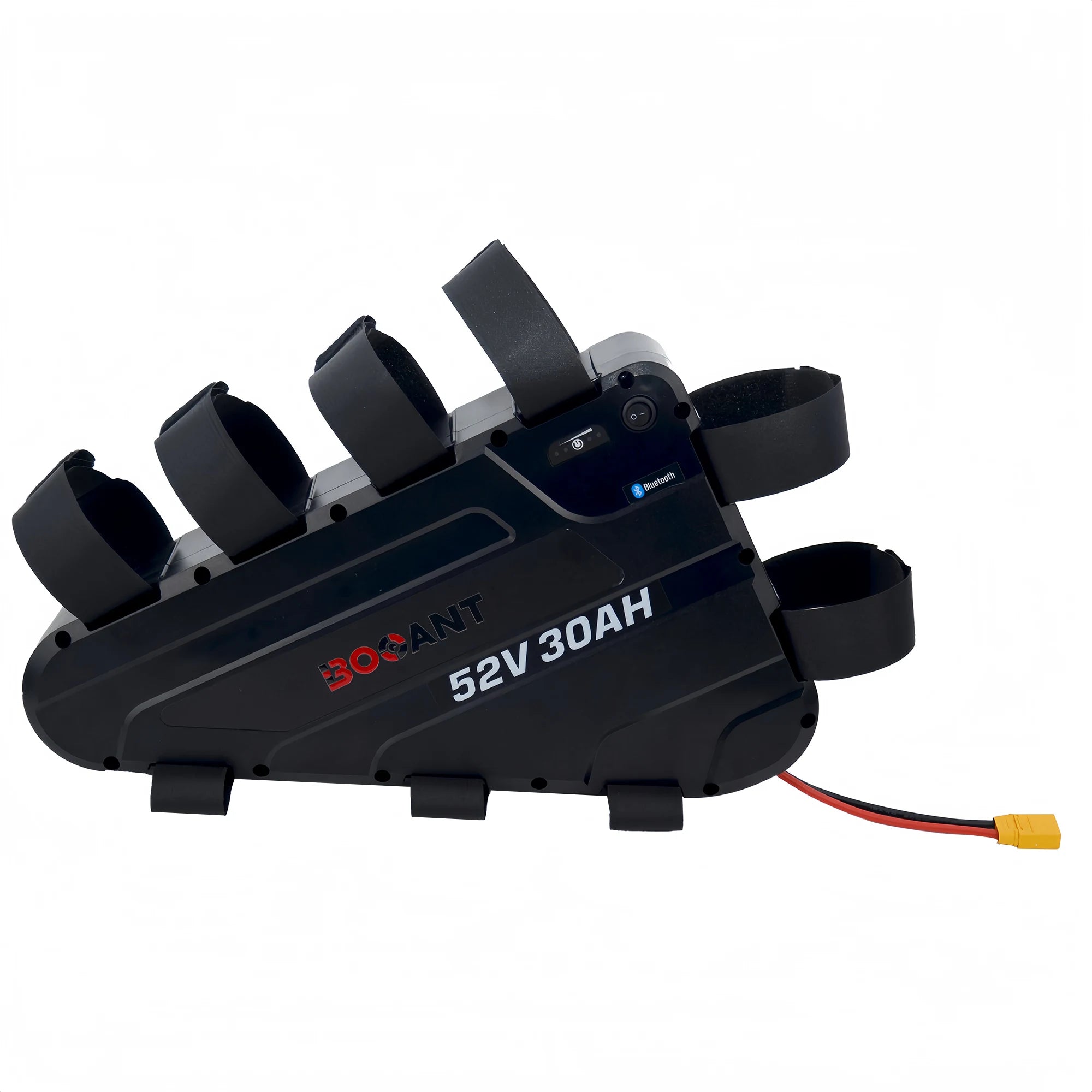

BOOANT 52V 30Ah ABS hardcase triangle eBike battery pack with frame mounting straps, power switch, battery fuel gauge, and XT90 discharge cable

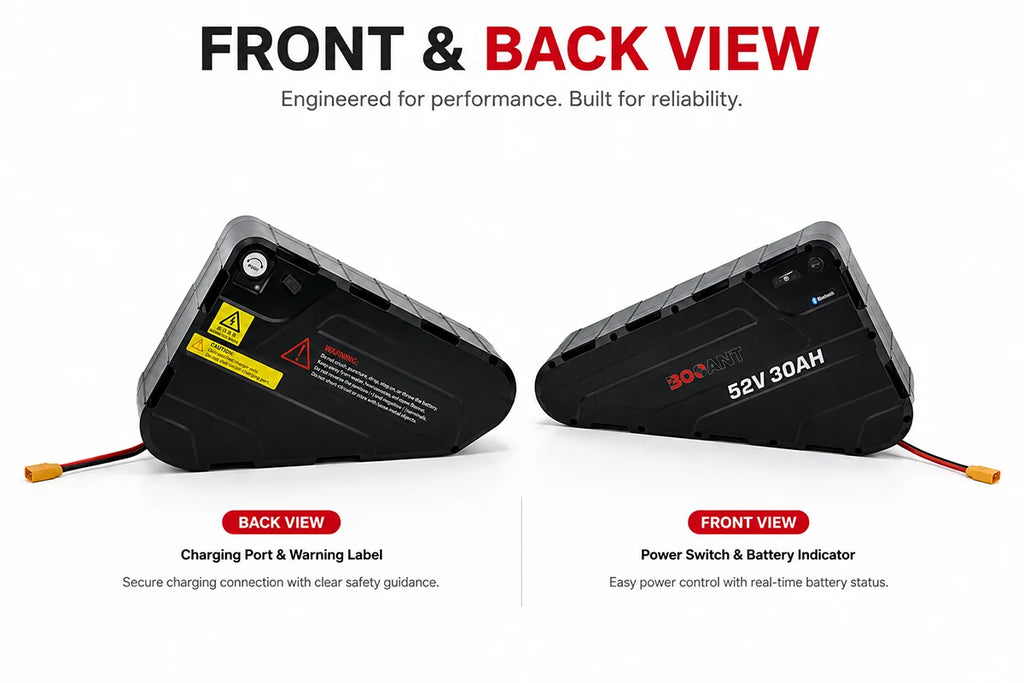

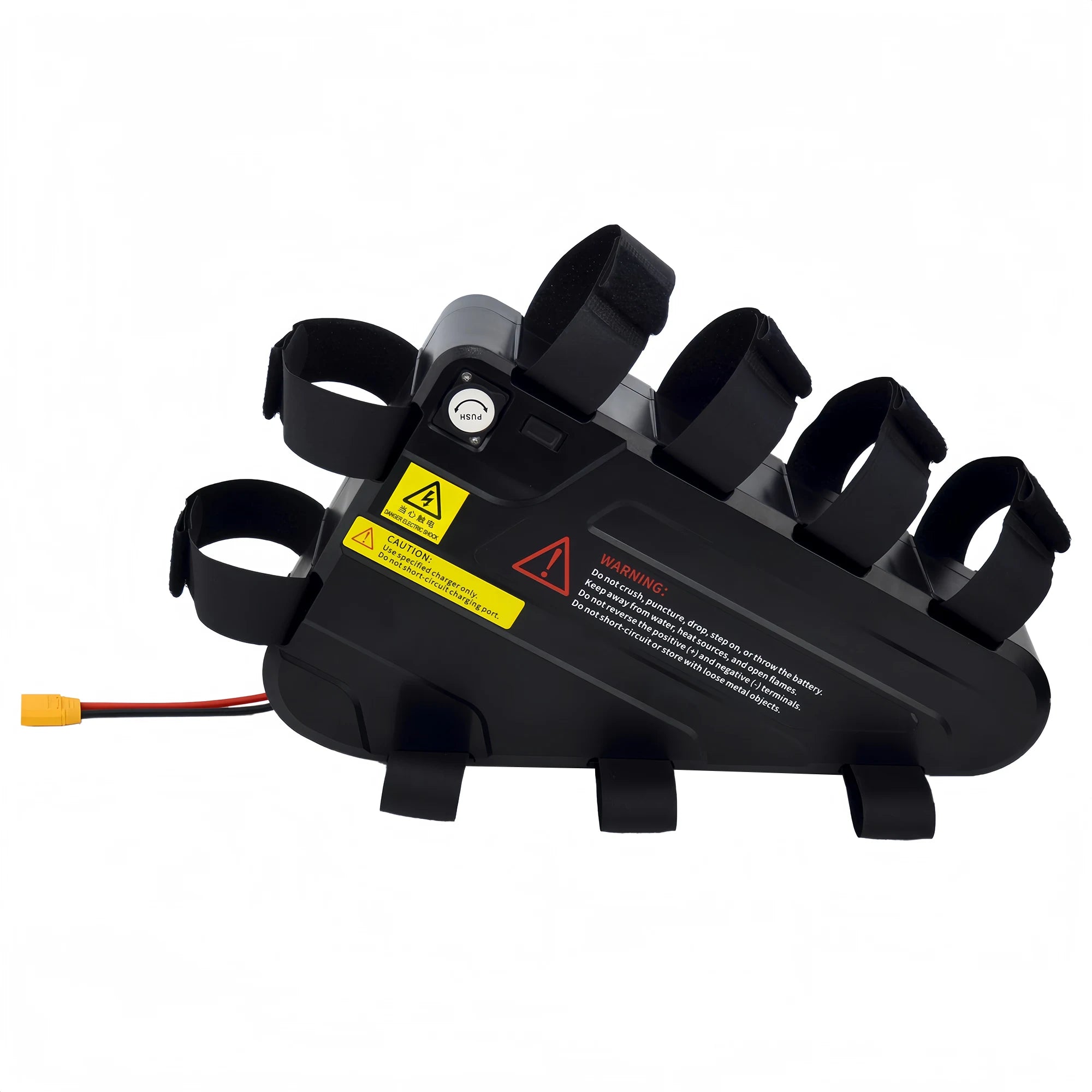

BOOANT 52V 30Ah ABS triangle eBike battery back view showing XLR charging port, USB output port, safety caution warning labels, and frame straps
BOOANT 52V 30Ah hardcase triangle eBike battery size chart and dimensions diagram showing 375mm length, 235mm height, 410mm diagonal, 90mm thickness, and 7.5kg weight

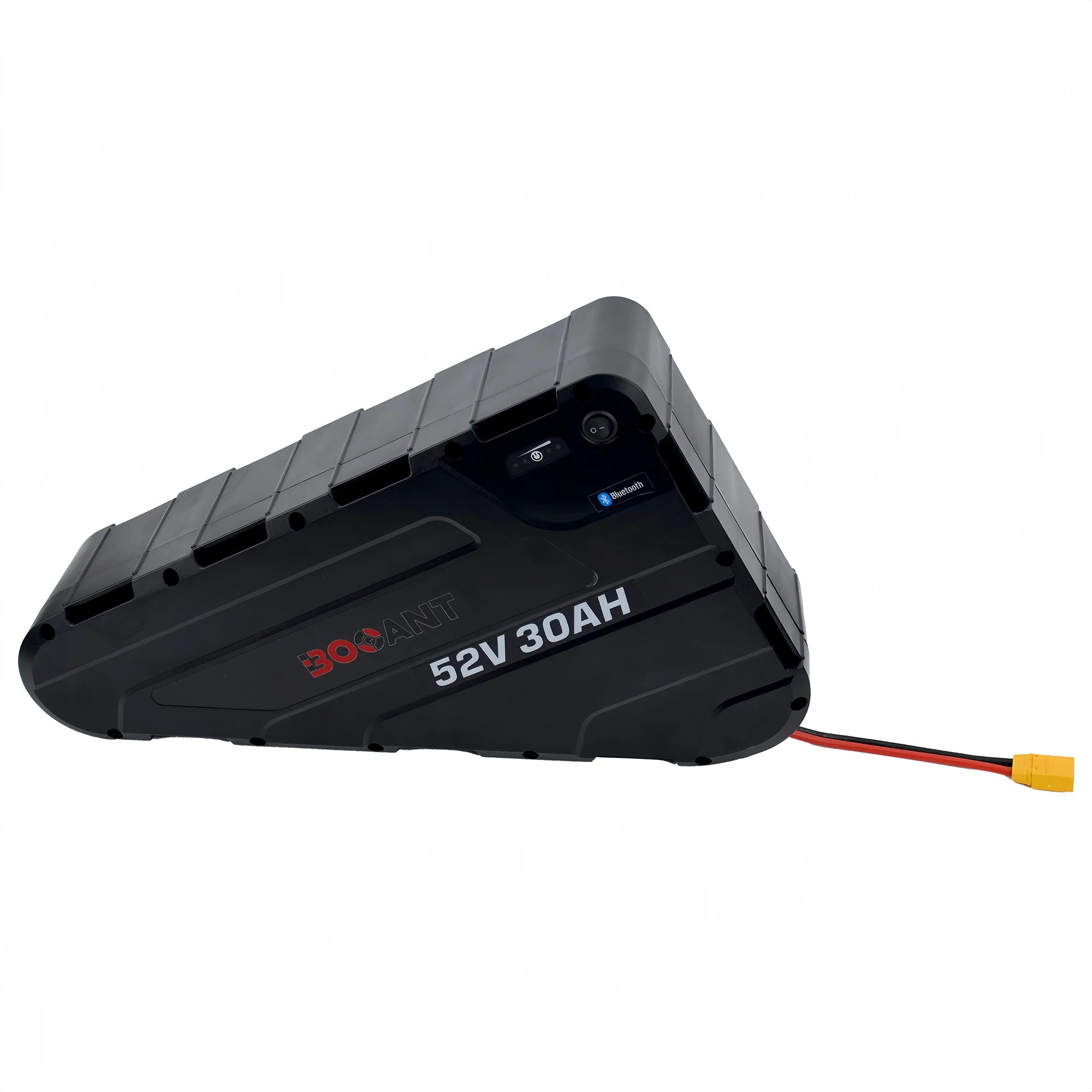

BOOANT 52V 30Ah ABS triangle eBike battery pack 3D perspective angle showing rugged hardcase top ribs, strap routing channels, integrated LED fuel gauge, power switch, and XT90 discharge cable

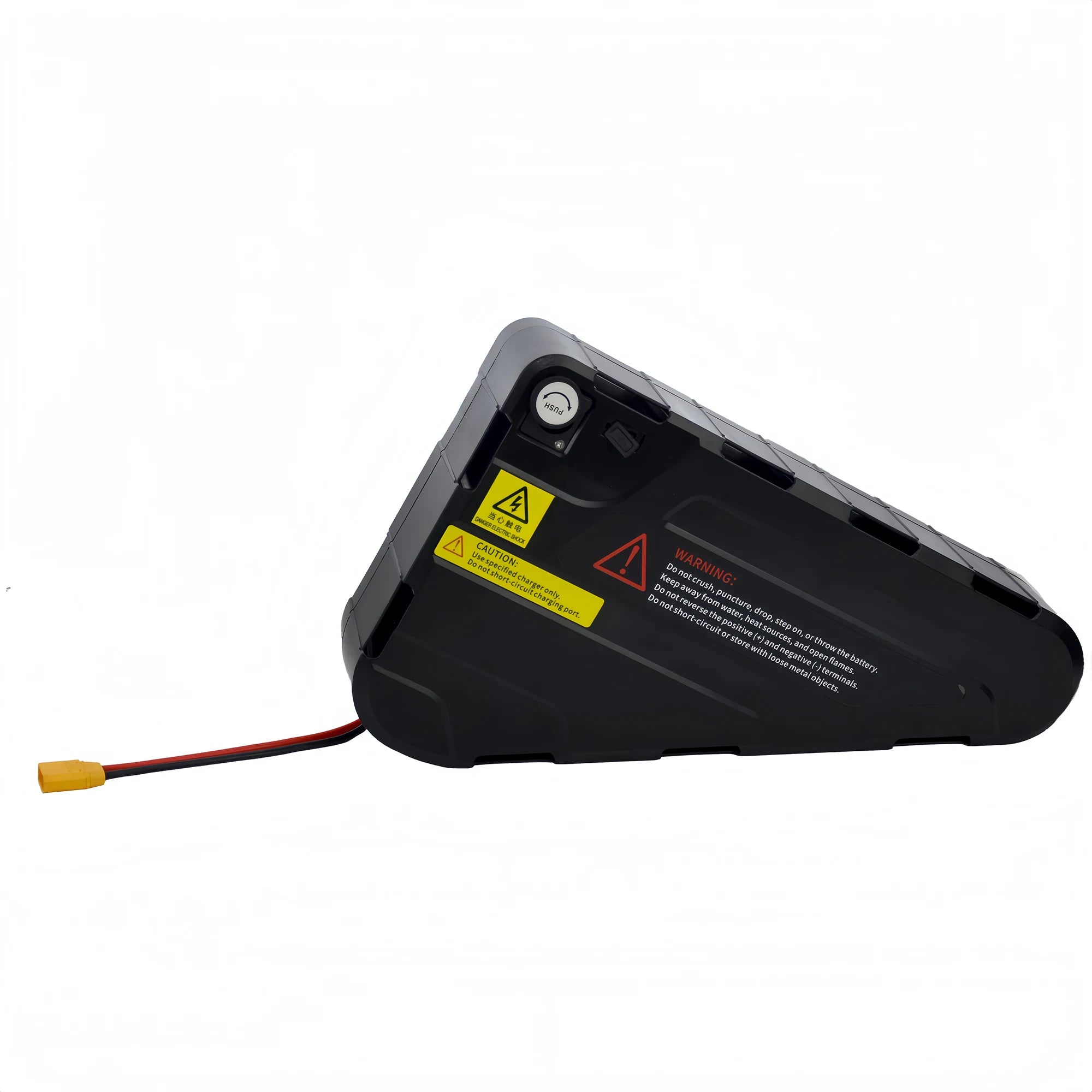

BOOANT 52V 30Ah ABS hardcase triangle eBike battery back perspective view showing 3-pin charging port, USB output, safety warning labels, and XT90 discharge wire
58.8V 5A aluminum shell smart fast charger for 52V lithium eBike battery with active cooling fan, XLR connector, and LED charging status indicators

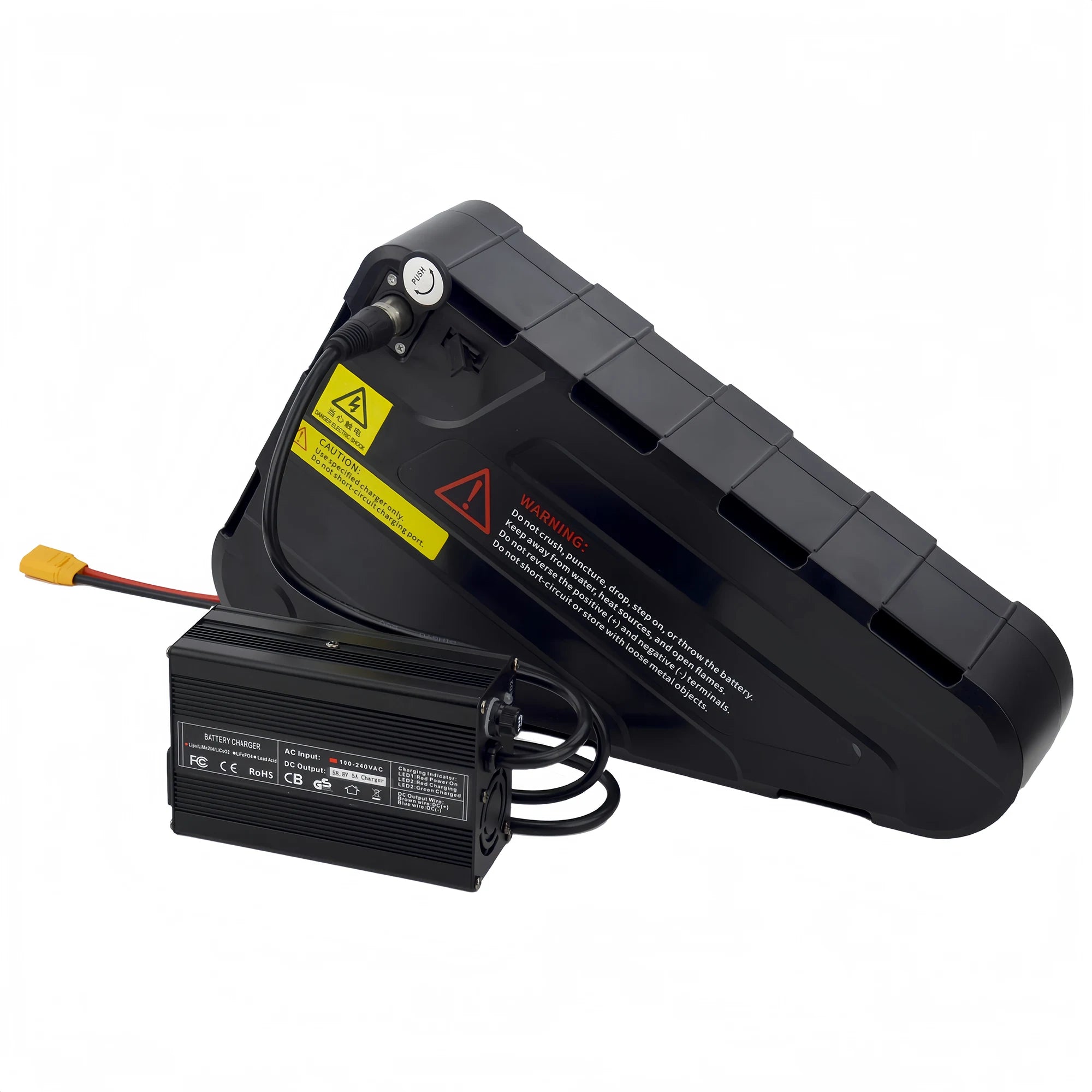

BOOANT 52V 30Ah ABS triangle eBike battery pack connected to 58.8V 5A fast charger via XLR charging port showing safety warning labels and XT90 discharge cable

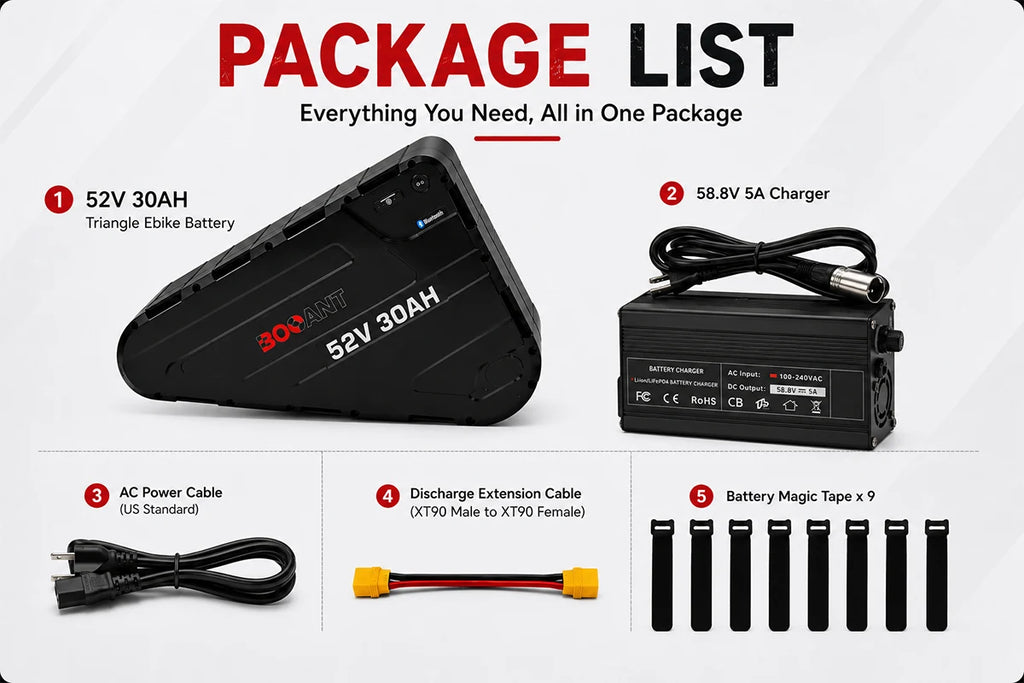

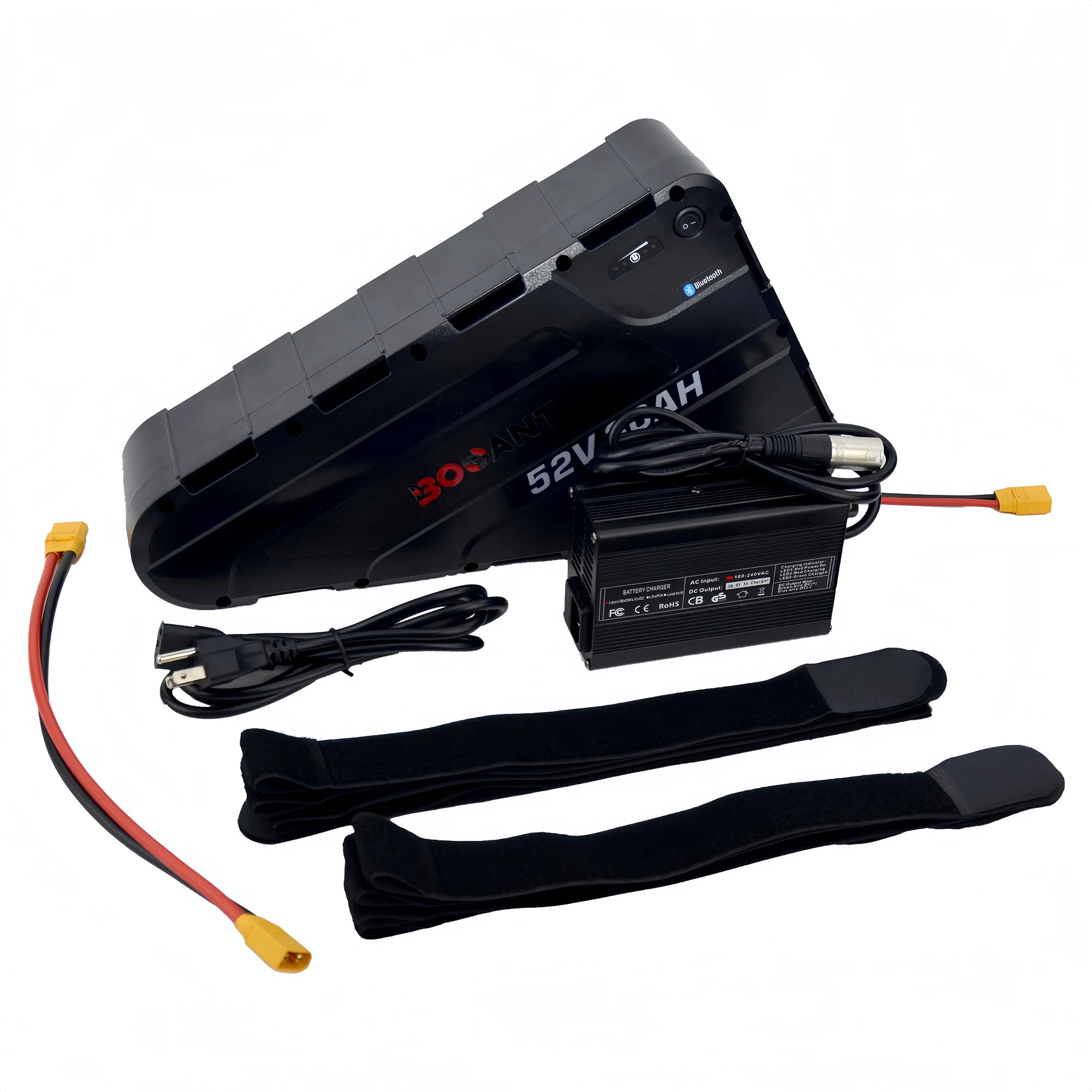

BOOANT 52V 30Ah triangle eBike battery complete kit package contents including 58.8V 5A fast charger, AC power cable, XT90 discharge extension wire, and heavy-duty frame mounting straps
BOOANT 52V 30Ah ABS hardcase triangle eBike battery pack with frame mounting straps, power switch, battery fuel gauge, and XT90 discharge cable
BOOANT 52V 30Ah ABS triangle eBike battery back view showing XLR charging port, USB output port, safety caution warning labels, and frame straps
BOOANT 52V 30Ah hardcase triangle eBike battery size chart and dimensions diagram showing 375mm length, 235mm height, 410mm diagonal, 90mm thickness, and 7.5kg weight
BOOANT 52V 30Ah ABS triangle eBike battery pack 3D perspective angle showing rugged hardcase top ribs, strap routing channels, integrated LED fuel gauge, power switch, and XT90 discharge cable
BOOANT 52V 30Ah ABS hardcase triangle eBike battery back perspective view showing 3-pin charging port, USB output, safety warning labels, and XT90 discharge wire
58.8V 5A aluminum shell smart fast charger for 52V lithium eBike battery with active cooling fan, XLR connector, and LED charging status indicators
BOOANT 52V 30Ah ABS triangle eBike battery pack connected to 58.8V 5A fast charger via XLR charging port showing safety warning labels and XT90 discharge cable
BOOANT 52V 30Ah triangle eBike battery complete kit package contents including 58.8V 5A fast charger, AC power cable, XT90 discharge extension wire, and heavy-duty frame mounting straps
BOOANT 52V 30Ah ABS hardcase triangle eBike battery pack with frame mounting straps, power switch, battery fuel gauge, and XT90 discharge cable
BOOANT 52V 30Ah ABS triangle eBike battery back view showing XLR charging port, USB output port, safety caution warning labels, and frame straps
BOOANT 52V 30Ah hardcase triangle eBike battery size chart and dimensions diagram showing 375mm length, 235mm height, 410mm diagonal, 90mm thickness, and 7.5kg weight
BOOANT 52V 30Ah ABS triangle eBike battery pack 3D perspective angle showing rugged hardcase top ribs, strap routing channels, integrated LED fuel gauge, power switch, and XT90 discharge cable
BOOANT 52V 30Ah ABS hardcase triangle eBike battery back perspective view showing 3-pin charging port, USB output, safety warning labels, and XT90 discharge wire
58.8V 5A aluminum shell smart fast charger for 52V lithium eBike battery with active cooling fan, XLR connector, and LED charging status indicators
BOOANT 52V 30Ah ABS triangle eBike battery pack connected to 58.8V 5A fast charger via XLR charging port showing safety warning labels and XT90 discharge cable
BOOANT 52V 30Ah triangle eBike battery complete kit package contents including 58.8V 5A fast charger, AC power cable, XT90 discharge extension wire, and heavy-duty frame mounting straps
BOOANT 52V 30Ah ABS hardcase triangle eBike battery pack with frame mounting straps, power switch, battery fuel gauge, and XT90 discharge cable
BOOANT 52V 30Ah ABS triangle eBike battery back view showing XLR charging port, USB output port, safety caution warning labels, and frame straps
BOOANT 52V 30Ah hardcase triangle eBike battery size chart and dimensions diagram showing 375mm length, 235mm height, 410mm diagonal, 90mm thickness, and 7.5kg weight
BOOANT 52V 30Ah ABS triangle eBike battery pack 3D perspective angle showing rugged hardcase top ribs, strap routing channels, integrated LED fuel gauge, power switch, and XT90 discharge cable
BOOANT 52V 30Ah ABS hardcase triangle eBike battery back perspective view showing 3-pin charging port, USB output, safety warning labels, and XT90 discharge wire
58.8V 5A aluminum shell smart fast charger for 52V lithium eBike battery with active cooling fan, XLR connector, and LED charging status indicators
BOOANT 52V 30Ah ABS triangle eBike battery pack connected to 58.8V 5A fast charger via XLR charging port showing safety warning labels and XT90 discharge cable
BOOANT 52V 30Ah triangle eBike battery complete kit package contents including 58.8V 5A fast charger, AC power cable, XT90 discharge extension wire, and heavy-duty frame mounting straps

52V 30Ah 1560Wh eBike Triangle Battery | SAMSUNG 50G Cells

$739.99

Free Shipping + Duties Included
Built Fresh To Order
2-Year Full Warranty
  • Real Samsung 50G Cells (1,560Wh) : 84 genuine 21700 cells inside (14S6P). No cheap generic knockoffs, so you get punchy throttle response and way less voltage sag under heavy load.
  • Tough ABS Hard Case : Solid plastic shell that stays put in your bike frame. Won’t flop around, tear, or rattle loose on rough trails like soft triangle bags do.
  • Smart Bluetooth Phone Monitoring : Built-in JBD BMS talks straight to your phone. Check individual cell health, pack temp, and actual percentage without guessing, with 30A, 50A, or 60A options for 1000W–2500W motors.
  • Fuel Gauge, USB Port & Power Switch : Tap the button to see your remaining charge, turn the pack completely off when parked, and plug your phone or GPS right into the 5V 2A USB port.
  • 5A Fast Charger & 2-Year Warranty : Ships with a metal 58.8V 5A fan-cooled charger so you can top off the massive 30Ah pack in about 6 hours. Backed by a full 2-year warranty.
BMS Discharge Current (Select Motor Power)
30A | For 1200W Motors
50A | For 2000W Motors
60A | For 2500W Motors
Output Connector
XT60F/M
XT90F/M
Anderson
QS8 plug
Wire only
BMS Discharge Current (Select Motor Power)
Output Connector
🎬
BOOANT Power In Action Watch real tests, setups & riding videos

52V 30Ah Hardcase Triangle eBike Battery Pack

» Performance: Serious long-range builds, high-draw setups.
» Cells: 84 genuine Samsung 21700 50G cells.
» Shell: Heavy-duty ABS, locks securely inside frame. No rattle.
» Control: JBD Smart Bluetooth, LED fuel gauge, power switch.
1,560Wh
Total Energy Capacity
14S6P
Samsung 21700 50G (84 Cells)
58.8V 5A
Fast Charger Included
Genuine Samsung 50G Cells
Zero generic cells. Every pack uses fresh 5000mAh Samsung 21700 cells for minimal voltage sag under heavy throttle.
Rigid ABS Hard Enclosure
Reinforced hard shell shields against impacts, road debris, and trail vibration far better than soft shrink-wrap bags.
JBD Smart Bluetooth BMS
Monitor real-time cell delta voltages and temperatures on your phone, with remote charge/discharge cutoff switches.

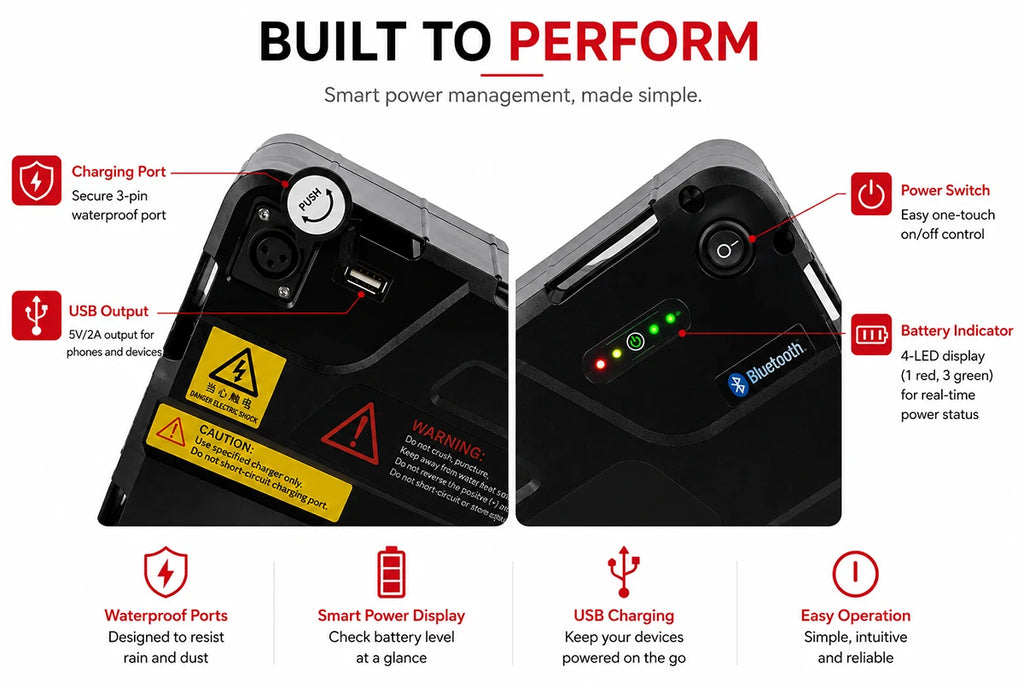

Integrated USB & Fuel Gauge
Check remaining charge at a single glance. Use the 5V 2A USB port to keep your phone or GPS powered on the go.

Technical Specifications

Electrical & Battery Configuration
Nominal Voltage / Capacity 52V / 30Ah (1,560Wh)
Cell Model & Configuration Original Samsung INR21700-50G (14S6P, 84 Cells)
Charge Cut-Off Voltage 58.8V ± 0.05V
Discharge Cut-Off Voltage 39.2V (2.8V per cell)
Standard Charger 58.8V 5A Smart CC/CV (Active Fan Cooling)
Charging Time Approx. 6.0 – 6.5 Hours (from 0 to 100%)
Physical & Enclosure Specs

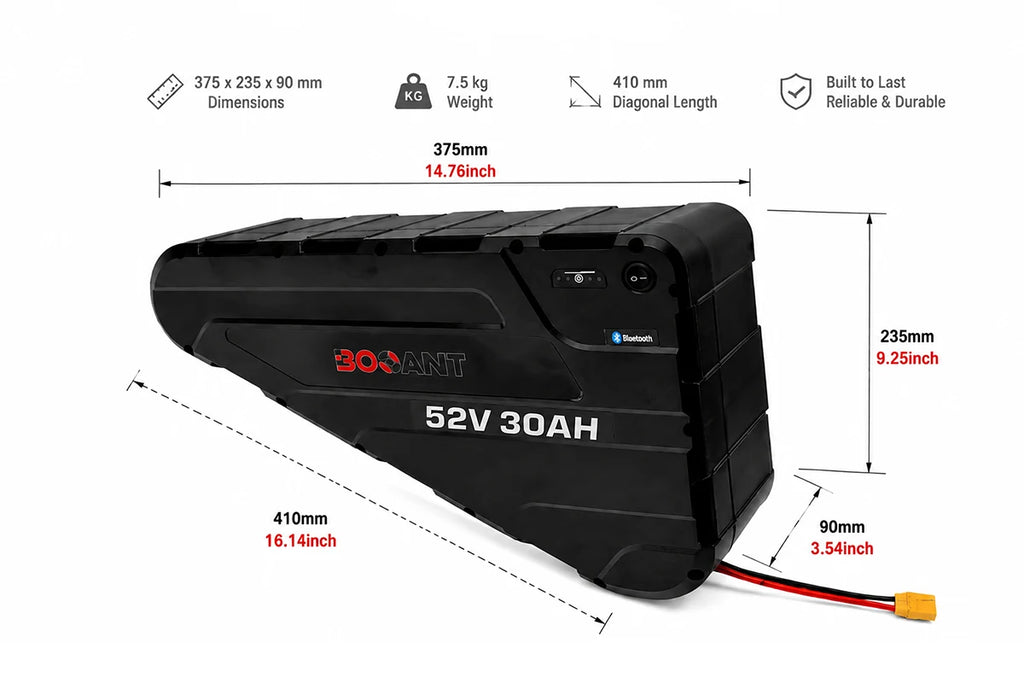

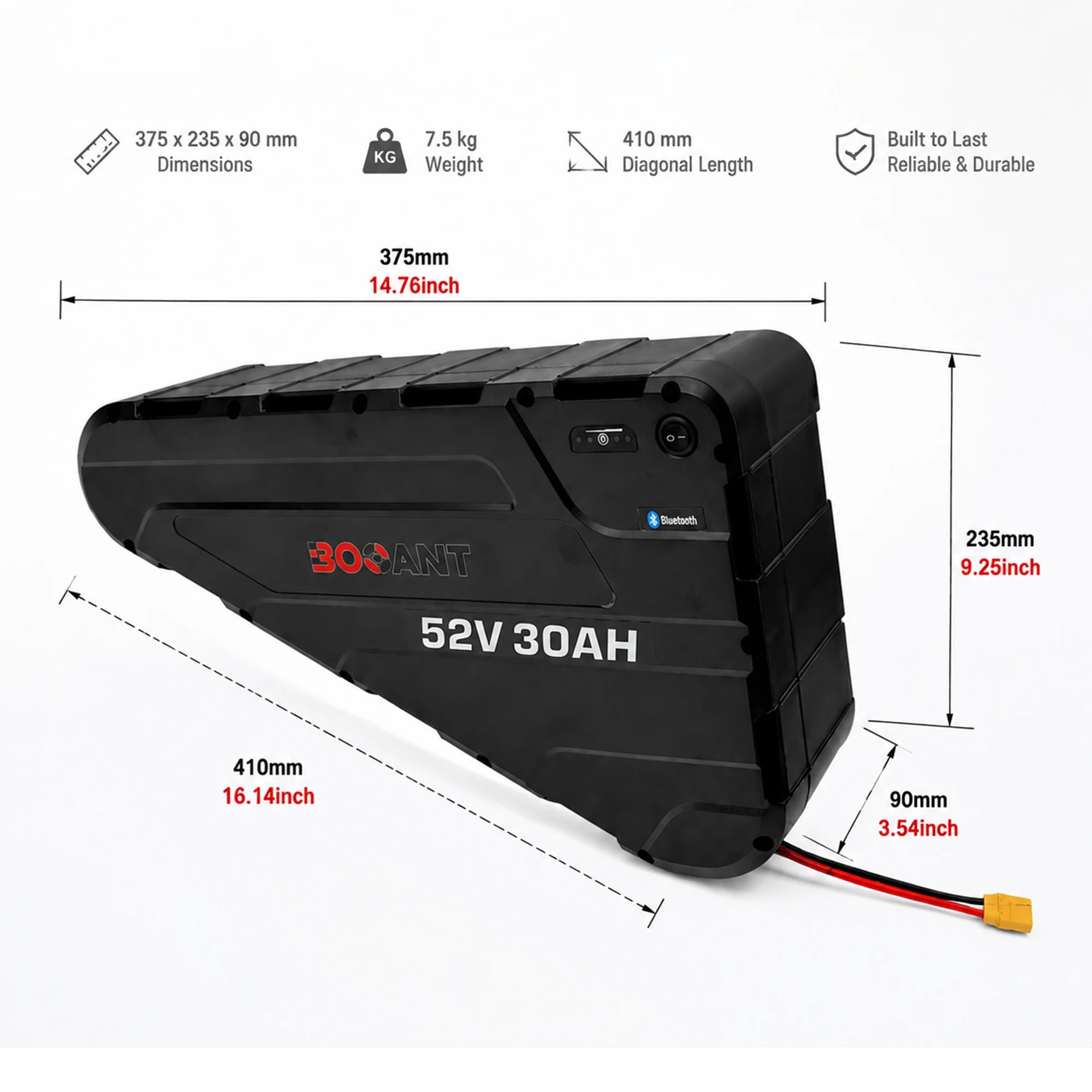

Dimensions (L × H × Hyp × T) 375 × 235 × 410 × 90 mm
(14.76 × 9.25 × 16.14 × 3.54 in)
Battery Net Weight Approx. 7.5 kg (16.53 lbs)
Enclosure Material High-Impact ABS Hard Shell (Triangle Frame Form Factor)
Integrated Ports & Controls LED Fuel Gauge, USB 5V 2A Output, Heavy-Duty Power Switch
Smart Management & Operating Range
Battery Management System JBD Smart Bluetooth BMS with Xiaoxiang App Monitoring
Operating Temperature Charge: 0°C to 45°C (32°F to 113°F)
Discharge: -20°C to 60°C (-4°F to 140°F)
Storage Temperature -10°C to 35°C (14°F to 95°F), 60% SOC Recommended
Warranty & Service 2-Year Warranty

Smart JBD BMS & Motor Power Matching

Select the continuous discharge current that matches your motor controller to prevent tripping or overheating.

Standard Cruiser
30A BMS
Up to 1000W Motors
Continuous Current 30A
Peak Current (Short) 90A
Est. Pure Throttle ~55–65 Miles
Est. Pedal Assist ~90–110 Miles
High Performance
50A BMS
Up to 2000W Motors
Continuous Current 50A
Peak Current (Short) 150A
Est. Pure Throttle ~45–55 Miles
Est. Pedal Assist ~75–90 Miles
Extreme Output
60A BMS
Up to 2500W Motors
Continuous Current 60A
Peak Current (Short) 180A
Est. Pure Throttle ~35–45 Miles
Est. Pedal Assist ~60–75 Miles
Real-World Range Disclosure: Estimated range values are grounded baselines calculated with a 170 lb rider on flat pavement at moderate cruising speeds (~20–25 mph). Actual mileage will vary based on total rider/cargo payload, hill grade, tire pressure, wind resistance, and throttle aggressiveness.

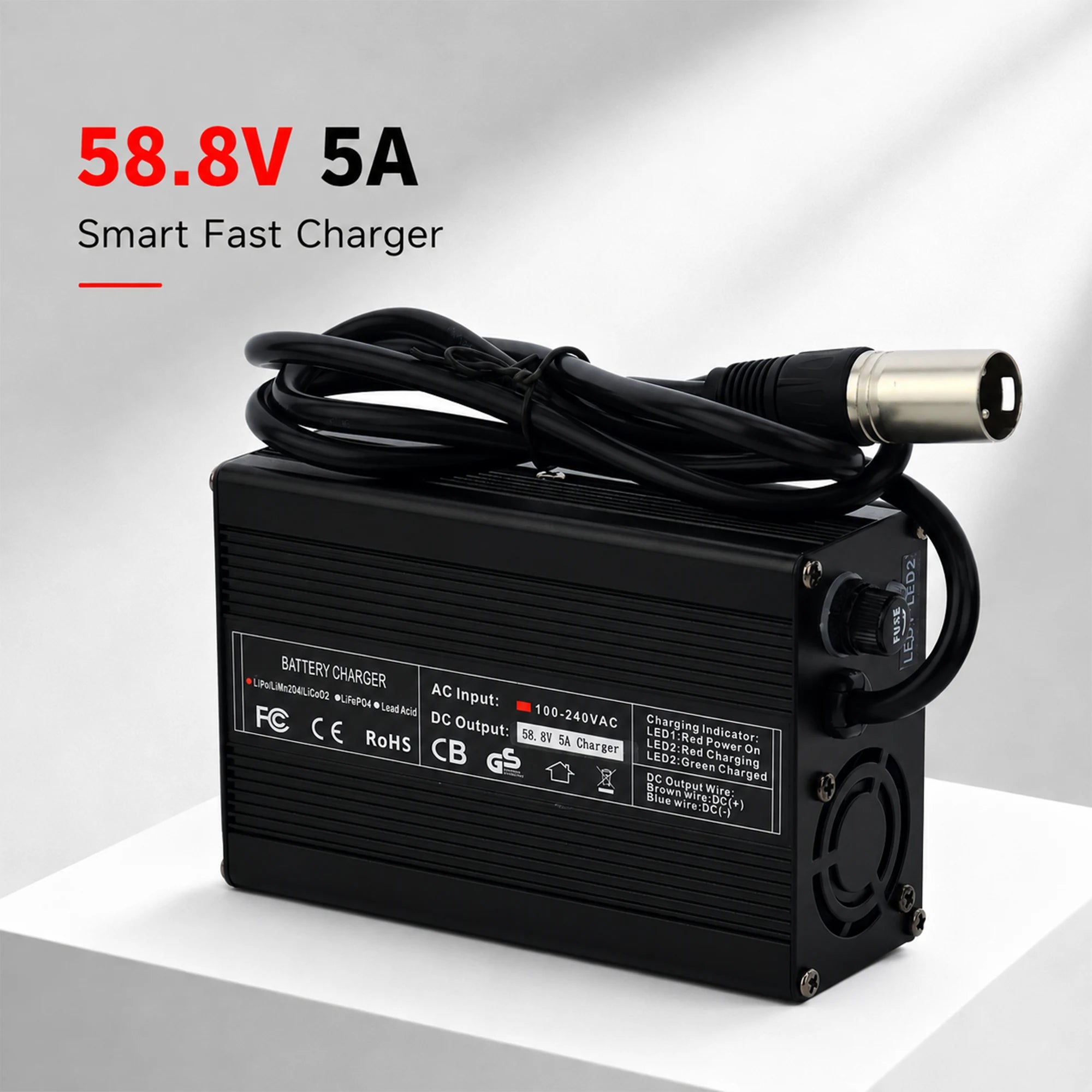

Matched 58.8V 5A Smart Fast Charger Included

Engineered specifically for 14S 52V lithium packs to ensure rapid, balanced, and temperature-controlled charging.

Cut your downtime by more than half compared to standard 2A stock chargers. Built with a rugged aluminum-alloy enclosure and an active cooling fan for reliable heat dissipation during high-current charging sessions.
Output Voltage & Current 58.8V DC ± 0.1V / 5.0A Continuous
Charging Protocol Smart Two-Stage CC/CV (Constant Current / Constant Voltage)
AC Input Range 100V–240V AC, 50/60Hz (Worldwide Compatible)
Charge Duration (30Ah Pack) Approx. 6 Hours (0% to Full)
Aluminum Alloy Housing
Heavy-duty metal shell protects internal components against shop drops and dissipates heat effectively.
Active Cooling Fan
High-airflow fan engages automatically under load to keep the charger cool and extend service life.
Auto-Cutoff Protection
Built-in safeguards prevent overvoltage, short circuit, reverse polarity, and automatically stop charging at 58.8V.
Dual LED Status Lights
Clear visual feedback: Red LED indicates active high-speed charging; Green LED confirms a fully balanced pack.

FAQ

Real answers to common questions about frame fitment, motor compatibility, and battery care.

How do I know if this triangle battery will fit my bike frame?
Measure the inside open triangle of your bike frame before ordering. The battery dimensions are 375mm long, 235mm tall, 410mm along the hypotenuse, and 90mm thick (approx. 14.8" × 9.3" × 16.1" × 3.5"). We recommend cutting a piece of cardboard to these exact dimensions and placing it inside your frame to check for clearance around rear shocks, top tubes, and down tubes.
Which BMS rating (30A, 50A, or 60A) should I choose for my motor setup?
Base your choice on your motor controller’s maximum amp draw, not just nominal wattage:

• 30A BMS (90A Peak): Ideal for 750W to 1000W motors (controllers pulling 20A–28A max).
• 50A BMS (150A Peak): Best for 1500W to 2000W high-power hub or mid-drive motors (controllers pulling 30A–45A max).
• 60A BMS (180A Peak): Built for extreme 2000W to 2500W setups (controllers pulling up to 50A–55A max).
Can I run this 52V battery on my 48V eBike kit or controller?
Yes, in almost all cases. Most standard 48V motor controllers (like Bafang BBSHD, BBS02, and common brushless hub controllers) use 60V or 63V rated capacitors, meaning they handle a fully charged 52V pack (58.8V max) with ease. You will get less voltage sag, slightly higher top speed, and punchier throttle response. Just make sure your display settings allow you to select a 52V battery profile for accurate battery percentage readouts.
How does the Smart Bluetooth BMS work, and which app do I use?
The battery features an integrated JBD Smart BMS with onboard Bluetooth. Download the Xiaoxiang App (available for both iOS and Android). Open the app next to your powered battery to monitor real-time individual cell voltages, pack temperature, remaining capacity percentage, discharge amps, and cycle count. You can also turn off discharge output directly inside the app as an added anti-theft safeguard.
Do I need to buy a separate charger?
No. A matched 58.8V 5A aluminum-shell smart fast charger with active fan cooling is included in the box. It charges this massive 30Ah pack from completely empty to 100% in about 6 to 6.5 hours. Never use a 48V (54.6V) charger or an unverified lead-acid charger with this pack.
What is covered under the 2-Year Warranty, and how should I store the battery?
Your pack is backed by a 2-year limited manufacturer warranty covering cell degradation defects, internal wiring, and the BMS. If storing the battery for the winter or off-season, keep it in a dry room between 10°C and 25°C (50°F–77°F) at roughly 50% to 60% state of charge (~52V). Top it off for 30 minutes every 60 days to prevent over-discharge.

Built-To-Order & Shipping Process

01
Fresh Built-To-Order

Every battery pack is custom built directly upon your order rather than pulled from sitting warehouse shelf stock. This guarantees maximum fresh chemical cycle life, zero capacity degradation, and optimal cell health from day one.

02
Authentic Cells & Full Test

We source original grade-A Samsung cells straight from official distributors per order. Once assembled, every pack undergoes a full charge and discharge test cycle to verify capacity, BMS balance, and thermal safety before final packing.

03
Door-To-Door Freight

Packs pass Hong Kong customs battery safety inspection and ship direct to your door via FedEx/UPS (US/CA) or DPD/DHL (EU). Delivery typically takes 15–20 business days. All import duties, taxes, and door-step delivery are fully covered.
