Real Packs From Our Bench

Unedited photos of an actual production unit. Tap any photo to enlarge.

BOOANT 36V 30Ah eBike battery standing upright on green workbench

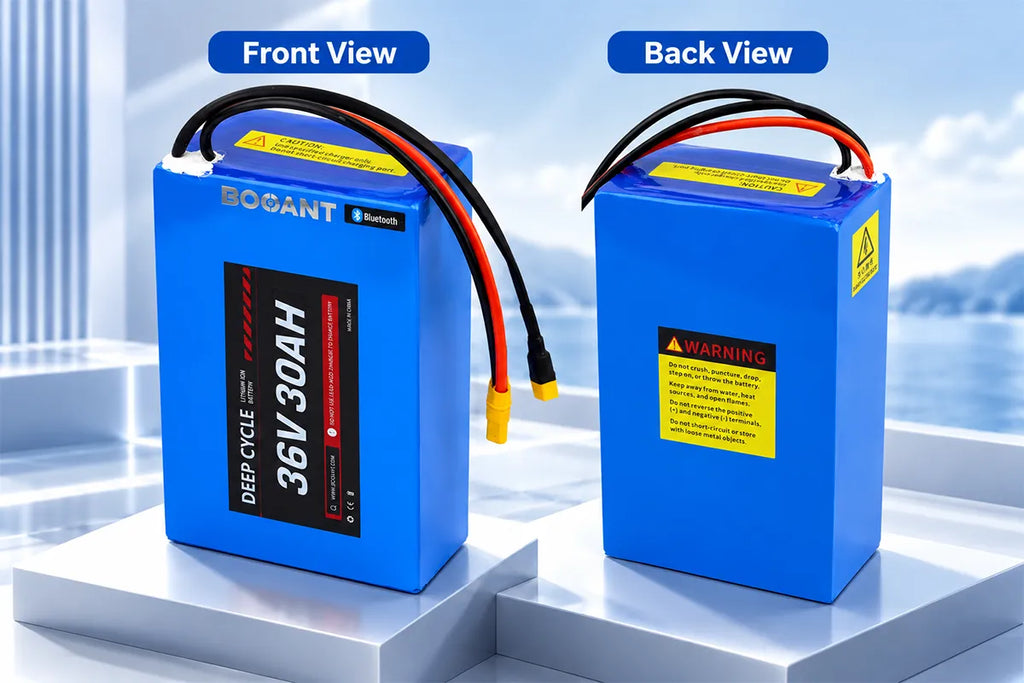

BOOANT 36V 30Ah eBike battery back view with warning label on green workbench
BOOANT 36V 30Ah eBike battery real photo, front view on green workbench
BOOANT 36V 30Ah eBike battery voltage test with multimeter showing 38.3V

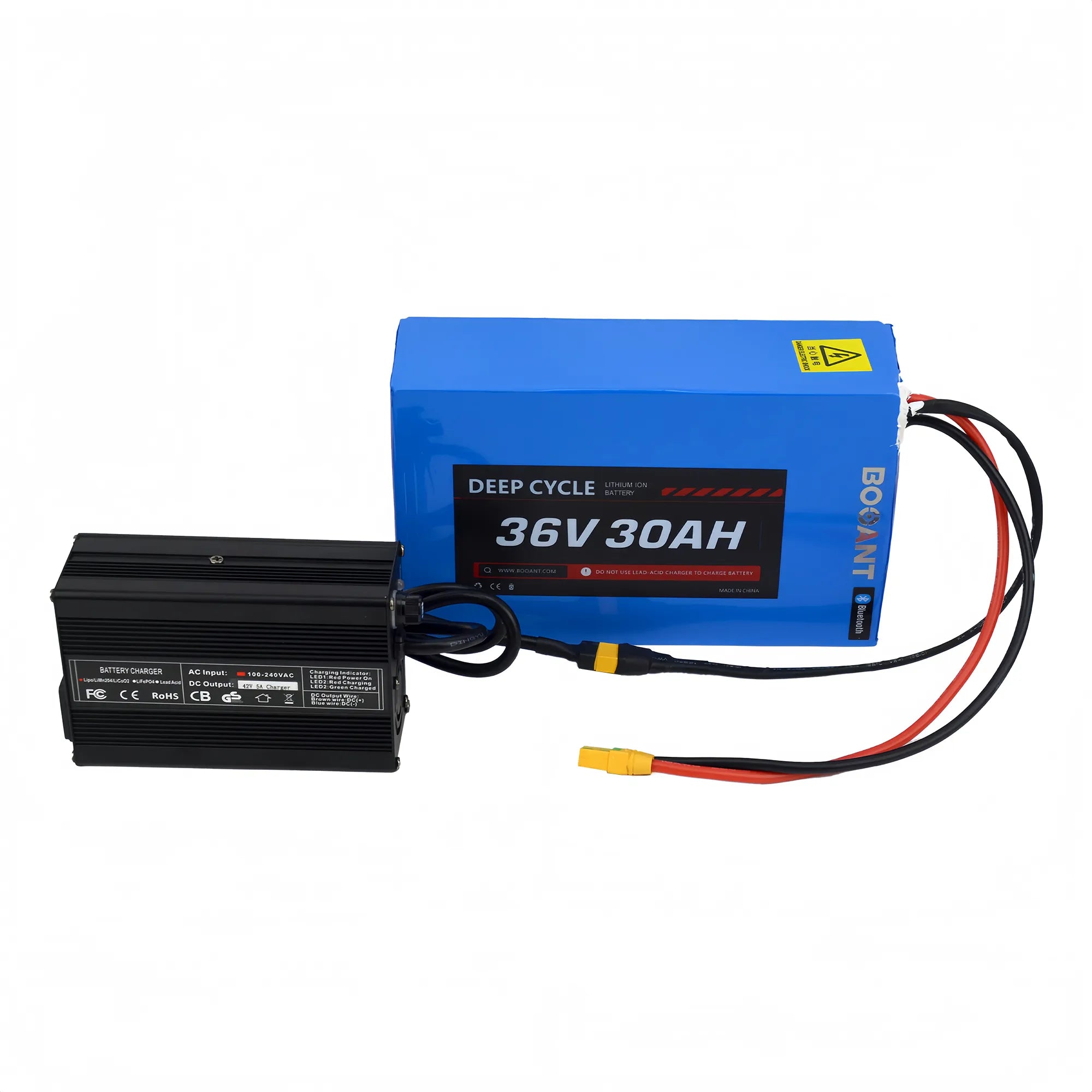

BOOANT 36V 30Ah eBike battery with charger, AC power cord, and discharge extension cable
BOOANT 36V 30Ah eBike battery packed in foam-lined shipping box with charger
BOOANT 36V 30Ah eBike battery JBD app real-time data: 53% remaining, 38.44V, 5A charging
BOOANT 36V 30Ah eBike battery JBD app cells voltage: 10 cell groups at 3.840V to 3.847V
BOOANT 36V 30Ah eBike battery length measurement with ruler, approx 230 mm
BOOANT 36V 30Ah eBike battery width measurement with ruler, approx 135 mm
BOOANT 36V 30Ah eBike battery thickness measurement with ruler, approx 75 mm
BOOANT 36V 30Ah eBike battery standing upright on green workbenchTAP PHOTO TO ZOOM · TAP OUTSIDE PHOTO TO CLOSE · USE ARROWS TO BROWSE
BOOANT 36V 30Ah eBike battery back view with warning label on green workbenchTAP PHOTO TO ZOOM · TAP OUTSIDE PHOTO TO CLOSE · USE ARROWS TO BROWSE
BOOANT 36V 30Ah eBike battery real photo, front view on green workbenchTAP PHOTO TO ZOOM · TAP OUTSIDE PHOTO TO CLOSE · USE ARROWS TO BROWSE
BOOANT 36V 30Ah eBike battery voltage test with multimeter showing 38.3VTAP PHOTO TO ZOOM · TAP OUTSIDE PHOTO TO CLOSE · USE ARROWS TO BROWSE
BOOANT 36V 30Ah eBike battery with charger, AC power cord, and discharge extension cableTAP PHOTO TO ZOOM · TAP OUTSIDE PHOTO TO CLOSE · USE ARROWS TO BROWSE
BOOANT 36V 30Ah eBike battery packed in foam-lined shipping box with chargerTAP PHOTO TO ZOOM · TAP OUTSIDE PHOTO TO CLOSE · USE ARROWS TO BROWSE
BOOANT 36V 30Ah eBike battery JBD app real-time data: 53% remaining, 38.44V, 5A chargingTAP PHOTO TO ZOOM · TAP OUTSIDE PHOTO TO CLOSE · USE ARROWS TO BROWSE
BOOANT 36V 30Ah eBike battery JBD app cells voltage: 10 cell groups at 3.840V to 3.847VTAP PHOTO TO ZOOM · TAP OUTSIDE PHOTO TO CLOSE · USE ARROWS TO BROWSE
BOOANT 36V 30Ah eBike battery length measurement with ruler, approx 230 mmTAP PHOTO TO ZOOM · TAP OUTSIDE PHOTO TO CLOSE · USE ARROWS TO BROWSE
BOOANT 36V 30Ah eBike battery width measurement with ruler, approx 135 mmTAP PHOTO TO ZOOM · TAP OUTSIDE PHOTO TO CLOSE · USE ARROWS TO BROWSE
BOOANT 36V 30Ah eBike battery thickness measurement with ruler, approx 75 mmTAP PHOTO TO ZOOM · TAP OUTSIDE PHOTO TO CLOSE · USE ARROWS TO BROWSE

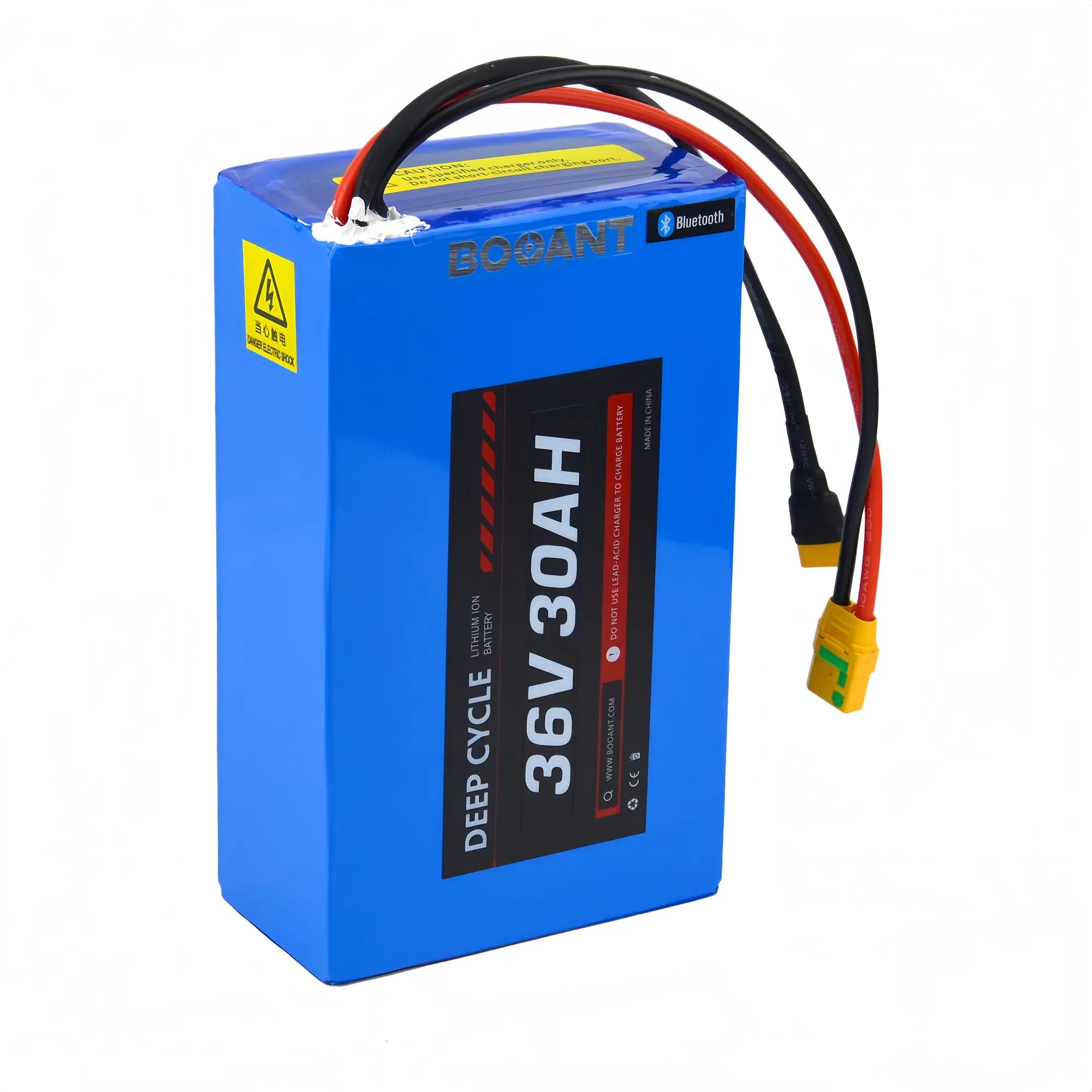

36V 30Ah eBike Battery

Lightweight PVC pack for 36V eBikes. Built to order, bench-tested before shipping.PVC pack for 36V eBikes. Built to order.

1,080Wh
Rated Energy

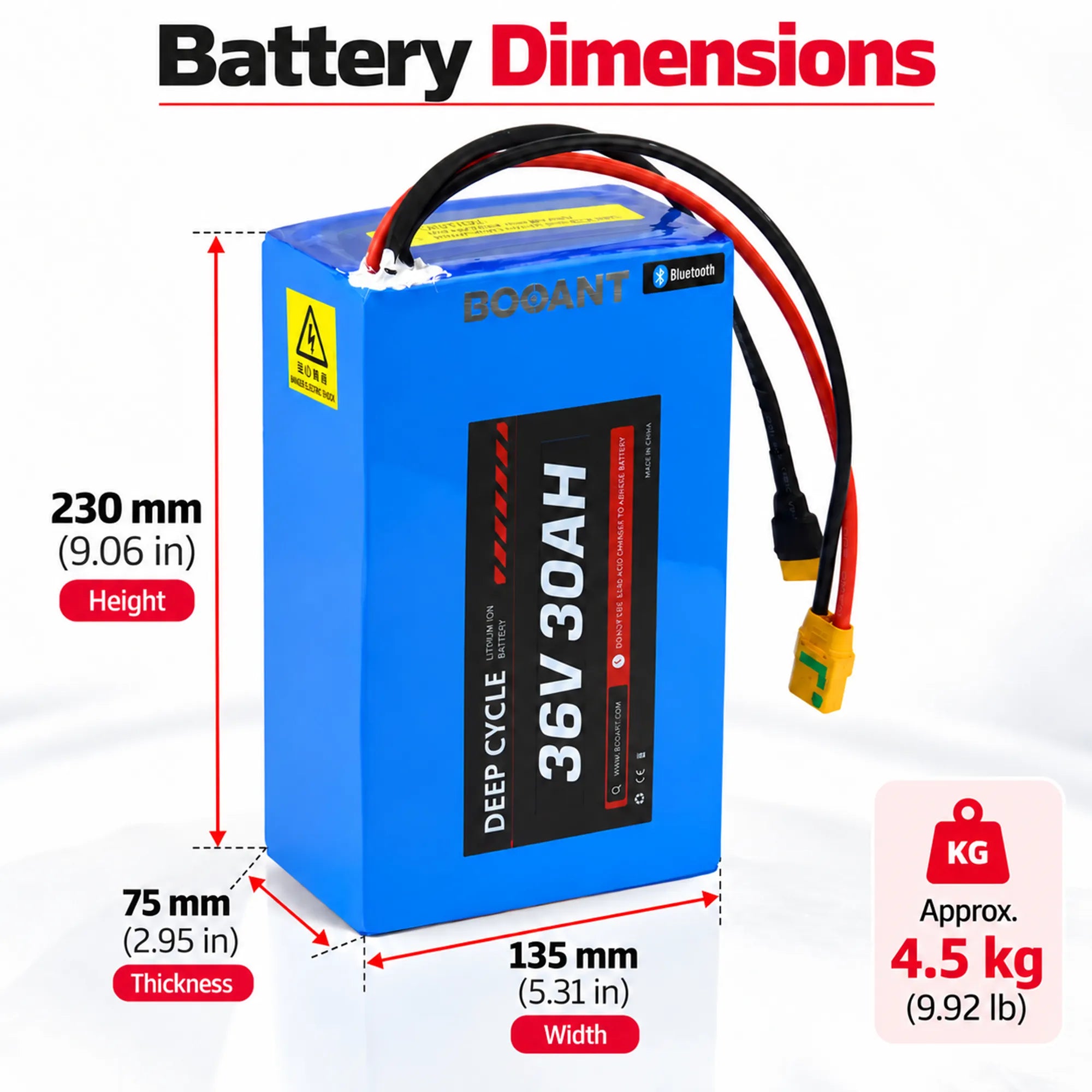

230 × 135 × 75 mm
Approx. 4.5 kg
60 × Samsung 50G
10S6P Layout

Technical Specifications

Voltage / Capacity / Energy36V nominal | 30Ah | 1,080Wh

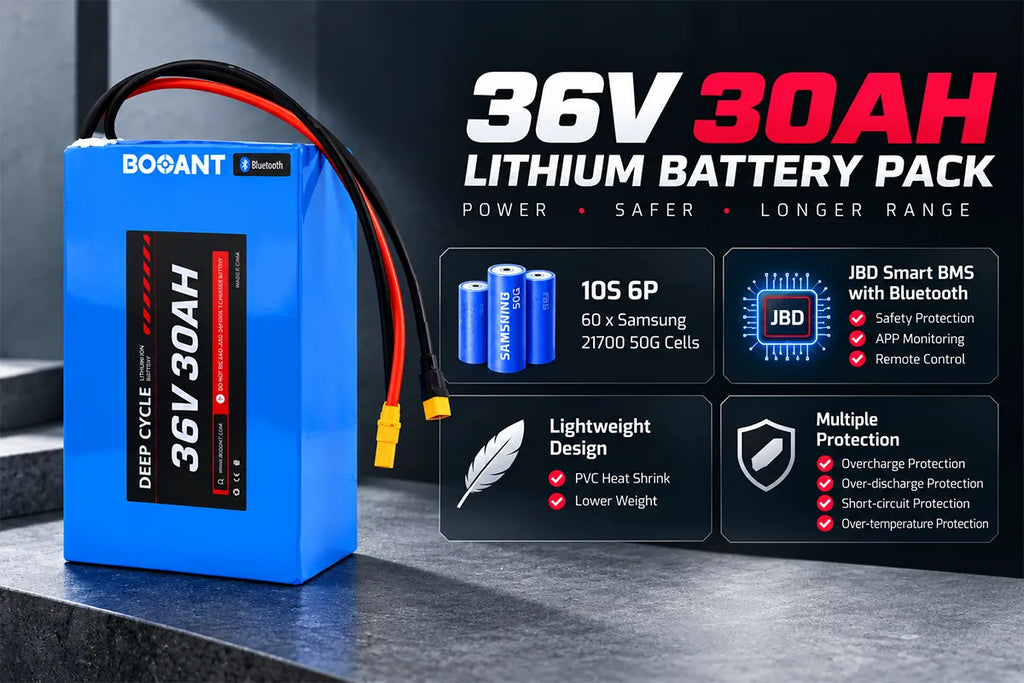

Cells60 genuine Samsung 50G (INR21700-50G), 10S6P
BMSJBD Smart BMS with Bluetooth: 30A / 40A (Up to 750W / 1200W)
Voltage RangeCutoff 30.0V / Full charge 42V

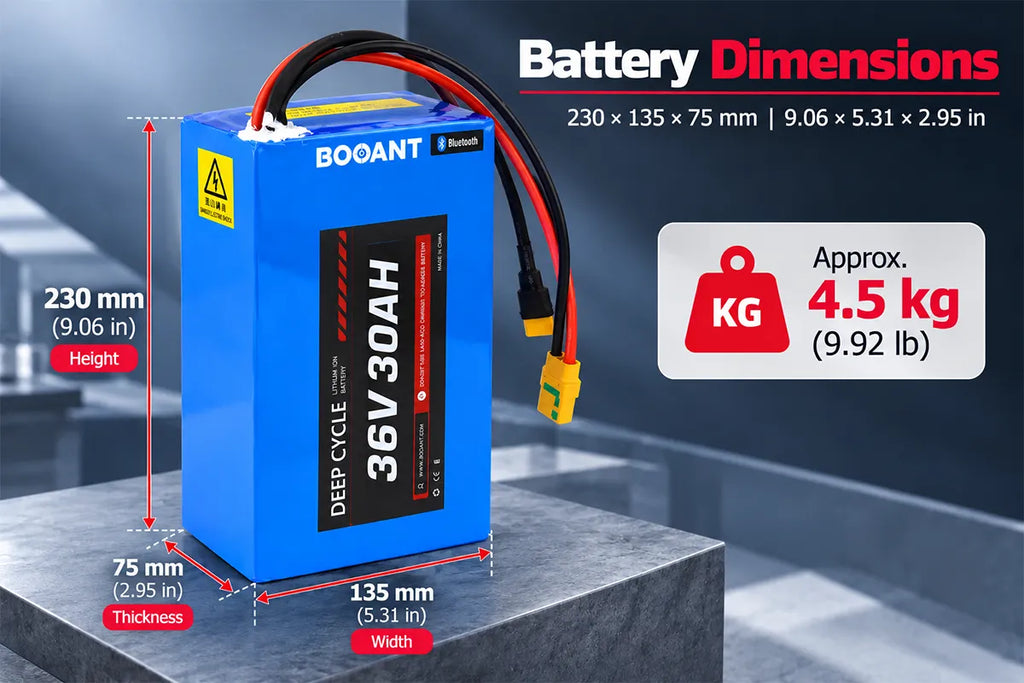

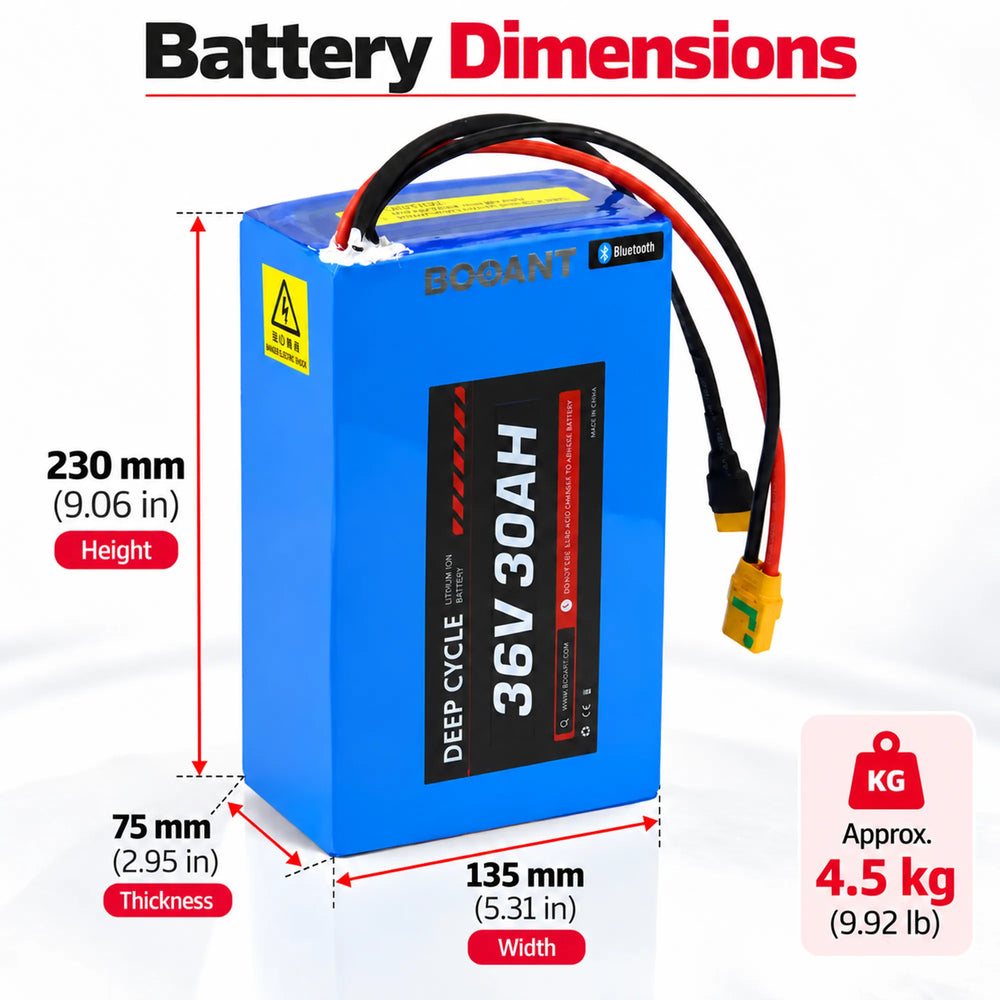

Dimensions230 × 135 × 75 mm (9.06 × 5.31 × 2.95 in)
WeightApprox. 4.5 kg (9.92 lb)
Charger42V 5A Fast Charger, about 6-7 hours
StructureEpoxy Board + PVC Heat-Shrink Wrap + Waterproof Coating (Top & Bottom)
Warranty2 years / 600 cycles to 70% capacity
TemperatureCharge 0-45°C / Discharge -20-60°C / Storage 0-35°C
Fit checkMeasure your frame first: this pack needs 230 × 135 × 75 mm of space.

Choose Your BMS by Motor PowerChoose Your BMS

Your BOOANT battery uses a JBD Smart BMS. Pick the tier that matches your motor.Pick by motor power.

0A20A40A
30A
Up to 750W
Peak 90A, controller ≤25A
Covers 250W-750W mainstream motors
40A
Up to 1200W
Peak 120A, controller ≤35A
Covers 1000W-1200W high-power motors

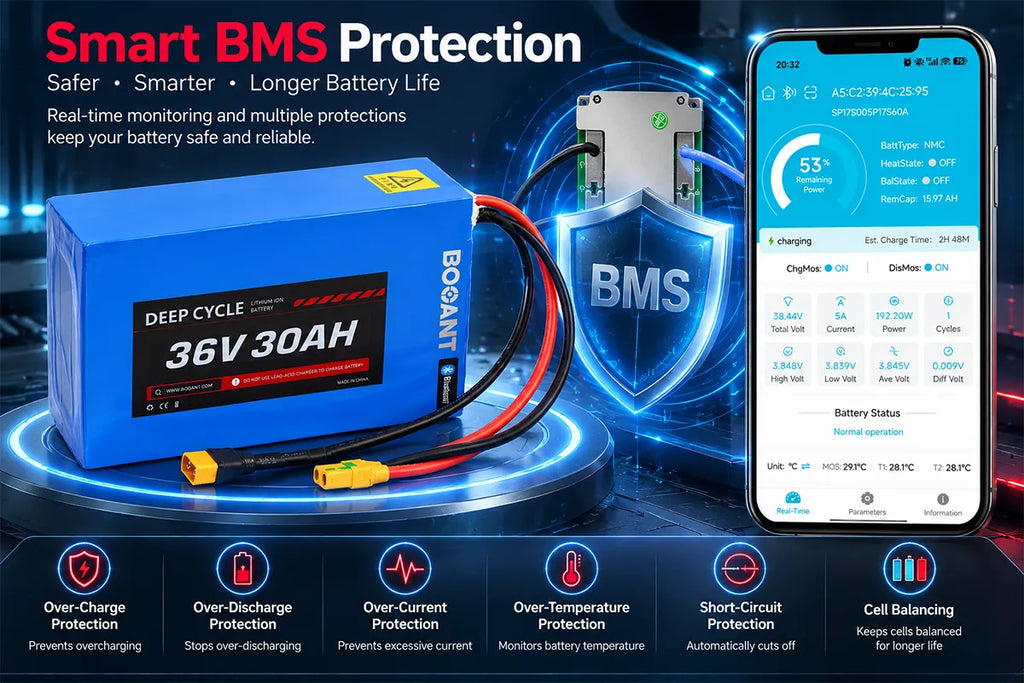

JBD App: Monitor voltage, current, and temperature from your phone.
Example: A 500W motor with a 20A controller fits the 30A tier.
Don't overbuy: A bigger BMS does not make your bike faster.
Protection: Overcharge, over-discharge, overcurrent, and short-circuit protection built in.

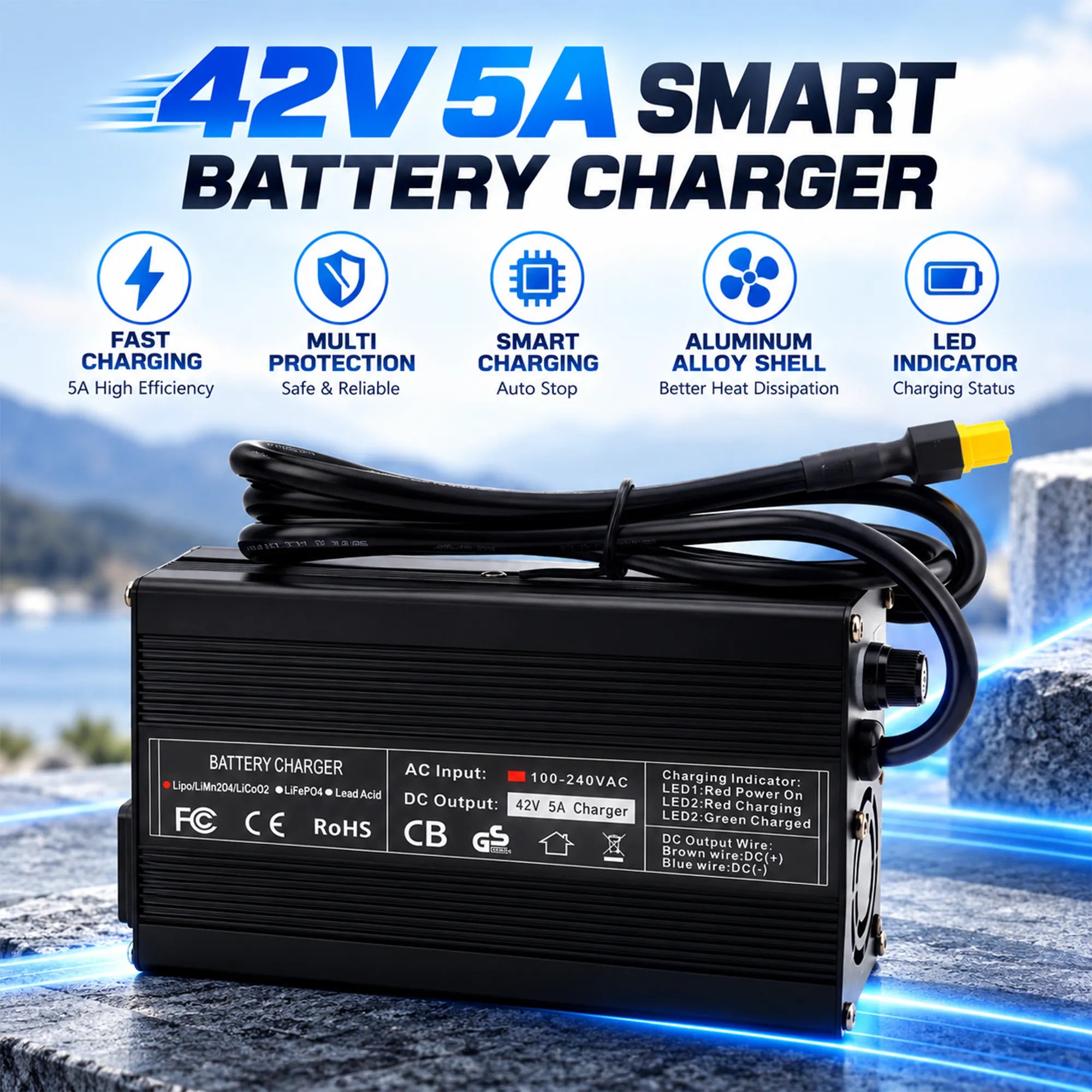

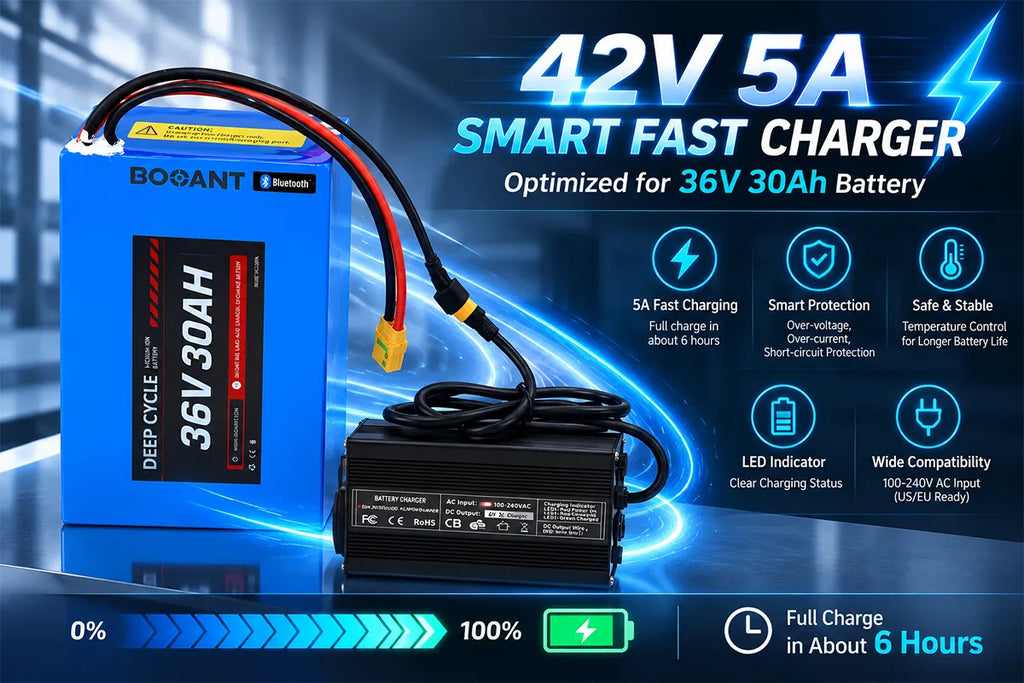

Fast Charger

42V 5A
About 6-7 hours to full chargeAbout 6-7 hours
Red: charging or fault
Green: fully charged or standby on AC power
Warranty covers the pack only, not the charger.
Fuse
Replaceable 250V/10A fuse on the charger
Power lead
AC lead included, plug type by countryAC lead included
Plug in
Mains first, then battery
Unplug
Battery first, then mains
Charge rate
0.17C, gentle on cells
Ventilation
Charge in a ventilated area

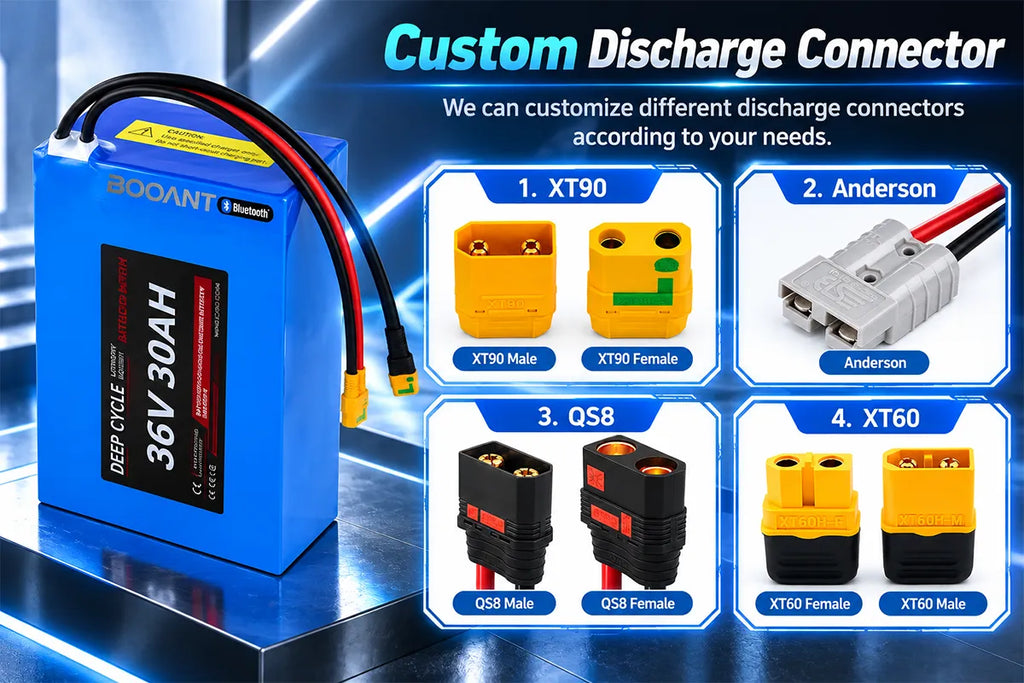

Pick a Connector That Fits Your BMSPick a Connector

All four connectors fit both BMS tiers on this pack. Pick the one that matches your controller.All fit both BMS tiers.

QS8180A
XT90F/M90A
XT60F/M60A
Anderson SB5050A

Wire only is also available if you prefer to fit your own connector. If none fits your controller, contact us and we will help you pick the right one.Wire only also available. If none fits, contact us for help.

Built Fresh. Ready to Ride.

Every BOOANT battery is built to order and bench-tested before shipping. No stock, no shortcuts.Built to order, bench-tested before shipping.

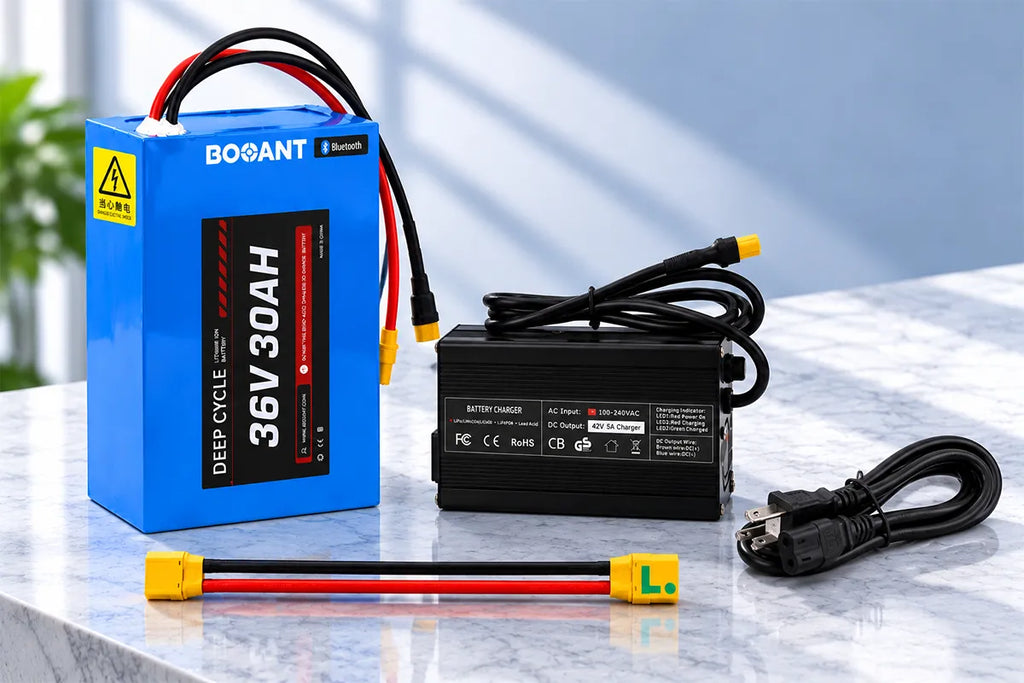

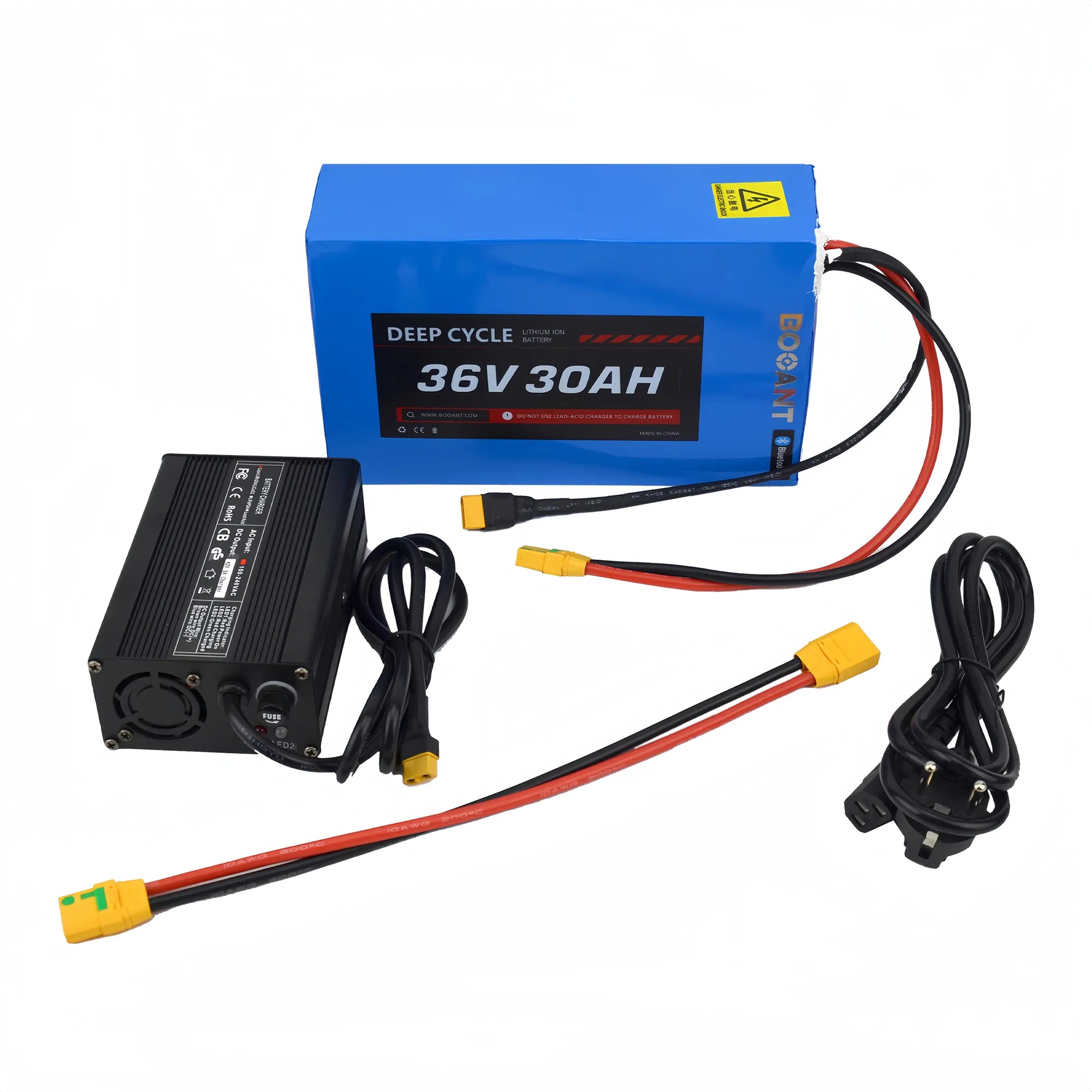

✓36V 30Ah battery pack with JBD Smart BMS
✓42V 5A Fast Charger
✓AC power lead (plug type by country)
✓Discharge extension cable (by connector)
✓JBD App download QR code

FAQ

Which BMS should I choose for my 36V motor?
Pick by motor power. The 30A BMS (up to 750W) covers 250W-750W mainstream motors. The 40A BMS (up to 1200W) covers 1000W-1200W high-power builds. Both use a JBD Smart BMS with Bluetooth.
How long does it take to charge?
About 6-7 hours with the included 42V 5A Fast Charger, from empty to full.
Will this battery fit my eBike?
Measure your frame first. This pack is 230 × 135 × 75 mm and weighs about 4.5 kg. It fits most 36V eBike frames with a downtube or rear rack mount.
Which connector should I choose?
All four connectors fit both BMS tiers: QS8 (180A), XT90F/M (90A), XT60F/M (60A), and Anderson SB50 (50A). Pick the one that matches your controller. Wire only is also available.
Can I monitor the battery from my phone?
Yes. The JBD Smart BMS connects to your phone via Bluetooth. You can check voltage, current, temperature, and remaining capacity in the JBD app, and control the discharge switch remotely.
How long does the battery last?
The warranty is 2 years / 600 cycles to 70% capacity, whichever comes first. The 60 Samsung 50G cells are rated for 600 cycles at 70% state of health.
Is this battery waterproof?
No, it is water-resistant, not waterproof. The PVC wrap and waterproof coating on top and bottom handle rain and splashes, but do not submerge the pack.
How long does delivery take?
Each pack is built to order in 7-10 working days, then shipped with tracking. Delivery takes about 15-20 working days after dispatch. Total is about 22-30 working days.
