Built Fresh To Order
|
2-Year Full Warranty
|
- Samsung 21700 50G (1,440Wh) : 10S8P setup with 80 genuine cells for real 40Ah capacity and low voltage sag.
- Smart JBD Bluetooth BMS : Choose 30A (1000W) or 50A (1500W). Live cell tracking and remote switch via phone app.
- Metal Case & Screen : Stamped metal box with internal EVA shock foam, sealed potting, and top digital display.
- 42V 5A Fast Charger : Aluminum fan-cooled charger delivers a balanced 8–9h charge without cooking the cells.
- Built Fresh to Order : Custom built and cycle-tested per order. Includes a 2-year warranty and duty-paid delivery.

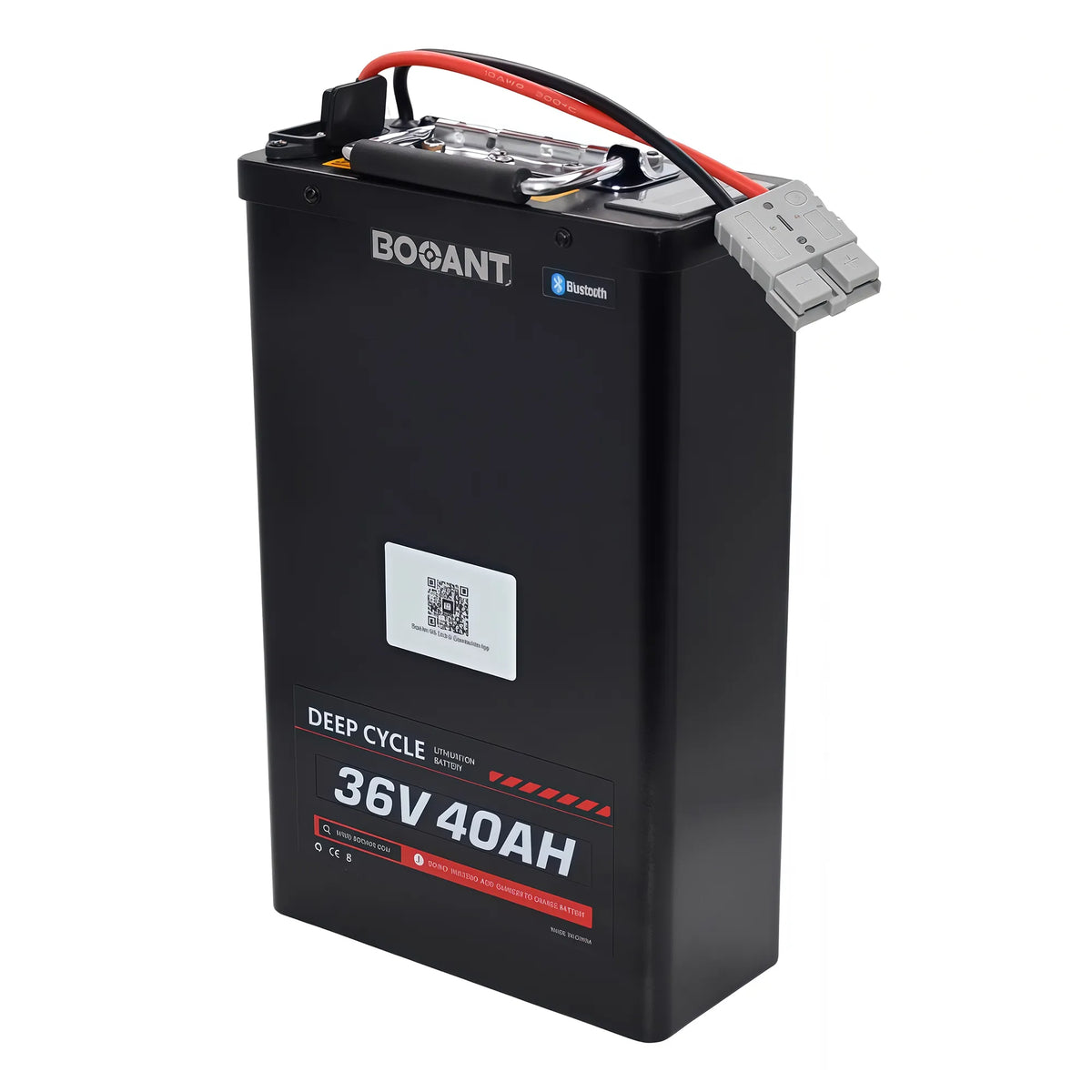

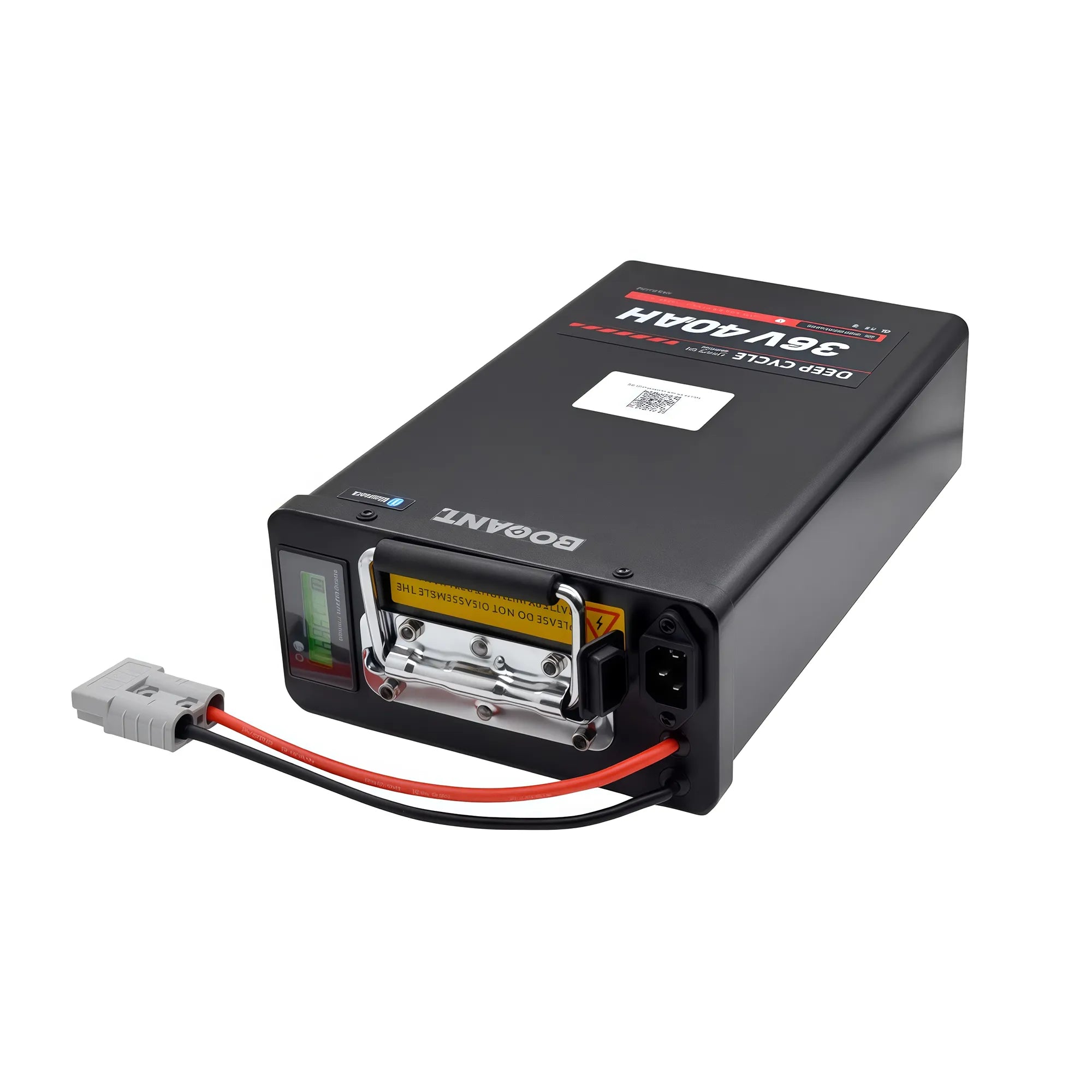

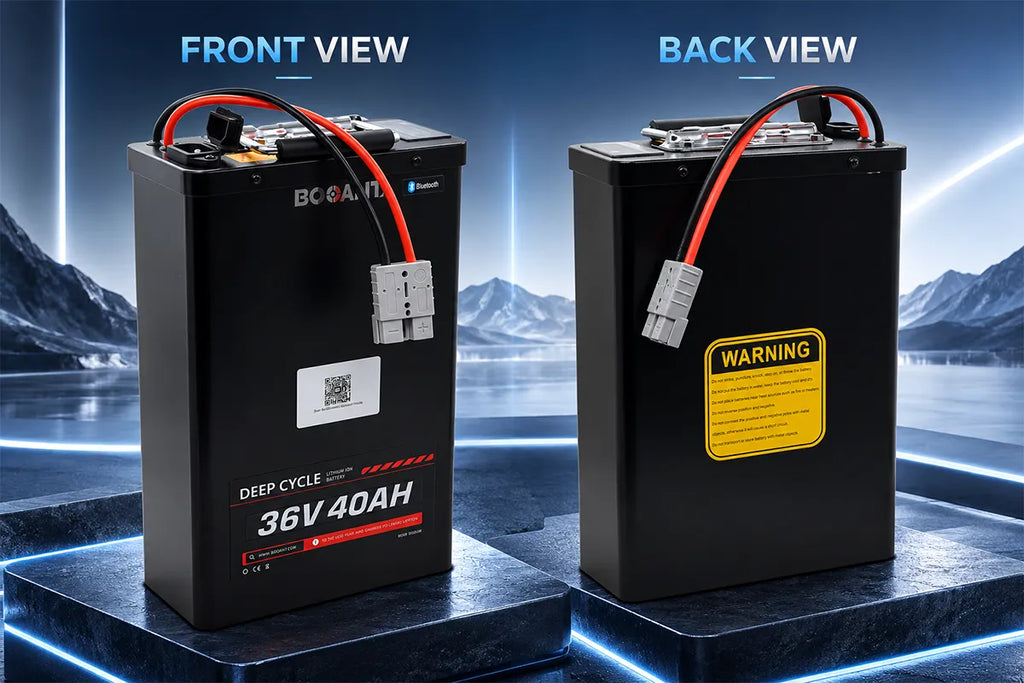

36V 40Ah Metal Case Battery
Engineered for high-mileage e-bikes and cargo builds. Built around authentic Samsung 21700 cells inside a sealed metal case.

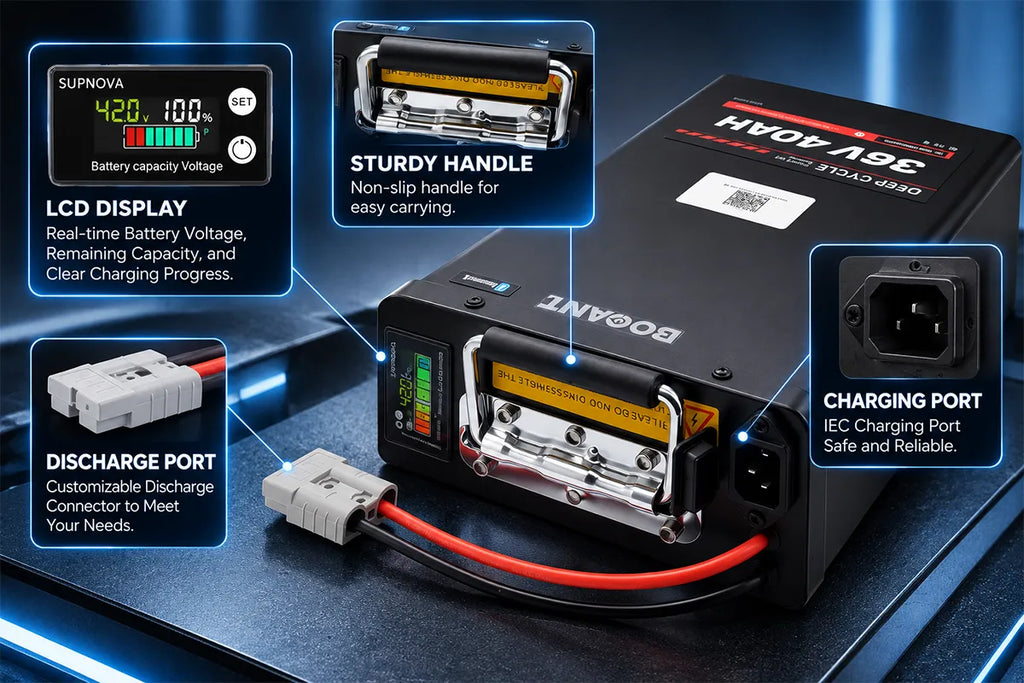

On-Pack Digital Screen
Shows real-time voltage, remaining percent, temp, and charge bar at a glance.

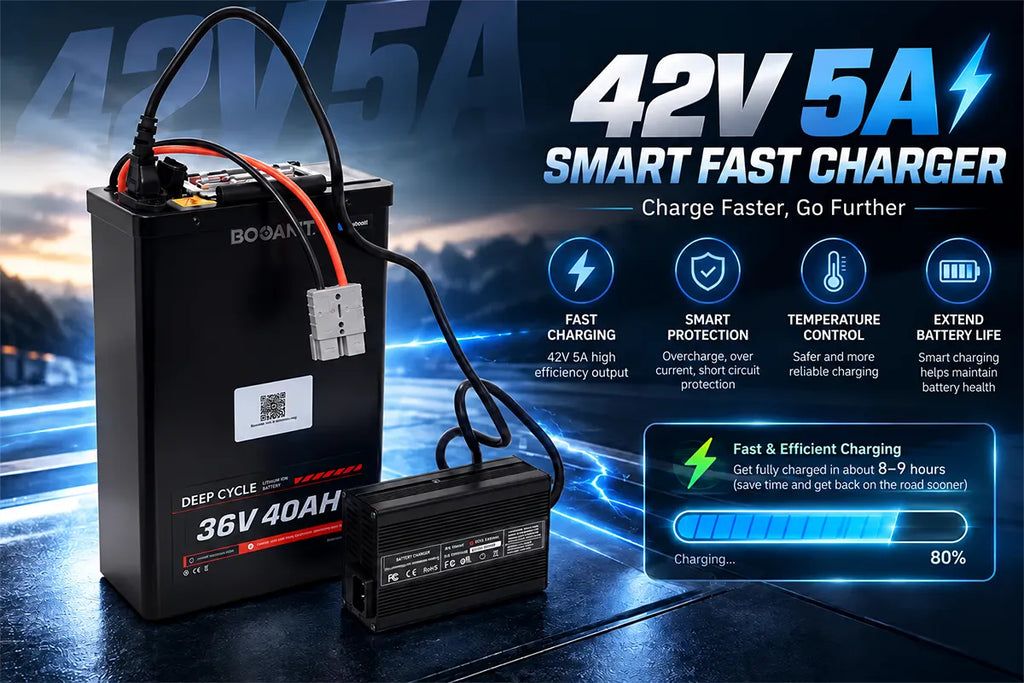

42V 5A Fast Charger
Aluminum fan-cooled charger delivers full recharge in 8–9 hrs without thermal stress.
Heavy-Duty 10AWG Wiring
Low-resistance silicone cables handle high continuous current with zero heat build-up.
Full Weather & Shock Sealing
Internally potted to resist gravel impacts, road wash, and all-weather moisture.
Technical Specifications
| Nominal Voltage & Capacity | 36V / 40Ah (1,440Wh) |
| Cell Model & Configuration | Samsung INR21700-50G (10S8P, 80 Cells Total) |
| Voltage Working Range | 30.0V (Cutoff) – 42.0V (Full Charge) |
| Matched Smart Charger | 42V 5A CC/CV | ~8–9 Hours Full Charge |

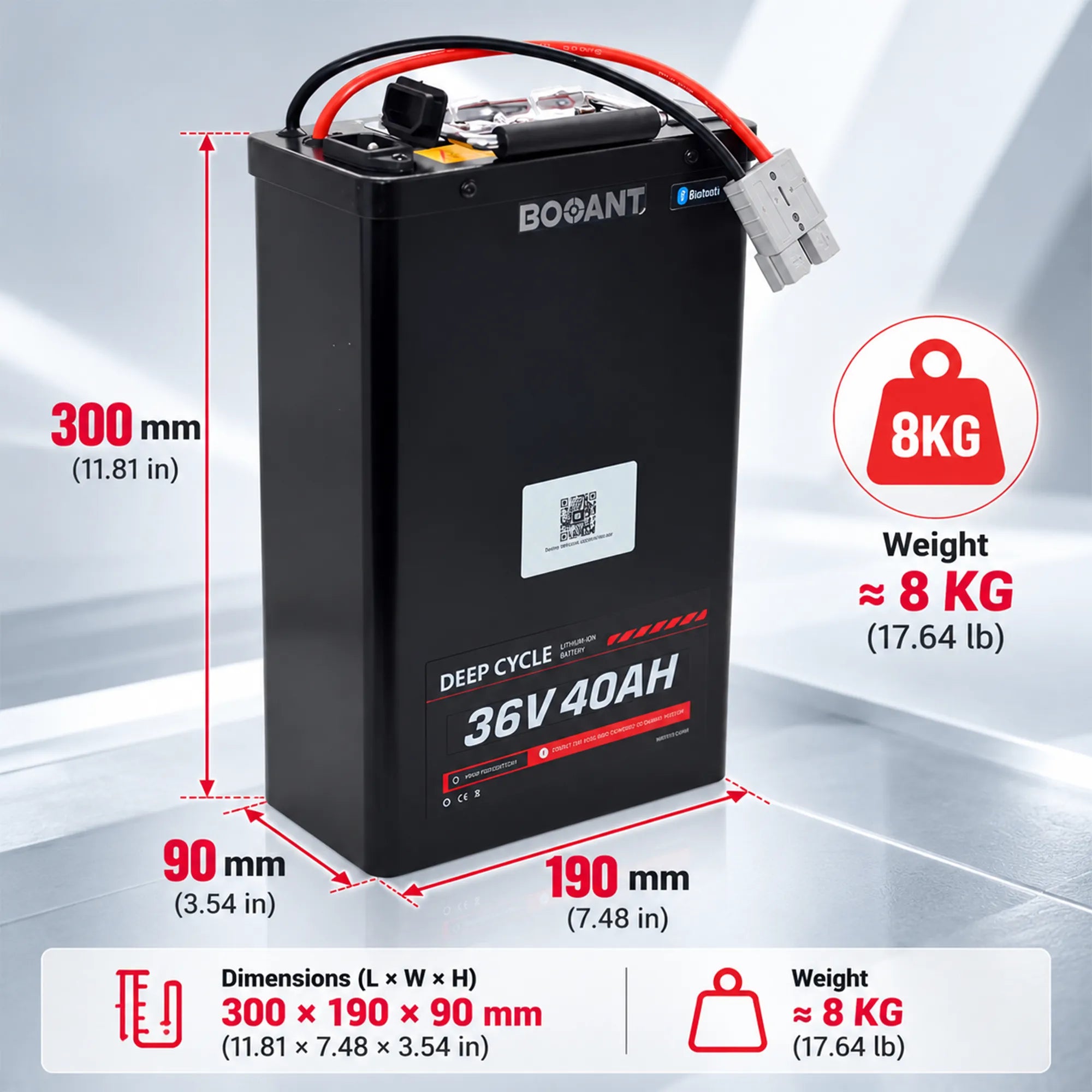

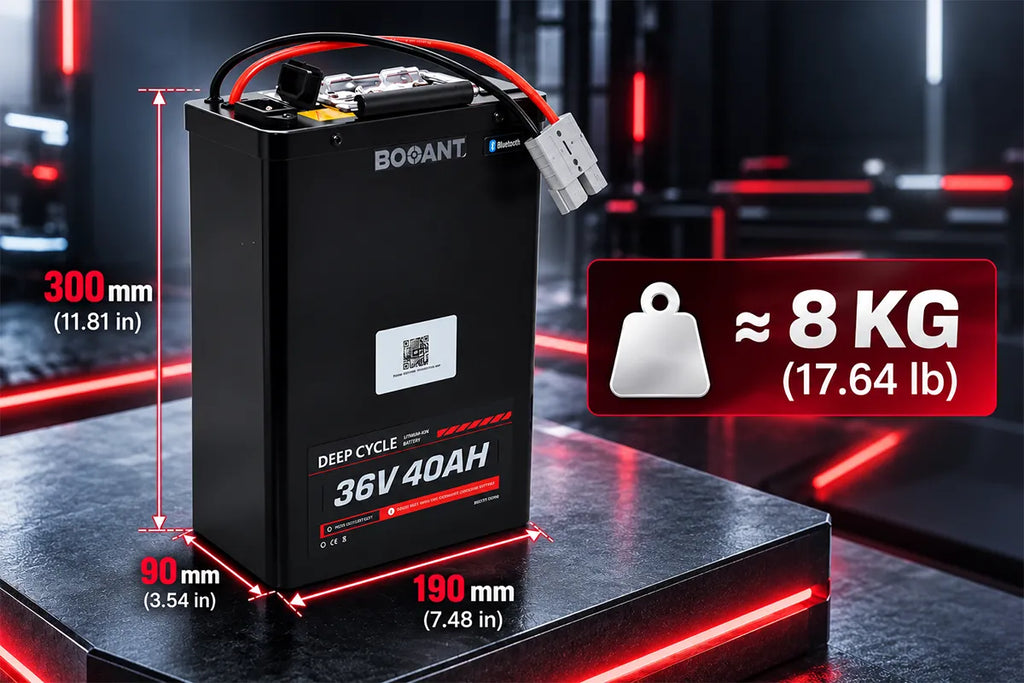

| Dimensions (L × W × H) | 300 × 190 × 90 mm (11.8 × 7.5 × 3.5 in) |
| Pack Weight | Approx. 8.0 kg (17.6 lbs) |
| Enclosure Construction | Coated Sheet Metal Case | Internal Shock Foam & Waterproof Sealant |
| Onboard Display | Top Screen: Live Voltage, State of Charge (%), Temp, Charge Status |
| Management System | Smart JBD BMS with Bluetooth App Connectivity |
| Operating Temperature | Discharge: -20°C to 60°C (-4°F to 140°F) | Charge: 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -10°C to 35°C (14°F to 95°F) at 50% SOC recommended |
| Warranty Coverage | 2-Year Limited Warranty against manufacturing defects |
Fitment Notice: Handcrafted internal potting and shock foam create slight craft tolerances. Please allow a slight buffer in your frame or mounting tray.
Smart JBD BMS & Motor Match
Select your discharge rating based on your motor and hill requirements.
- Continuous Output 30A
- Peak Output (Burst) 90A
- Cell Load (10S8P) ~3.75A / cell
Best for: Commuting, flat roads & maximum battery range.
- Continuous Output 50A
- Peak Output (Burst) 150A
- Cell Load (10S8P) ~6.25A / cell
Best for: Heavy cargo, steep hills & full throttle riding.
Range Variables: Actual range depends on total weight, tire pressure, cruising speed, and hill grade.

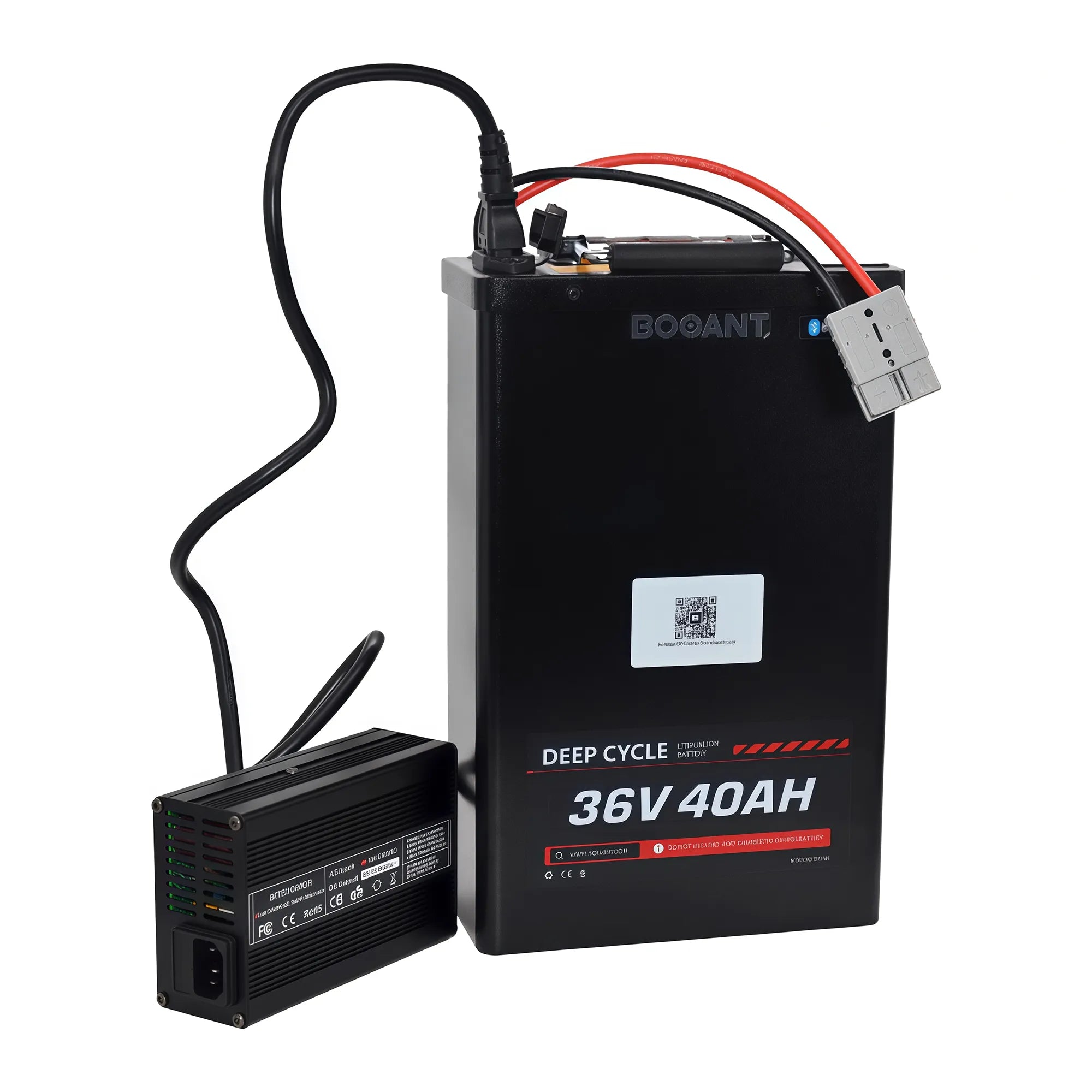

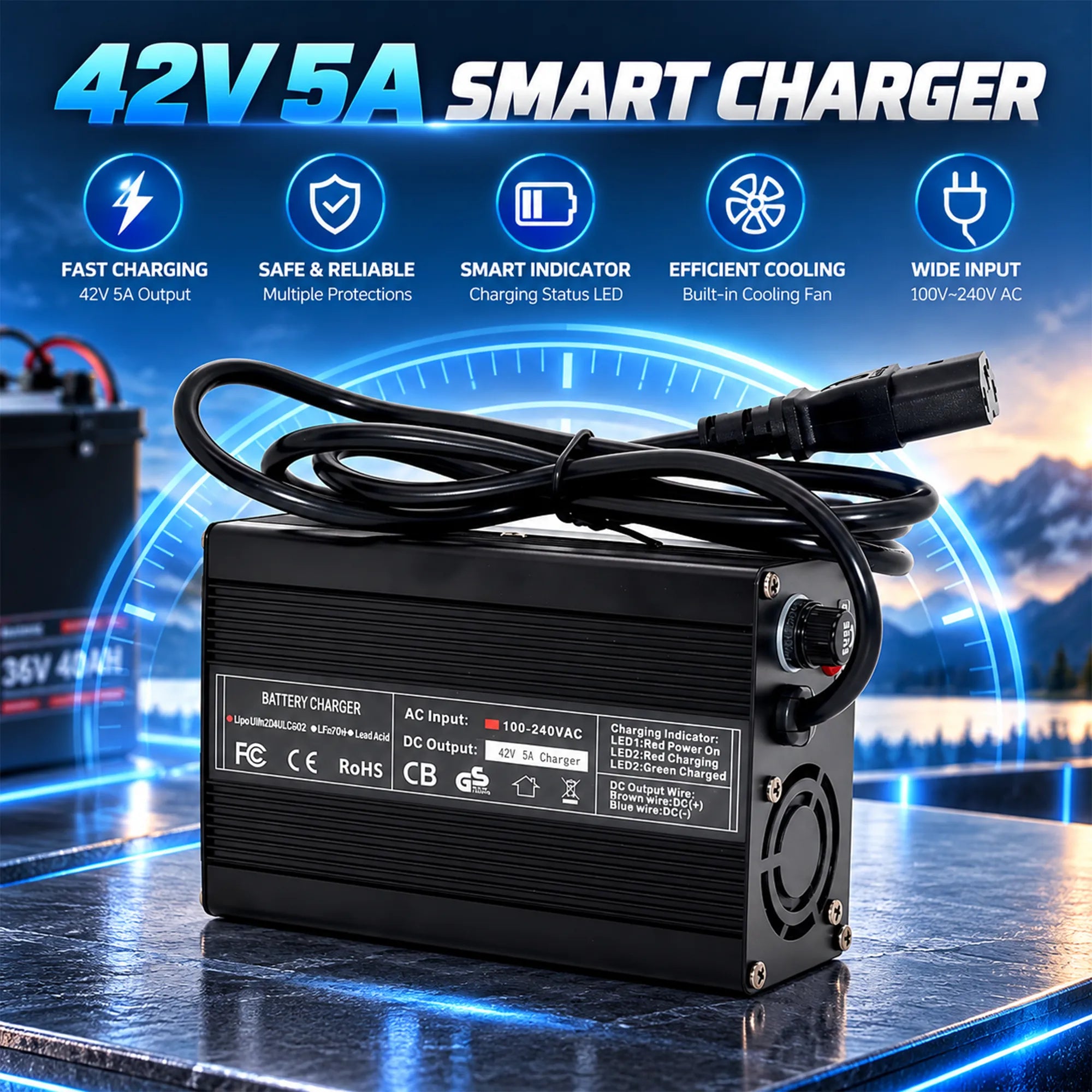

42V 5A Fast Charger
Matched CC/CV profile for this 40Ah pack. Delivers a steady full charge in roughly 8–9 hours without thermal strain.
Charging in progress or internal diagnostic error detected.
Pack fully charged. Auto-cutoff cuts current to protect cell chemistry.
All-Metal Casing
Rugged aluminum shell built for workshop use. Dissipates heat naturally.
Active Cooling Fan
Quiet internal forced-air fan keeps components cool under steady 5A current.
Dual Replaceable Fuses
250V AC input fuse and 250V/10A DC output fuse shield against power spikes.
AC Power Socket
Standard grounded 3-pin receptacle compatible with standard US/EU cables.
Frequently Asked Questions
Real answers to real rider questions about fitment, charging, and smart BMS setup.
Will this 36V 40Ah battery work with my motor kit?
Yes, as long as your controller is rated for 36V nominal (42V max). Pick the 30A BMS for standard motors up to 1000W (like Bafang BBS02 36V 500W/750W or hub motors). Pick the 50A BMS for performance setups up to 1500W where higher hill-climbing current is needed.
If you run a 48V or 52V motor kit, do not use this pack; check our matching 48V/52V packs instead.
How does the Smart JBD Bluetooth BMS work with my phone?
Just download the Xiaoxiang (JBD) app on iOS or Android and turn on Bluetooth. No wiring or account setup needed. The app auto-detects the battery within range.
You can check individual cell voltages across all 10 series groups, monitor internal temperature sensors, see exact current draw in real time, and toggle charge/discharge ports on or off.
Is the metal casing waterproof and safe for rain riding?
Yes, it easily handles rain, road puddles, and trail spray. The stamped steel enclosure is lined with dense EVA shock-absorption foam and injected with industrial waterproofing sealant around all wire exits and seams.
As with all high-voltage electronics, avoid submerging the pack underwater or washing it with high-pressure power washers.
Will the 5A fast charger degrade the Samsung 21700 cells faster?
Not at all. A 5A charge rate is actually very gentle on this pack. Because the battery uses an 8-parallel (8P) cell layout, the 5A current is shared across 8 cells—meaning each Samsung 50G cell only receives about 0.62A.
Samsung rates these cells for up to 2.45A normal charging, so 0.62A is well below standard limits, ensuring zero excessive heat and protecting long-term cycle life.
How should I store this battery during winter or off-season?
Store it indoors at roughly 50% charge (around 36V to 37V on the top screen). Keep it in a dry area between 10°C and 25°C (50°F to 77°F).
Do not leave the pack completely empty (0%) or continuously plugged into the charger (100%) for months. Check the top voltage readout every 60–90 days and top it up slightly if it drops below 35V.
Built-To-Order & Shipping Standard
We build every pack fresh per order to maximize cell chemistry and test every unit thoroughly before dispatch.
Fresh Build Per Order
Zero dead shelf inventory. Every battery is welded fresh upon order using genuine Grade-A Samsung 21700 cells for peak initial capacity.
Full Cycle Verification
Each assembled pack undergoes a complete charge and discharge test. We verify true Ah capacity, Smart BMS balancing, and thermal limits before sealing.
Duty-Paid Air Freight
Shipped via FedEx/UPS (US/CA) or DPD/DHL (EU) in 15–20 business days. All import customs clearance and doorstep delivery duties are fully covered.
