48V 20Ah Triangle E-Bike Battery – Samsung 50G
Free Shipping + Duties Included
Free Shipping + Duties Included
Free Shipping + Duties Included
Free Shipping + Duties Included
Free Shipping + Duties Included
Free Shipping + Duties Included
Free Shipping + Duties Included
Free Shipping + Duties Included
Free Shipping + Duties Included
Free Shipping + Duties Included
Free Shipping + Duties Included
|
Built Fresh To Order
|
2-Year Full Warranty
|
- Real Samsung 50G Cells : Built with 52 genuine Samsung 21700-50G cells in a solid 13S4P pack. You get a true 48V 20Ah (960Wh) of usable power that won’t suddenly tank or sag when you pin the throttle up a steep hill.
- Bluetooth BMS Right on Your Phone : Inside is a smart JBD board that pairs directly to the Xiaoxiang app. You can see exact cell voltages, watch pack temps, and turn charging or output on and off with a tap—no guessing what your battery is doing.
- Matched Power for 1000W to 1500W Motors : Pick the 30A version (90A peak) for clean 750W–1000W cruising, or grab the 40A version (120A peak) if you're pushing a 1500W motor hard.
- into Your Front Triangle : Sized at 225 x 150 x 75 mm (with a 200 mm slope) and weighing around 8.8 lbs, this pack keeps weight low and centered inside your frame. It comes protected with tough shrink PVC and internal epoxy padding.
- Fast 5A Charger & 2-Year Warranty : We throw in a proper 54.6V 5A metal fan-cooled charger so you’re back riding in about 4~5 hours instead of waiting all night. backed by a solid 2-year warranty.

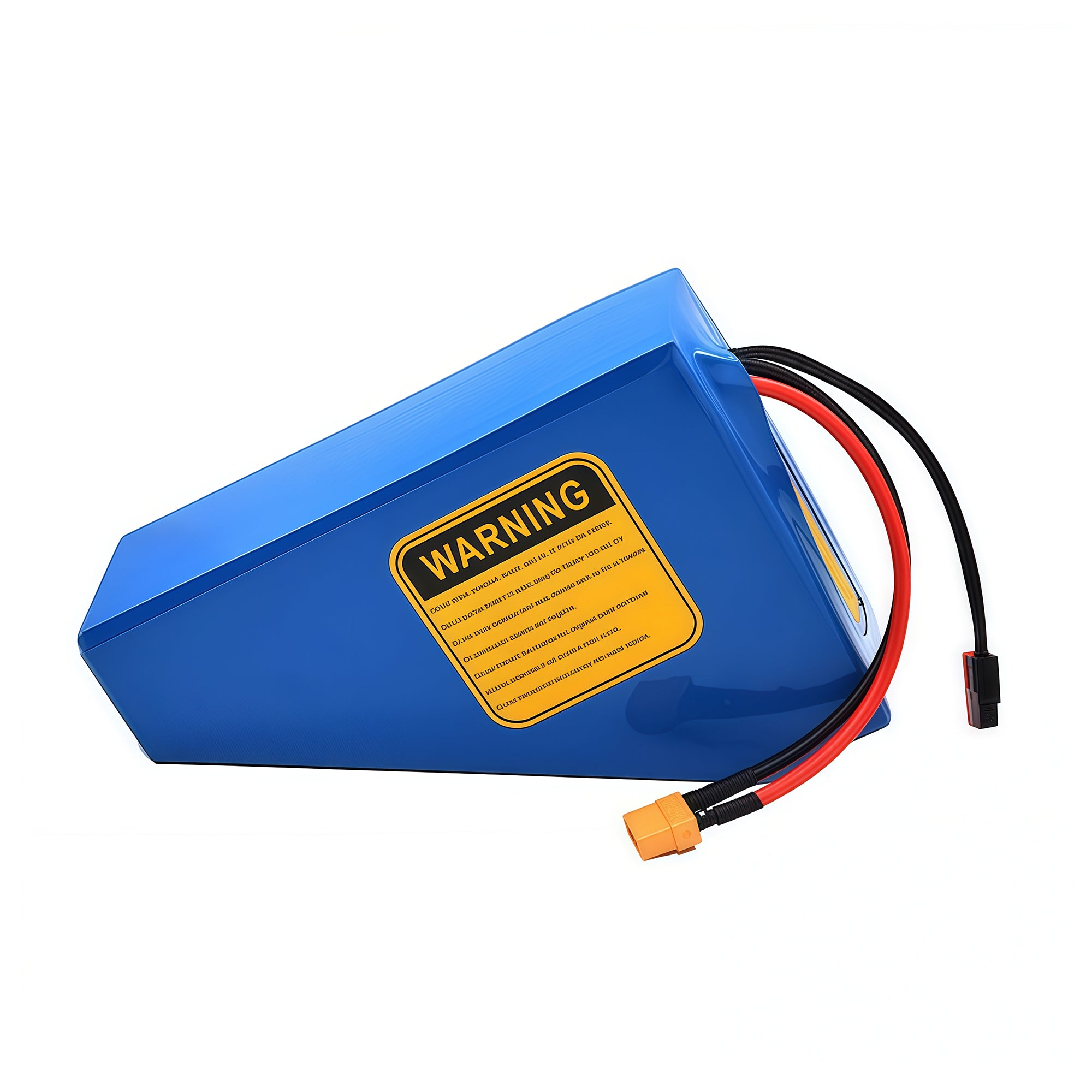

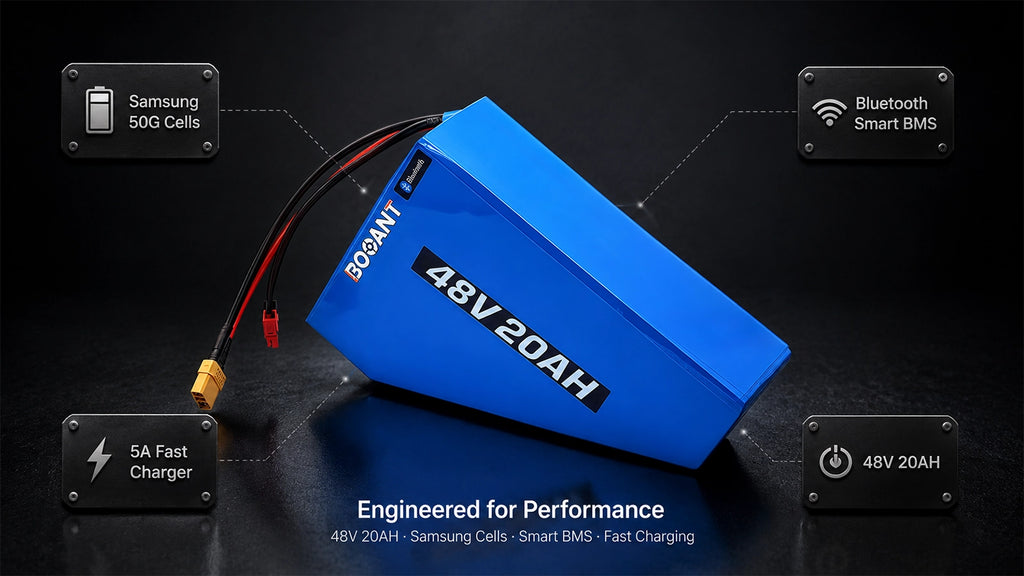

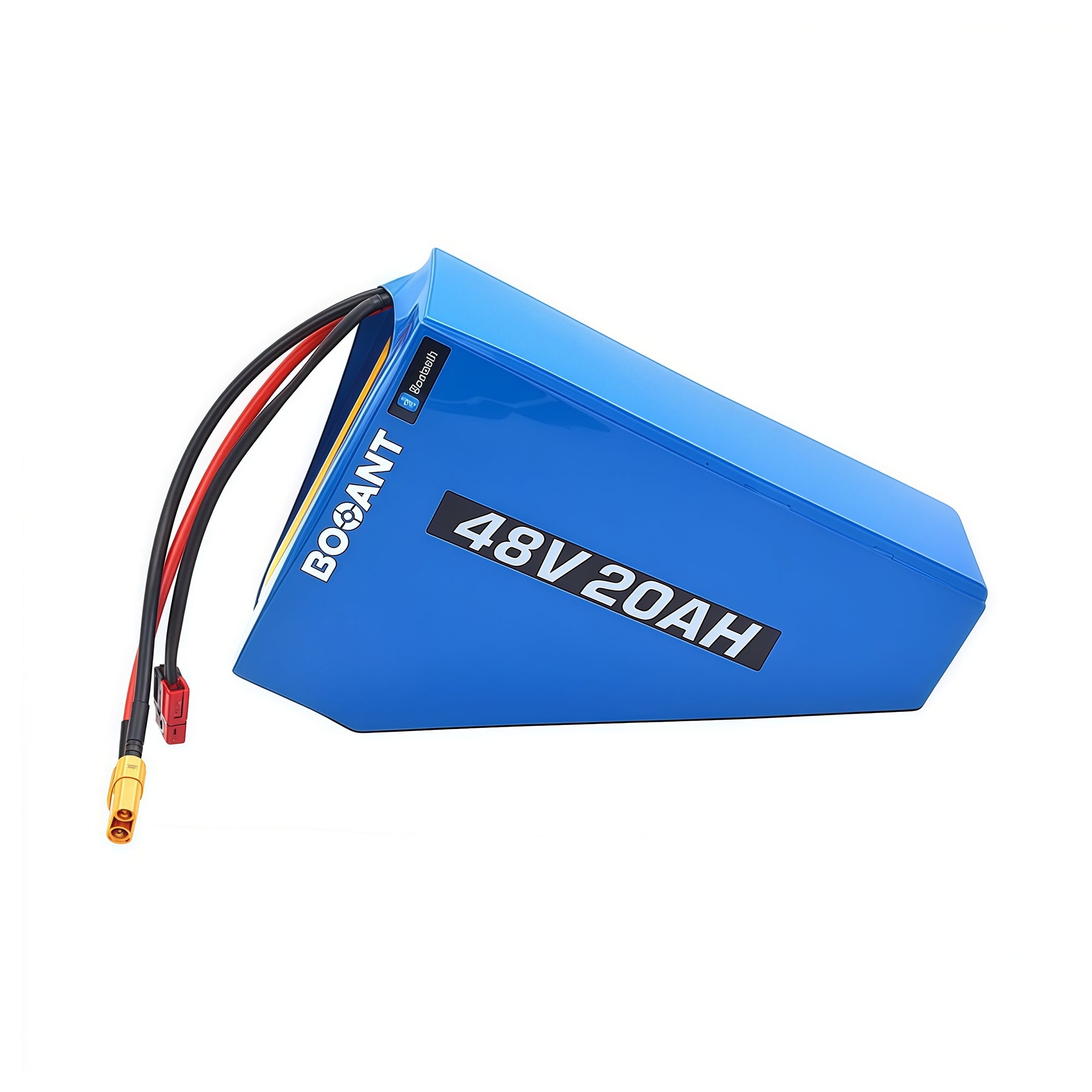

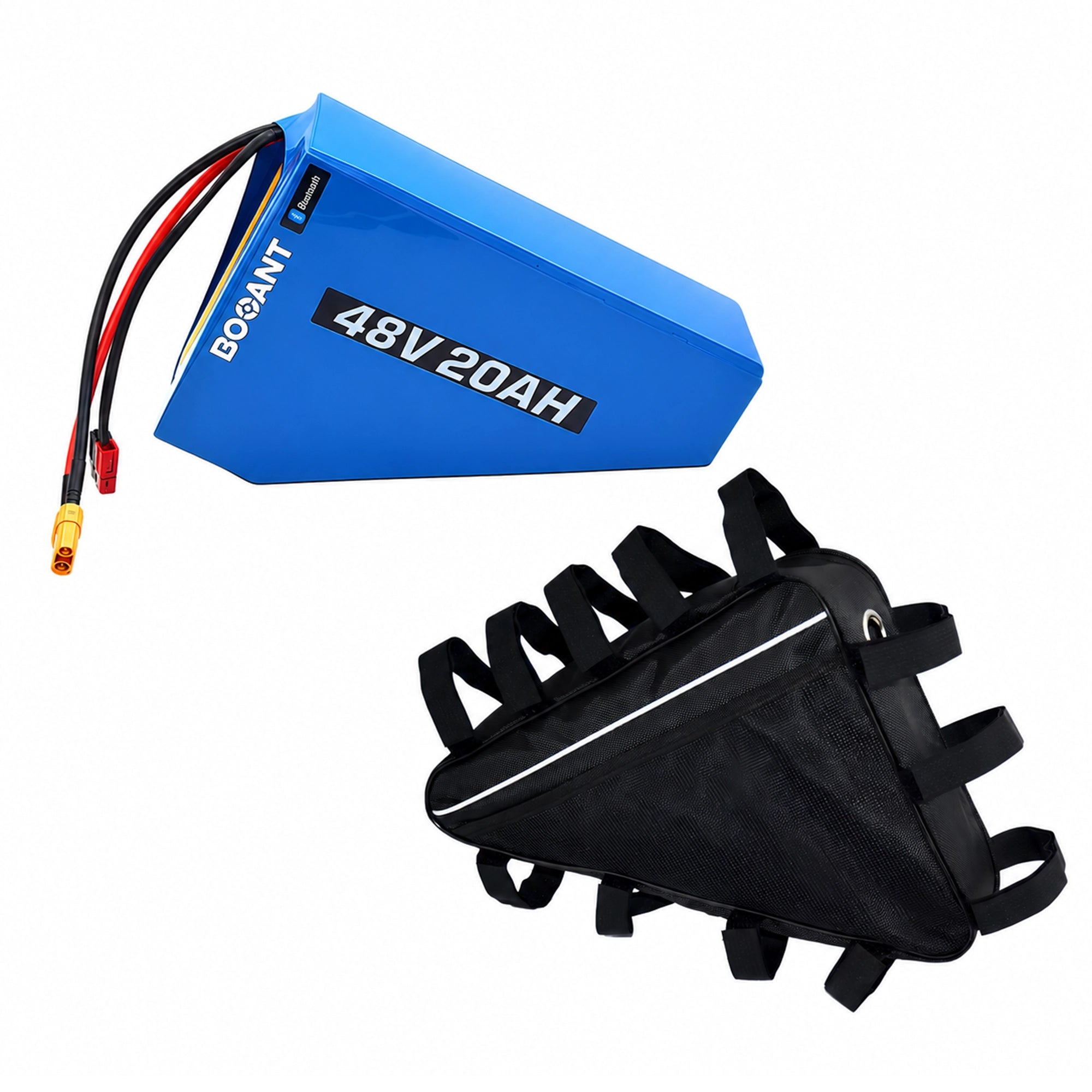

48V 20Ah Triangle Lithium Battery Pack
Built for serious mid-frame builders who demand real range without the dead weight. Powered by 52 authentic Samsung 21700 50G cells in a rugged 13S4P setup, this compact triangle pack delivers solid hill-climbing torque and zero voltage sag.
Nominal Voltage (54.6V Peak)
960Wh Usable Capacity
Genuine Samsung 21700 Cells
Fast Smart Charger Included

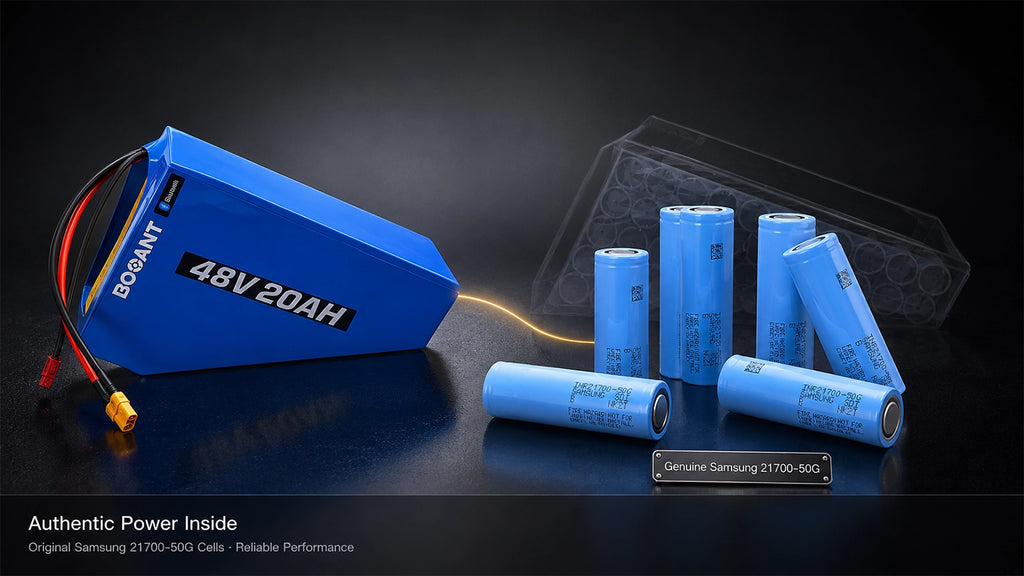

Authentic Samsung 50G Cells
Packed with 52 Grade-A Samsung 21700-50G cells in a tight 13S4P matrix. Expect sustained high-current draw and genuine 800+ cycle lifespan.

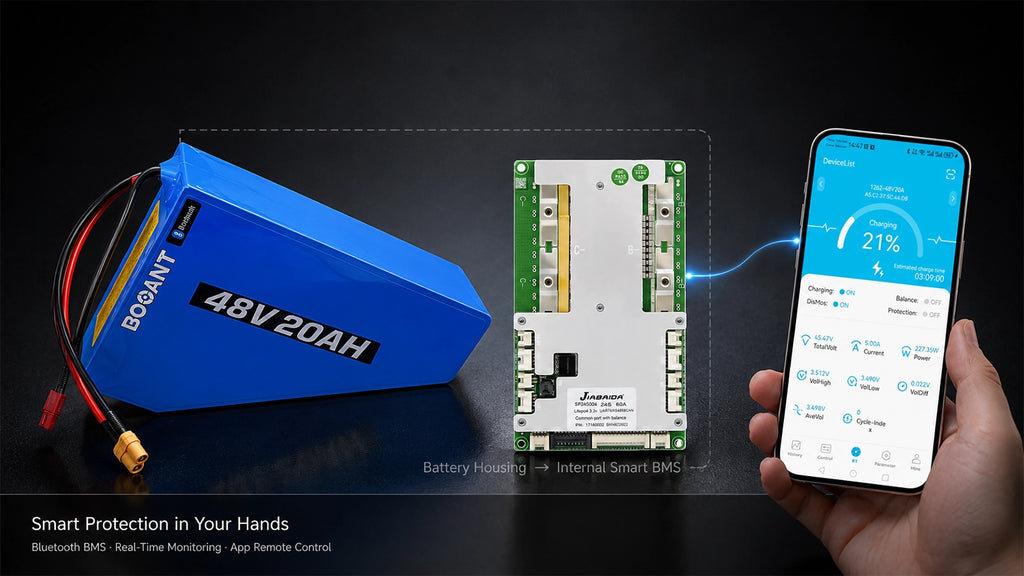

JBD Smart Bluetooth BMS
Monitor real-time cell voltages and pack temperatures right from your phone. Toggle charge and discharge ports remotely with one tap.

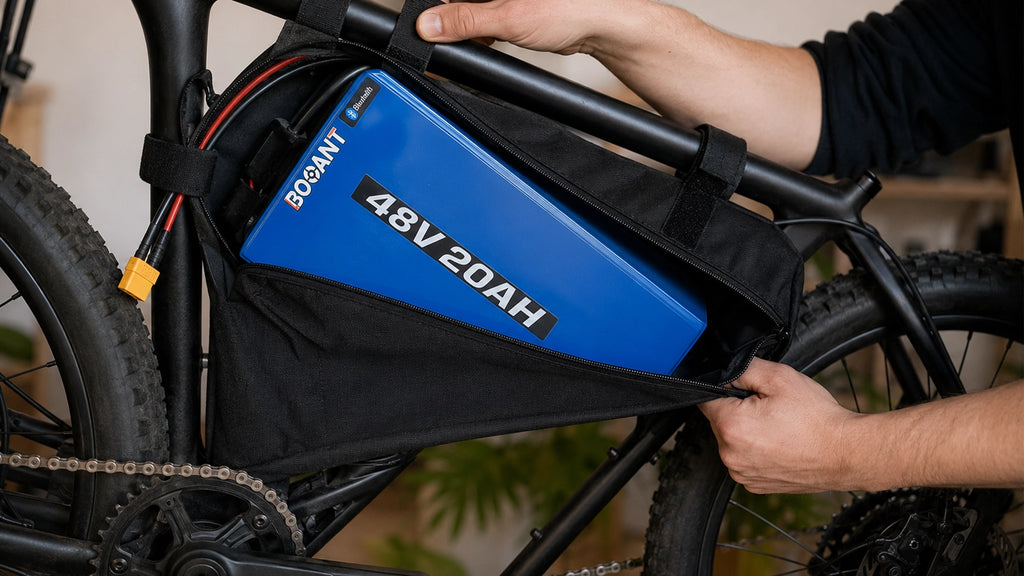

Low-Center Triangle Geometry
Sits neatly inside the front triangle to keep bike handling planted and nimble. Wrapped in heavy-duty PVC film with inner shock cushioning.

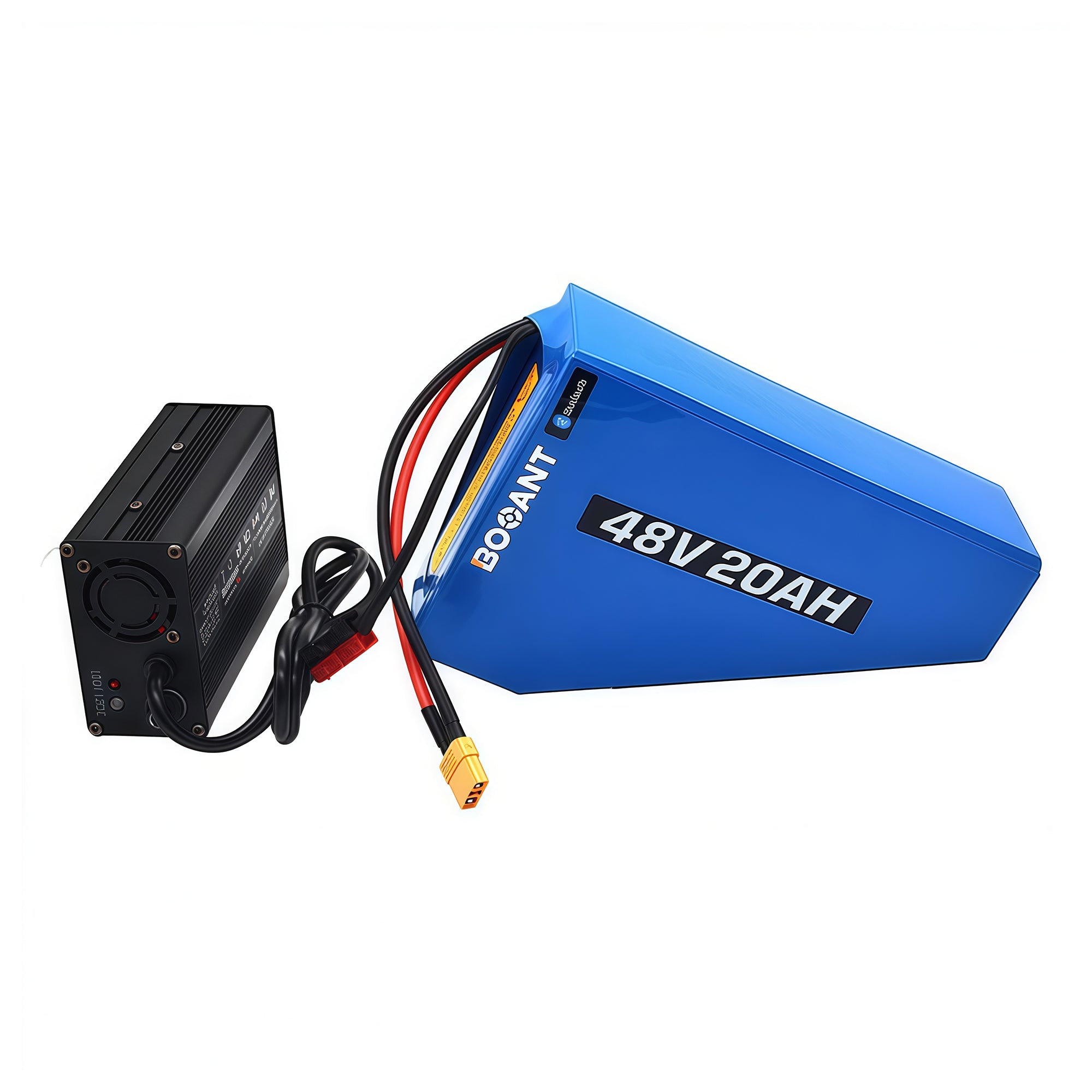

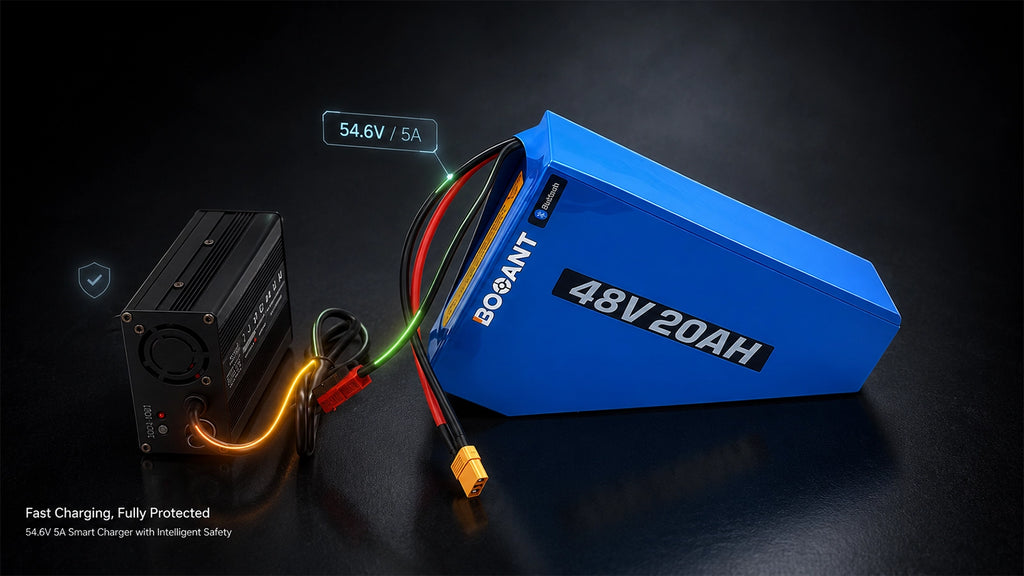

54.6V 5A Smart Fast Charger
Bundled with an active-fan CC/CV smart charger for quick 4-hour top-offs. Auto cut-off protects against overcharging and cell strain.
Technical Specifications
Standardized parameters for custom frame builds and system compatibility.
Electrical & Power Ratings
| Nominal Voltage | 48V |
| Rated Capacity | 20Ah (960Wh energy output) |
| Voltage Range | 39.0V (Cut-off) – 54.6V (Peak charge) |
| Standard Charger | 54.6V 5A Smart Fast Charger (Approx. 4 hrs full charge) |
| Cycle Life | 800+ cycles to 80% DOD under standard charge/discharge cycles |
Cell Matrix & Smart BMS
| Cell Model & Brand | Genuine Grade-A Samsung INR21700-50G |
| Matrix Configuration | 13S4P (52 Cylindrical Cells total) |
| BMS Architecture | JBD Smart Hardware BMS with Bluetooth Wireless Telemetry |
| App Connectivity | Xiaoxiang App (iOS / Android) for real-time voltage and switch control |
| Hardware Protections | Over-charge, Over-discharge, Over-current, Short-circuit & High/Low Temp |
Dimensions & Structural Form
| Geometry Profile | Compact Front-Triangle Frame Fit |

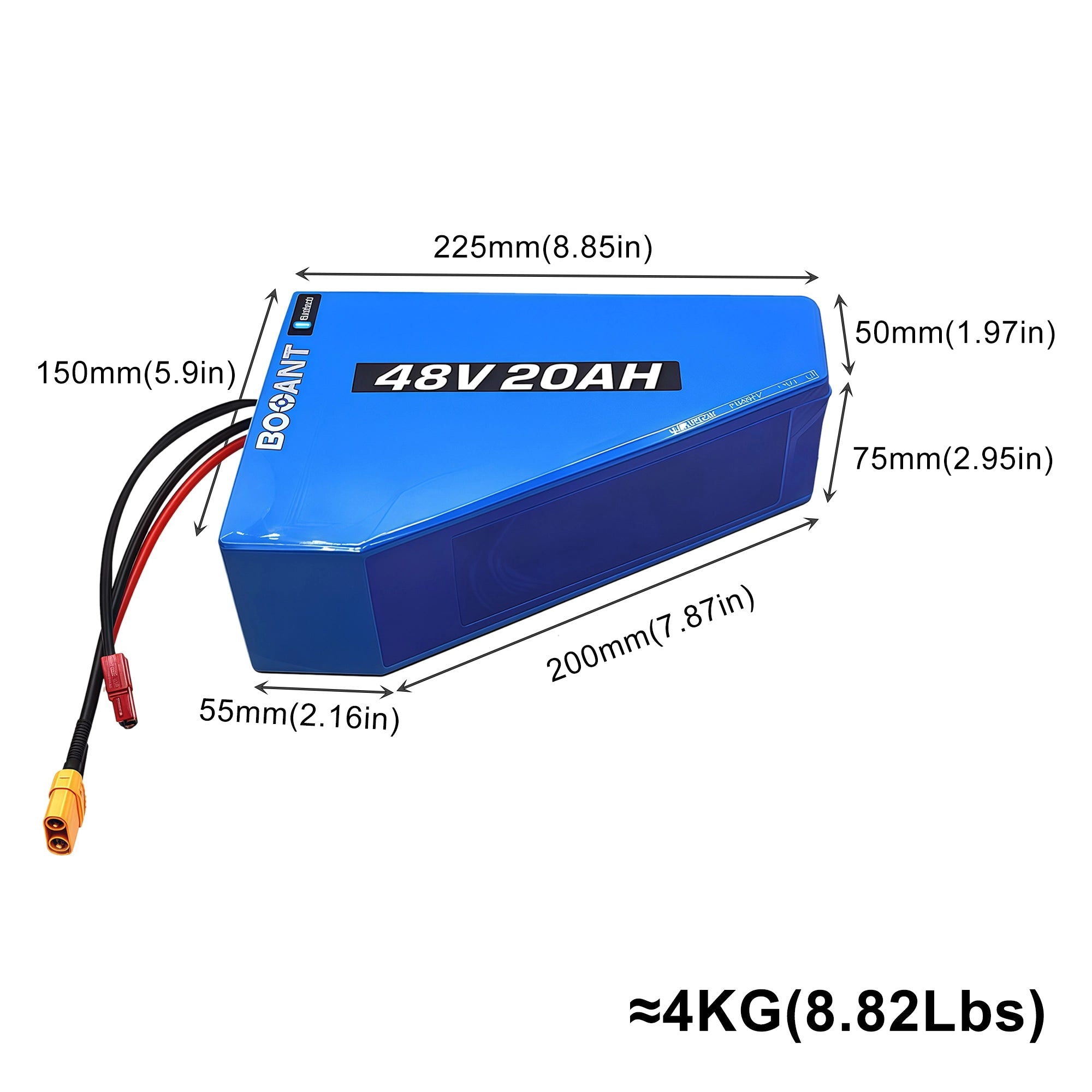

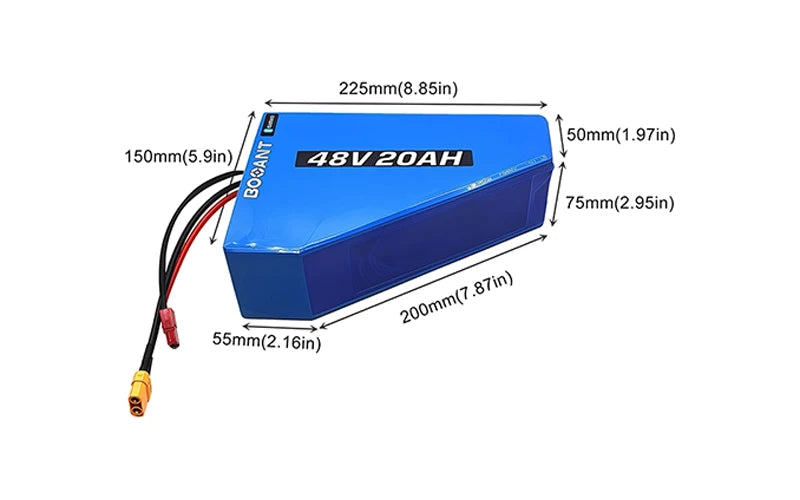

| Outer Dimensions | 225 × 150 × 75 mm (8.86 × 5.91 × 2.95 in) |
| Hypotenuse (Slope) | 200 mm (7.87 in) |
| Total Pack Weight | Approx. 4.0 kg (8.82 lbs) |
| Enclosure Material | High-temp industrial PVC wrap with inner fiberglass & shock padding |

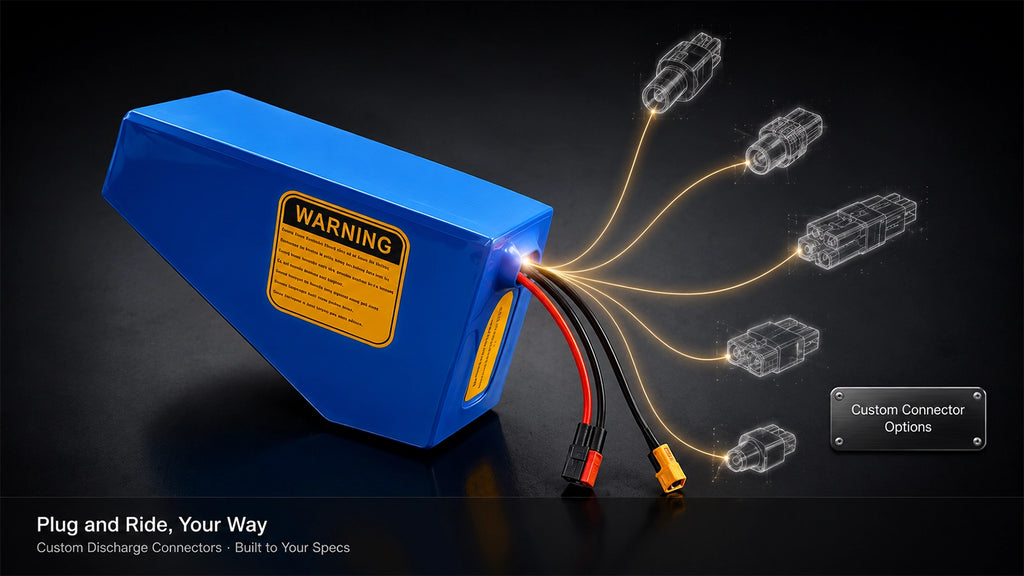

| Discharge Wiring | Heavy-gauge flexible 10AWG silicone wire (Custom plugs available) |
Operating Limits & Warranty
| Discharge Temperature | -20°C to 60°C (-4°F to 140°F) |
| Charge Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -10°C to 35°C (14°F to 95°F) at 50% SOC |
| Warranty Coverage | 2-Year Warranty |
Smart JBD BMS & Motor Power Pairing
Select the hardware discharge rating tuned for your motor controller.
Real-World Range Estimates: Figures are calculated on a total 960Wh pack capacity with Samsung 50G low-sag cells (tested with a 170 lb rider on flat pavement at 68°F). Actual mileage varies with total payload, riding speed, tire pressure, elevation gain, and headwind.
54.6V 5A Smart Fast Charger
Dedicated high-efficiency CC/CV charger engineered for 48V (13S) lithium packs.
Precise Full-Charge Voltage
Continuous Fast Output
Empty-to-Full Top-Off Time
Status Indicator Light (Red / Green)
Heavy-Duty Metal Casing
Rigid aluminum alloy body shields internal components from shop drops and sheds heat rapidly.
Standard AC Power Socket
Equipped with standard 3-prong AC inlet for secure, detachable power cords across North America and Europe.
Active Fan Heat Dissipation
Built-in high-speed cooling fan maintains optimal thermal stability throughout 5A high-current charging.
Intelligent CC/CV Cut-off
Safely transitions from constant current to constant voltage, cutting power upon completion to prevent overcharge.
FAQ
Clear, no-nonsense answers from battery builders and riders.
How do I know if this triangle pack fits my bike frame?

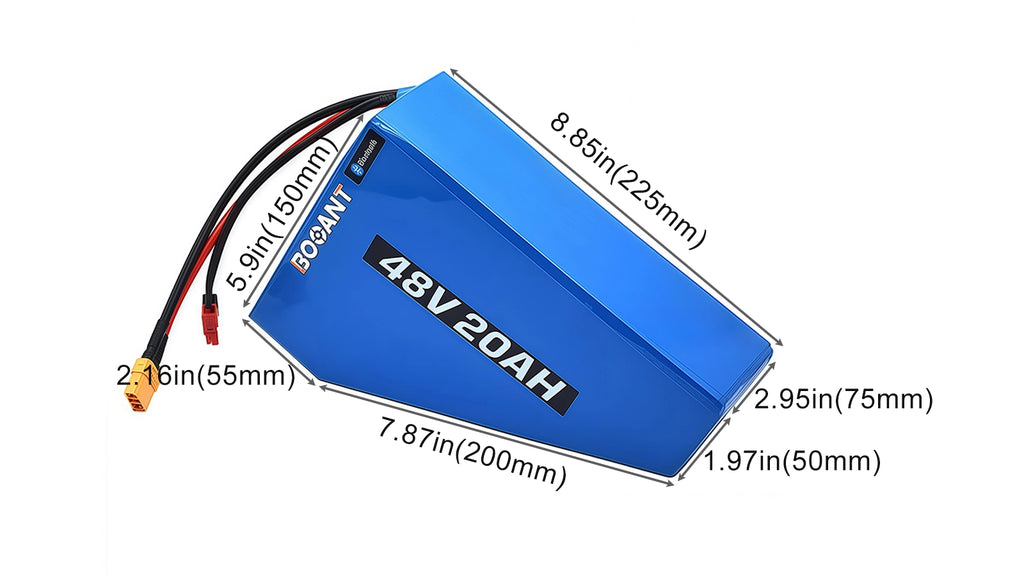

Measure the inner triangle of your bike frame before ordering. This pack measures 225mm long × 150mm tall × 75mm thick (8.86" × 5.91" × 2.95") with a 200mm (7.87") hypotenuse slope.
Make a quick cardboard template using these dimensions and place it inside your front triangle. Check for clearance around rear shock mounts, water bottle bosses, and front derailleur cables.
Should I choose the 30A or 40A BMS version?
It depends entirely on your motor controller's current rating:
- 30A BMS (90A peak): Best for 250W, 500W, 750W, and 1000W motors paired with controllers rated up to 25A–30A.
- 40A BMS (120A peak): Ideal for 1000W to 1500W high-torque hub or mid-drive setups with 30A–35A controllers.
Picking the 40A BMS gives you extra headroom and lower heat during steep climbs, but make sure your motor wiring and controller can handle the draw.

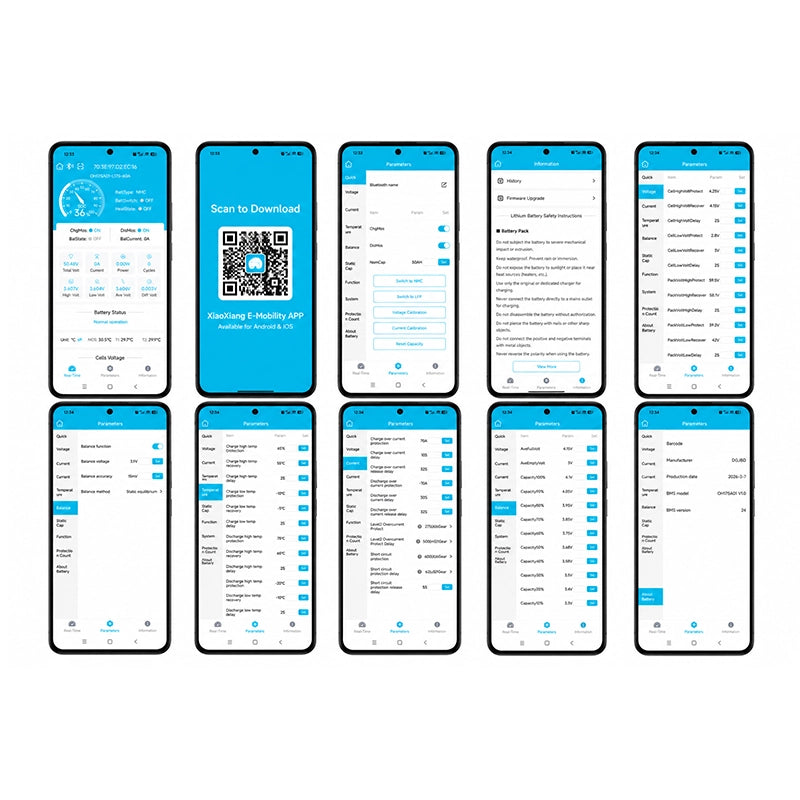

How do I connect to the JBD Bluetooth BMS and what can I control?
Download the Xiaoxiang App (available for iOS and Android) and enable Bluetooth on your phone. Turn on or plug in the pack, open the app, and search for the nearby Bluetooth signal to connect directly without a pairing PIN.
Through the app dashboard, you can view individual cell group voltages, check internal temperature sensor readings, monitor live amperage draw, and toggle charge/discharge switches remotely.
Are these original Samsung 50G cells, and why does 21700 matter?
Yes. Every pack is spot-welded with 52 brand-new, factory-matched Samsung INR21700-50G cells in a 13S4P matrix. We do not use rewrapped, recycled, or generic B-grade cells.
Compared to older 18650 formats, 21700 cells hold higher energy density and deliver cooler discharge runs under heavy throttle, meaning significantly less voltage sag when you are accelerating or riding uphill.
Is the 5A fast charger safe for daily battery longevity?
Yes. With a 4P parallel configuration (4 cells sharing current), a 5A charge current translates to just 1.25A per cell. That is well within Samsung's recommended standard charge rating (0.5C / 2.45A per cell).
The included 54.6V 5A charger charges the pack in approximately 4 hours from empty while staying well within safe thermal thresholds thanks to active fan cooling.
How waterproof is the PVC wrap, and does it need a frame bag?
The pack is sealed with heavy-duty heat-shrink PVC film backed by internal epoxy fiberglass boards, protecting the cells from splashes, road debris, and vibrations.
However, because it uses flexible wiring exits, it is splash-resistant, not submersible. We strongly recommend mounting it inside a weather-resistant triangle frame bag for daily commuting in wet rain or off-road mud.
How should I store this battery over the winter or off-season?
Store the battery indoors at room temperature (around 50°F–70°F / 10°C–20°C) at roughly 50% to 60% state of charge (around 48V–49V).
Never leave it plugged in continuously over the winter, and never store it completely drained at 0%. Check voltage every 6 to 8 weeks via the Xiaoxiang App and top it off if it drops below 46V.
Built-To-Order & Shipping Process
To maximize battery health and cycle life, we build each pack fresh upon order and verify all parameters before dispatch.
Every battery pack is custom built directly upon your order rather than pulled from sitting warehouse shelf stock. This guarantees maximum fresh chemical cycle life, zero capacity degradation, and optimal cell health from day one.
We source original grade-A Samsung cells straight from official distributors per order. Once assembled, every pack undergoes a full charge and discharge test cycle to verify capacity, BMS balance, and thermal safety before final packing.
Packs pass Hong Kong customs battery safety inspection and ship direct to your door via FedEx/UPS (US/CA) or DPD/DHL (EU). Delivery typically takes 15–20 business days. All import duties, taxes, and door-step delivery are fully covered.
