BOOANT 52V 30Ah Ebike Battery | Samsung 21700-50G Cells & JBD Smart Bluetooth BMS (1560Wh, 1500W-2500W)
Free Shipping
Free Shipping
Free Shipping
Free Shipping
Free Shipping
Free Shipping
Free Shipping
Free Shipping
Free Shipping
Free Shipping
Free Shipping
- 🔋 Genuine Samsung 50G Cells (1560Wh) : Packed with 84 authentic 21700 cells in a rock-solid 14S6P layout. True 30Ah capacity that delivers stable, sag-free voltage for extended long-range runs.
- 📱 Smart JBD Bluetooth BMS (Up to 60A) : Live-track individual cell voltages, balance status, and core temps via the official Xiaoxiang App. 50A or 60A continuous options to match your controller perfectly.
- 🛡️ Stainless Steel Enclosure Armor : Heavy-duty, impact-resistant stainless steel casing that safeguards the 8.5 kg pack against brutal trail vibrations, rust, and hard spills.
- ⚡ On-Chassis Smart LCD Screen : Flush-mounted display for instant, app-free status checks. Read your exact remaining battery percentage, live voltage, and core temperatures at a glance.
- 🔌 Pro 5A Fast Charger & 2-Year Warranty : Includes our professional 58.8V 5A smart fast charger with active fan cooling to fully juice this vault in 6–7 hours. Backed by a real 2-Year Factory Warranty.
Access detailed battery specifications, dimensions, cell configuration, BMS features, charging parameters, and performance data.
52V 30Ah Lithium Battery Pack | Samsung Cells & Rugged Stainless Steel Armor
Built for riders who need long-range endurance without sacrificing chassis agility. The BOOANT 52V 30Ah lithium battery is engineered around 84 genuine, high-grade Samsung INR21700-50G cells packed in a rock-solid 14S6P configuration. Delivering an honest 1560Wh of steady, sag-free energy, this high-performance powerhouse is locked inside a heavy-duty, impact-resistant stainless steel metal enclosure built to shrug off brutal trail vibrations and hard spills. Integrated with a top-mounted LCD status display screen and an advanced JBD Bluetooth Smart BMS for live smartphone tracking, this complete kit arrives bundled with a high-current 58.8V 5A smart fast charger. It is the ultimate heavy-duty power foundation for custom DIY EV projects, cargo bikes, e-trikes, and high-power mid-drive upgrades.

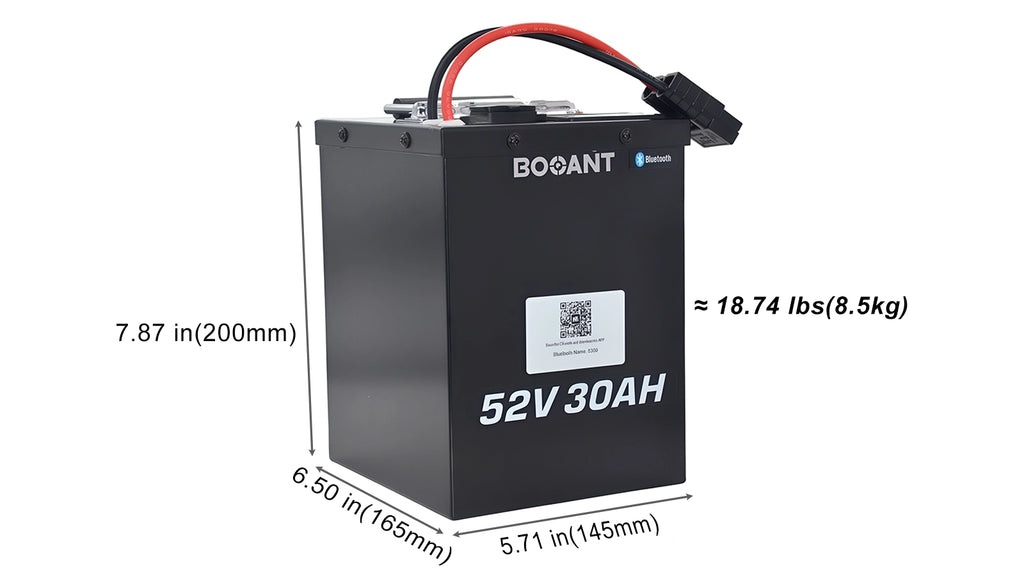

Battery Dimensions
Technical Specifications
| Specification | Details |
|---|---|
| Battery Model | BOOANT 52V 30Ah Smart Lithium Pack |
| Nominal Voltage | 52V (14S) |
| Capacity / Energy | 30Ah / 1560Wh (True Rated) |
| Battery Cell Type | Samsung INR21700-50G (Authentic) |
| Cell Configuration | 14S6P Layout (84 Premium Cells Total) |
| BMS Hardware Type | Integrated JBD Smart Bluetooth BMS Board |
| BMS Options & Motors | • 50A Continuous / 150A Peak — For Motors up to 2000W (Ideal for High-Amp Hubs) • 60A Continuous / 180A Peak — For Motors up to 2500W (Engineered for BBSHD Mid-Drives) |
| Charging Voltage | 58.8V DC |
| Low-Voltage Cut-off | 39.2V (2.8V per Cell Hard Shut-off Protection) |
| Discharge Cables | Heavy-Gauge 10AWG Low-Resistance Silicone Wire |
| Output Terminal | Plug-and-Play Customization (XT90-S, Anderson, XT60, etc.) |
| Included Charger | BOOANT 58.8V 5A Smart Fast Charger (CC/CV Profile) |
| Dimensions (L×W×H) | 200 × 165 × 145 mm (7.87 × 6.50 × 5.71 in) |
| Weight | Approx. 8.5 kg (18.7 lbs) |
| Enclosure Material | Heavy-Duty Stainless Steel (Anti-Collision & Rust-Proof) |
| Live App Tracking | Bluetooth Sync via Official Xiaoxiang App (iOS/Android) |
| Estimated Lifespan | Up to 1000 Full Charge/Discharge Cycles* |
| Factory Warranty | 2 Years (Comprehensive Coverage) |
* Note: Actual cycle life depends on riding habits, continuous discharge load currents, storage state of charge, ambient operating temperatures, and overall terrain usage patterns.

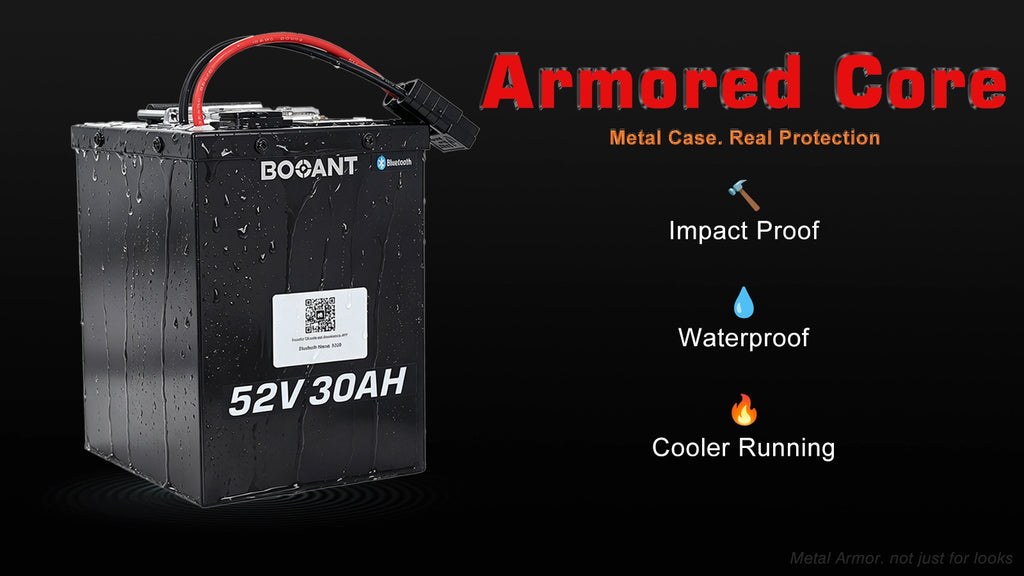

Rugged Stainless Steel Enclosure Armor
Dropping or vibrating a heavy 8.5 kg (18.7 lbs) battery core requires serious, unyielding physical protection. The BOOANT 52V 30Ah pack is completely locked inside an ultra-tough, impact-resistant stainless steel metal casing. Engineered to handle real-world road abuse, this heavy-duty armor provides a solid, rust-proof protective shield that shrugs off brutal gravel vibrations, flying debris, and accidental spills that would easily crack basic plastic cases or flimsy PVC wraps.
Heavy-Duty Hardware Advantages
Keeps the internal 84-cell Samsung 21700 matrix completely safe from constant high-frequency asphalt vibrations, rough single-track bumps, and harsh trail debris over years of daily abuse.
The thick stainless steel chassis locks the battery into a rigid architecture that firmly resists crushing, twisting, and side-impact forces—miles ahead of brittle generic plastic shells.
The metallic casing naturally acts as a heat conductor, drawing warmth away from the cell core during continuous high-amp wide-open-throttle pulls to keep your pack operating at lower, safer temps.
A tough-built, weather-resistant construction designed explicitly to handle the rigorous demands of custom high-torque e-trikes, commercial delivery cargo fleets, and high-amp DIY EV conversions.
Heavy-Duty JBD Smart BMS | The Invisible Bodyguard
Cheap generic batteries cut corners with low-grade circuit boards that pull the plug only *after* your cells are already fried. We don't play that game. The BOOANT 52V 30Ah core runs on an authentic, heavy-duty JBD smart board that actively micro-manages your internal cell matrix at the hardware level, so you can push your motor hard without stressing.
Packed with premium, heavy-duty MOSFETs and pre-wired with thick 10AWG low-resistance silicone leads. Whether you choose the 50A or 60A continuous setup, this board dumps steady power to your controller without overheating or melting down on brutal uphill climbs.
Uncompromising physical boundaries are hard-coded into the board. It stops overcharging dead and shuts down the discharge gateway the exact millisecond the pack hits its minimum safe floor of 39.2V (2.8V per Cell), strictly preventing severe cell starvation.
With an 84-cell layout, individual parallel groups naturally tend to drift apart over months of heavy riding. Our board fixes this during the final CV charging phase, actively bleeding off high spots and pulling lagging cells up to suppress premature voltage sag.
Dual hardware temperature probes monitor the core matrix. The board cuts current instantly if extreme summer thrashing pushes internal heat to 65°C (149°F), and completely blocks incoming charger current below freezing (0°C/32°F) to stop permanent lithium plating dead.
Included 58.8V 5A Smart Fast Charger
Stop waiting all day and night for your pack to juice up. Included with every order as a premium upgrade, our 58.8V 5A Smart Fast Charger is built specifically for 52V (14S) architectures. Driven by an automatic CC/CV thermal profile and active internal fan cooling, it safely fills this 30Ah pack from dead empty to 100% in approximately 6-7 hours—safely cutting down standard overnight wait times by over 50% while protecting long-term cell health.
Charger Technical Specifications
| Input Voltage | 100–240V AC, 50/60Hz (Universal Worldwide Grid Compatibility) |
| Output Voltage | 58.8V DC (Precision Stabilized for 14S Lithium) |
| Charge Current | 5A Continuous Smart Fast Charge |
| Power Rating | True ~294W Output Power Capacity |
| Charging Profile | Automatic 2-Stage CC/CV (Constant Current / Constant Voltage) |
| Thermal Control | Active Forced Air Cooling (Built-In Cooling Fan) |
| Output Terminal | Heavy-Gauge Termination (Pre-wired to Match Your Choice) |
| Full Charge Duration | Approx. 6–7 Hours (Calculated for our 30Ah Vault) |
LED Status Indicator Guide
Solid Red Light: The high-current loop is active and actively pushing steady amps. Charging is successfully in progress.
Solid Green Light: Your 30Ah pack is fully charged, and the BMS has completed its cell-balancing cycle.
*Note: The LED will also show Green if the charger is connected to AC wall power but disconnected from the battery. This is normal standby mode, not a malfunction.
On-Chassis Smart LCD Status Screen
Stop guessing how much juice you have left. Flush-mounted directly into the top of our heavy-duty stainless steel enclosure, this integrated smart LCD display screen gives you real-time, on-chassis diagnostics. It lets you monitor your complete system status at a single glance, whether you are charging up in the garage or pausing mid-route on a heavy commercial run.
Get a precise digital percentage readout of your remaining capacity down to the exact digit. No more relying on vague 4-bar LED line indicators.
Monitor your active pack voltage and internal temperature probes in real time to ensure your cell matrix is running perfectly in its safe zone.
Easily keep track of your 5A fast charging progress from 0% to 100% without needing to power on your bike or custom EV setup.
Skip the hassle of pulling out your smartphone, opening an app, and waiting for the Bluetooth connection to sync while riding. Just glance down at the armored display screen for immediate reassurance before you hit the trail or kick off a heavy cargo delivery run.

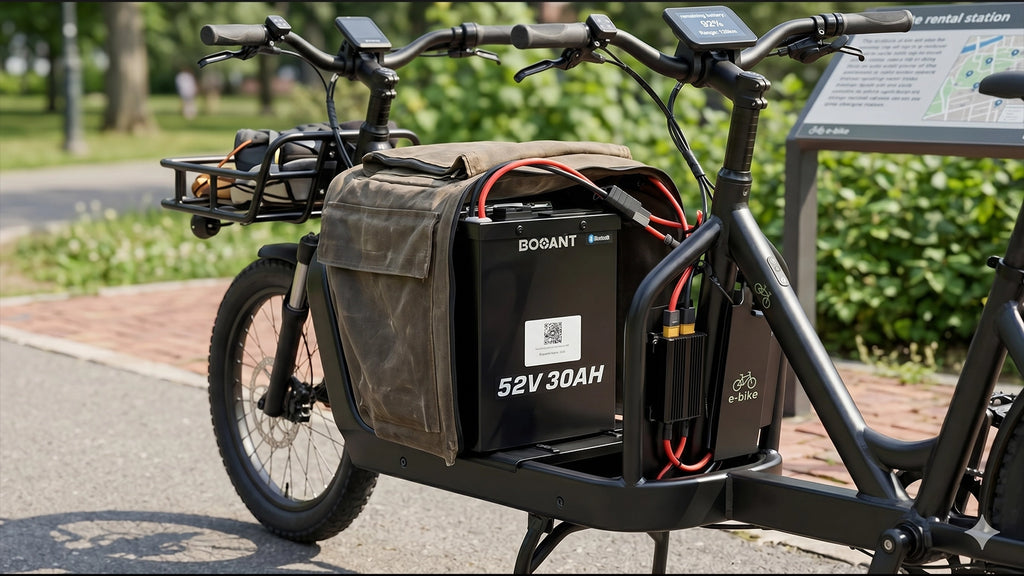

Built For High-Torque Applications
This is not your average lightweight commuter battery. Packing an honest 1560Wh capacity vault inside its heavy-duty stainless steel armor, this 52V 30Ah powerhouse is engineered specifically to handle continuous high-amp draws. It provides rock-solid, sag-free power tailored for high-load cargo delivery fleets, high-performance mid-drive custom builds, and heavy multi-wheel electric trikes running between 1500W and 2500W setups.
Perfect for riders tired of checking their battery gauge every 5 miles. Delivers consistent voltage for long-range cross-town commutes and extended weekend road trips.
The go-to building block to unleash the true torque and raw amp demands of Bafang BBS02, BBSHD, CYC mid-drives, or high-power custom hub motor setups.
Supplies the continuous high current loops needed to haul heavy payloads on commercial city delivery routes without overheating the cell rows.
Provides steady, sag-free amp delivery during hard uphill starts and heavy throttle pinches for passenger transport and industrial utility haulers.
An incredibly reliable, heavy-gauge structural power core designed explicitly for custom electric go-karts, mini-bikes, and high-amp custom powertrains.
Built to take a beating. Gives high-power mountain bikes the massive energy reserves required to handle brutal backcountry single-tracks and steep, loose climbs.
Before You Order | Pre-Purchase FAQ
Which BMS current rating should I choose?
You should select the internal JBD Smart BMS rating based on the max continuous amp limit of your motor controller, not just the motor wattage:
- 50A BMS Version: Best for continuous motor setups up to 2000W (Ideal for high-amp city commuters and high-speed hub motors).
- 60A BMS Version: Purpose-built for heavy-duty setups up to 2500W (Engineered to handle Bafang BBSHD extreme mid-drive builds).
Make sure your choice matches your speed controller. Shoot us a message at our support team with your motor setup if you want us to double-check before ordering.
Can I track the battery status from my smartphone?
Yes, 100%. The integrated JBD Bluetooth module connects straight to the official Xiaoxiang App on iOS and Android. Instead of guessing, you can open your screen to view your live individual cell string voltages, continuous amp draw, exact remaining capacity down to the digit, and internal temperature sensors on the fly.
Does this battery kit include a charger?
Yes. Every single order arrives as a complete kit bundled with our high-current BOOANT 58.8V 5A Smart Fast Charger. Built explicitly for 14S lithium-ion setups, it uses a smart CC/CV charging profile and active internal fan cooling to fill this massive 1560Wh pack from dead empty to 100% in roughly 6-7 hours.
What information does the top-mounted LCD show?
The integrated on-chassis LCD screen gives you instant tracking without even pulling out your phone. It displays an accurate digital percentage of your remaining capacity, along with live real-time voltage readouts and core temperature tracking so you always know your pack's exact health.
Can I get a custom discharge connector for my controller?
Yes, absolutely. We make it completely plug-and-play so you do not have to do any dangerous soldering yourself. Our factory will pre-wire our thick, heavy-gauge 10AWG silicone discharge cables with whatever connector your bike uses—whether it's an XT90-S Anti-Spark, genuine Anderson plugs, XT60, or copper ring terminals. Just pick your option or leave a note on the cart page.
What specific applications is this 30Ah pack built for?
Packing a dense 1560Wh vault inside an ultra-tough stainless steel armor casing, this heavy-duty 30Ah battery is the ultimate all-around powerhouse for long-range commuter e-bikes, Bafang mid-drive DIY conversions, heavy cargo delivery bikes, utility e-trikes, and custom high-torque EV projects.
How do you handle the 2-year warranty if an issue pops up?
We own our manufacturing facility and assemble these packs directly, so we never pass you off to third-party middle-men. Your pack is fully backed by our 2-Year Comprehensive Factory Warranty covering cell defects, balancing circuit issues, or BMS errors. If anything goes wrong, our engineering support desk will handle it directly to get you back on the road fast.
