Home / Products / 60V 20Ah Metal Case Lithium Battery – Samsung 50G Cells

60V 20Ah Metal Case Lithium Battery – Samsung 50G Cells

Name: 60V 20Ah Metal Case Lithium Battery – Samsung 50G Cells
Brand: Booant
Price: 589.99 USD
Availability: InStock

$589.99

Free Shipping + Duties Included

No Stale Inventory Built Fresh to Your Order

2-Year Warranty 100% Genuine Cells Only

🔴 Genuine Samsung 60V 20Ah Battery : Packed with 64 premium Samsung 21700 cells into an ultra-precise 16S4P matrix, giving you 1200Wh of raw, honest power without unnecessary bulk.
📊 Integrated On-Spot Digital Dashboard : Features a built-in crystal-clear LCD screen to track your live battery voltage, core temperatures, and exact capacity percentage without even pulling out your phone.
📱 Smart Bluetooth JBD Safety Brain : Syncs instantly with your iOS or Android phone app, letting you balance individual cell drifts and monitor live amp draw on the fly.
🛡️ 7kg Agile Aluminum Alloy Armor : Housed in a rugged, heat-dissipating aluminum metal case that delivers bulletproof impact defense while keeping the pack remarkably lightweight for nimble handling.
⚡ 10AWG Heavy Cables & 4-Hour Fast Charge : Wired with thick low-resistance copper lines for heavy current draw, paired with a 5A aluminum fast charger to completely top off your pack in just 4 hours.

BMS Discharge Current (Select Motor Power)

30A For 1200W Motors

50A For 2000W Motors

Output Connector

QS8 plug

Anderson

XT60F/M

XT90F/M

BMS Discharge Current (Select Motor Power)

30A For 1200W Motors 50A For 2000W Motors

Output Connector

QS8 plug Anderson XT60F/M XT90F/M

Quantity

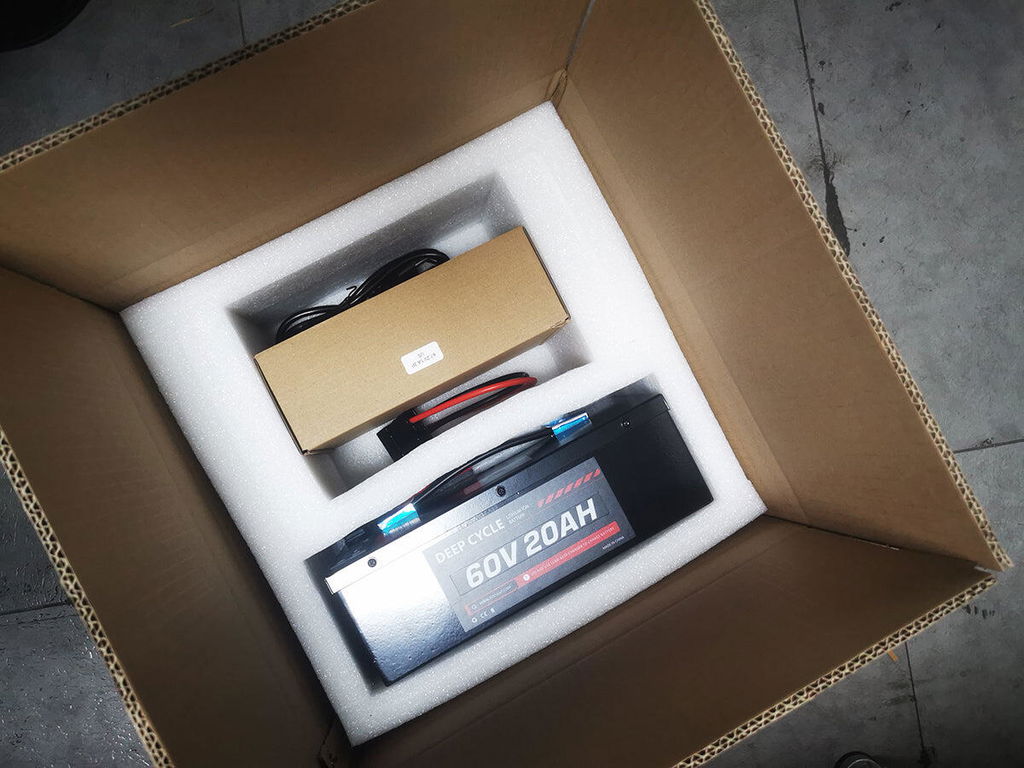

❖ WHAT YOU WILL GET

⚡ 1 × Lithium Battery Pack

🔌 1 × Smart Fast Charger

🎒 1 × E-bike Battery Bag

🔗 1 × Discharge Extension Cable (Matched to Your Selected Connector)

🔌 1 × AC Power Cord (Matched to Your Country's Standard)

🎬

BOOANT Power In Action Watch real tests, setups & riding videos

📄 Download Product Datasheet

Access detailed battery specifications, dimensions, cell configuration, BMS features, charging parameters, and performance data.

60V 20Ah Metal Case Battery Pack

Samsung 21700 Cells • JBD Smart Bluetooth BMS • 10AWG Heavy Cabling

Raw Storage

1200Wh

Premium high-density backup energy.

Cell Spec

64 Cells

Genuine Samsung INR21700-50G (16S4P).

Wiring & Connections

10AWG

Heavy-gauge lines built for heavy copper terminals.

No voltage sag when you rip it

Unlike cheap packs that choke under load, these original Samsung 21700 cells hold steady voltage. Your motor gets the full juice even when climbing steep fire roads or launching from a dead stop.

Real-time diagnostics on your phone

The original JBD Smart BMS monitors temperature, balance, and individual cell state. Fire up the official app to dial in settings and check your remaining capacity with 100% precision.

Powder-coated steel enclosure

Ditch the soft heat-shrink PVC wrap. This heavy powder-coated steel chassis acts as armor against flying rocks, road vibration, and those accidental garage tips that would puncture other packs.

Technical Specifications

Power & Cell Configurations
Nominal Voltage	60V
Rated Capacity	20Ah
Total Energy	1200Wh
Cell Brand & Model	Genuine Samsung INR21700-50G
Cell Configuration	16S4P (64 Grade-A cells)
Voltage & Temperature Thresholds
Fully Charged Voltage	67.2V
Discharge Cut-Off Voltage	44.0V
Charging Temp Range	0°C to 45°C (32°F to 113°F)
Discharging Temp Range	-20°C to 60°C (-4°F to 140°F)
Build & Mechanical Dimensions
Enclosure Type	Powder-Coated Solid Steel Metal Case (Heavier protection)
Dimensions	290 × 195 × 95 mm (11.42 × 7.68 × 3.74 in)
Weight	Approx. 7 kg (15.4 lbs)
Internal Cabling	High-temp 10AWG heavy-gauge copper wiring
BMS, Charging & Warranty
BMS System	Original JBD Smart Bluetooth BMS (Live iOS & Android app tracking)
Continuous Discharge	30A / 50A continuous options available
Recommended Motors	1200W to 2000W brushless motors
Smart Charger	WATE 67.2V 5A Smart Fast Charger (Active fan cooled)
Output Options	Pre-soldered XT90-S, QS8, Anderson, or Custom connection leads
Warranty Service	2-Year Warranty

BMS & Motor Match Guide

Pick the right BMS limits to match your controller and riding style. Prevent cut-offs under heavy load.

30A Daily Commute

Best for Up to 1200W Motors

Perfect for regular city riding, flat roads, and cruising. Keeps current draw steady without over-taxing your electronics. Recommended for controllers under 30A limit.

Continuous Current: 30A max

Peak Discharge: 90A (for 3-5s)

Recommended setup: 60V 1000W / 1200W

50A High-Performance

Best for Up to 2000W Motors

Designed for raw acceleration, steep off-road climbs, and heavy e-motos. Delivers massive amperage when you rip the throttle wide open. No cut-offs under load.

Continuous Current: 50A max

Peak Discharge: 150A (for 3-5s)

Recommended setup: 60V 1500W / 2000W

Got Questions? We Have Honest Answers.

How do I know these Samsung 21700 cells aren't cheap fakes or B-grade?

We get the skepticism—the e-bike battery market is flooded with rewrapped fake cells. We use only brand-new, genuine Samsung INR21700-50G cells. You can easily verify this: connect to your JBD Smart app, check the cell voltage consistency, and feel the difference on your first steep climb. Genuine Samsung cells won't suffer from sudden voltage sag when you rip the throttle.

What if this metal case battery doesn't fit my scooter compartment or custom frame?

Measure twice, buy once. The solid steel metal case is exactly 290 × 195 × 95 mm (11.42 × 7.68 × 3.74 in). Unlike plastic-wrapped packs, this steel shell has absolutely zero flex and won't squeeze into a tight deck. If you are unsure about compartment clearance or need custom output wire orientations to fit your controller, reach out before ordering so we can confirm compatibility.

Will the JBD BMS randomly cut power when I’m pushing my motor hard?

Only if you exceed the physical safety limit of your selected board. If you run a 30A BMS on a 2000W motor setup, yes, it will trip to save the cells from overheating. That’s why we offer a 50A continuous discharge option for high-power electric vehicles. Our original JBD Smart Bluetooth BMS lets you monitor amp draw live on your phone, so you'll know exactly how close you are to the safety ceiling.

How do you handle the 2-year warranty if the battery is shipped directly from China?

We ship directly from our factory in China, and we stand behind our builds 100%. Shipping a 7kg lithium battery back internationally is a massive, costly hassle for you. If something goes wrong, we won't make you ship it back. We will diagnose the issue with you online via app data. If it's a BMS issue or basic component fault, we will ship you the original replacement parts from our factory and guide you through the process step-by-step. Honest, direct support—straight from the engineers who built your pack.
