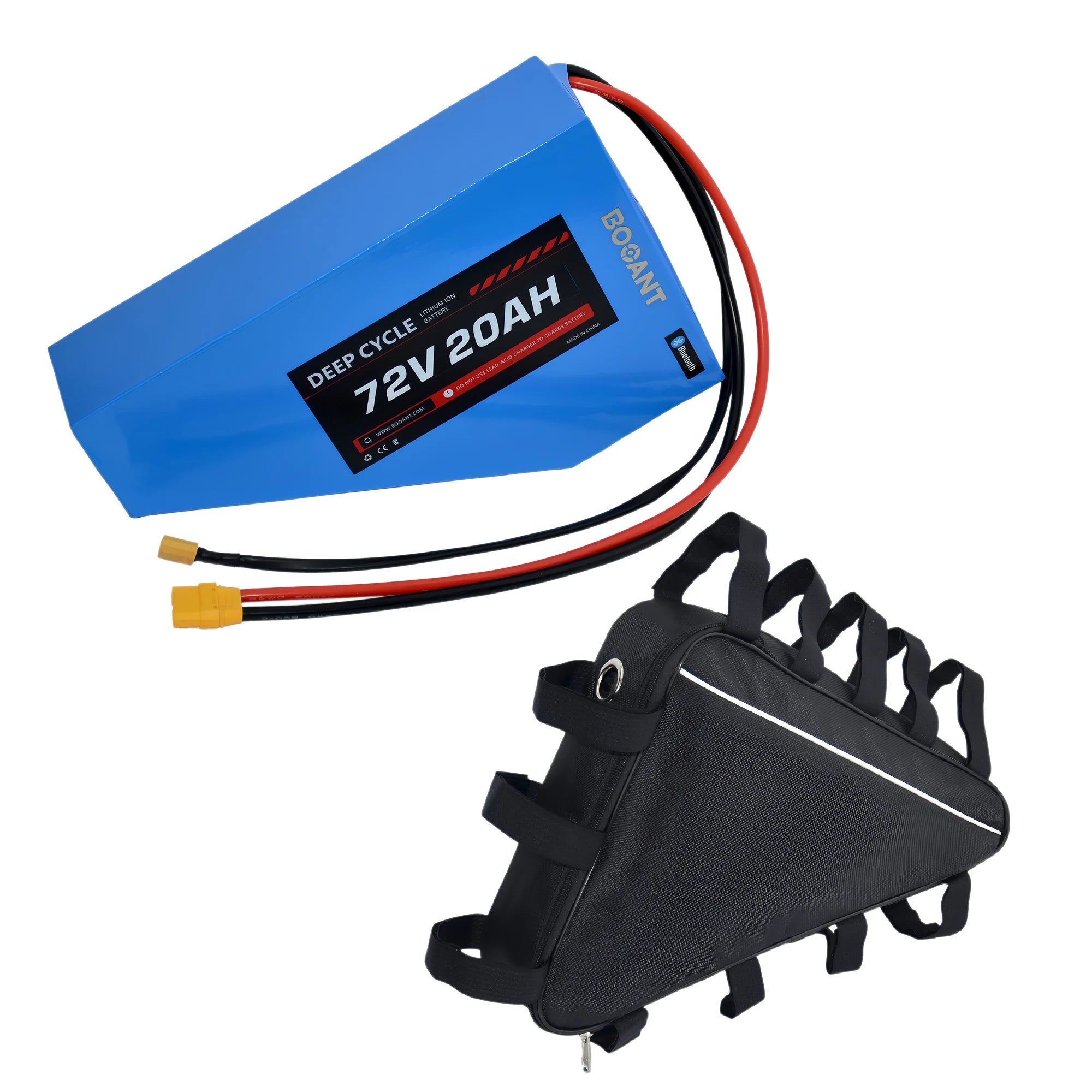

A BOOANT 72V 20Ah triangle ebike battery pack shown alongside its matching black nylon triangle frame mounting bag with straps.

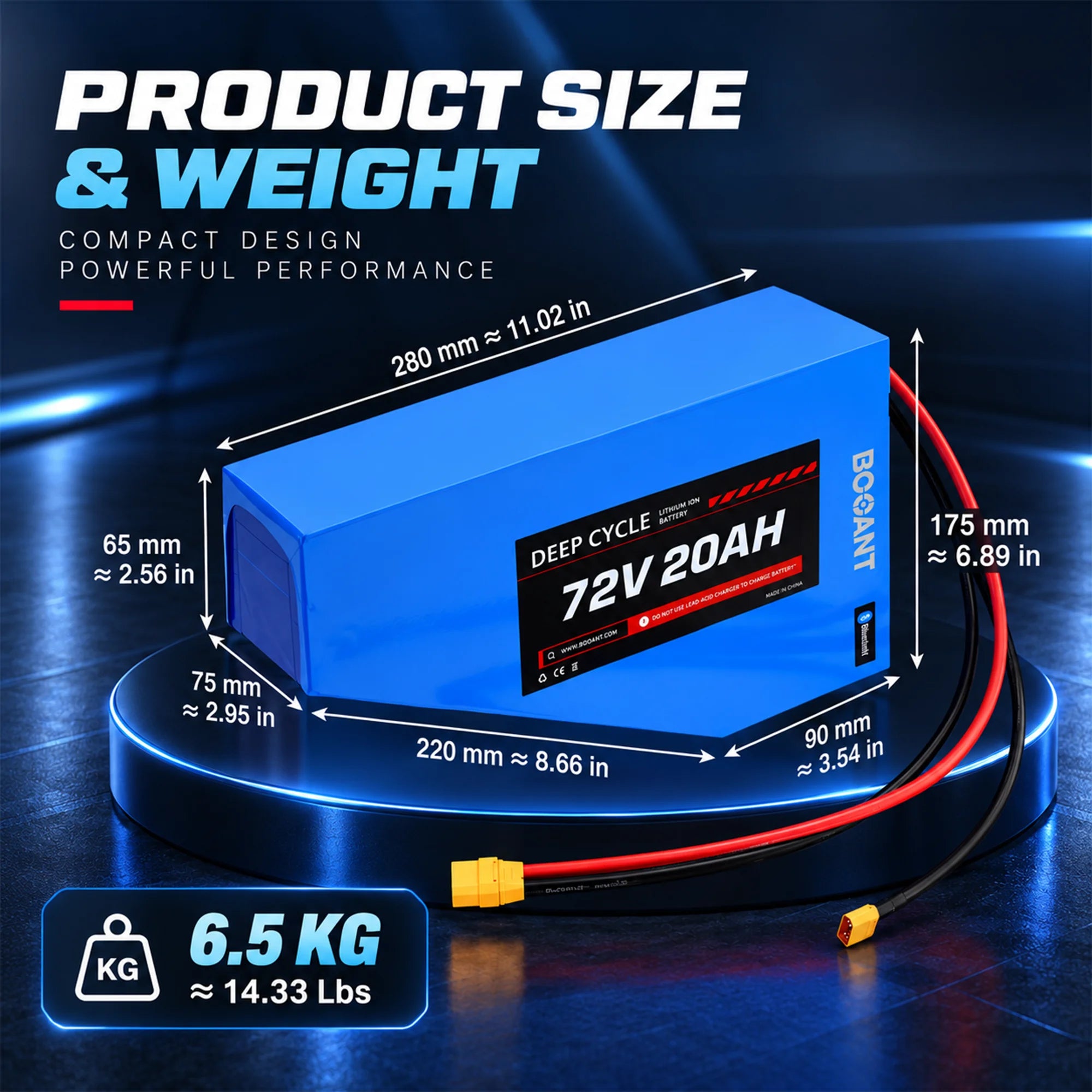

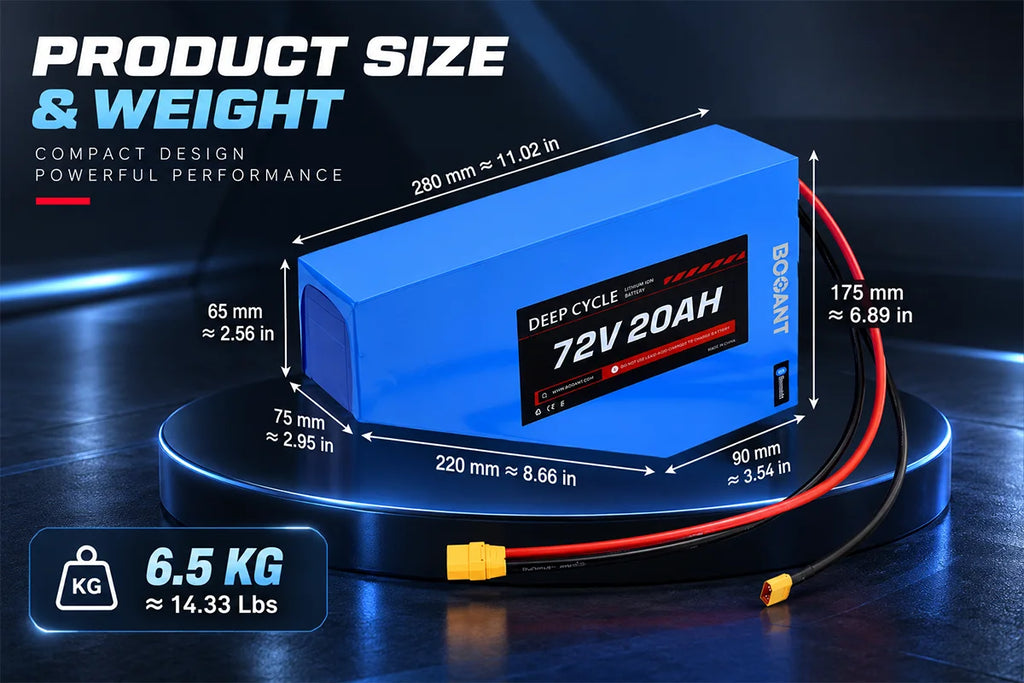

BOOANT 72V 20Ah triangle lithium ebike battery dimensions diagram and 6.5 kg weight chart in metric and imperial units.

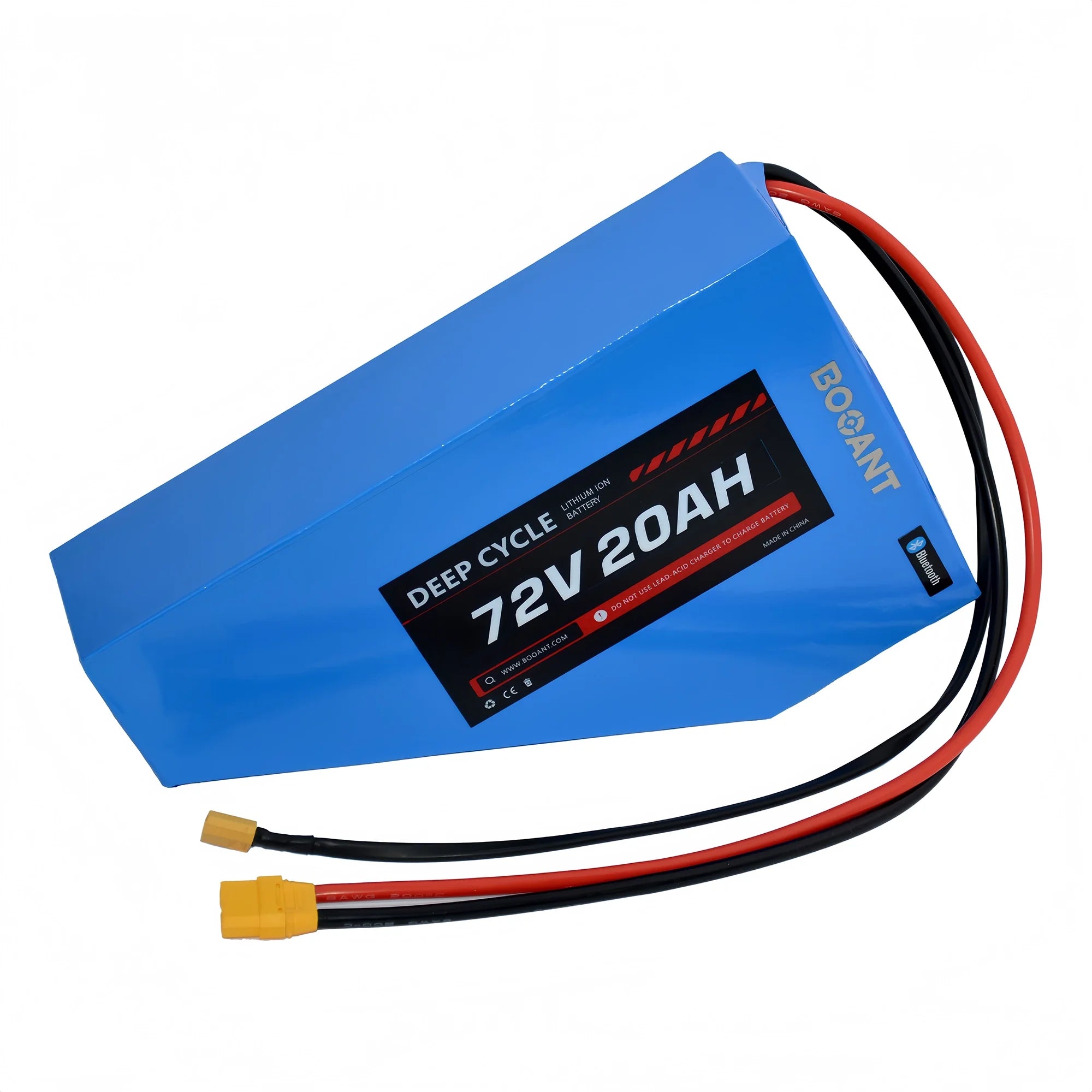

BOOANT 72V 20Ah triangle lithium ebike battery pack with Samsung 21700 cells, blue PVC casing, and XT90 connector

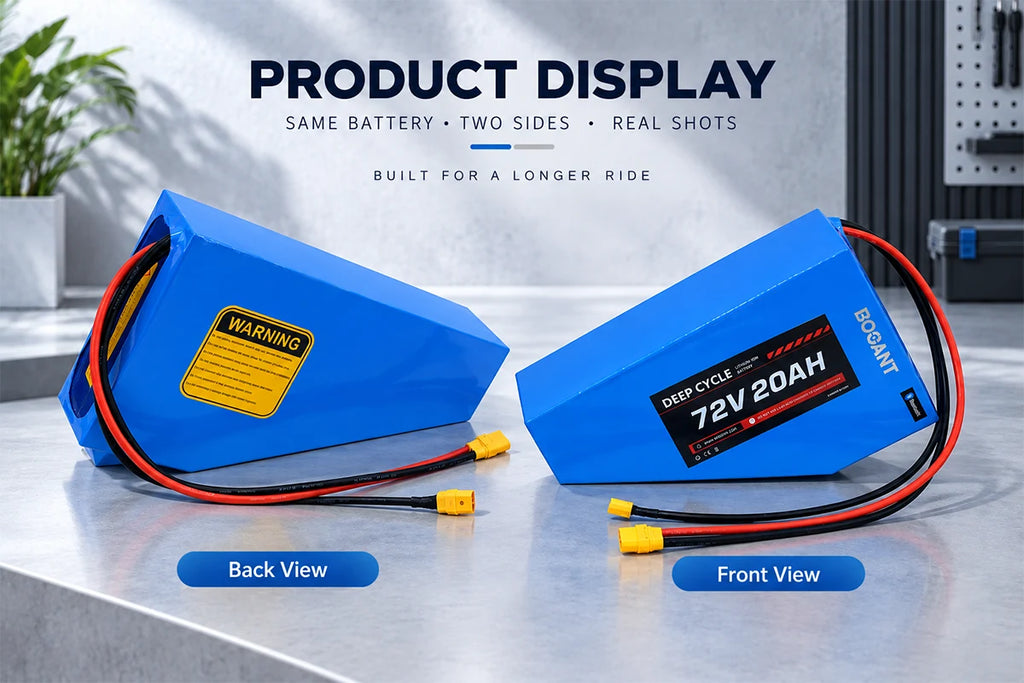

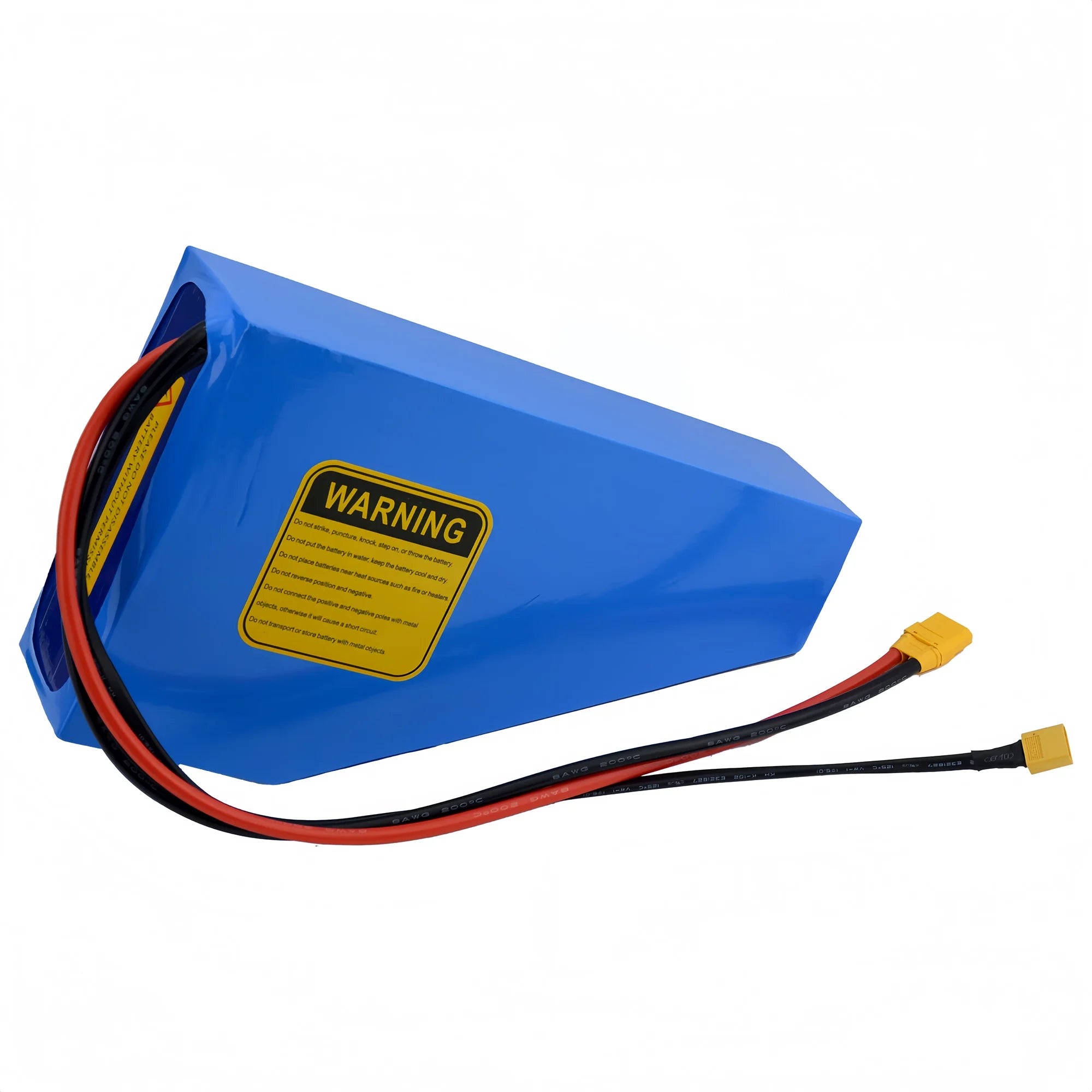

Rear angle view of the BOOANT 72V 20Ah triangle ebike battery pack highlighting the dual cable setup with XT60 charging connector and heavy-duty XT90 discharge plug.

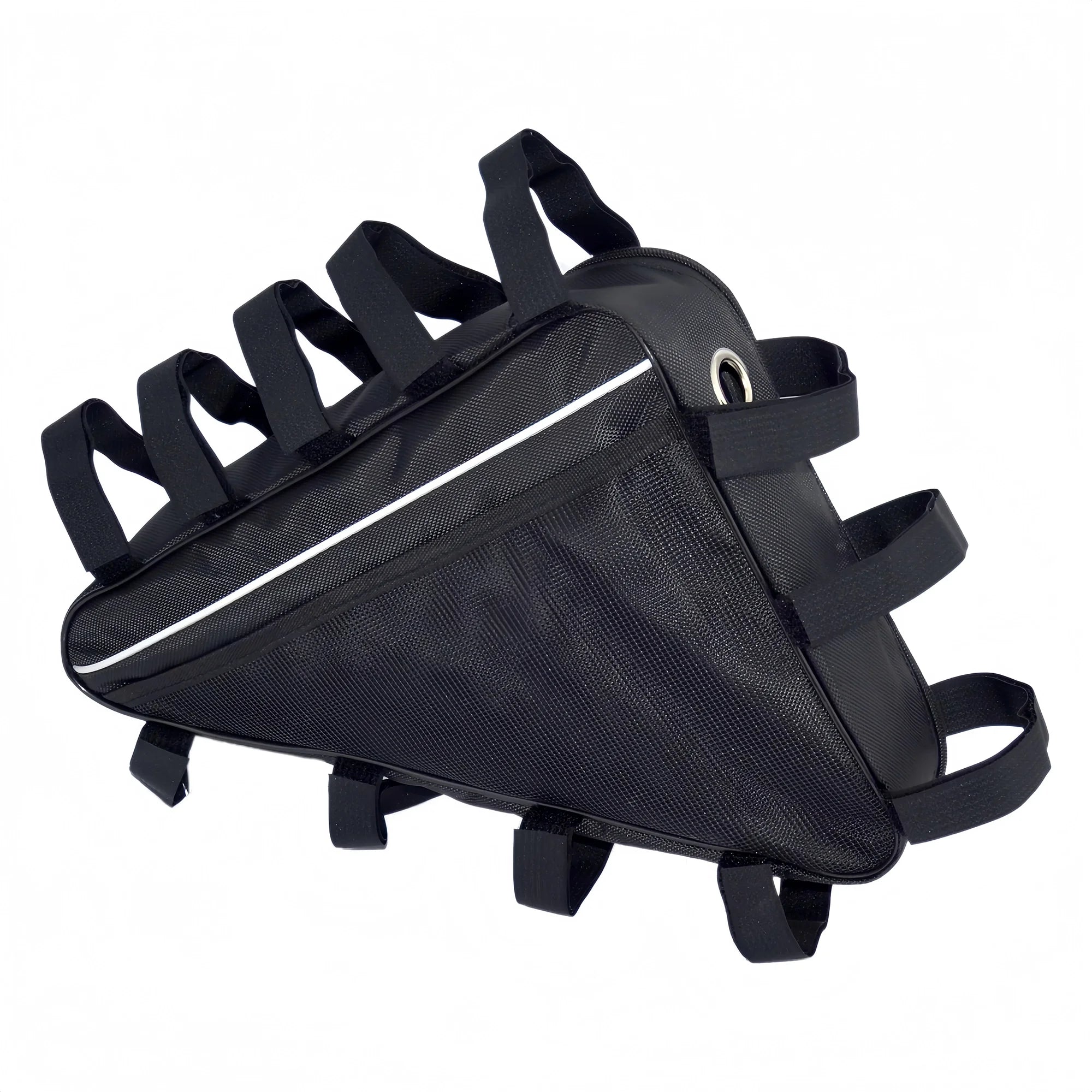

Heavy-duty black nylon triangle ebike battery frame bag with multi-point hook-and-loop straps, reflective stripe, and cable port.
A black aluminum housing 84V 5A smart fast battery charger with AC socket, cooling vents, and an XT60 output charging plug.

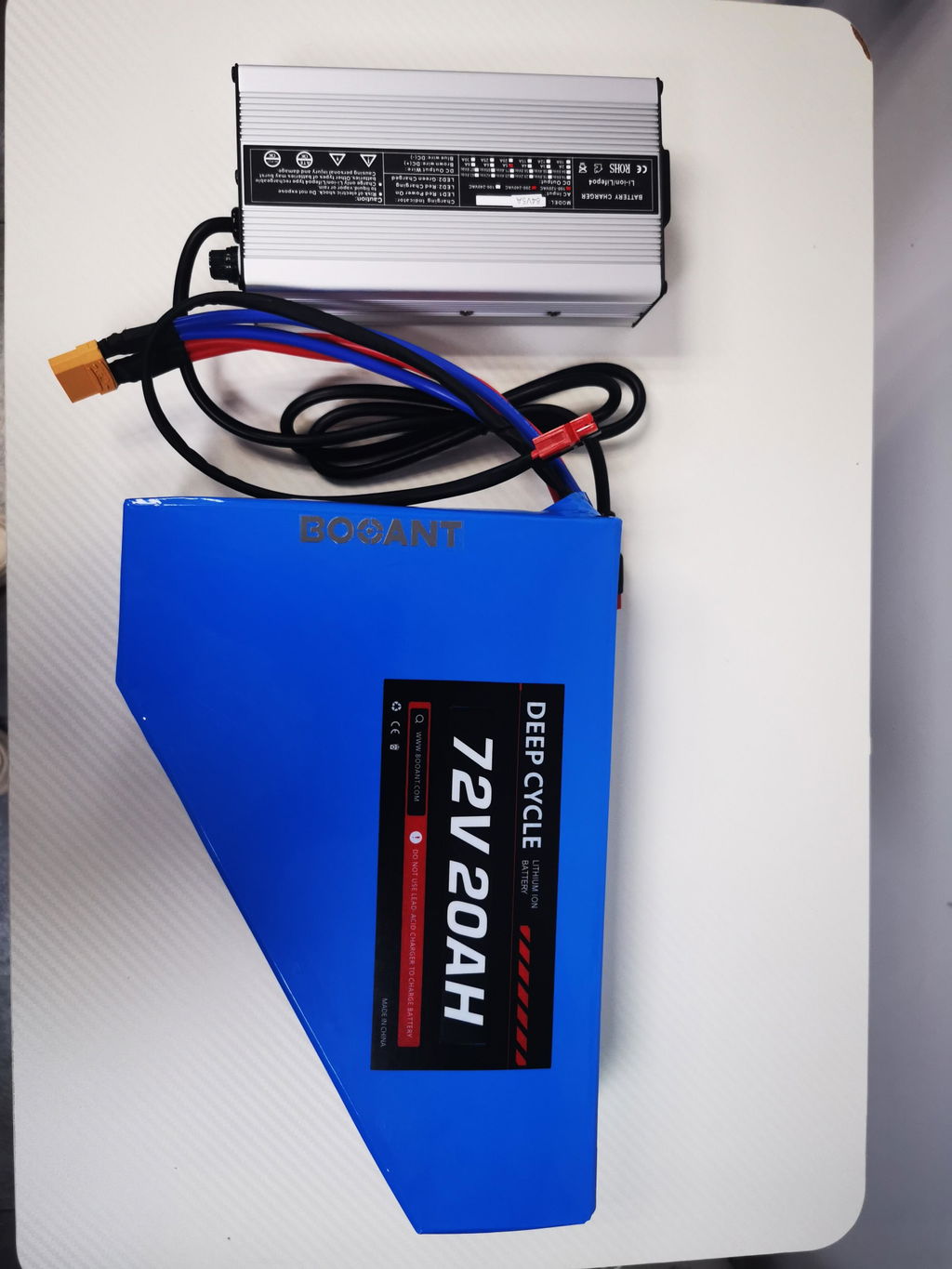

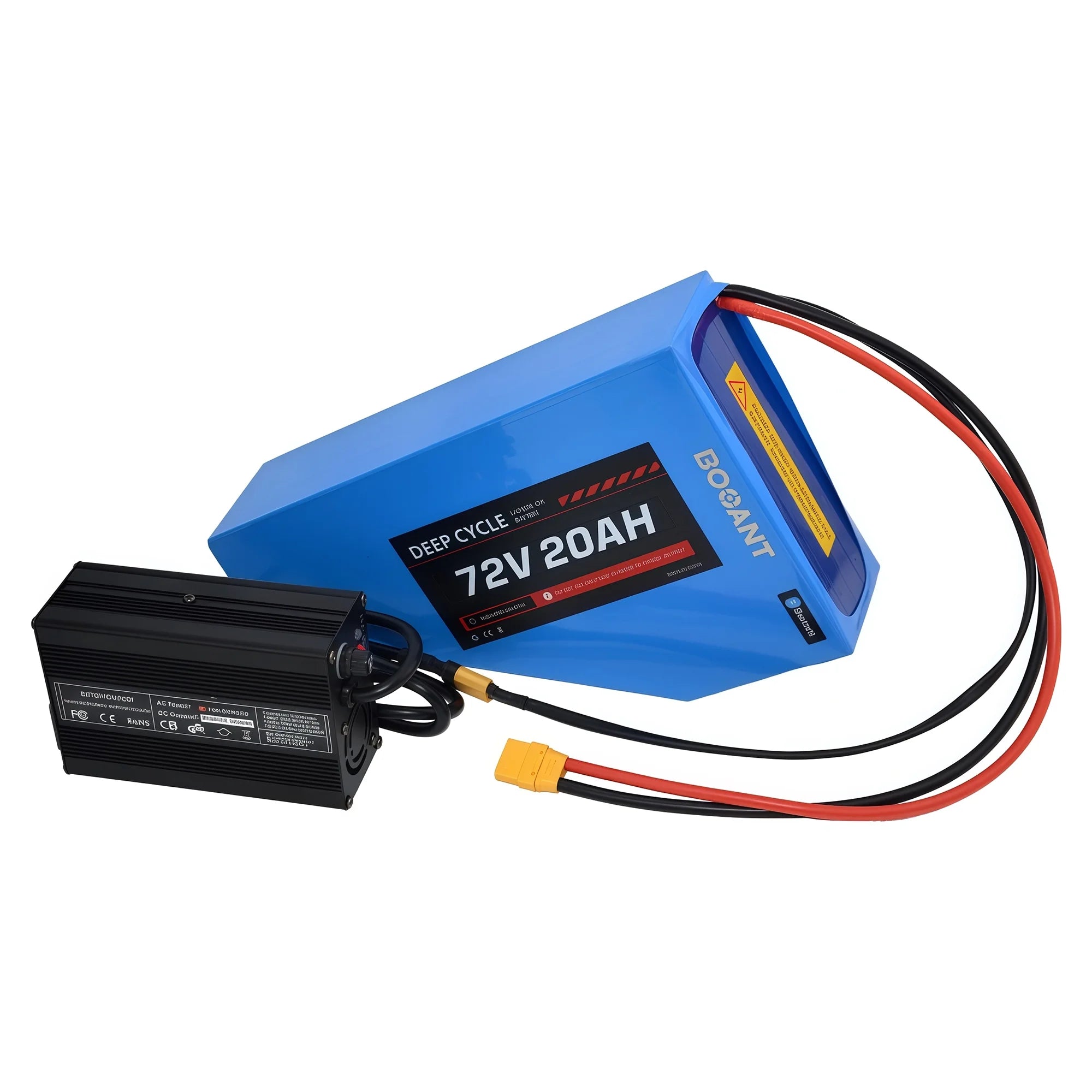

BOOANT 72V 20Ah triangle lithium ebike battery pack connected to 84V 5A aluminum fast charger with XT60 charge port and XT90 discharge plug.

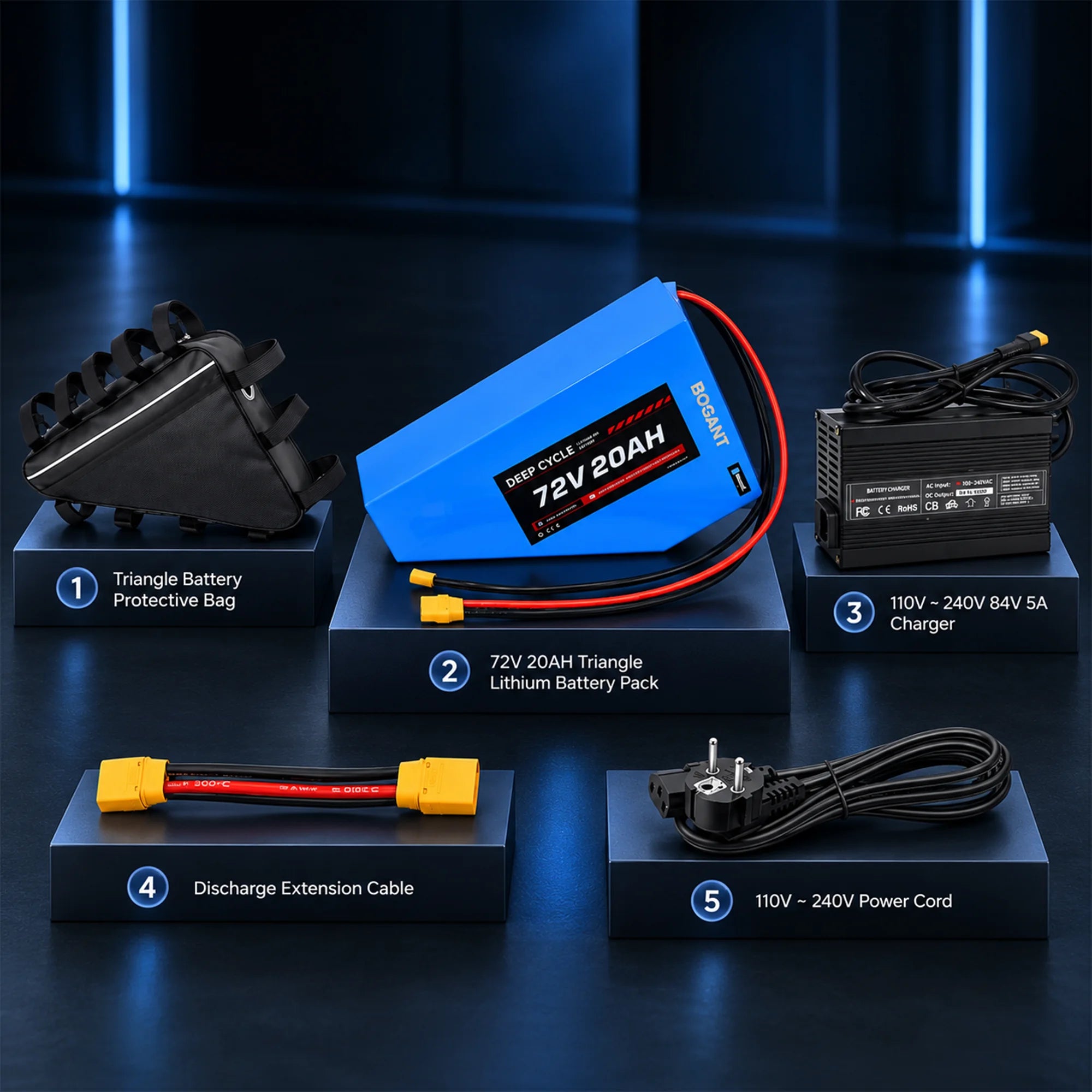

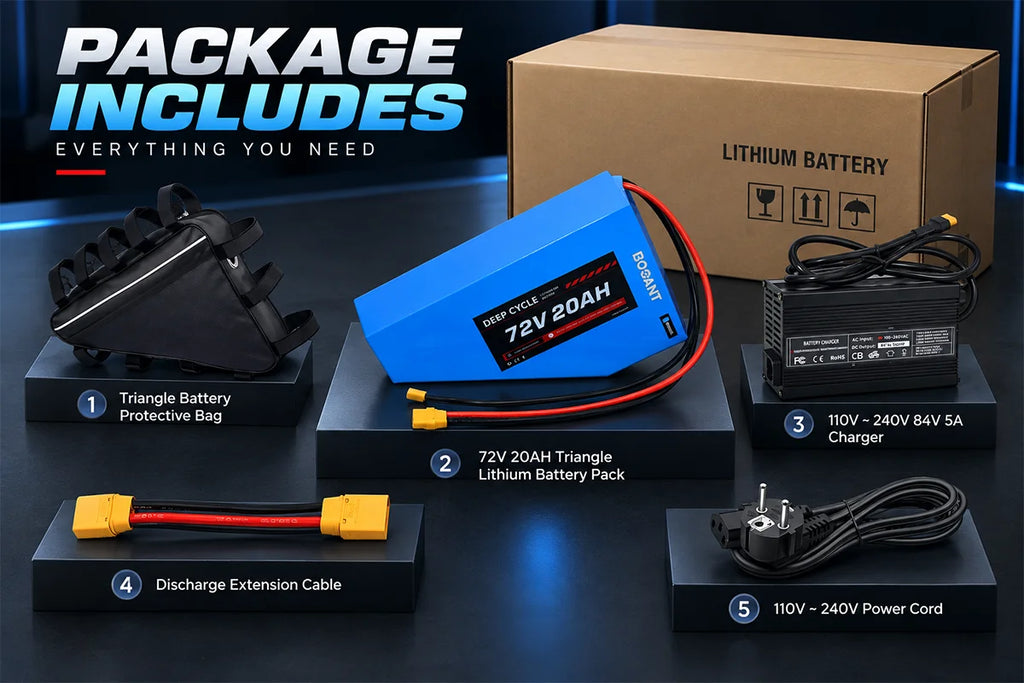

BOOANT 72V 20Ah triangle lithium battery complete kit showing the battery pack, triangle frame bag, 84V 5A fast charger, discharge extension cable, and AC power cord.
A BOOANT 72V 20Ah triangle ebike battery pack shown alongside its matching black nylon triangle frame mounting bag with straps.
BOOANT 72V 20Ah triangle lithium ebike battery dimensions diagram and 6.5 kg weight chart in metric and imperial units.
BOOANT 72V 20Ah triangle lithium ebike battery pack with Samsung 21700 cells, blue PVC casing, and XT90 connector
Rear angle view of the BOOANT 72V 20Ah triangle ebike battery pack highlighting the dual cable setup with XT60 charging connector and heavy-duty XT90 discharge plug.
Heavy-duty black nylon triangle ebike battery frame bag with multi-point hook-and-loop straps, reflective stripe, and cable port.
A black aluminum housing 84V 5A smart fast battery charger with AC socket, cooling vents, and an XT60 output charging plug.
BOOANT 72V 20Ah triangle lithium ebike battery pack connected to 84V 5A aluminum fast charger with XT60 charge port and XT90 discharge plug.
BOOANT 72V 20Ah triangle lithium battery complete kit showing the battery pack, triangle frame bag, 84V 5A fast charger, discharge extension cable, and AC power cord.
A BOOANT 72V 20Ah triangle ebike battery pack shown alongside its matching black nylon triangle frame mounting bag with straps.
BOOANT 72V 20Ah triangle lithium ebike battery dimensions diagram and 6.5 kg weight chart in metric and imperial units.
BOOANT 72V 20Ah triangle lithium ebike battery pack with Samsung 21700 cells, blue PVC casing, and XT90 connector
Rear angle view of the BOOANT 72V 20Ah triangle ebike battery pack highlighting the dual cable setup with XT60 charging connector and heavy-duty XT90 discharge plug.
Heavy-duty black nylon triangle ebike battery frame bag with multi-point hook-and-loop straps, reflective stripe, and cable port.
A black aluminum housing 84V 5A smart fast battery charger with AC socket, cooling vents, and an XT60 output charging plug.
BOOANT 72V 20Ah triangle lithium ebike battery pack connected to 84V 5A aluminum fast charger with XT60 charge port and XT90 discharge plug.
BOOANT 72V 20Ah triangle lithium battery complete kit showing the battery pack, triangle frame bag, 84V 5A fast charger, discharge extension cable, and AC power cord.
A BOOANT 72V 20Ah triangle ebike battery pack shown alongside its matching black nylon triangle frame mounting bag with straps.
BOOANT 72V 20Ah triangle lithium ebike battery dimensions diagram and 6.5 kg weight chart in metric and imperial units.
BOOANT 72V 20Ah triangle lithium ebike battery pack with Samsung 21700 cells, blue PVC casing, and XT90 connector
Rear angle view of the BOOANT 72V 20Ah triangle ebike battery pack highlighting the dual cable setup with XT60 charging connector and heavy-duty XT90 discharge plug.
Heavy-duty black nylon triangle ebike battery frame bag with multi-point hook-and-loop straps, reflective stripe, and cable port.
A black aluminum housing 84V 5A smart fast battery charger with AC socket, cooling vents, and an XT60 output charging plug.
BOOANT 72V 20Ah triangle lithium ebike battery pack connected to 84V 5A aluminum fast charger with XT60 charge port and XT90 discharge plug.
BOOANT 72V 20Ah triangle lithium battery complete kit showing the battery pack, triangle frame bag, 84V 5A fast charger, discharge extension cable, and AC power cord.

72V 20Ah Triangle eBike Battery | Samsung 50G Cells

$709.99

Free Shipping + Duties Included
Built Fresh To Order
2-Year Full Warranty
  • Samsung 50G Cells (1440Wh) : 80 authentic 21700 cells for long-range power and extended cycle life.
  • Smart Bluetooth BMS (≤60A) : Live app tracking, matched to your motor to prevent throttle cutout on 1500W–3000W builds.
  • Fast 4–5h Charge : Included 84V 5A smart alloy charger cuts downtime safely.
  • Epoxy-Shielded Build : Rigid internal short-circuit isolation sealed against trail spray.
  • Plug & Play Setup : Factory-soldered connectors in your choice of XT90, QS8, Anderson, or XT60, with 2-year warranty support.
Motor Power & BMS
Up to 1500W / 30A BMS
Up to 2000W / 40A BMS
Up to 3000W / 60A BMS
Discharge Connector
QS8
Anderson
XT60F/M
XT90F/M
Wire only
Motor Power & BMS
Discharge Connector
🎬
BOOANT Power In Action Watch real tests, setups & riding videos
📄 Download Product Datasheet

Access detailed battery specifications, dimensions, cell configuration, BMS features, charging parameters, and performance data.

72V 20Ah Triangle Battery

1440Wh pack capacity built for long rides. Direct triangle frame fit with clean power delivery and real-time Bluetooth app control.

1440Wh
Total Energy
72V 20Ah output
Samsung
21700 50G
80 grade-A cells
JBD BMS
Bluetooth
Live app control
4-5h
Fast Charge
84V 5A charger
Epoxy Board Isolation
Rigid internal plates isolate cells and stop short circuits.
Weather-Sealed Shrink
Tough PVC wrap with top sealant repels road spray and dirt.
20S 4P Cell Topology
Balanced current sharing keeps voltage stable under throttle.
Full App Connectivity
Track live volts, check temps, and toggle power on your phone.

Technical Specifications

Voltage & Capacity 72V 20Ah (1440Wh) / 60V cut-off – 84V full charge
Cell Configuration Samsung 21700 50G (80 Cells / 20S 4P topology)
Battery Management Smart JBD BMS with Bluetooth real-time app telemetry
Charger & Refuel Time 84V 5A smart charger included / 4–5 hours to 100%
Weight Approx. 6.5 kg (14.33 lbs)
Form Factor & Dimensions Slope 280mm (11.02") × Base 220mm (8.66") × Height 175mm (6.89") × Width 90mm (3.54")
Front nose: 75mm (2.95") / Rear edge: 65mm (2.56")
Casing & Protection Internal epoxy barrier boards, heavy-duty blue PVC heat shrink, top waterproof seal
Operating Temperature Charge: 0°C to 45°C (32°F to 113°F)
Discharge: -20°C to 60°C (-4°F to 140°F) | Storage: 0°C to 40°C (32°F to 104°F)
Warranty Coverage 2-Year Manufacturer Warranty with lifetime technical support
Fitment Clearance: Hand-layered epoxy insulation adds minor packaging tolerance. Please allow slight frame clearance for clean wiring.

Smart BMS & Power Match

Match the continuous discharge rate directly to your motor setup to prevent cutout under throttle.

30A BMS (90A Peak)
≤ 1500W
Continuous 30 Amps
Pure Throttle 35–45 mi
Pedal Assist 60–75 mi
40A BMS (120A Peak)
≤ 2000W
Continuous 40 Amps
Pure Throttle 28–38 mi
Pedal Assist 50–65 mi
60A BMS (180A Peak)
≤ 3000W
Continuous 60 Amps
Pure Throttle 20–30 mi
Pedal Assist 40–55 mi
Note: Mileage is tested with a 175 lb (80 kg) rider on flat tarmac. Speed, terrain grade, and tire pressure will vary real-world range.

Custom Discharge Connectors

Zero sketchy adapters. Pick your controller’s matching plug at checkout for true plug-and-play wiring right out of the box.

XT90 / Anti-Spark Recommended
Prevents high-voltage sparks on 72V plug-in. Rated up to 90A peak.
QS8 High-Current
Heavy-gauge anti-spark beast. Ideal for 60A BMS and 3000W+ builds.
Anderson Powerpole
Standard modular terminal. Clean slide-in fit for matching harnesses.
XT60 / Custom Options
Need bare wire leads or a specific terminal? Leave a note at checkout.
Pro Tip: All leads use heavy-duty pure copper silicone wire. Factory-soldered and sealed to handle high continuous amp draw without melting.

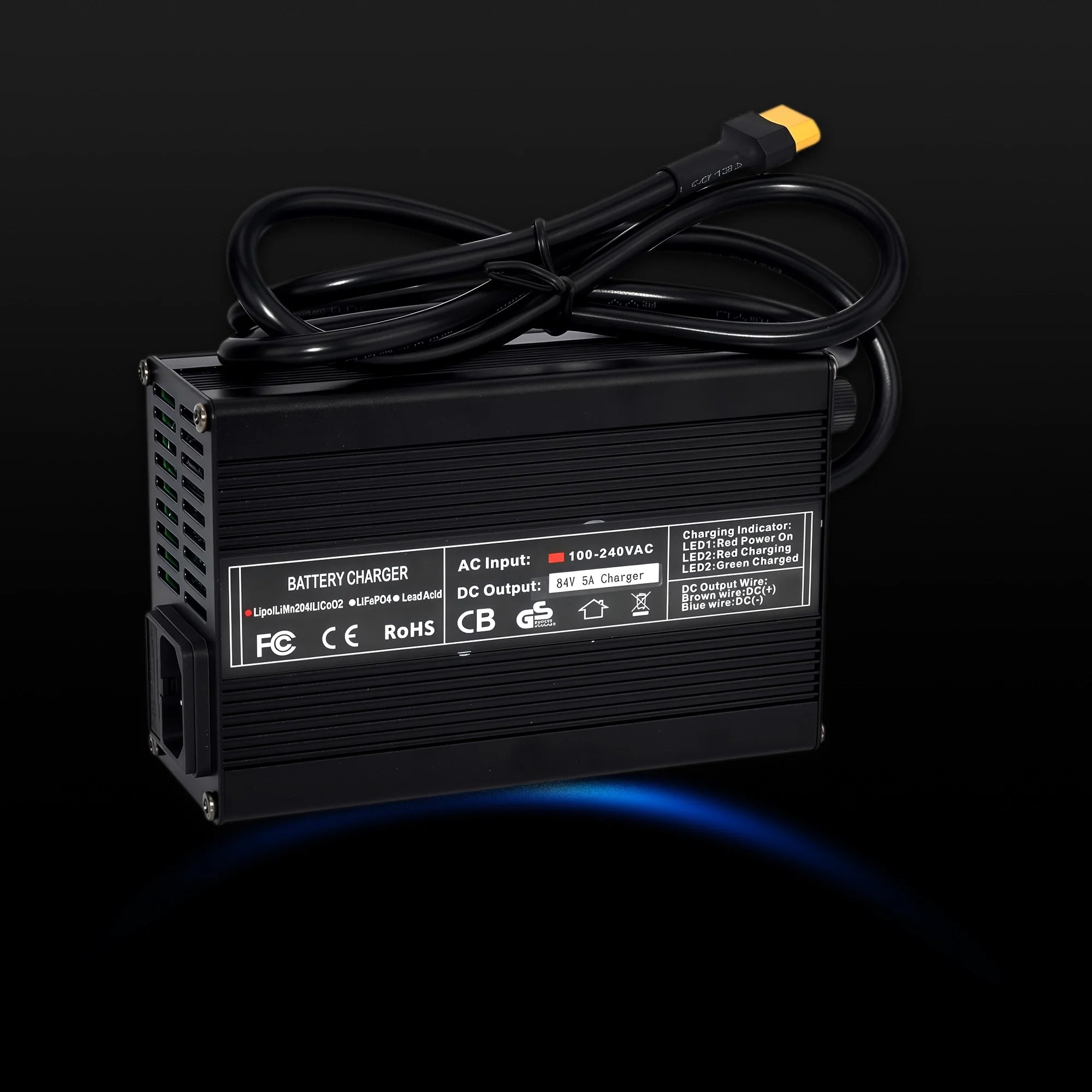

84V 5A Smart Fast Charger

4 to 5 hour full refuel. Balanced 5A charge rate protects Samsung cell chemistry from heat degradation while cutting wait time in half.

Rugged Metal Housing
Impact-resistant alloy body dissipates heat rapidly during heavy garage duty.
Active Forced-Air Cooling
Built-in internal cooling fan kicks on under load to keep components cool.
Dual Fuse Safeguard
Dedicated 250V AC fuse plus 250V/10A DC output fuse prevent surges.
Standard AC Power Socket
Universal detachable cable socket for hassle-free wall outlet connection.
Red Light: Pack charging in progress (or check fault).
Green Light: Pack 100% full. Auto-cut trickle protection.

Frequently Asked Questions

Real answers to practical questions from riders and builders before hitting the trail.

Will this 72V triangle pack fit my bike frame?
Make a quick cardboard cutout of our pack outline (280mm slope × 220mm base × 175mm height × 90mm width) and place it inside your bike frame's triangle. Leave roughly 5–10mm of wiggle room around the perimeter for mounting straps and your main wiring harness.
Which BMS rating should I order: 30A, 40A, or 60A?
Check your motor controller’s maximum current limit. Pick 30A for motors up to 1500W, 40A for motors up to 2000W, and 60A for builds pushing 2500W–3000W. If your controller pulls 45A peak, go with the 60A BMS to prevent safety cutoffs during hard throttle hits.
Will the 5A fast charger degrade the Samsung 50G cells?
Not at all. With a 4-parallel (4P) setup, the 5A charging current splits evenly to just 1.25A per Samsung 21700 cell, which is well below Samsung’s rated standard charging spec. It refuels the pack in 4–5 hours without thermal buildup or shortened cell cycle life.

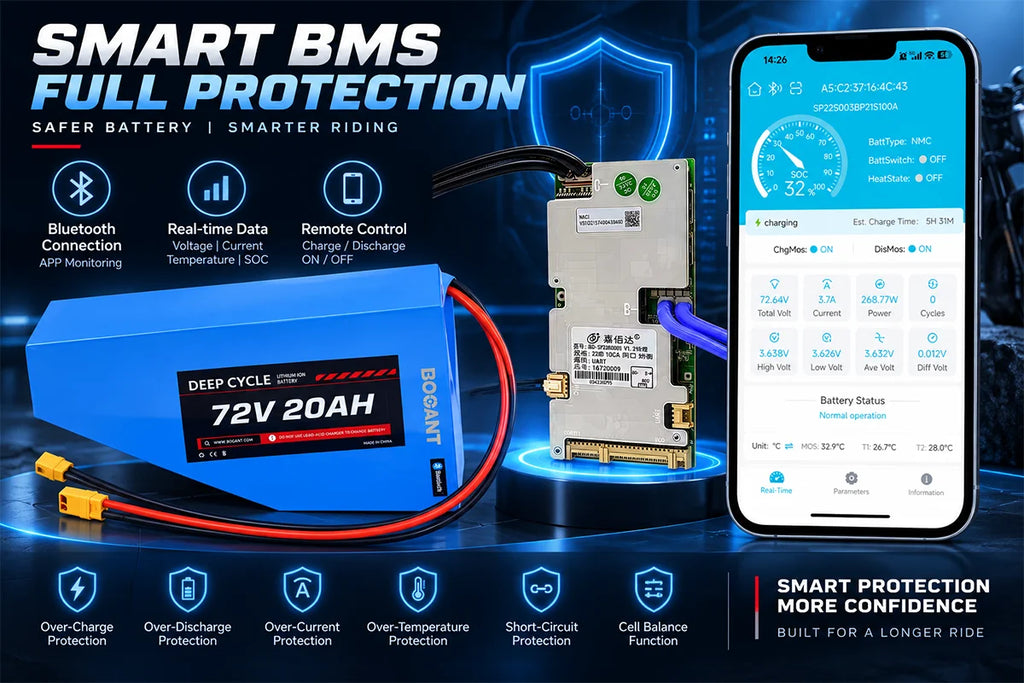

How does the JBD Bluetooth BMS work and can I shut off power?
Download the Xiaoxiang/Smart BMS app on iOS or Android and connect to the battery over Bluetooth. You get live views of individual cell voltages, pack temperature, and remaining amp-hours. You can also toggle the discharge MOSFET switch in the app to shut down power delivery as an extra anti-theft measure.
Is this battery waterproof for rainy days and wet trails?
The pack is weather-resistant against road splashes and rain showers thanks to thick heat shrink wrap, internal epoxy barrier plates, and a sealed top jacket. However, it should never be pressure-washed or submerged in water. For wet riding, we always recommend running a waterproof triangle battery frame bag.
What is the best way to store this 72V pack over winter?
Store it indoors in a dry place between 50°F and 70°F (10°C to 20°C). Charge or discharge the pack to around 50%–60% capacity (roughly 72V–74V resting voltage) before storing. Never leave it sitting at 0% or fully topped up at 84V for months at a time, and check it every 60 days.

Built-To-Order & Delivery Pipeline

Zero sitting shelf inventory. Every pack is freshly built with verified Grade-A chemistry and benchmarked before dispatch.

Step 01 • Assembly
Fresh Built-To-Order
Custom assembled directly per order rather than aged shelf stock. Ensures maximum fresh chemistry and zero initial capacity loss.
Step 02 • Validation
Full Stress & BMS Test
Every completed pack runs a full charge-discharge cycle to verify capacity, cell balancing, and thermals before boxing.
Step 03 • Freight
Door-to-Door Delivery
Direct tracked delivery via FedEx/UPS/DPD in 15–20 business days. All import customs clearance and taxes fully covered.

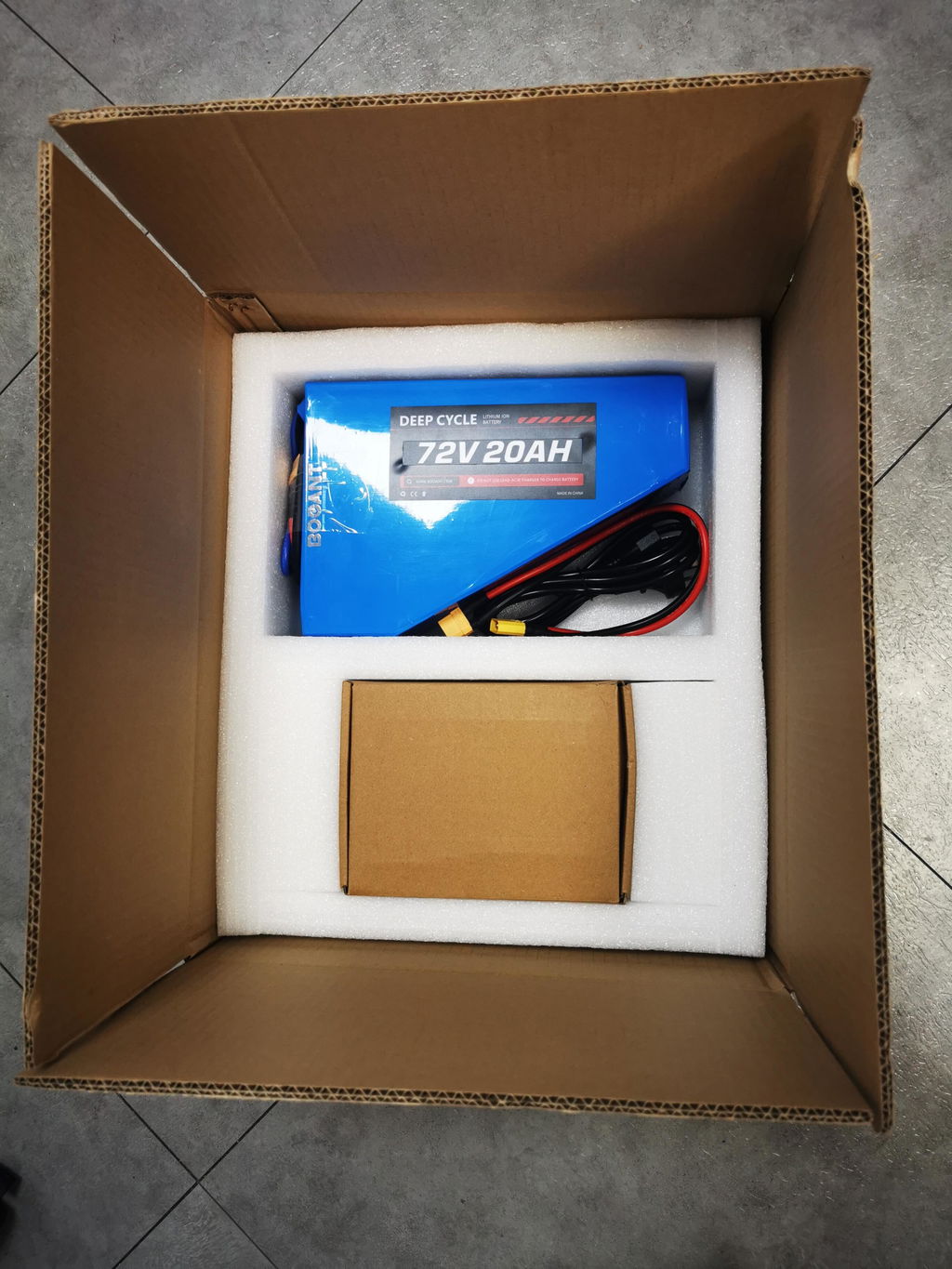

Transit Assurance: Packaged in UN-certified dangerous goods cartons with dense custom-cut EPE foam padding for complete impact isolation during air and road freight.
