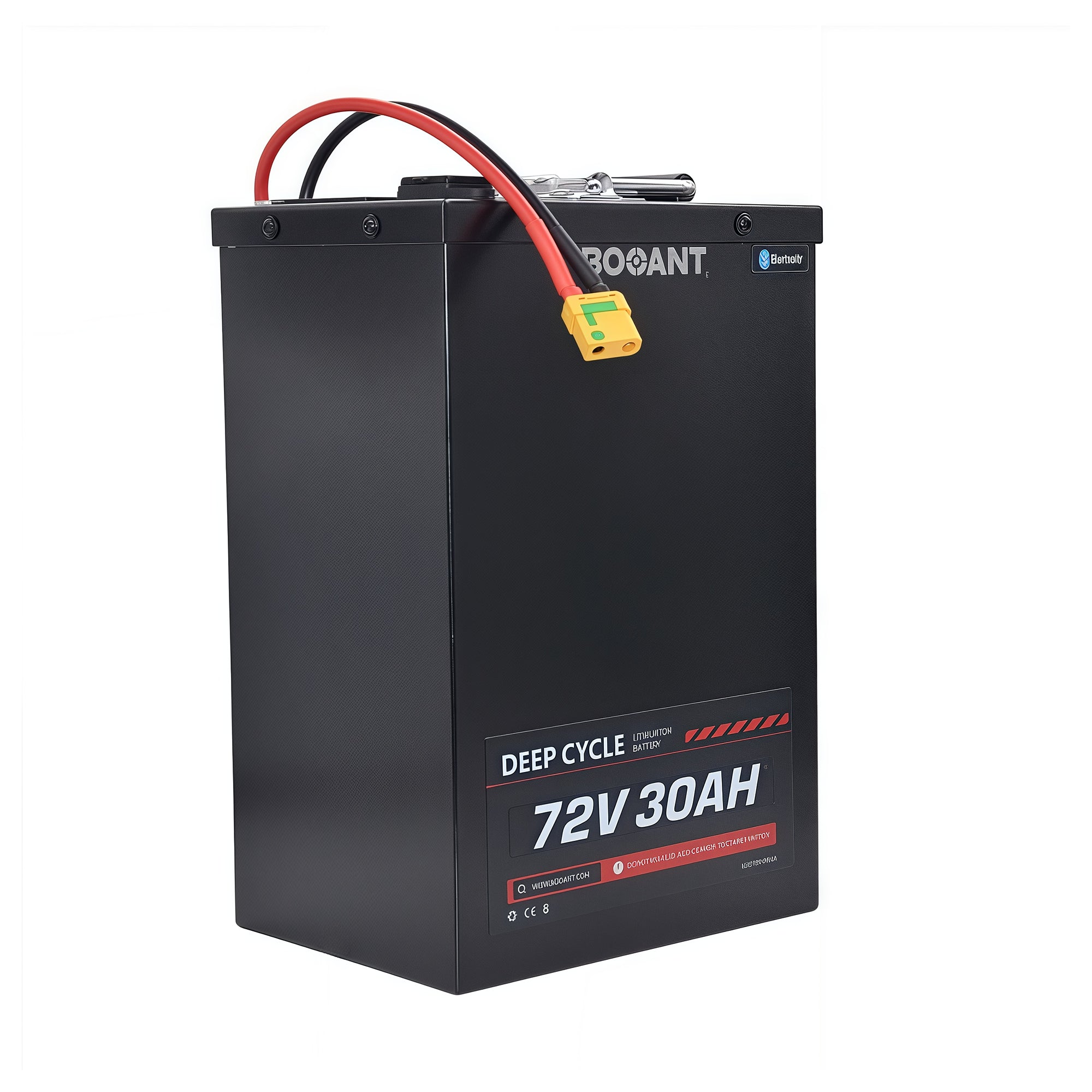

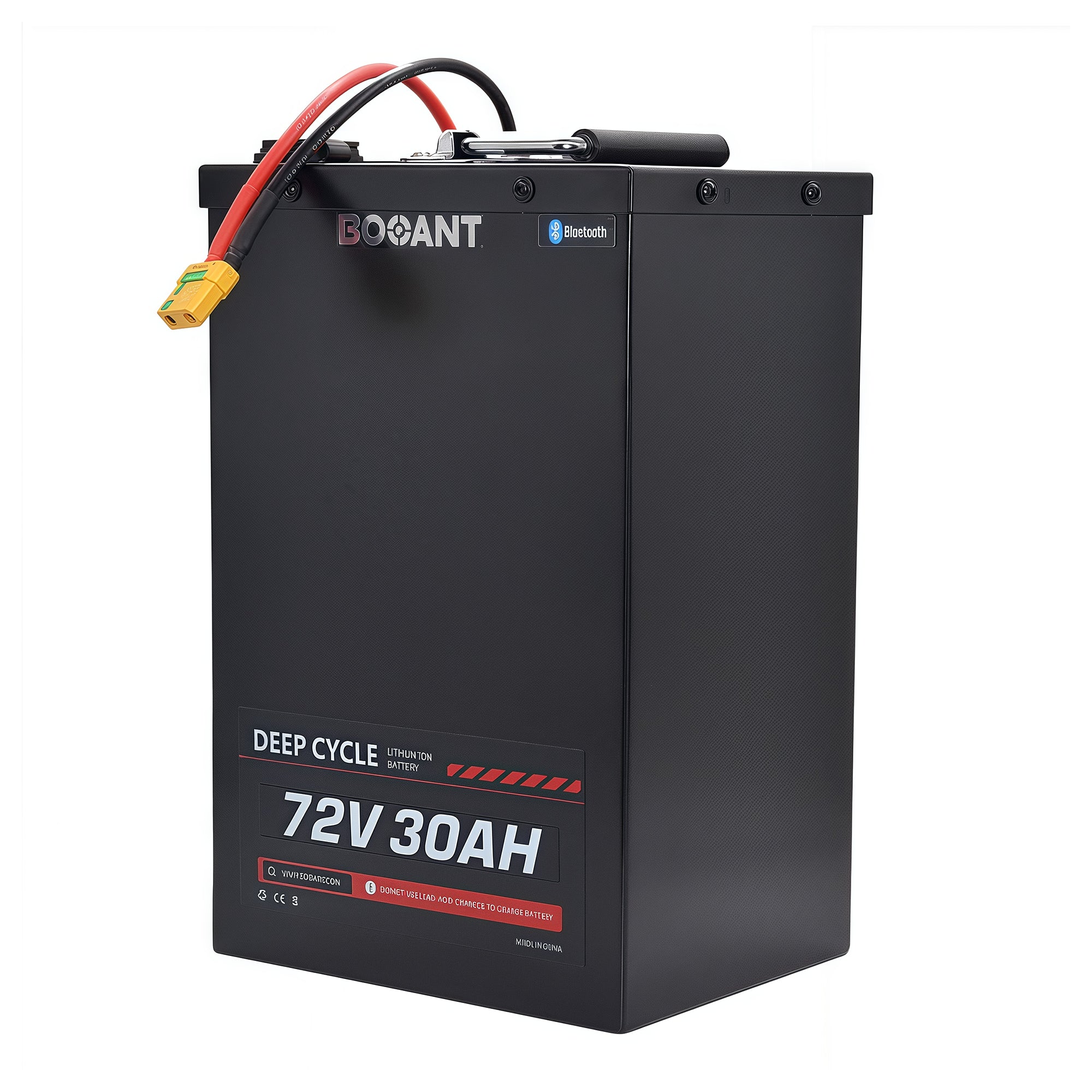

BOOANT 72V 30Ah metal eBike battery front view with 72V 30Ah label

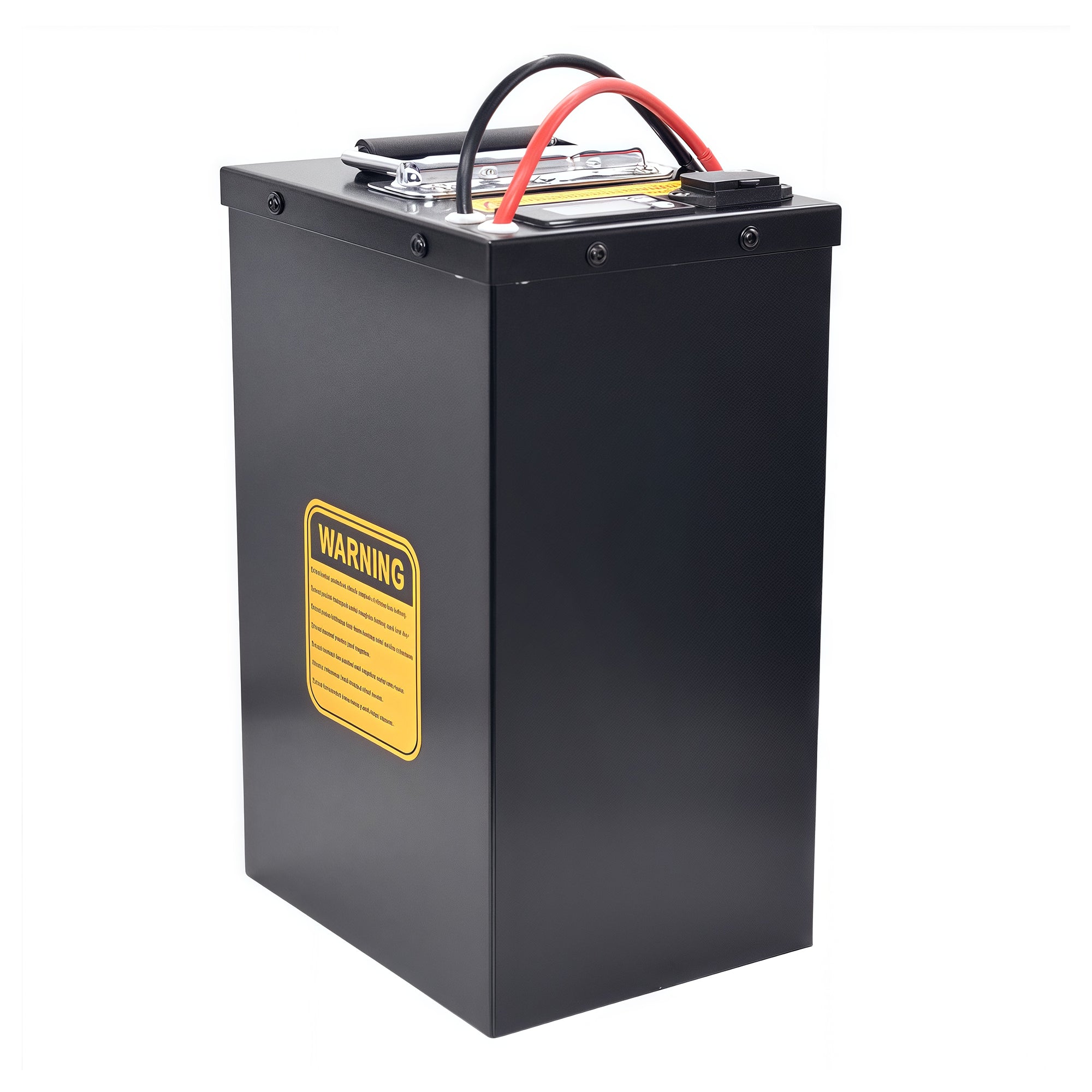

BOOANT 72V 30Ah metal eBike battery back view with warning label
Two BOOANT 72V 30Ah metal eBike batteries side by side front view
Two BOOANT 72V 30Ah metal eBike batteries front and back view

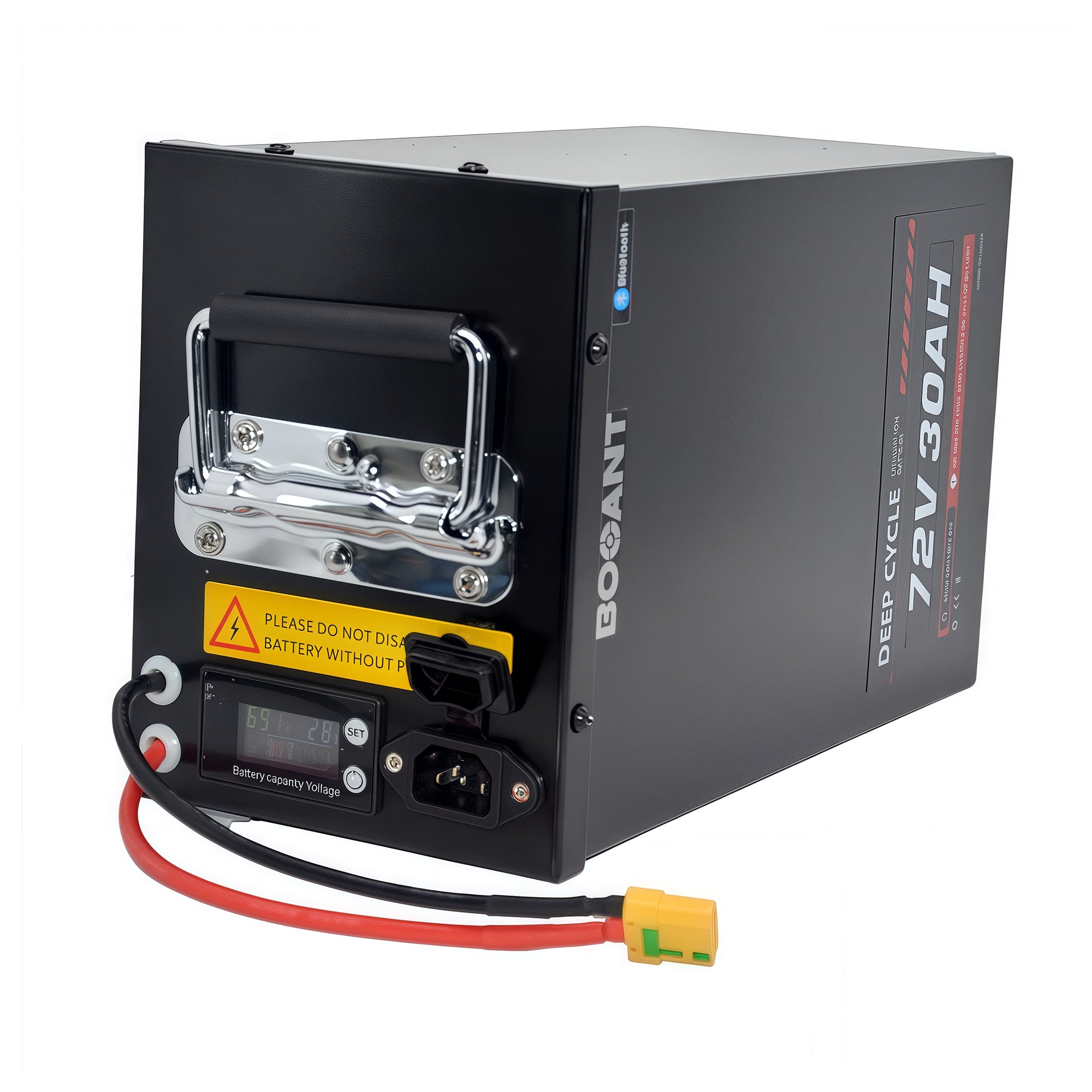

BOOANT 72V 30Ah metal eBike battery top view with SUPNOVA display and handle

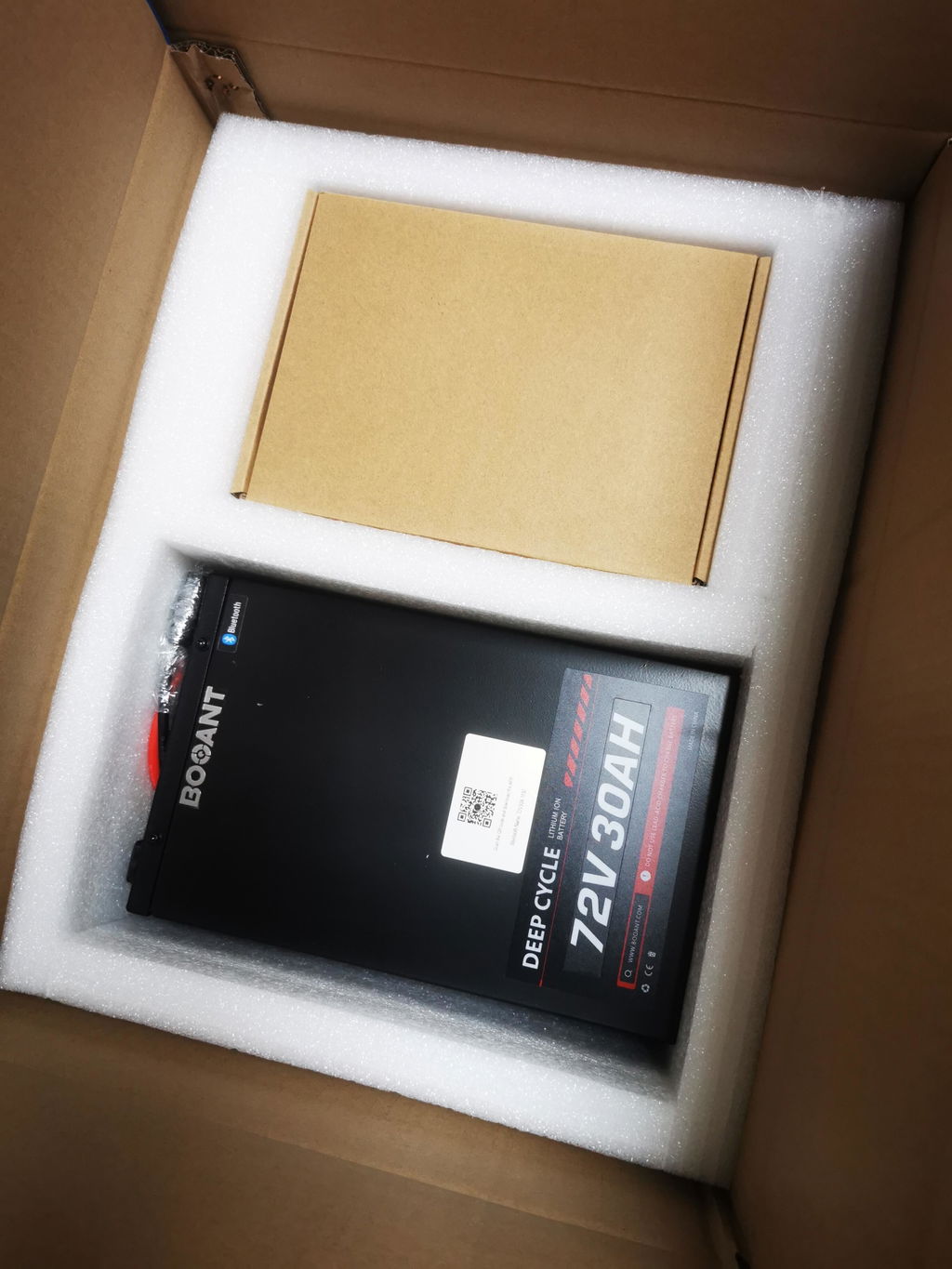

BOOANT 72V 30Ah metal eBike battery in foam lined shipping box
BOOANT 72V 30Ah metal eBike battery JK App showing 20 cell voltages
BOOANT 72V 30Ah metal eBike battery front view with 72V 30Ah labelTAP PHOTO TO ZOOM · TAP OUTSIDE PHOTO TO CLOSE · USE ARROWS TO BROWSE
BOOANT 72V 30Ah metal eBike battery back view with warning labelTAP PHOTO TO ZOOM · TAP OUTSIDE PHOTO TO CLOSE · USE ARROWS TO BROWSE
Two BOOANT 72V 30Ah metal eBike batteries side by side front viewTAP PHOTO TO ZOOM · TAP OUTSIDE PHOTO TO CLOSE · USE ARROWS TO BROWSE
Two BOOANT 72V 30Ah metal eBike batteries front and back viewTAP PHOTO TO ZOOM · TAP OUTSIDE PHOTO TO CLOSE · USE ARROWS TO BROWSE
BOOANT 72V 30Ah metal eBike battery top view with SUPNOVA display and handleTAP PHOTO TO ZOOM · TAP OUTSIDE PHOTO TO CLOSE · USE ARROWS TO BROWSE
BOOANT 72V 30Ah metal eBike battery in foam lined shipping boxTAP PHOTO TO ZOOM · TAP OUTSIDE PHOTO TO CLOSE · USE ARROWS TO BROWSE
BOOANT 72V 30Ah metal eBike battery JK App showing 20 cell voltagesTAP PHOTO TO ZOOM · TAP OUTSIDE PHOTO TO CLOSE · USE ARROWS TO BROWSE

72V 30Ah eBike Battery

2,160Wh for high-power e-moto builds. JBD Smart BMS, 84V 5A charger included.2,160Wh, JBD Smart BMS, 84V 5A charger.

2,160Wh
Energy
275×180×140 mm
Approx. 11.5 kg
120 × Samsung 50S
Genuine Cells

Built to order. Bench-tested before shipping.

Technical Specifications

Voltage72V nominal / 84.0V full / 60.0V cutoff
Capacity / Energy30Ah / 2,160Wh

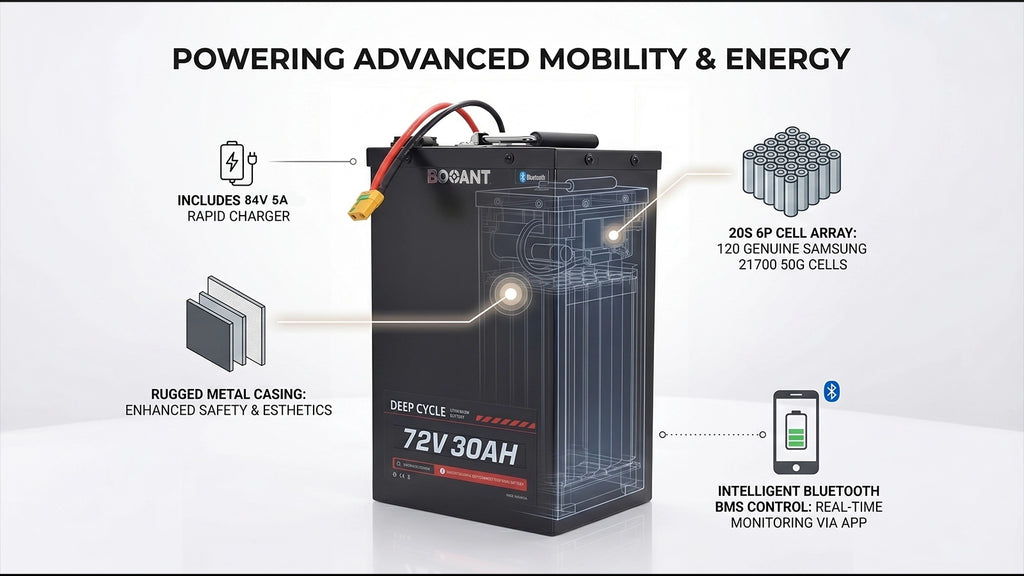

Cells120 × Genuine Samsung 50S, 20S6P
BMS60A / 80A / 100A (peak 180A / 240A / 300A)
Dimensions / Weight275 × 180 × 140 mm, ~11.5 kg (10.83 × 7.09 × 5.51 in, 25.35 lb)
Charger84V 5A Fast Charger, ~7 hours
Display / EnclosureSUPNOVA LCD display / Metal case
Cycle life / Warranty500 cycles to 70%, 2 years
TemperatureCharge 0–45°C / Discharge −20–60°C / Storage 0–35°C

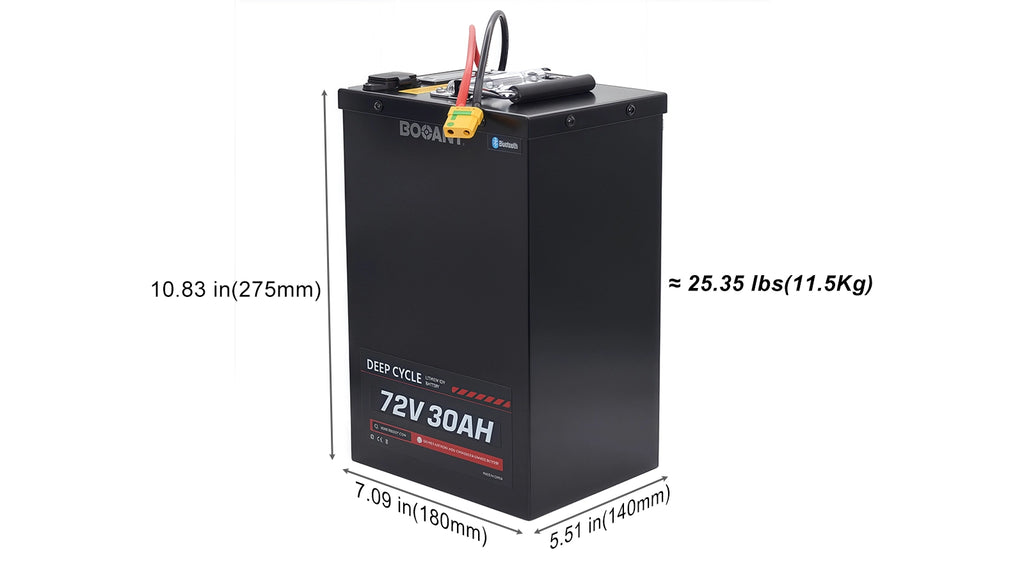

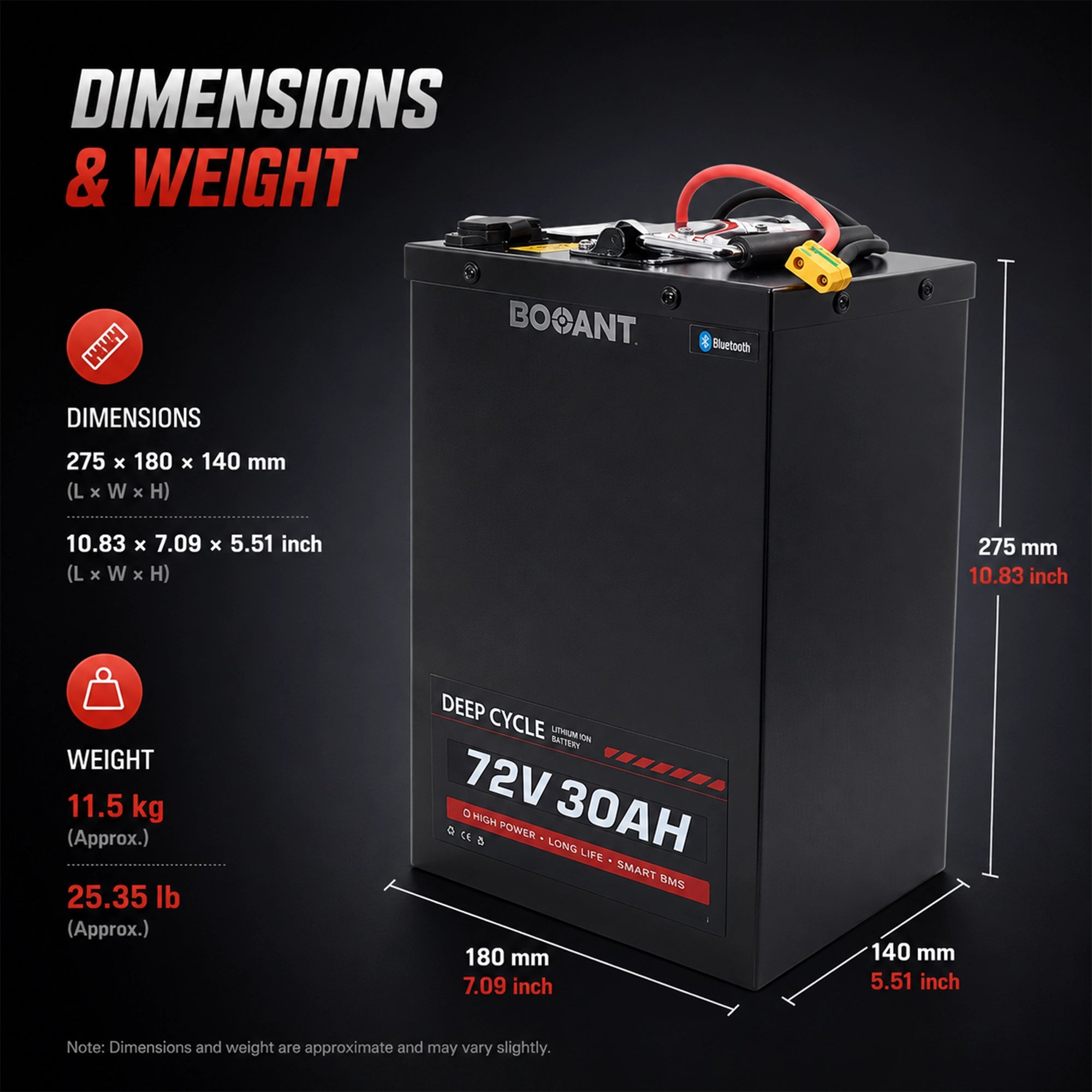

Fit check: Measure your battery bay. This metal case is 275 mm long, 180 mm wide, and 140 mm tall.

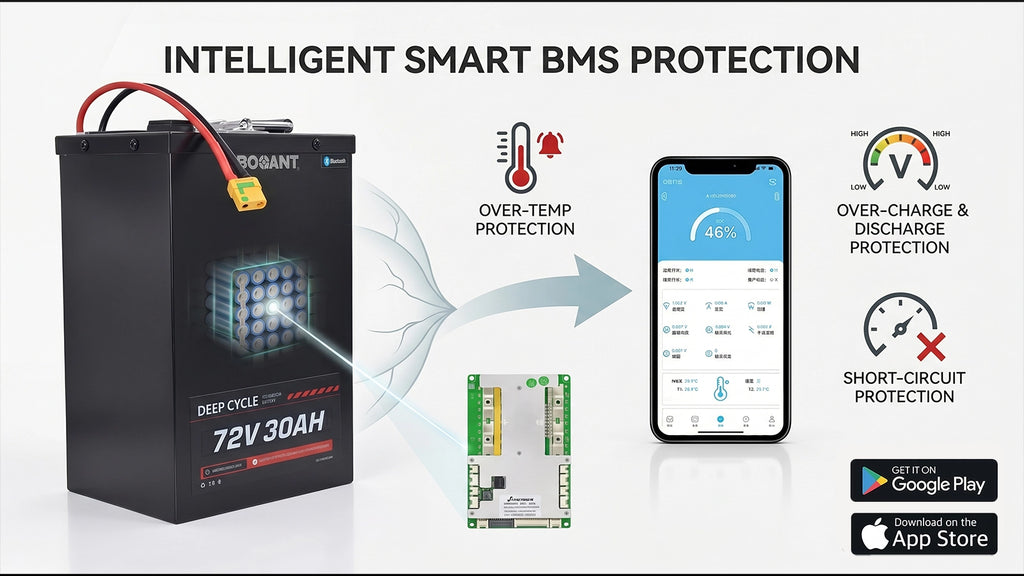

JBD Smart BMS

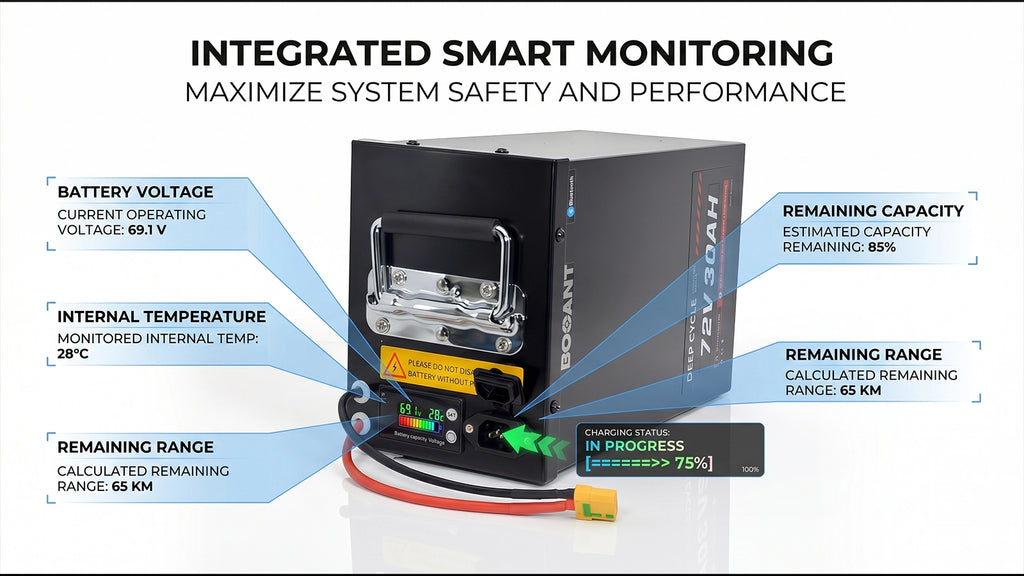

Your BOOANT battery uses a JBD Smart BMS with Bluetooth. Monitor every cell from your phone.JBD Smart BMS with Bluetooth App.

0A60A80A100A
60A
Up to 3500W
Peak 180A
Controller ≤50A
80A
Up to 5000W
Peak 240A
Controller ≤65A
100A
Up to 6000W
Peak 300A
Controller ≤80A
JBD AppMonitor voltage, cells, temperature. Protected against overcharge, short circuit, over-temperature.
Example3500W motor? 60A. 5000W motor? 80A. 6000W motor? 100A.
Don't overbuyBigger BMS doesn't add power or range.
Controller limit≤50A / ≤65A / ≤80A is a suggestion, not a protection setting.

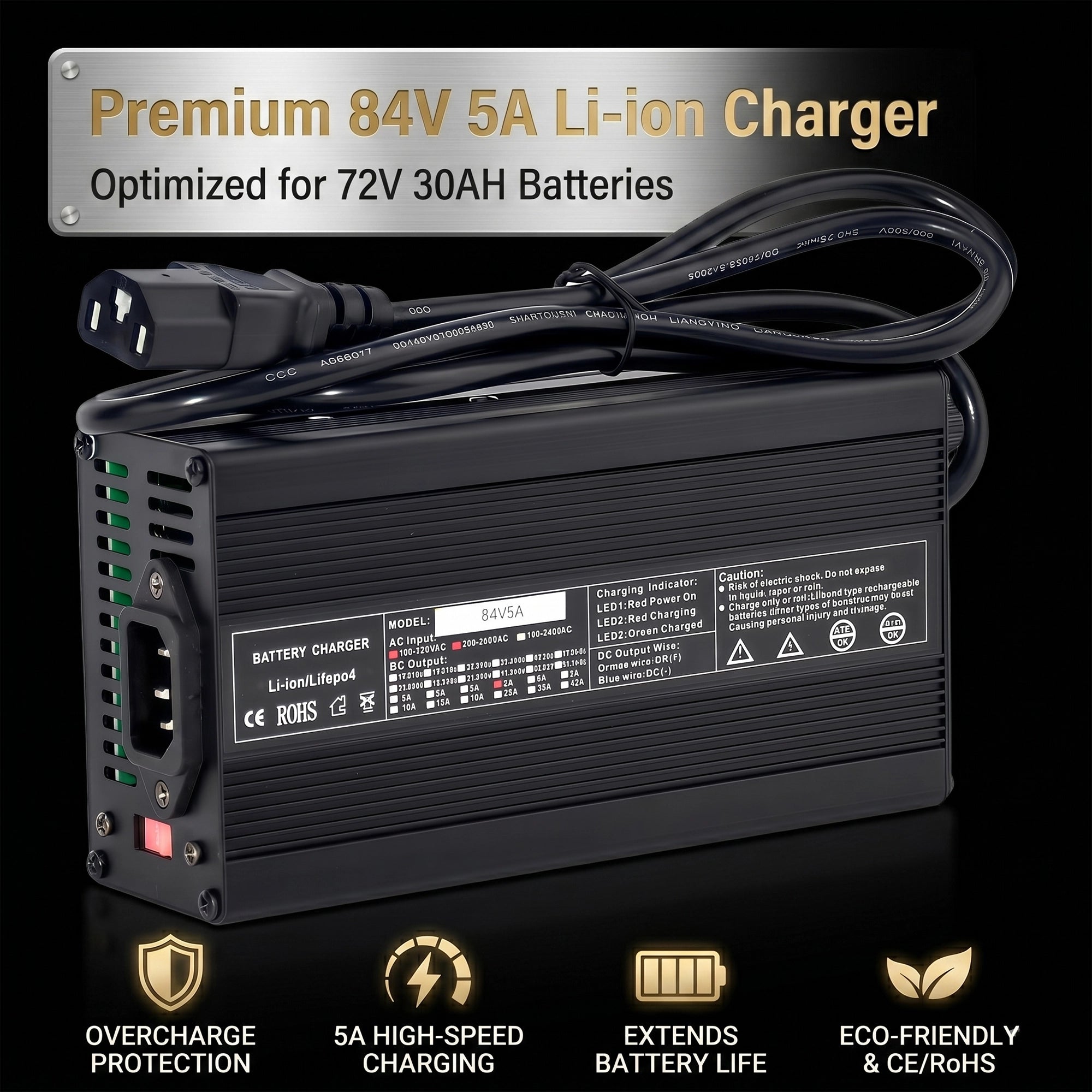

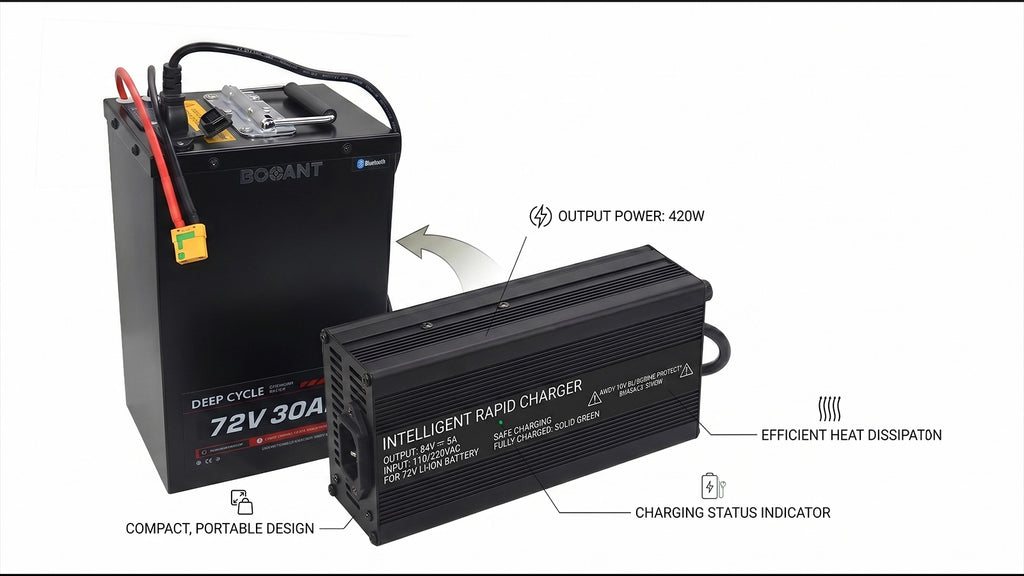

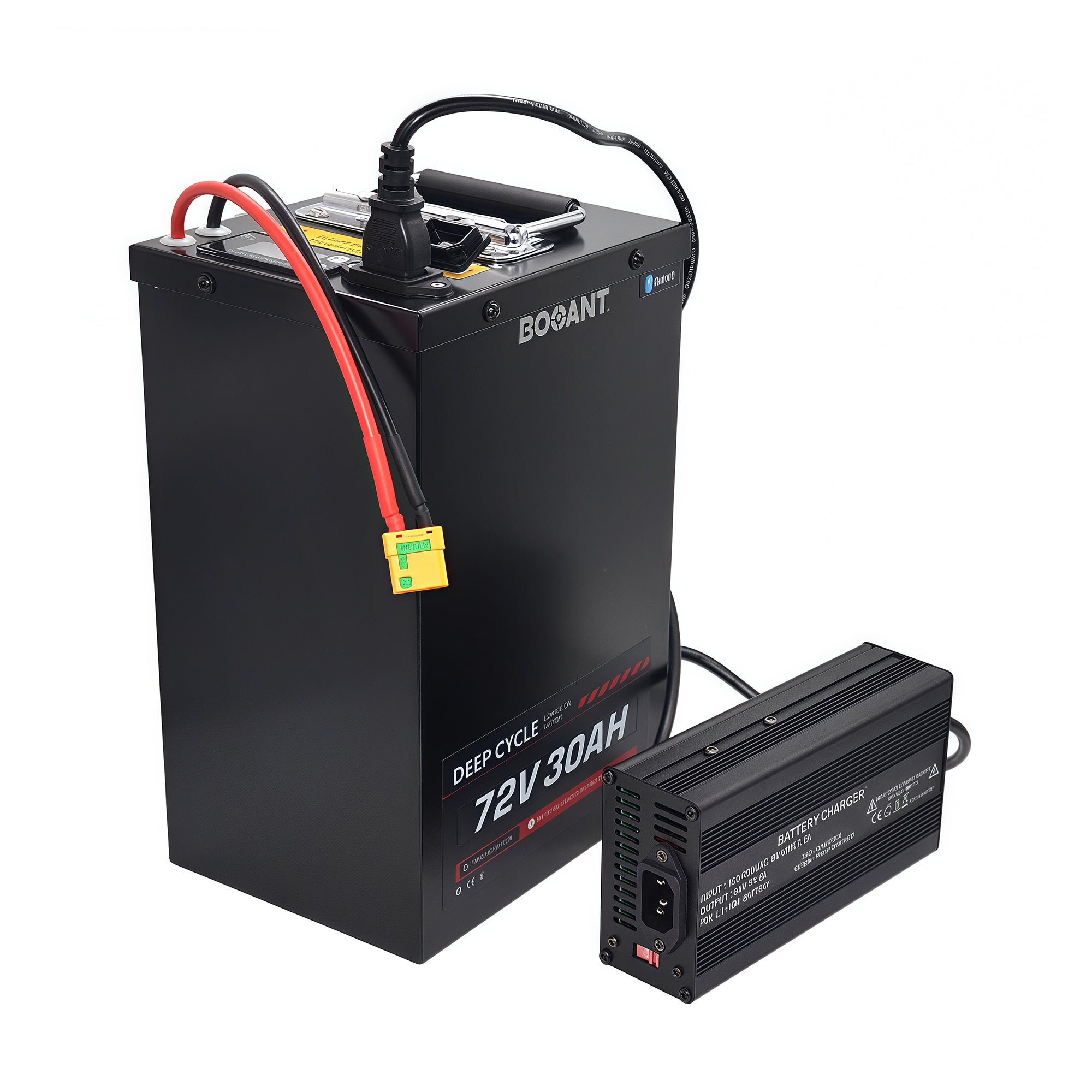

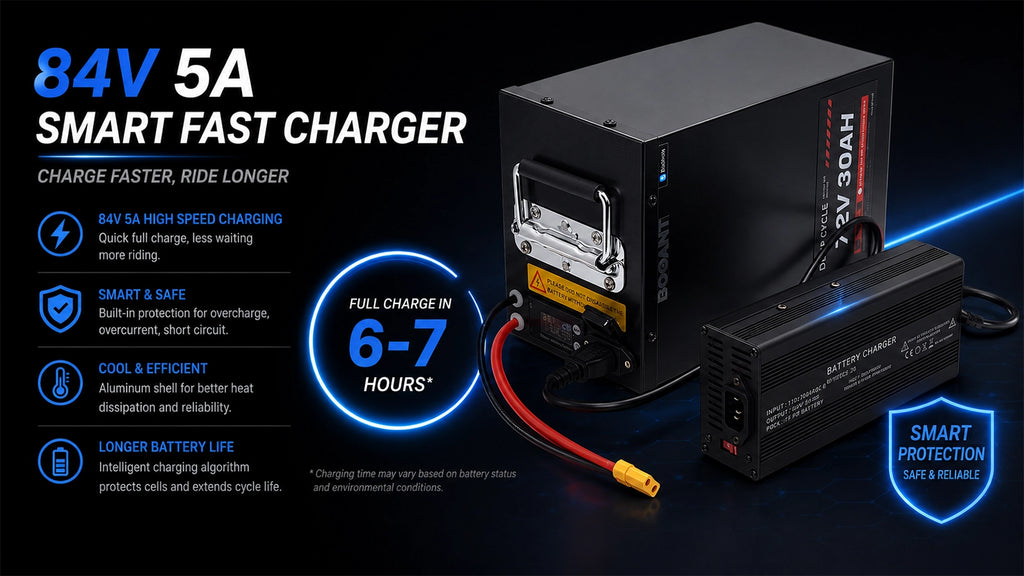

Fast Charger

About 7 Hours
84V 5A
Fuse
250V / 10A, external, replaceable
Power lead
AC power cord included, plug varies by country
Plug in / Unplug
Mains first, then battery. Battery first, then mains.
Charge rate
0.17C (5A / 30Ah), gentle on cells
Indicator
Red: charging or fault. Green: fully charged or standby on AC power.
Ventilation
Keep the fan clear. Don't cover the charger.

Warranty covers the pack only, not the charger.

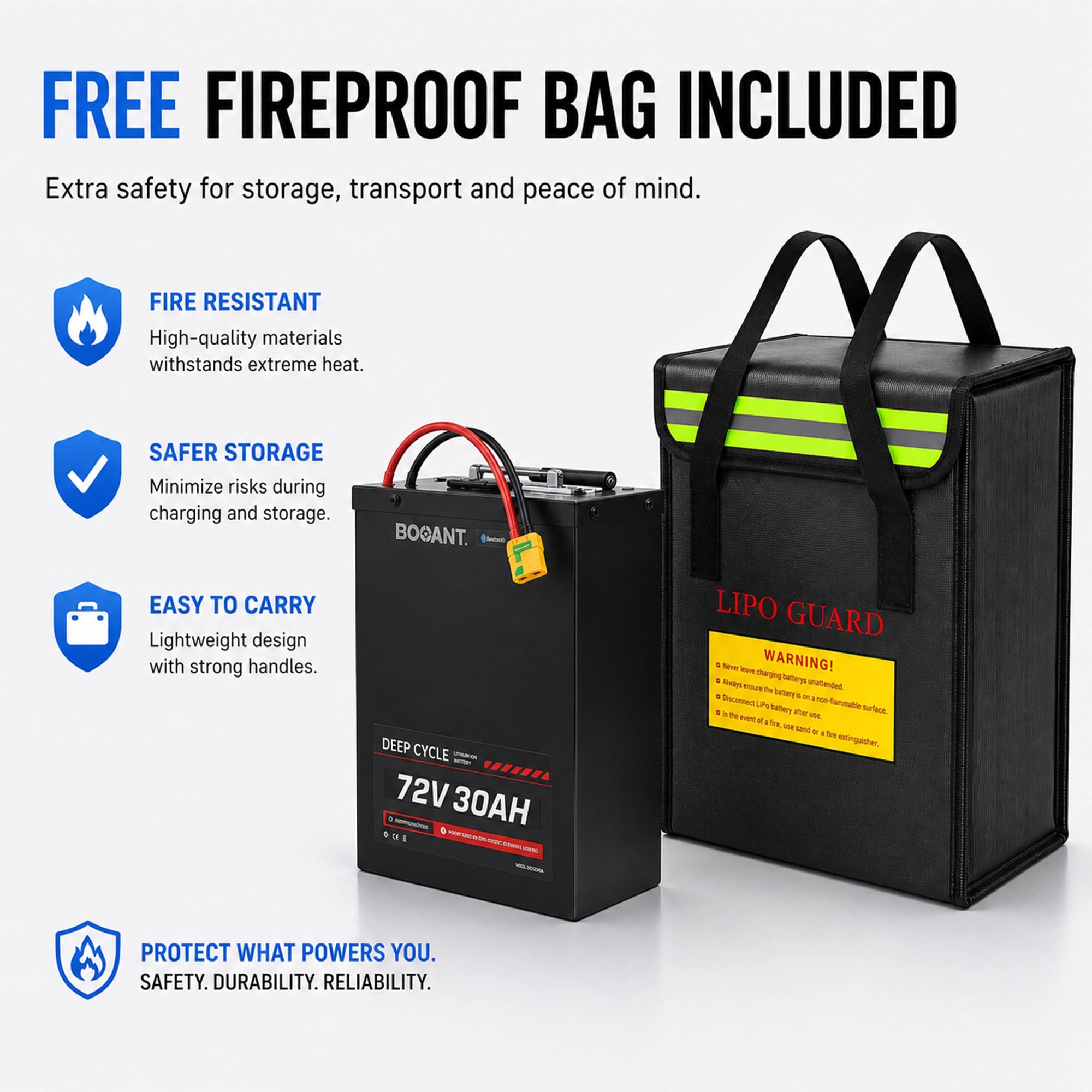

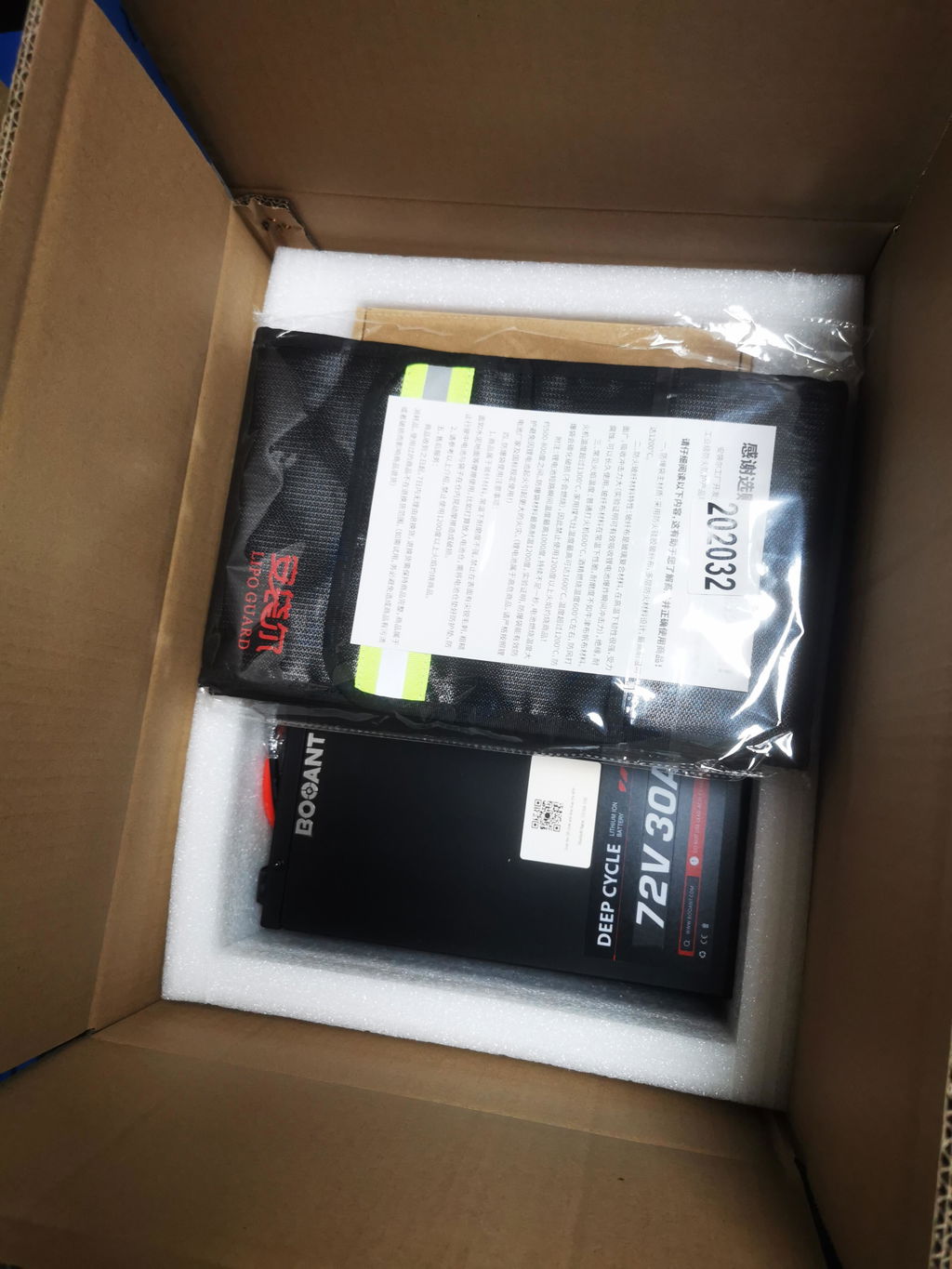

Fireproof Safety Bag IncludedStore and charge your battery in this bag. If a cell fails, the bag helps contain heat, reducing the risk to your home or garage.

Built Fresh. Ready to Ride.

Made fresh when you order, bench-tested before shipping. 2-year warranty (500 cycles to 70%).

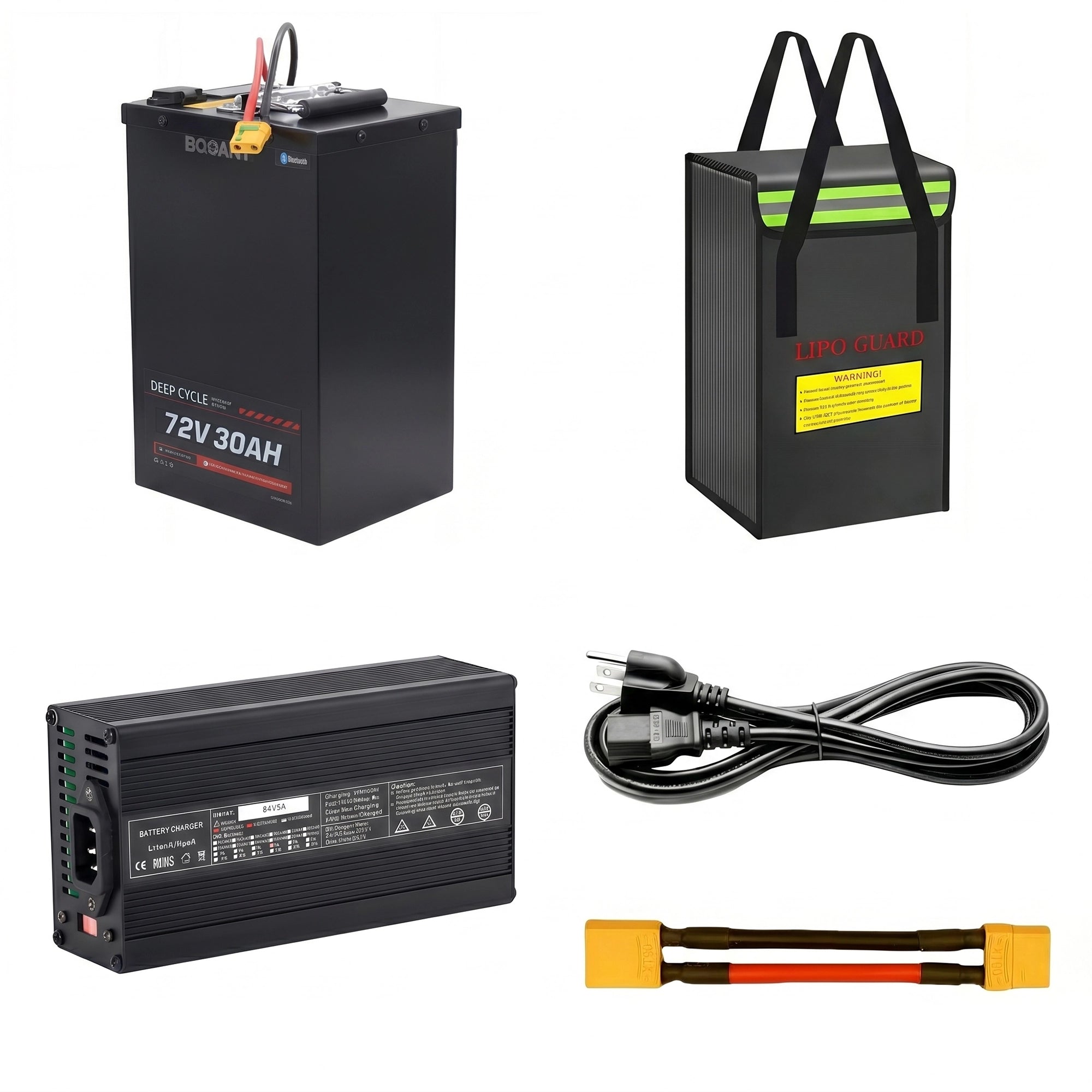

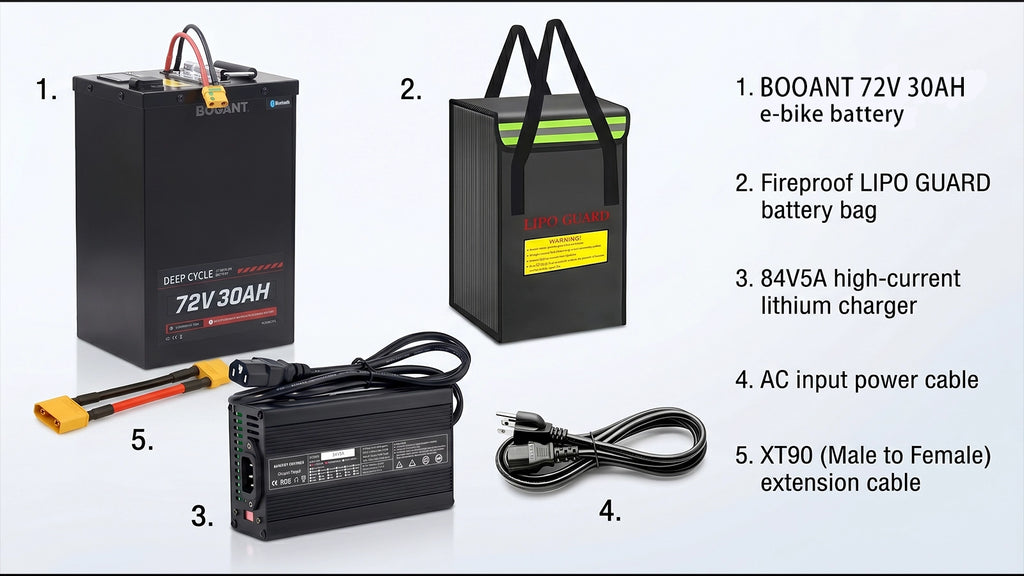

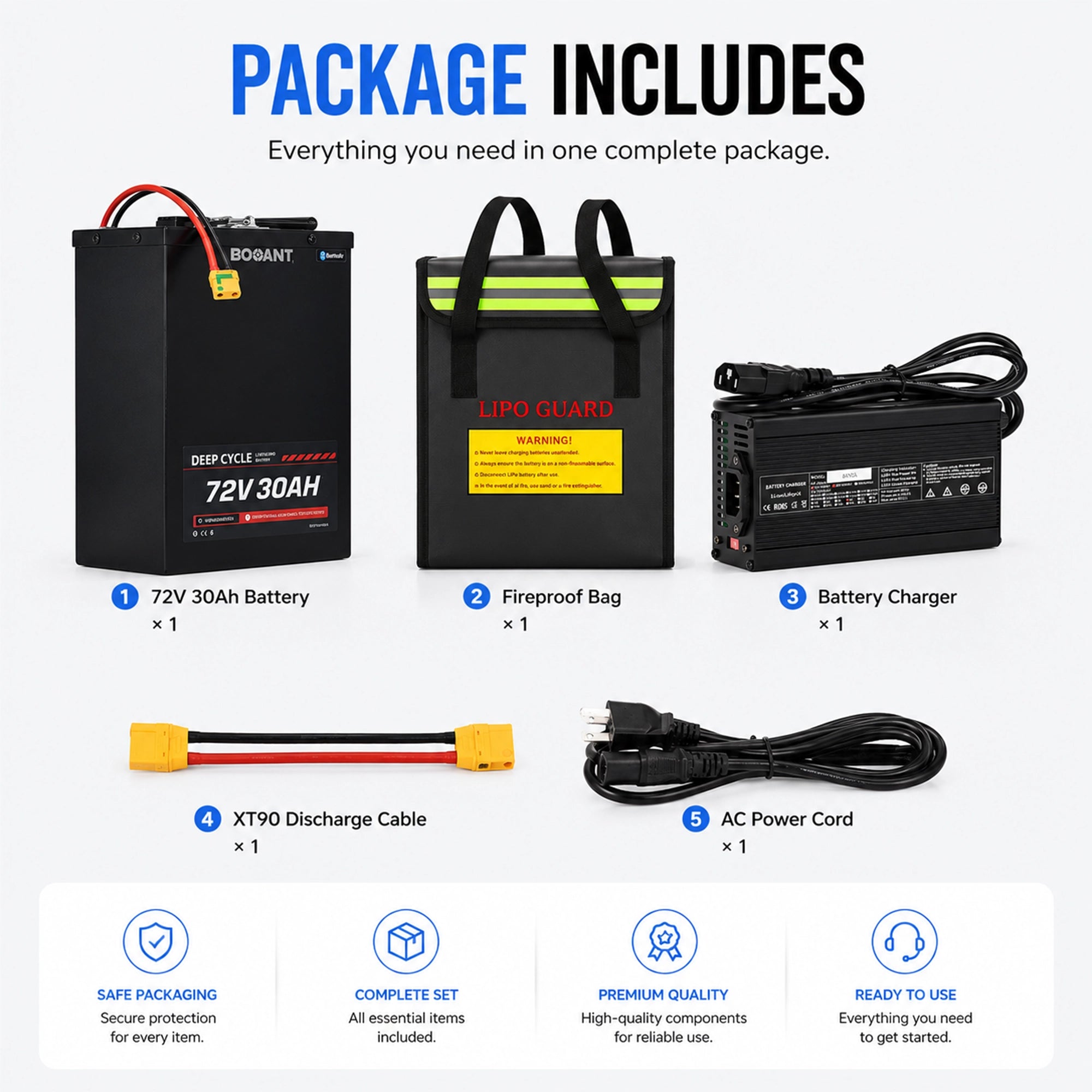

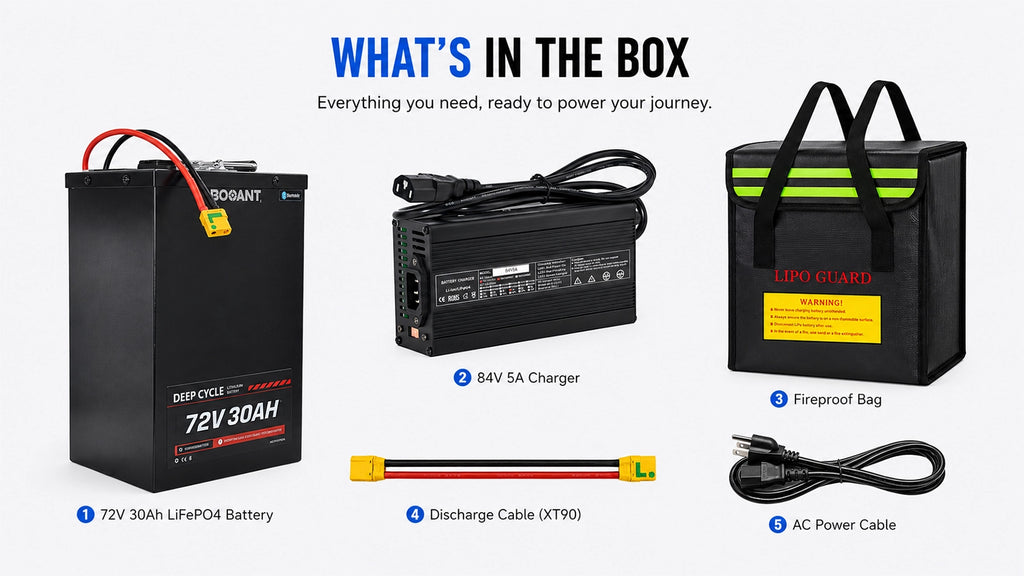

What's included
  • Battery pack (120 × Samsung 50S, 20S6P)
  • 84V 5A fast charger
  • AC power cord (plug varies by country)
  • Discharge lead with your chosen connector
  • Fireproof safety bag

Not sure about fit or BMS? Contact us with your motor power and frame size.

FAQ

What motor and controller can this battery handle?+
60A BMS: up to 3500W motor, controller ≤50A. 80A BMS: up to 5000W motor, controller ≤65A. 100A BMS: up to 6000W motor, controller ≤80A. Check your controller's max current before choosing.
Will it fit my bike?+

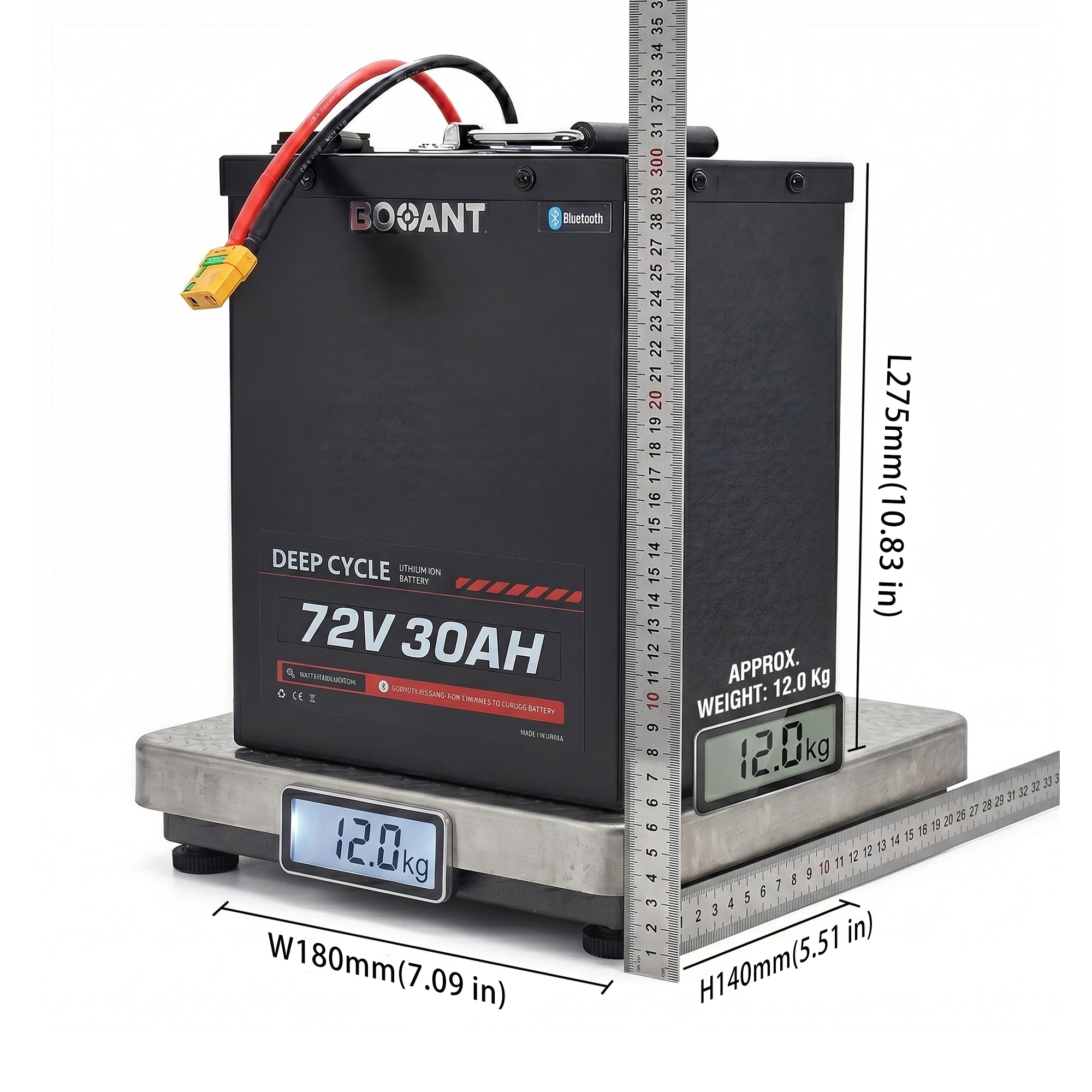

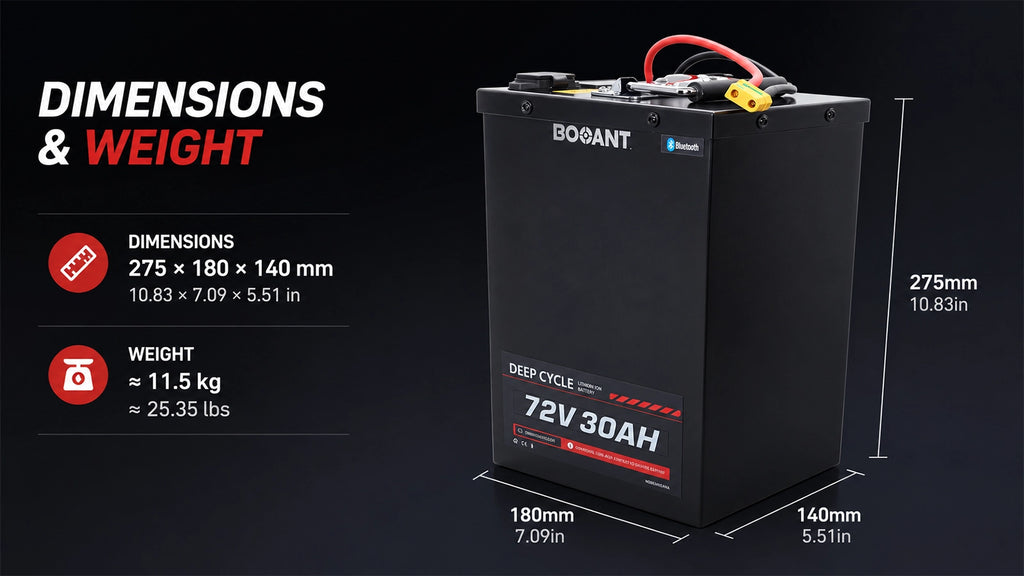

The metal case is 275 × 180 × 140 mm (10.83 × 7.09 × 5.51 in), approx. 11.5 kg (25.35 lb). Measure your battery bay before ordering. The metal case cannot be squeezed or reshaped.

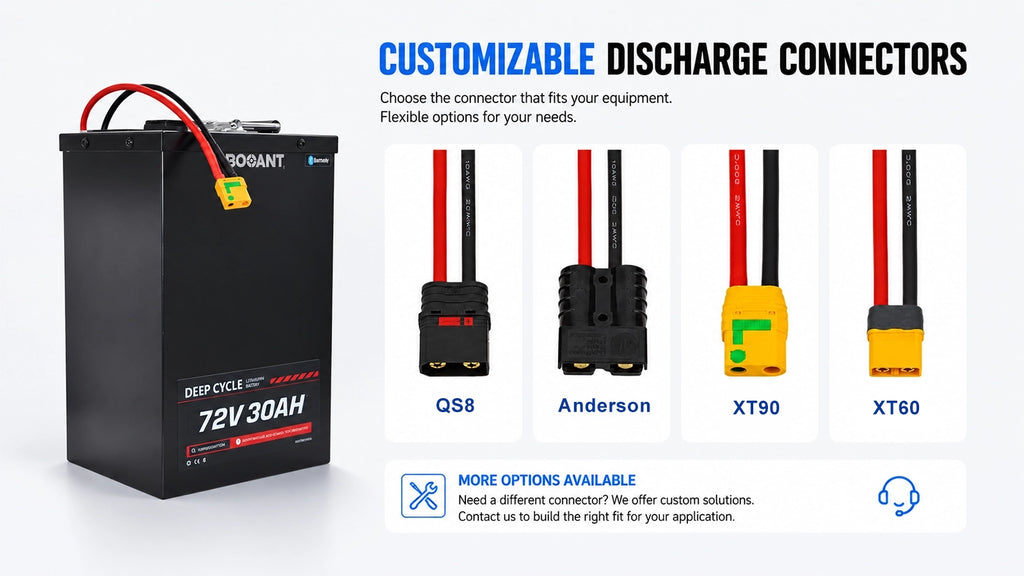

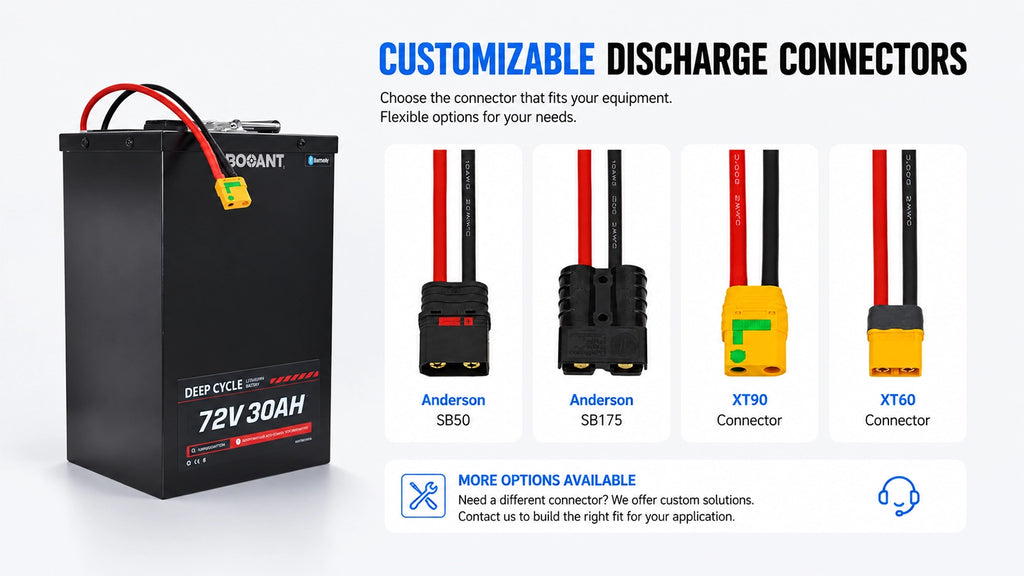

Which connector should I choose?+
QS10 (220A) or QS8 (180A) for 100A BMS. Anderson SB120 (120A) for 80A/100A BMS. XT90F/M (90A) fits 60A BMS only. Pick a connector rated above your BMS current.
Does it have a display?+

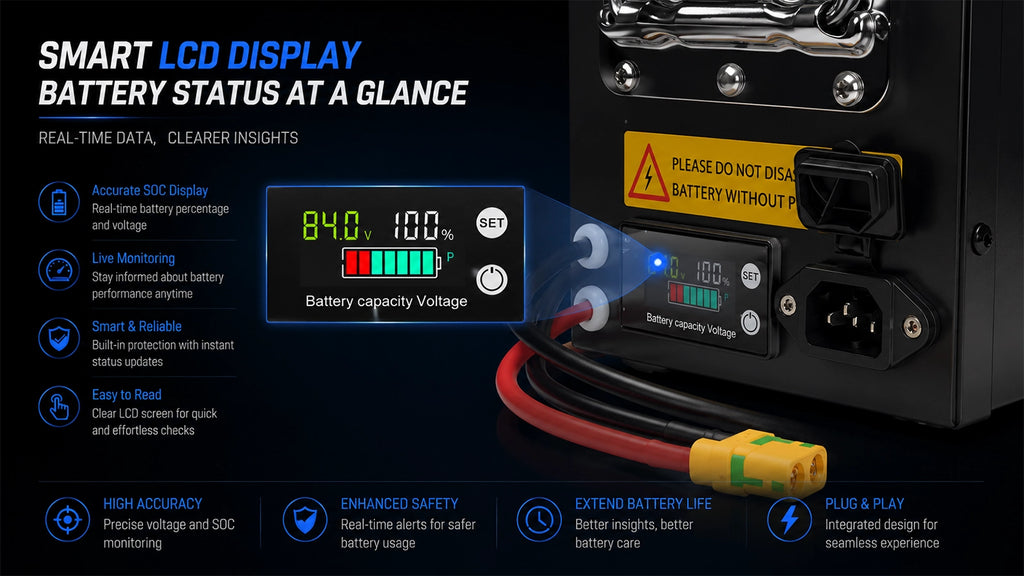

Yes, it uses a SUPNOVA LCD display that shows battery voltage and status. You can also monitor every cell from your phone with the JBD Smart BMS App.
Is it waterproof?+

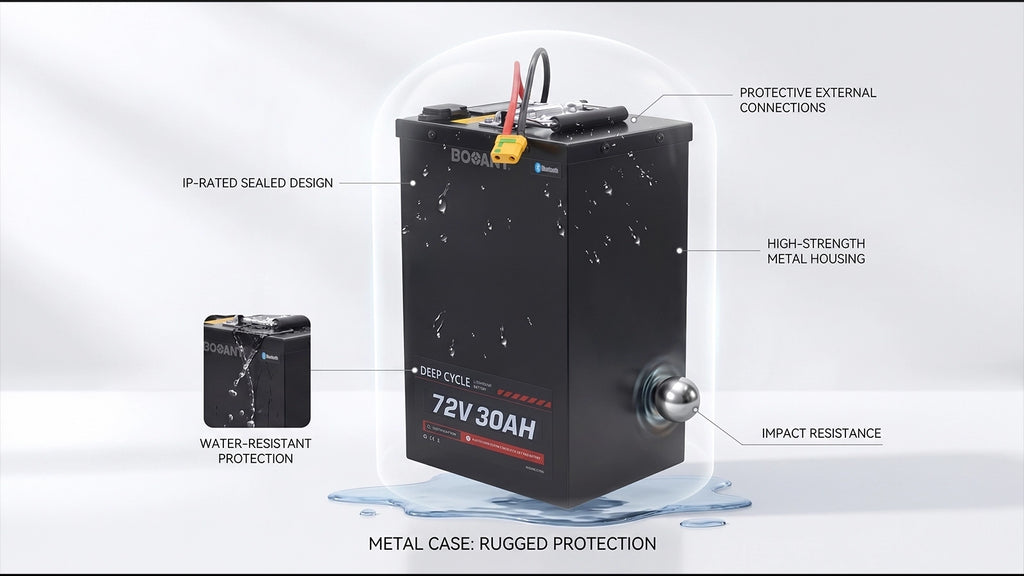

Water-resistant, not waterproof. The metal case has waterproof sealant inside, but do not submerge it or ride through deep water.
How far can I ride?+
Range depends on your motor power, riding style, terrain, and rider weight. At 2,160Wh, this pack gives extended range for high-power builds. Aggressive full-power riding drains it faster than moderate cruising.
How long does charging take?+
About 7 hours with the included 84V 5A fast charger.
What is the warranty?+
2 years, 500 cycles to 70%. Covers the pack only, not the charger.
